PSMCBT Temperatures Check
Summary
| Date start | 2023:177:05:19:40.516 |
| Date stop | 2023:183:16:42:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/JUN2623/oflsa |
| Run time | Thu Oct 8 16:08:51 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

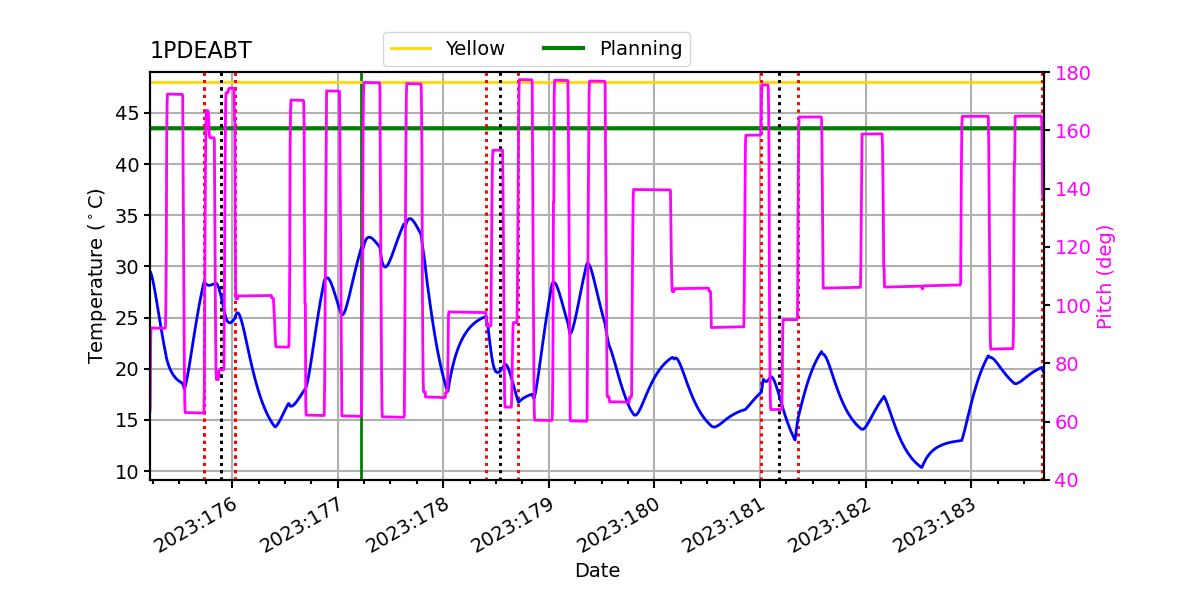

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.45 | -2.56 | -1.77 | -0.12 | 1.52 | 2.38 | 3.16 |
| pitch | -9.020 | -0.420 | -0.004 | -0.000 | 0.004 | 0.227 | 10.561 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.112 | -0.071 | -0.006 | 0.000 | 0.006 | 0.063 | 1.529 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.45 | 2.50 |
| PITCH | 1 | -9.02 | 3.00 |
| PITCH | 99 | 10.561 | 3.00 |

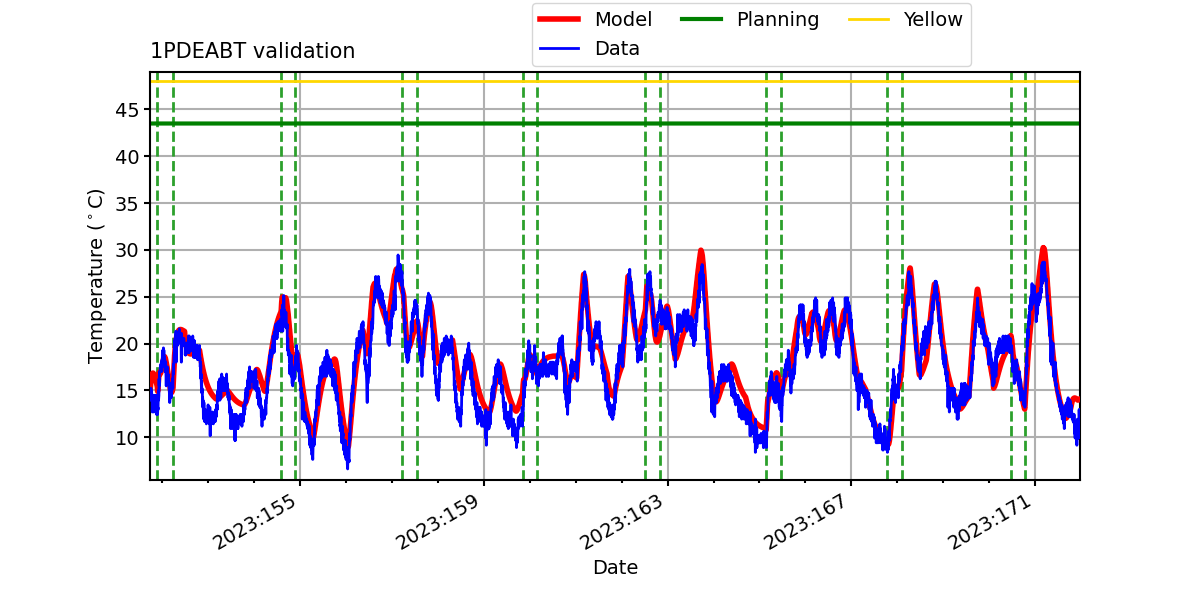

1PDEABT

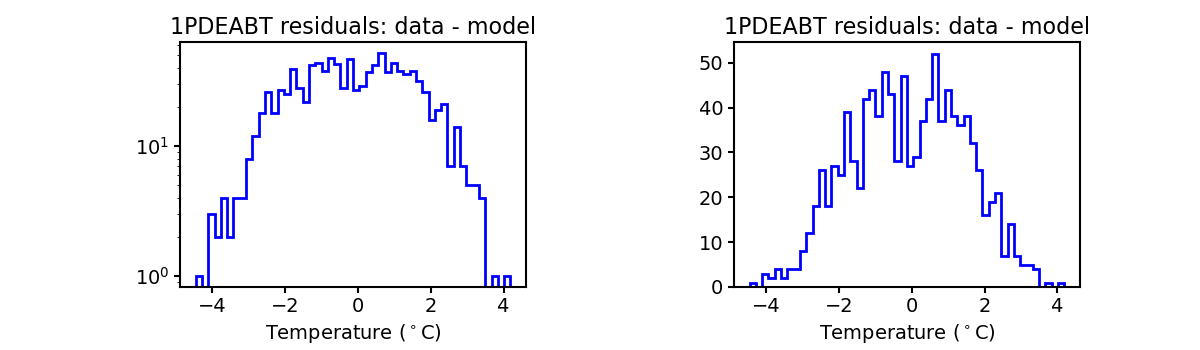

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.
PITCH

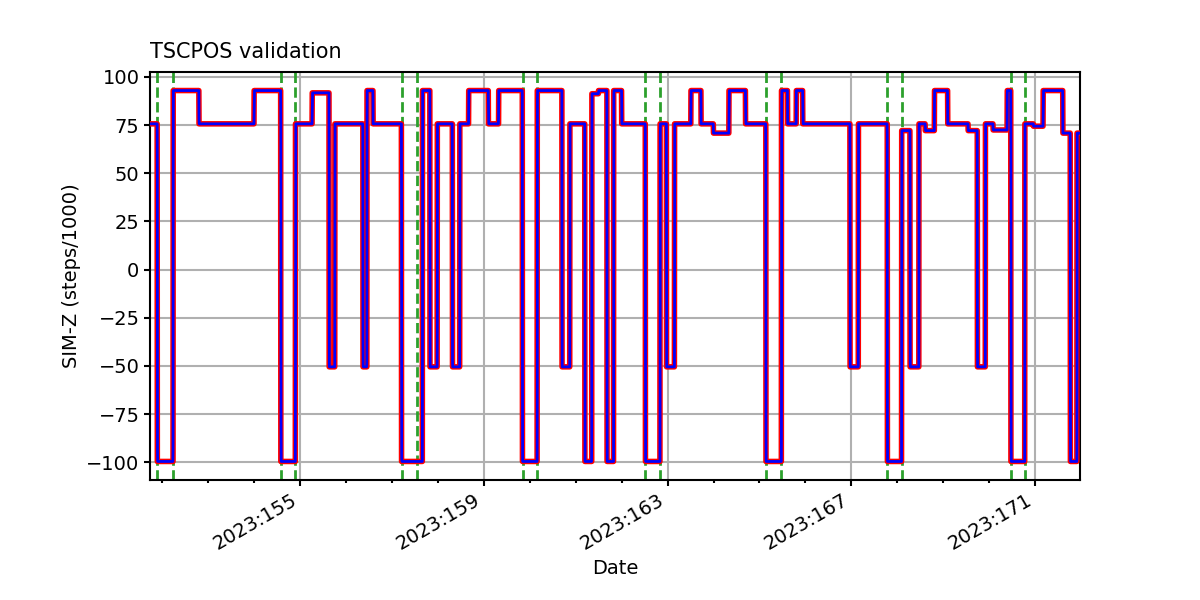

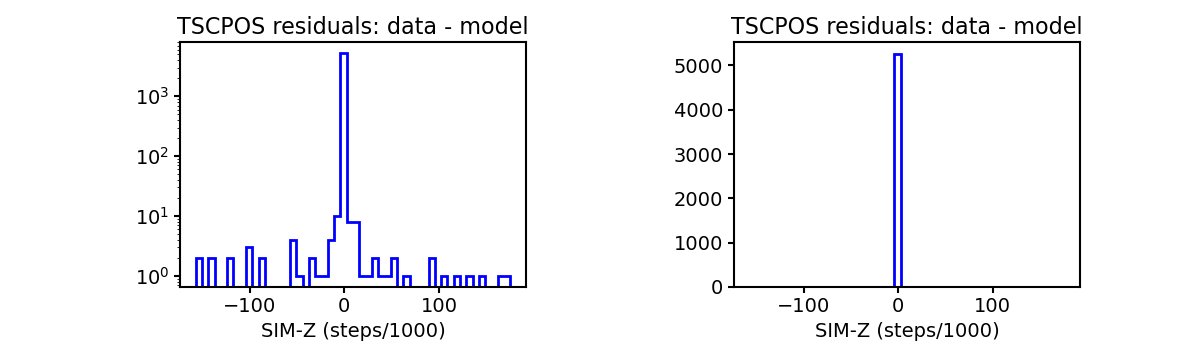

TSCPOS

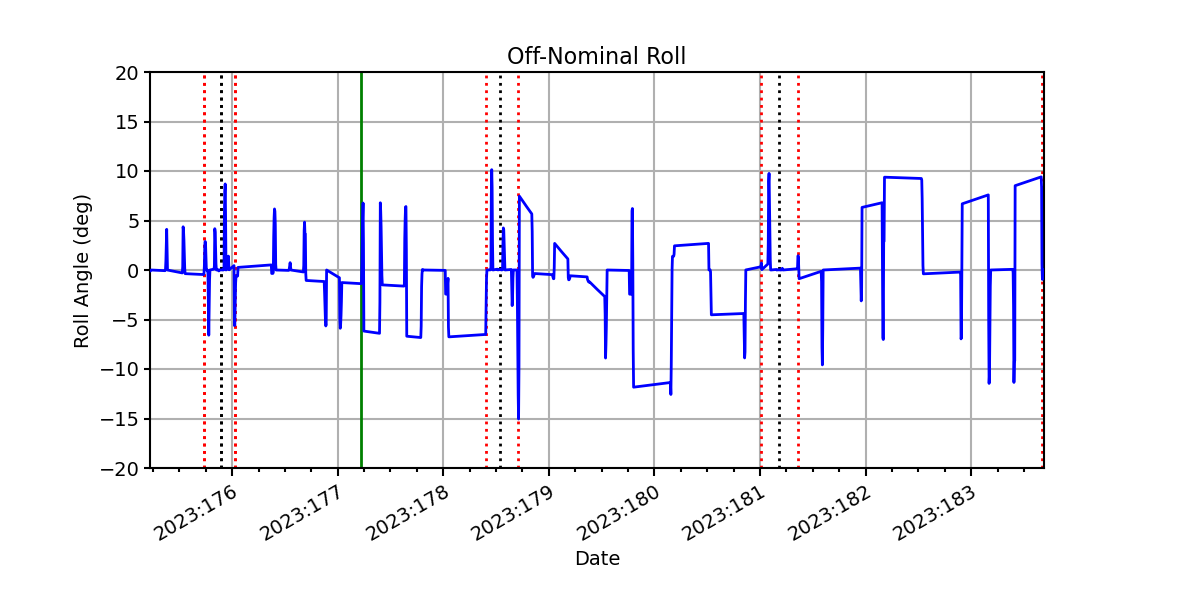

ROLL

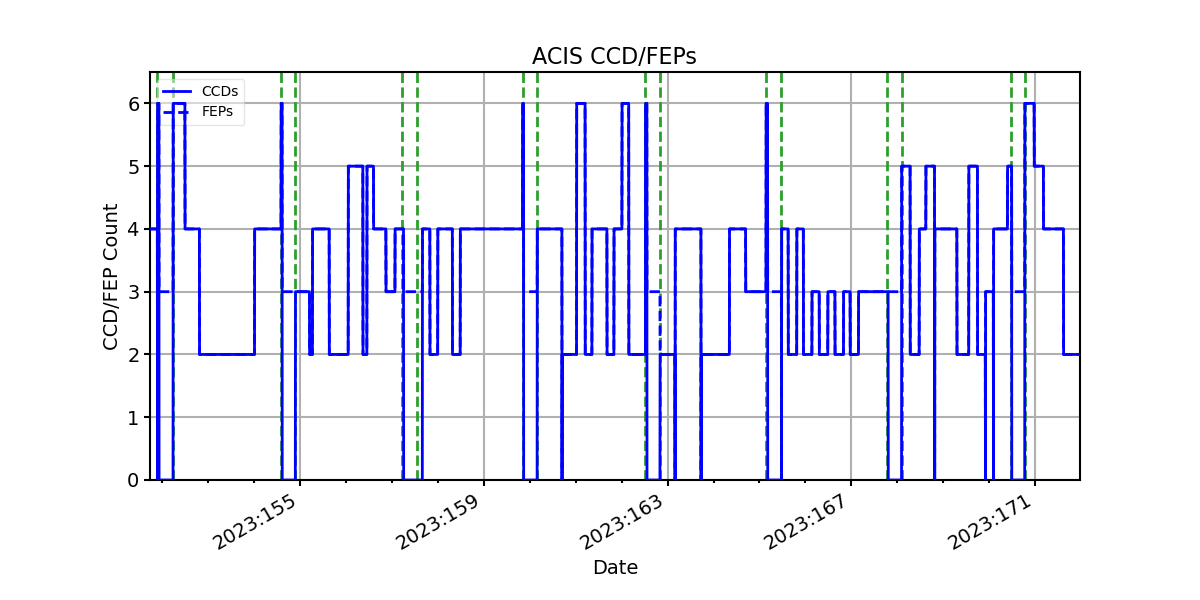

ACIS CCD/FEP Count
