PSMCBT Temperatures Check
Summary
| Date start | 2024:070:23:03:10.516 |
| Date stop | 2024:077:18:55:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/MAR1124/oflsa |
| Run time | Thu Oct 8 16:09:55 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.49 | -2.95 | -2.22 | -0.78 | 0.63 | 1.19 | 1.83 |
| pitch | -9.289 | -0.745 | -0.004 | 0.000 | 0.004 | 0.811 | 9.337 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.869 | -0.179 | -0.010 | 0.000 | 0.010 | 0.181 | 2.256 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.49 | 2.50 |
| PITCH | 1 | -9.289 | 3.00 |
| PITCH | 99 | 9.337 | 3.00 |

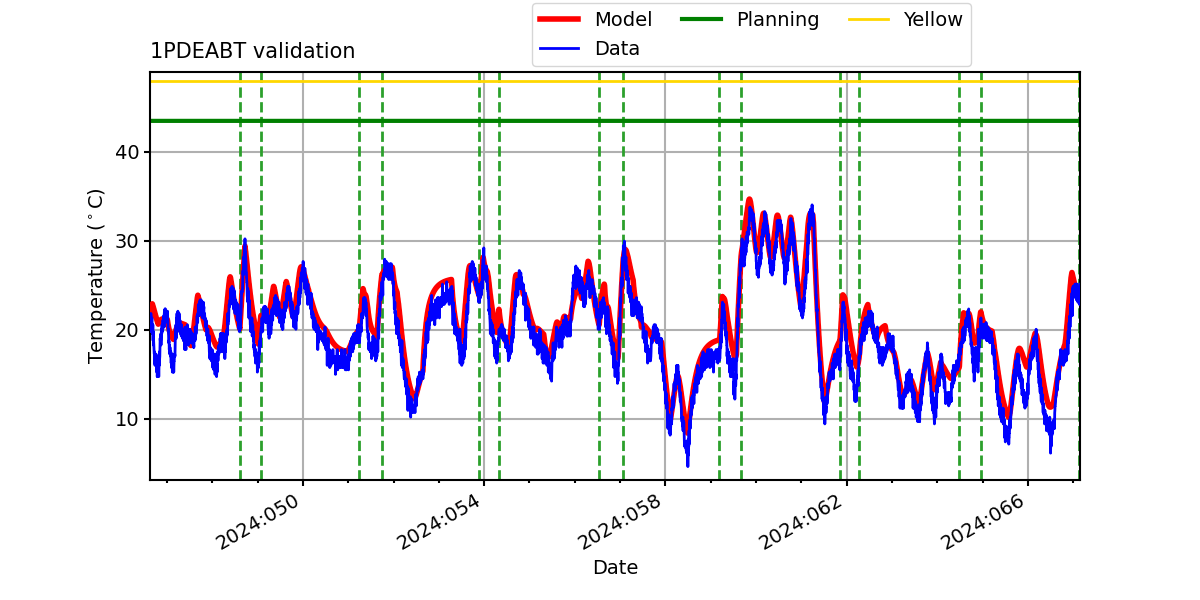

1PDEABT

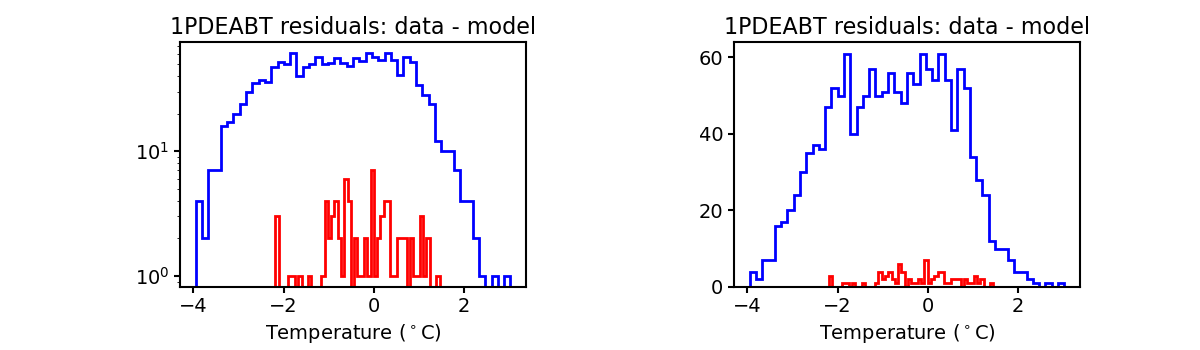

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.
PITCH

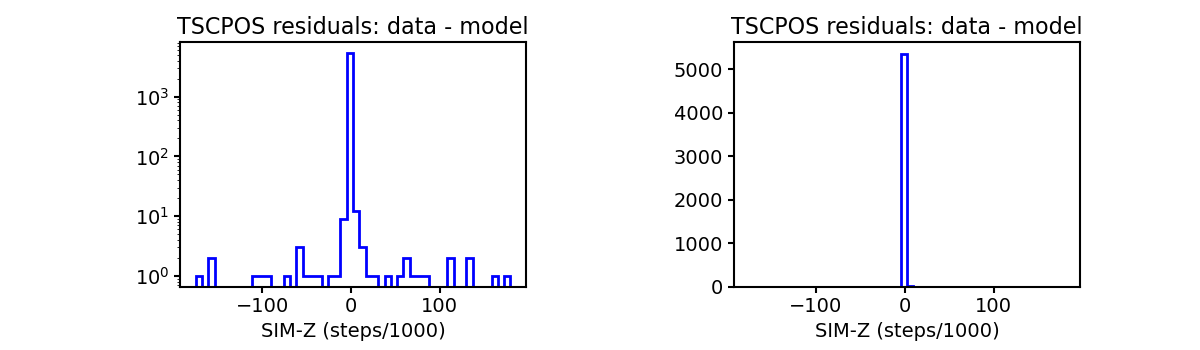

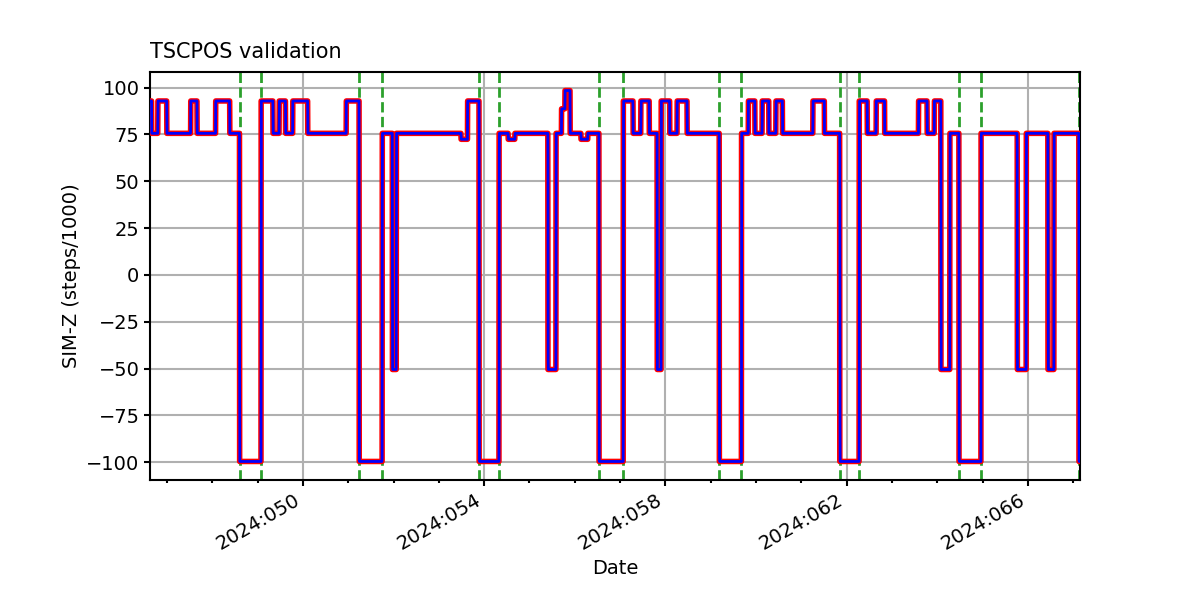

TSCPOS

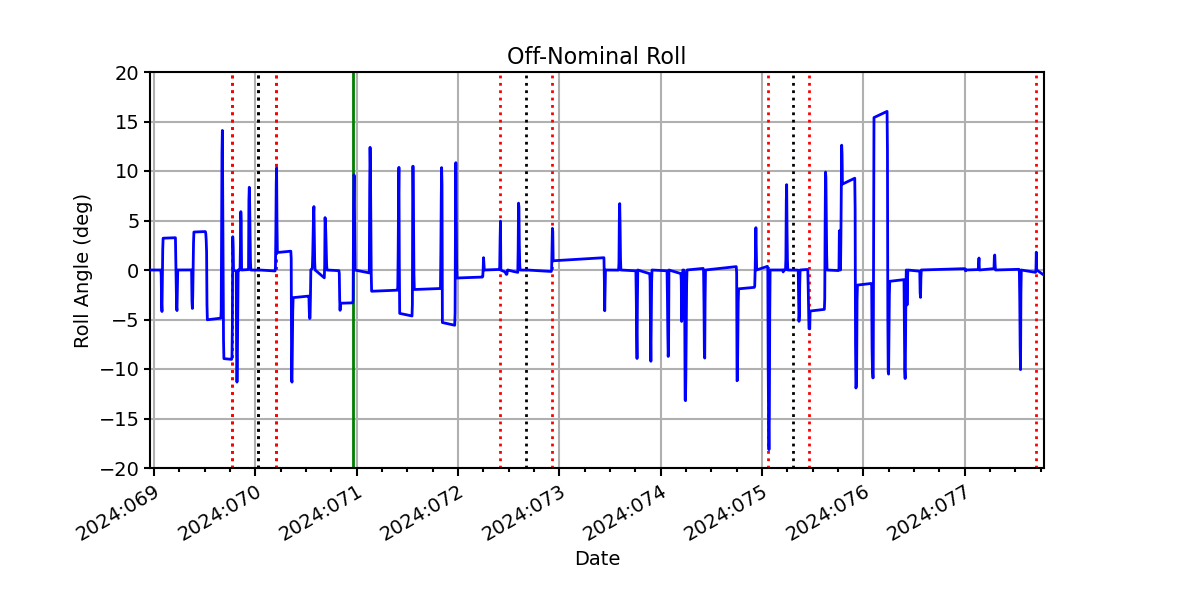

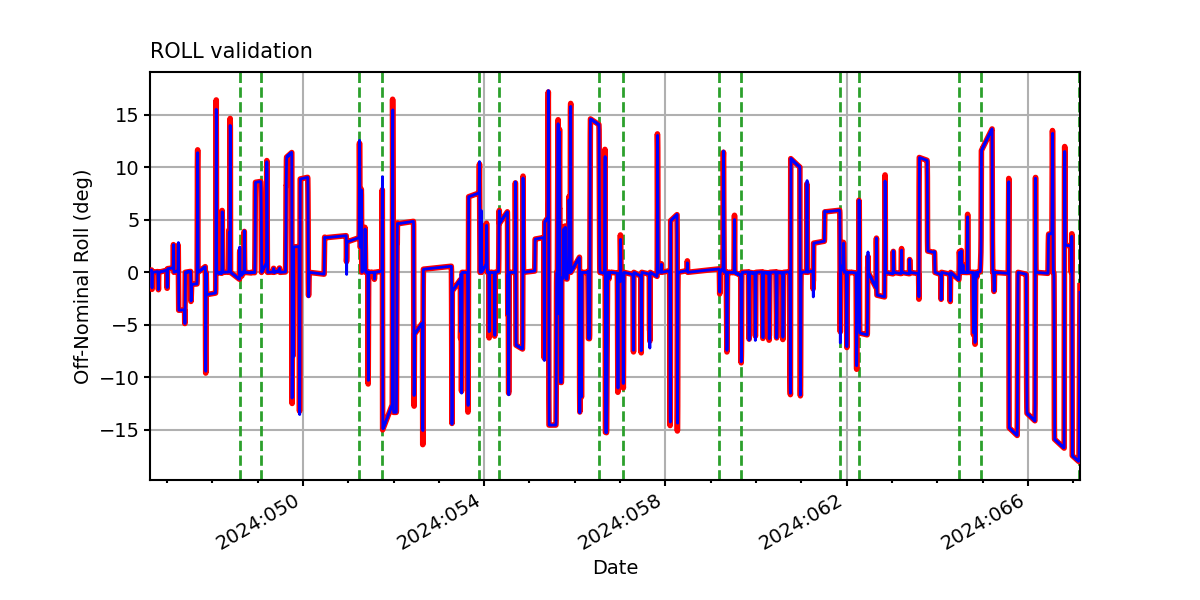

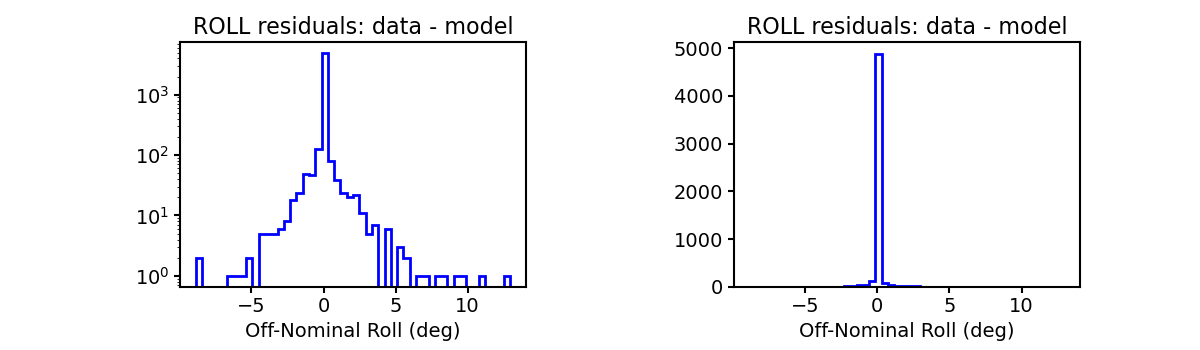

ROLL

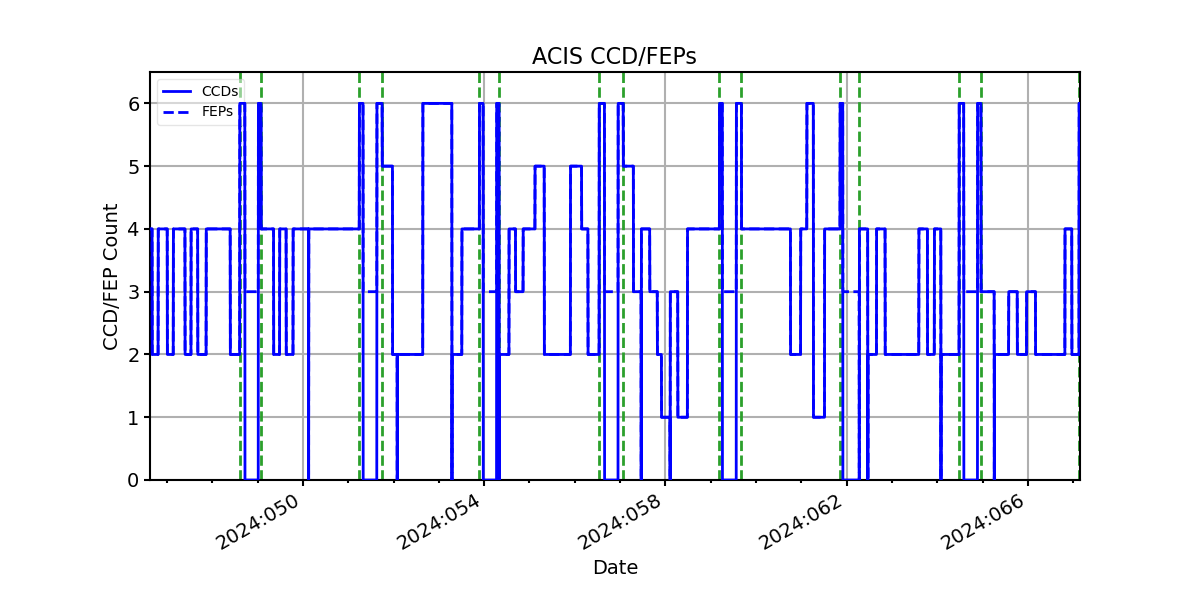

ACIS CCD/FEP Count
