PSMCBT Temperatures Check
Summary
| Date start | 2026:075:02:32:52.916 |
| Date stop | 2026:081:20:44:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR1626/oflsb |
| Run time | Thu Oct 8 16:09:55 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

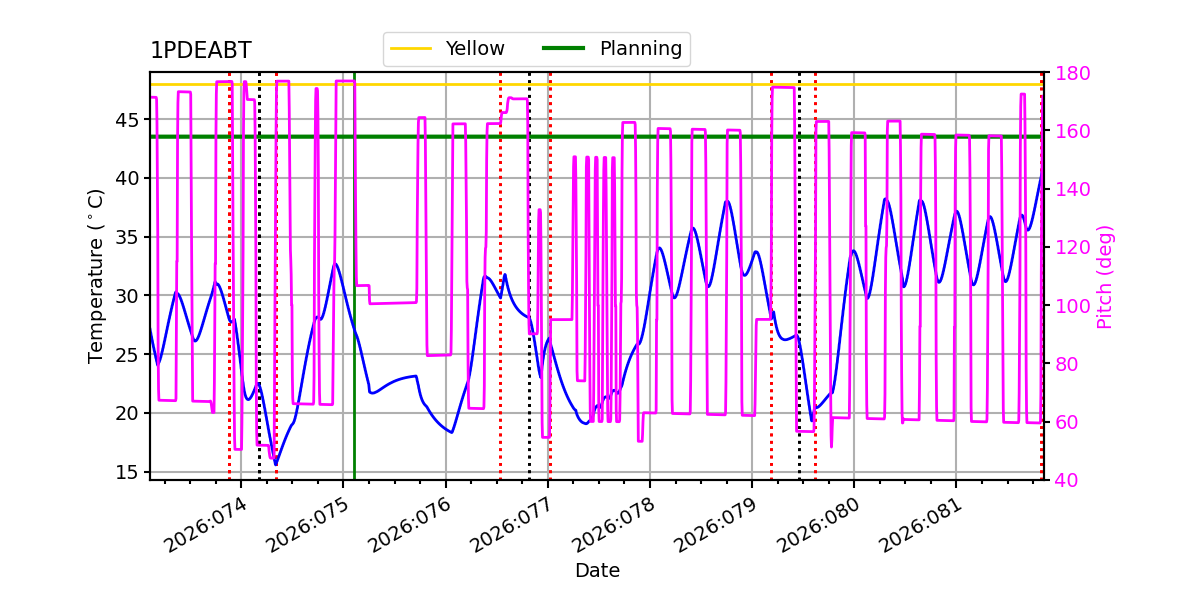

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.42 | -1.77 | -0.98 | 0.55 | 1.91 | 2.49 | 3.09 |
| pitch | -12.788 | -0.753 | -0.004 | 0.000 | 0.004 | 1.301 | 11.385 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.968 | -0.185 | -0.010 | 0.000 | 0.012 | 0.253 | 2.197 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -12.788 | 3.00 |
| PITCH | 99 | 11.385 | 3.00 |

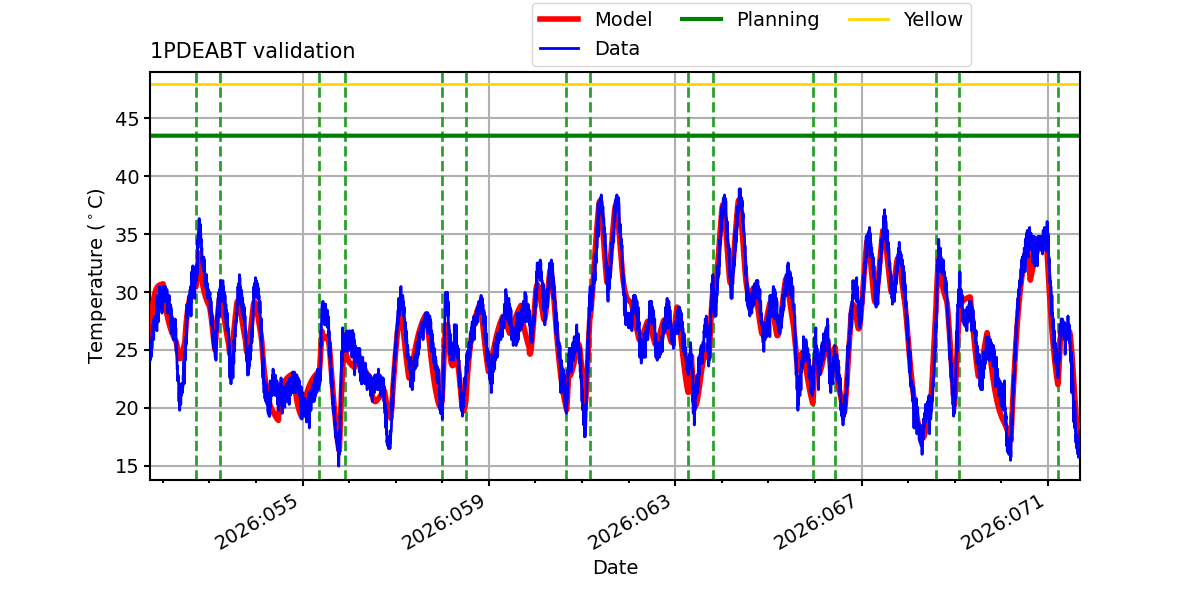

1PDEABT

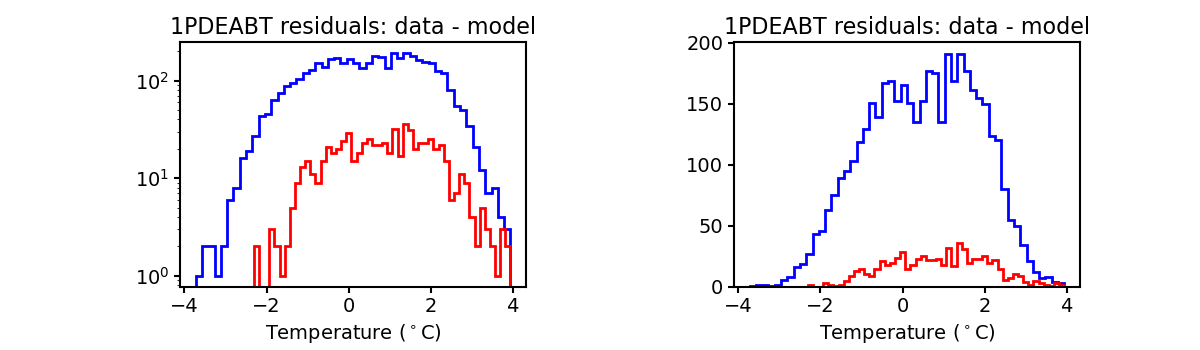

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

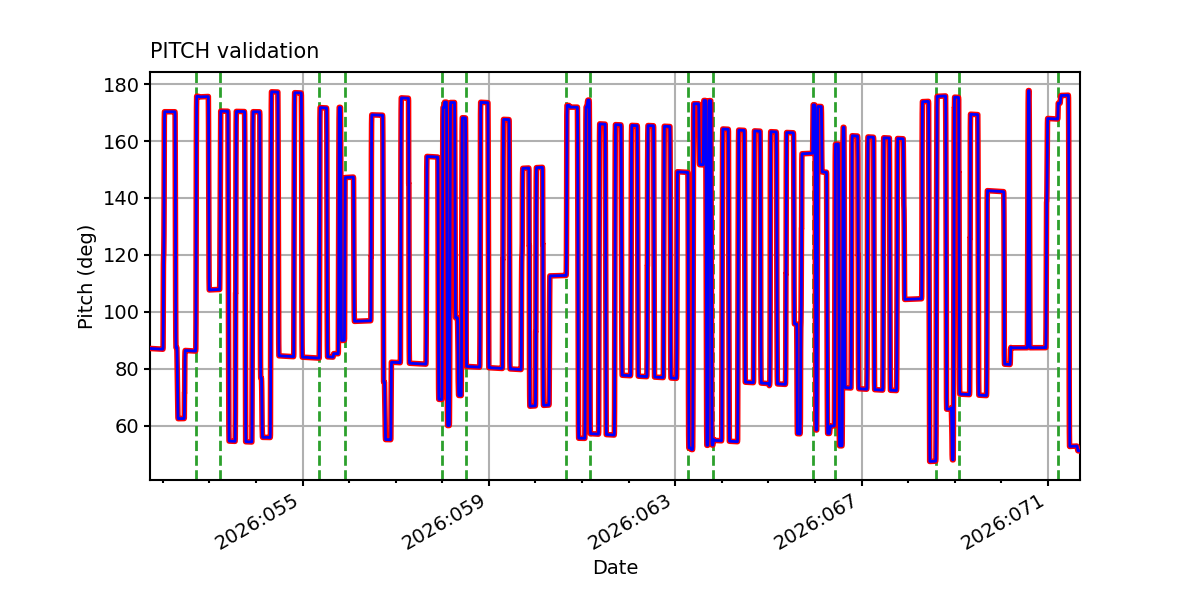

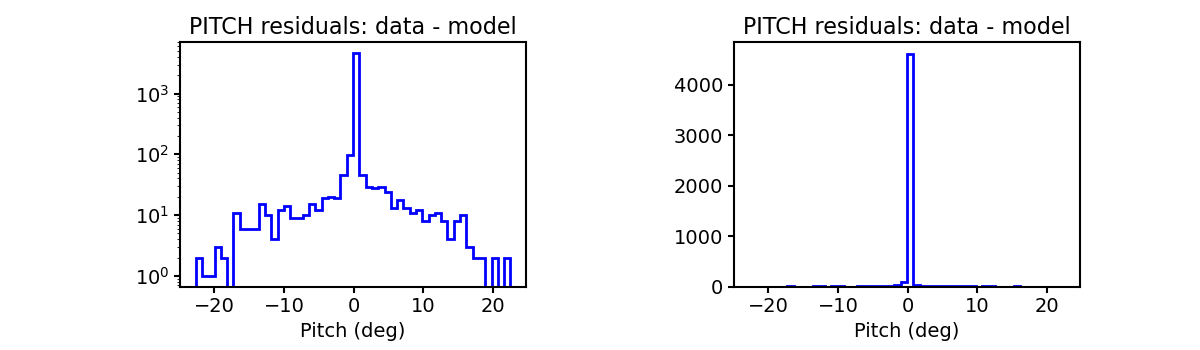

PITCH

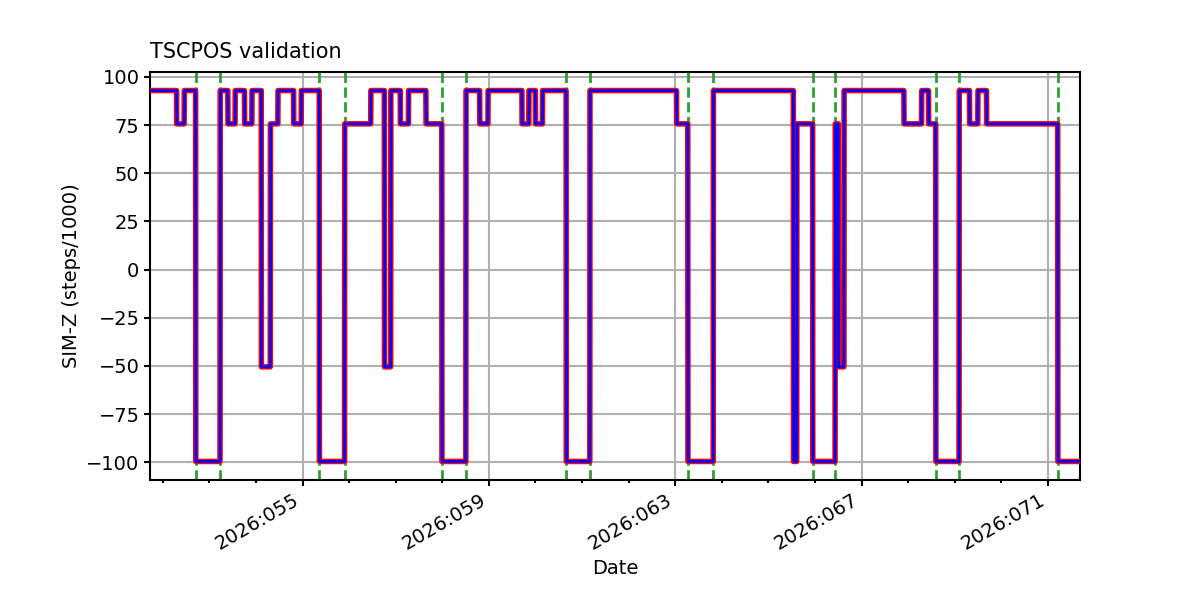

TSCPOS

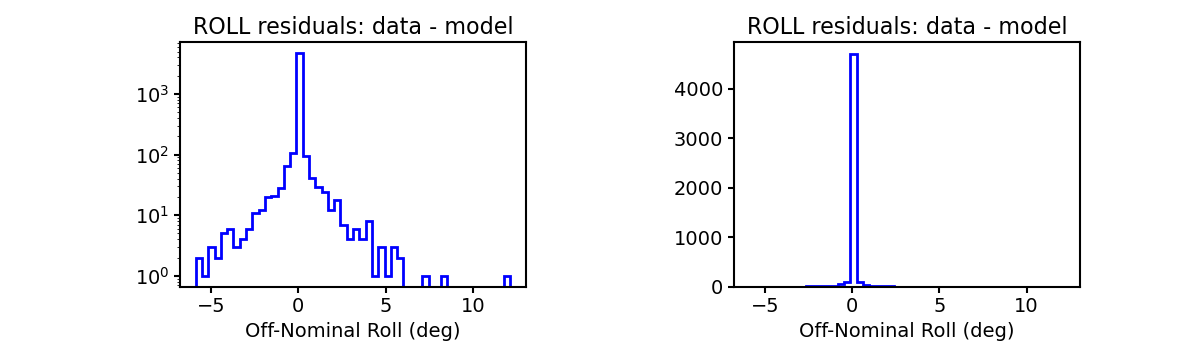

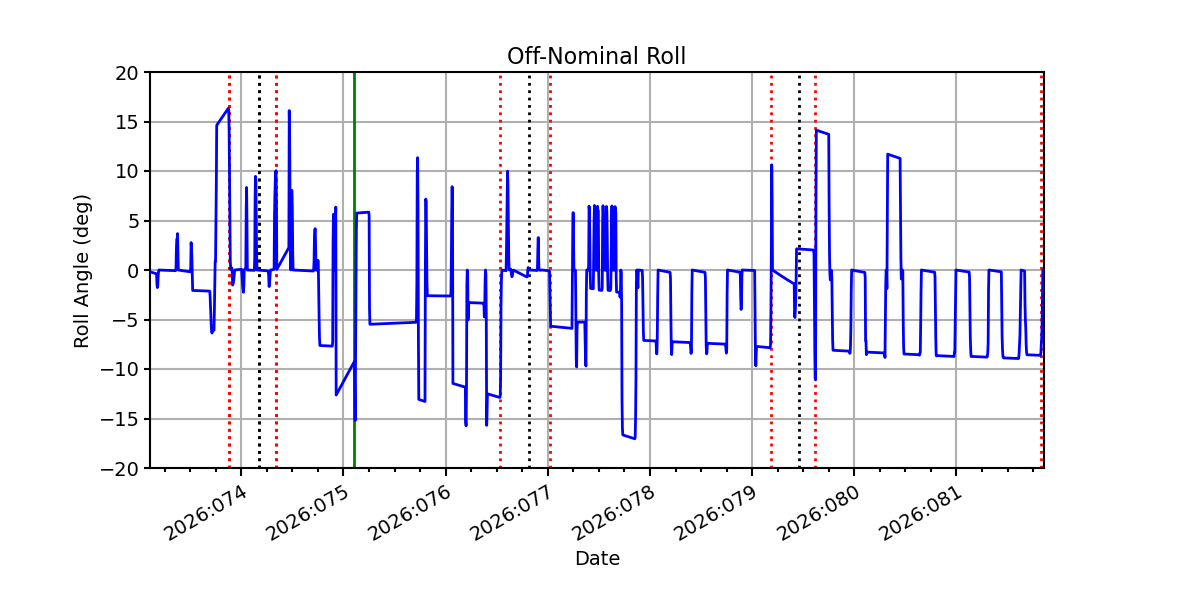

ROLL

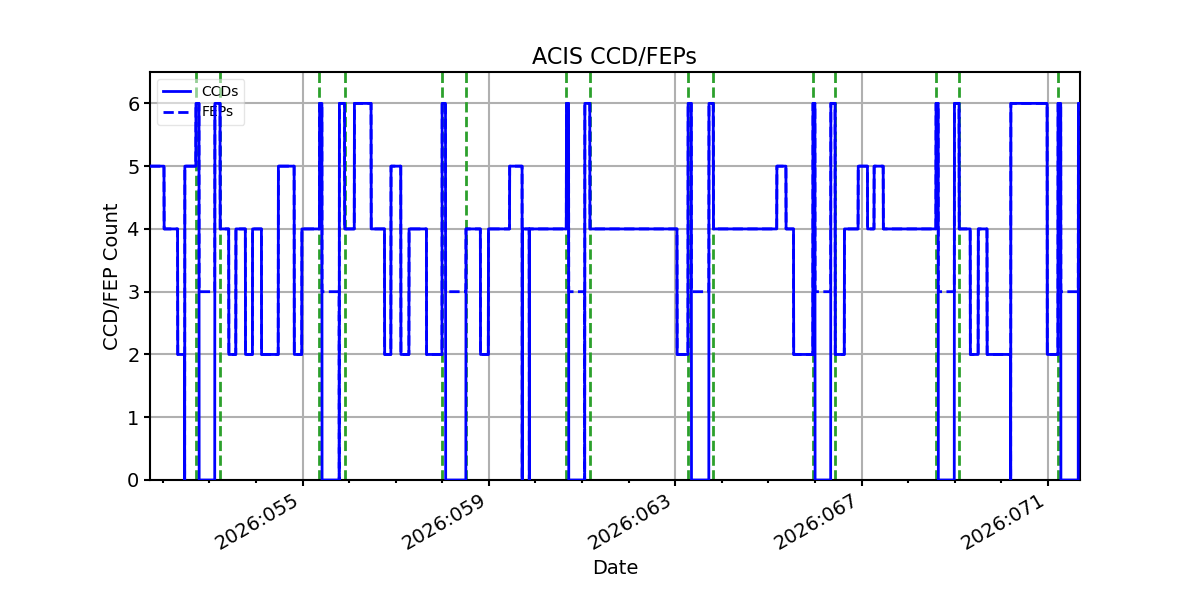

ACIS CCD/FEP Count
