PSMCBT Temperatures Check
Summary
| Date start | 2023:076:04:12:00.016 |
| Date stop | 2023:086:07:57:44.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/MAR1723/oflsa |
| Run time | Thu Oct 8 16:09:55 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

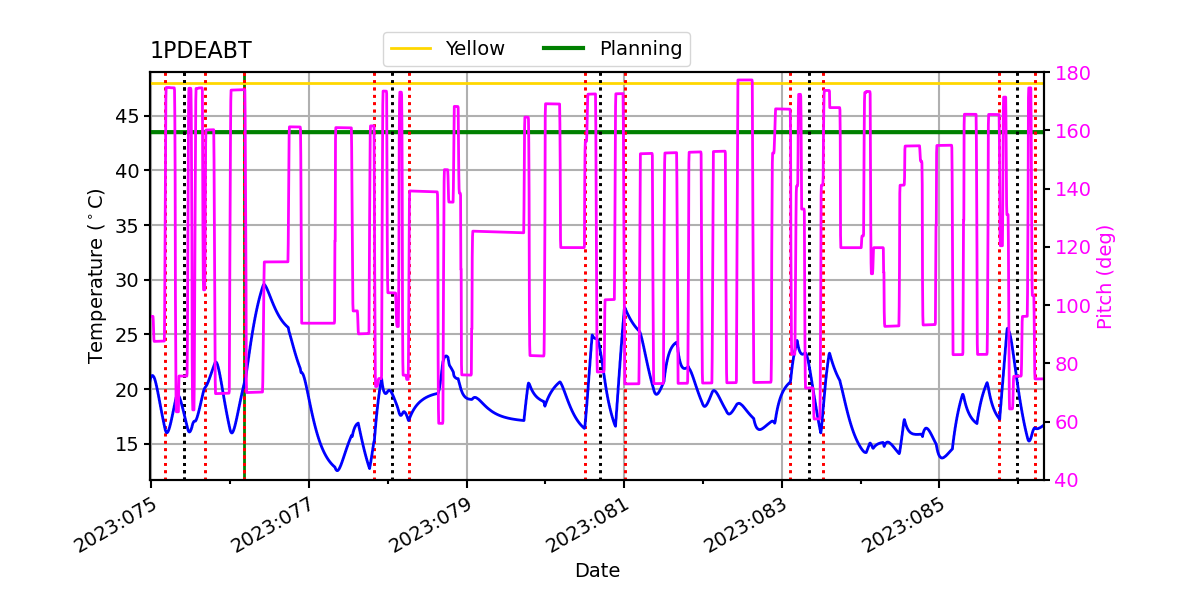

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.95 | -2.23 | -1.31 | -0.03 | 1.31 | 2.12 | 3.03 |
| pitch | -8.725 | -0.114 | -0.002 | 0.000 | 0.002 | 0.148 | 7.620 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.538 | -0.055 | -0.003 | -0.000 | 0.004 | 0.067 | 1.240 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.95 | 2.50 |
| PITCH | 1 | -8.725 | 3.00 |
| PITCH | 99 | 7.62 | 3.00 |

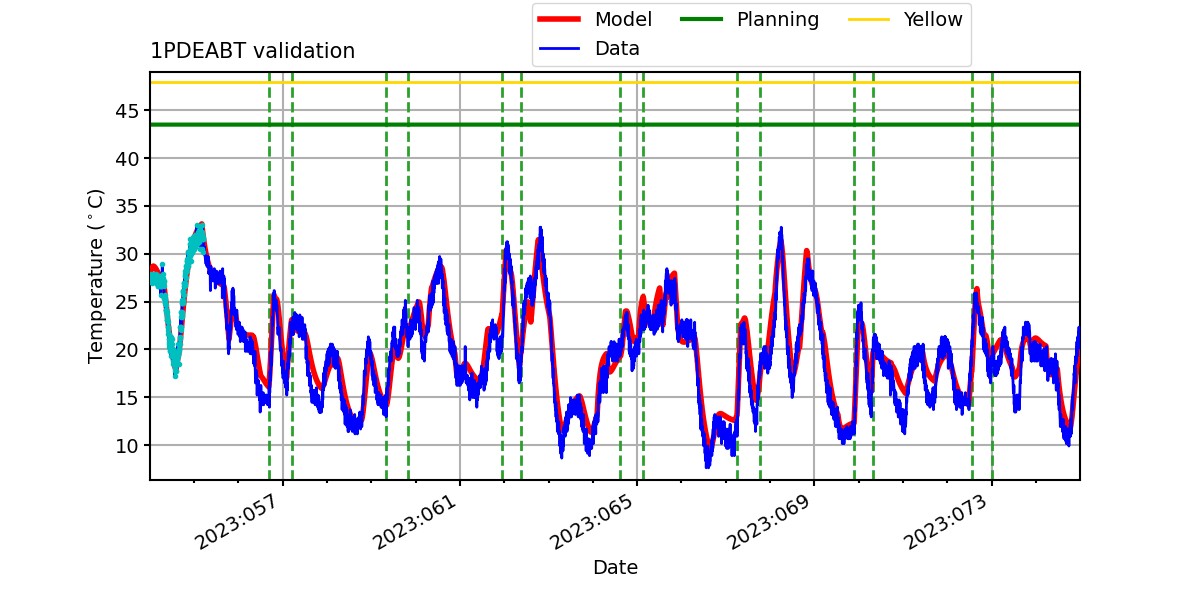

1PDEABT

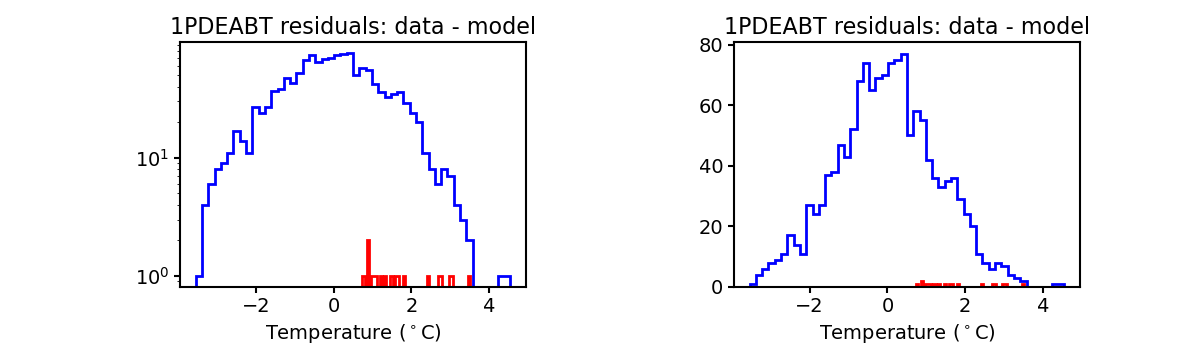

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

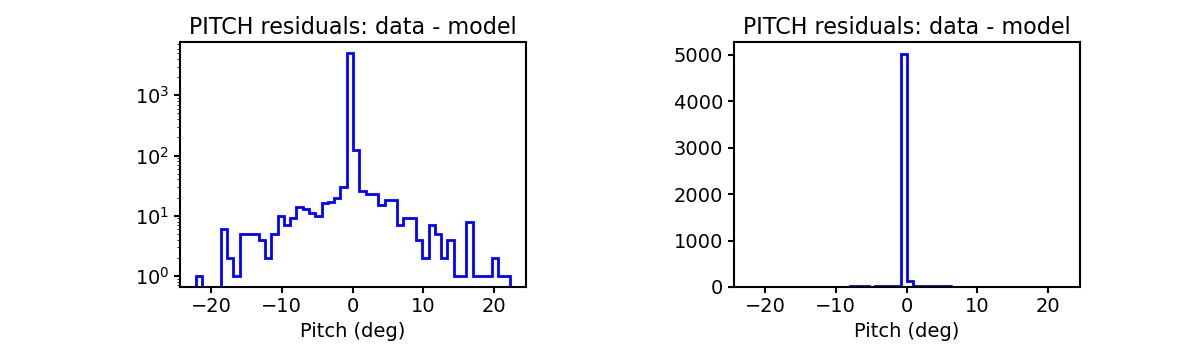

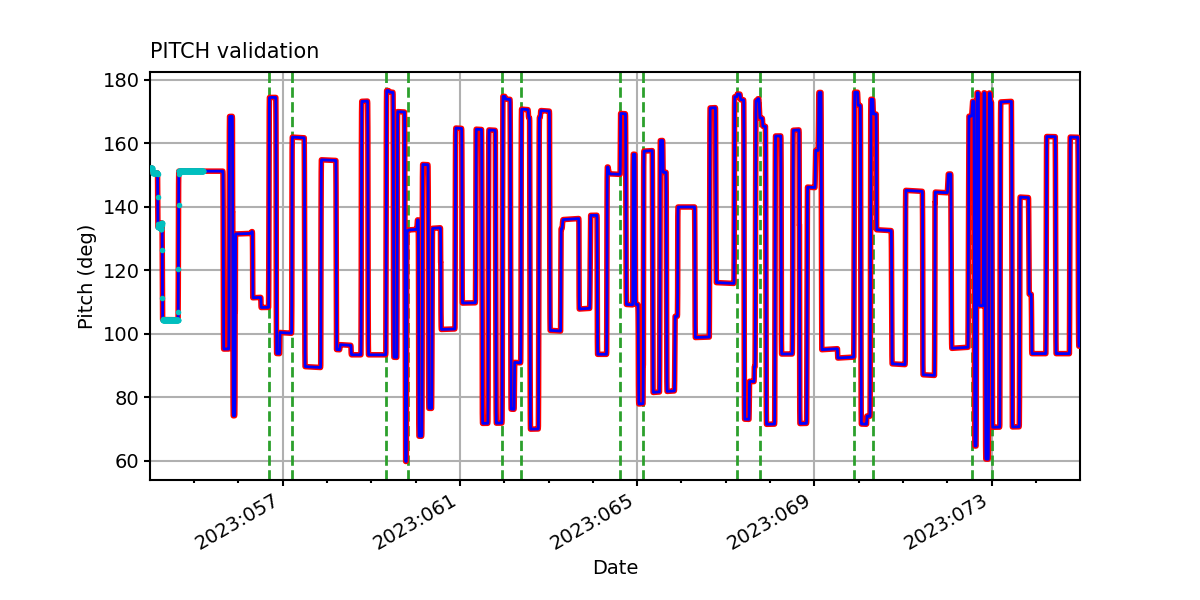

PITCH

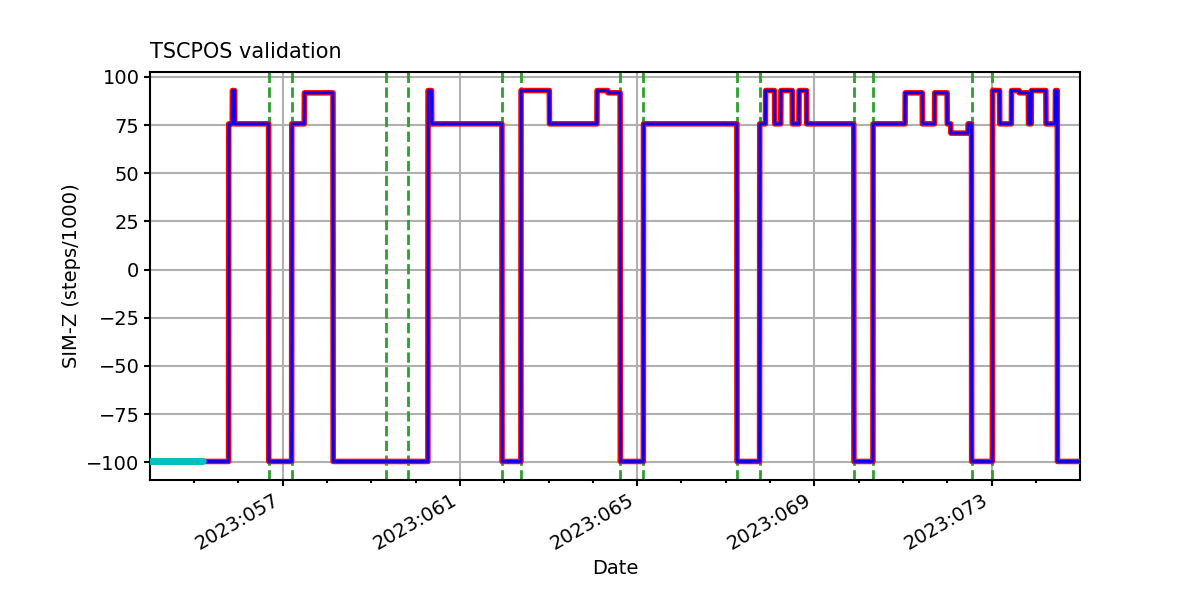

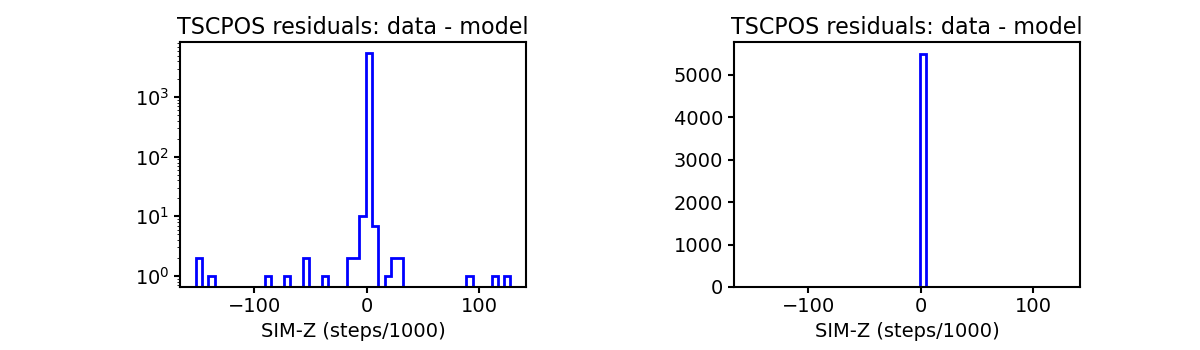

TSCPOS

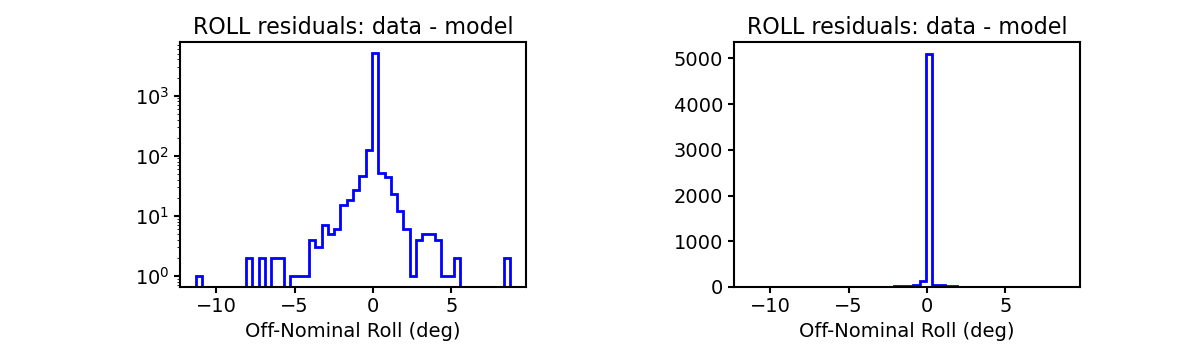

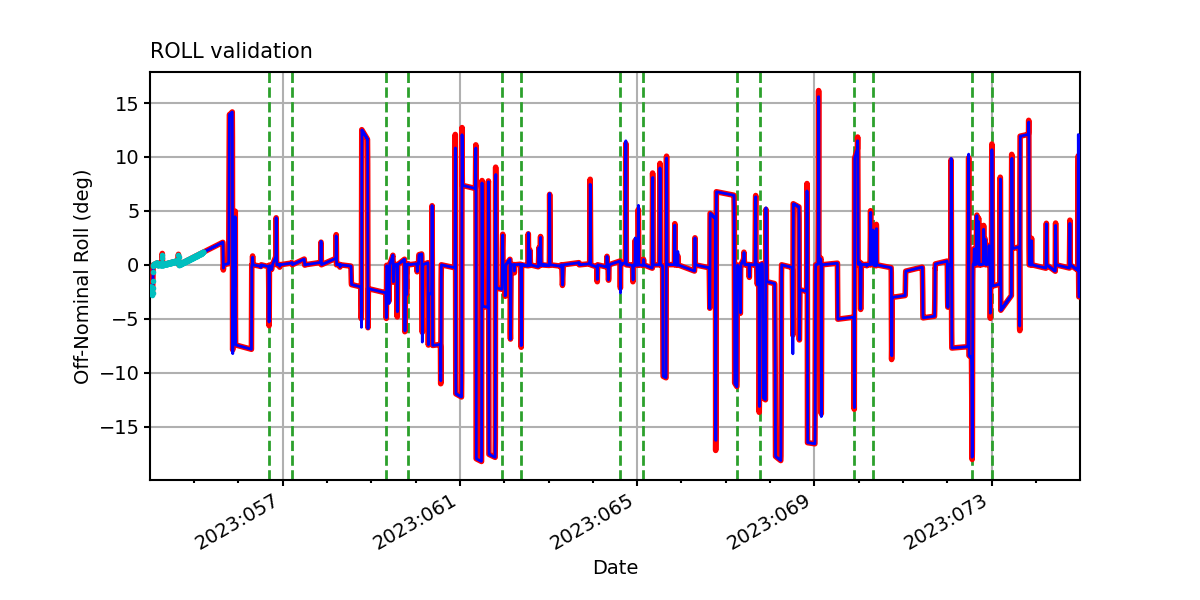

ROLL

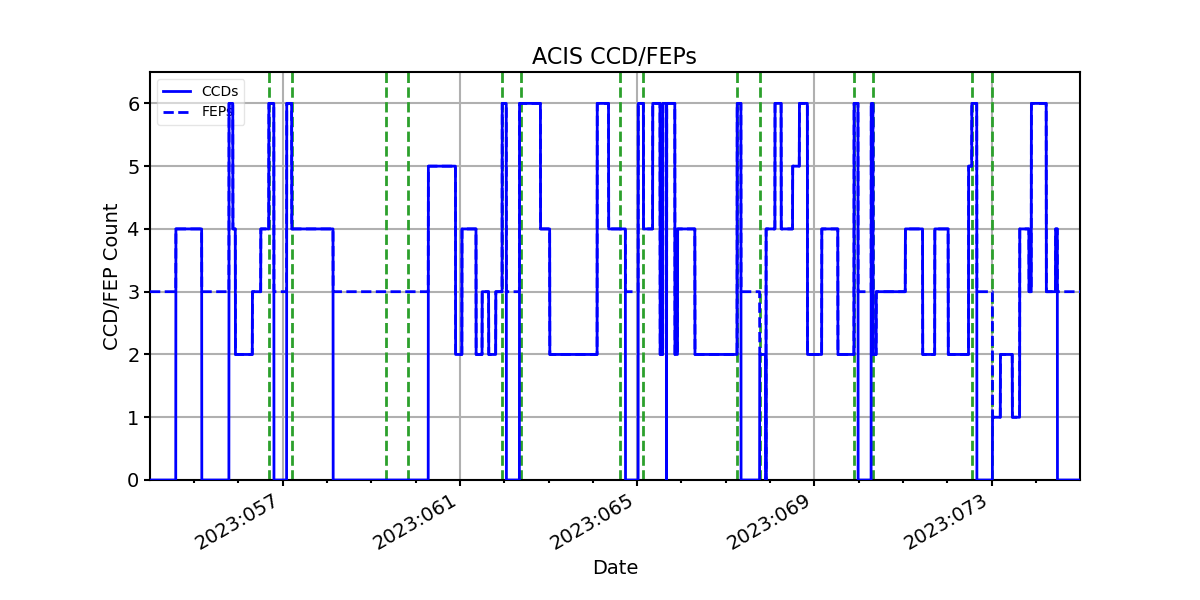

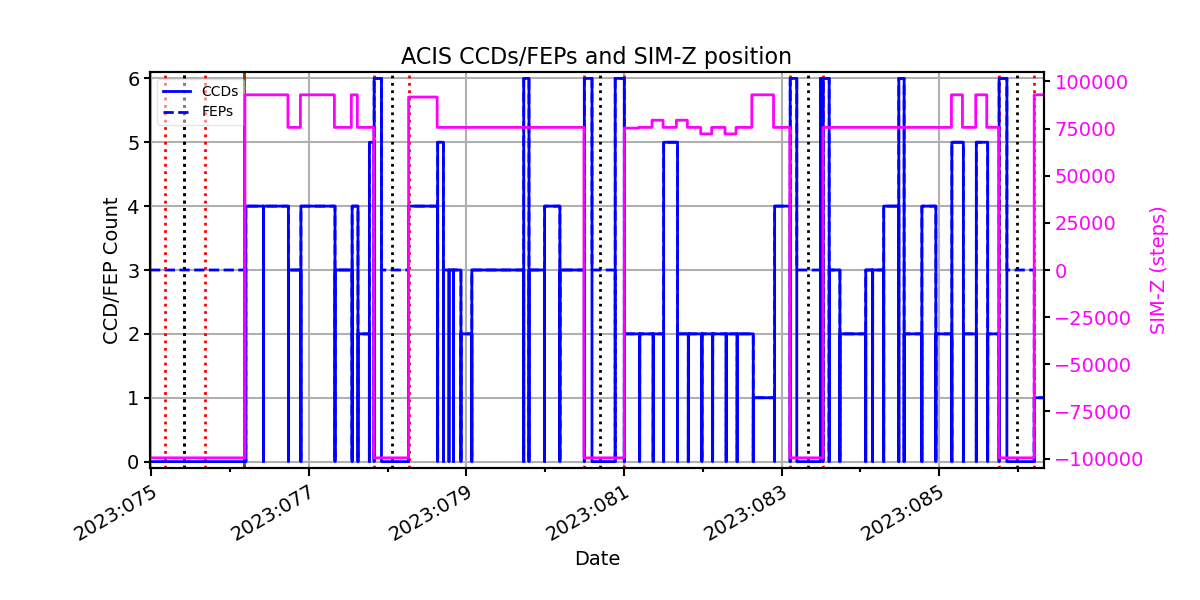

ACIS CCD/FEP Count
