PSMCBT Temperatures Check
Summary
| Date start | 2025:075:23:53:28.016 |
| Date stop | 2025:082:23:16:50.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/MAR1725/oflsa |
| Run time | Thu Oct 8 16:09:55 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.04 | -2.34 | -1.57 | -0.19 | 1.22 | 1.96 | 2.67 |
| pitch | -11.215 | -1.584 | -0.004 | -0.000 | 0.004 | 1.326 | 11.476 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.810 | -0.325 | -0.010 | -0.000 | 0.009 | 0.331 | 3.013 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.04 | 2.50 |
| PITCH | 1 | -11.215 | 3.00 |
| PITCH | 99 | 11.476 | 3.00 |
1PDEABT

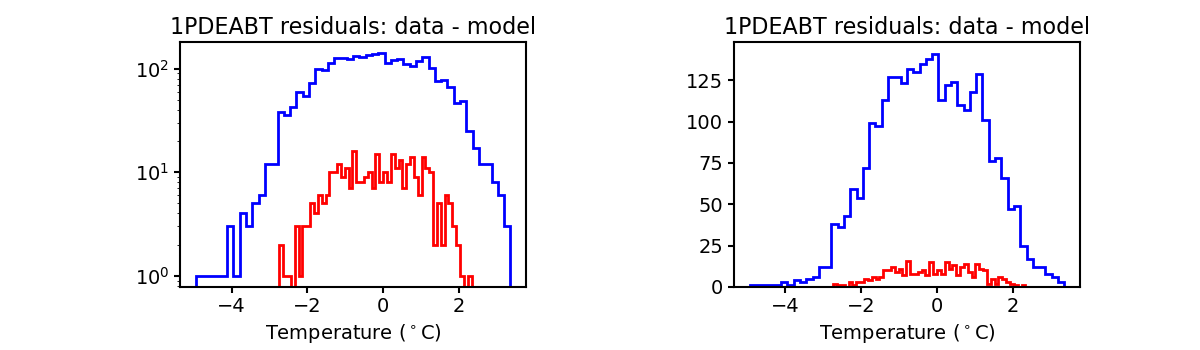

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

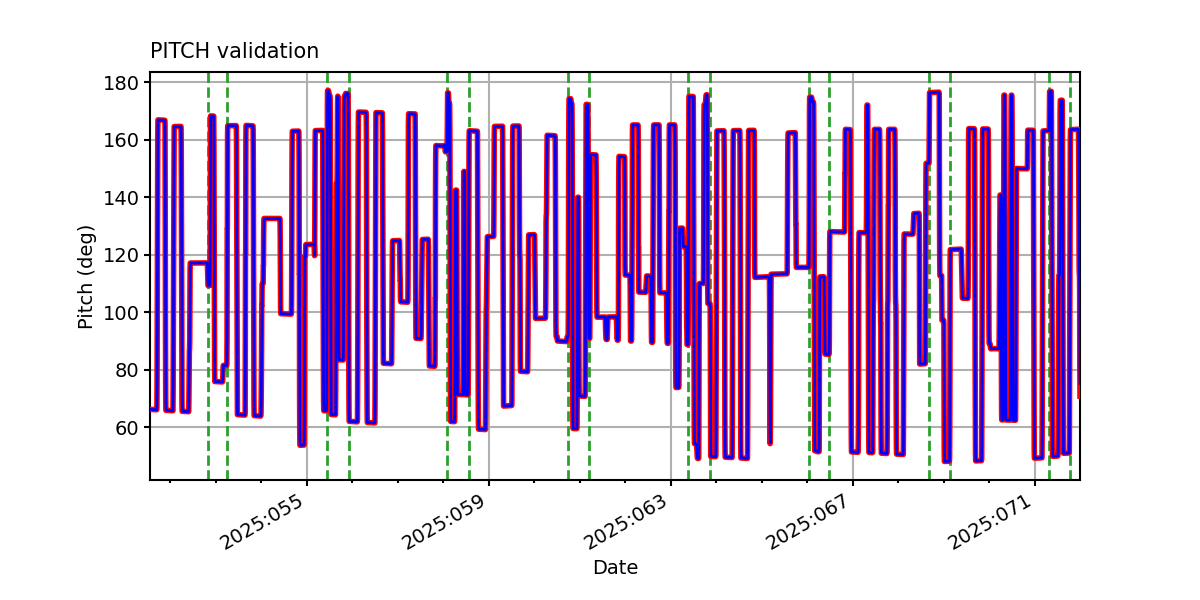

PITCH

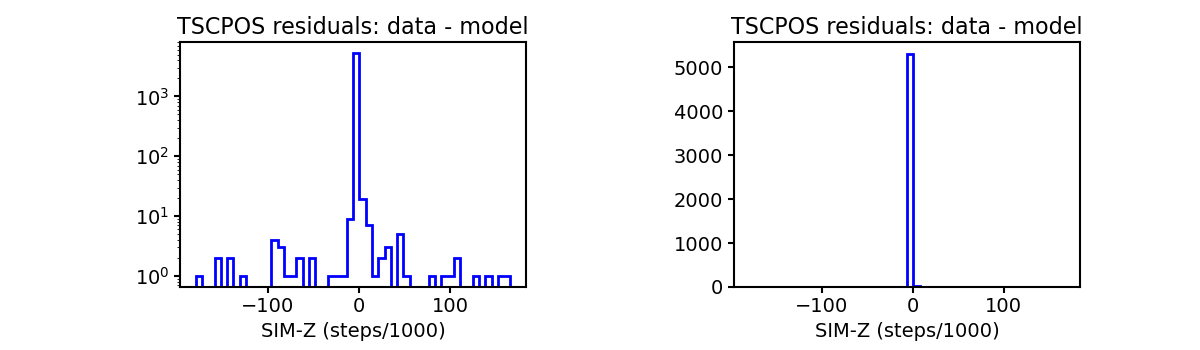

TSCPOS

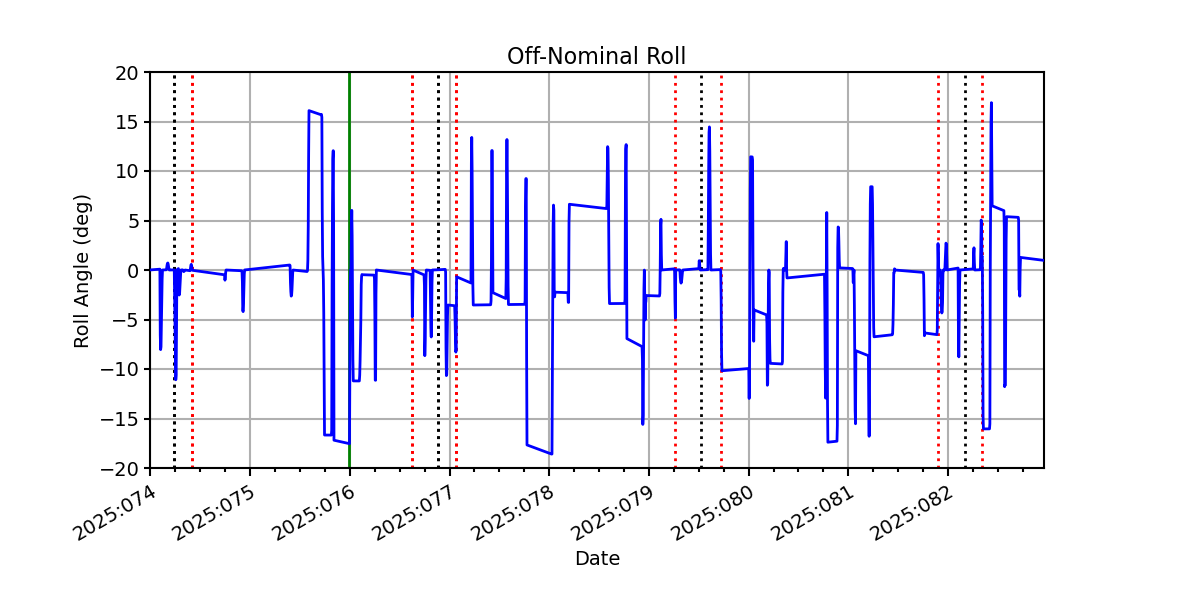

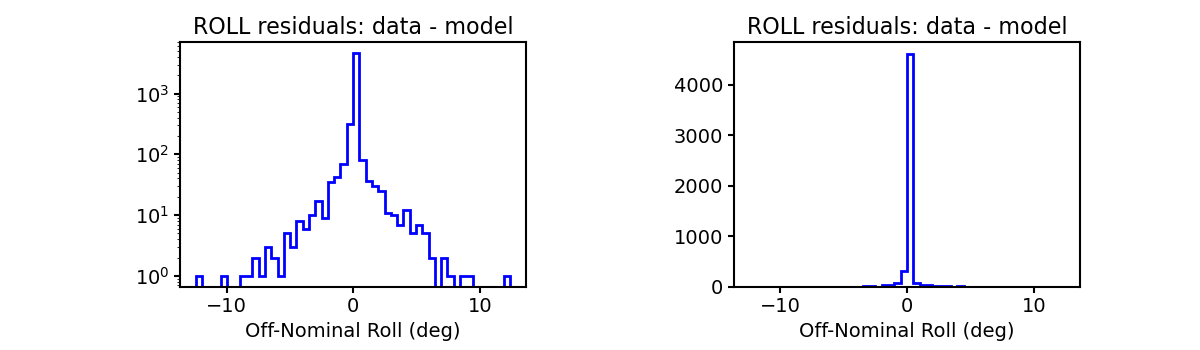

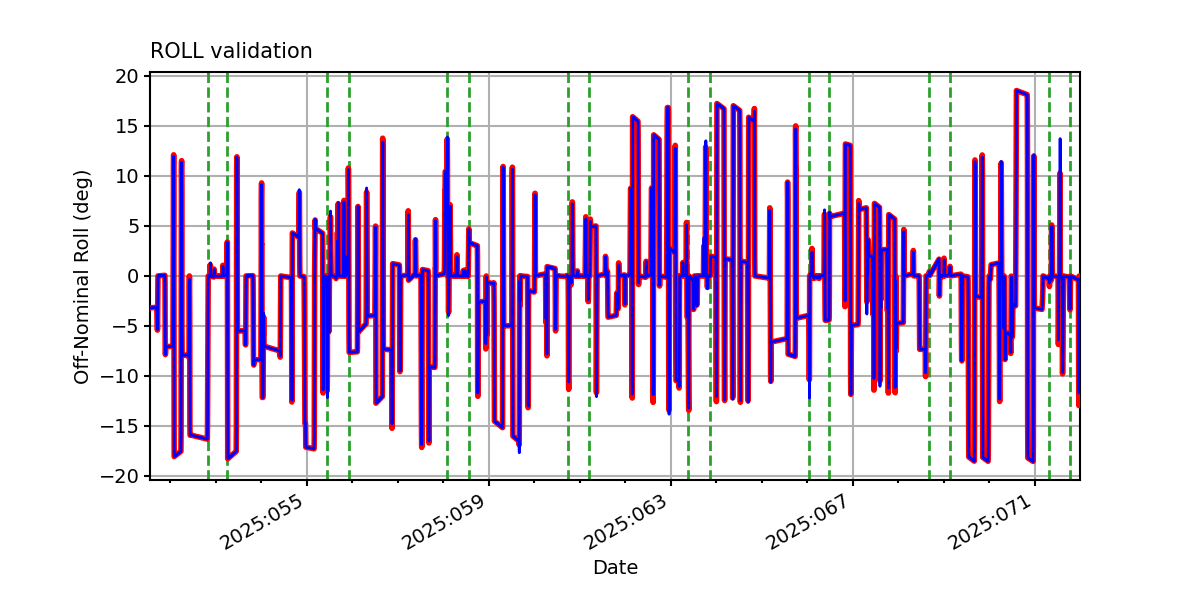

ROLL

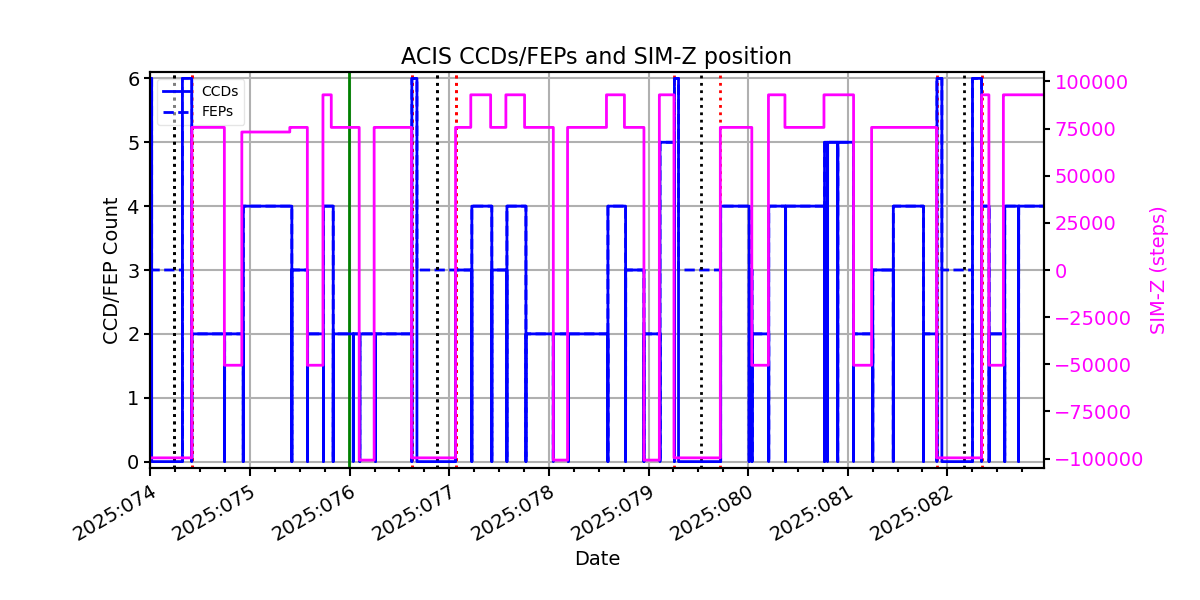

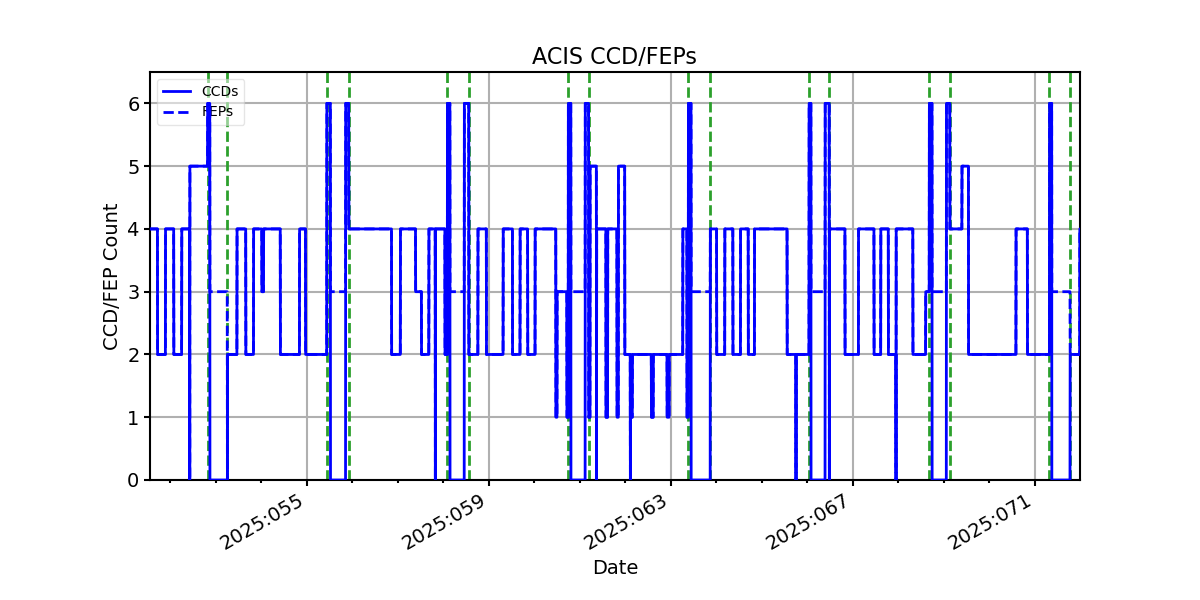

ACIS CCD/FEP Count
