PSMCBT Temperatures Check
Summary
| Date start | 2024:078:19:33:40.016 |
| Date stop | 2024:085:01:53:41.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/MAR1824/oflsb |
| Run time | Thu Oct 8 16:09:55 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

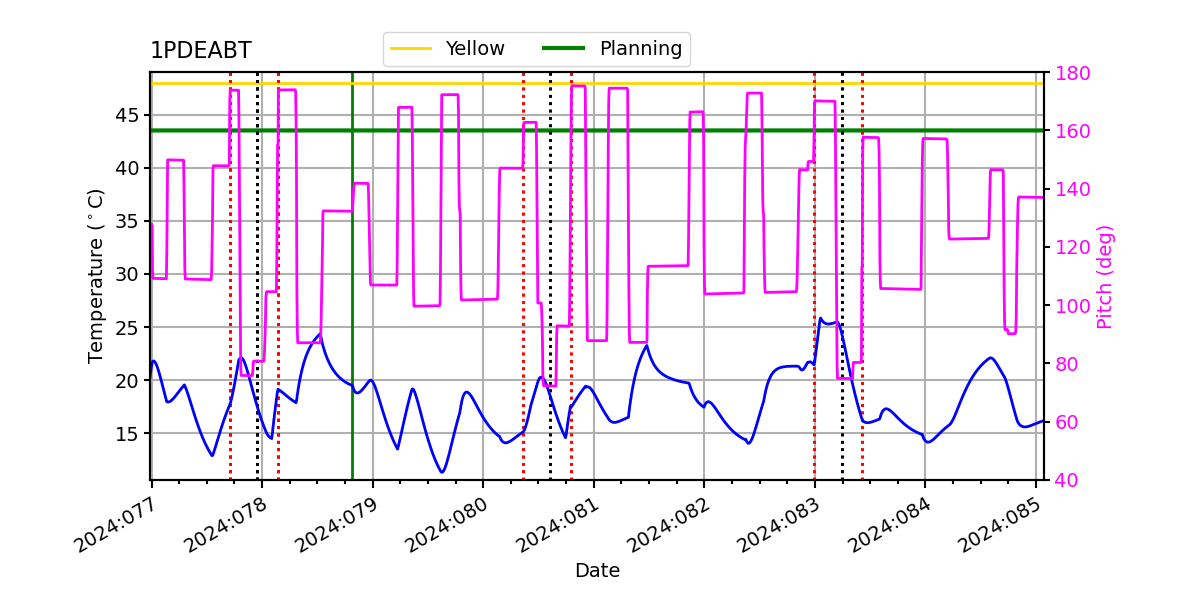

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -5.03 | -3.28 | -2.42 | -0.85 | 0.54 | 1.25 | 1.99 |
| pitch | -9.449 | -0.745 | -0.004 | -0.000 | 0.004 | 0.574 | 9.631 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.011 | -0.154 | -0.008 | 0.000 | 0.009 | 0.152 | 2.179 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -5.03 | 2.50 |
| PITCH | 1 | -9.449 | 3.00 |
| PITCH | 99 | 9.631 | 3.00 |
1PDEABT

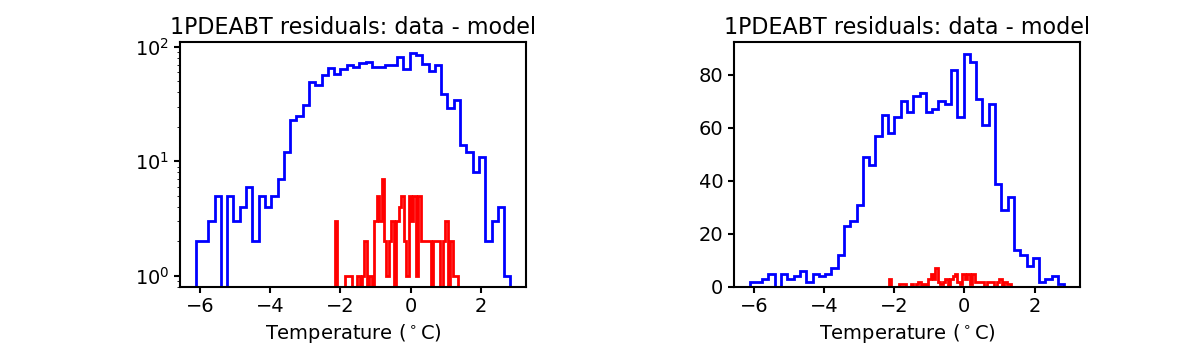

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

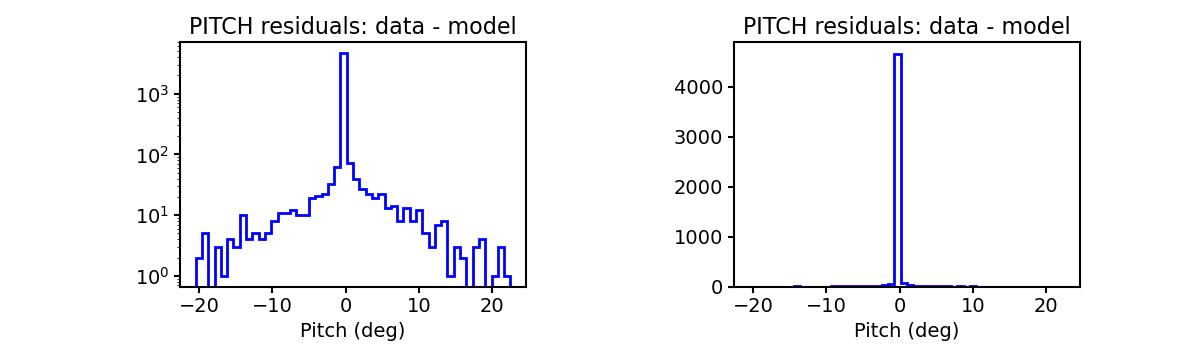

PITCH

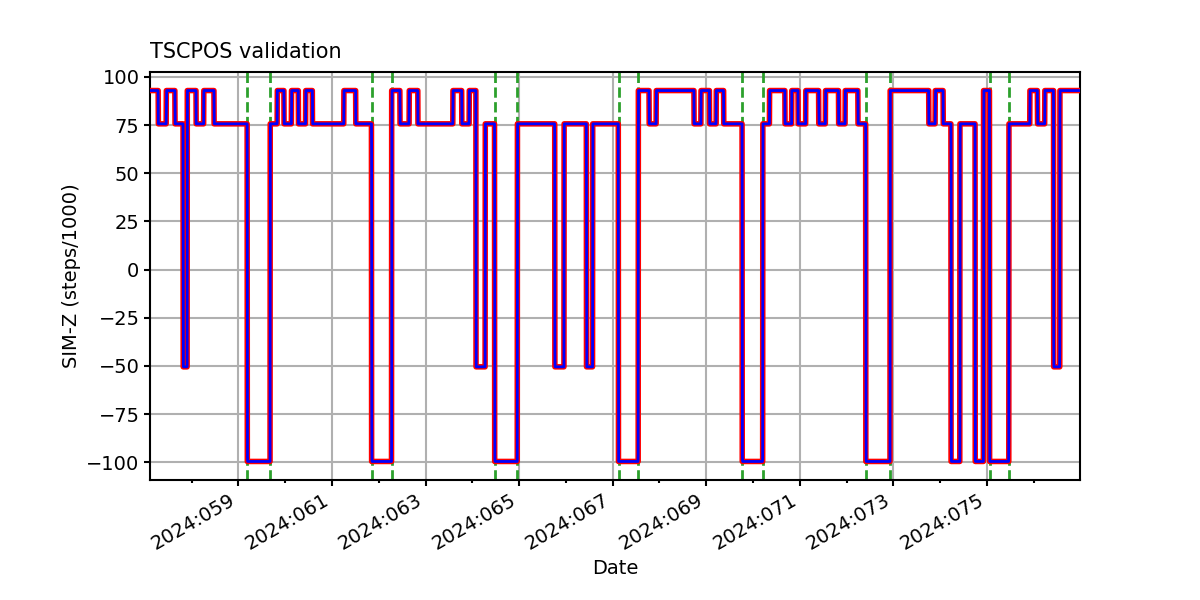

TSCPOS

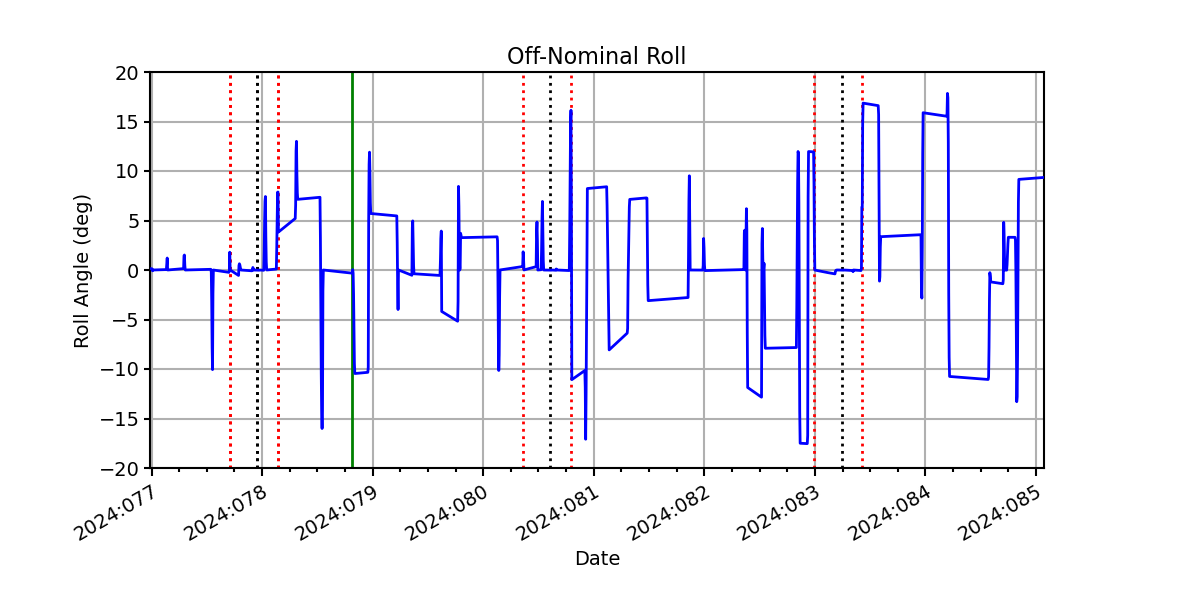

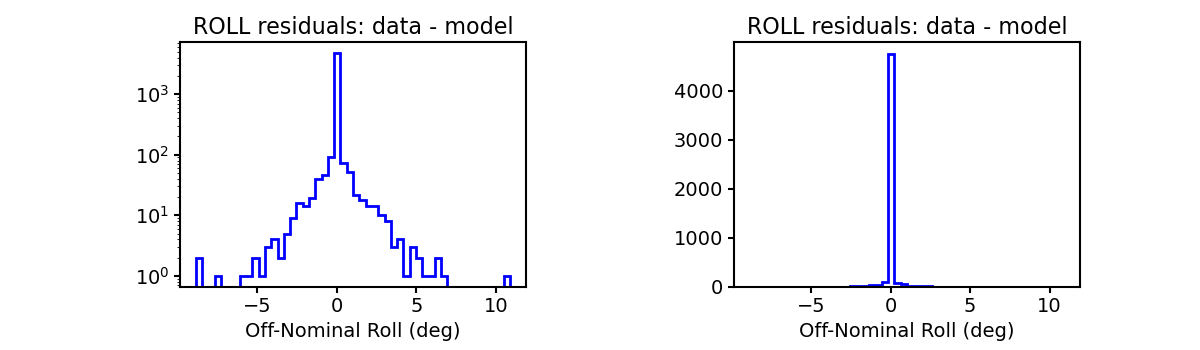

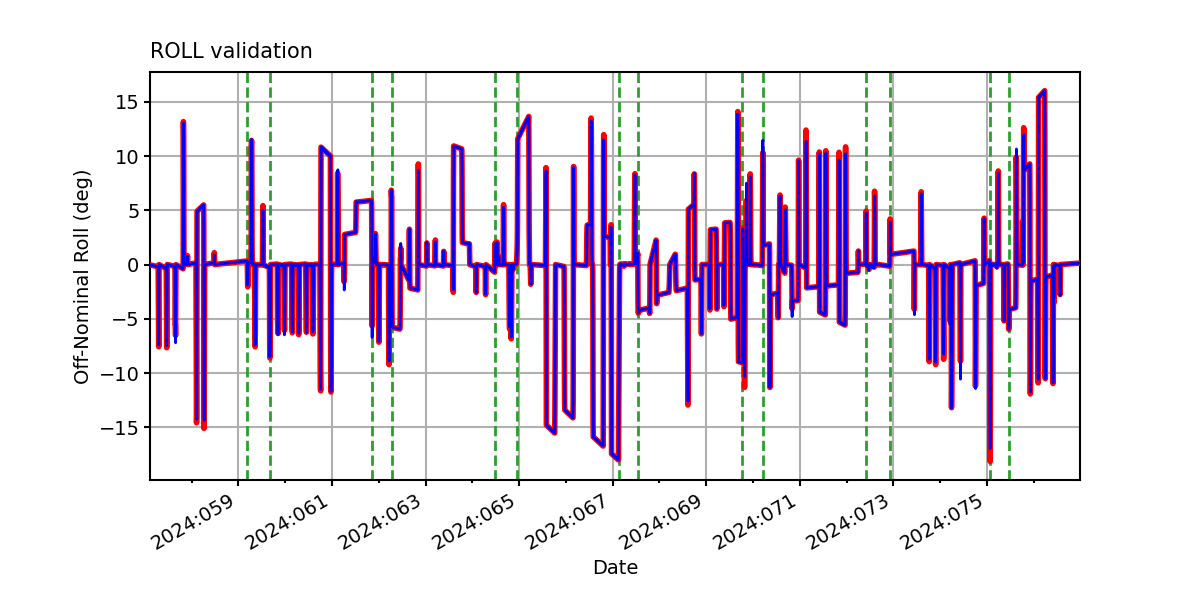

ROLL

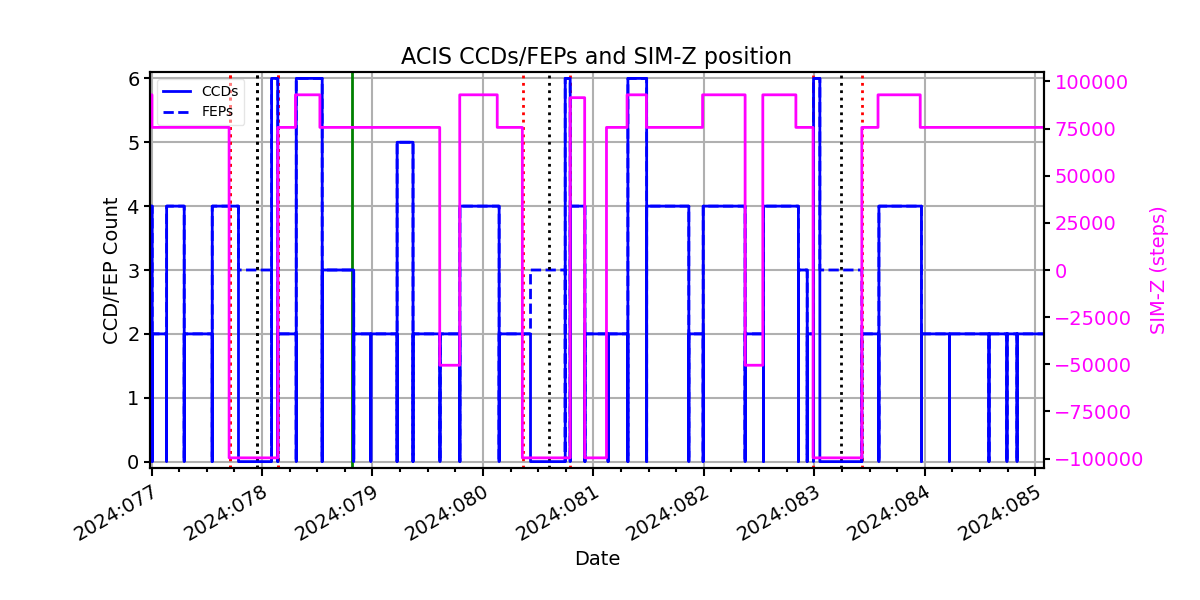

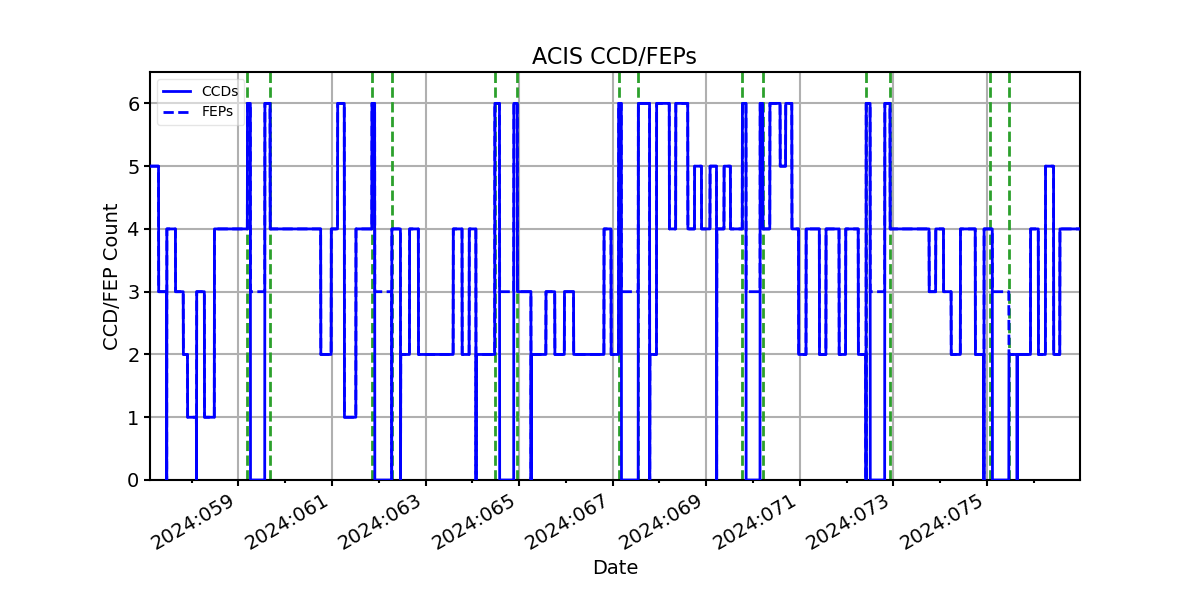

ACIS CCD/FEP Count
