PSMCBT Temperatures Check
Summary
| Date start | 2025:082:02:14:59.016 |
| Date stop | 2025:089:21:04:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/MAR2325/oflsa |
| Run time | Thu Oct 8 16:09:55 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

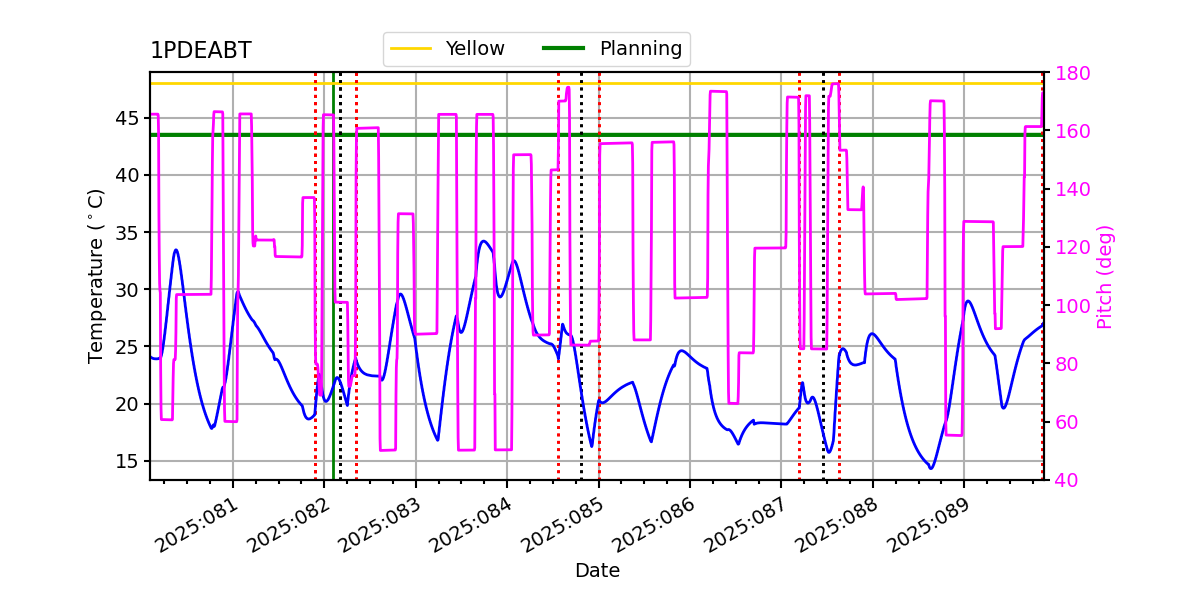

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.57 | -1.90 | -1.12 | 0.22 | 1.41 | 2.07 | 2.71 |
| pitch | -10.924 | -1.226 | -0.004 | -0.000 | 0.004 | 1.096 | 10.534 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 205 |
| roll | -2.988 | -0.320 | -0.009 | -0.000 | 0.008 | 0.281 | 2.944 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.57 | 2.50 |
| PITCH | 1 | -10.924 | 3.00 |
| PITCH | 99 | 10.534 | 3.00 |
| TSCPOS | 99 | 205.0 | 2.50 |

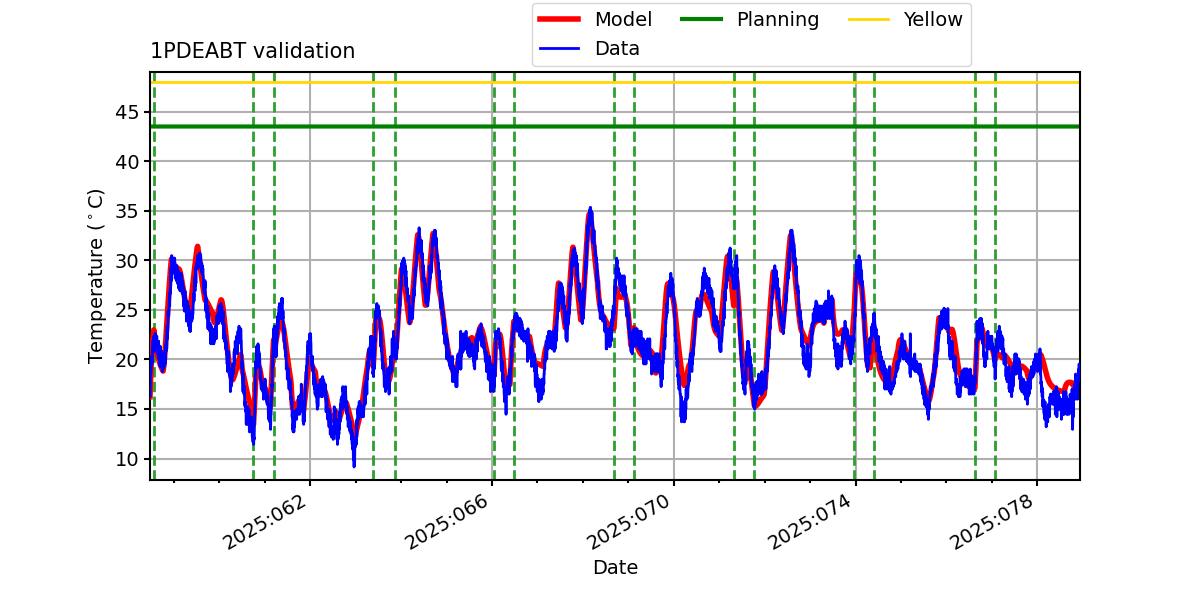

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

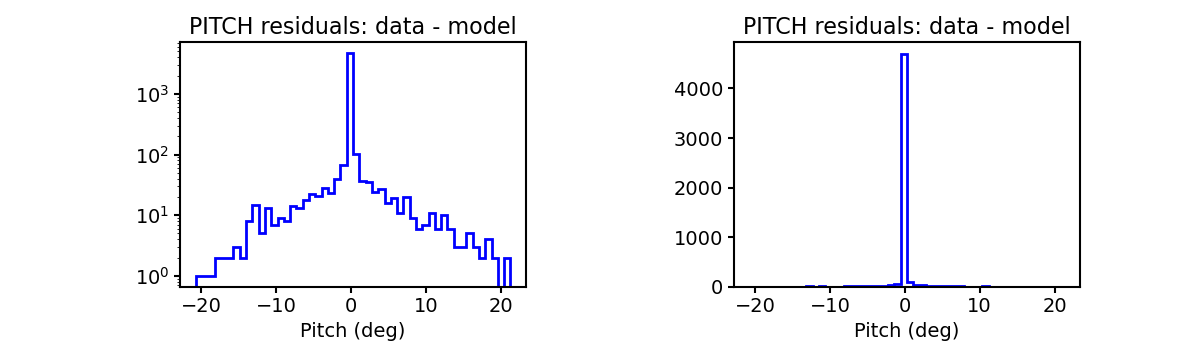

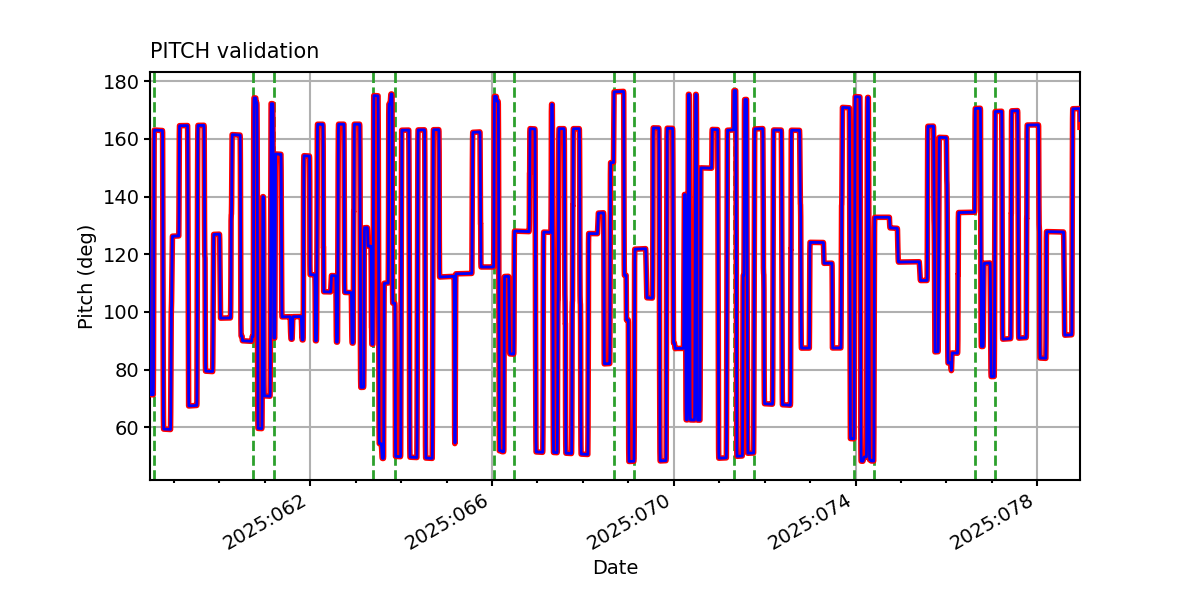

PITCH

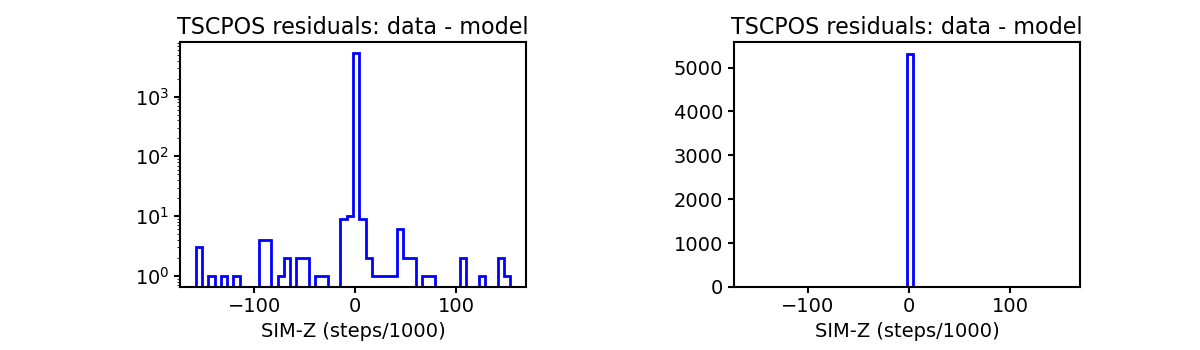

TSCPOS

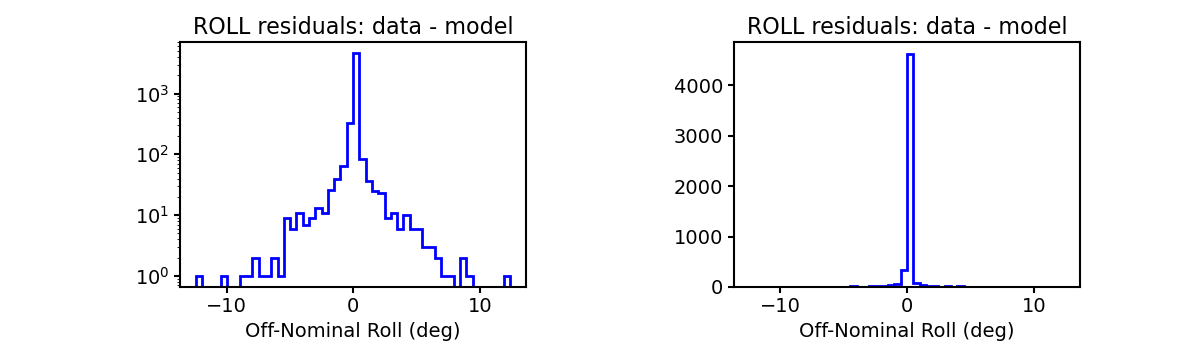

ROLL

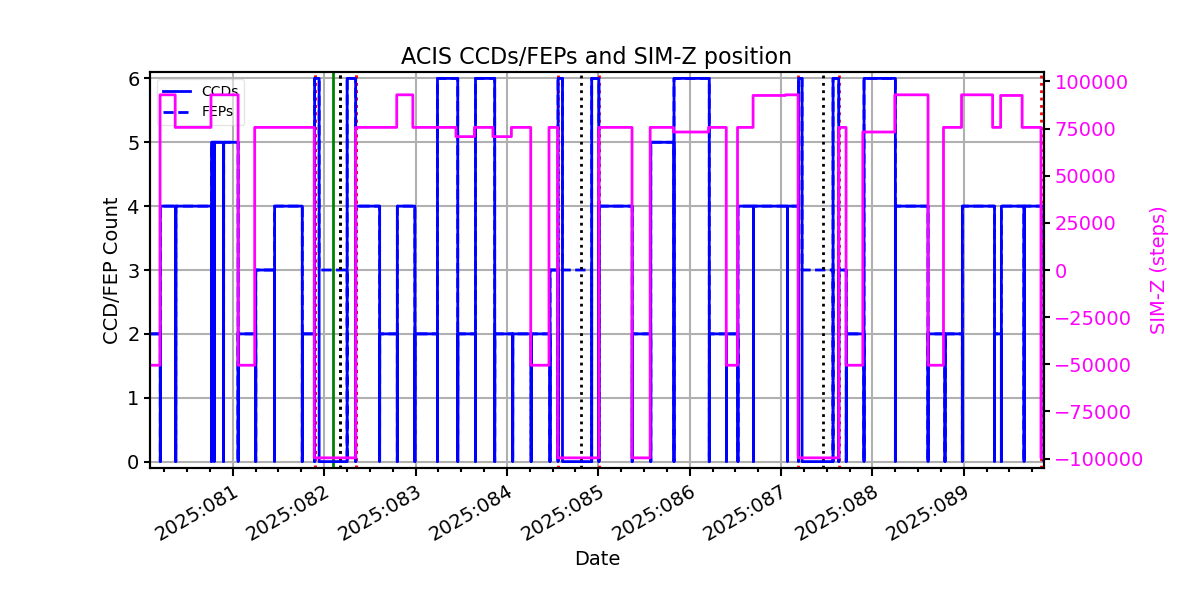

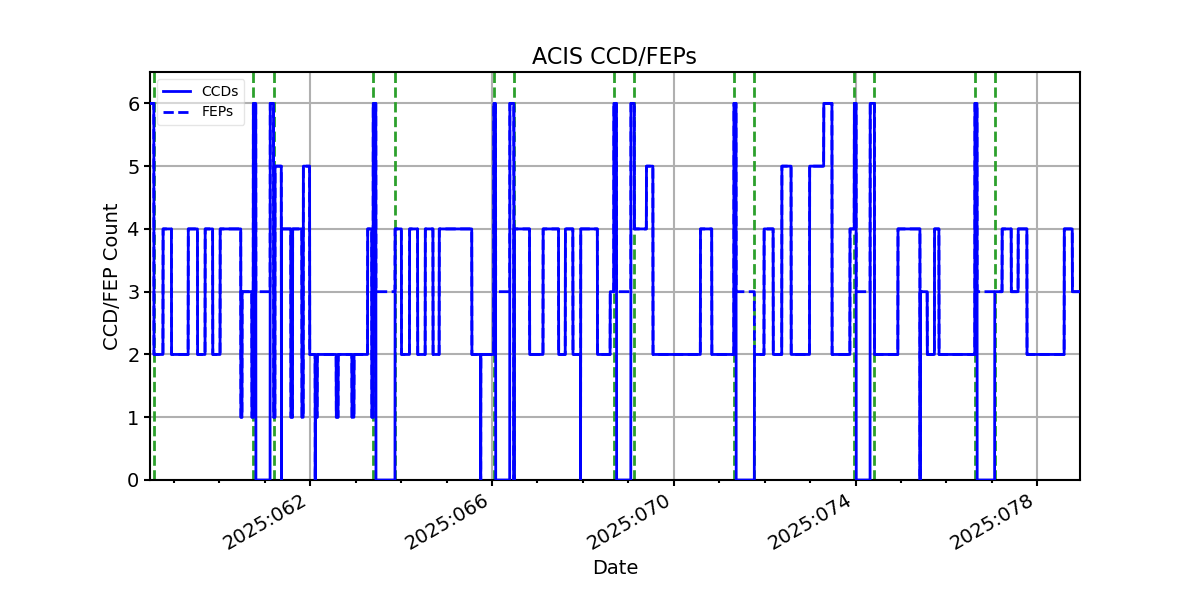

ACIS CCD/FEP Count
