PSMCBT Temperatures Check
Summary
| Date start | 2026:083:16:59:59.016 |
| Date stop | 2026:088:21:40:04.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR2426/oflsa |
| Run time | Thu Oct 8 16:10:25 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.32 | -1.67 | -1.01 | 0.40 | 1.87 | 2.50 | 3.07 |
| pitch | -13.425 | -1.625 | -0.004 | 0.000 | 0.004 | 2.035 | 12.726 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.391 | -0.281 | -0.011 | 0.000 | 0.013 | 0.323 | 2.183 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -13.425 | 3.00 |
| PITCH | 99 | 12.726 | 3.00 |

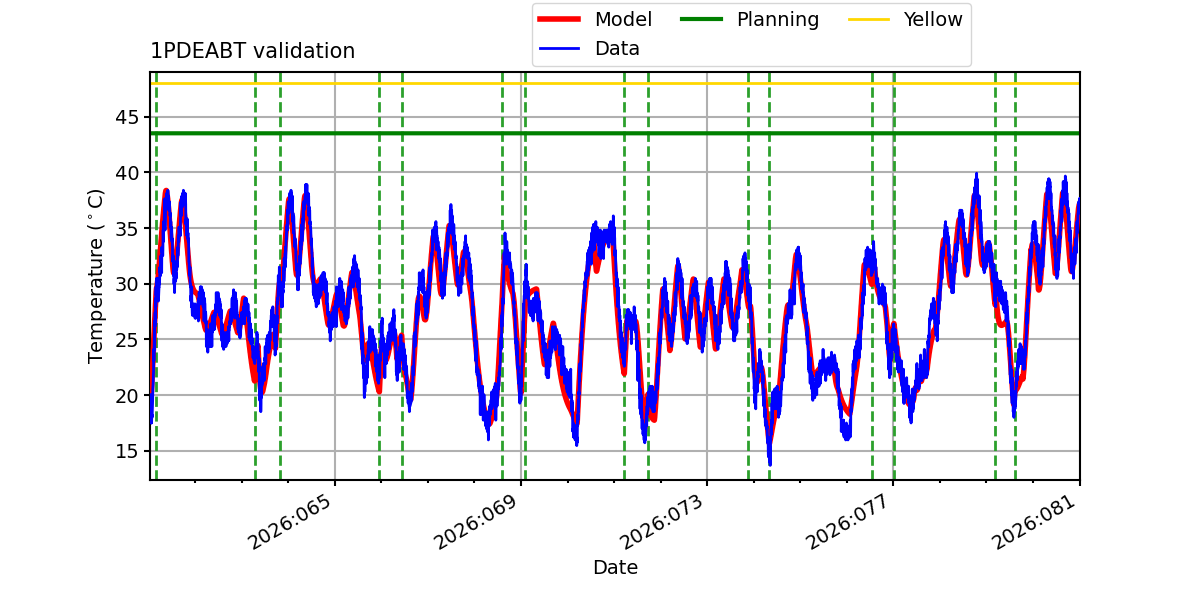

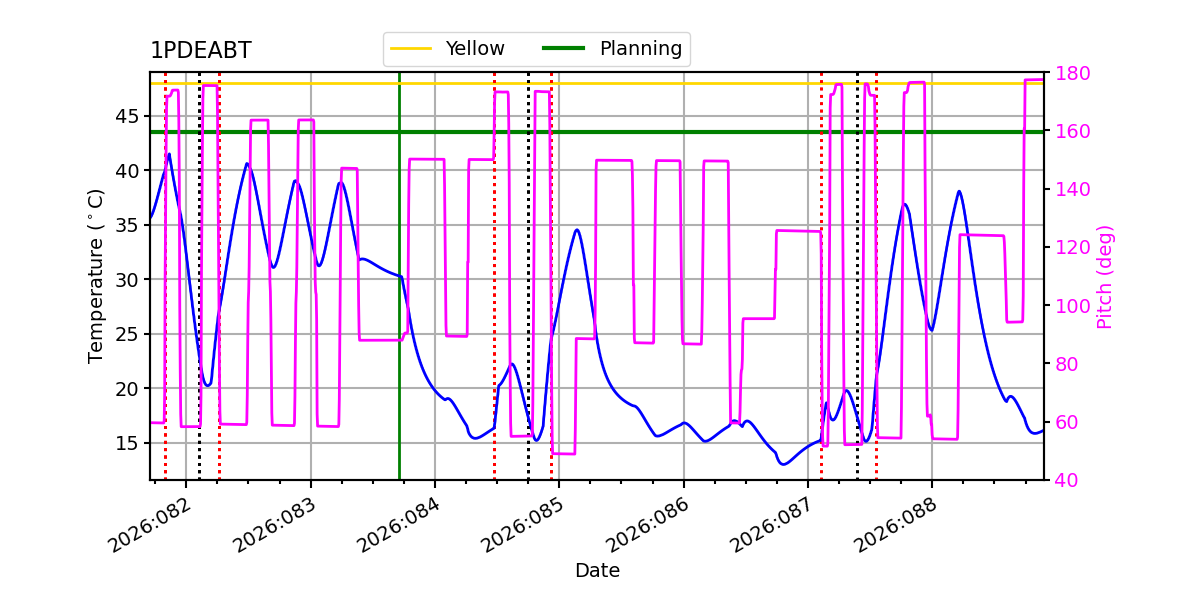

1PDEABT

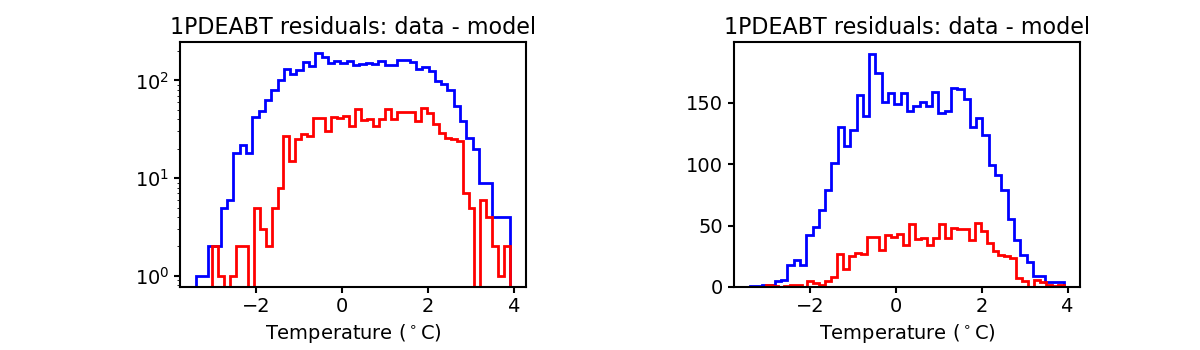

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

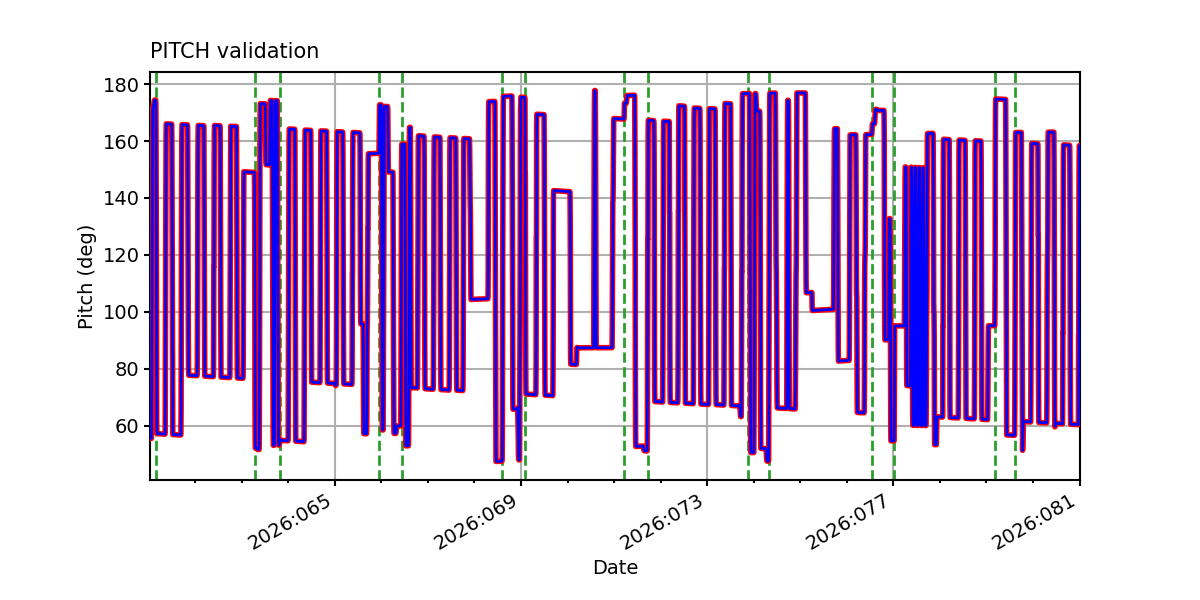

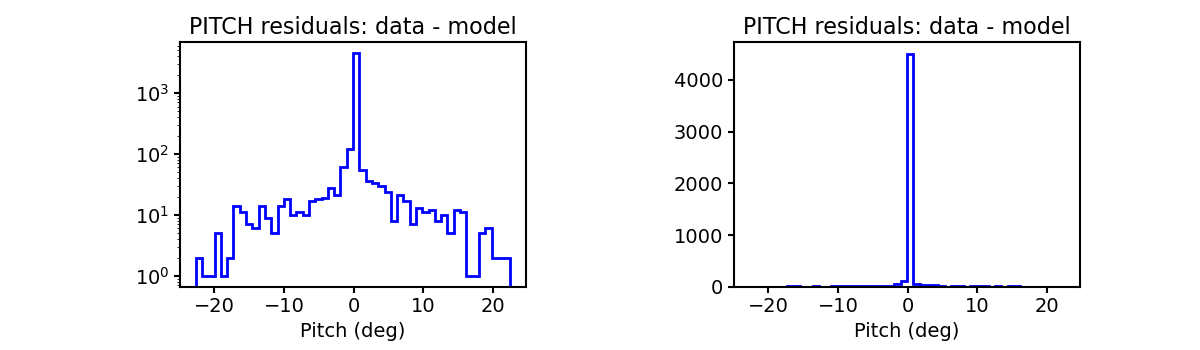

PITCH

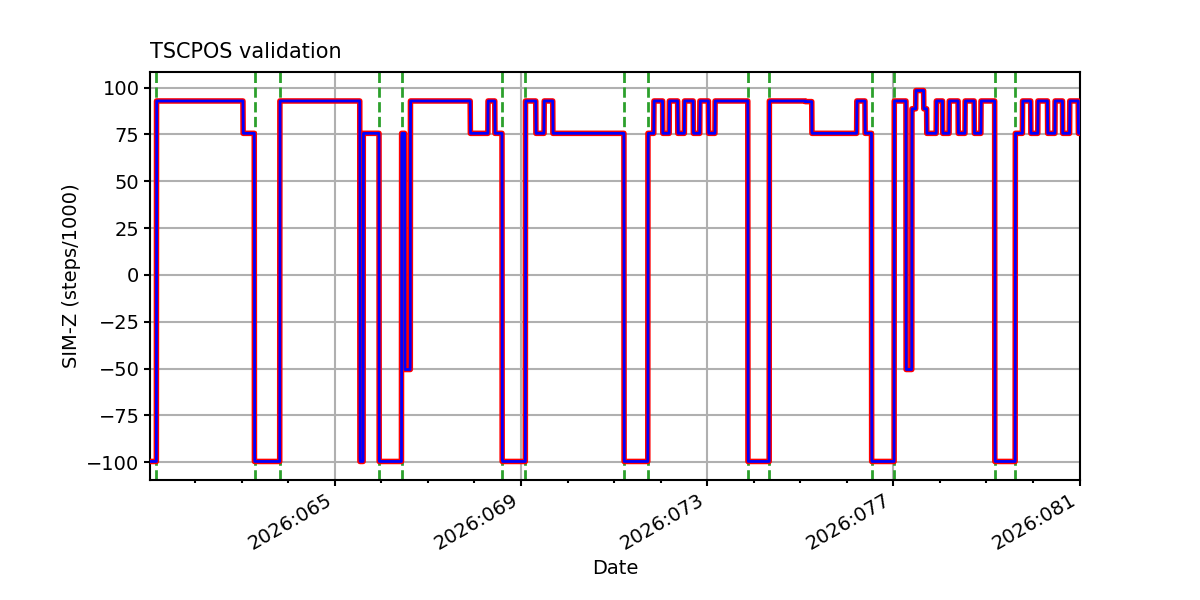

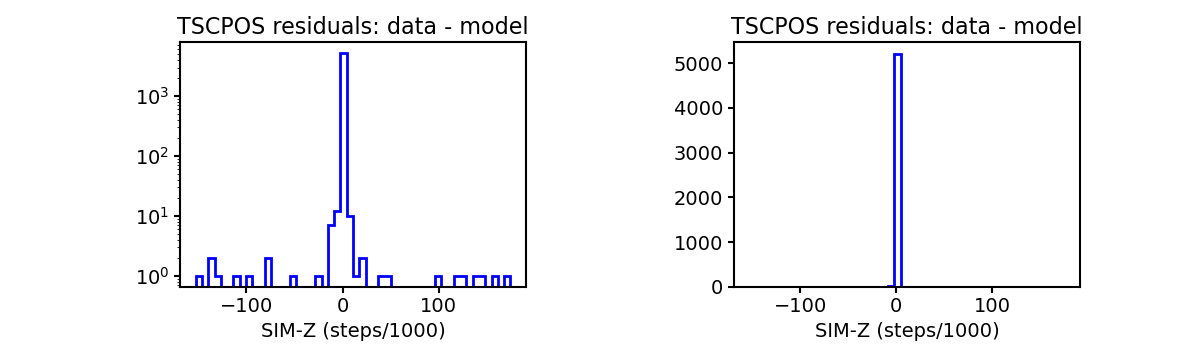

TSCPOS

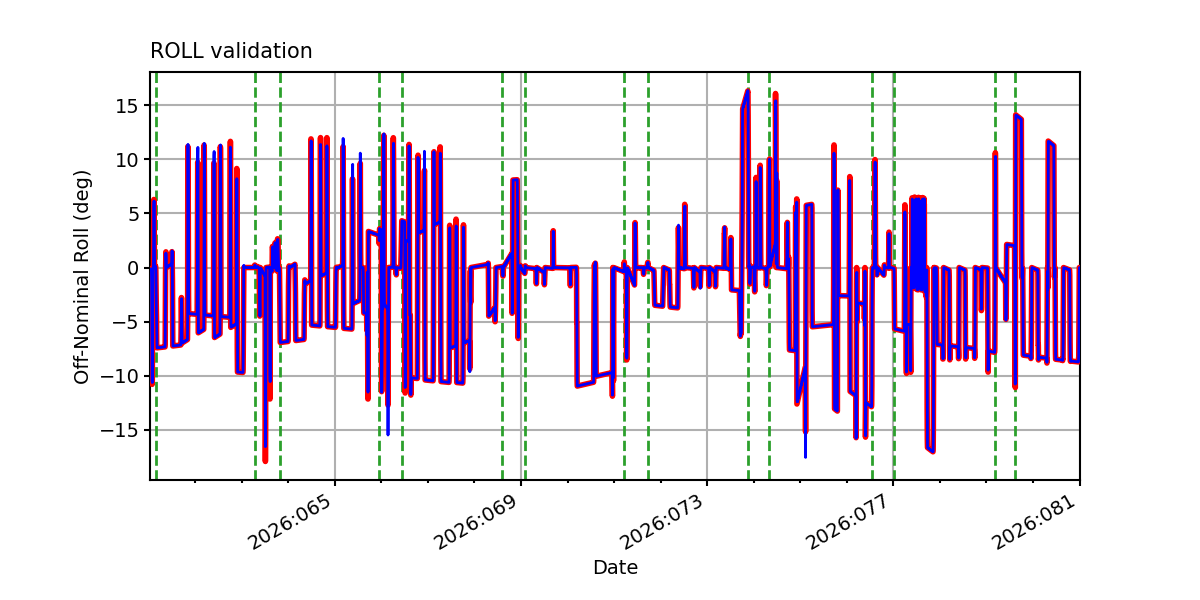

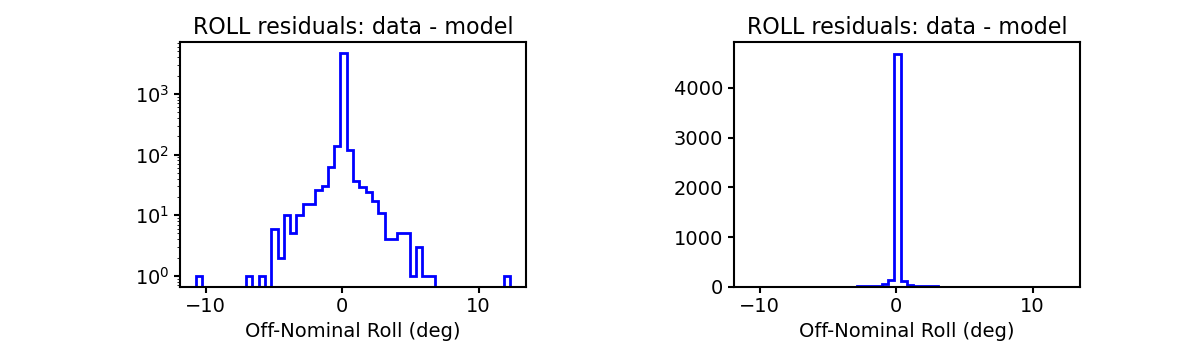

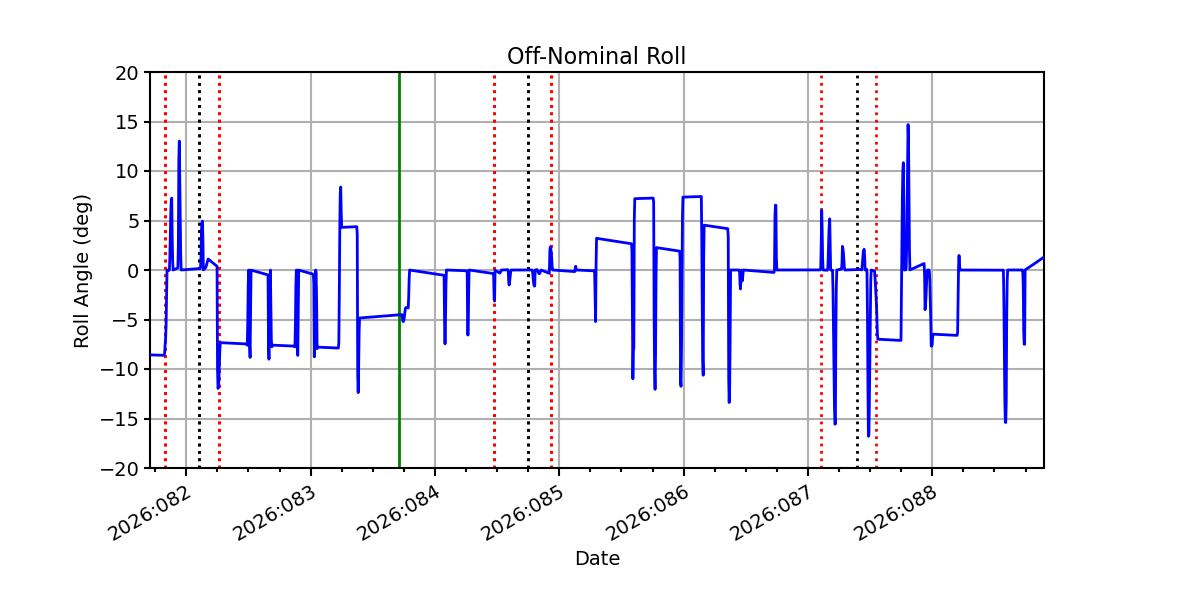

ROLL

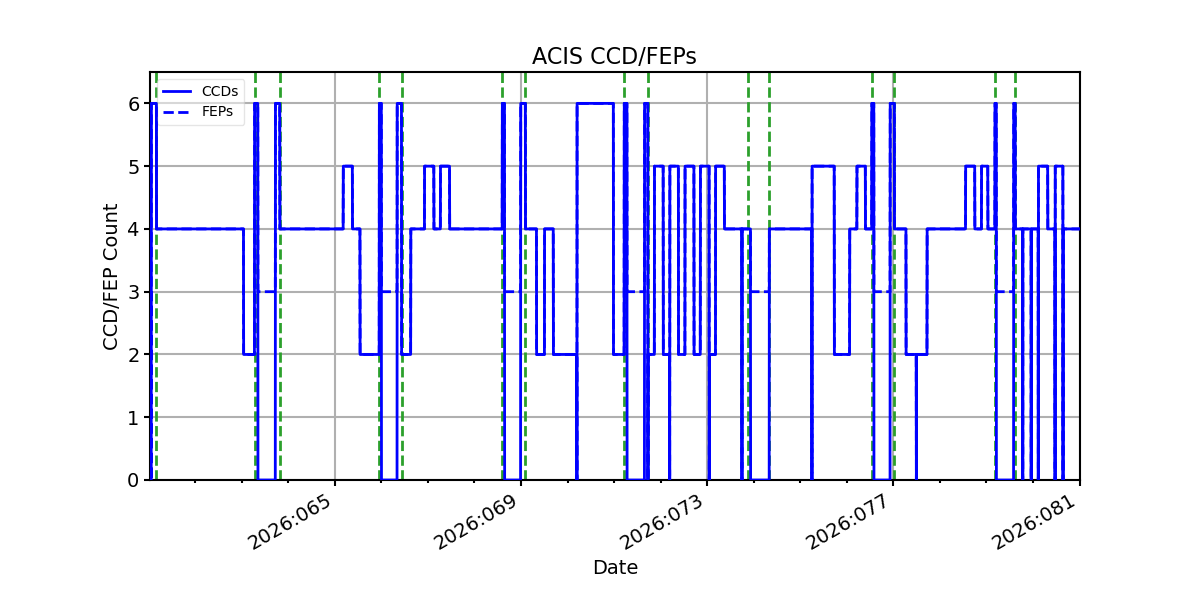

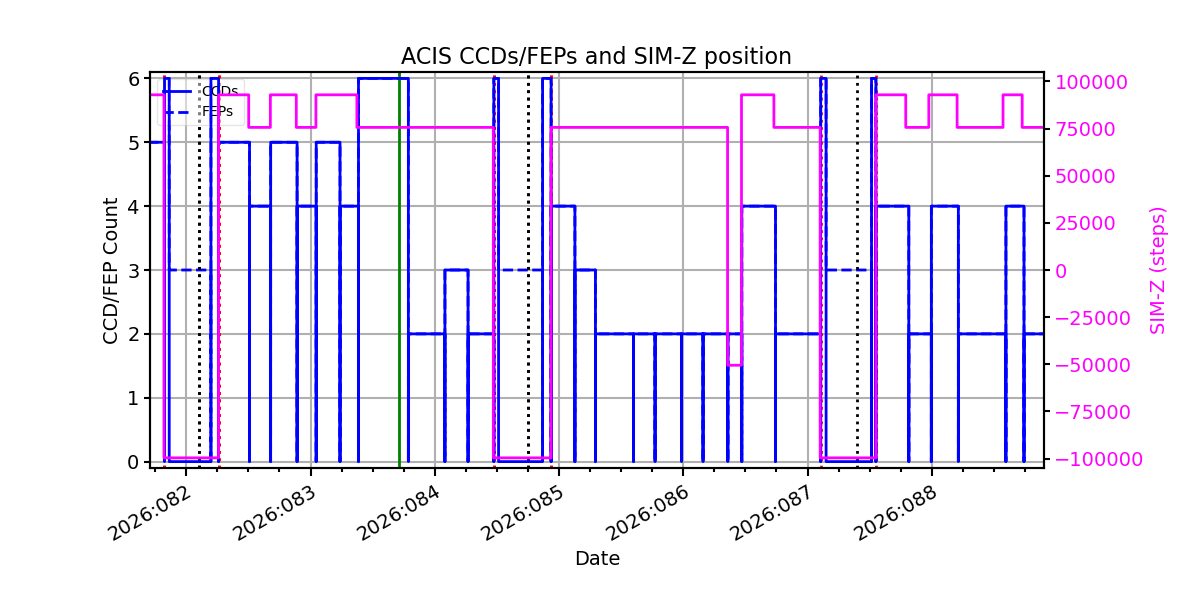

ACIS CCD/FEP Count
