PSMCBT Temperatures Check
Summary
| Date start | 2024:085:01:50:41.316 |
| Date stop | 2024:092:02:26:14.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/MAR2524/oflsa |
| Run time | Thu Oct 8 16:10:26 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

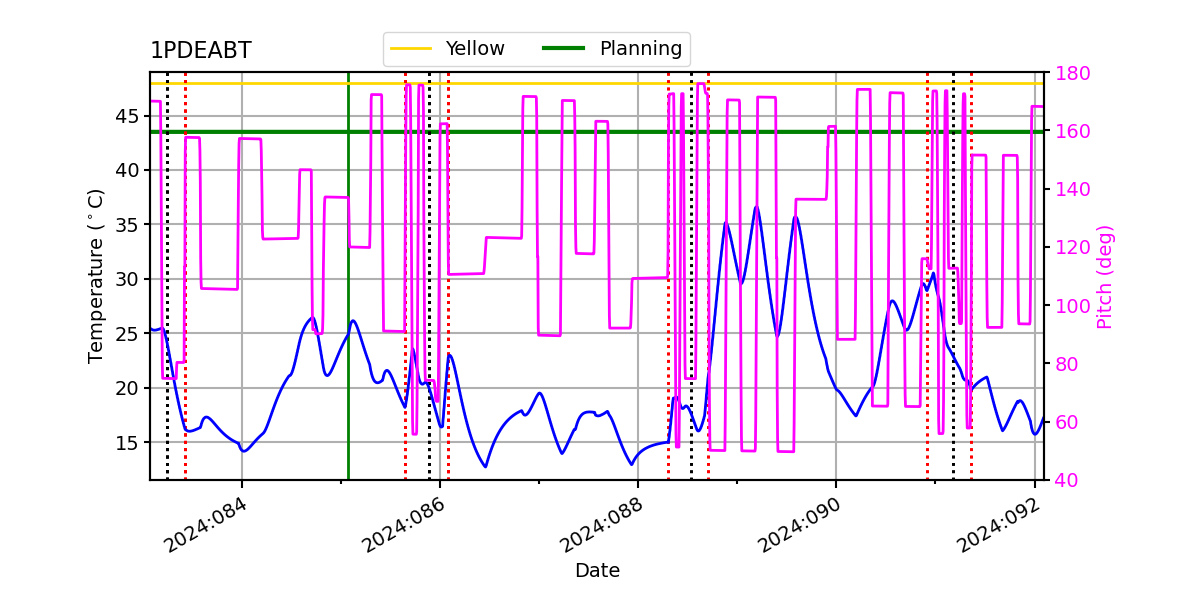

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -5.05 | -3.49 | -2.44 | -0.88 | 0.60 | 1.35 | 2.05 |
| pitch | -9.055 | -0.661 | -0.004 | -0.000 | 0.004 | 0.540 | 9.207 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.011 | -0.123 | -0.007 | 0.000 | 0.008 | 0.163 | 2.217 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -5.05 | 2.50 |
| PITCH | 1 | -9.055 | 3.00 |
| PITCH | 99 | 9.207 | 3.00 |
1PDEABT

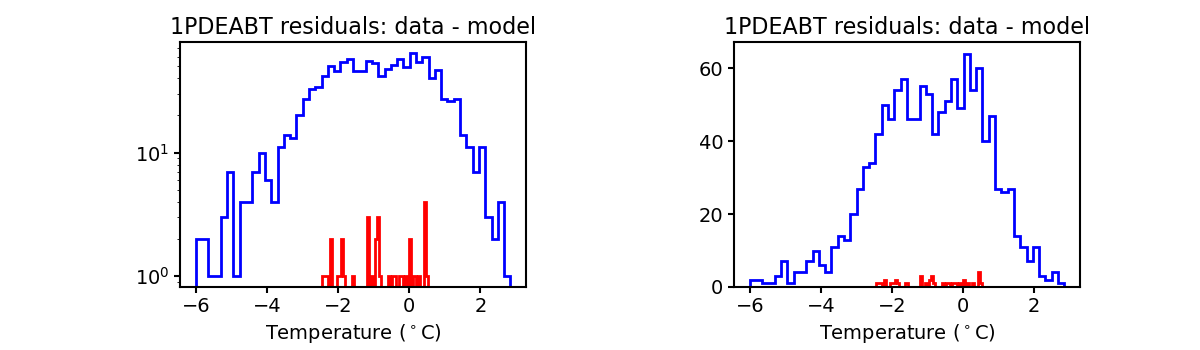

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

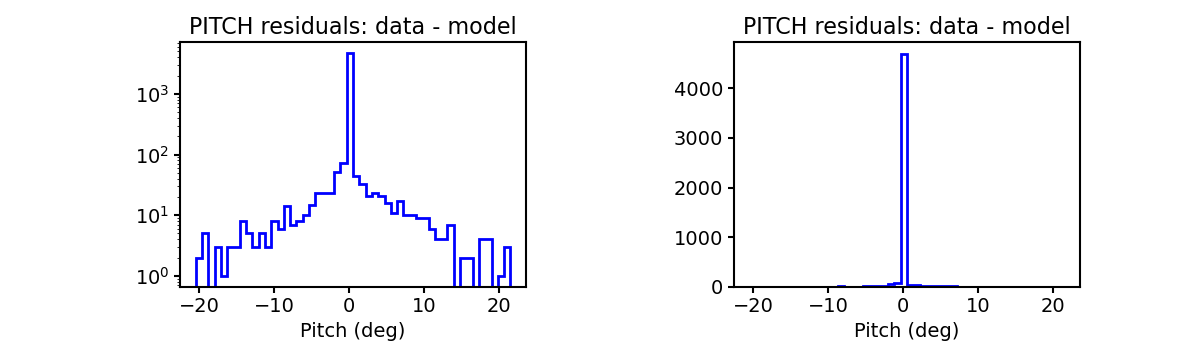

PITCH

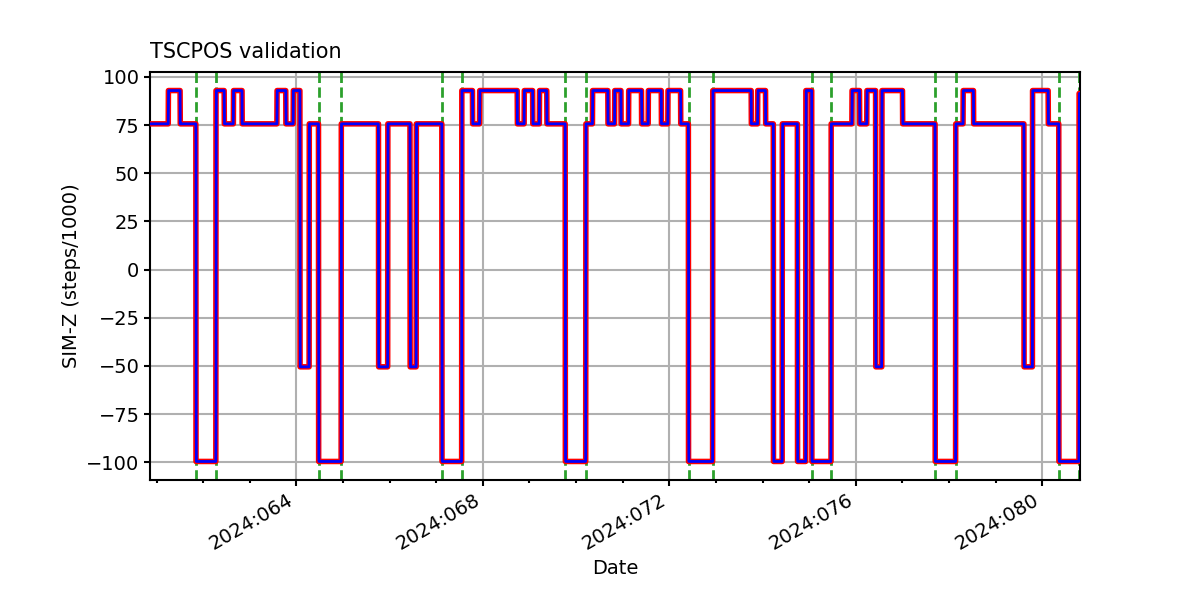

TSCPOS

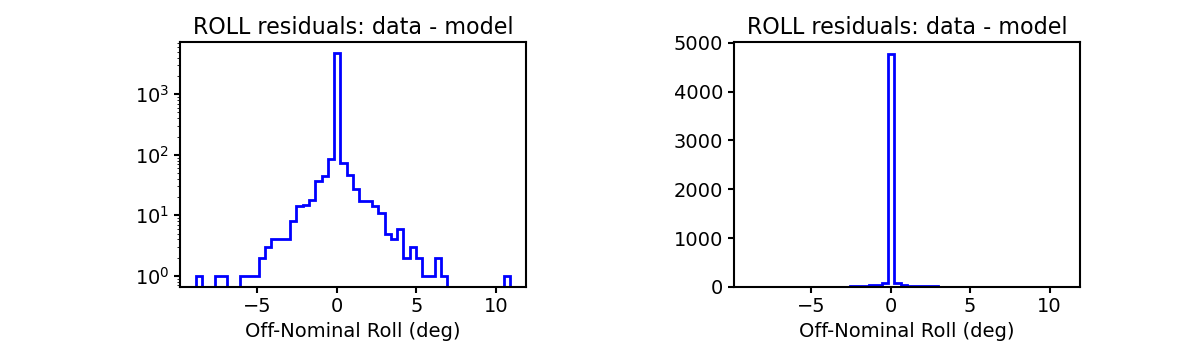

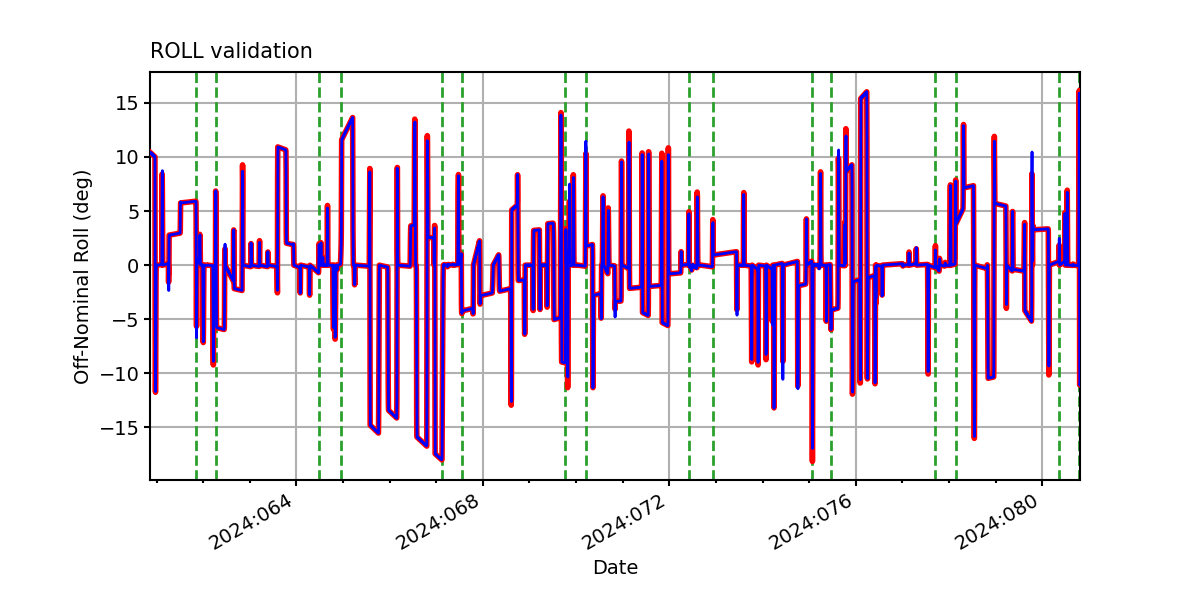

ROLL

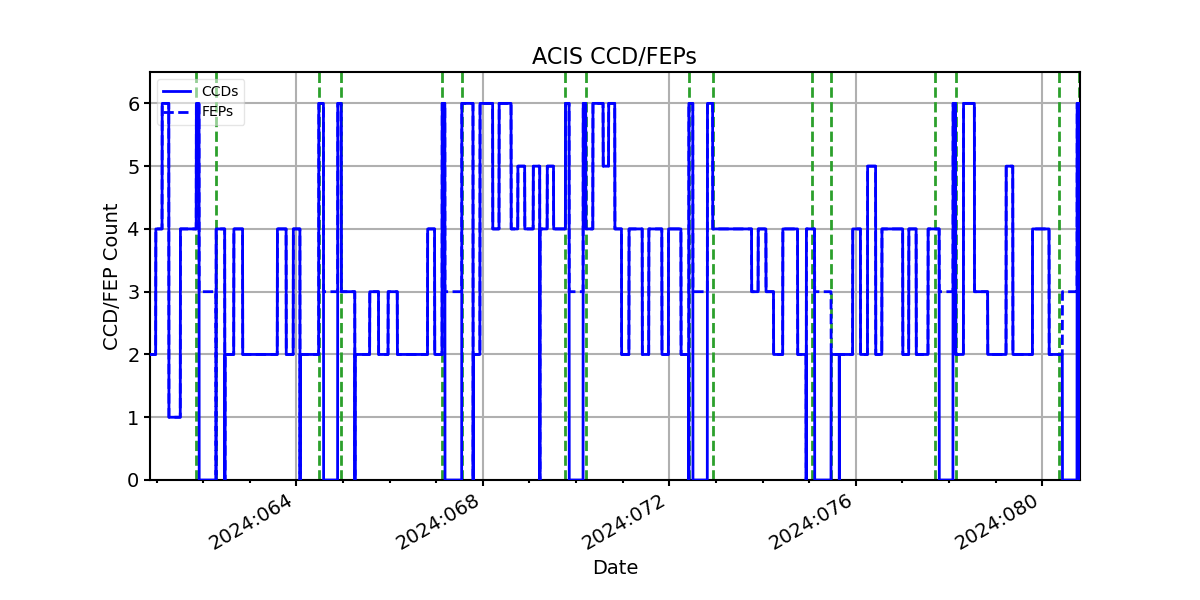

ACIS CCD/FEP Count
