PSMCBT Temperatures Check
Summary
| Date start | 2024:086:03:57:00.016 |
| Date stop | 2024:092:02:26:14.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/MAR2624/oflsa |
| Run time | Thu Oct 8 16:10:26 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

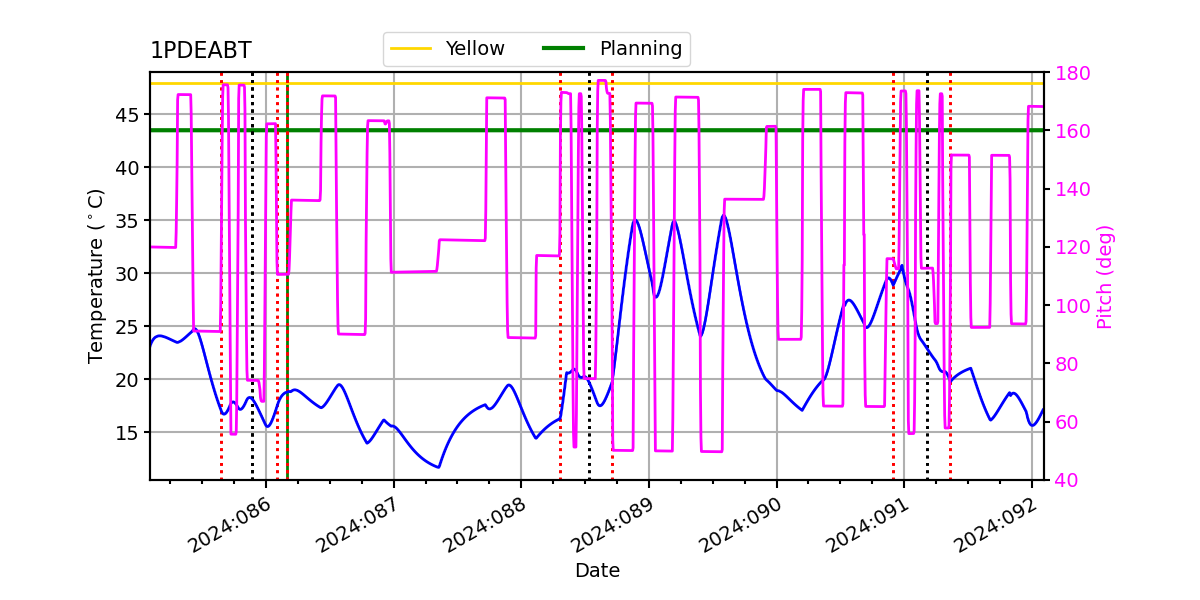

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.56 | -2.91 | -2.27 | -0.82 | 0.60 | 1.37 | 2.04 |
| pitch | -8.666 | -0.487 | -0.004 | -0.000 | 0.004 | 0.417 | 8.971 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.122 | -0.135 | -0.007 | -0.000 | 0.008 | 0.139 | 2.225 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.56 | 2.50 |
| PITCH | 1 | -8.666 | 3.00 |
| PITCH | 99 | 8.971 | 3.00 |

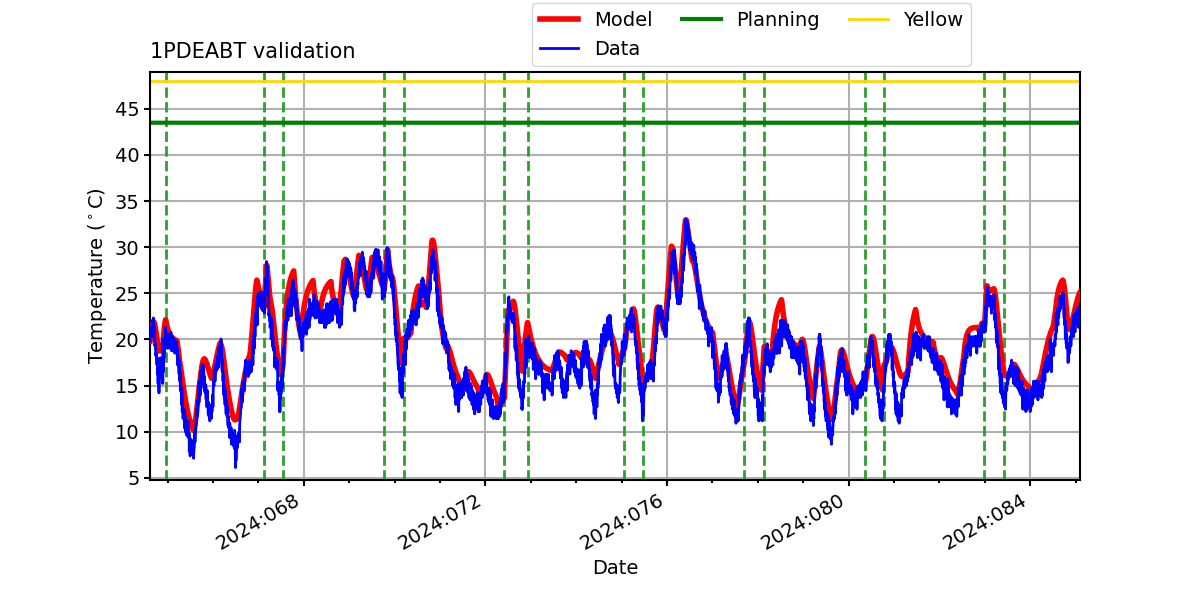

1PDEABT

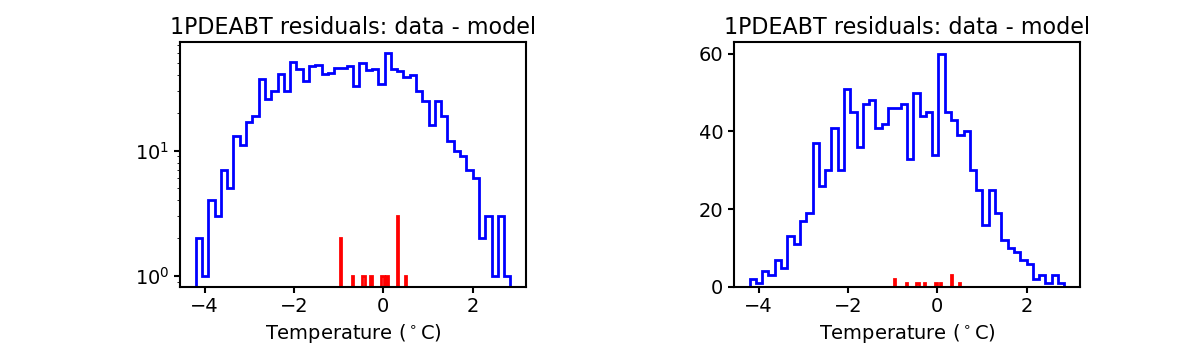

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

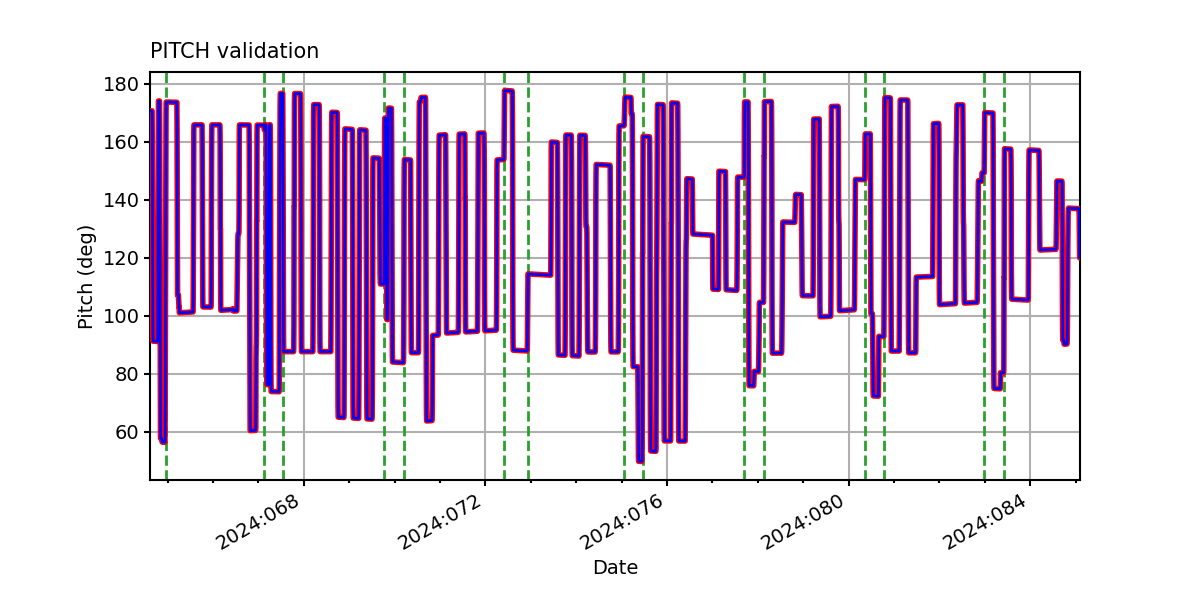

PITCH
TSCPOS

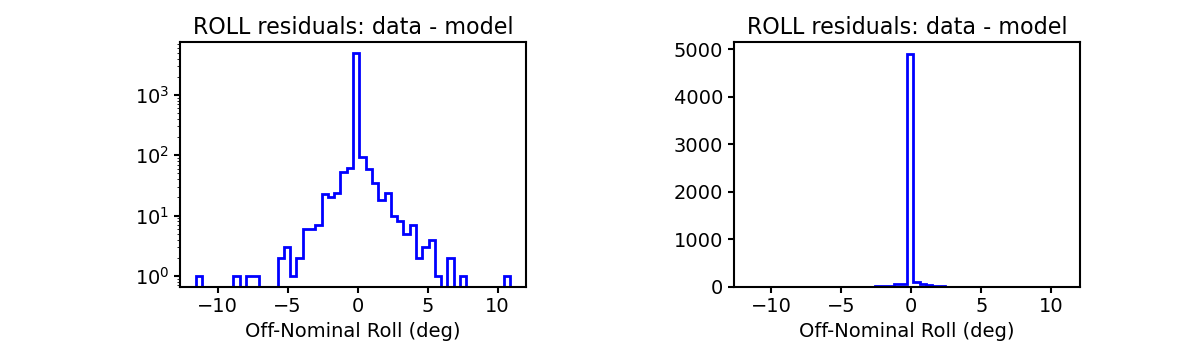

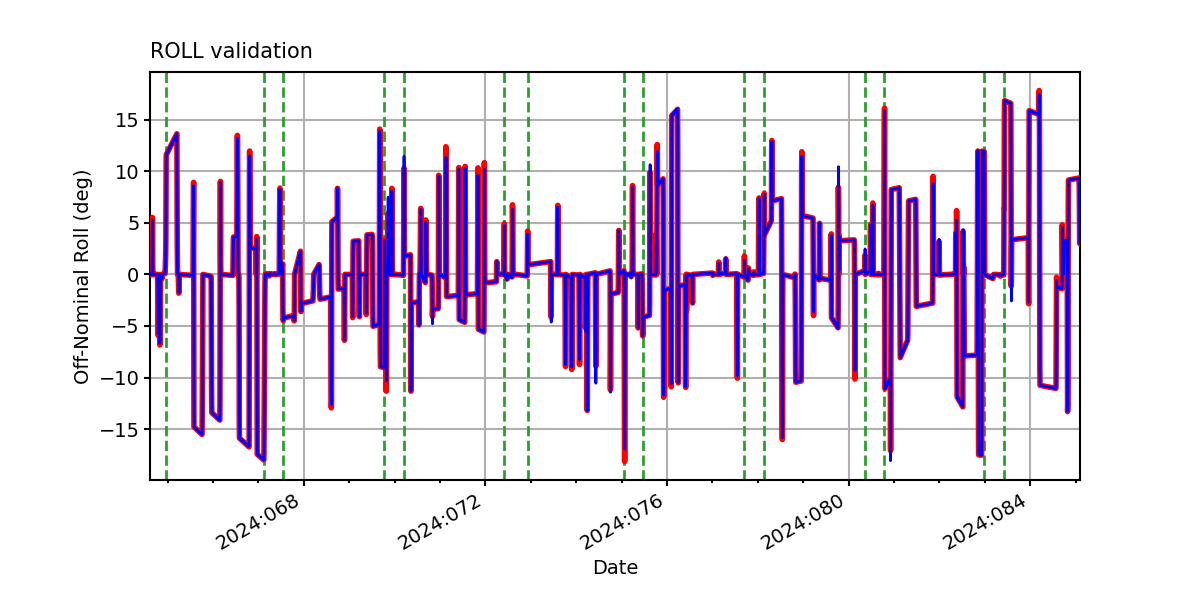

ROLL

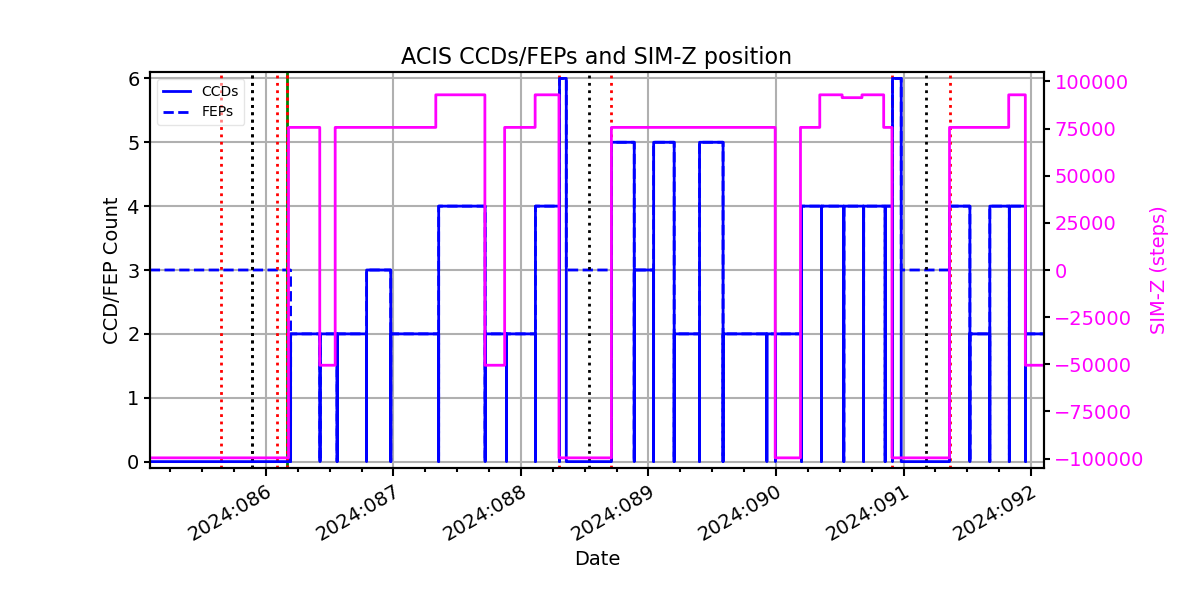

ACIS CCD/FEP Count
