PSMCBT Temperatures Check
Summary
| Date start | 2025:085:03:14:00.016 |
| Date stop | 2025:089:21:13:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/MAR2625/oflsa |
| Run time | Thu Oct 8 16:10:26 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

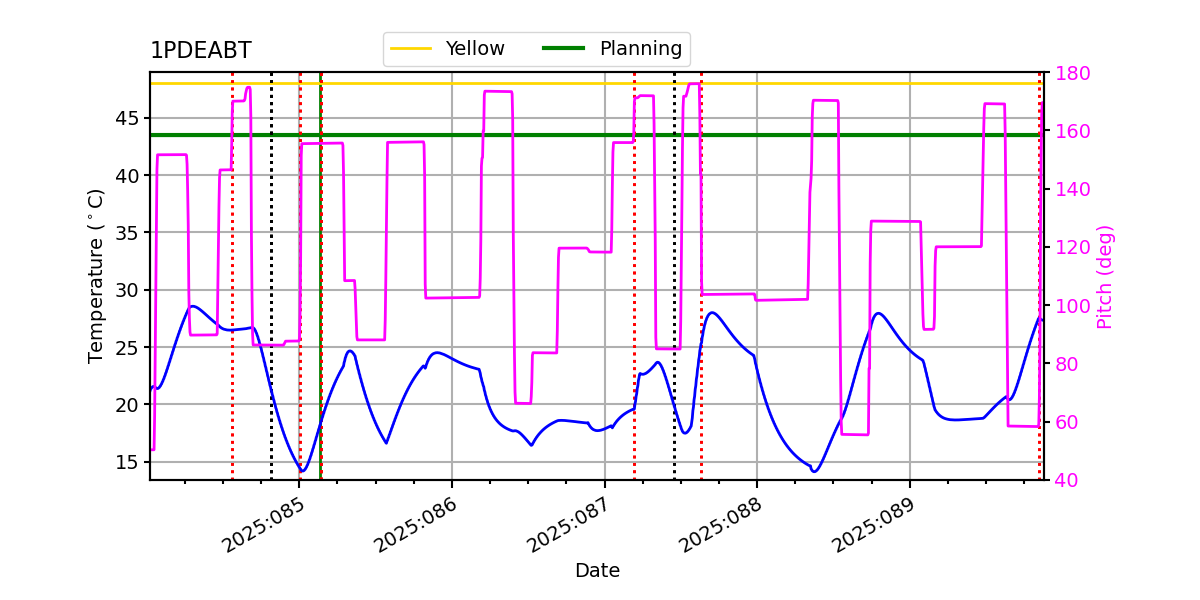

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.50 | -1.75 | -0.93 | 0.34 | 1.47 | 2.11 | 2.70 |
| pitch | -10.658 | -0.986 | -0.004 | -0.000 | 0.004 | 0.942 | 10.507 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.865 | -0.271 | -0.008 | -0.000 | 0.007 | 0.261 | 2.533 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -10.658 | 3.00 |
| PITCH | 99 | 10.507 | 3.00 |

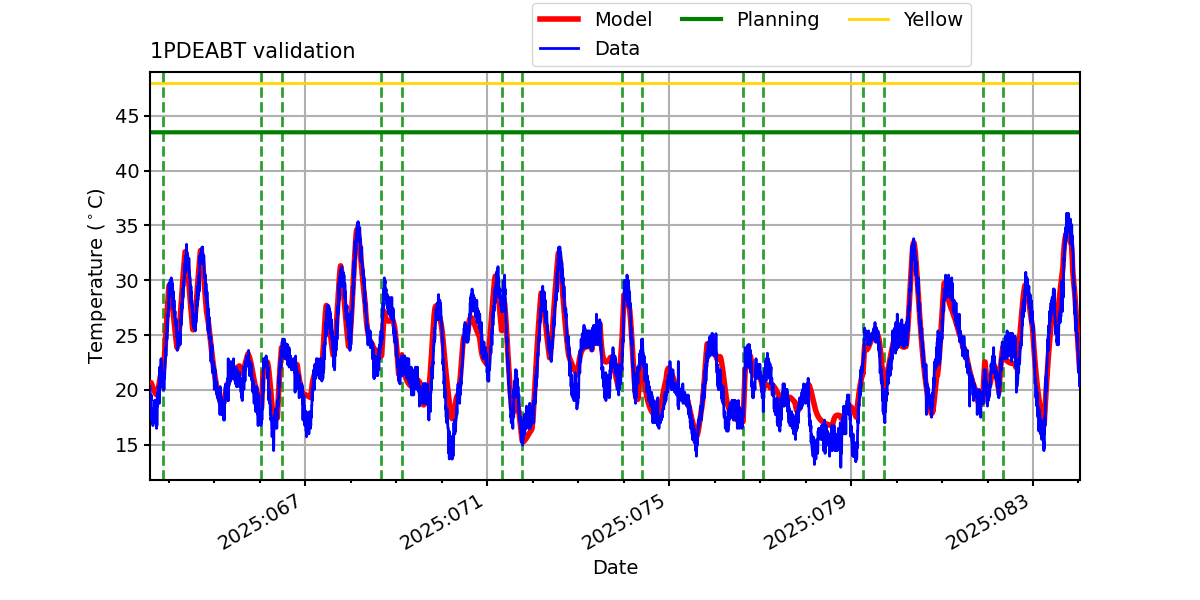

1PDEABT

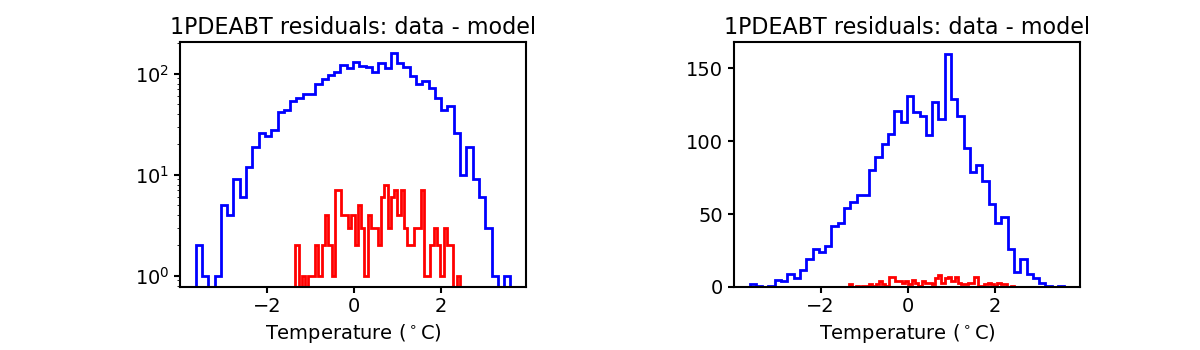

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

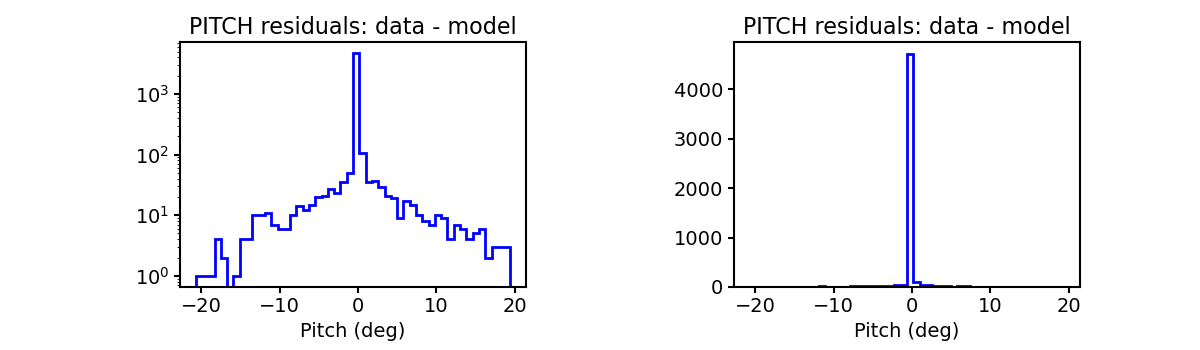

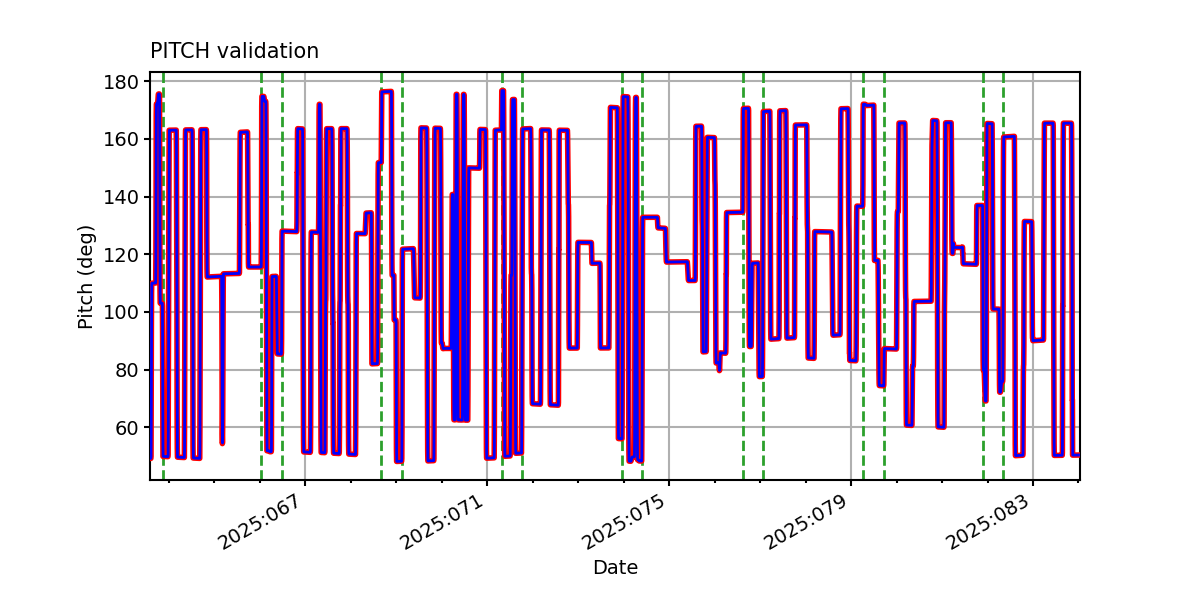

PITCH

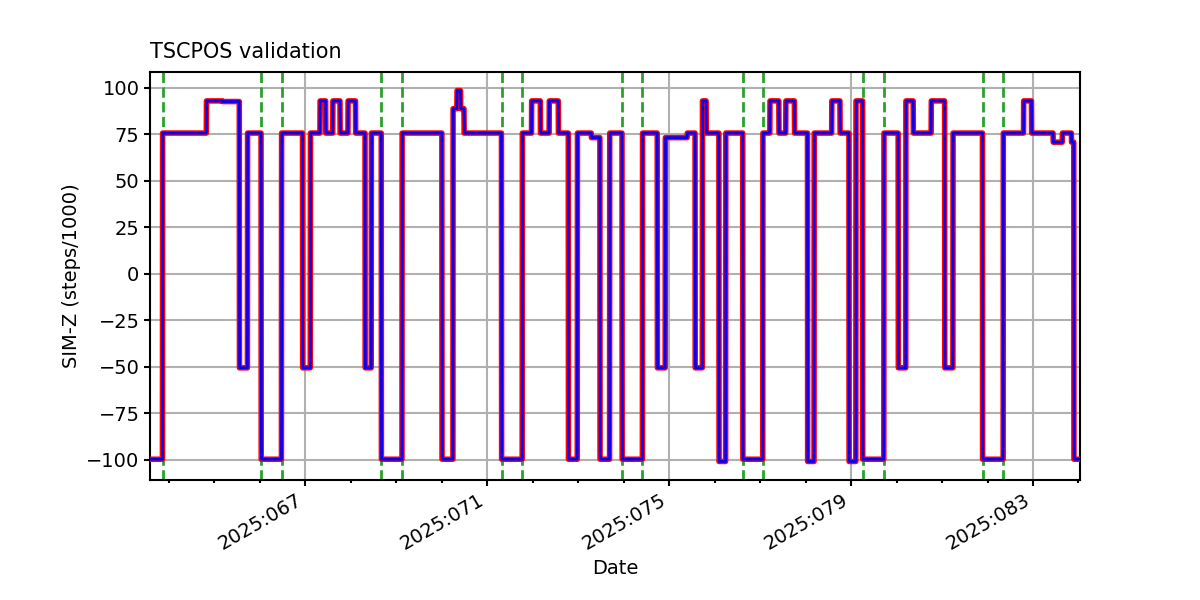

TSCPOS

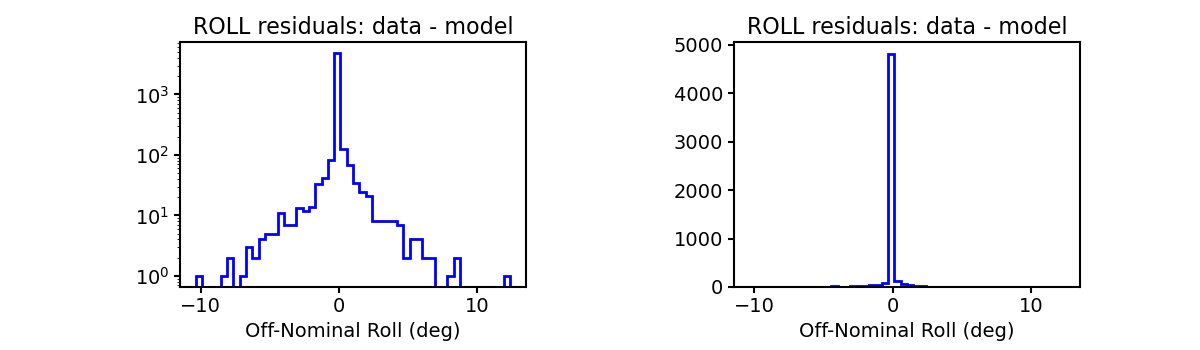

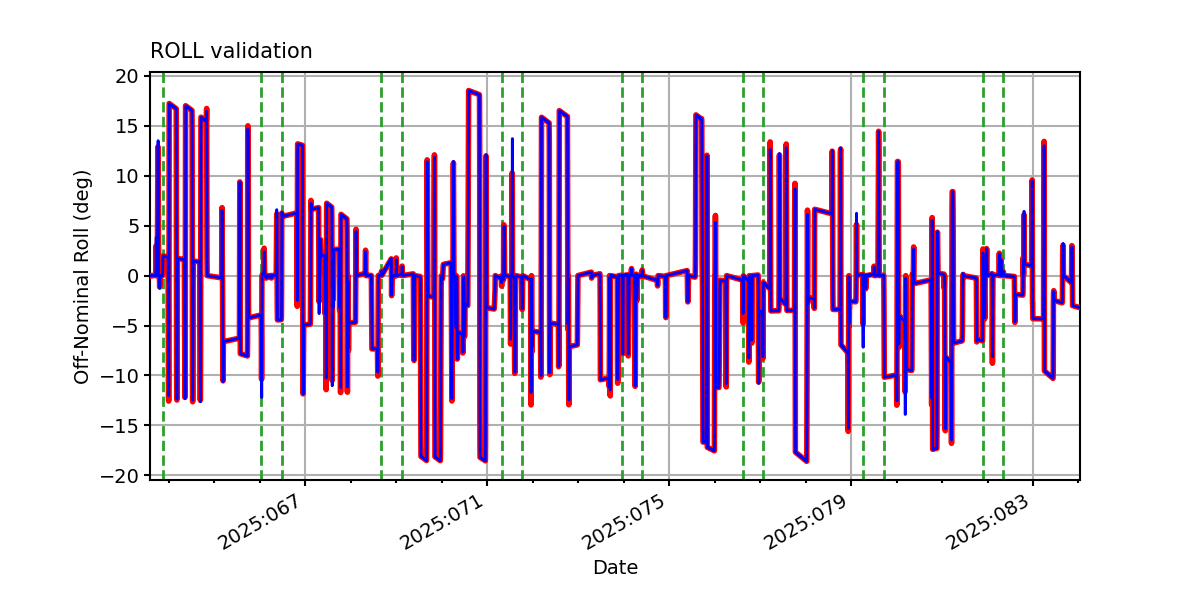

ROLL

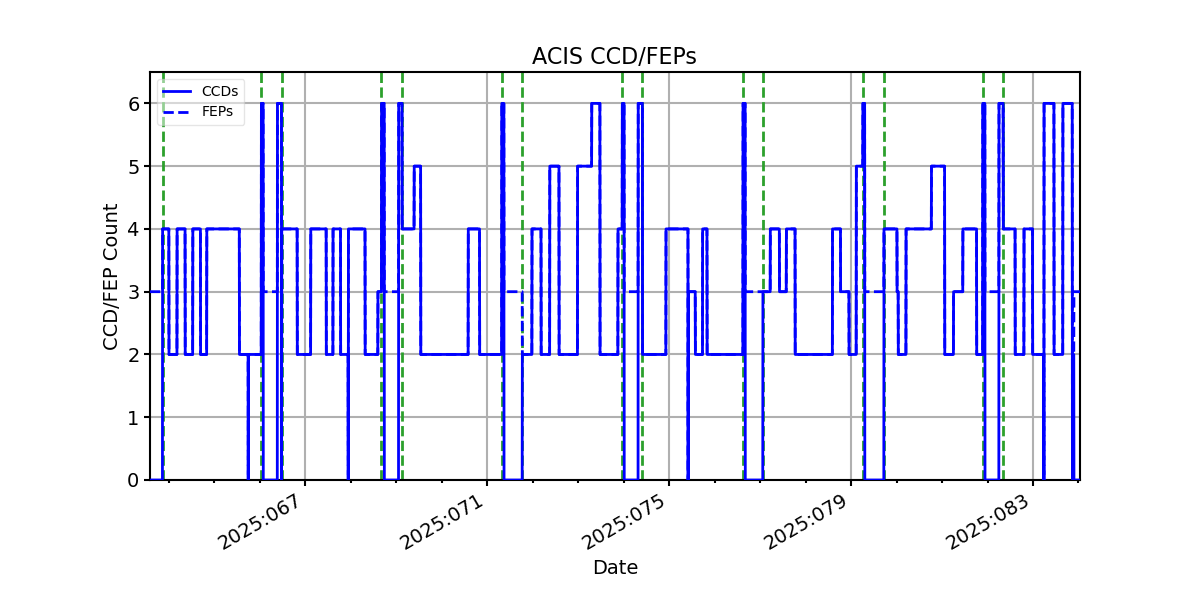

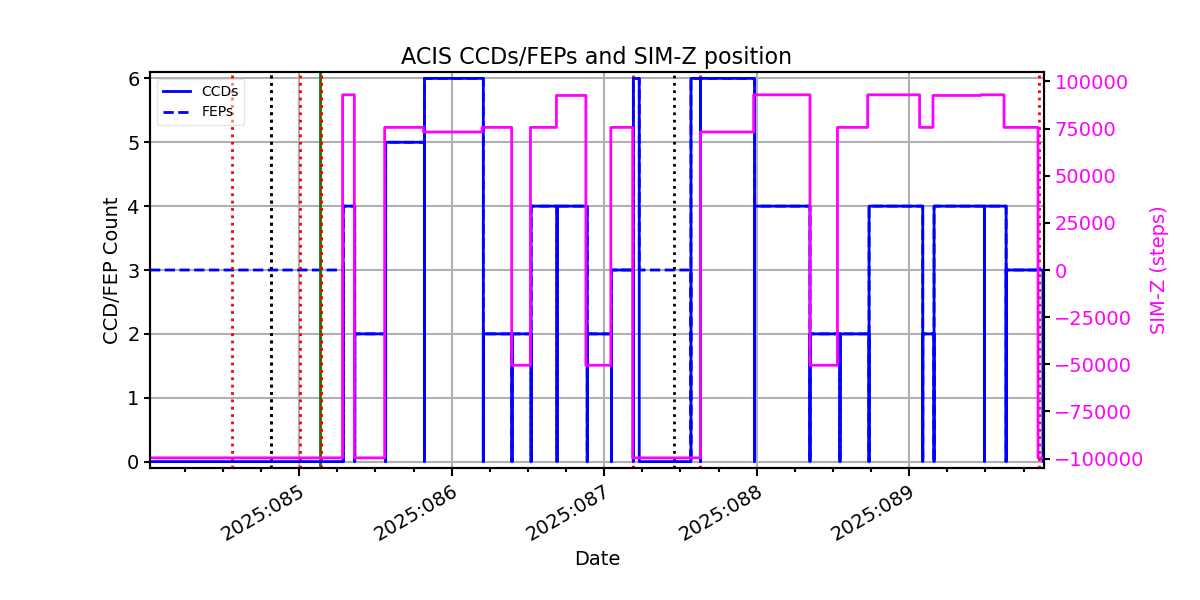

ACIS CCD/FEP Count
