PSMCBT Temperatures Check
Summary
| Date start | 2023:086:07:54:44.616 |
| Date stop | 2023:093:00:13:56.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/MAR2723/oflsa |
| Run time | Thu Oct 8 16:10:27 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.34 | -2.64 | -1.73 | -0.15 | 1.47 | 2.25 | 3.06 |
| pitch | -9.739 | -0.408 | -0.002 | 0.000 | 0.002 | 0.535 | 9.933 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.845 | -0.127 | -0.003 | 0.000 | 0.004 | 0.154 | 1.631 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.34 | 2.50 |
| PITCH | 1 | -9.739 | 3.00 |
| PITCH | 99 | 9.933 | 3.00 |

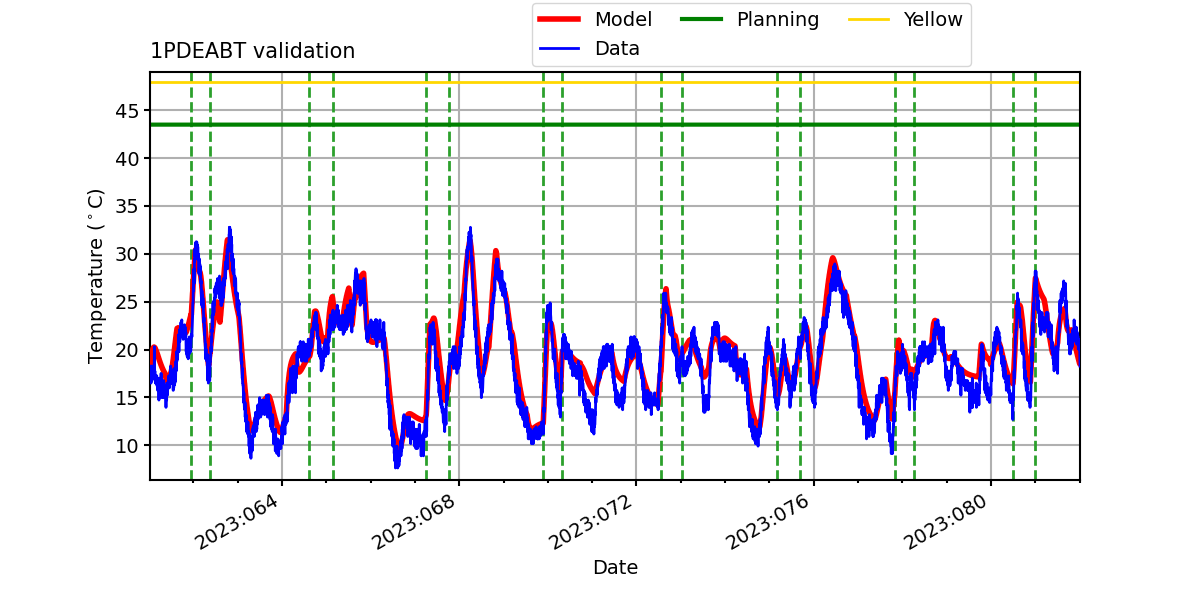

1PDEABT

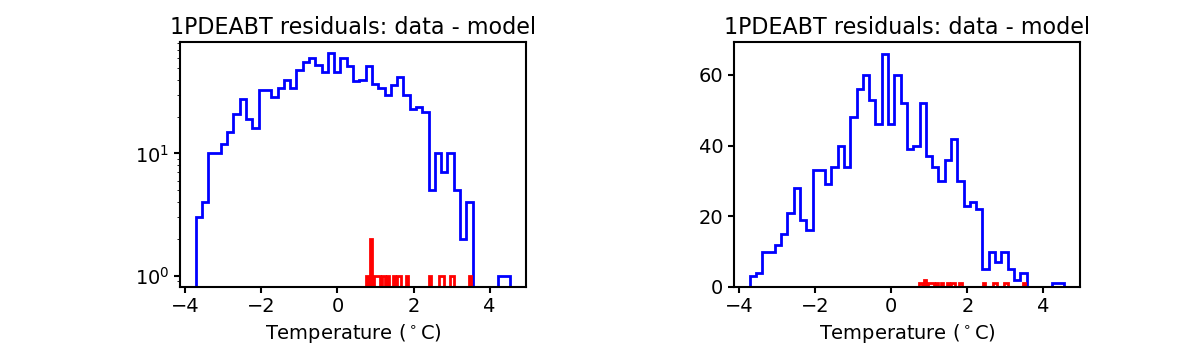

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.
PITCH

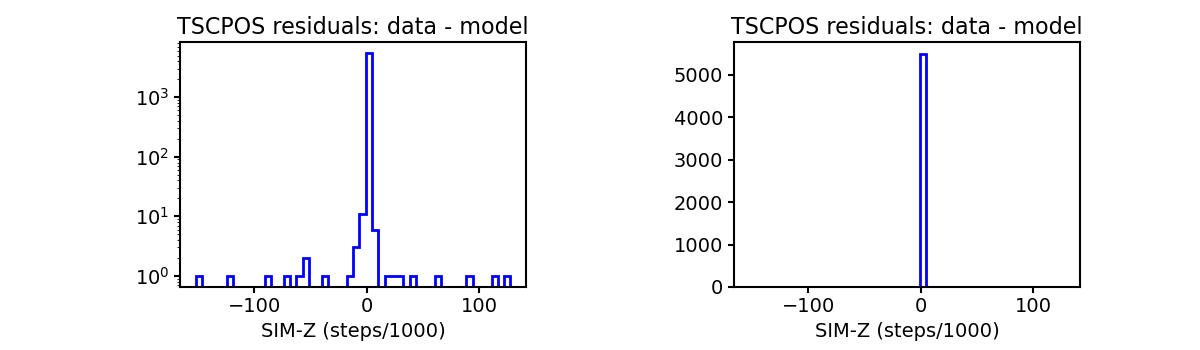

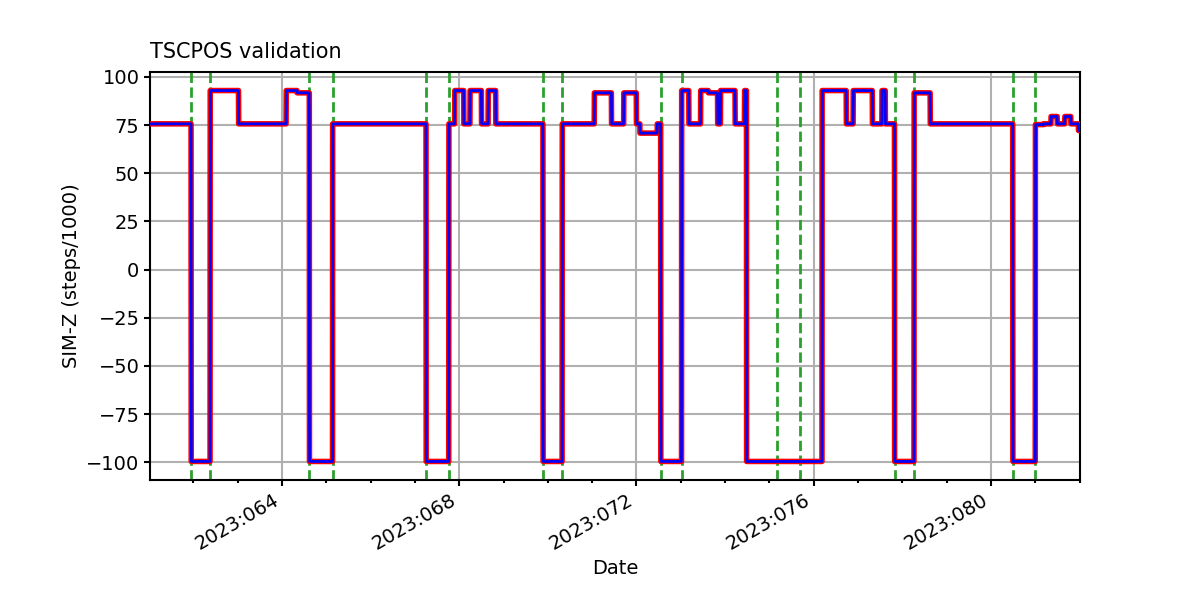

TSCPOS

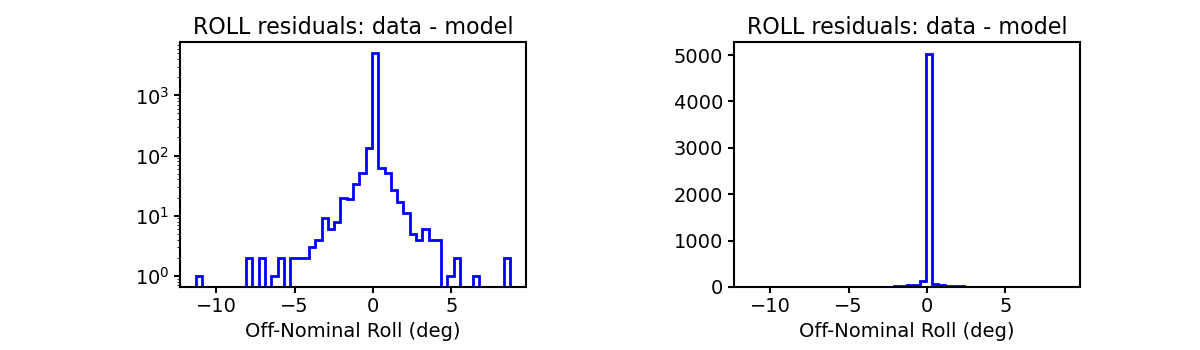

ROLL

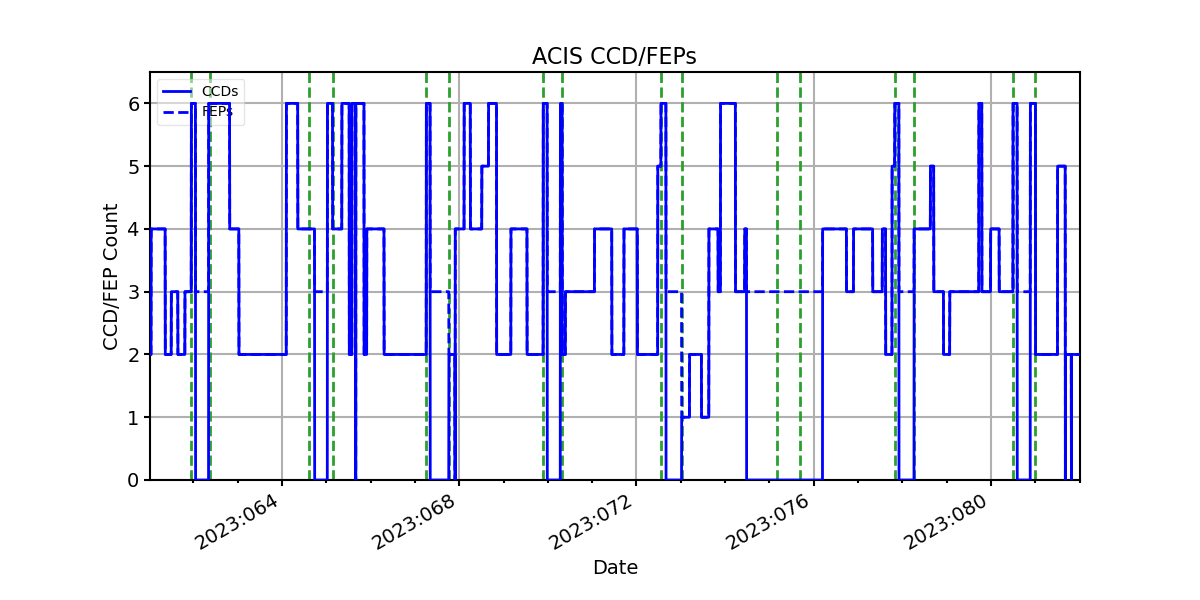

ACIS CCD/FEP Count
