PSMCBT Temperatures Check
Summary
| Date start | 2025:089:21:10:00.016 |
| Date stop | 2025:097:00:25:38.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/MAR3125/oflsa |
| Run time | Thu Oct 8 16:11:00 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

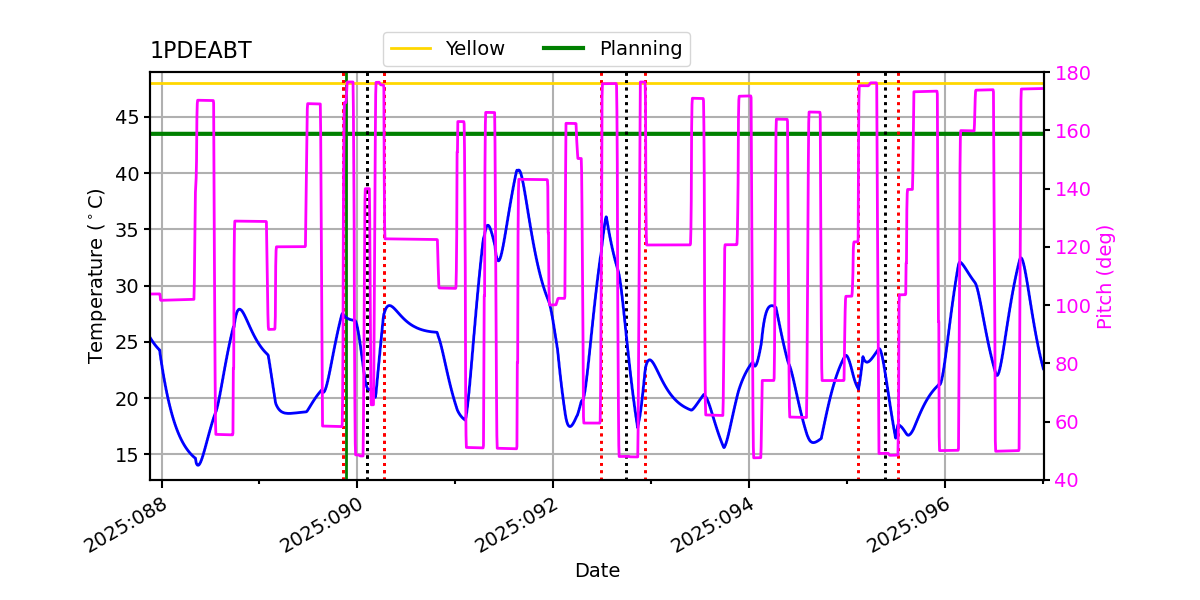

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.54 | -1.67 | -0.79 | 0.45 | 1.68 | 2.34 | 3.10 |
| pitch | -9.759 | -0.839 | -0.004 | -0.000 | 0.004 | 0.901 | 10.356 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.599 | -0.248 | -0.008 | -0.000 | 0.007 | 0.214 | 2.177 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.54 | 2.50 |
| PITCH | 1 | -9.759 | 3.00 |
| PITCH | 99 | 10.356 | 3.00 |

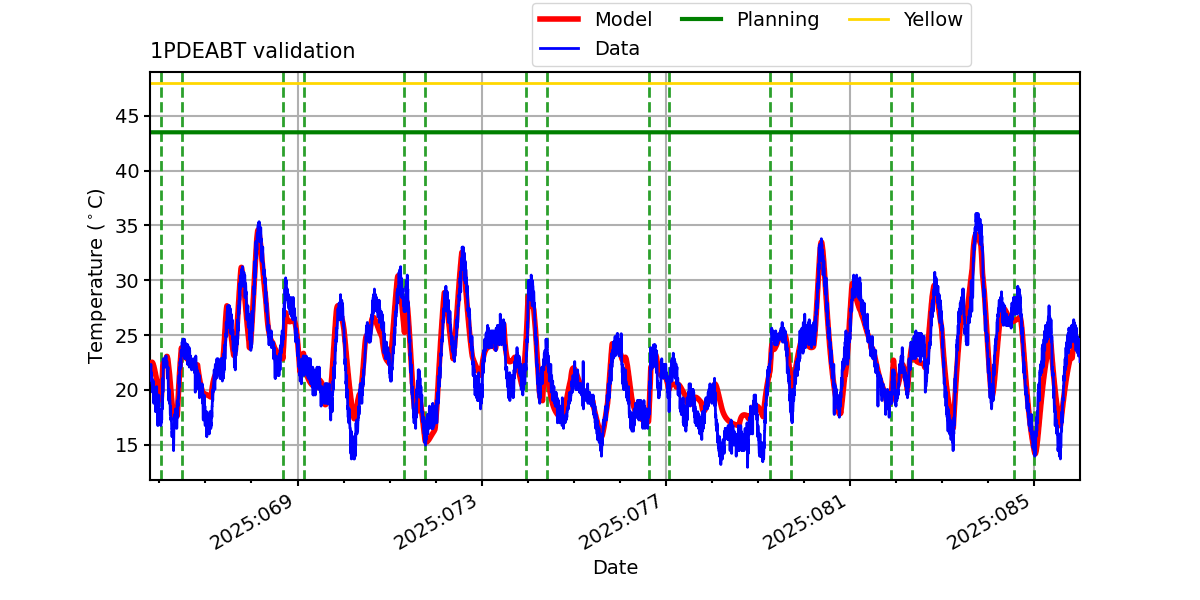

1PDEABT

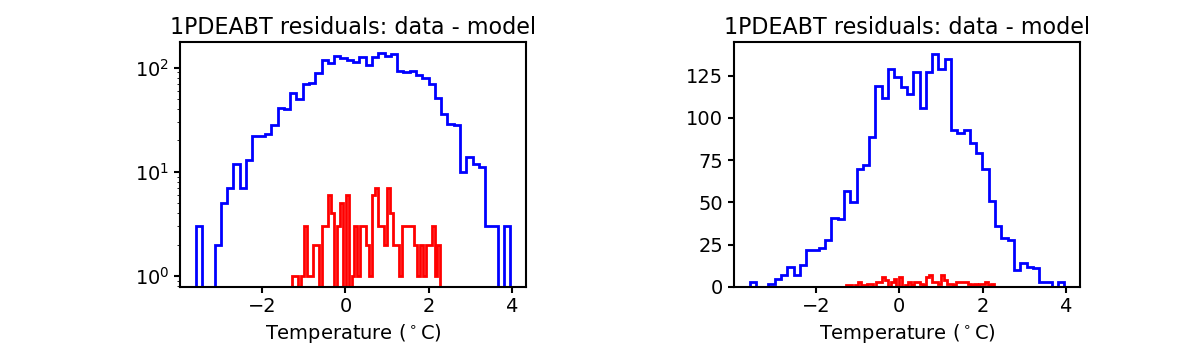

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

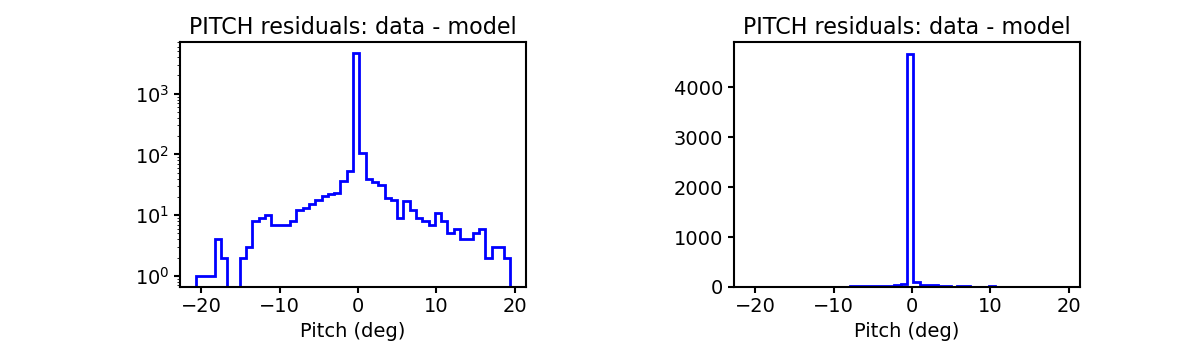

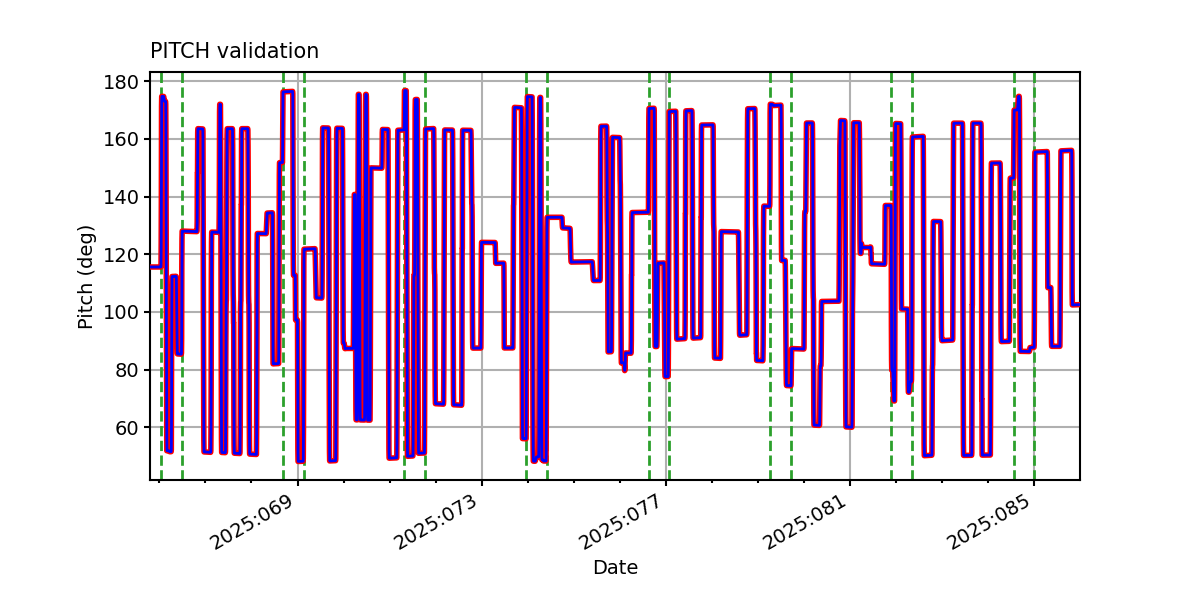

PITCH

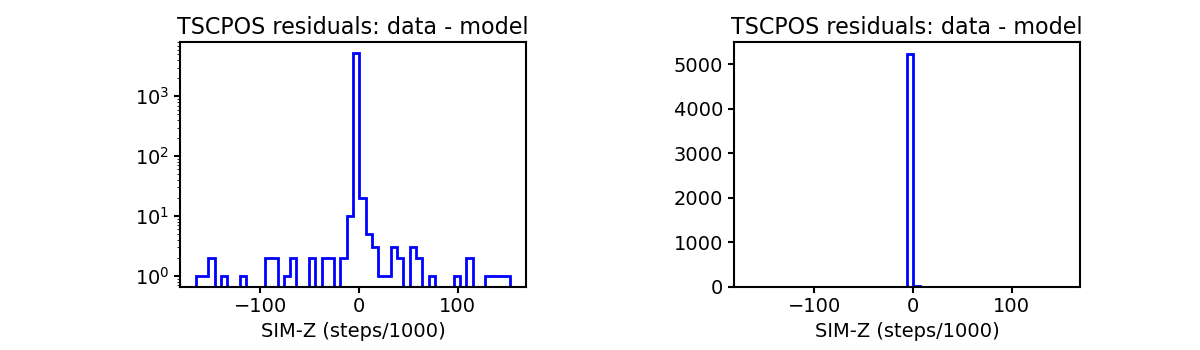

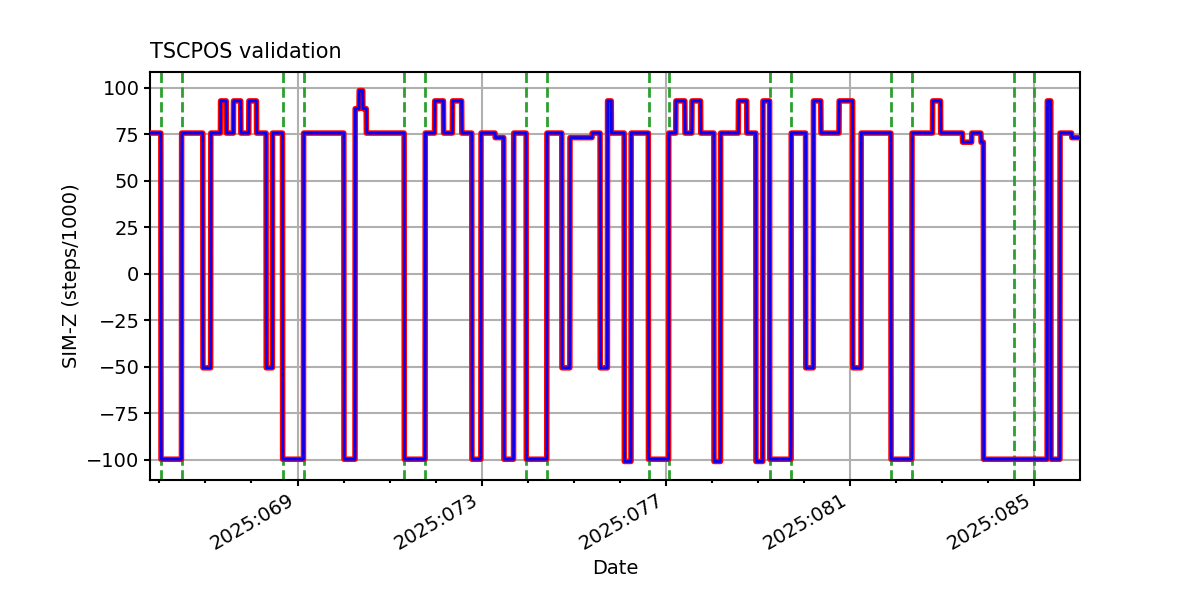

TSCPOS

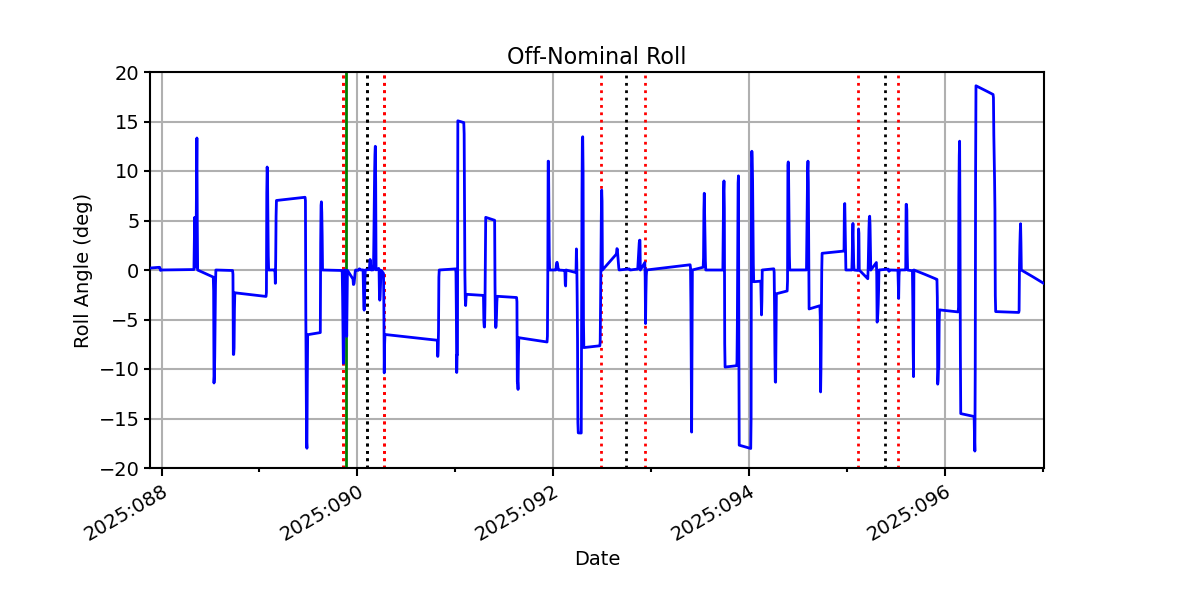

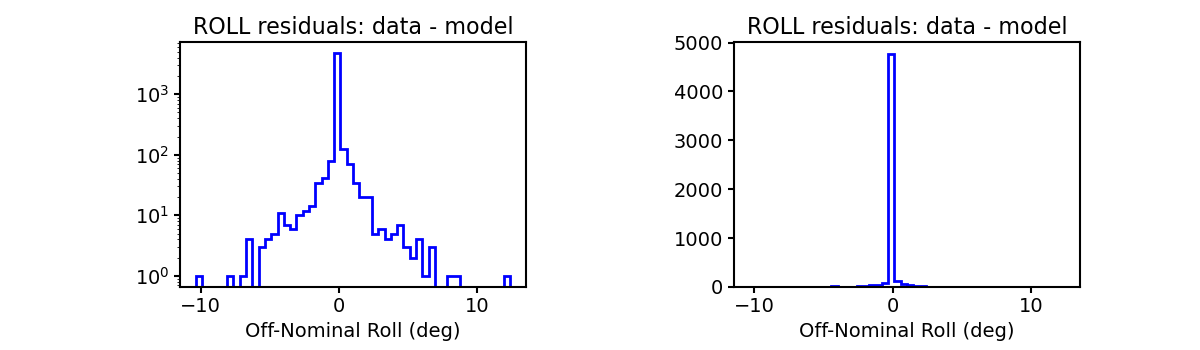

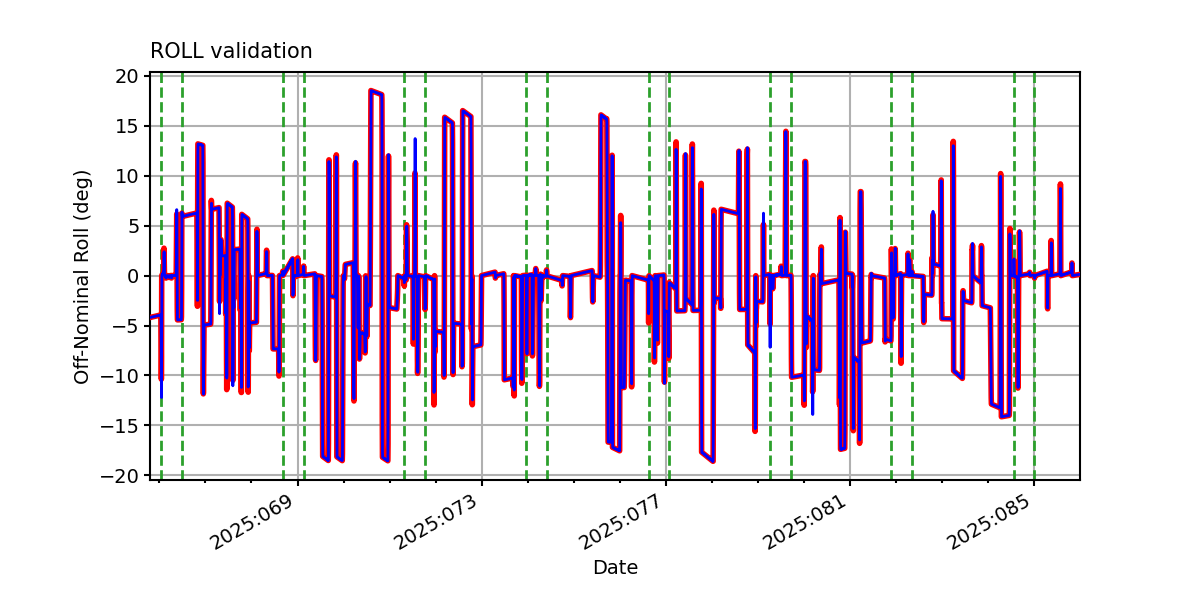

ROLL

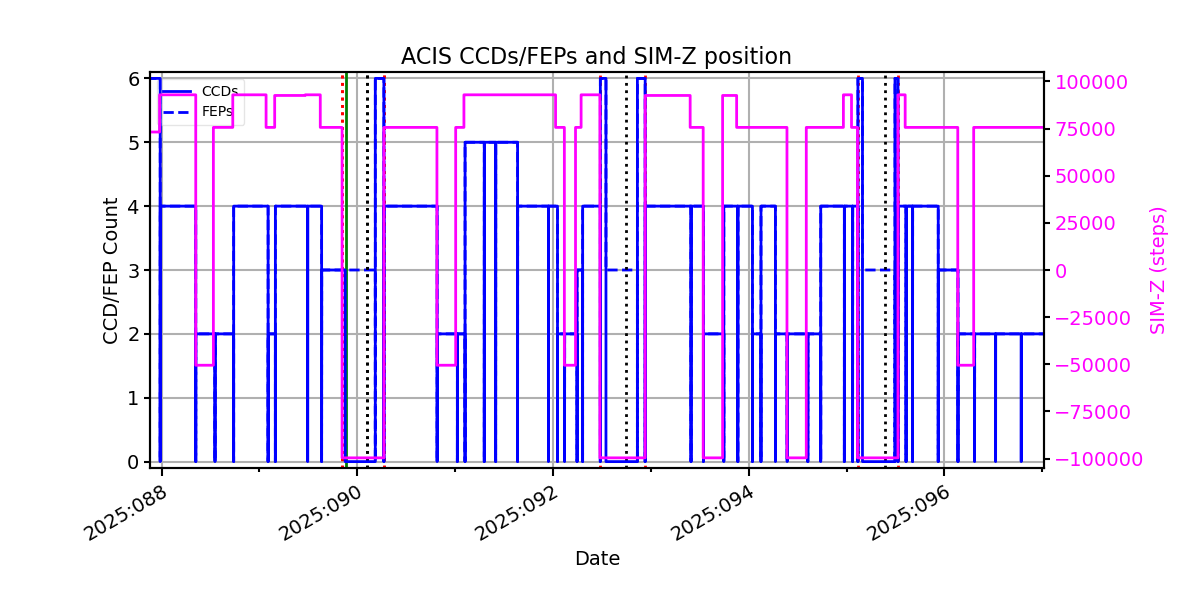

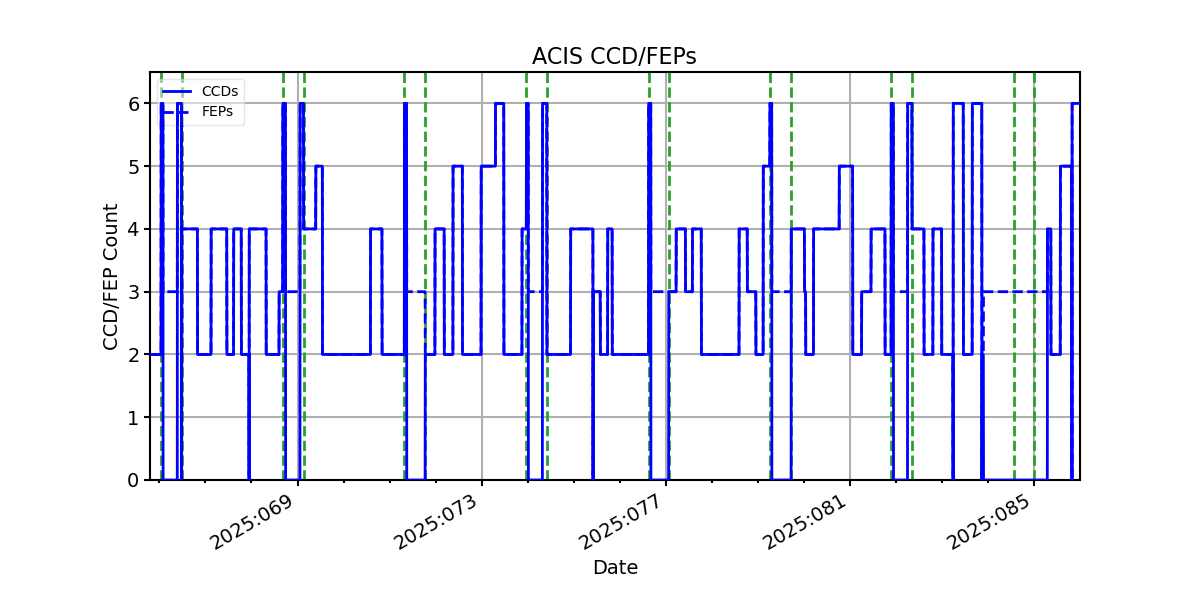

ACIS CCD/FEP Count
