PSMCBT Temperatures Check
Summary
| Date start | 2023:120:21:31:02.416 |
| Date stop | 2023:128:03:33:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/MAY0123/oflsa |
| Run time | Thu Oct 8 16:11:00 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

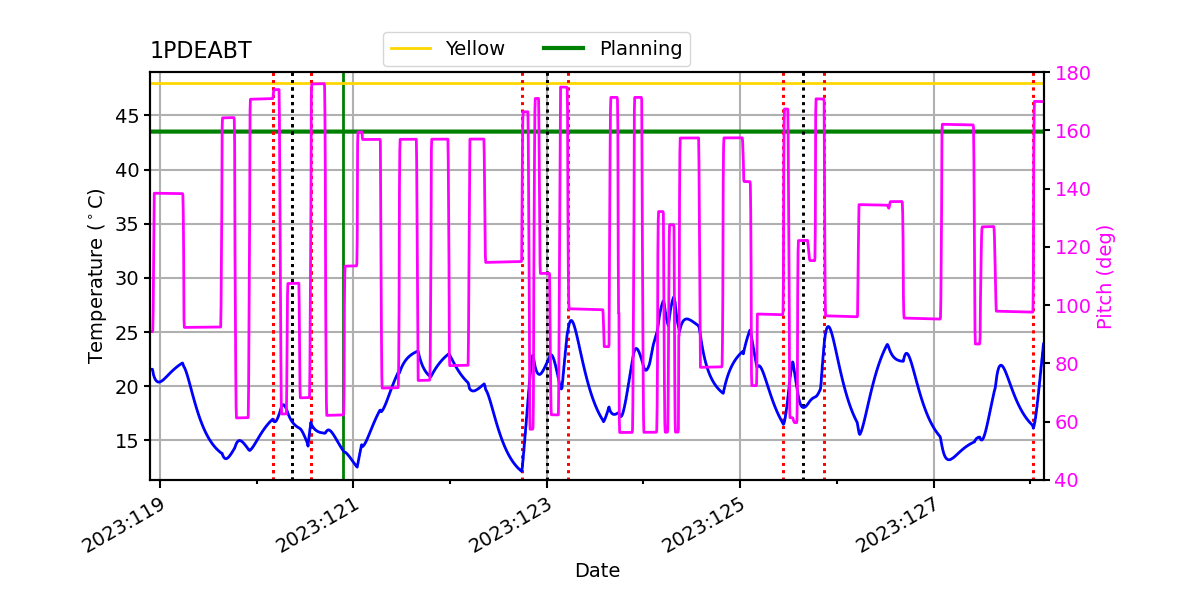

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.60 | -2.66 | -1.84 | -0.14 | 1.15 | 1.63 | 2.05 |
| pitch | -9.620 | -0.483 | -0.002 | -0.000 | 0.002 | 0.210 | 9.729 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.485 | -0.064 | -0.003 | 0.000 | 0.004 | 0.138 | 1.840 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.6 | 2.50 |
| PITCH | 1 | -9.62 | 3.00 |
| PITCH | 99 | 9.729 | 3.00 |

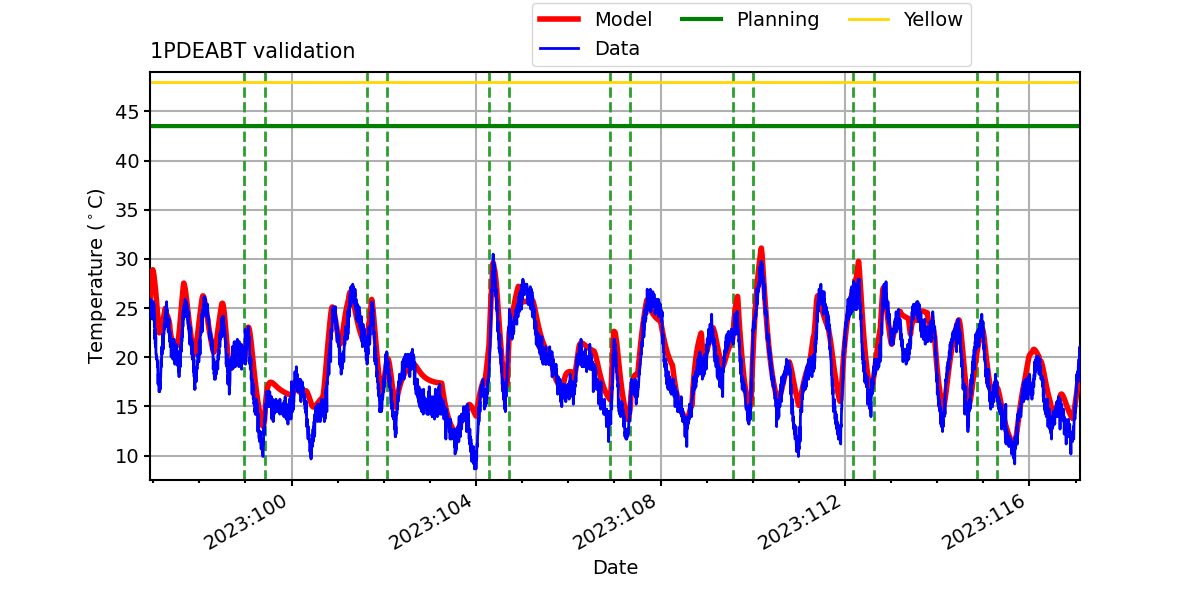

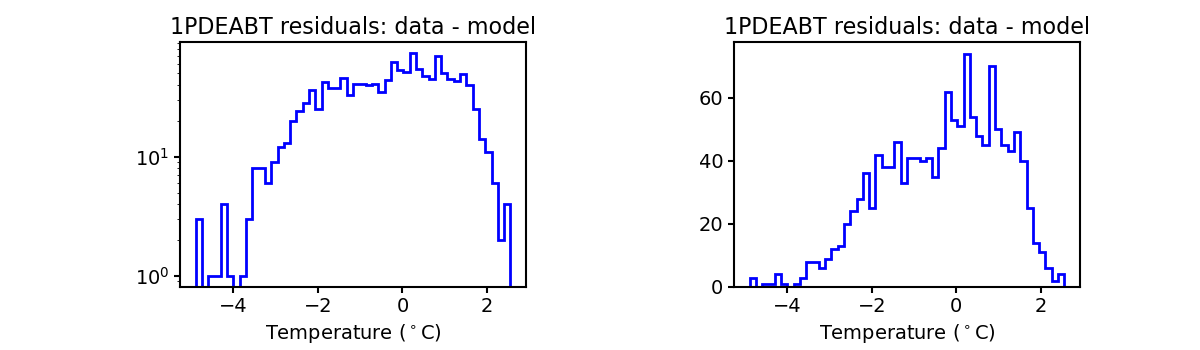

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

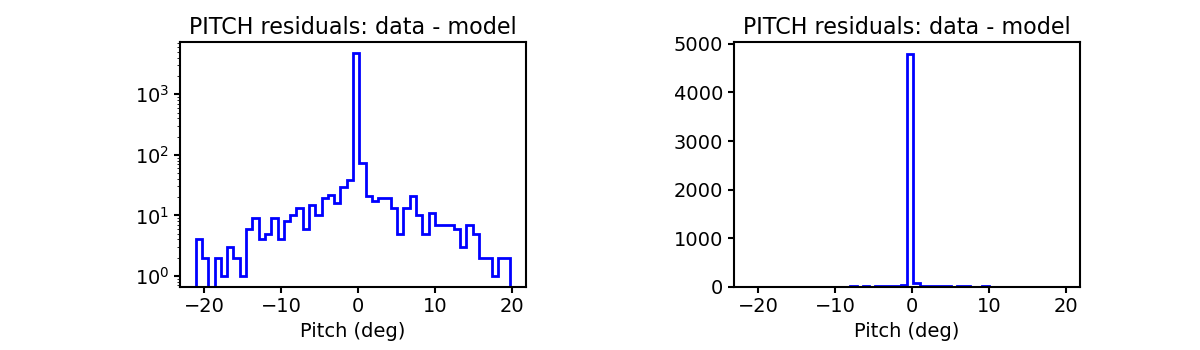

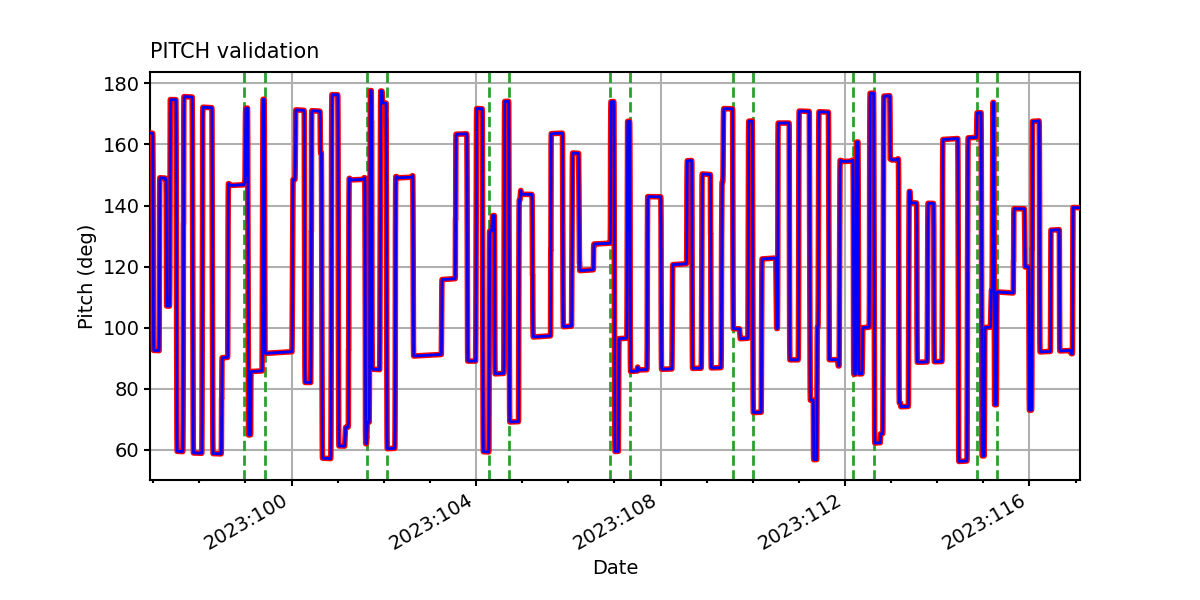

PITCH

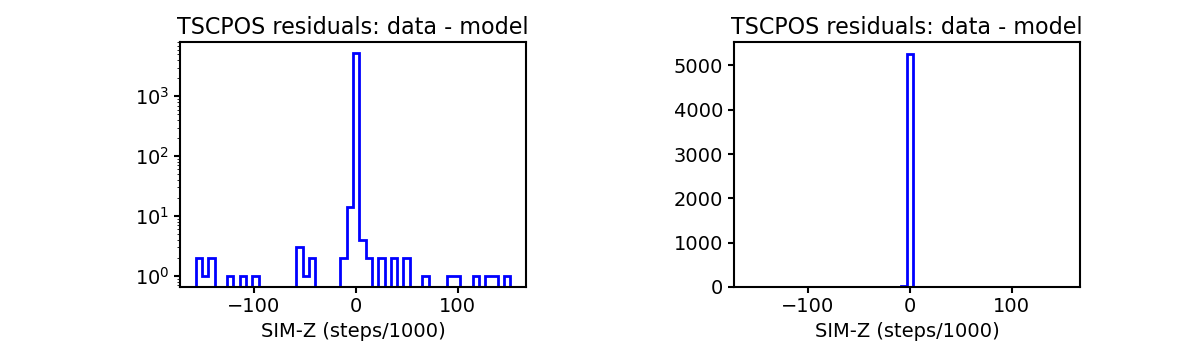

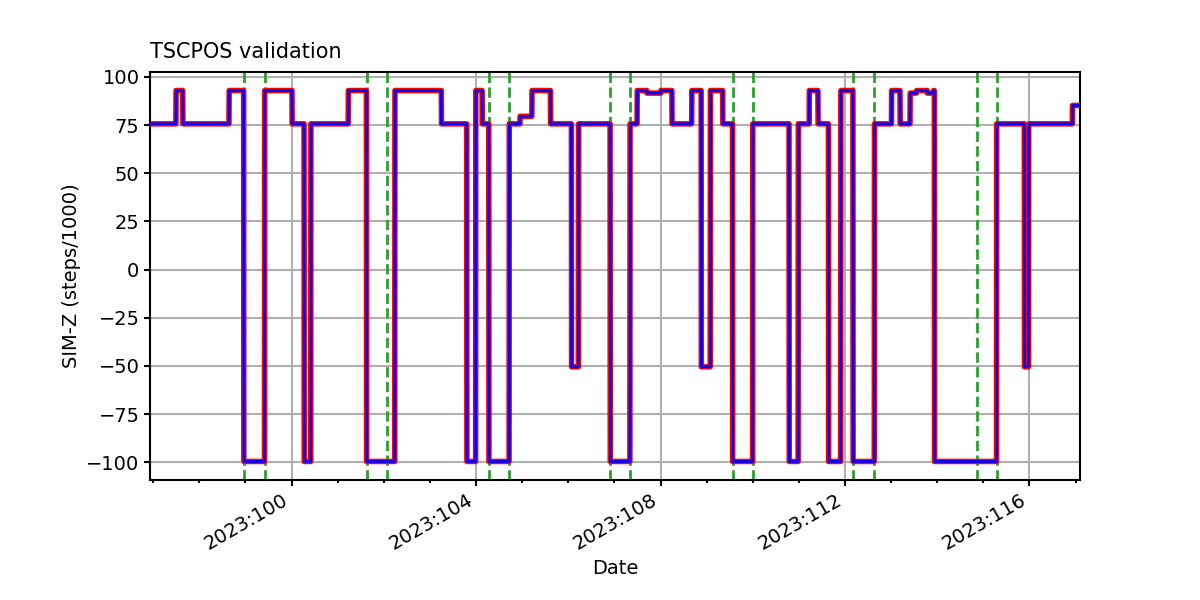

TSCPOS

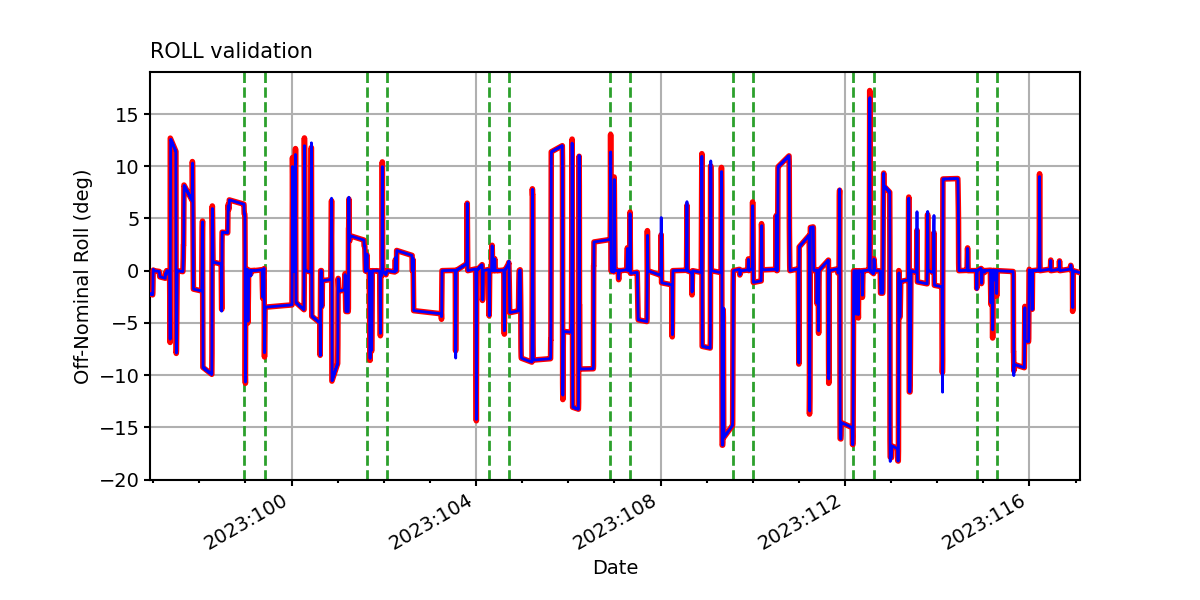

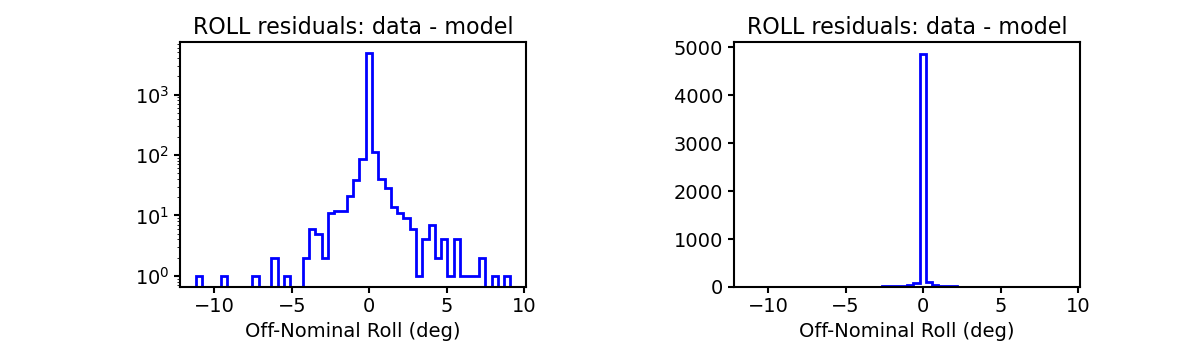

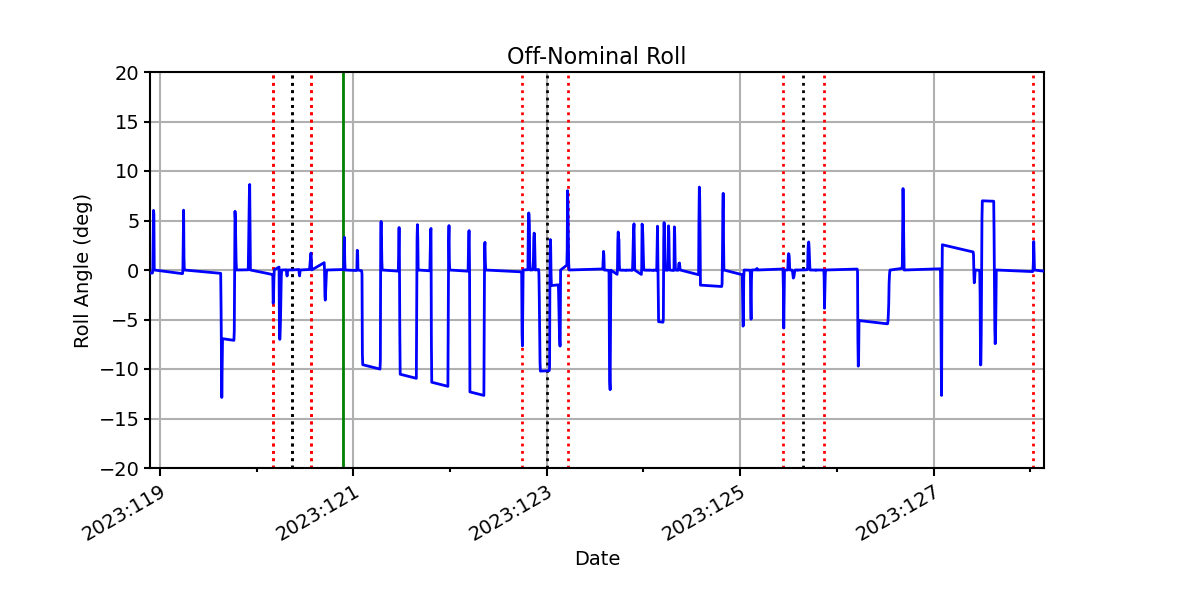

ROLL

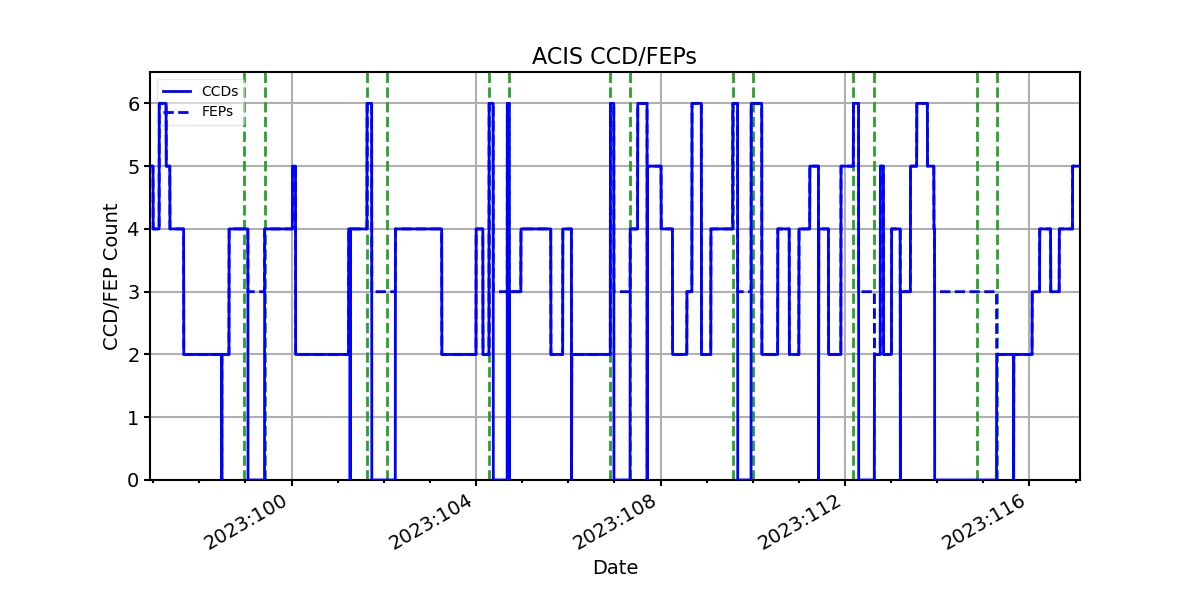

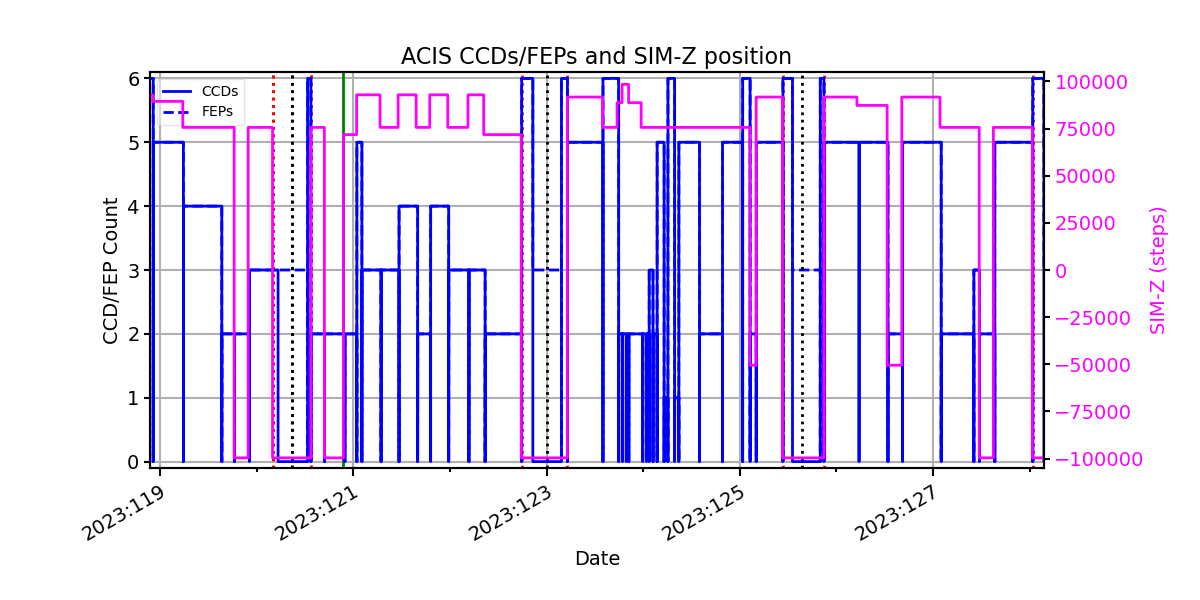

ACIS CCD/FEP Count
