PSMCBT Temperatures Check
Summary
| Date start | 2024:126:10:59:59.016 |
| Date stop | 2024:134:00:20:20.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/MAY0524/oflsa |
| Run time | Thu Oct 8 16:11:00 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.96 | -2.62 | -1.57 | -0.07 | 1.09 | 1.78 | 2.31 |
| pitch | -9.509 | -0.655 | -0.004 | 0.000 | 0.004 | 0.560 | 9.933 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.648 | -0.138 | -0.007 | 0.000 | 0.008 | 0.146 | 2.068 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.96 | 2.50 |
| PITCH | 1 | -9.509 | 3.00 |
| PITCH | 99 | 9.933 | 3.00 |

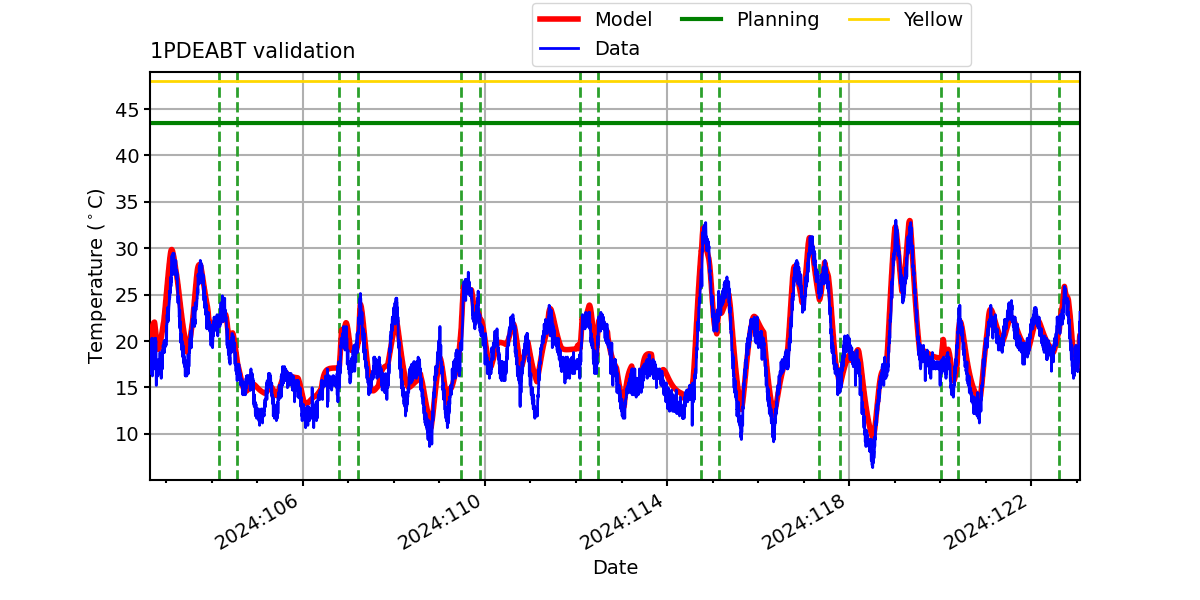

1PDEABT

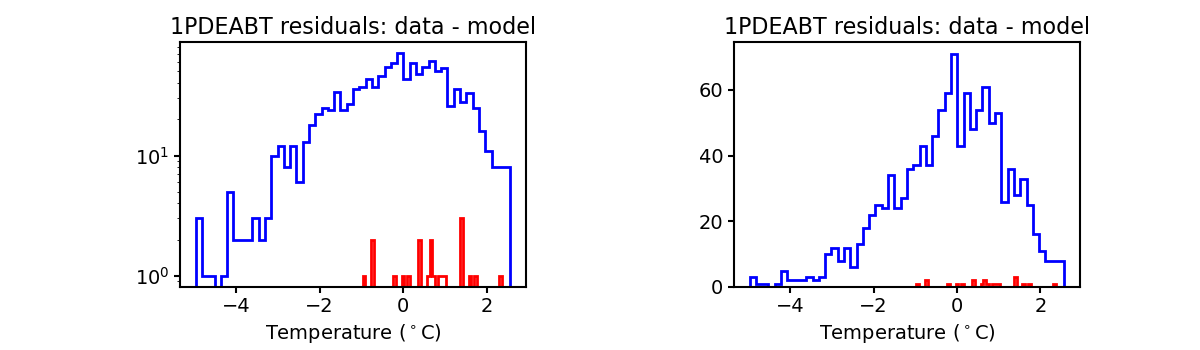

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

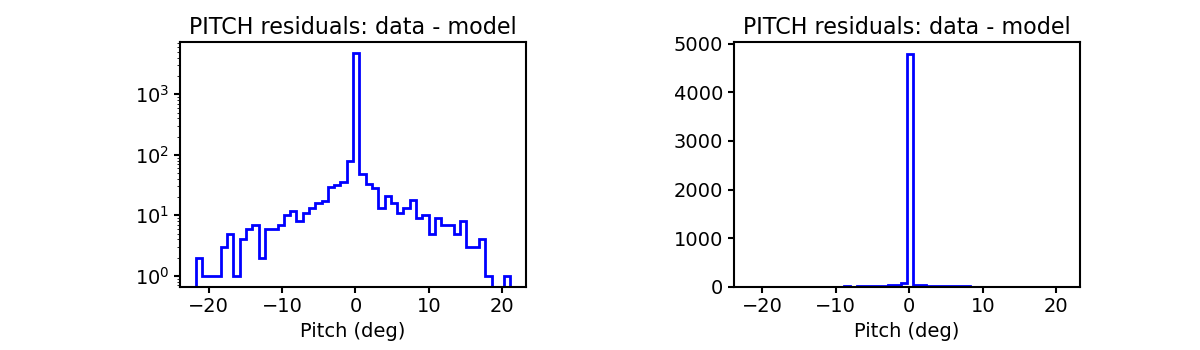

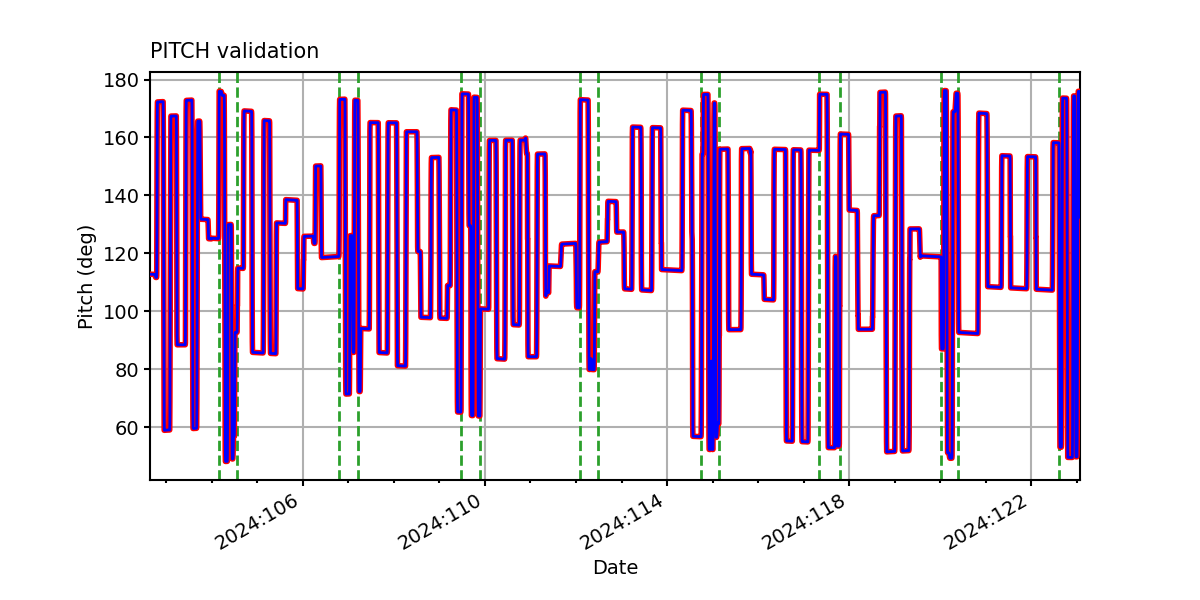

PITCH
TSCPOS

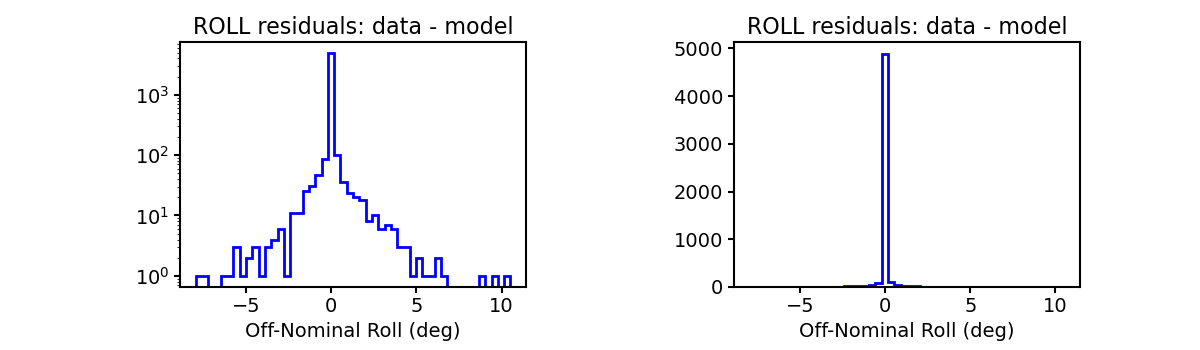

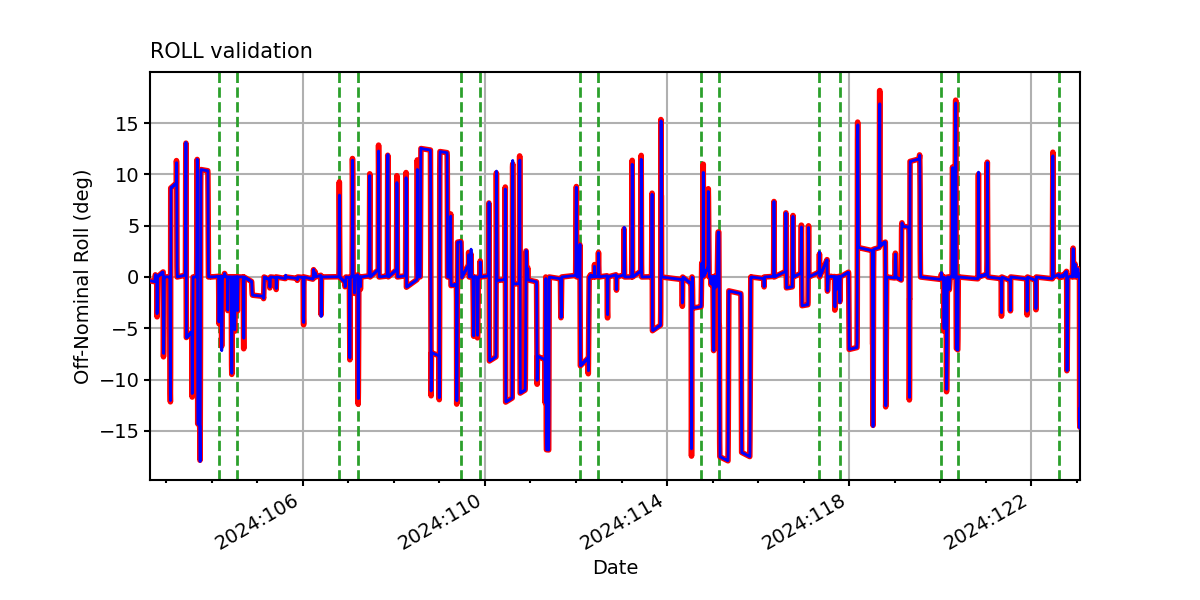

ROLL

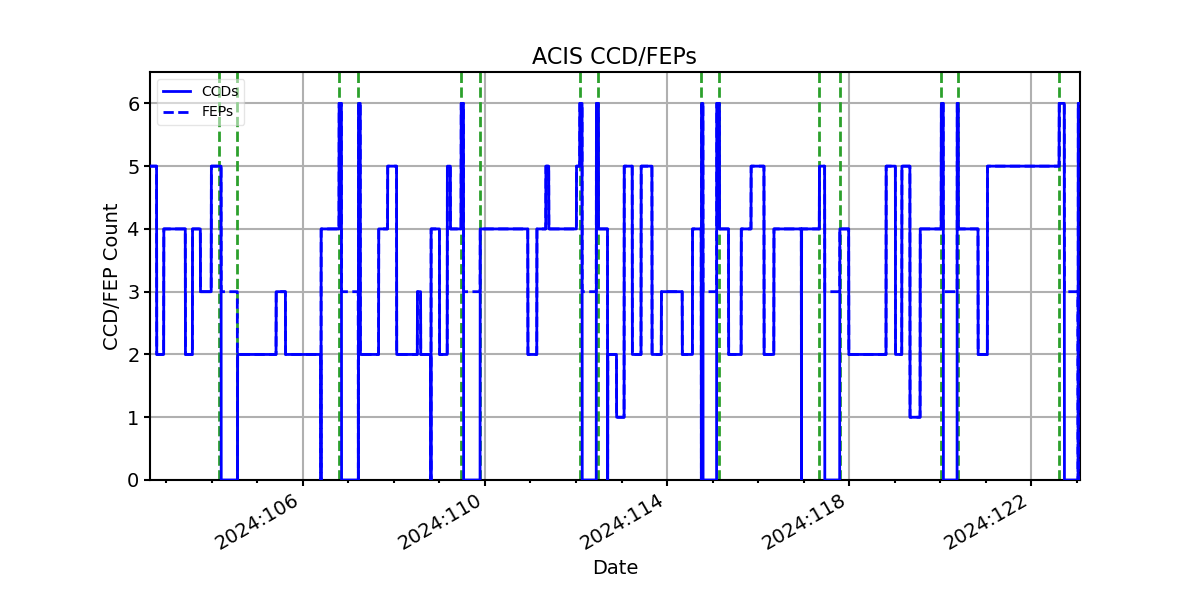

ACIS CCD/FEP Count
