PSMCBT Temperatures Check
Summary
| Date start | 2023:130:23:40:30.816 |
| Date stop | 2023:134:22:05:30.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/MAY1123/oflsa |
| Run time | Thu Oct 8 16:11:00 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

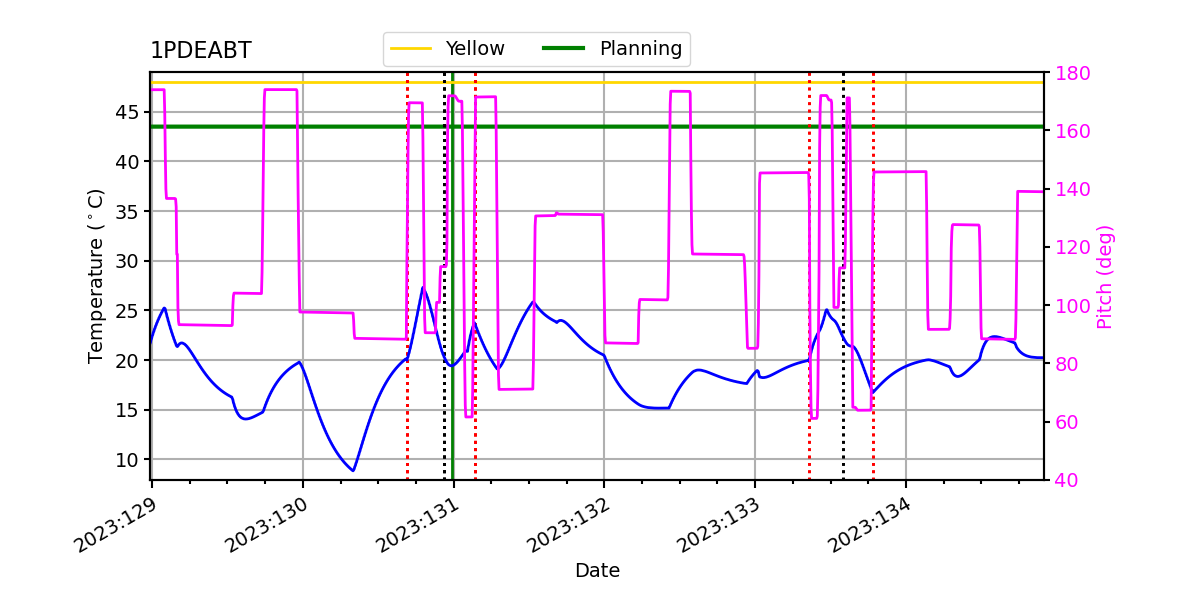

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.87 | -2.12 | -1.15 | 0.35 | 1.45 | 2.16 | 3.01 |
| pitch | -9.884 | -0.557 | -0.003 | -0.000 | 0.003 | 0.504 | 10.076 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.610 | -0.109 | -0.005 | 0.000 | 0.005 | 0.121 | 1.865 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.87 | 2.50 |
| PITCH | 1 | -9.884 | 3.00 |
| PITCH | 99 | 10.076 | 3.00 |

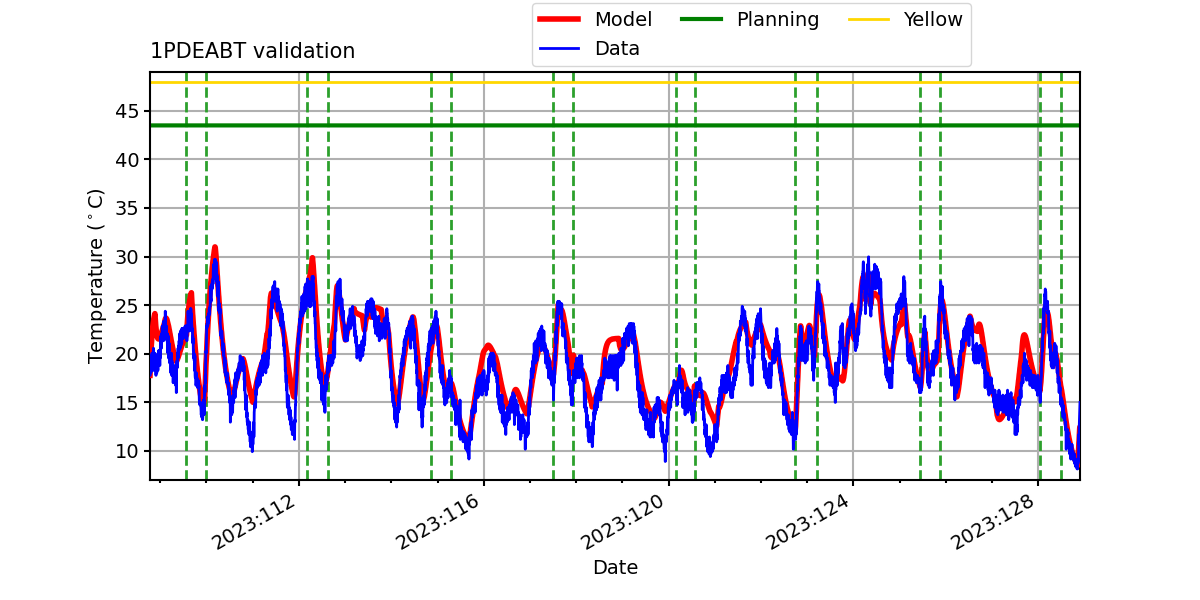

1PDEABT

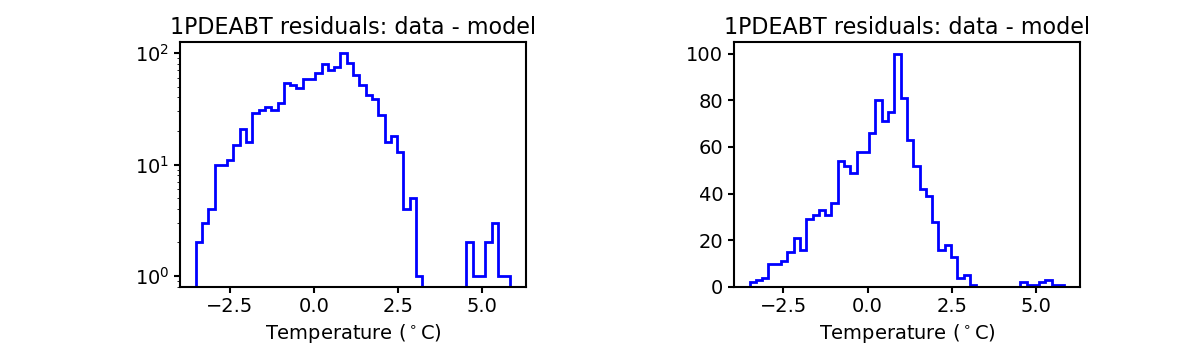

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.
PITCH

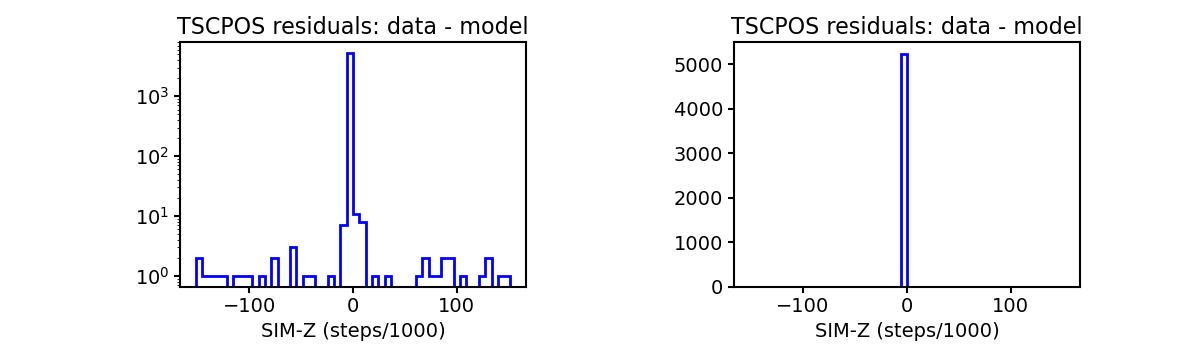

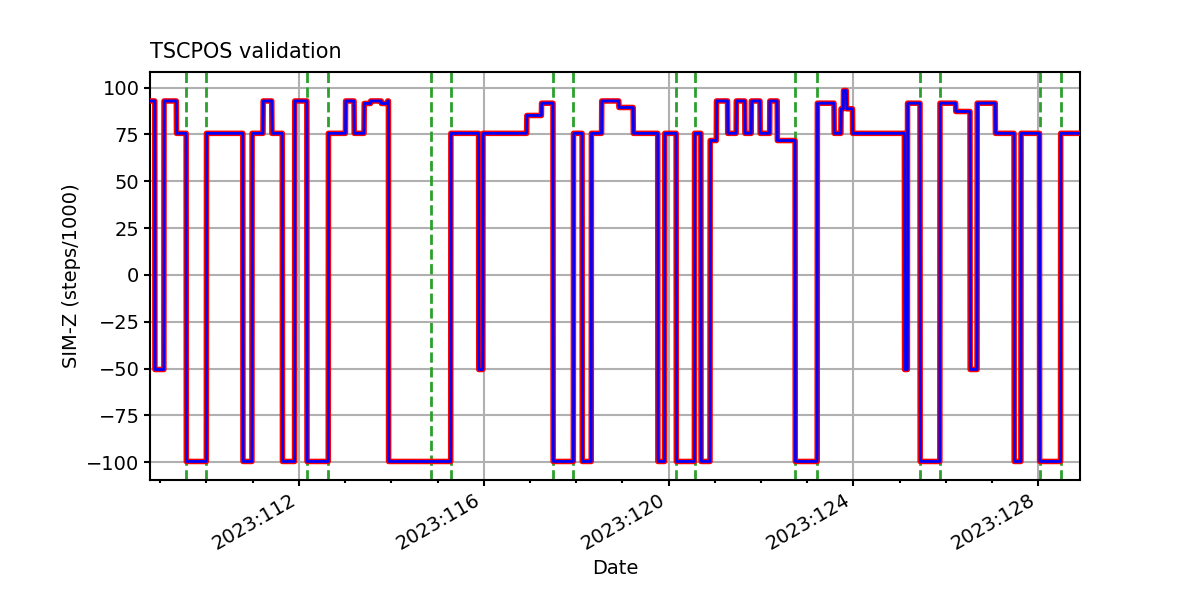

TSCPOS

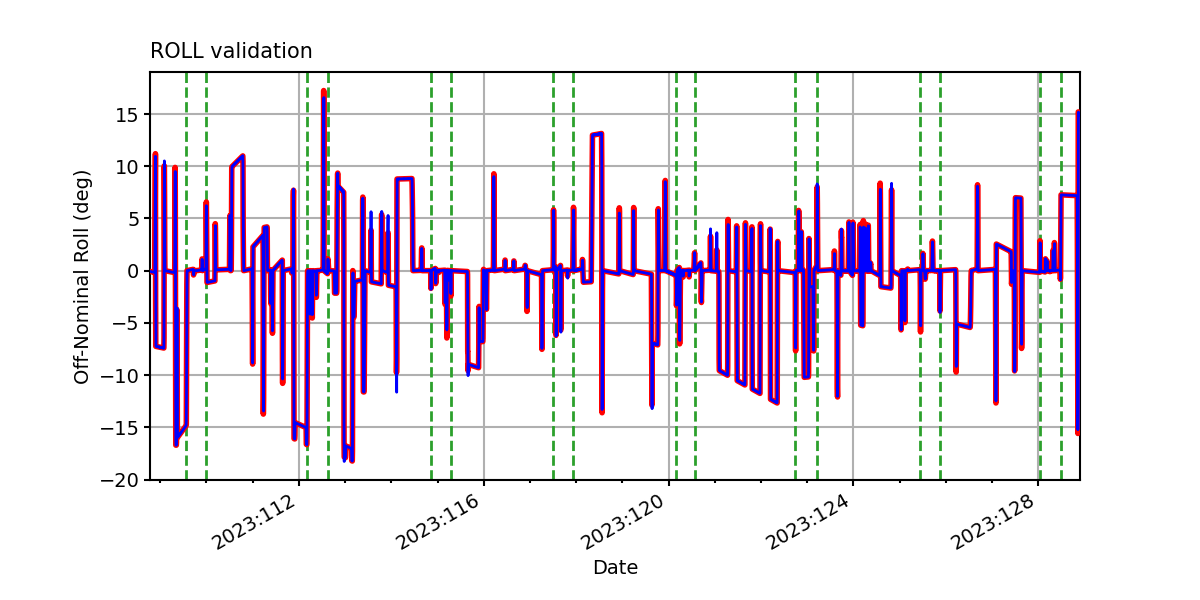

ROLL

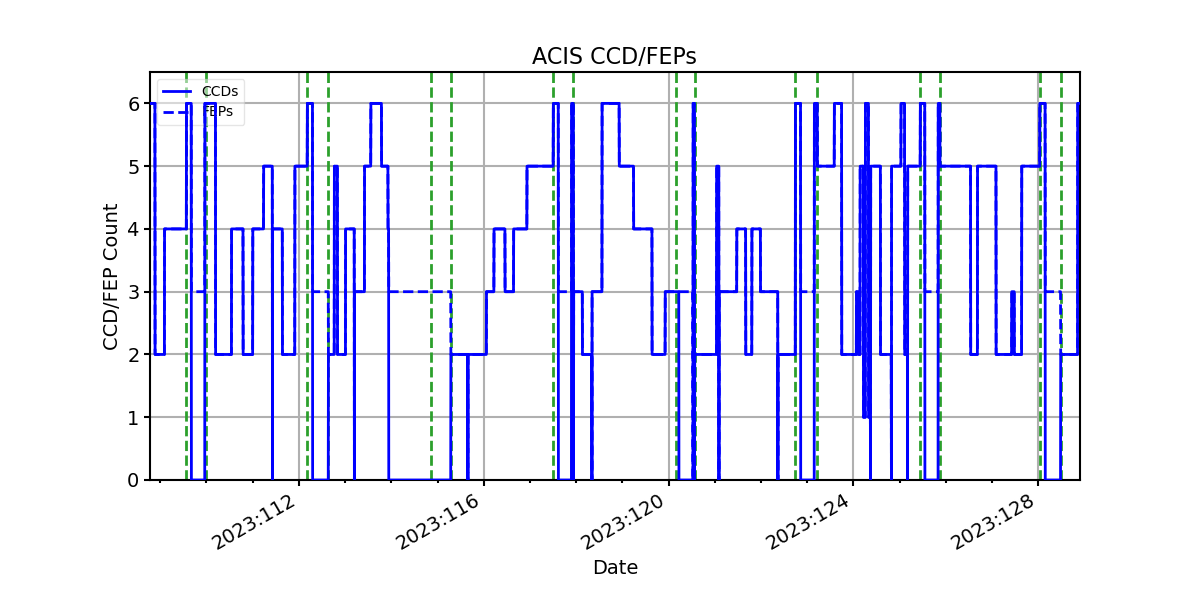

ACIS CCD/FEP Count
