PSMCBT Temperatures Check
Summary
| Date start | 2025:131:21:12:39.216 |
| Date stop | 2025:139:00:00:00.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/MAY1225/oflsa |
| Run time | Thu Oct 8 16:11:28 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.92 | -1.81 | -1.02 | 0.29 | 1.54 | 2.37 | 3.03 |
| pitch | -10.047 | -0.628 | -0.004 | -0.000 | 0.004 | 0.506 | 9.830 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -2.150 | -0.094 | -0.004 | 0.000 | 0.005 | 0.187 | 1.988 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.92 | 2.50 |
| PITCH | 1 | -10.047 | 3.00 |
| PITCH | 99 | 9.83 | 3.00 |

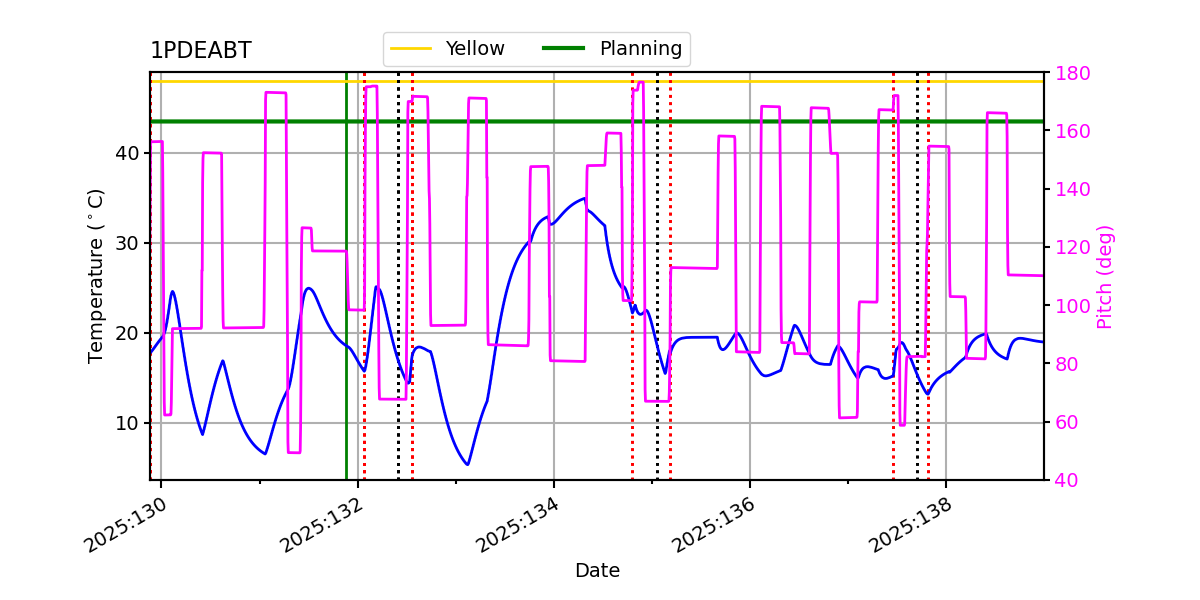

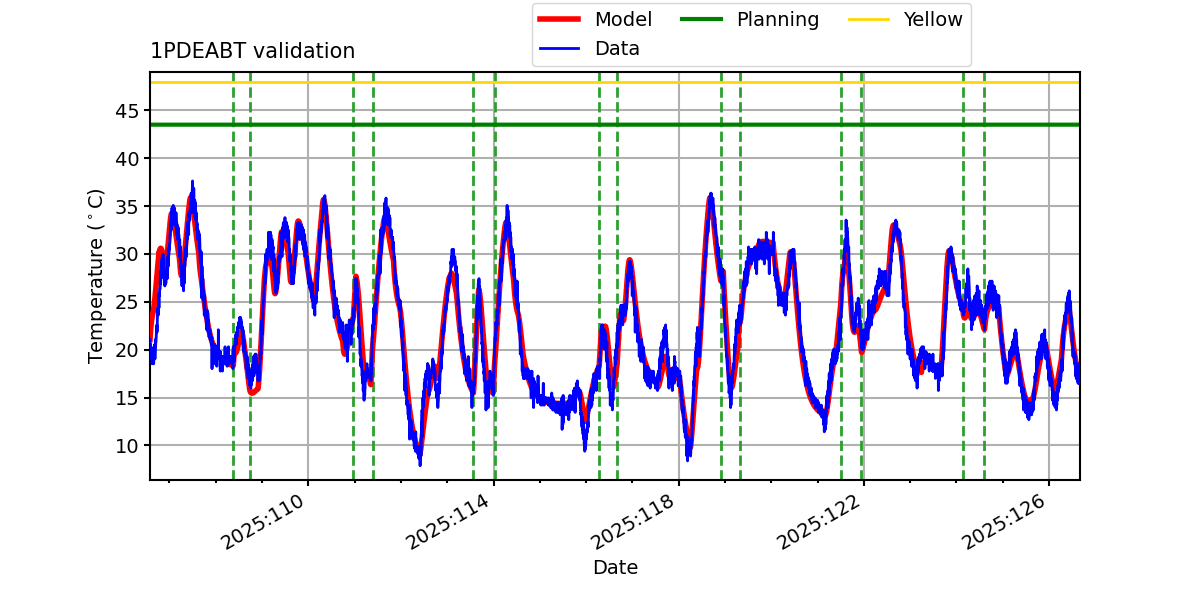

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.
PITCH

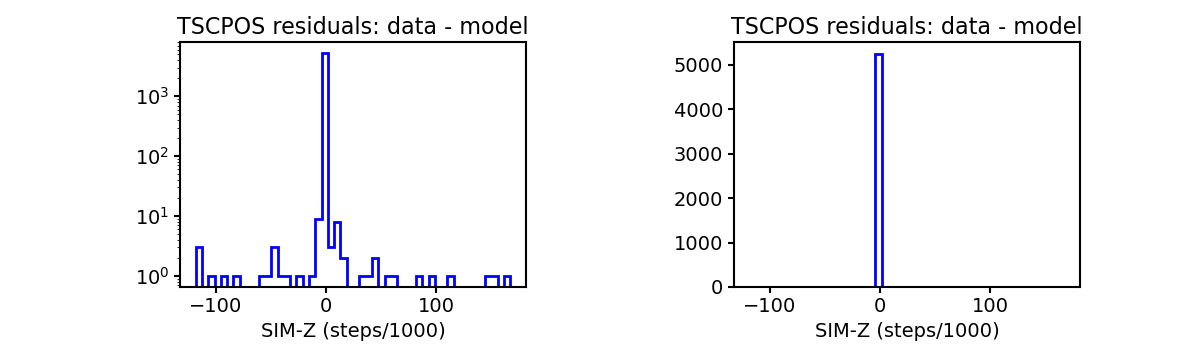

TSCPOS

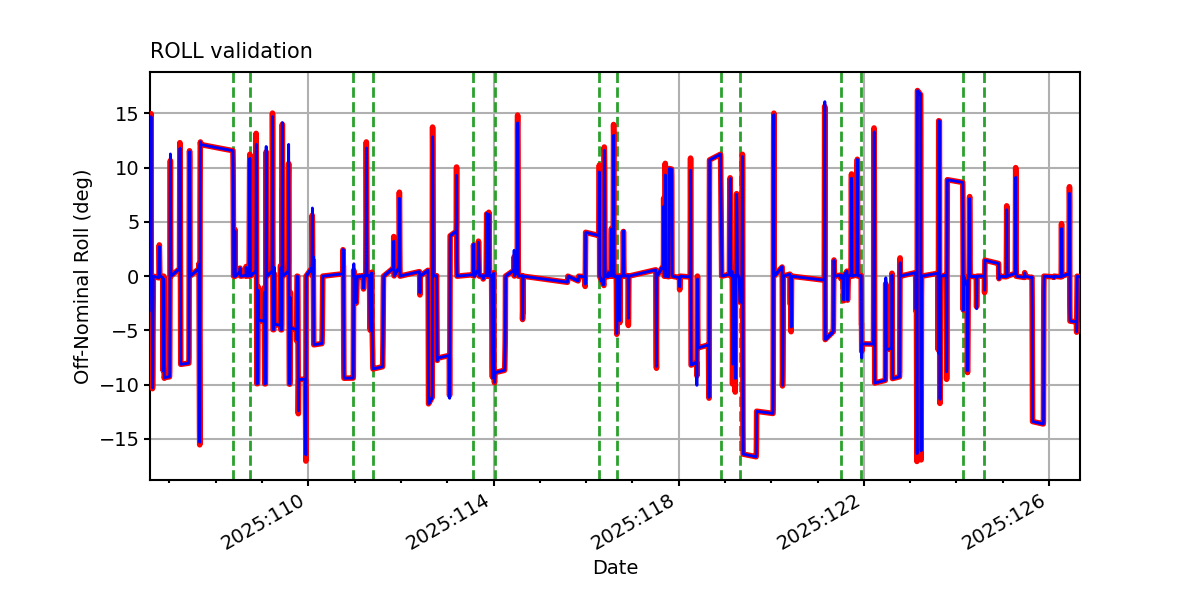

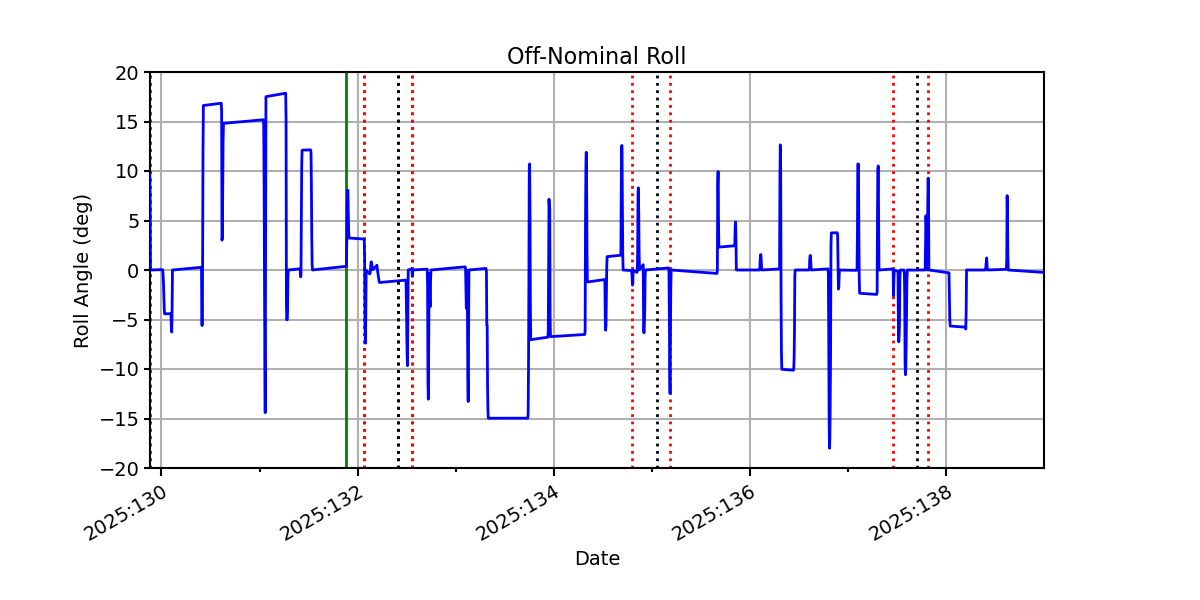

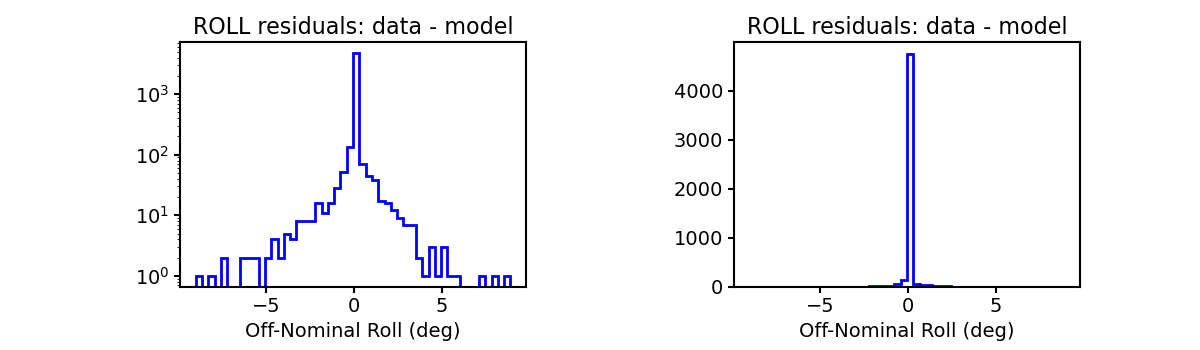

ROLL

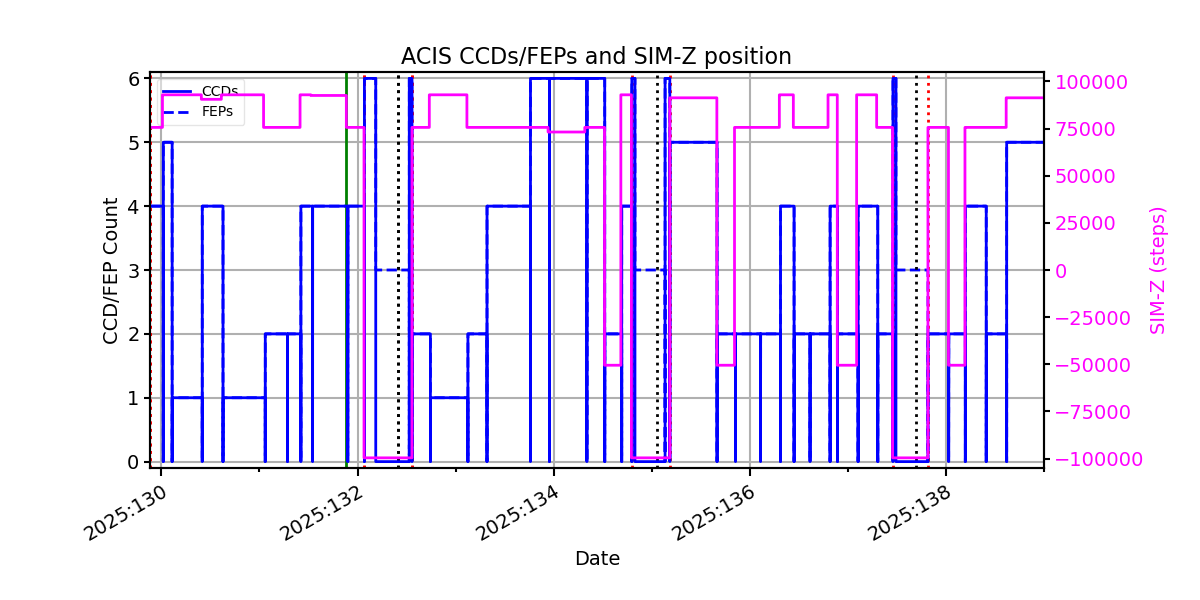

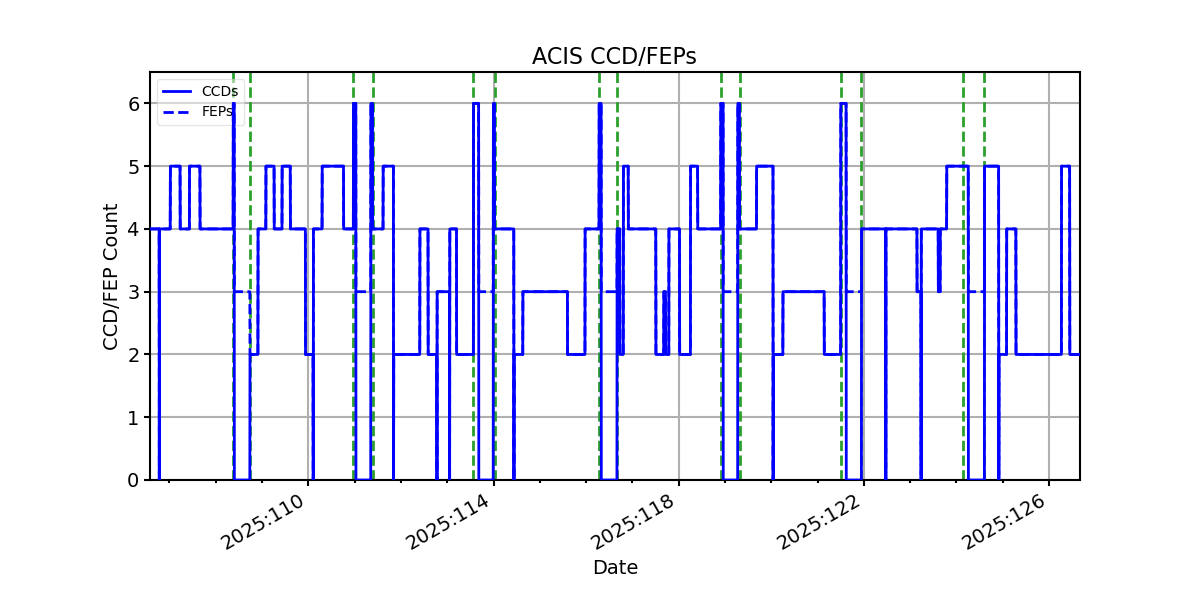

ACIS CCD/FEP Count
