PSMCBT Temperatures Check
Summary
| Date start | 2024:134:00:17:20.216 |
| Date stop | 2024:141:05:44:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/MAY1324/oflsb |
| Run time | Thu Oct 8 16:11:28 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

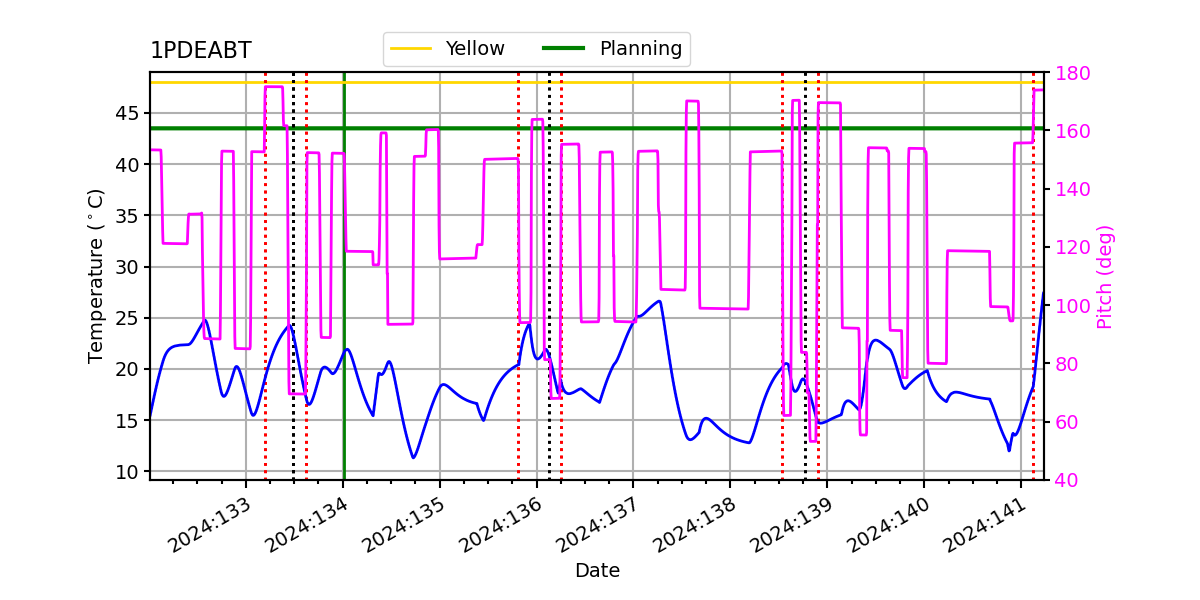

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.14 | -2.43 | -1.62 | -0.08 | 1.13 | 1.74 | 2.22 |
| pitch | -10.157 | -0.360 | -0.004 | 0.000 | 0.004 | 0.320 | 8.770 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.350 | -0.078 | -0.005 | 0.000 | 0.006 | 0.079 | 1.769 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.14 | 2.50 |
| PITCH | 1 | -10.157 | 3.00 |
| PITCH | 99 | 8.77 | 3.00 |
1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

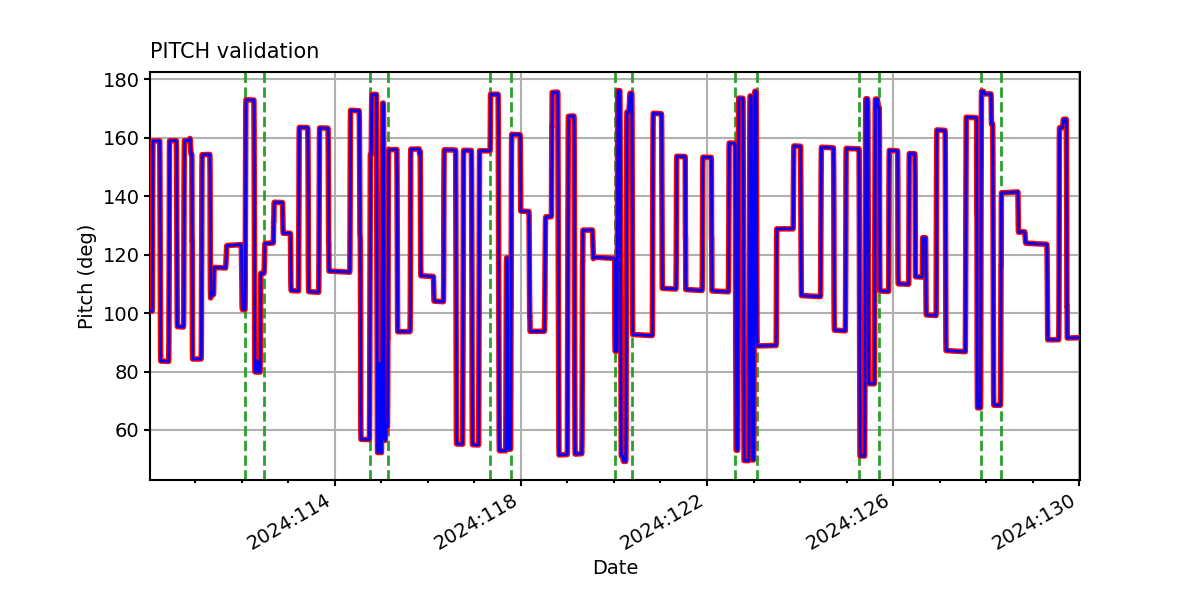

PITCH

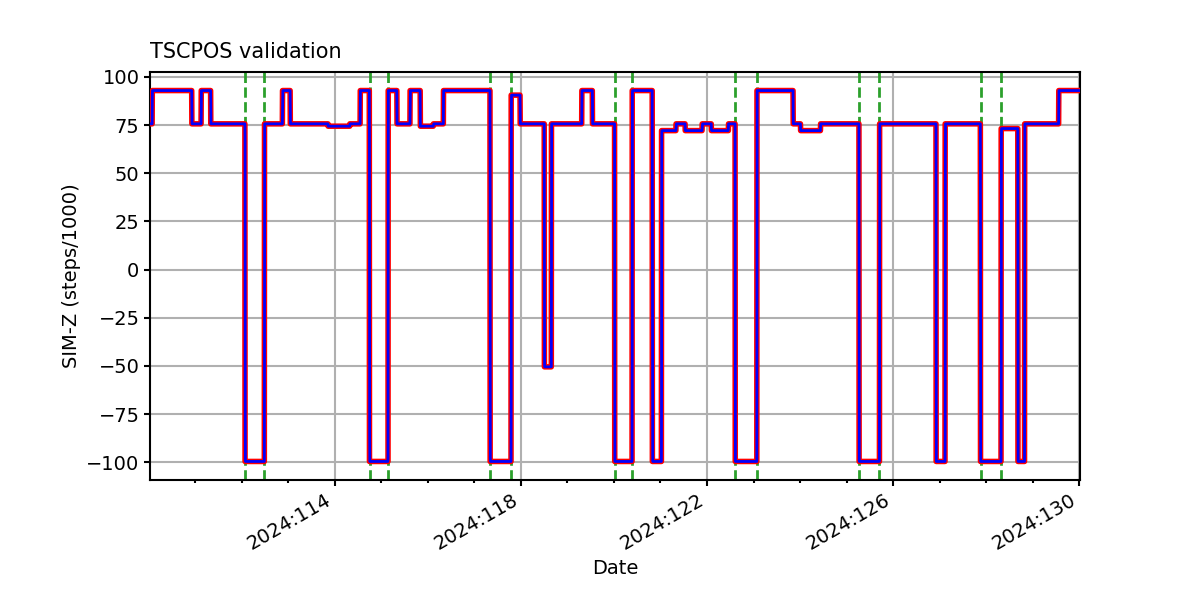

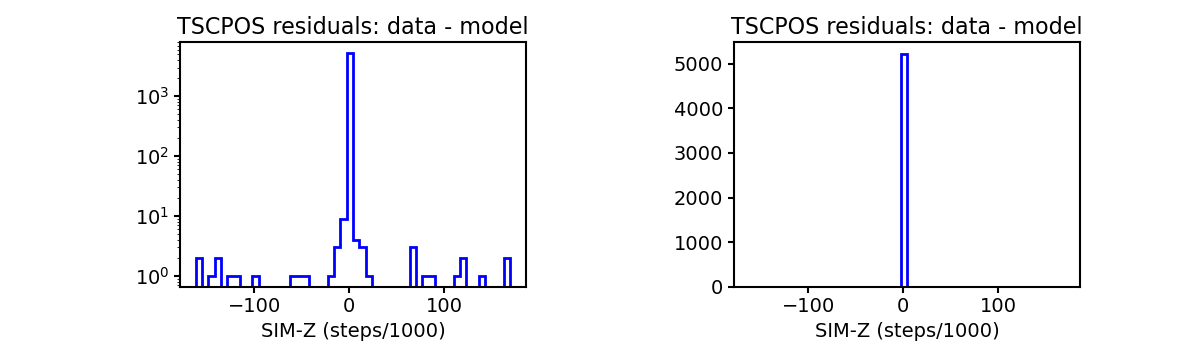

TSCPOS

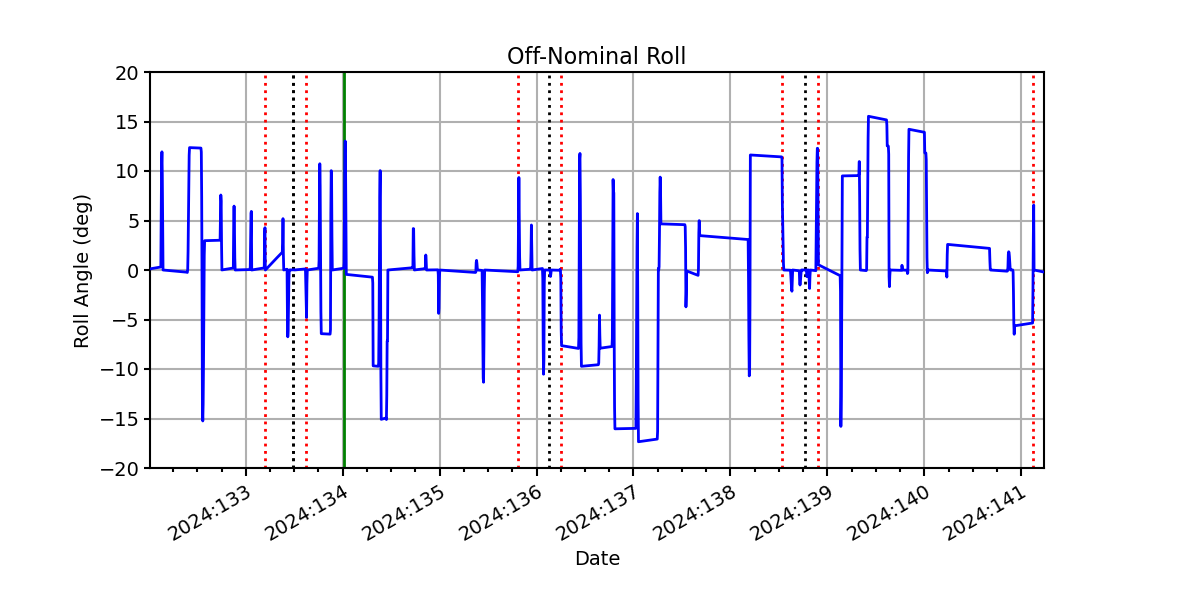

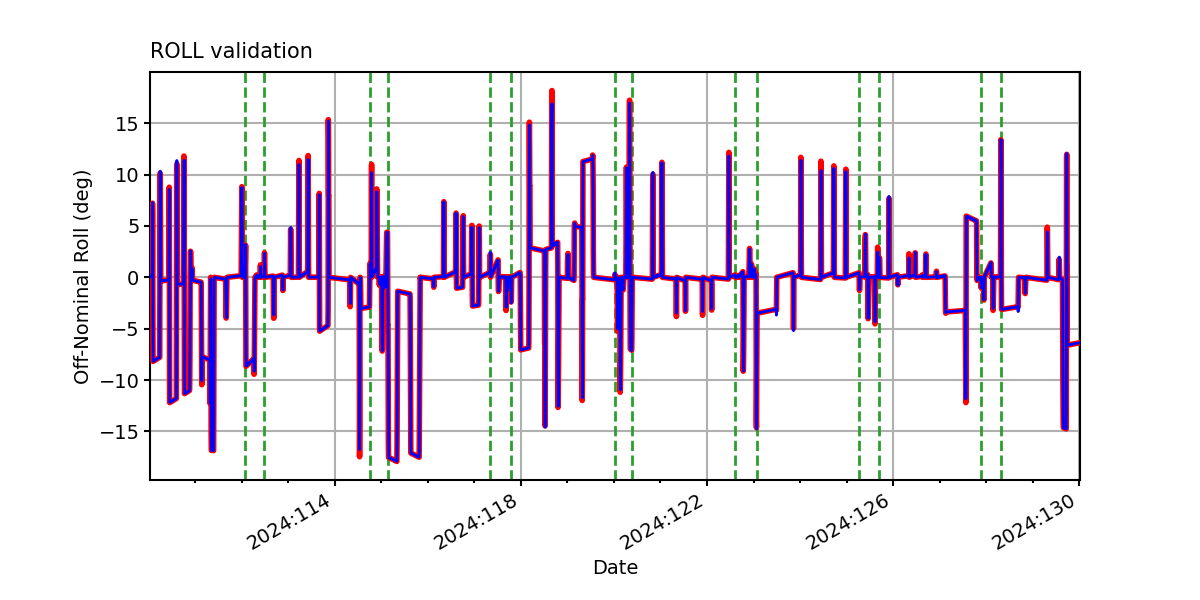

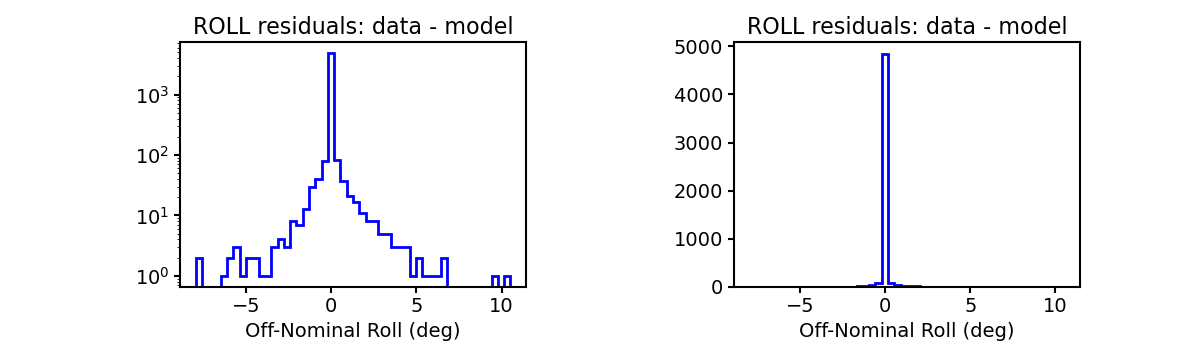

ROLL

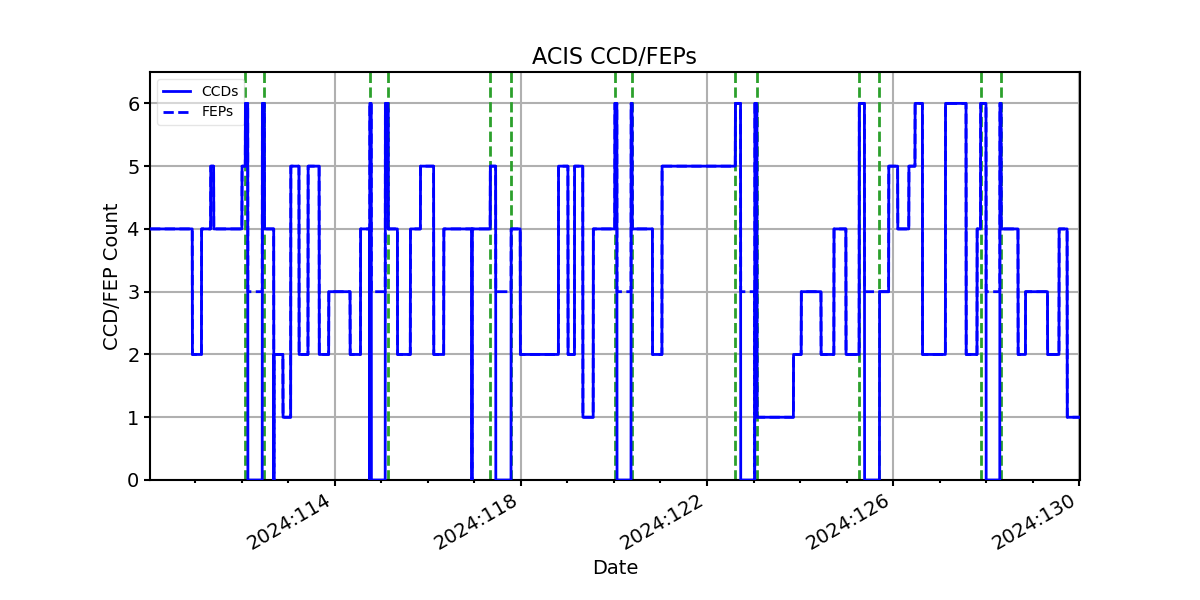

ACIS CCD/FEP Count
