PSMCBT Temperatures Check
Summary
| Date start | 2024:135:03:56:59.016 |
| Date stop | 2024:141:05:44:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/MAY1424/oflsb |
| Run time | Thu Oct 8 16:11:28 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

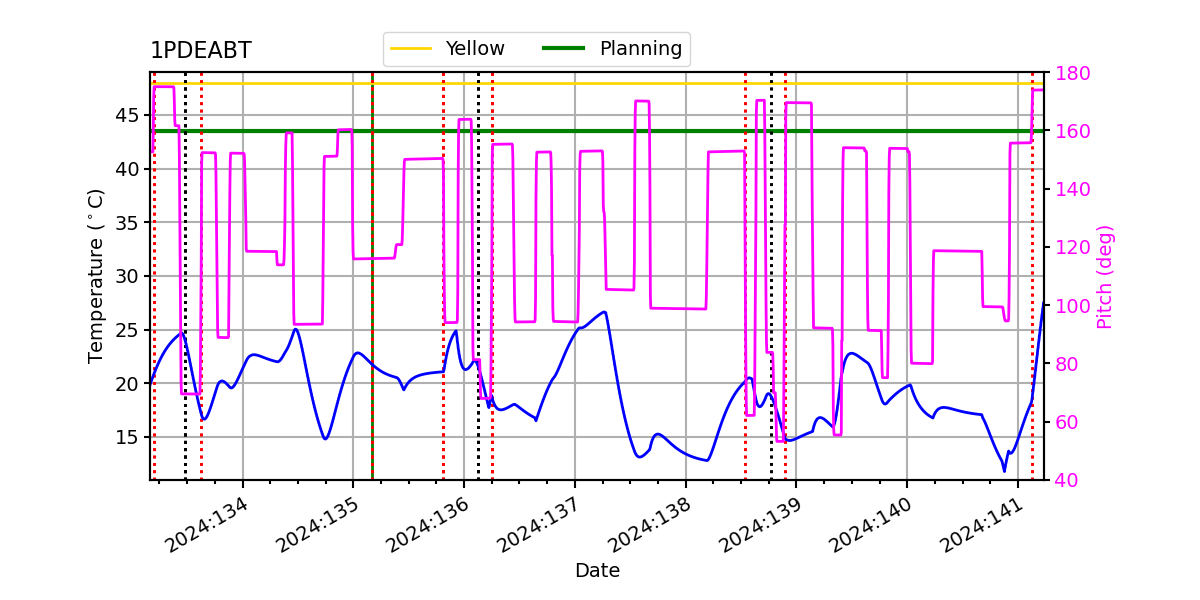

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.11 | -2.43 | -1.75 | -0.25 | 1.06 | 1.73 | 2.30 |
| pitch | -10.020 | -0.193 | -0.004 | 0.000 | 0.004 | 0.373 | 8.858 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.401 | -0.060 | -0.005 | 0.000 | 0.005 | 0.056 | 1.566 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.11 | 2.50 |
| PITCH | 1 | -10.02 | 3.00 |
| PITCH | 99 | 8.858 | 3.00 |

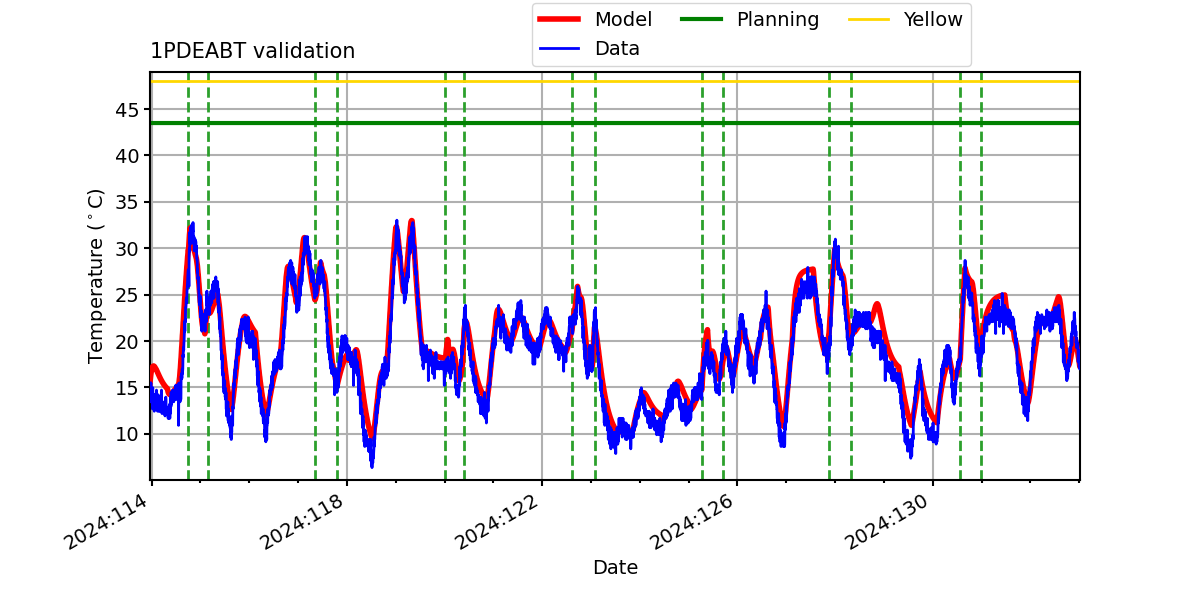

1PDEABT

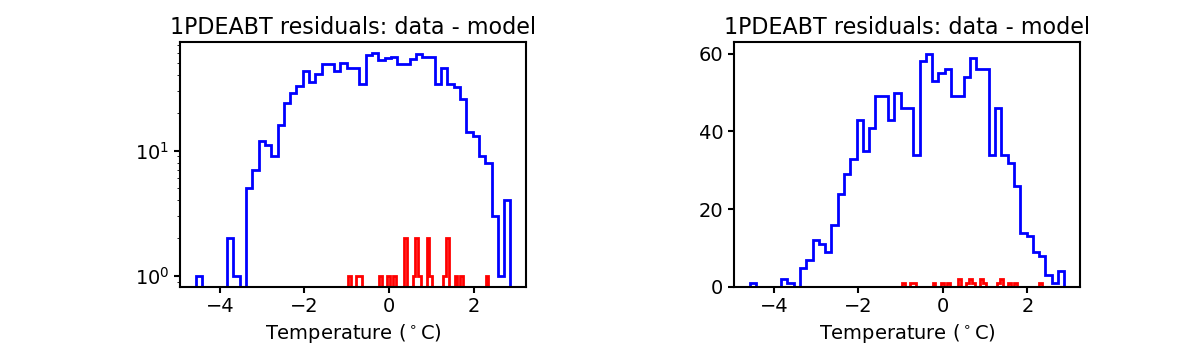

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

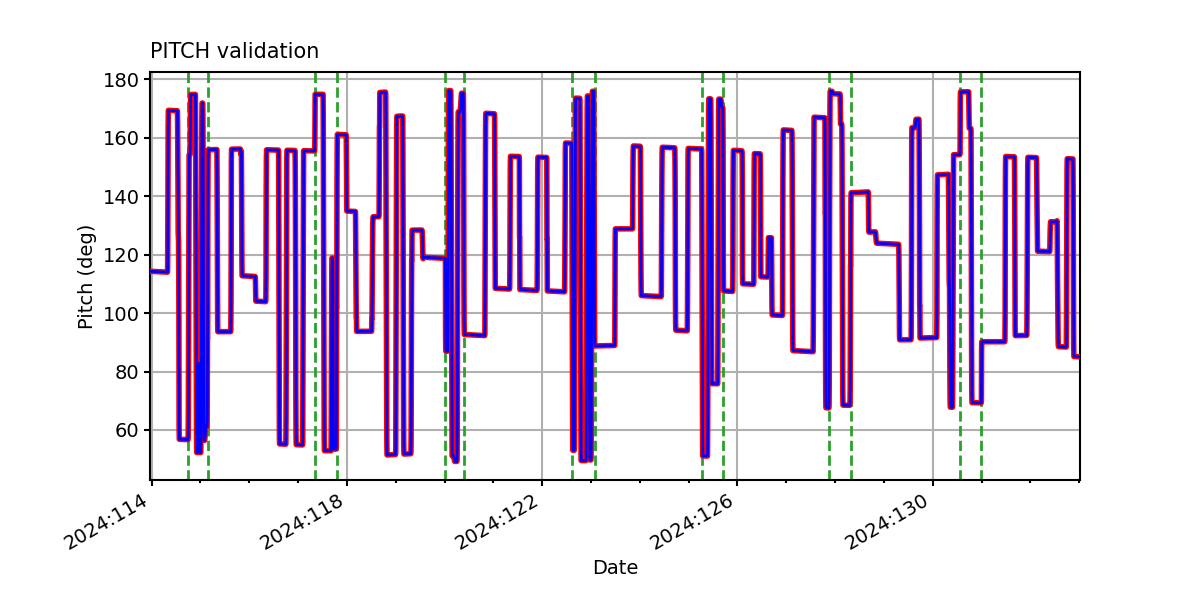

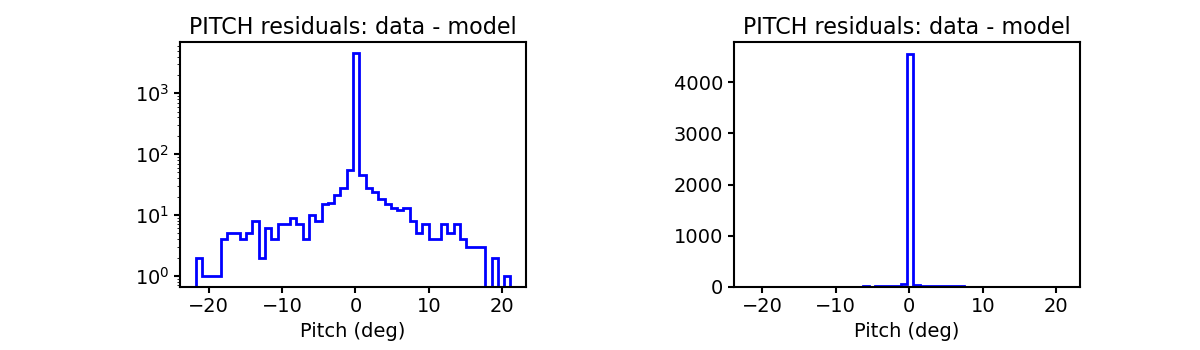

PITCH

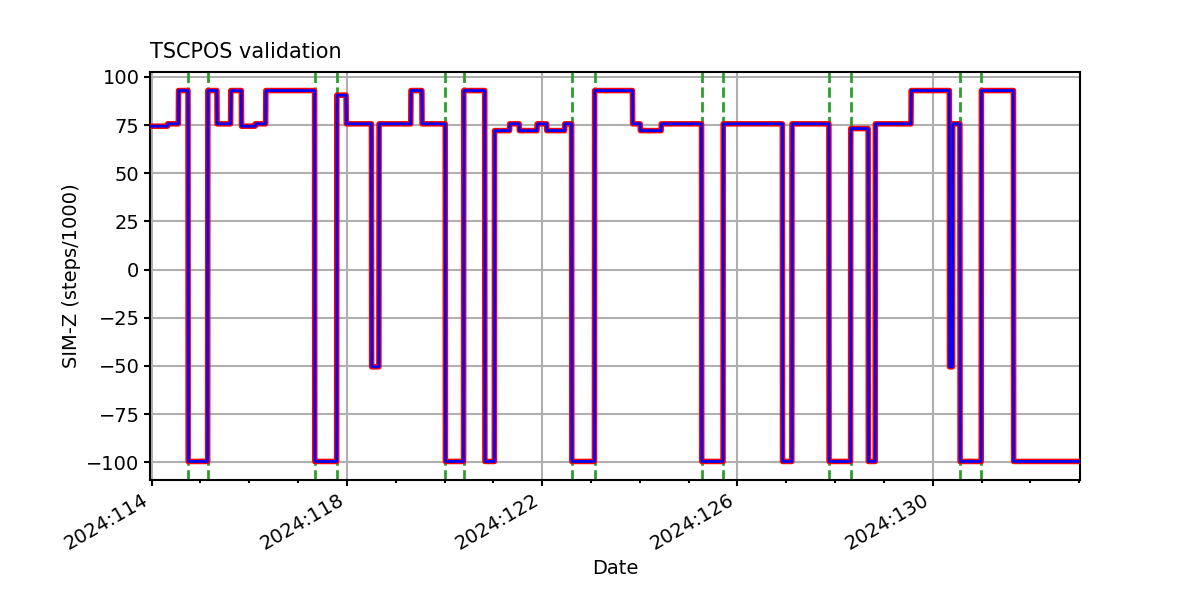

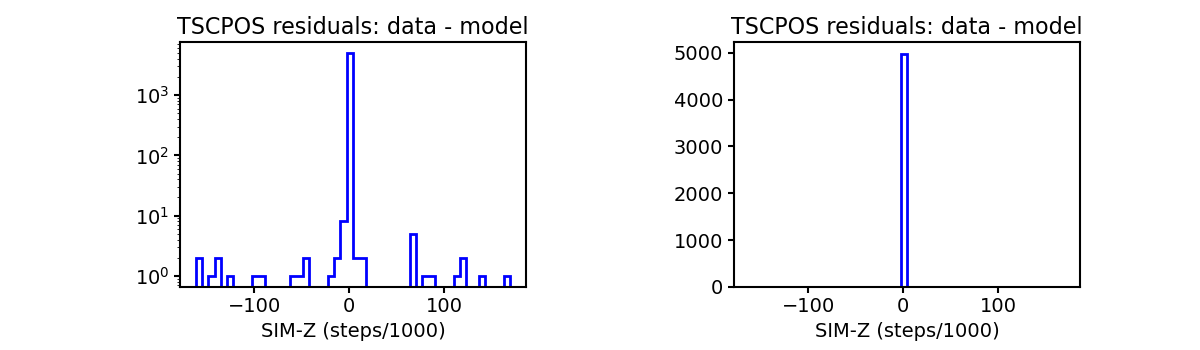

TSCPOS

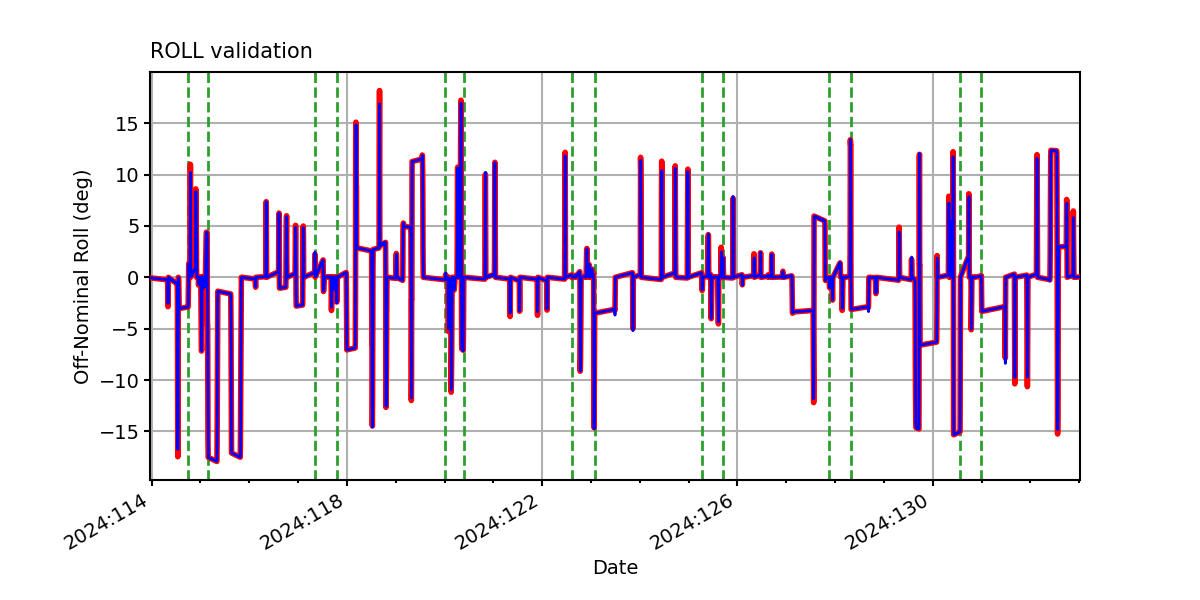

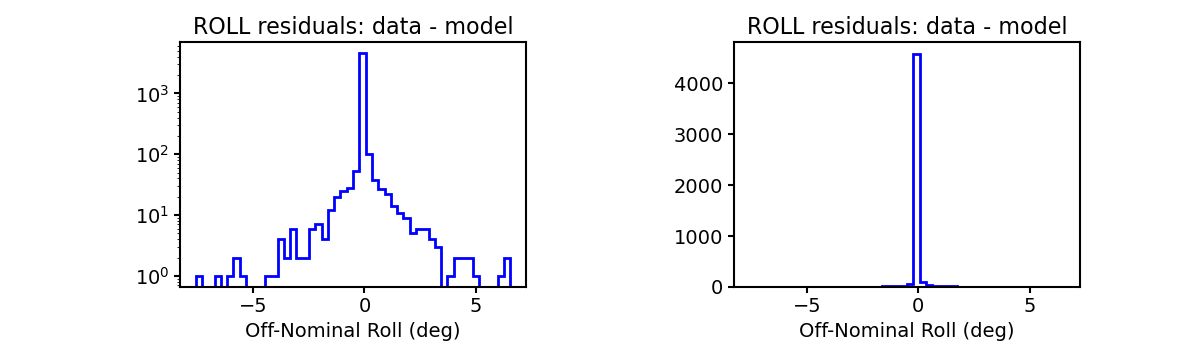

ROLL

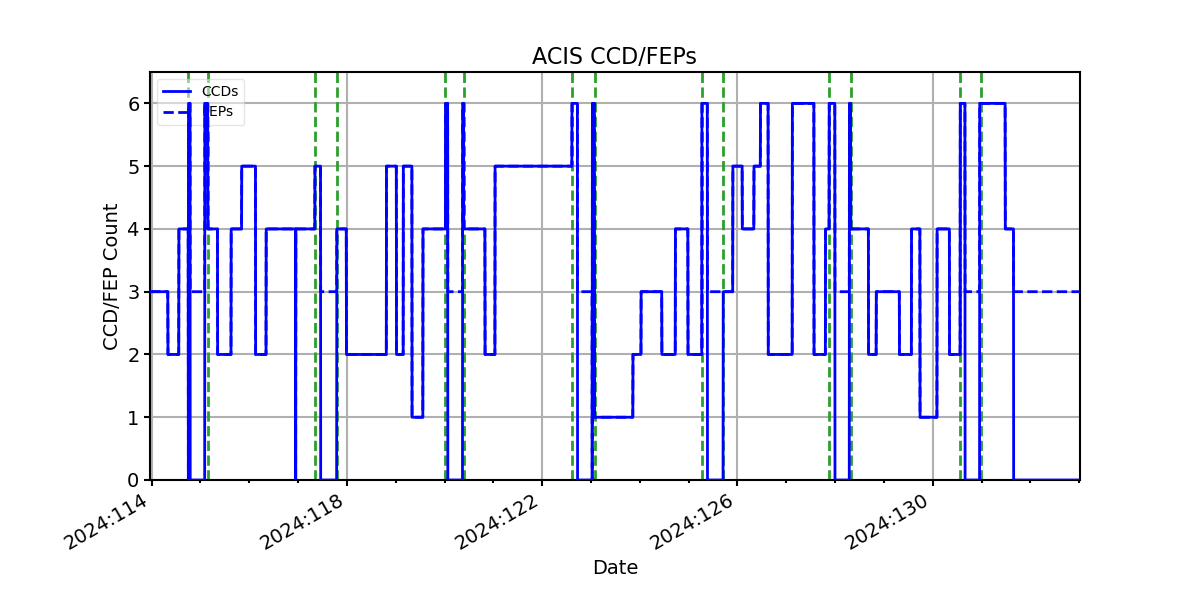

ACIS CCD/FEP Count
