PSMCBT Temperatures Check
Summary
| Date start | 2023:134:22:02:30.716 |
| Date stop | 2023:138:17:37:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/MAY1523/oflsa |
| Run time | Thu Oct 8 16:11:28 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

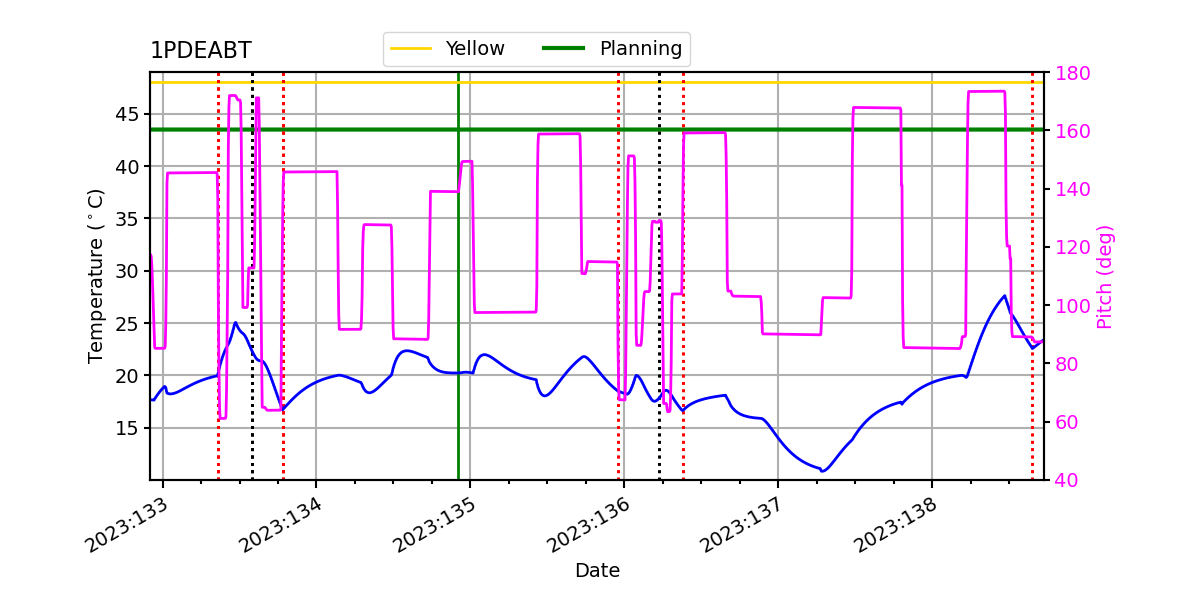

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.08 | -2.13 | -1.05 | 0.34 | 1.48 | 2.22 | 3.16 |
| pitch | -9.816 | -0.476 | -0.003 | 0.000 | 0.003 | 0.461 | 9.822 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.507 | -0.103 | -0.004 | 0.000 | 0.004 | 0.105 | 1.825 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.08 | 2.50 |
| PITCH | 1 | -9.816 | 3.00 |
| PITCH | 99 | 9.822 | 3.00 |

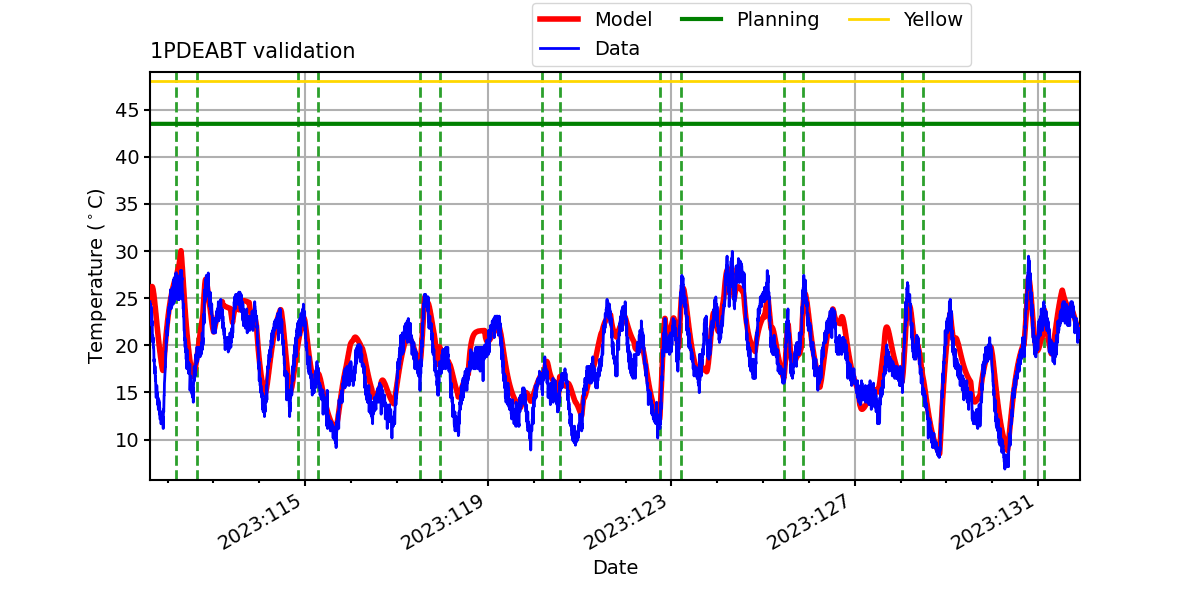

1PDEABT

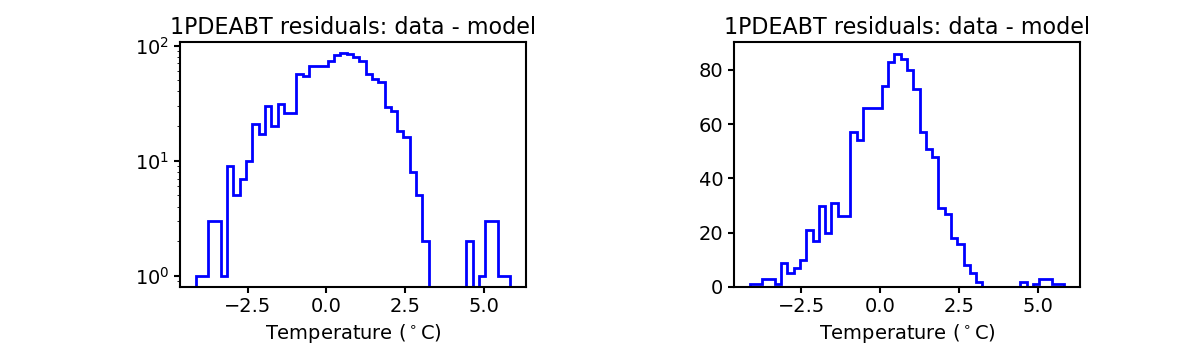

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.
PITCH

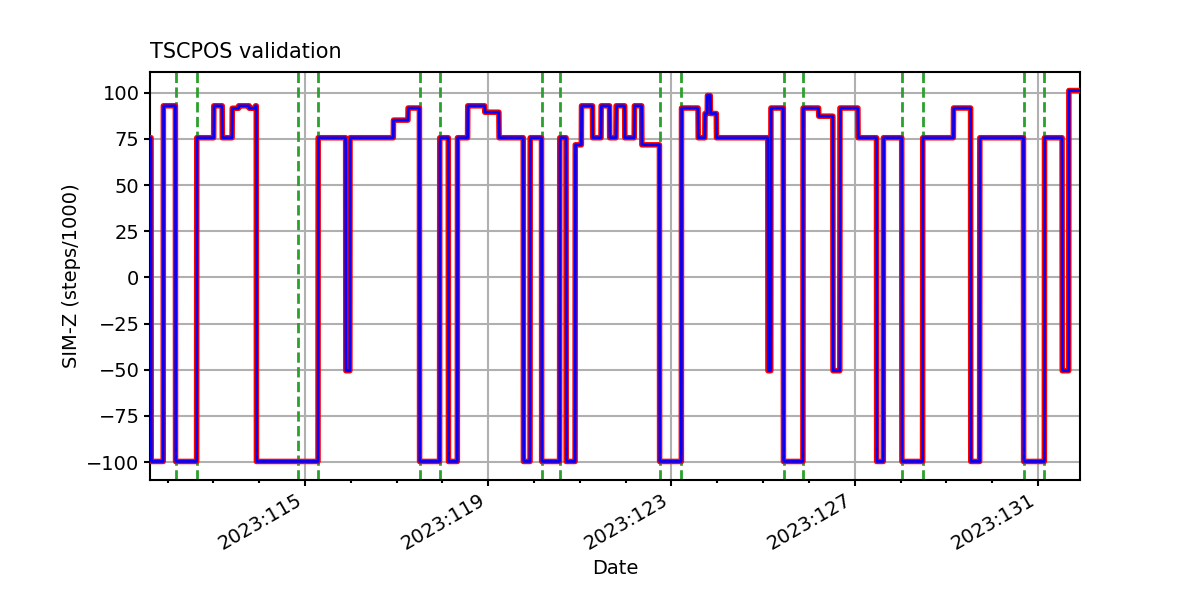

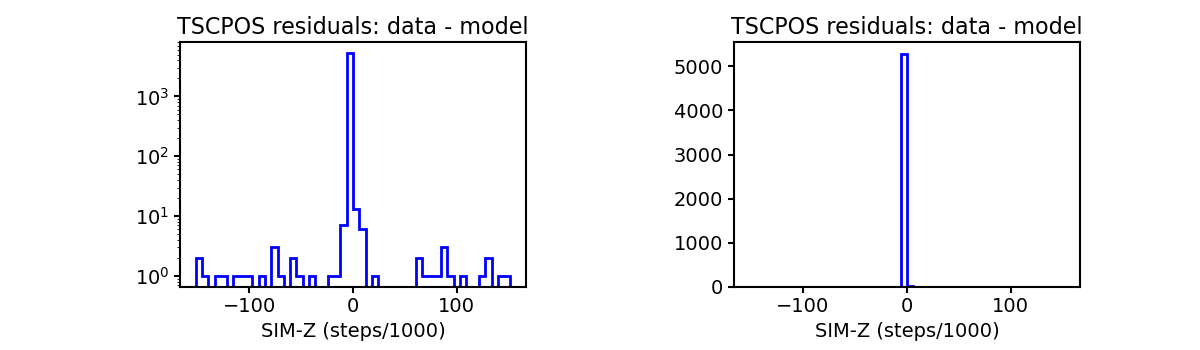

TSCPOS

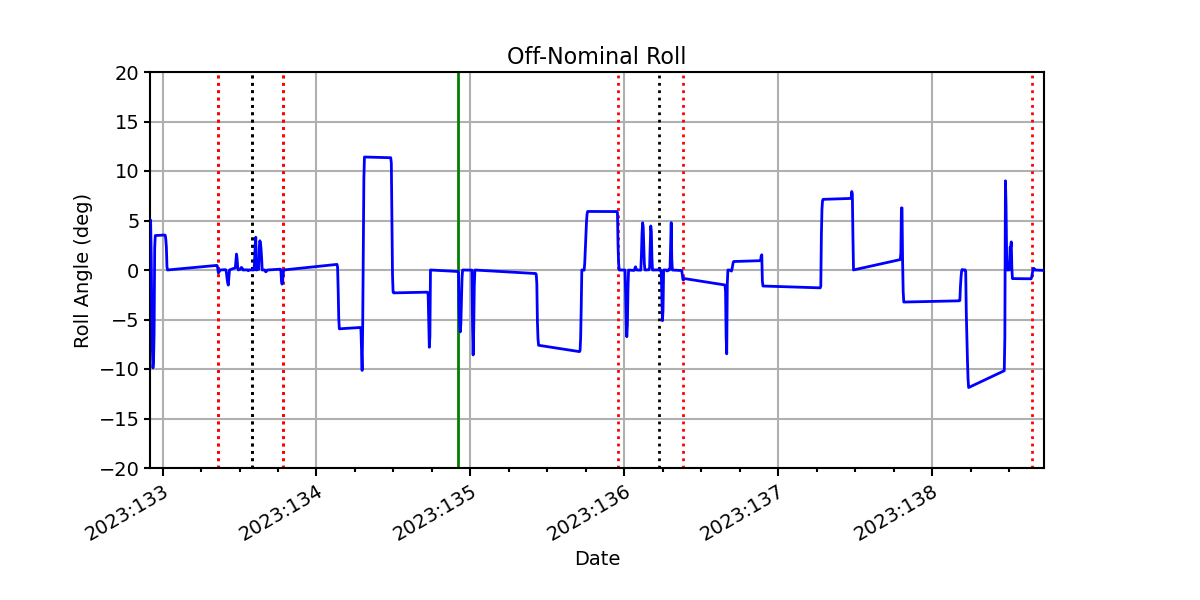

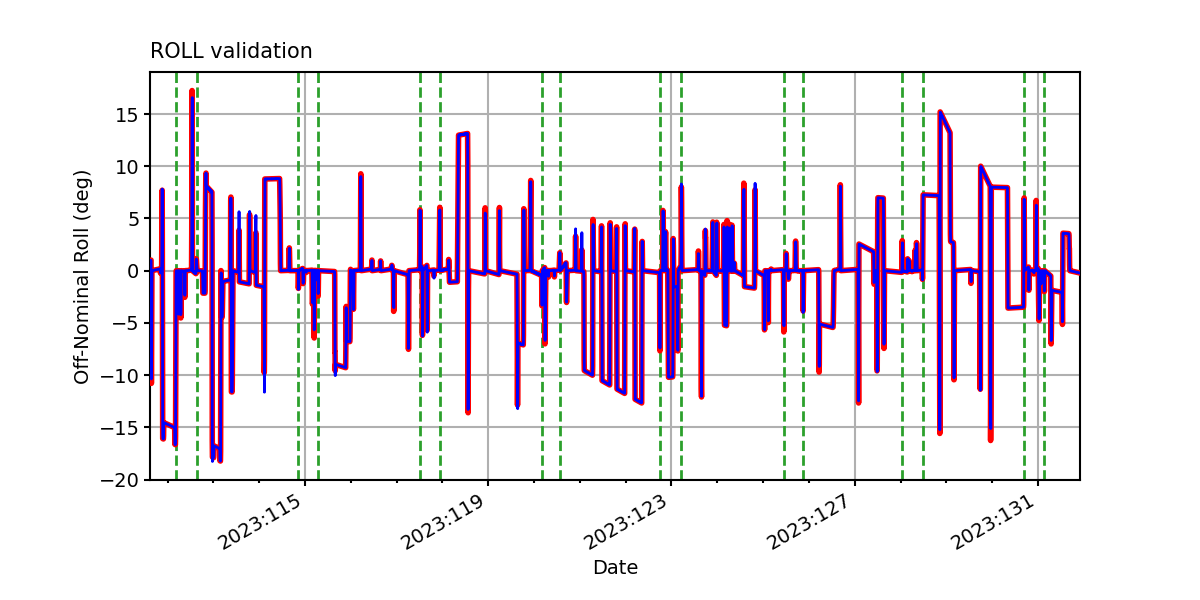

ROLL

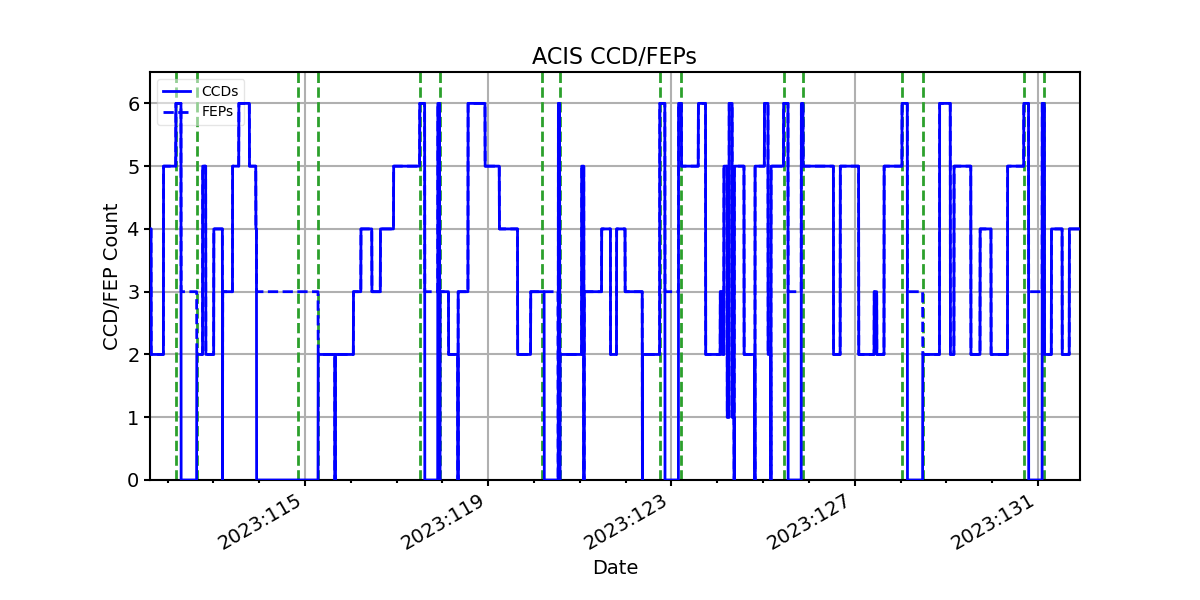

ACIS CCD/FEP Count
