PSMCBT Temperatures Check
Summary
| Date start | 2023:138:17:34:00.016 |
| Date stop | 2023:141:09:40:28.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/MAY1823/oflsb |
| Run time | Thu Oct 8 16:11:28 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.09 | -1.48 | -0.75 | 0.55 | 1.70 | 2.37 | 4.57 |
| pitch | -9.065 | -0.443 | -0.003 | 0.000 | 0.003 | 0.374 | 9.001 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.445 | -0.102 | -0.004 | -0.000 | 0.004 | 0.099 | 1.672 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -9.065 | 3.00 |
| PITCH | 99 | 9.001 | 3.00 |

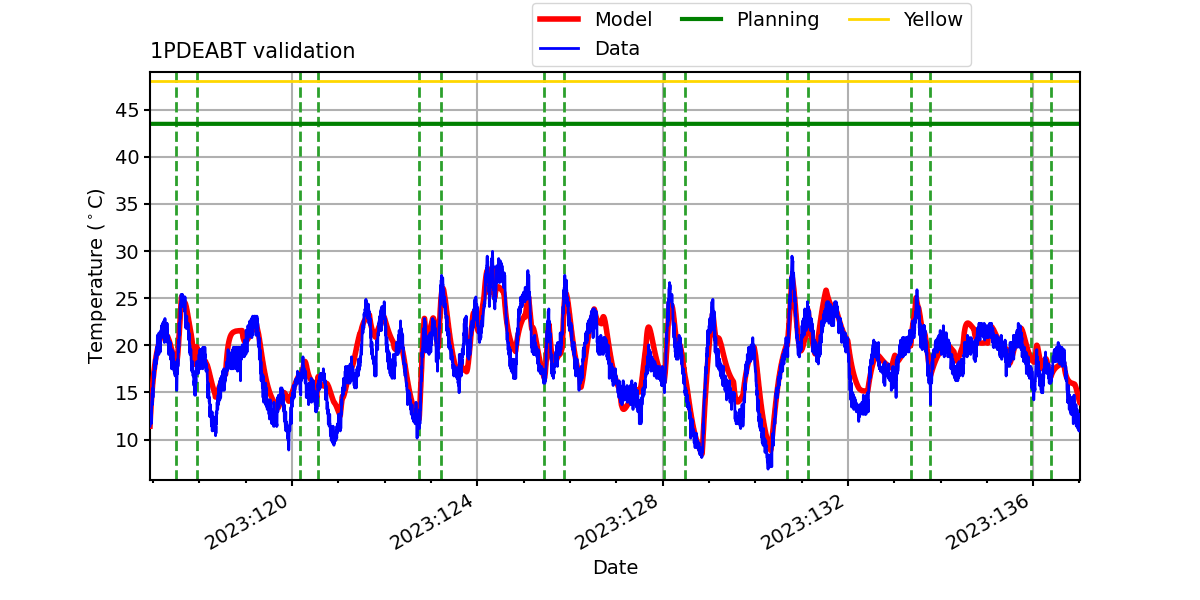

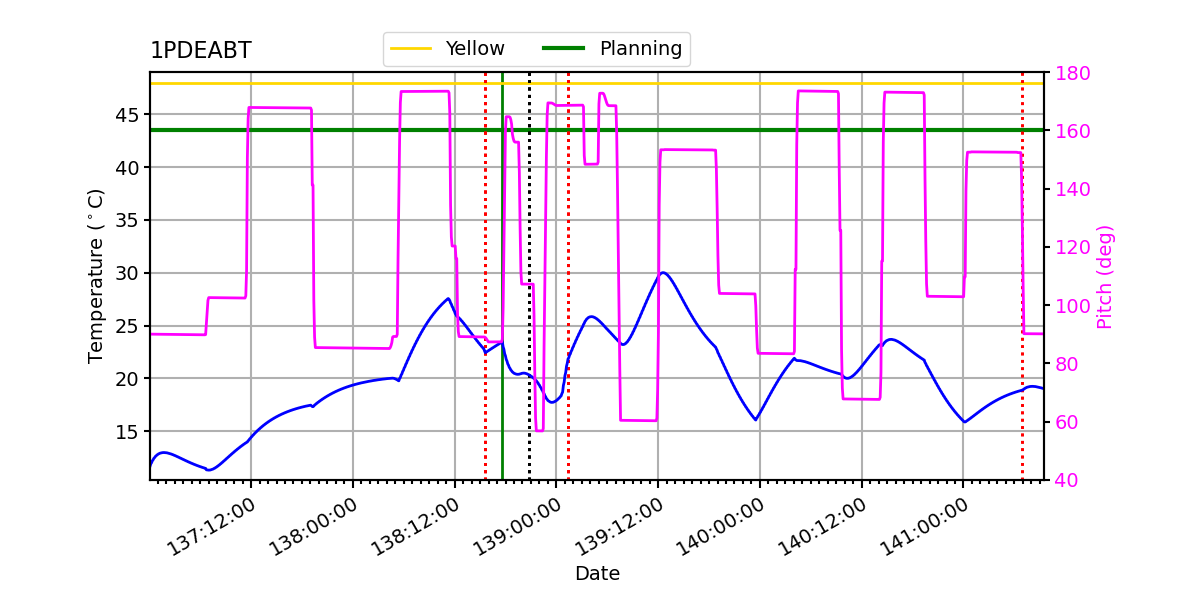

1PDEABT

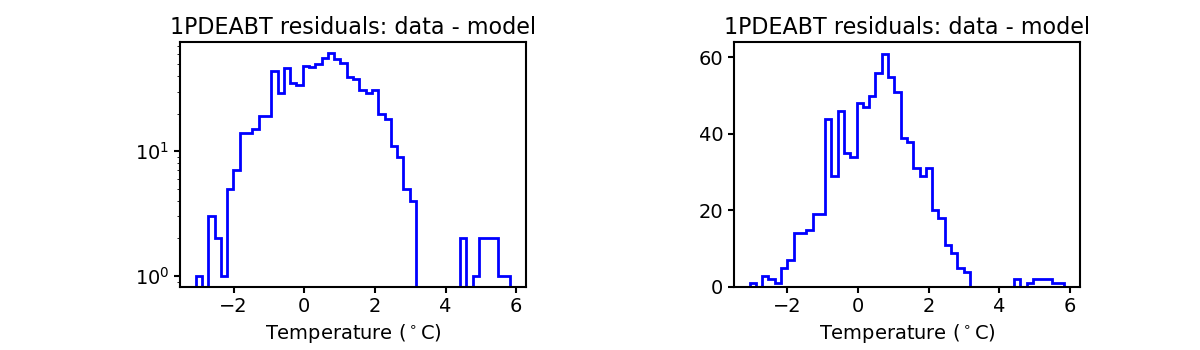

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

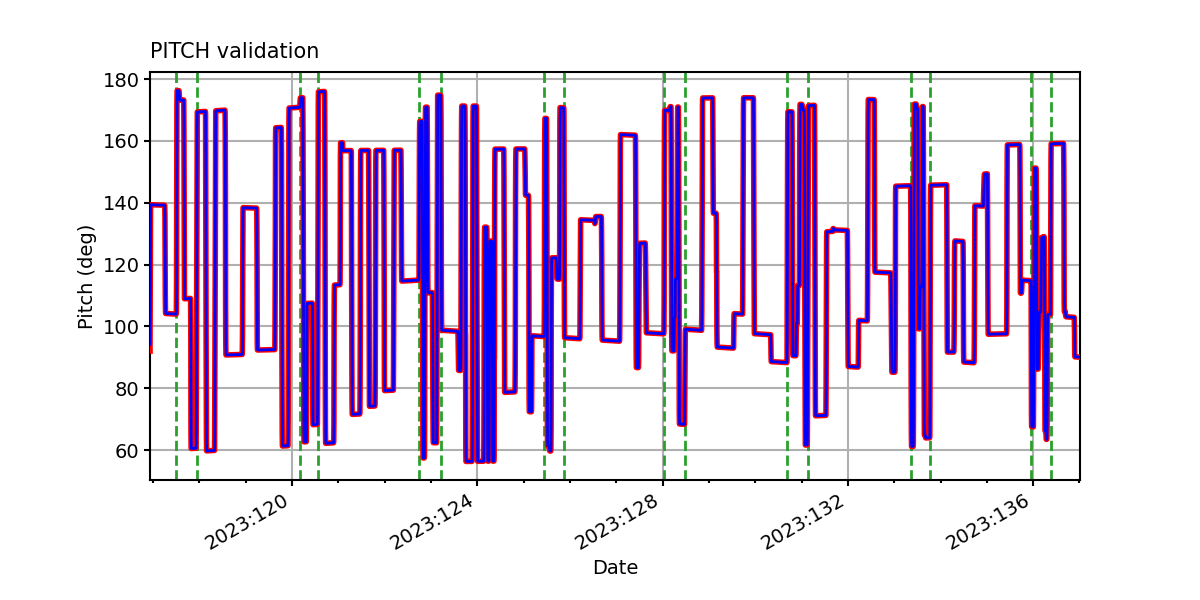

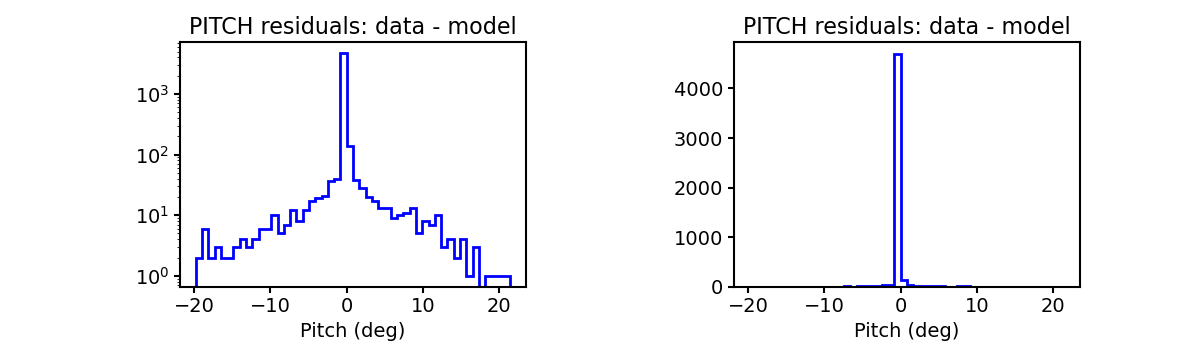

PITCH

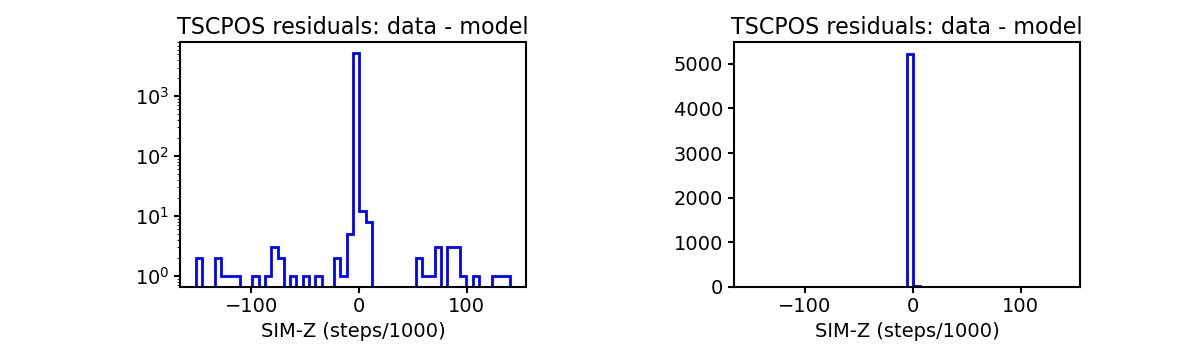

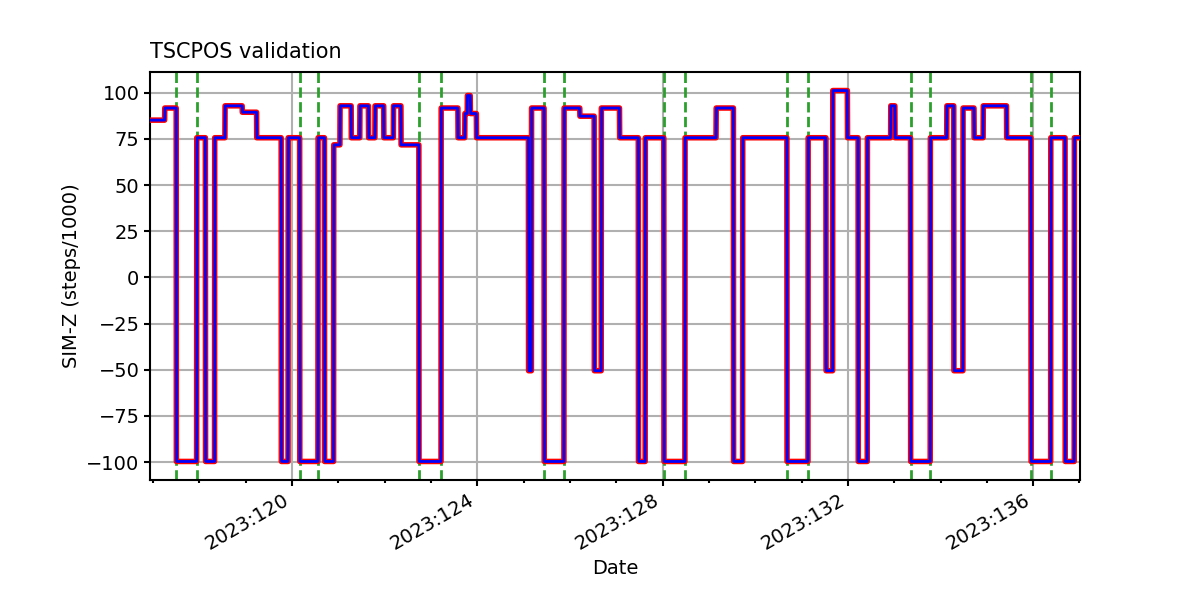

TSCPOS

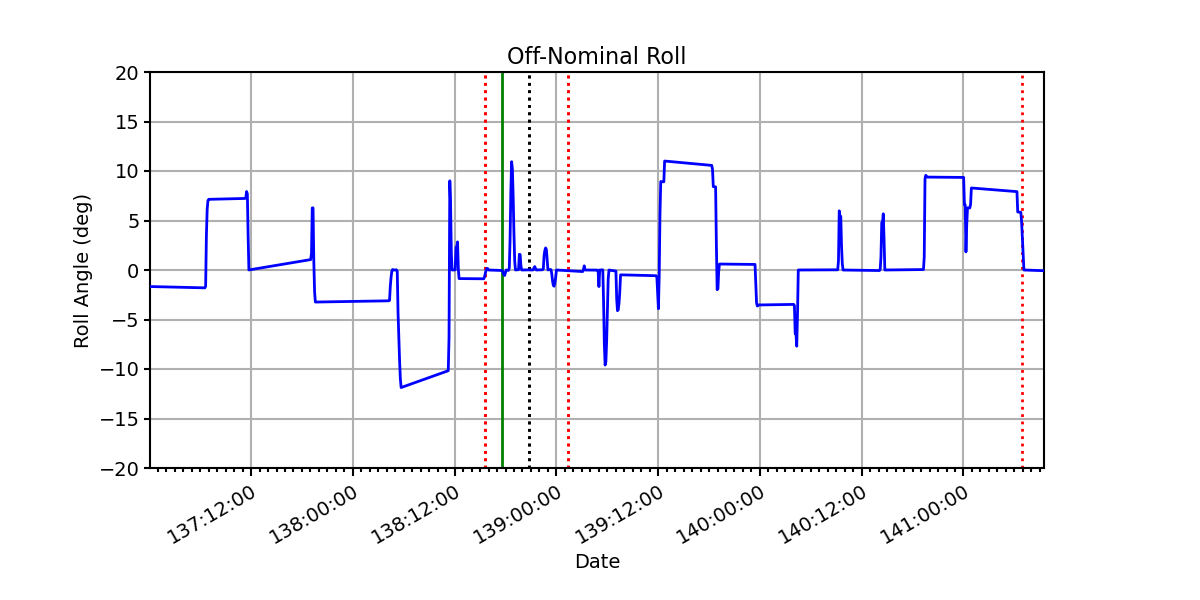

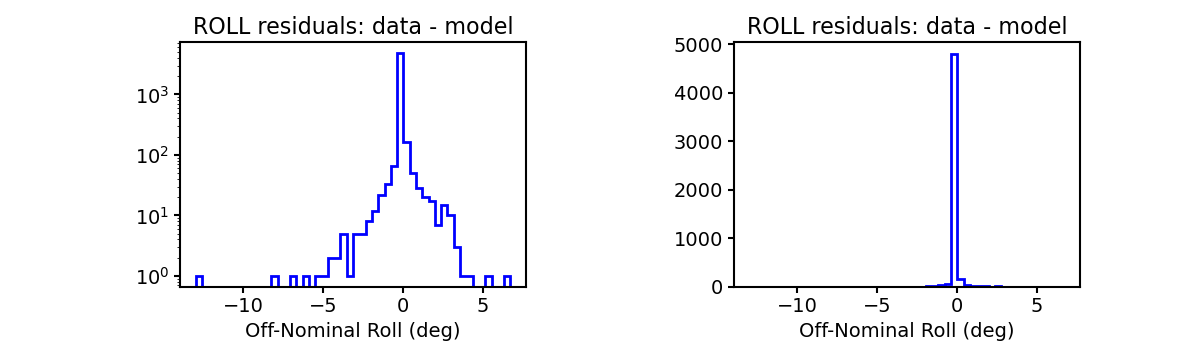

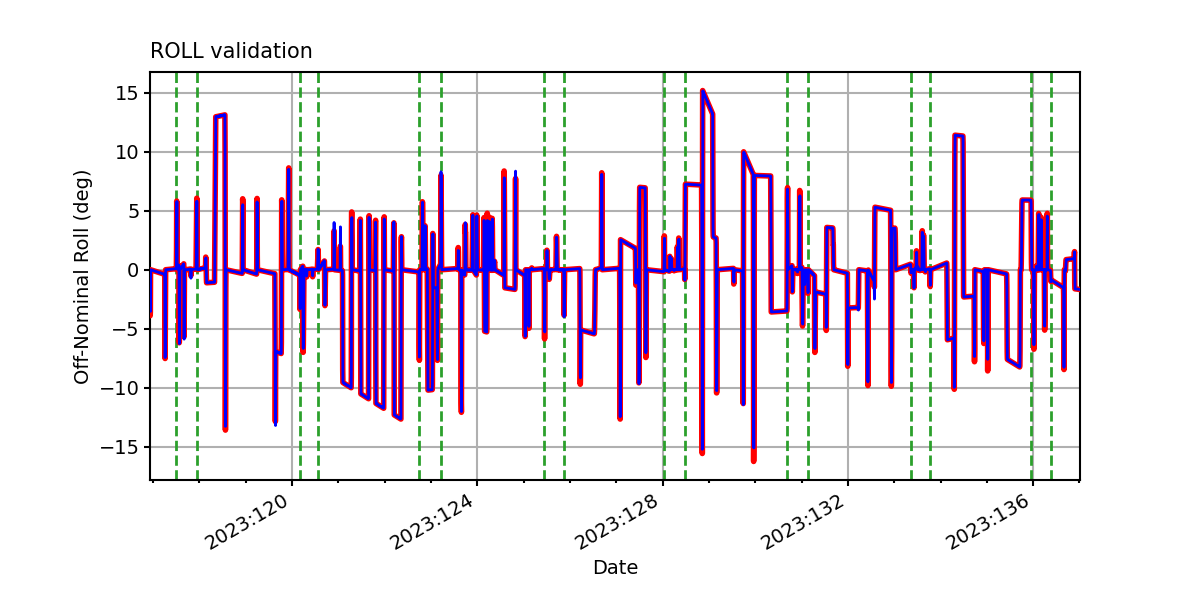

ROLL

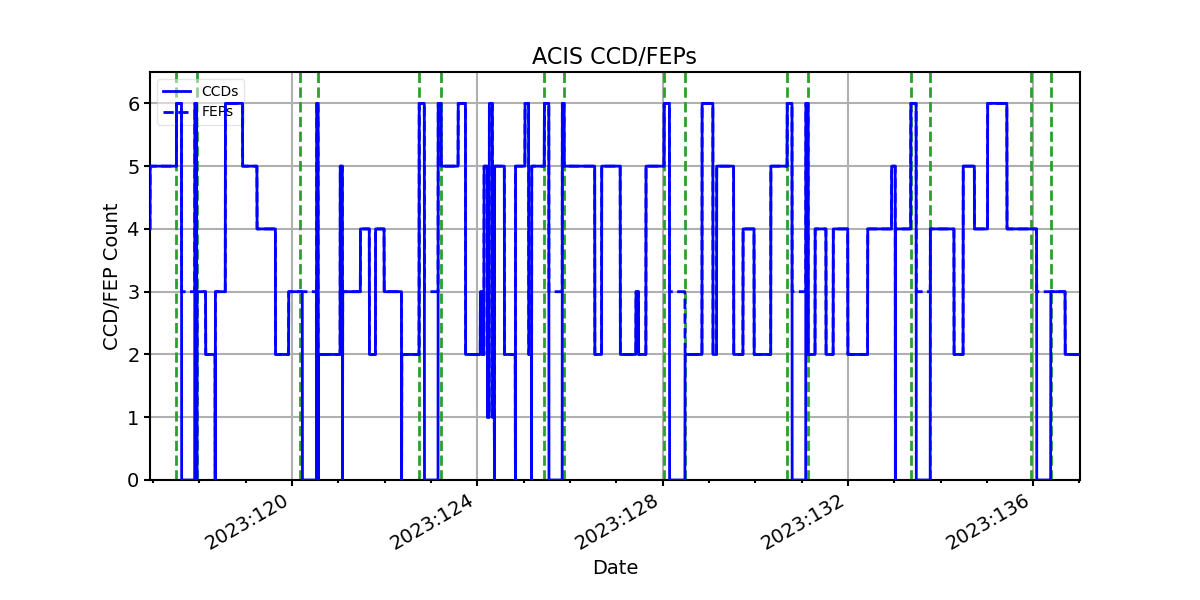

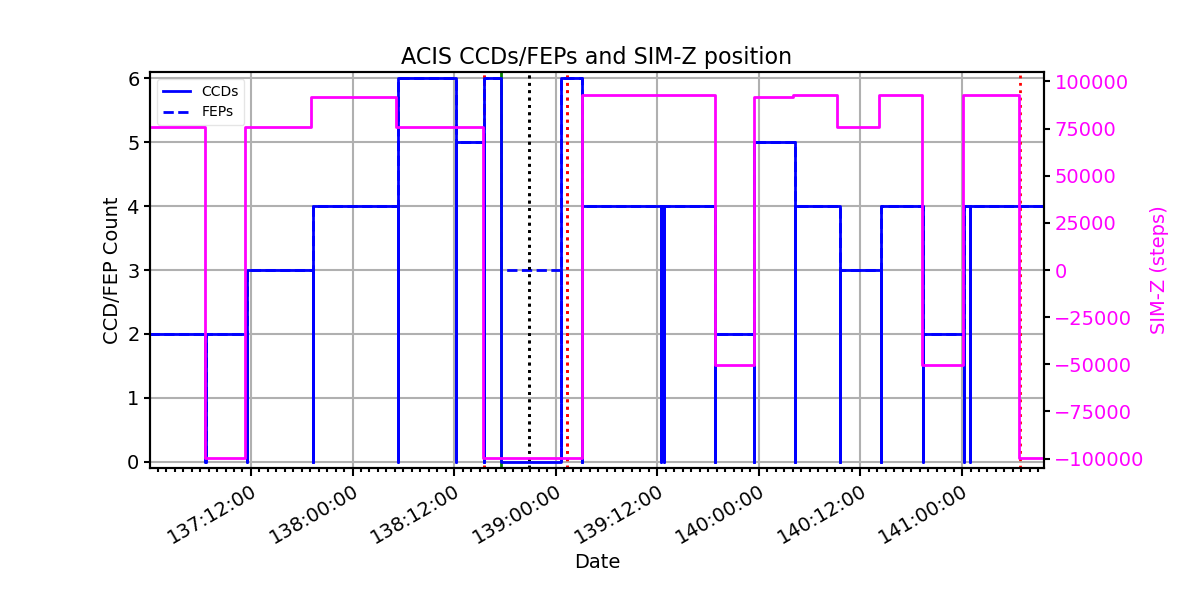

ACIS CCD/FEP Count
