PSMCBT Temperatures Check
Summary
| Date start | 2026:137:09:56:04.316 |
| Date stop | 2026:144:21:52:00.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAY1826/oflsa |
| Run time | Thu Oct 8 16:11:28 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

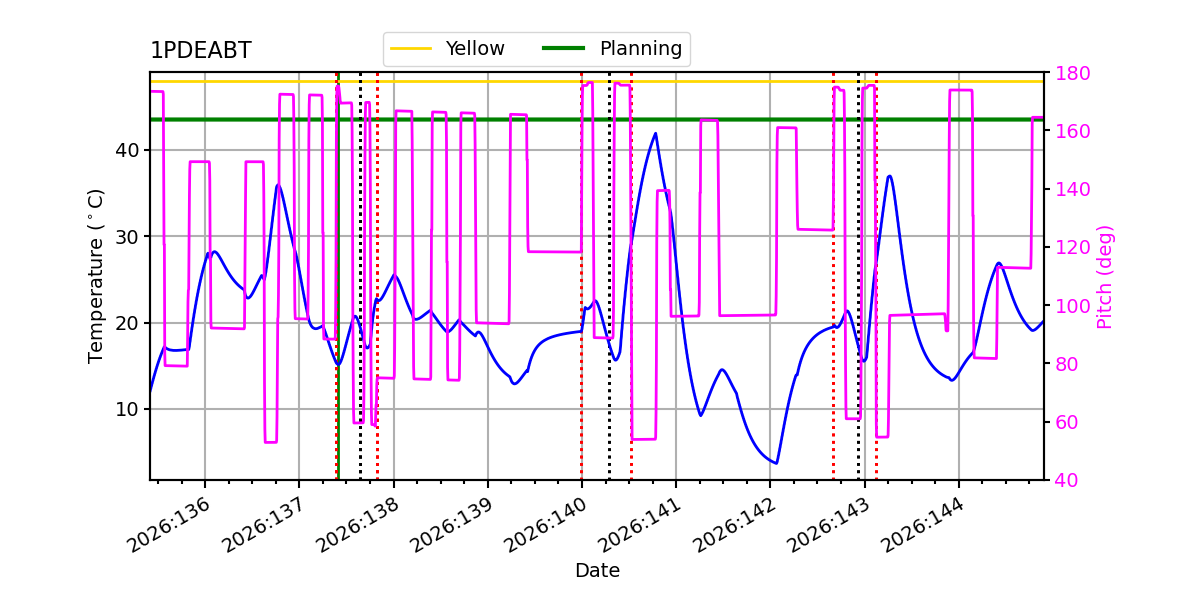

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.47 | -1.56 | -0.84 | 0.47 | 1.56 | 2.34 | 3.24 |
| pitch | -9.288 | -0.364 | -0.004 | -0.000 | 0.004 | 0.134 | 11.773 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.789 | -0.087 | -0.005 | -0.000 | 0.005 | 0.095 | 1.896 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -9.288 | 3.00 |
| PITCH | 99 | 11.773 | 3.00 |

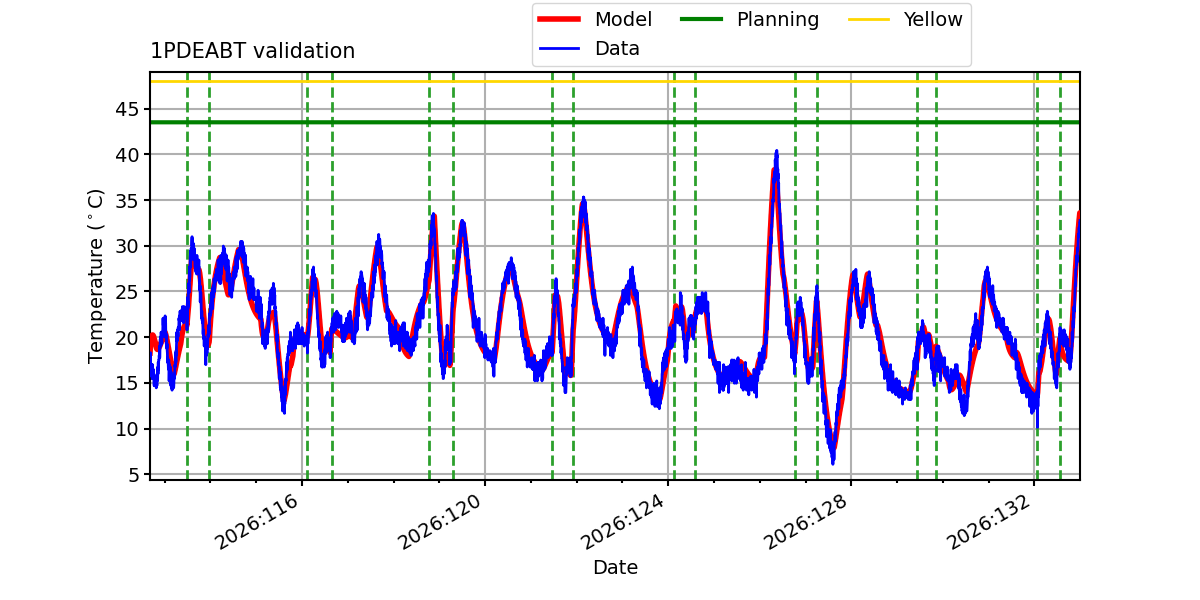

1PDEABT

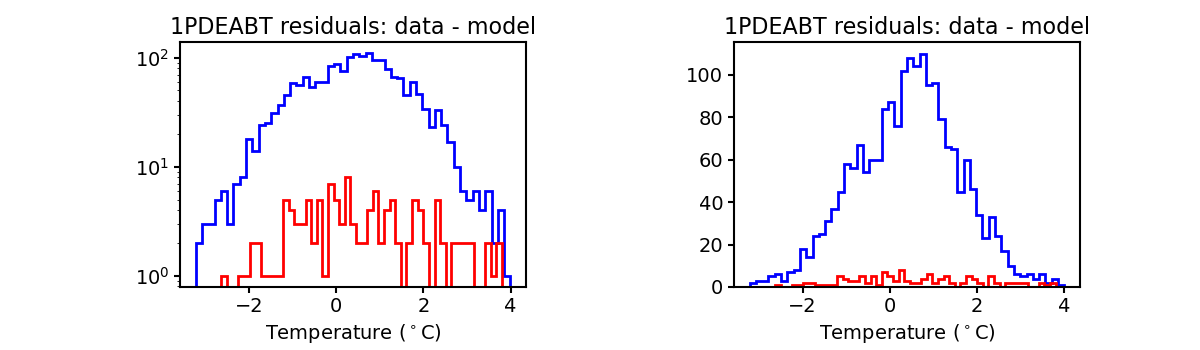

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

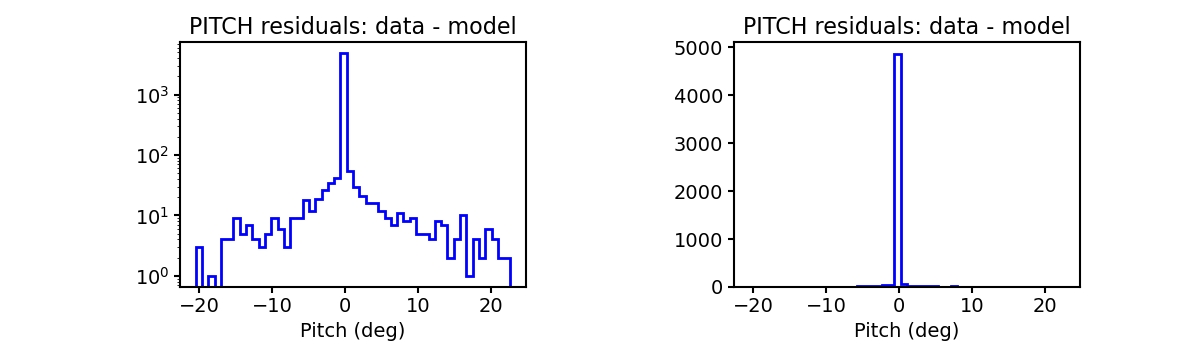

PITCH

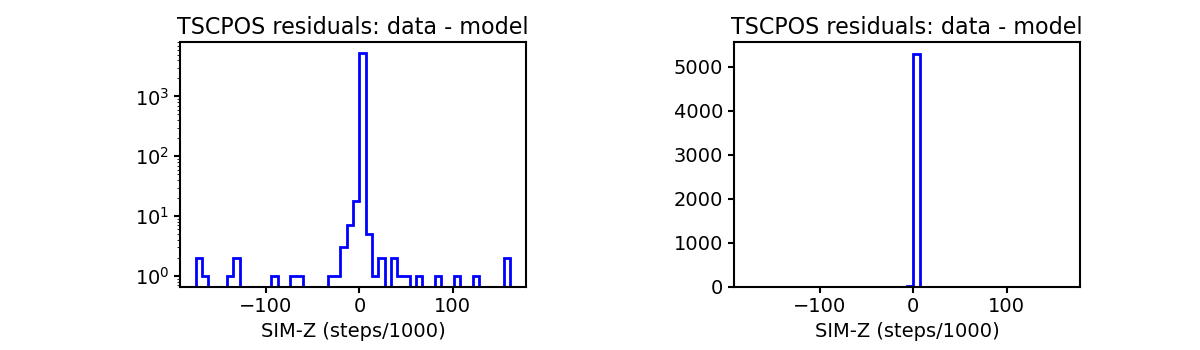

TSCPOS

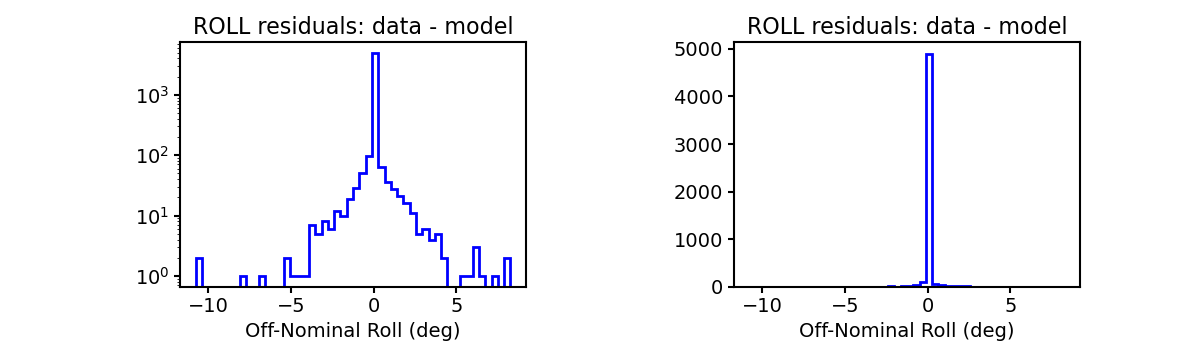

ROLL

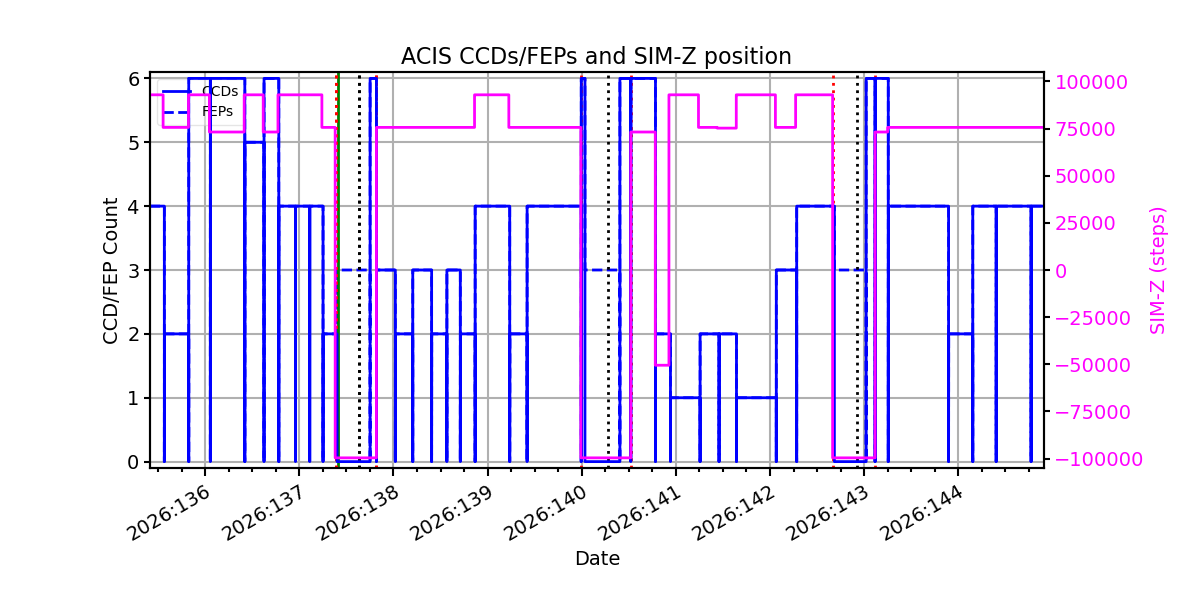

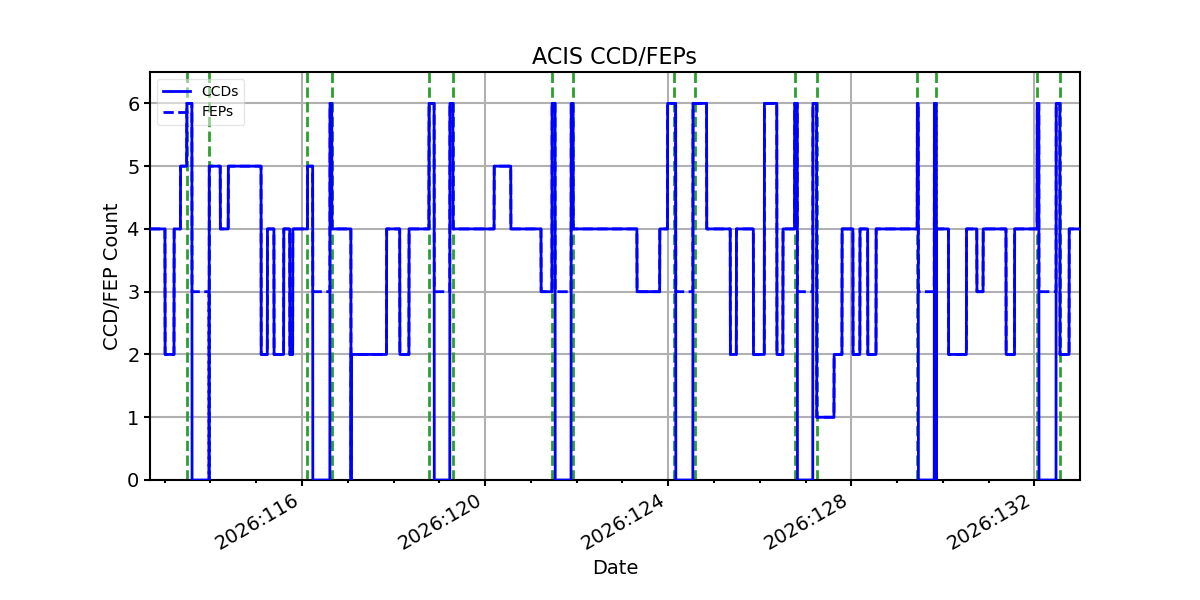

ACIS CCD/FEP Count
