PSMCBT Temperatures Check
Summary
| Date start | 2024:141:05:41:00.016 |
| Date stop | 2024:148:00:59:30.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/MAY2024/oflsa |
| Run time | Thu Oct 8 16:12:02 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

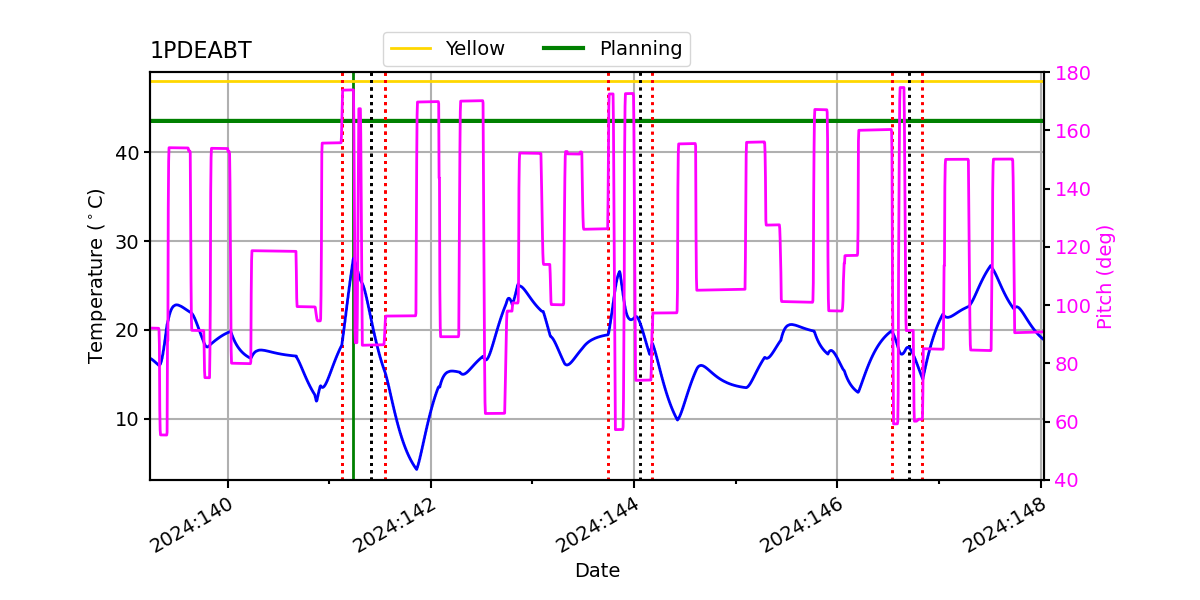

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -5.06 | -2.75 | -1.70 | -0.08 | 1.35 | 2.13 | 2.90 |
| pitch | -9.835 | -0.120 | -0.004 | 0.000 | 0.004 | 0.334 | 8.777 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.528 | -0.064 | -0.005 | 0.000 | 0.006 | 0.056 | 1.822 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -5.06 | 2.50 |
| PITCH | 1 | -9.835 | 3.00 |
| PITCH | 99 | 8.777 | 3.00 |

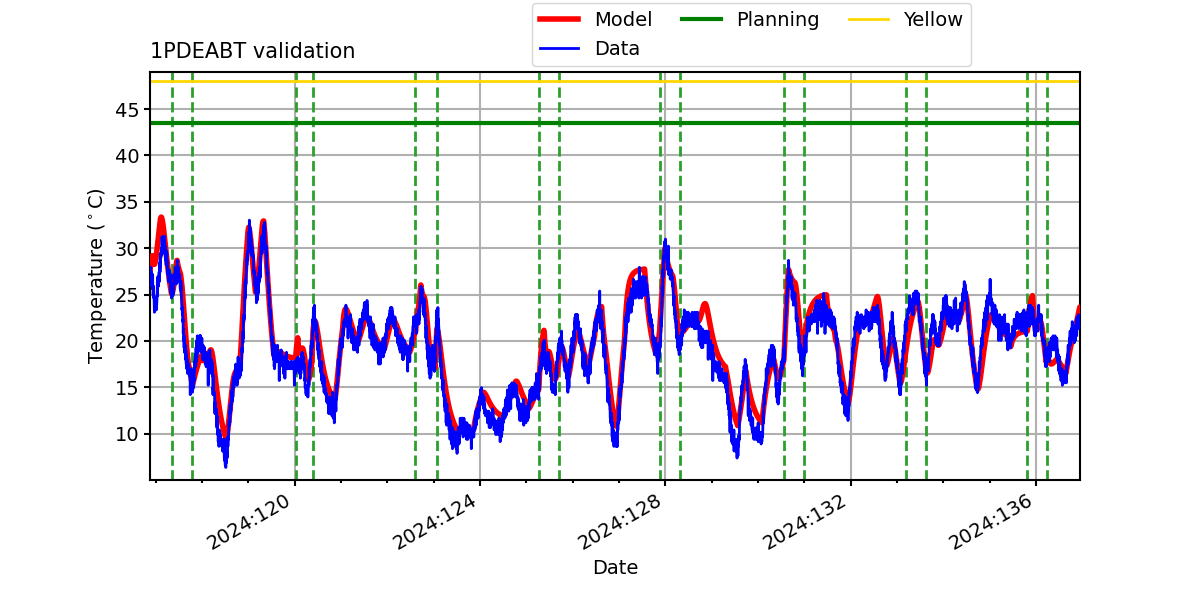

1PDEABT

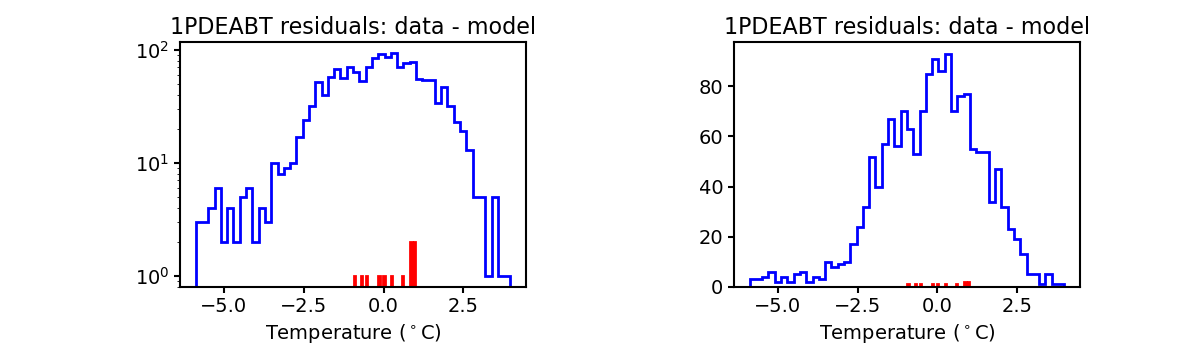

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

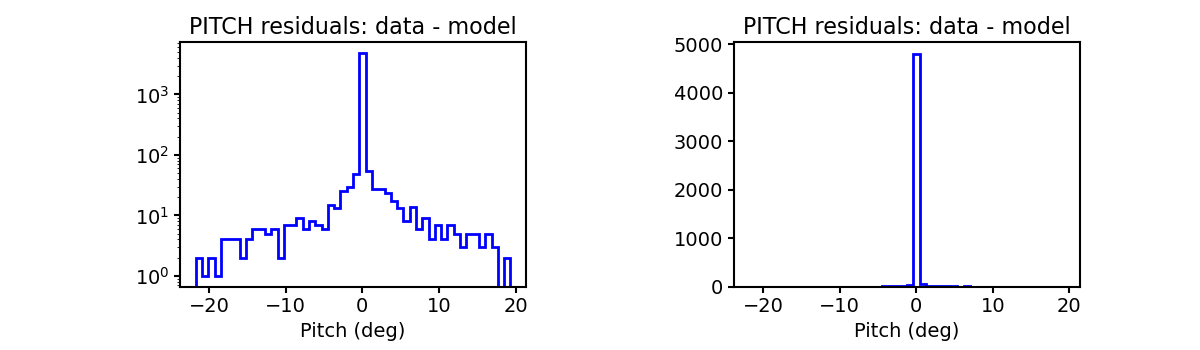

PITCH

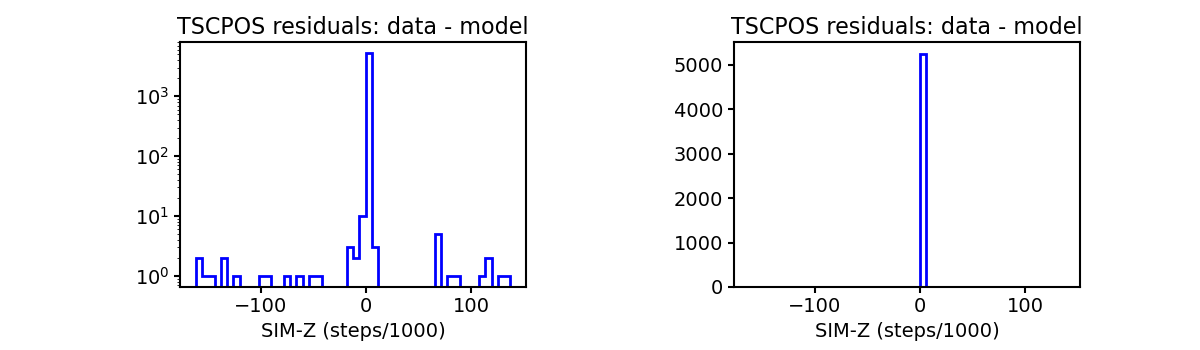

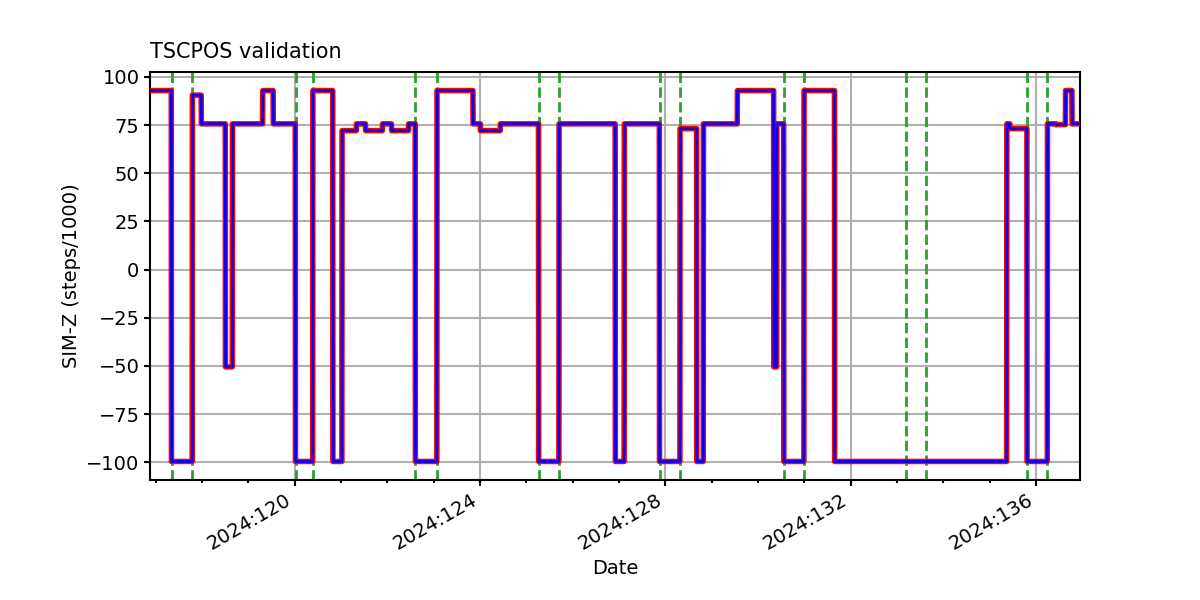

TSCPOS

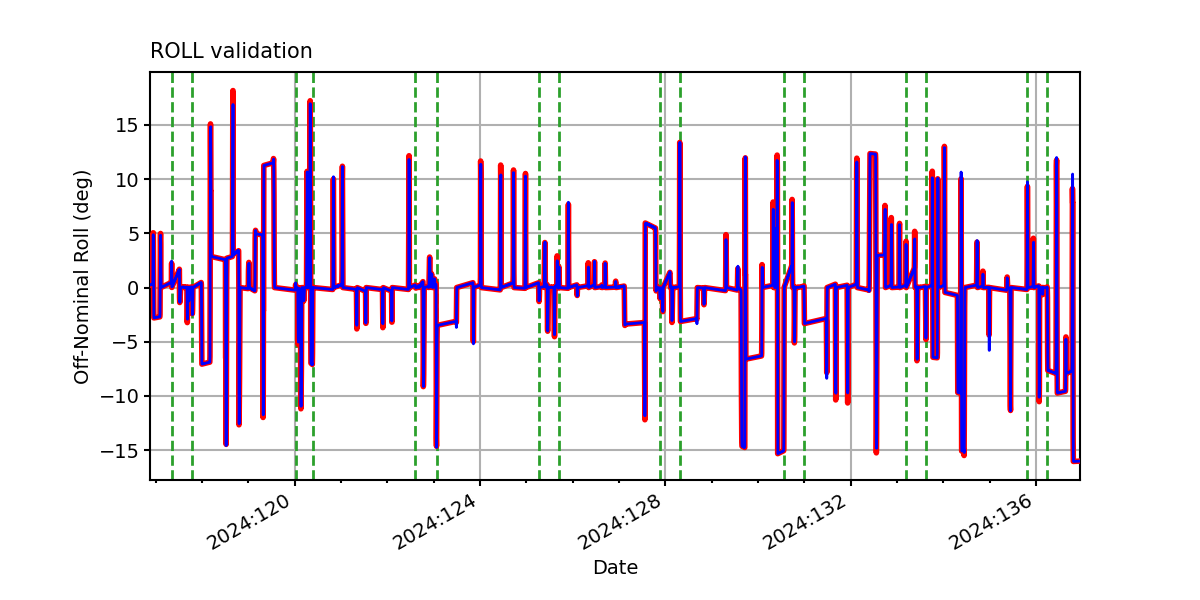

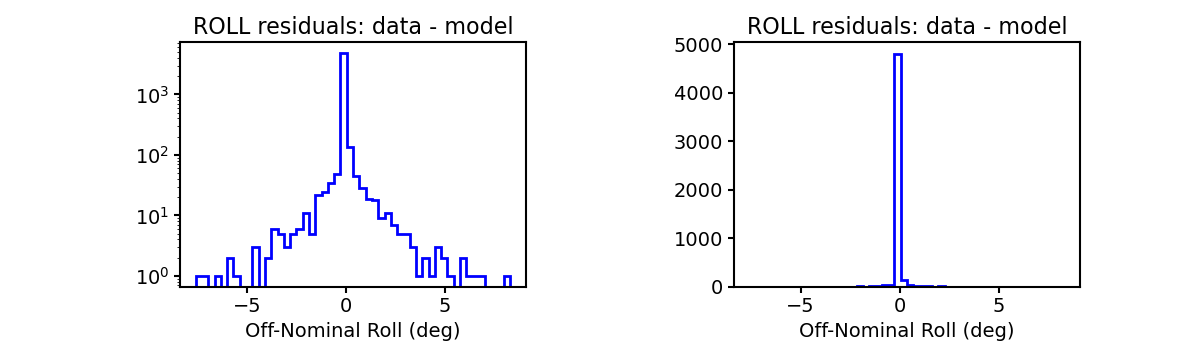

ROLL

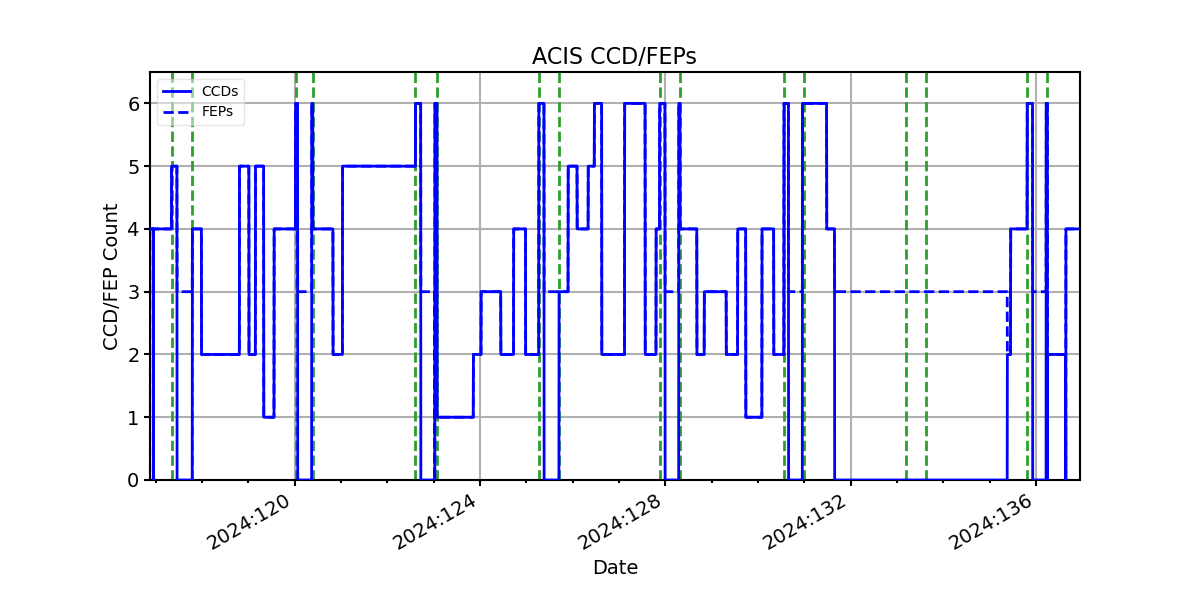

ACIS CCD/FEP Count
