PSMCBT Temperatures Check
Summary
| Date start | 2025:146:01:40:21.716 |
| Date stop | 2025:152:23:54:14.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/MAY2625/oflsb |
| Run time | Thu Oct 8 16:12:02 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

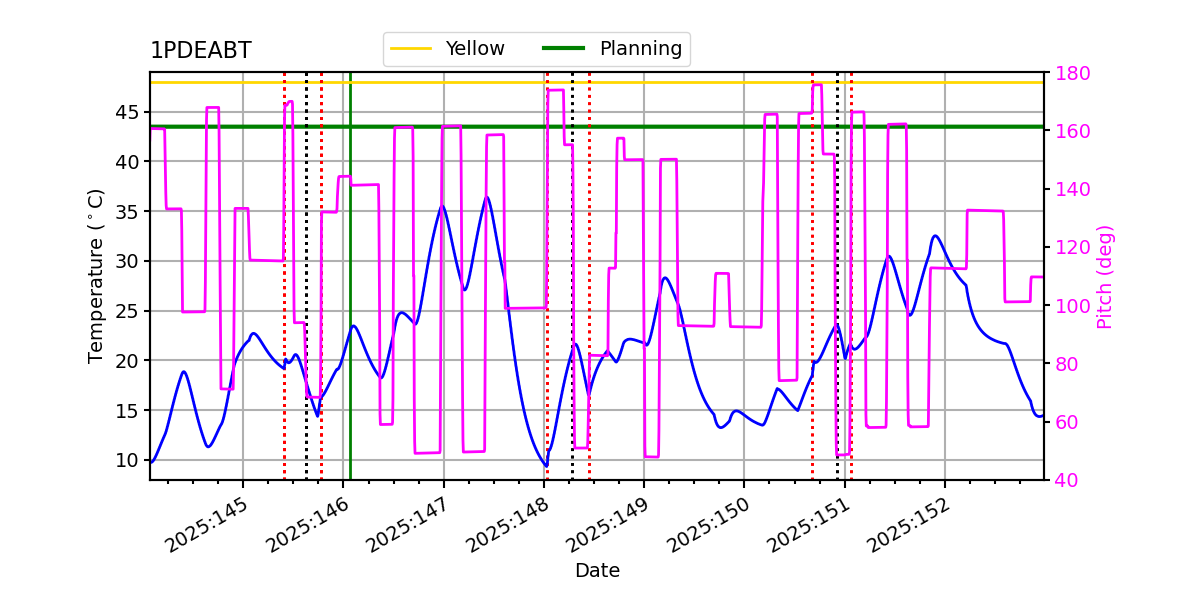

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.91 | -1.95 | -0.99 | 0.42 | 1.91 | 2.91 | 3.73 |
| pitch | -9.437 | -0.366 | -0.004 | 0.000 | 0.004 | 0.357 | 7.984 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.159 | -0.119 | -0.005 | -0.000 | 0.005 | 0.106 | 1.773 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.91 | 2.50 |
| PITCH | 1 | -9.437 | 3.00 |
| PITCH | 99 | 7.984 | 3.00 |

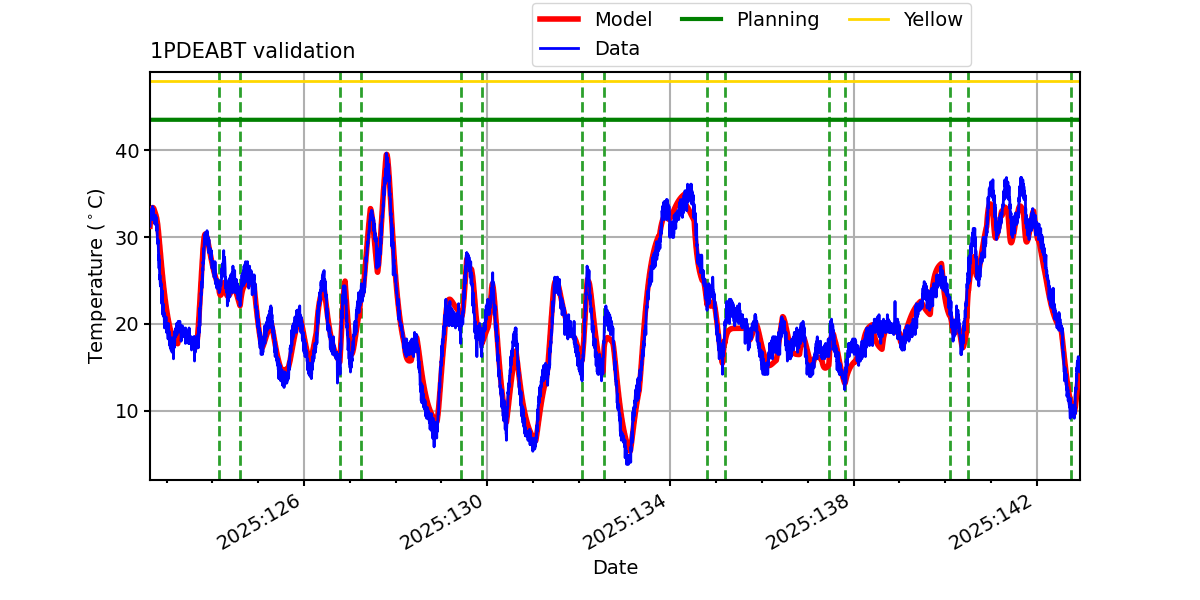

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

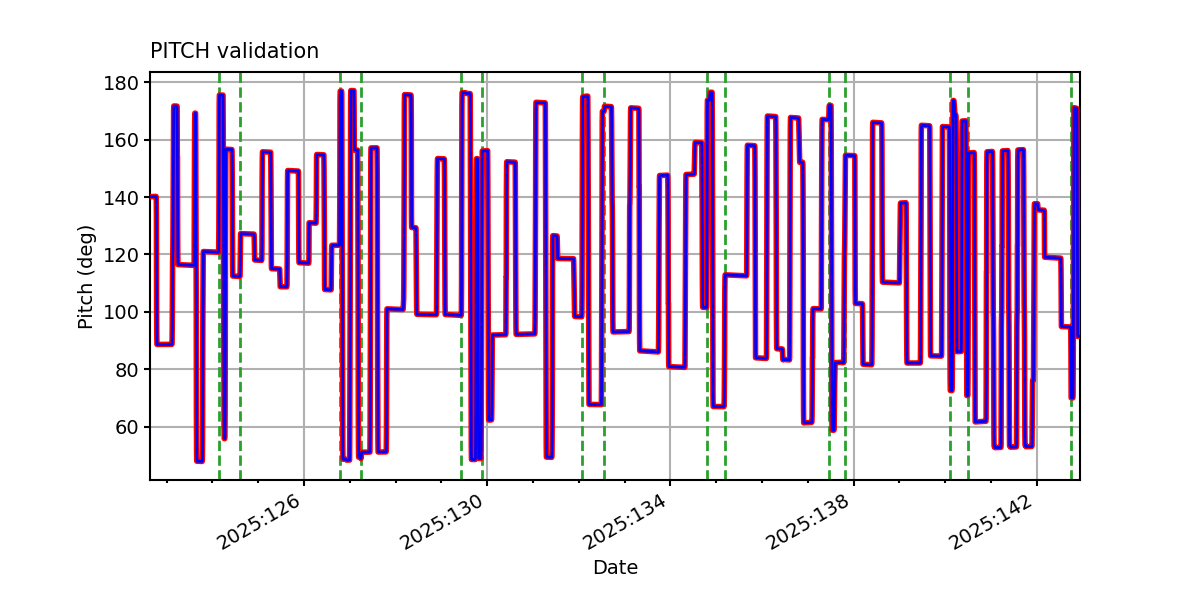

PITCH

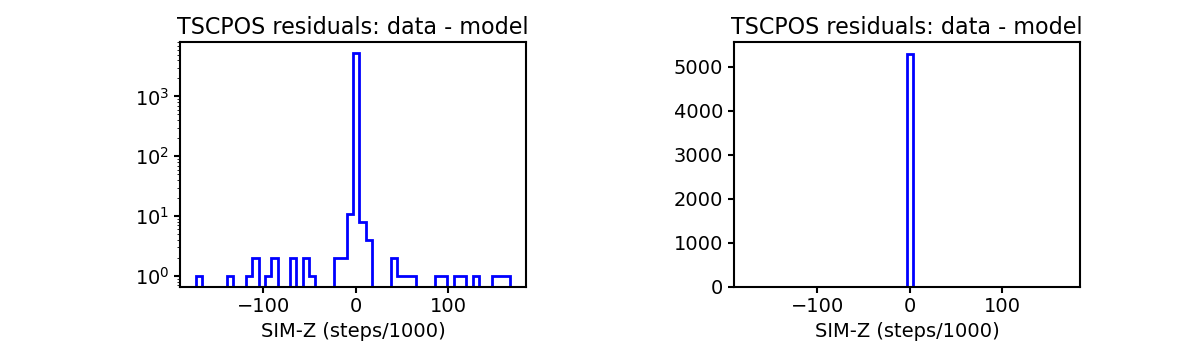

TSCPOS

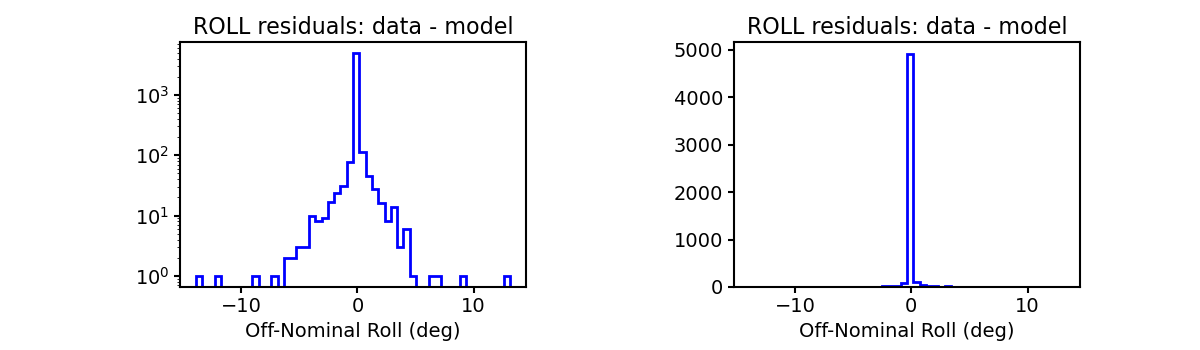

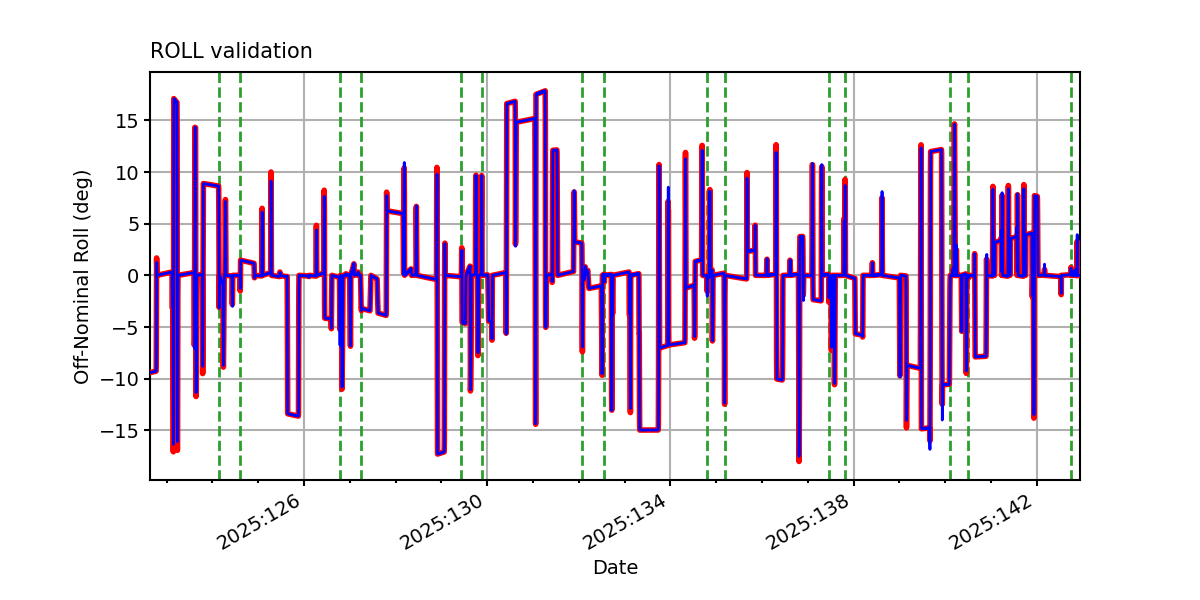

ROLL

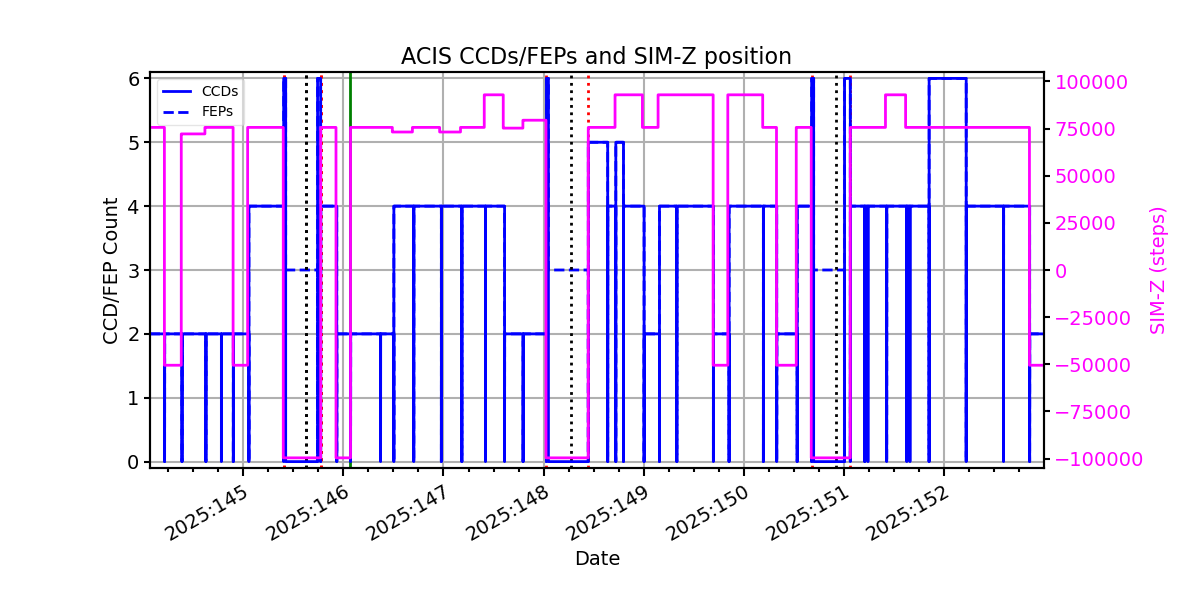

ACIS CCD/FEP Count
