PSMCBT Temperatures Check
Summary
| Date start | 2024:148:00:56:30.016 |
| Date stop | 2024:155:02:43:12.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/MAY2724/oflsa |
| Run time | Thu Oct 8 16:12:02 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

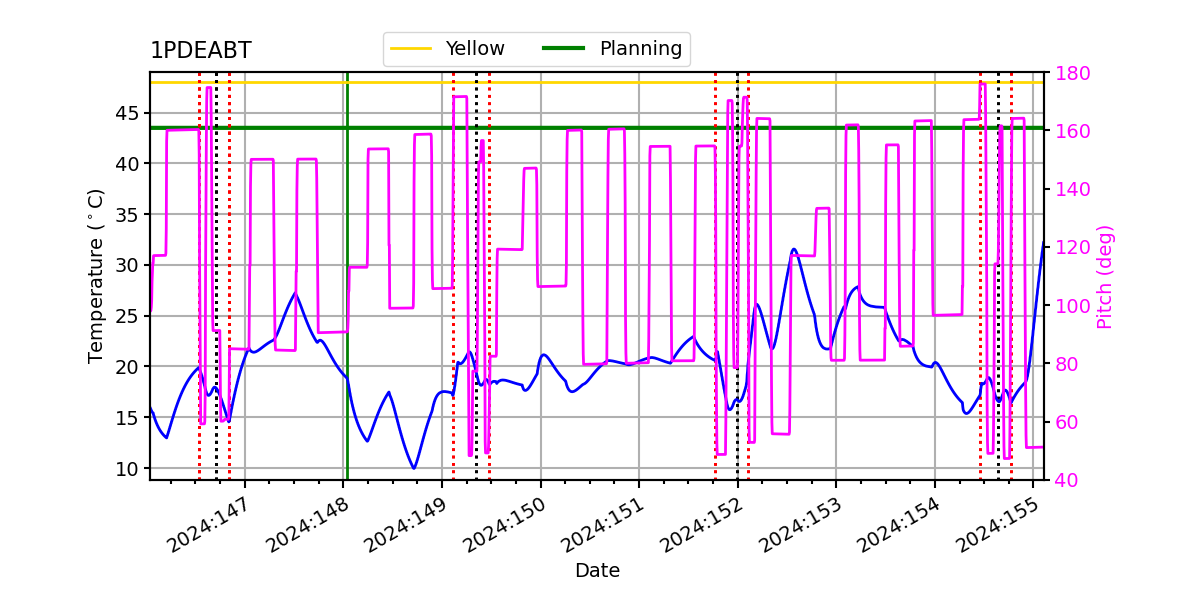

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.27 | -2.37 | -1.56 | 0.04 | 1.54 | 2.26 | 3.03 |
| pitch | -8.763 | -0.086 | -0.004 | 0.000 | 0.004 | 0.342 | 8.026 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.914 | -0.055 | -0.006 | -0.000 | 0.006 | 0.058 | 1.853 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.27 | 2.50 |
| PITCH | 1 | -8.763 | 3.00 |
| PITCH | 99 | 8.026 | 3.00 |

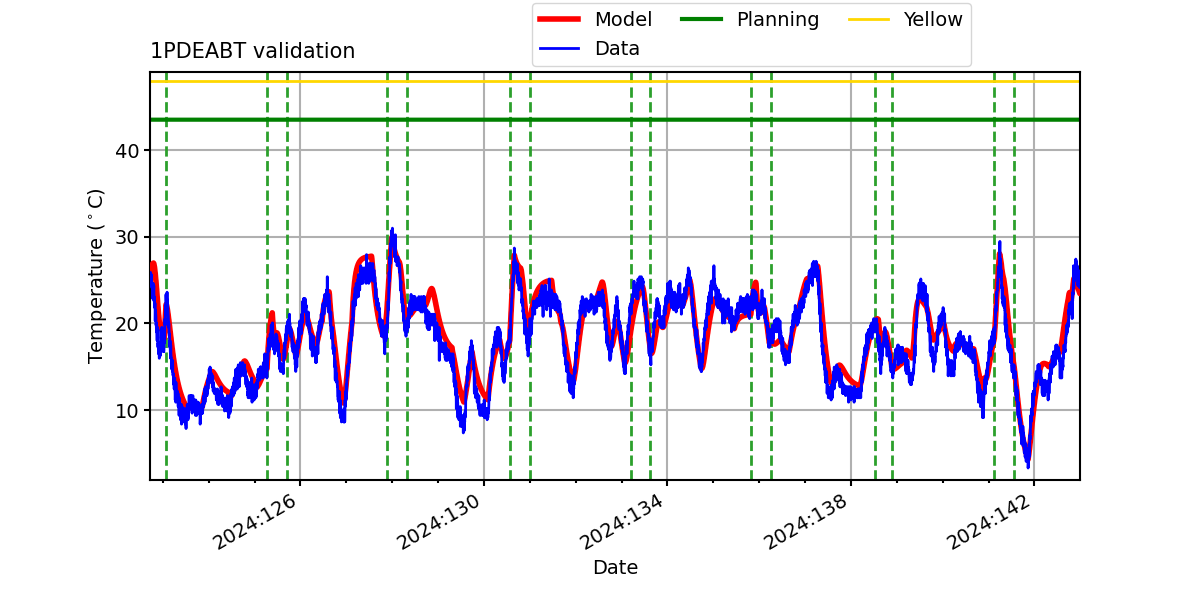

1PDEABT

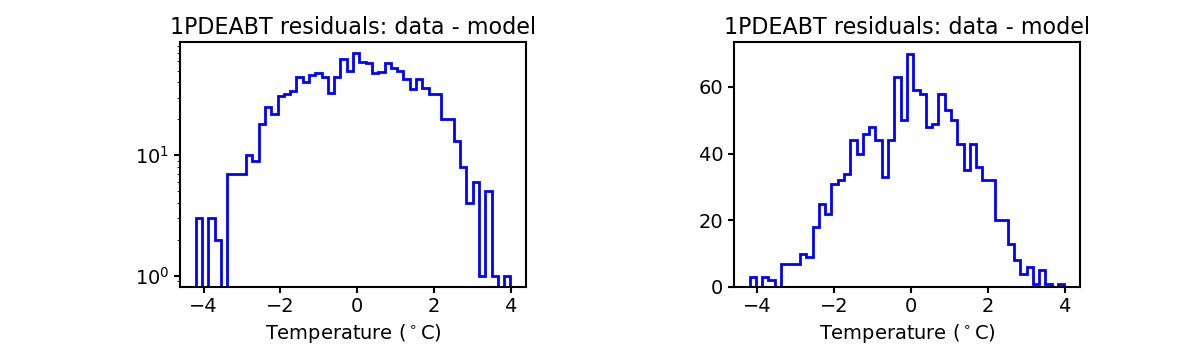

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

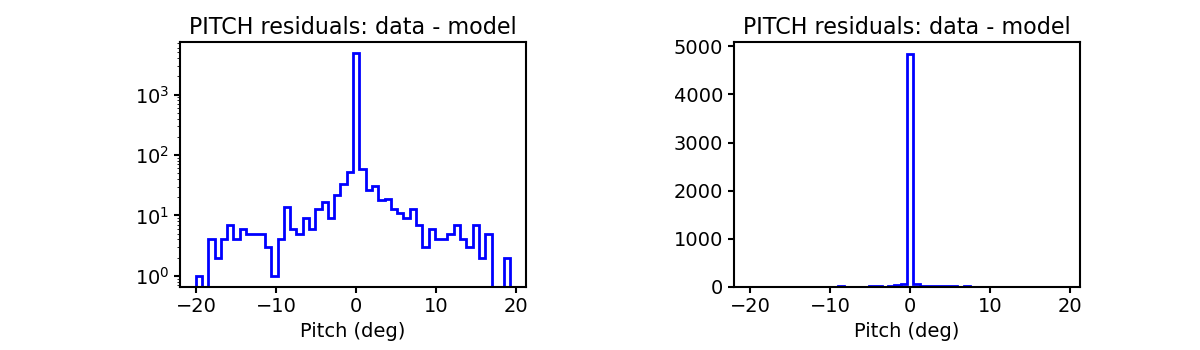

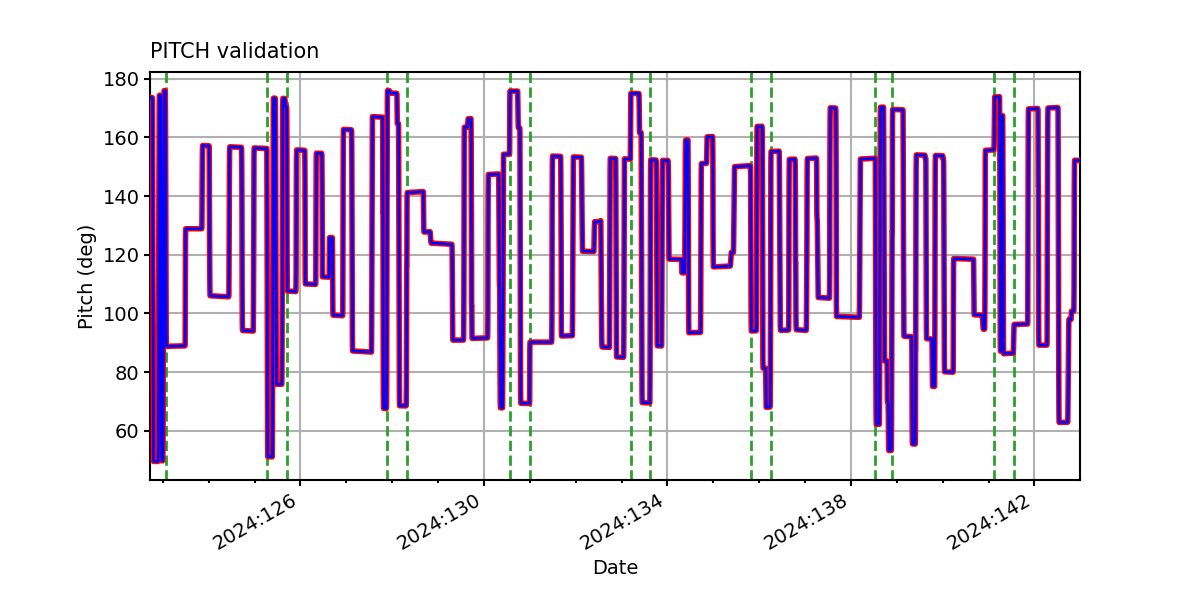

PITCH

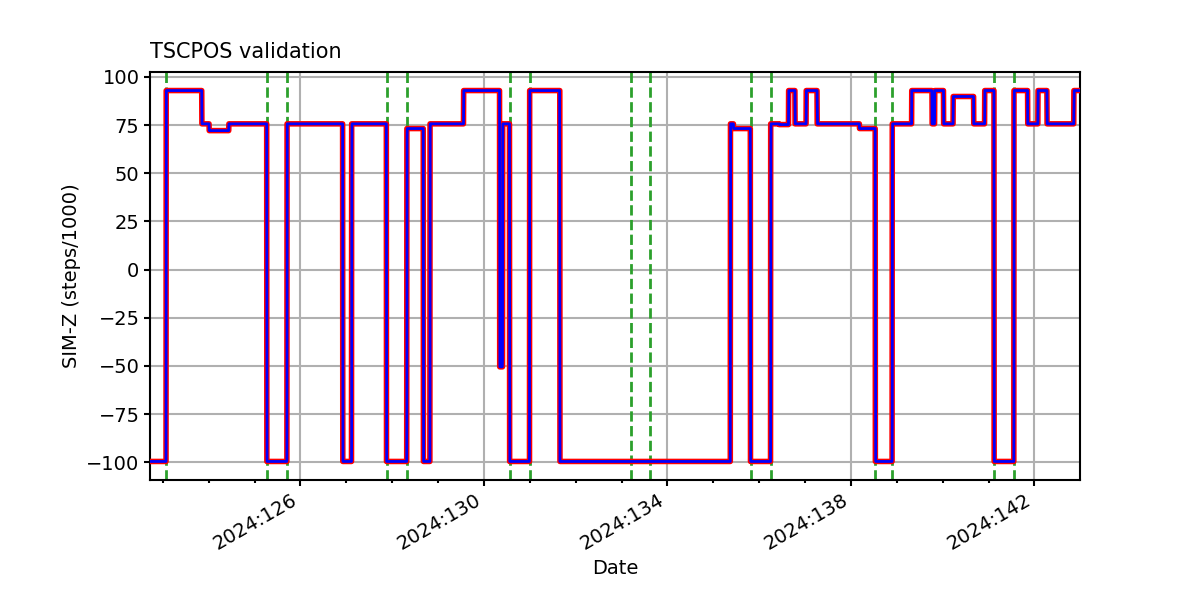

TSCPOS

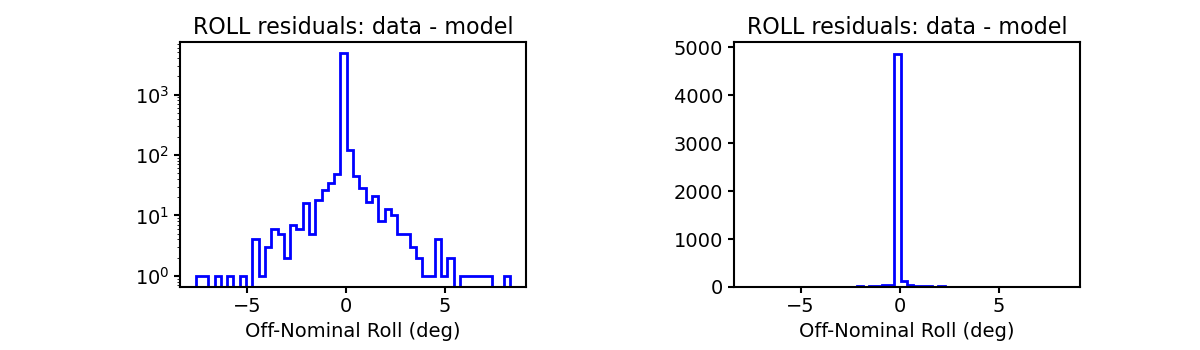

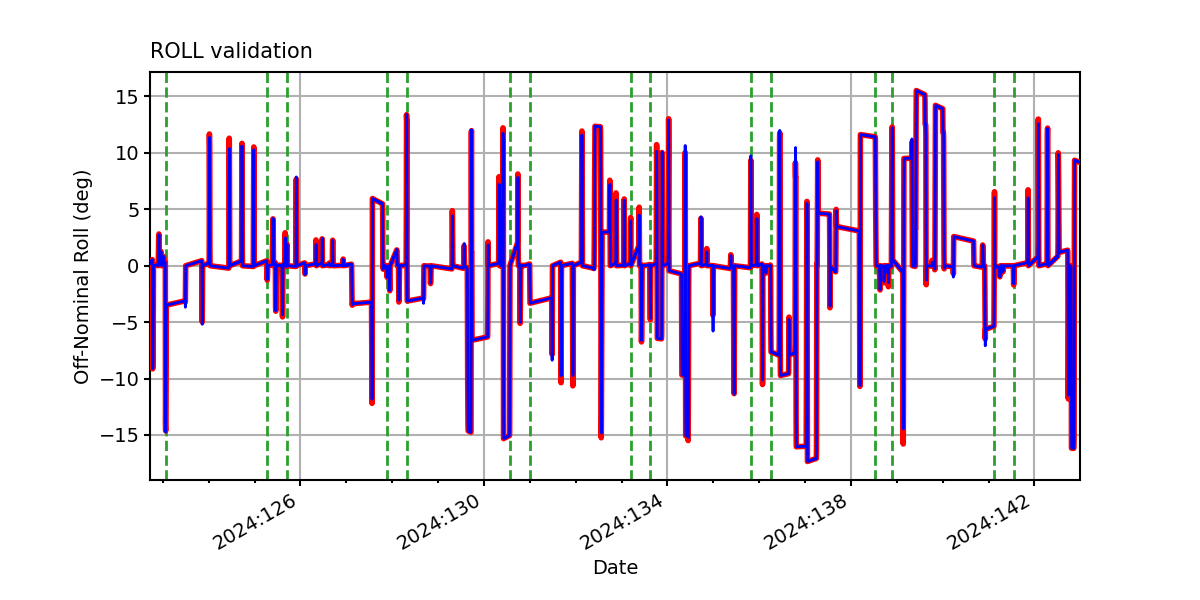

ROLL

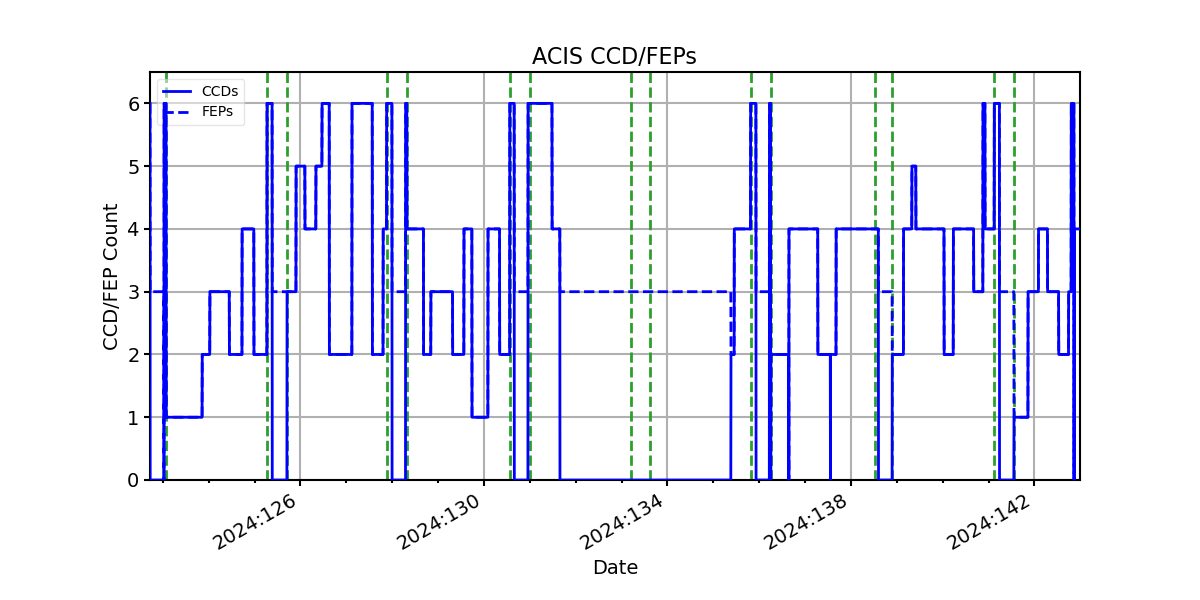

ACIS CCD/FEP Count
