PSMCBT Temperatures Check
Summary
| Date start | 2023:309:23:30:43.116 |
| Date stop | 2023:317:06:47:41.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/NOV0623/oflsa |
| Run time | Thu Oct 8 16:12:29 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -4.14 | -2.87 | -2.10 | -0.61 | 0.71 | 1.42 | 2.04 |
| pitch | -10.886 | -1.592 | -0.004 | -0.000 | 0.004 | 1.498 | 11.394 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 195 |
| roll | -2.501 | -0.292 | -0.011 | 0.000 | 0.010 | 0.315 | 2.803 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -4.14 | 2.50 |
| PITCH | 1 | -10.886 | 3.00 |
| PITCH | 99 | 11.394 | 3.00 |
| TSCPOS | 99 | 195.0 | 2.50 |

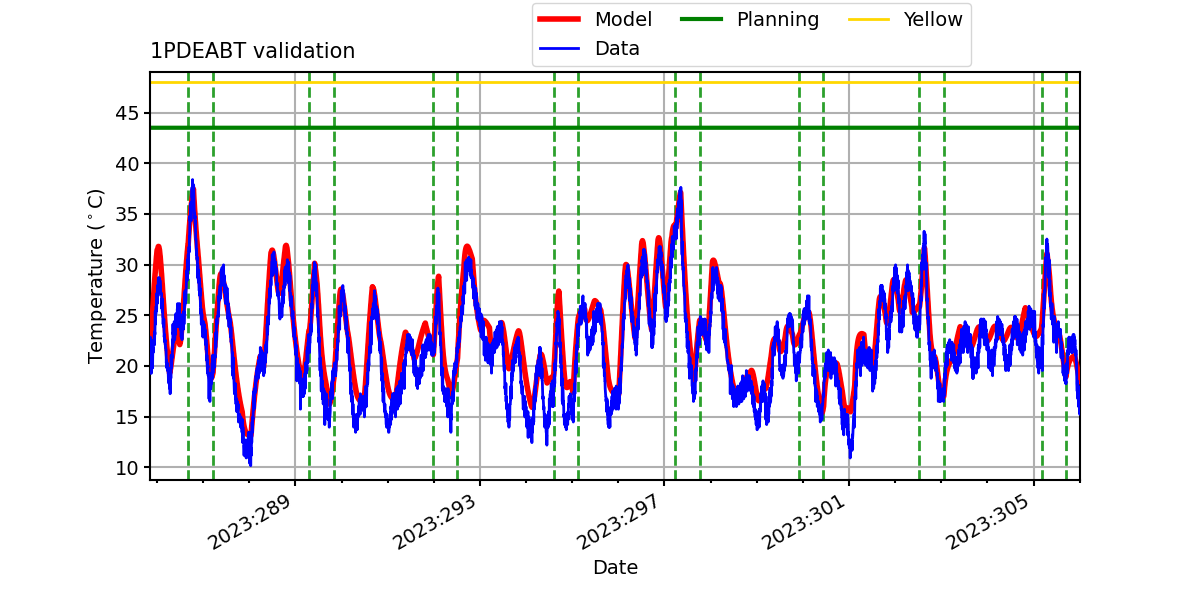

1PDEABT

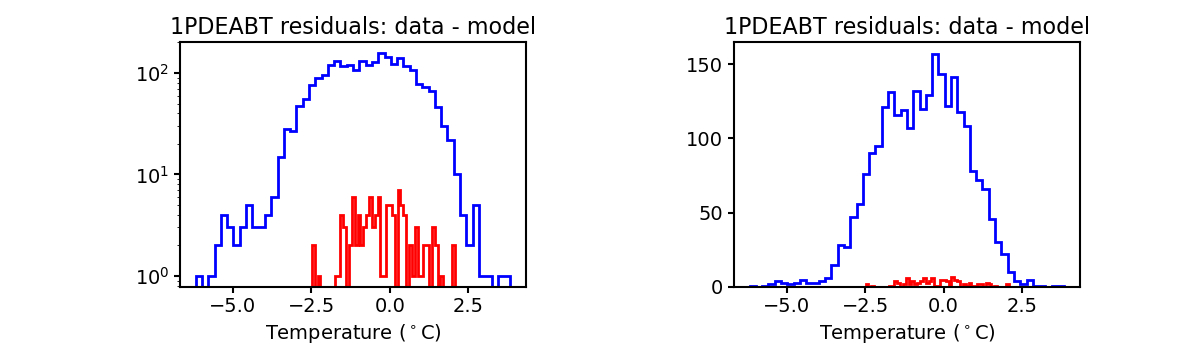

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

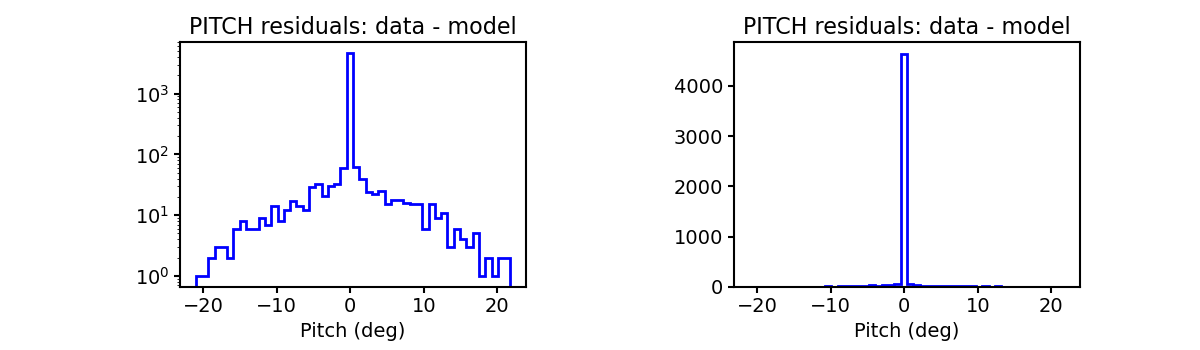

PITCH

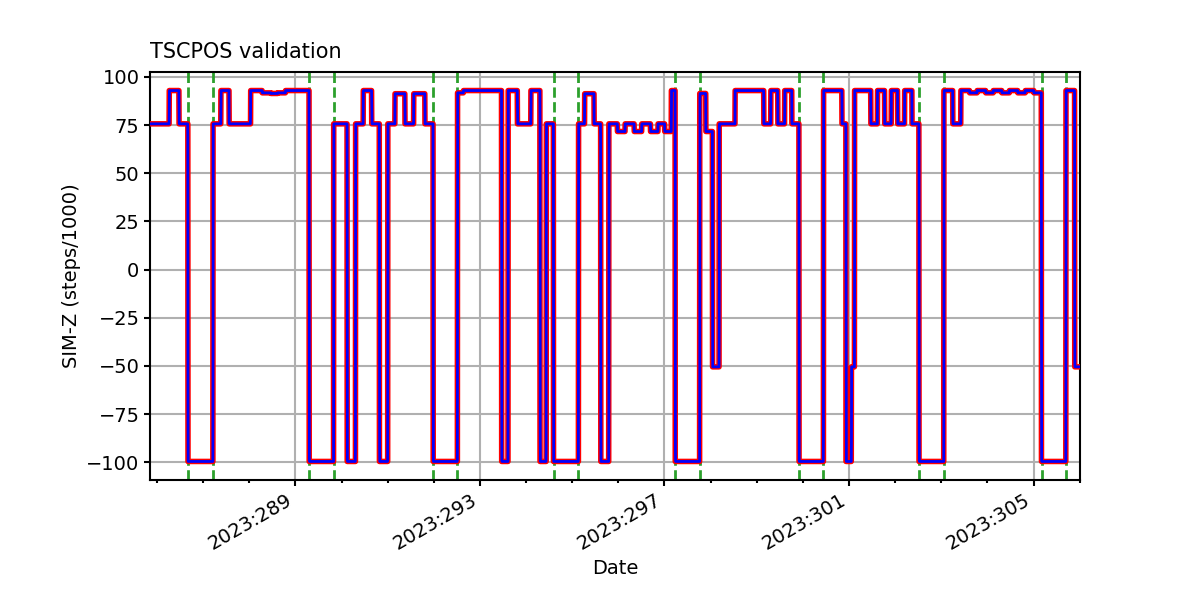

TSCPOS

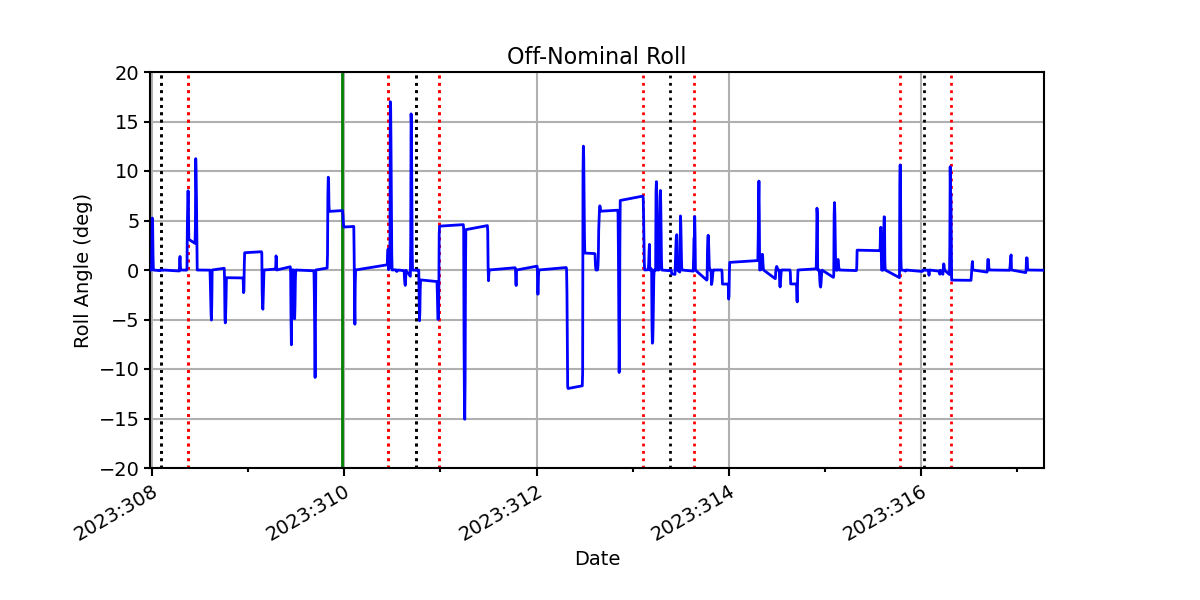

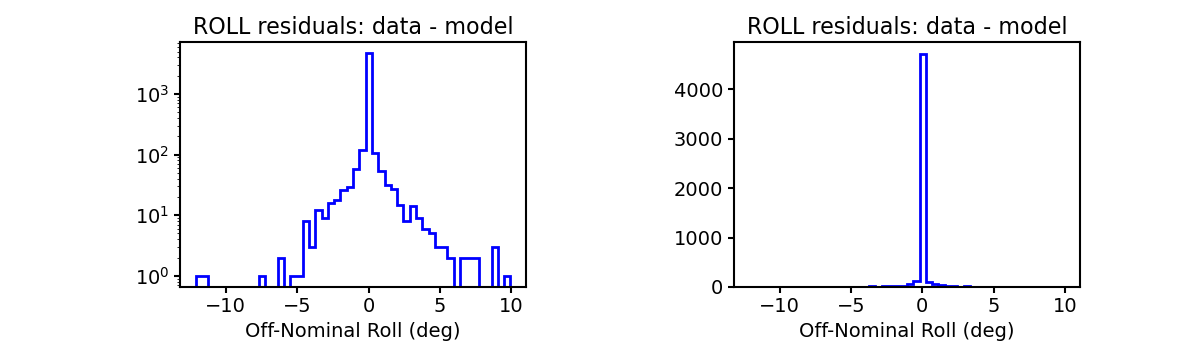

ROLL

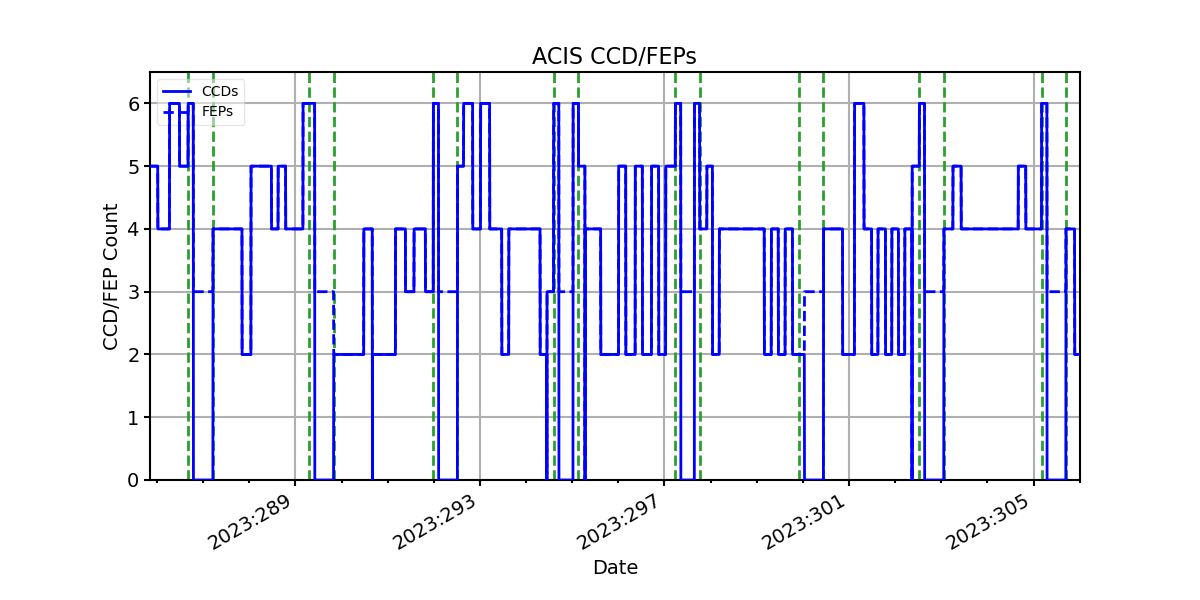

ACIS CCD/FEP Count
