PSMCBT Temperatures Check
Summary
| Date start | 2023:311:04:12:00.016 |
| Date stop | 2023:317:06:47:41.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/NOV0723/oflsa |
| Run time | Thu Oct 8 16:12:29 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.22 | -2.59 | -1.92 | -0.40 | 0.82 | 1.42 | 1.91 |
| pitch | -10.244 | -1.490 | -0.004 | -0.000 | 0.004 | 1.498 | 11.432 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 430 |
| roll | -2.501 | -0.336 | -0.011 | 0.000 | 0.010 | 0.353 | 2.449 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.22 | 2.50 |
| PITCH | 1 | -10.244 | 3.00 |
| PITCH | 99 | 11.432 | 3.00 |
| TSCPOS | 99 | 430.0 | 2.50 |

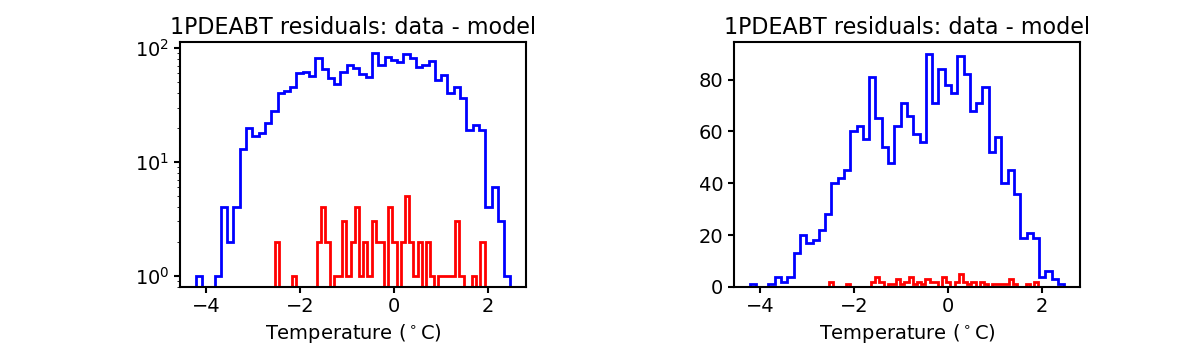

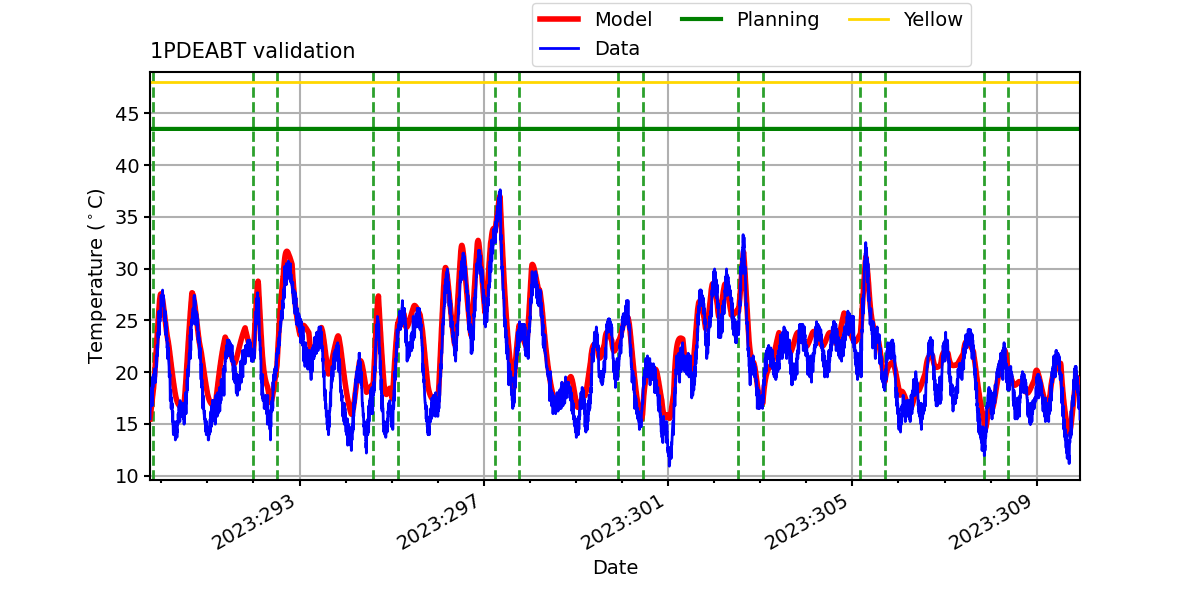

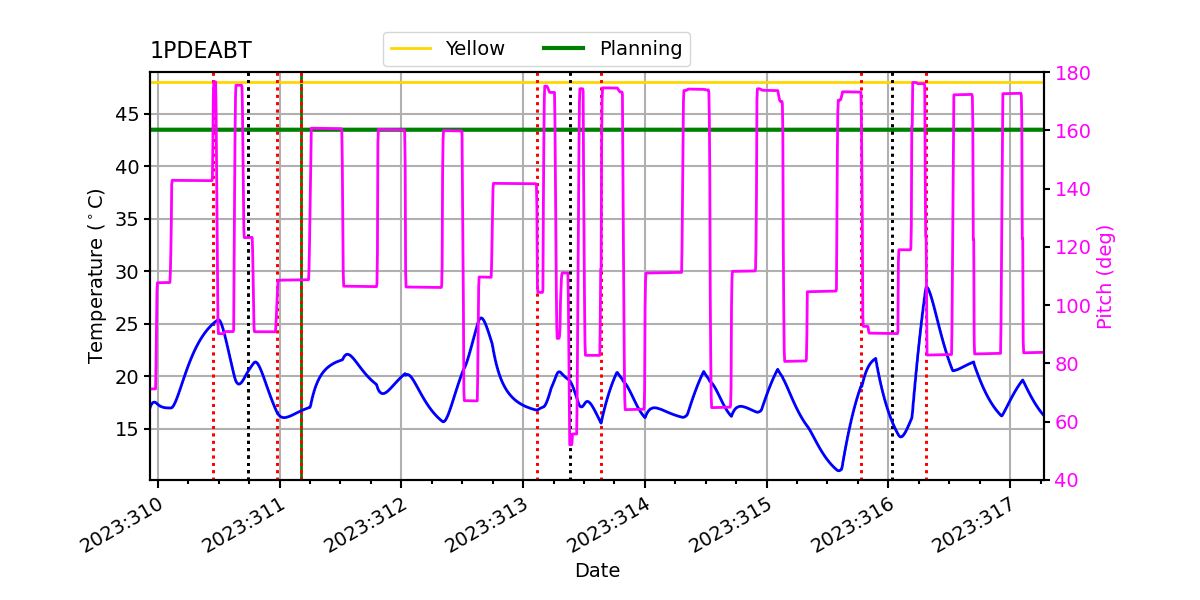

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

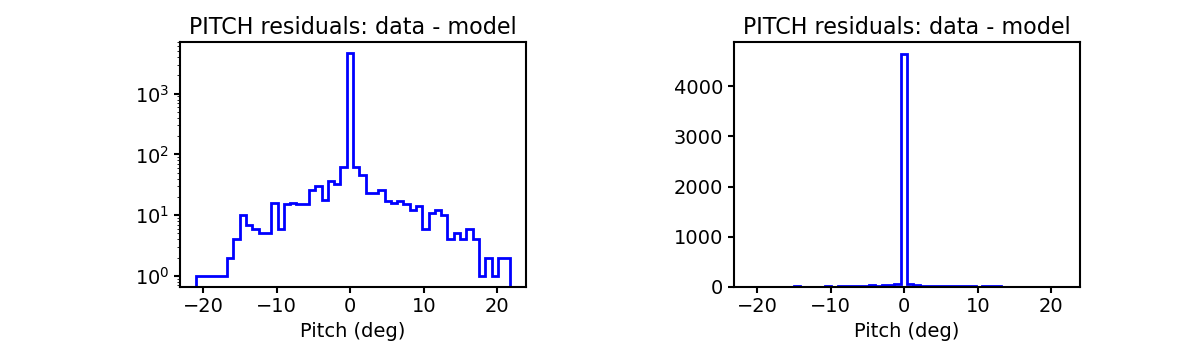

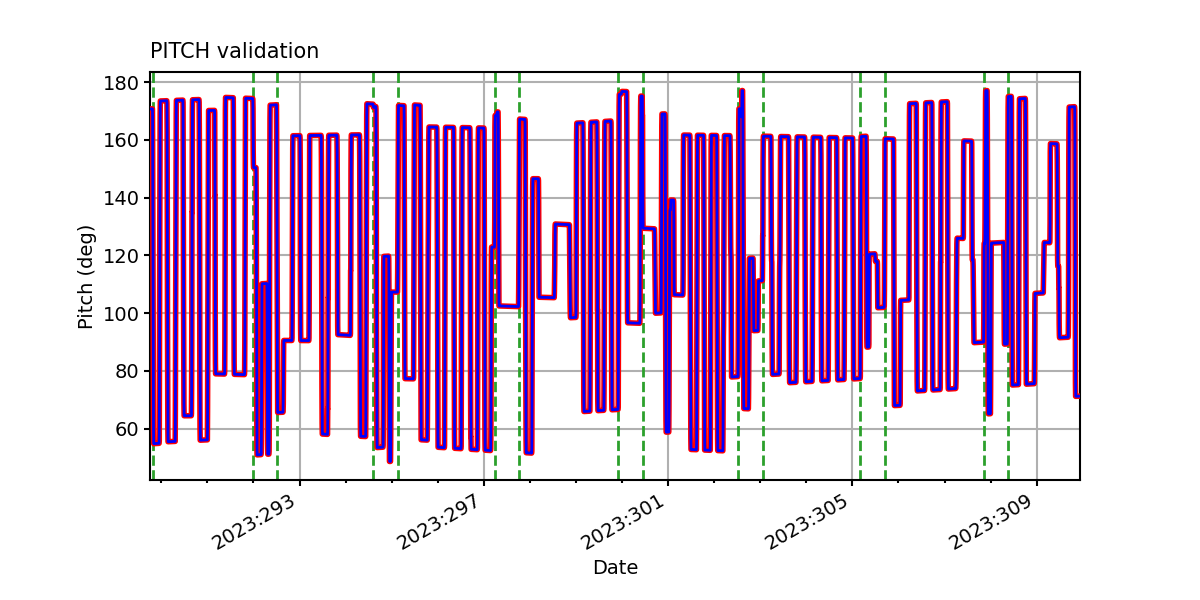

PITCH

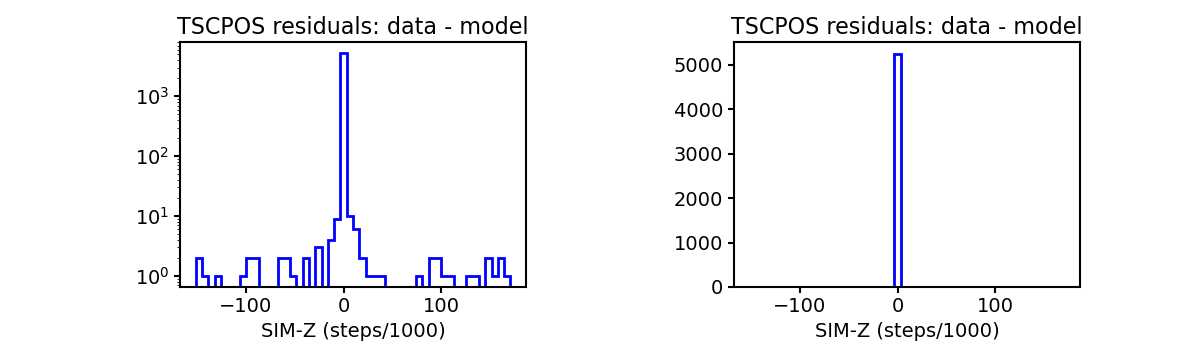

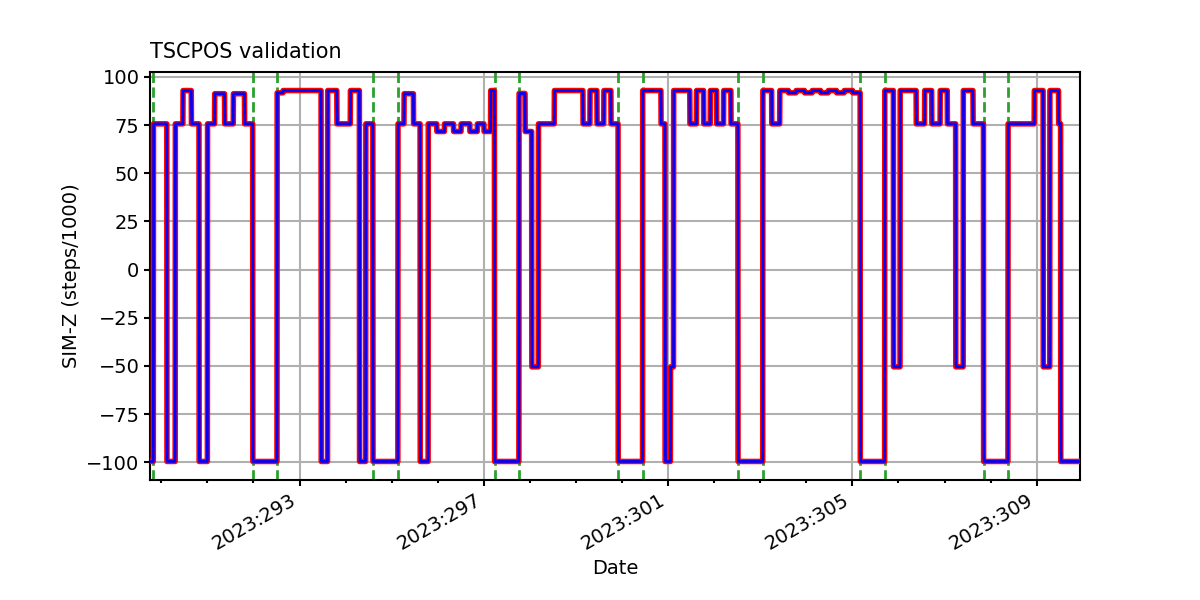

TSCPOS

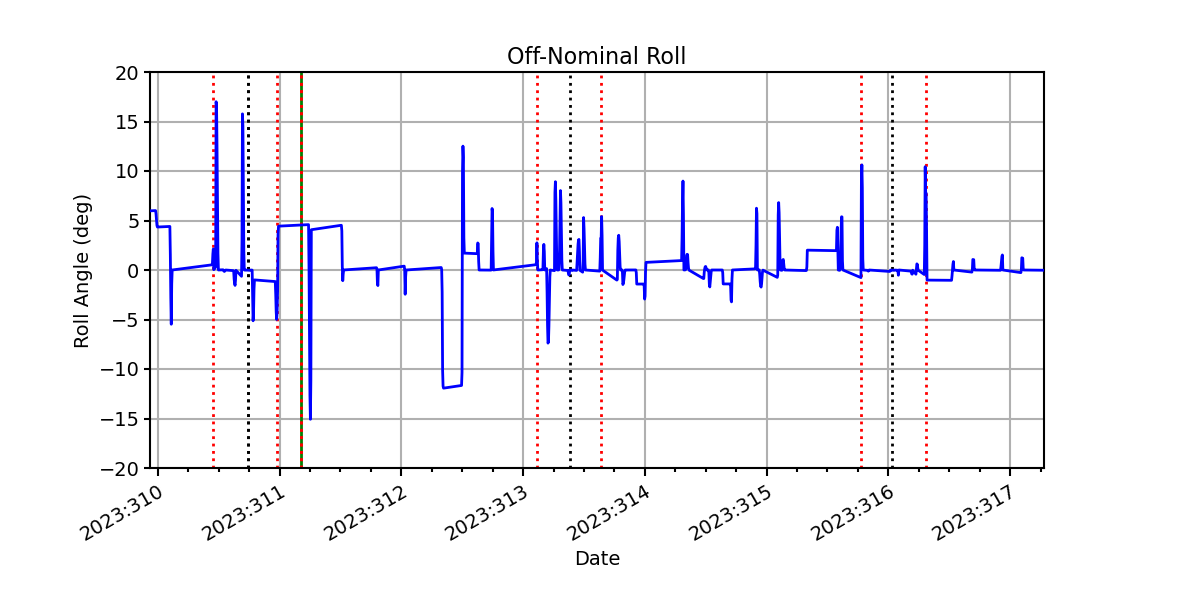

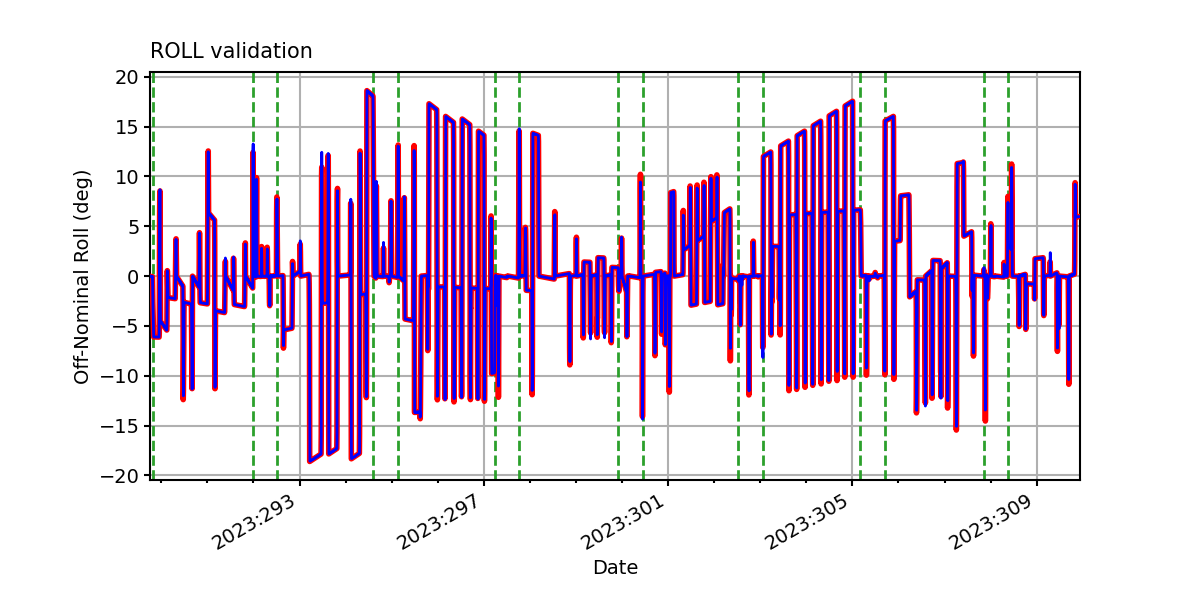

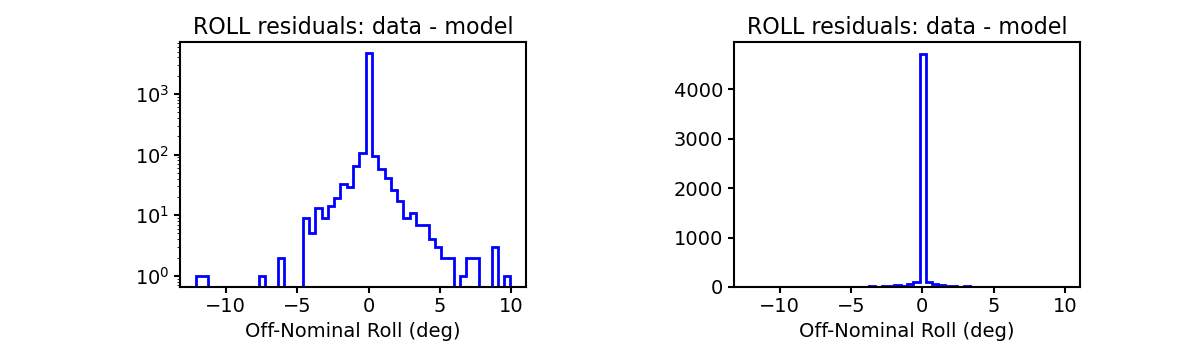

ROLL

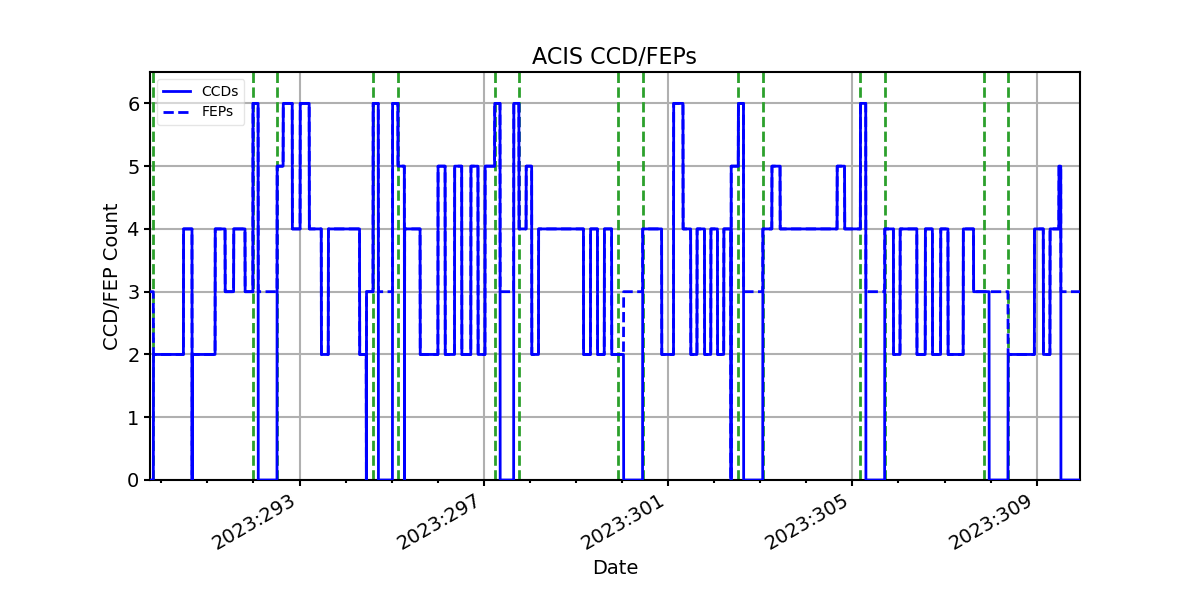

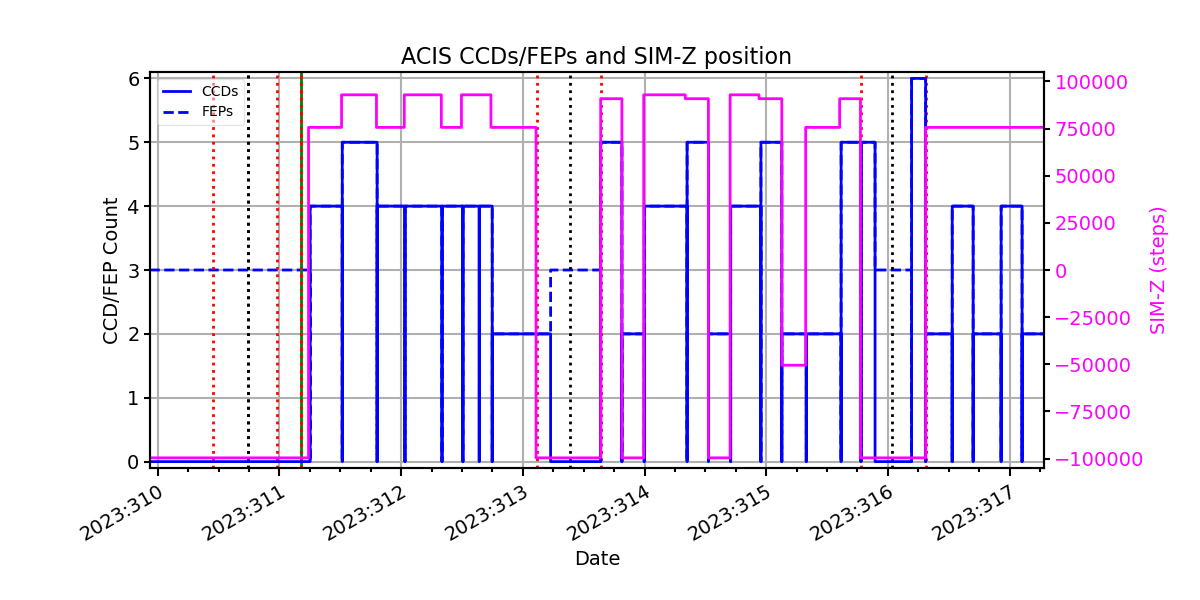

ACIS CCD/FEP Count
