PSMCBT Temperatures Check
Summary
| Date start | 2023:317:06:44:41.816 |
| Date stop | 2023:323:19:41:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/NOV1323/oflsa |
| Run time | Thu Oct 8 16:12:29 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

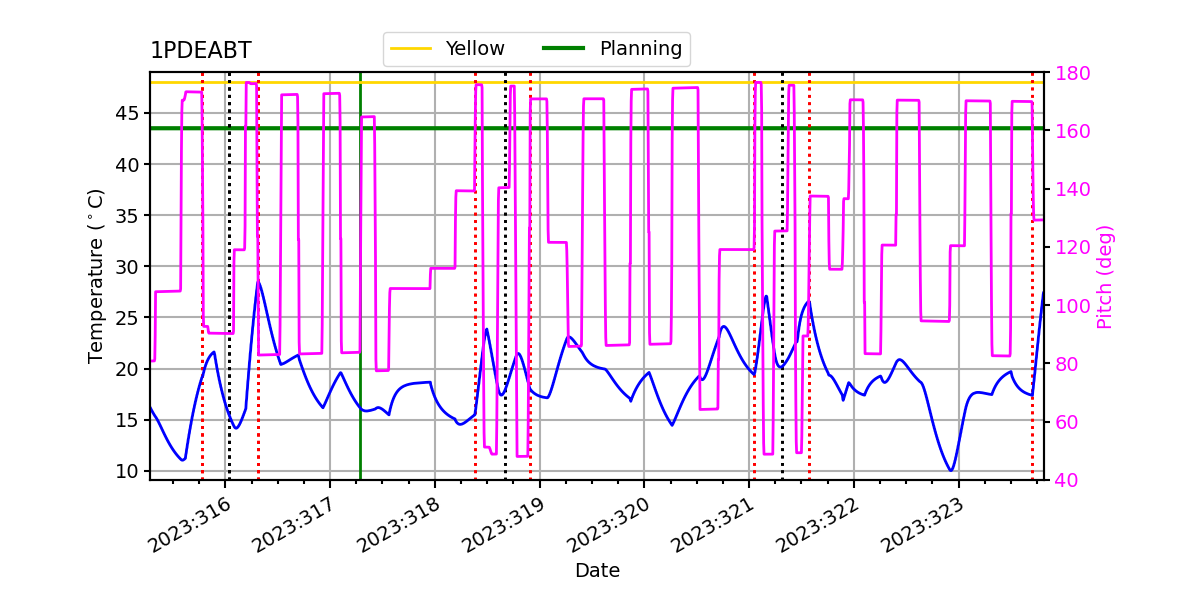

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.21 | -2.59 | -1.87 | -0.34 | 0.93 | 1.50 | 1.93 |
| pitch | -9.986 | -1.273 | -0.004 | -0.000 | 0.004 | 1.176 | 10.849 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 93 |
| roll | -2.501 | -0.309 | -0.009 | 0.000 | 0.009 | 0.335 | 2.449 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.21 | 2.50 |
| PITCH | 1 | -9.986 | 3.00 |
| PITCH | 99 | 10.849 | 3.00 |
| TSCPOS | 99 | 93.0 | 2.50 |

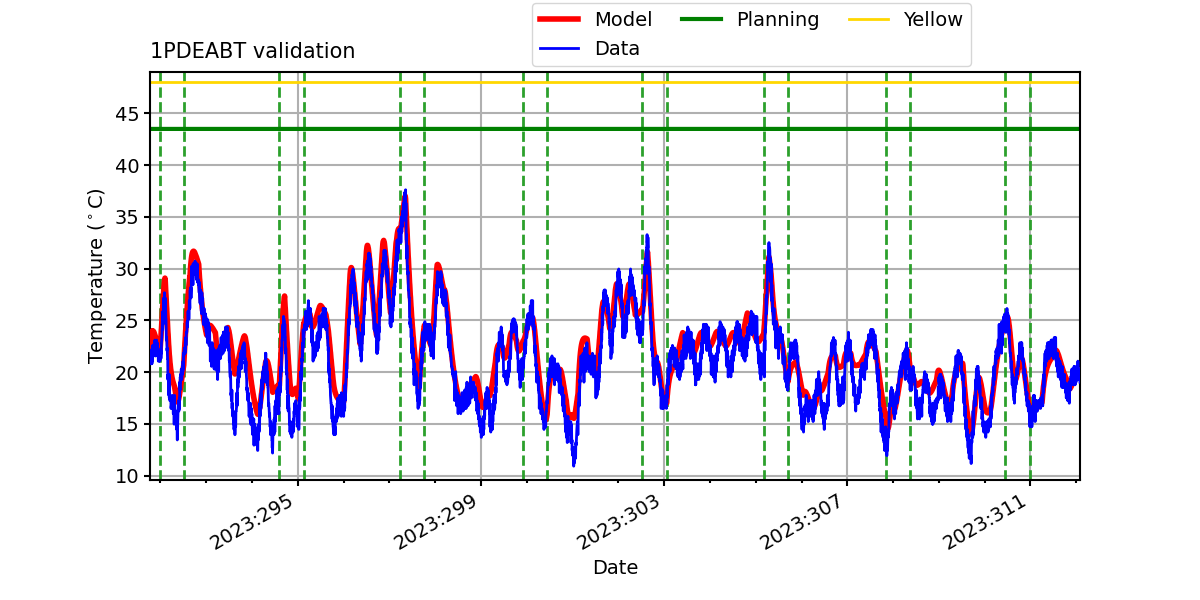

1PDEABT

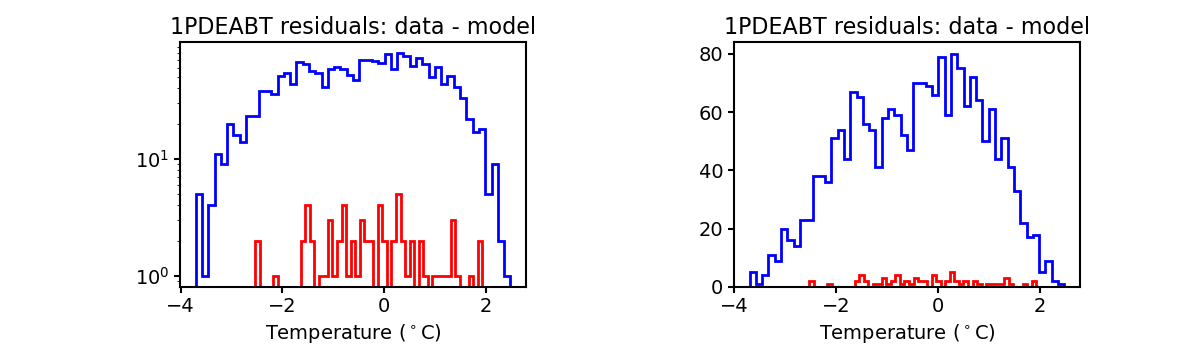

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

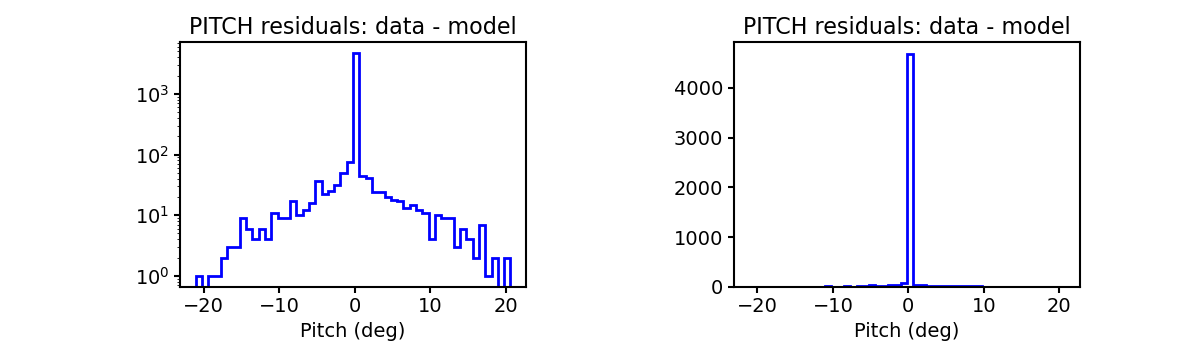

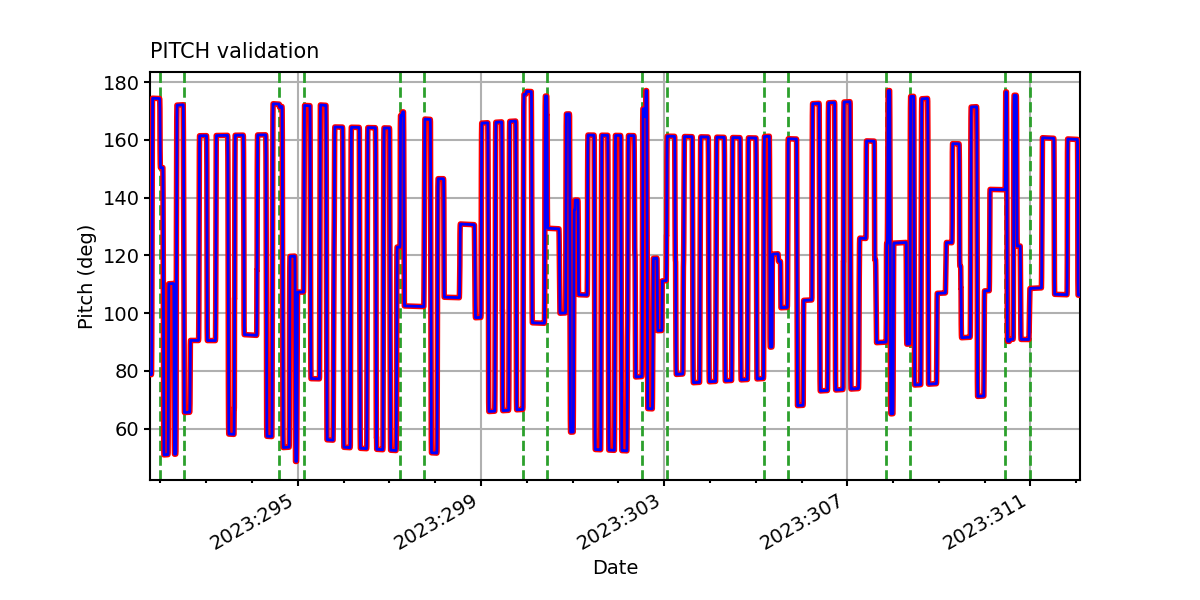

PITCH

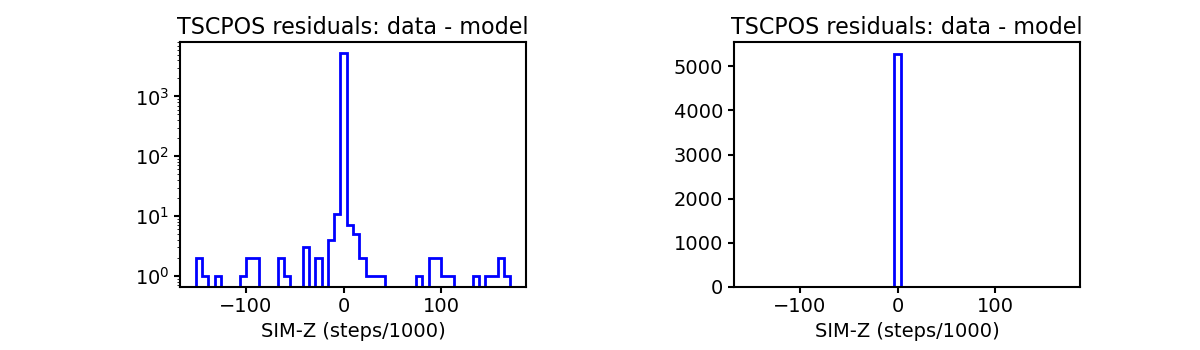

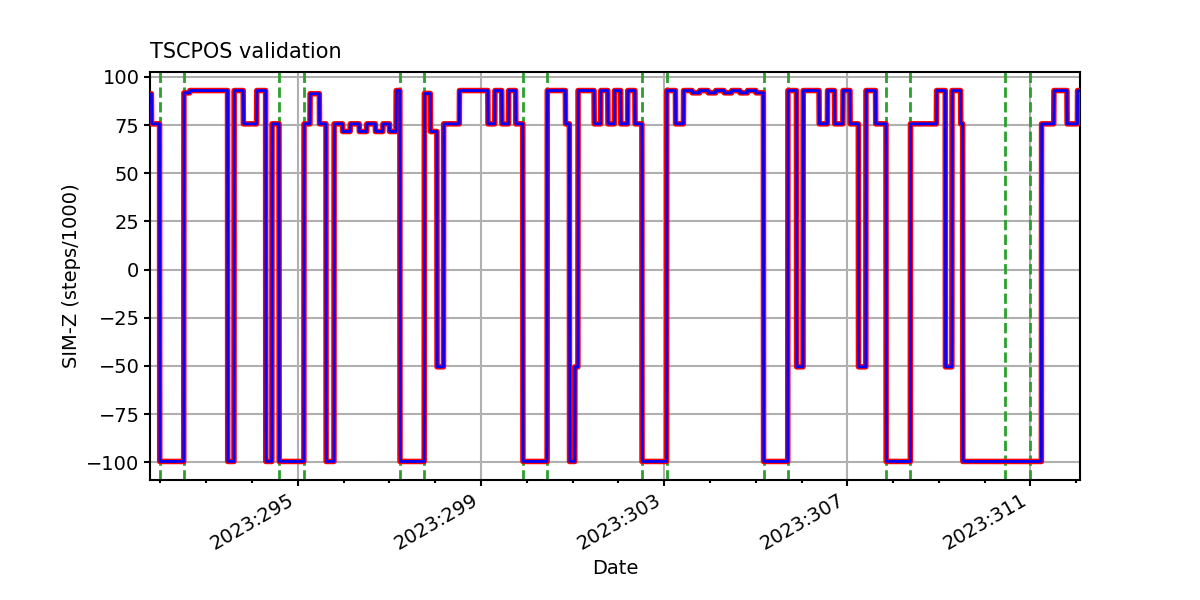

TSCPOS

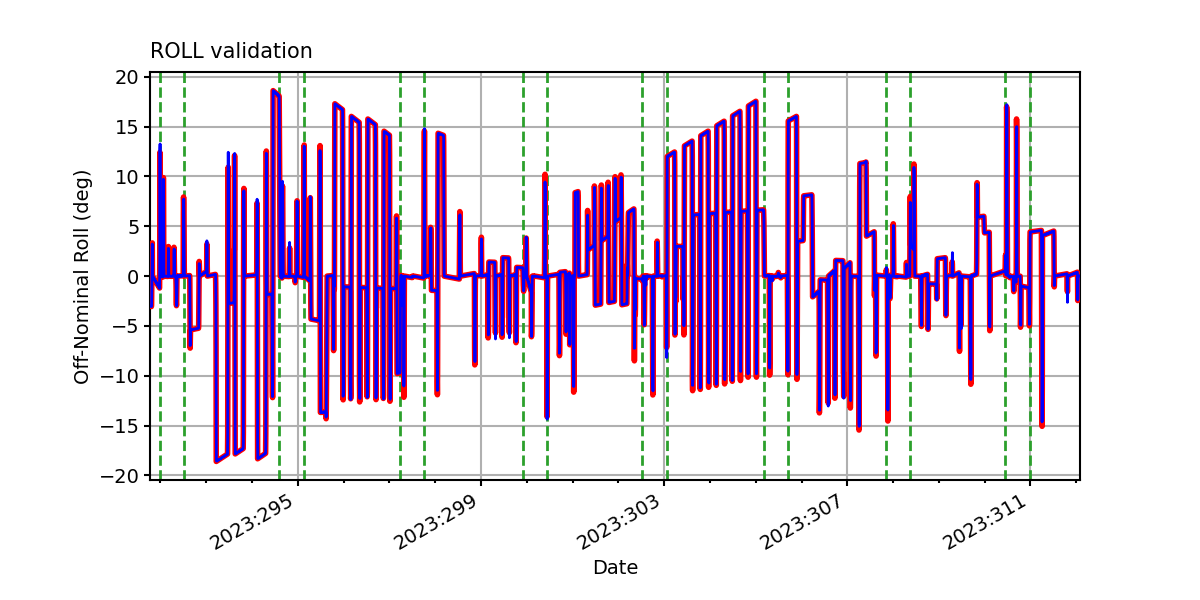

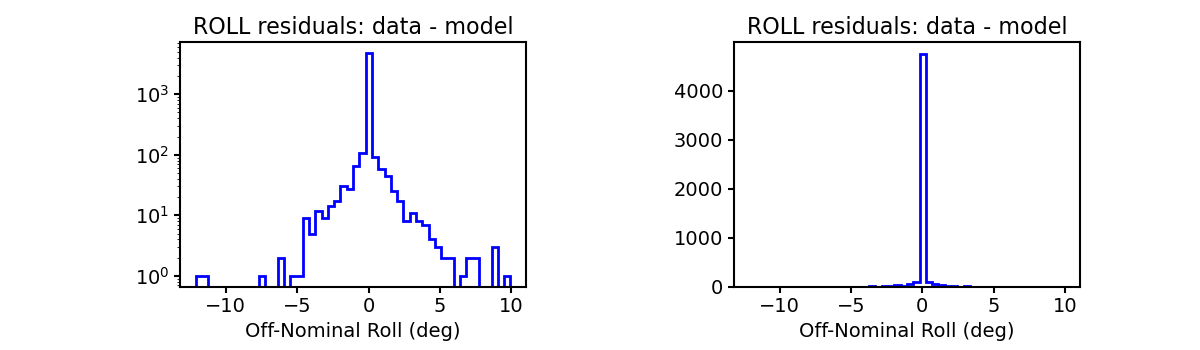

ROLL

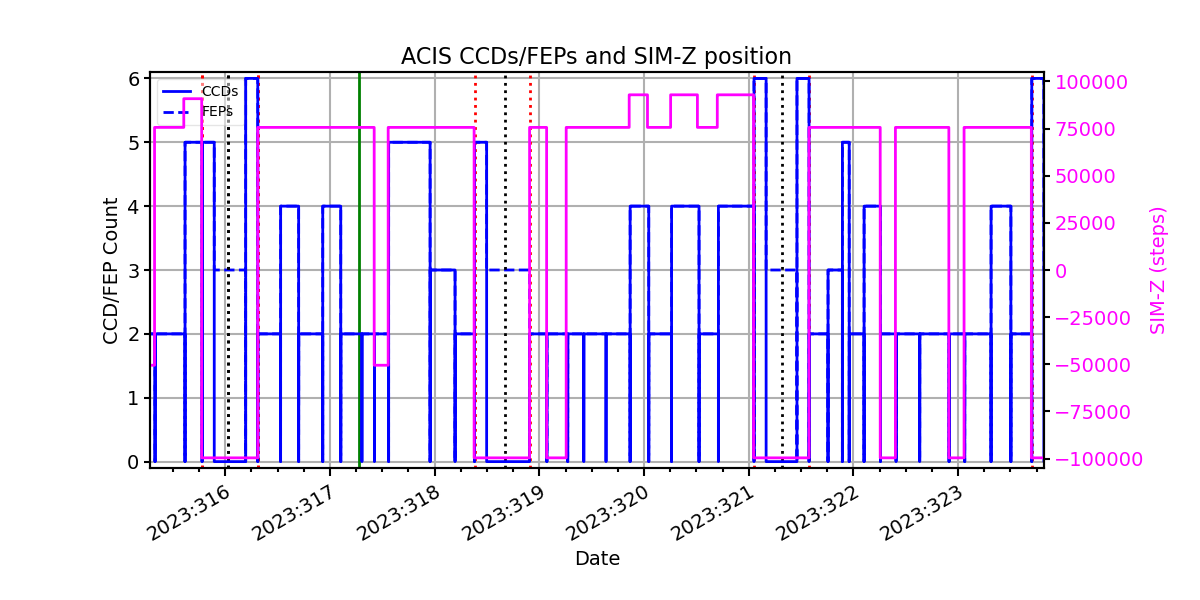

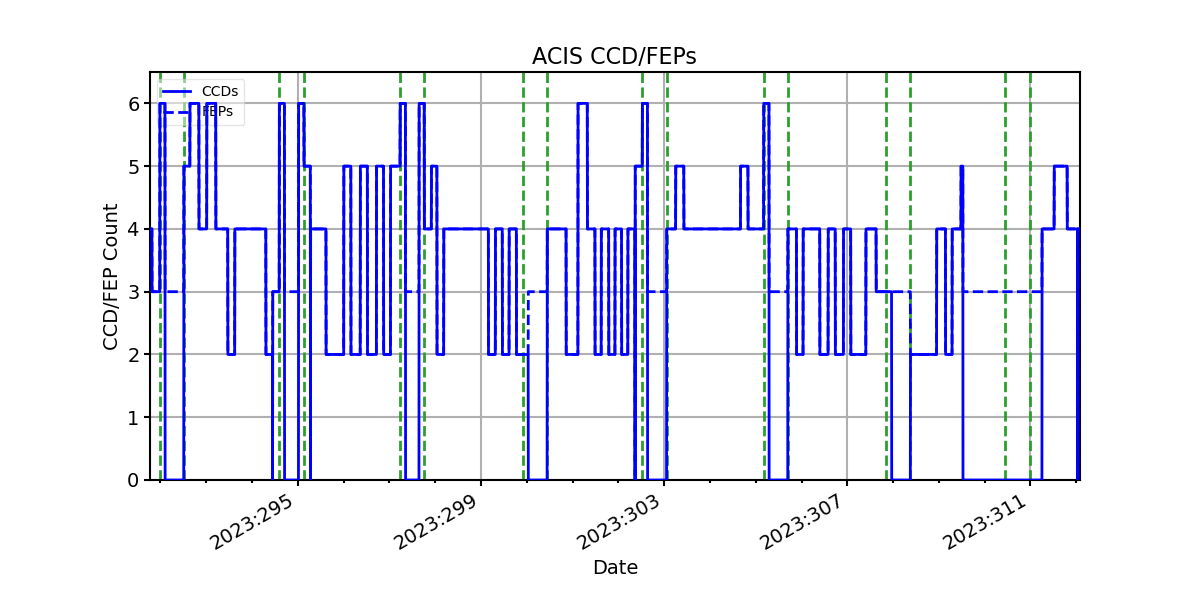

ACIS CCD/FEP Count
