PSMCBT Temperatures Check
Summary
| Date start | 2025:318:21:50:00.016 |
| Date stop | 2025:327:21:06:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/NOV1425/oflsa |
| Run time | Thu Oct 8 16:12:29 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

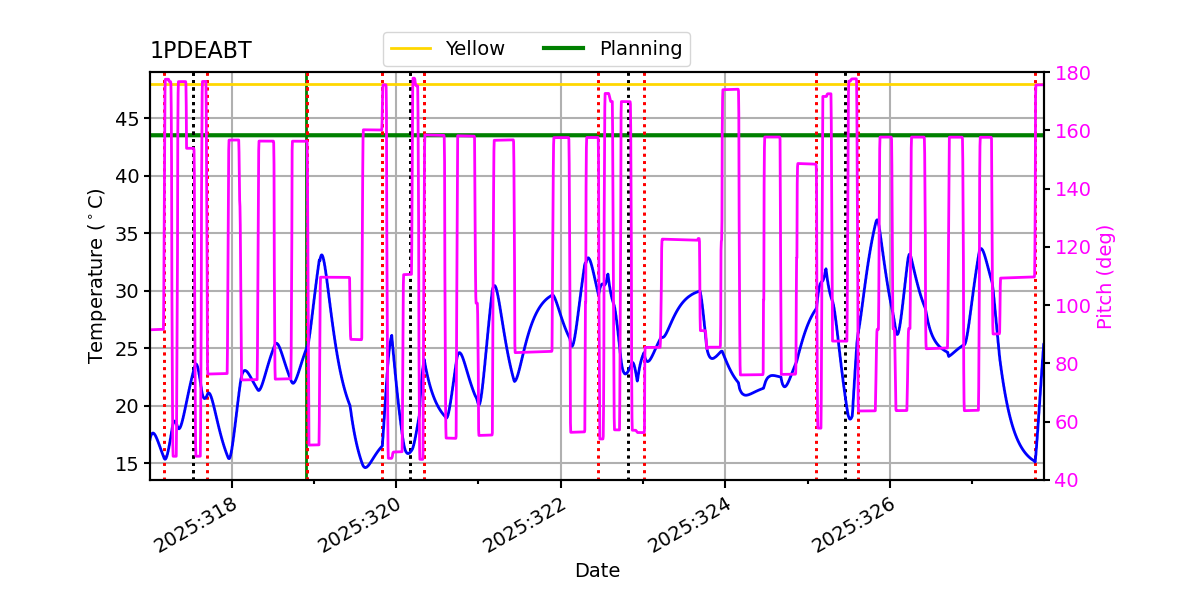

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.11 | -2.13 | -1.33 | 0.23 | 1.87 | 2.65 | 3.28 |
| pitch | -12.858 | -1.629 | -0.004 | -0.000 | 0.004 | 1.061 | 12.290 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.247 | -0.221 | -0.007 | -0.000 | 0.007 | 0.229 | 2.500 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.11 | 2.50 |
| PITCH | 1 | -12.858 | 3.00 |
| PITCH | 99 | 12.29 | 3.00 |

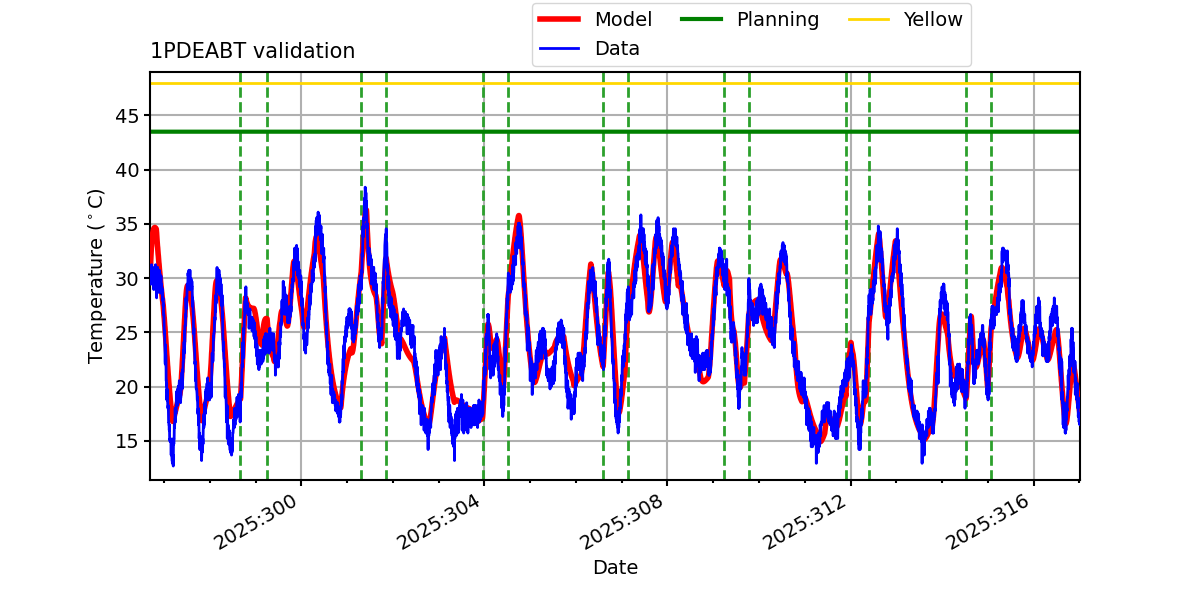

1PDEABT

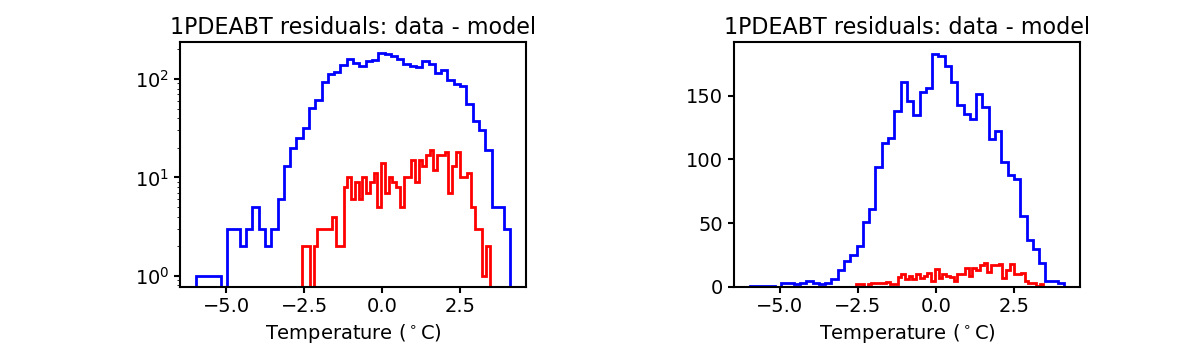

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

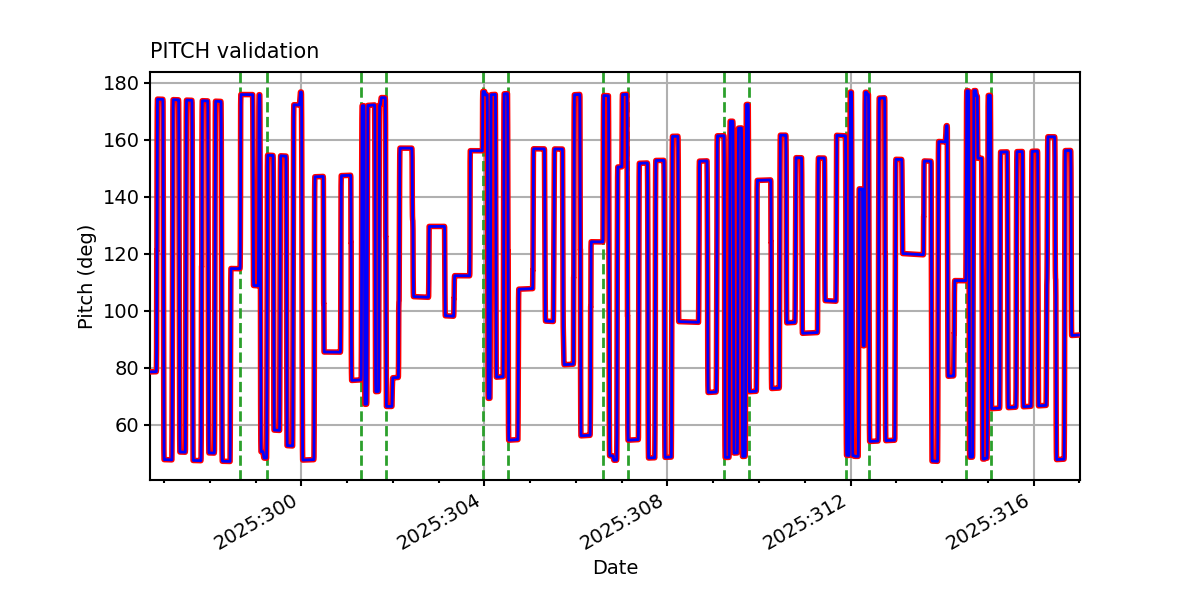

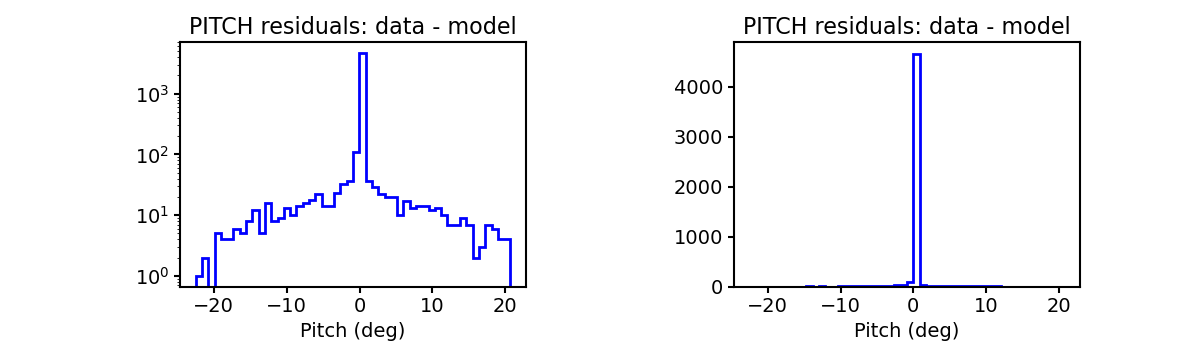

PITCH

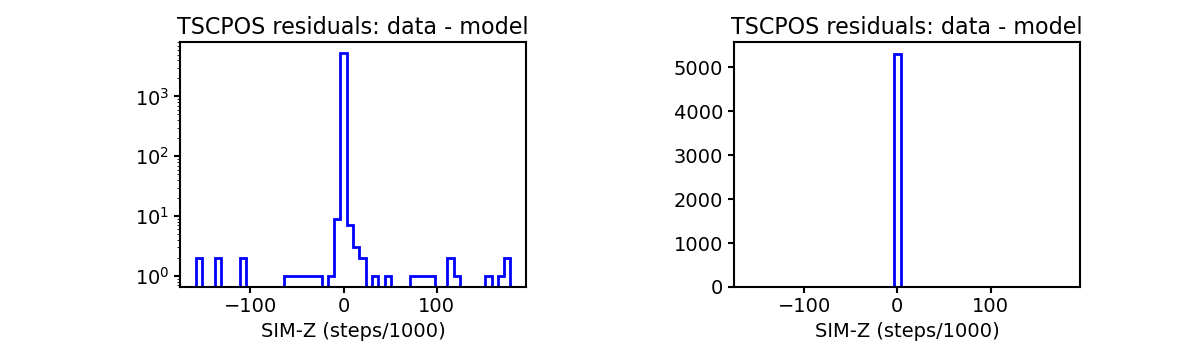

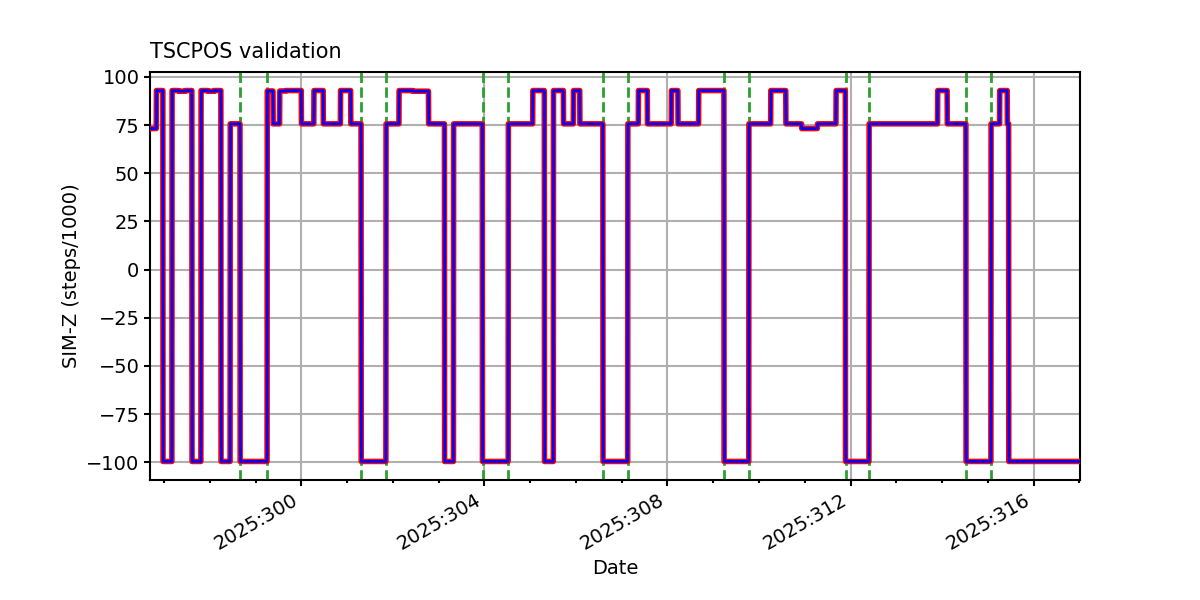

TSCPOS

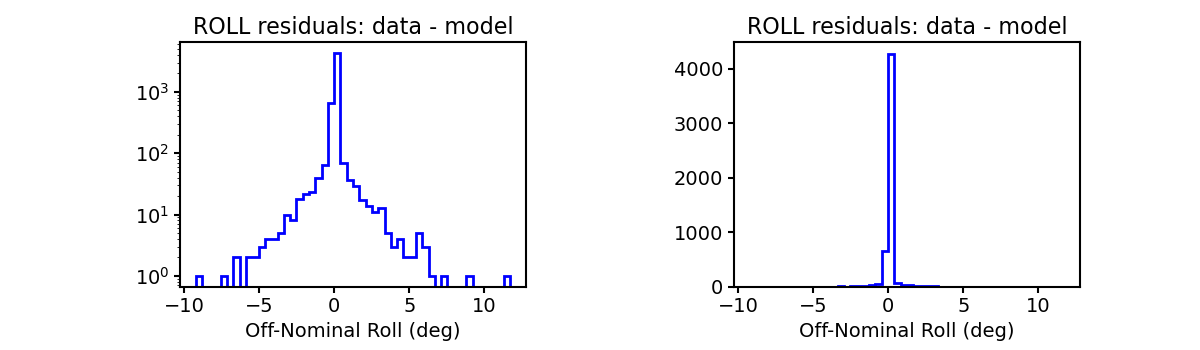

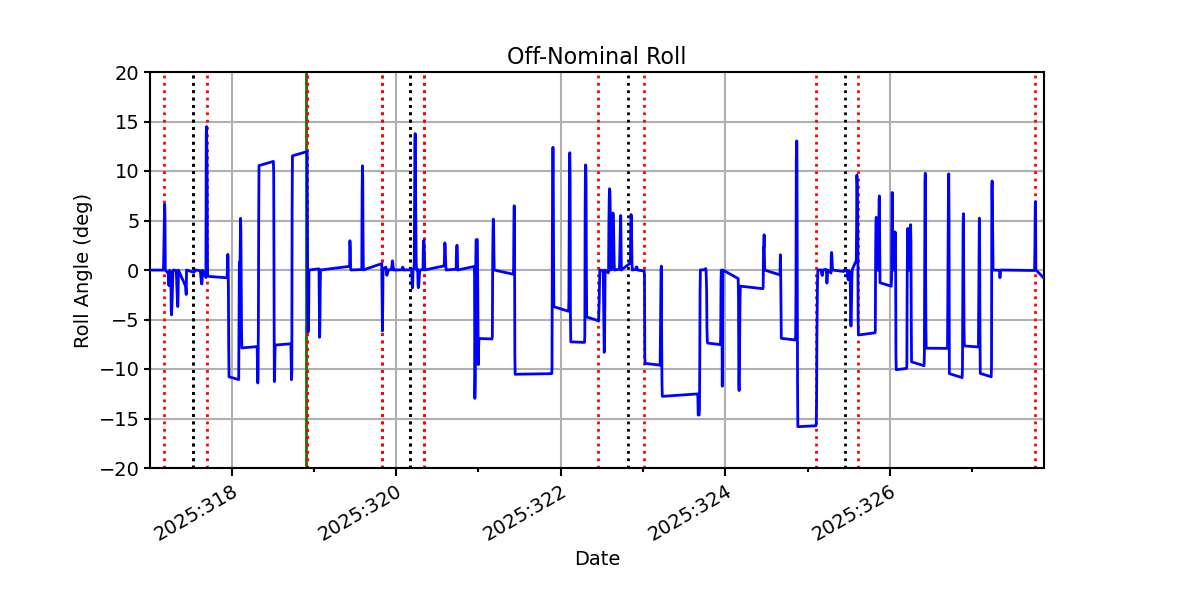

ROLL

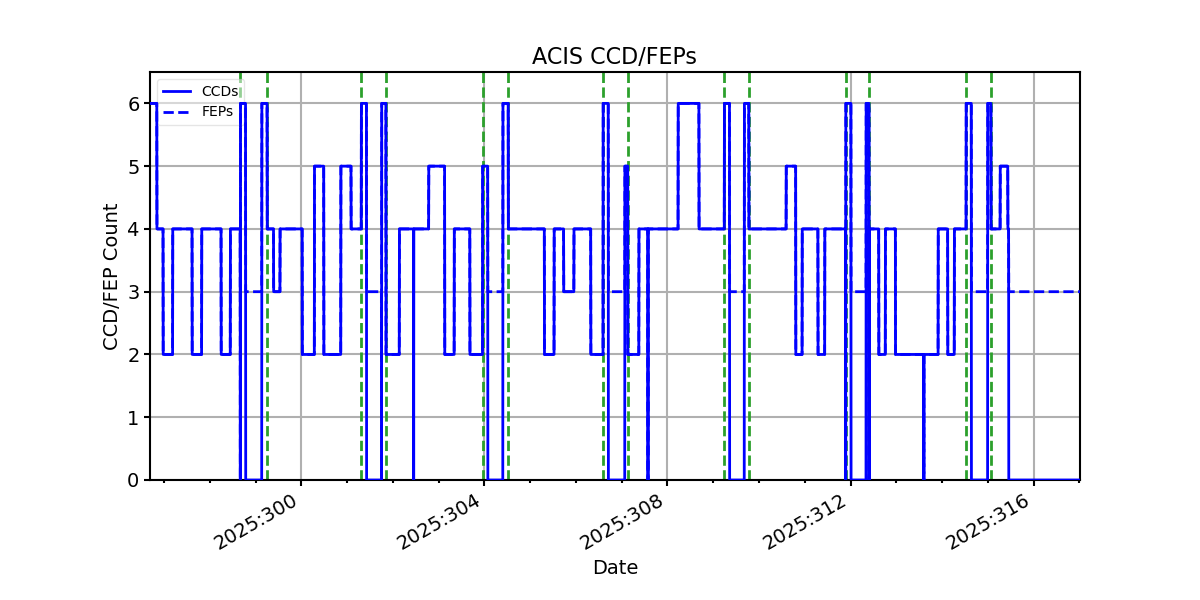

ACIS CCD/FEP Count
