PSMCBT Temperatures Check
Summary
| Date start | 2024:323:02:16:57.816 |
| Date stop | 2024:329:23:37:09.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/NOV1824/oflsa |
| Run time | Thu Oct 8 16:12:58 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

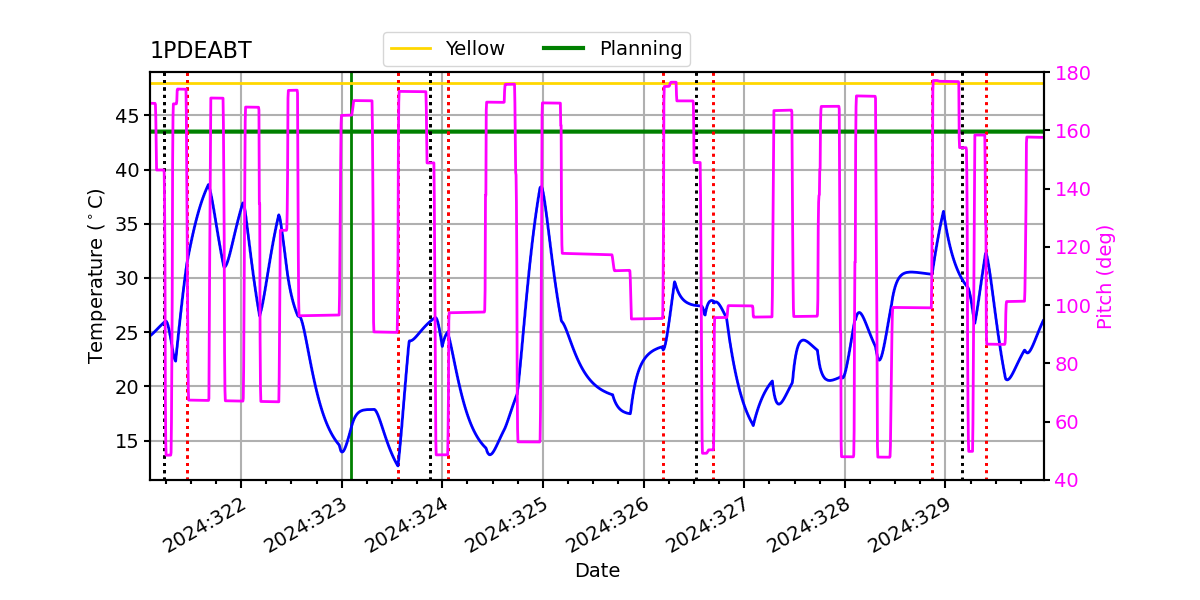

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.72 | -2.00 | -1.32 | 0.32 | 1.85 | 2.69 | 3.29 |
| pitch | -8.802 | -0.740 | -0.004 | -0.000 | 0.004 | 0.661 | 9.709 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -2.051 | -0.257 | -0.008 | -0.000 | 0.008 | 0.121 | 1.861 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.72 | 2.50 |
| PITCH | 1 | -8.802 | 3.00 |
| PITCH | 99 | 9.709 | 3.00 |

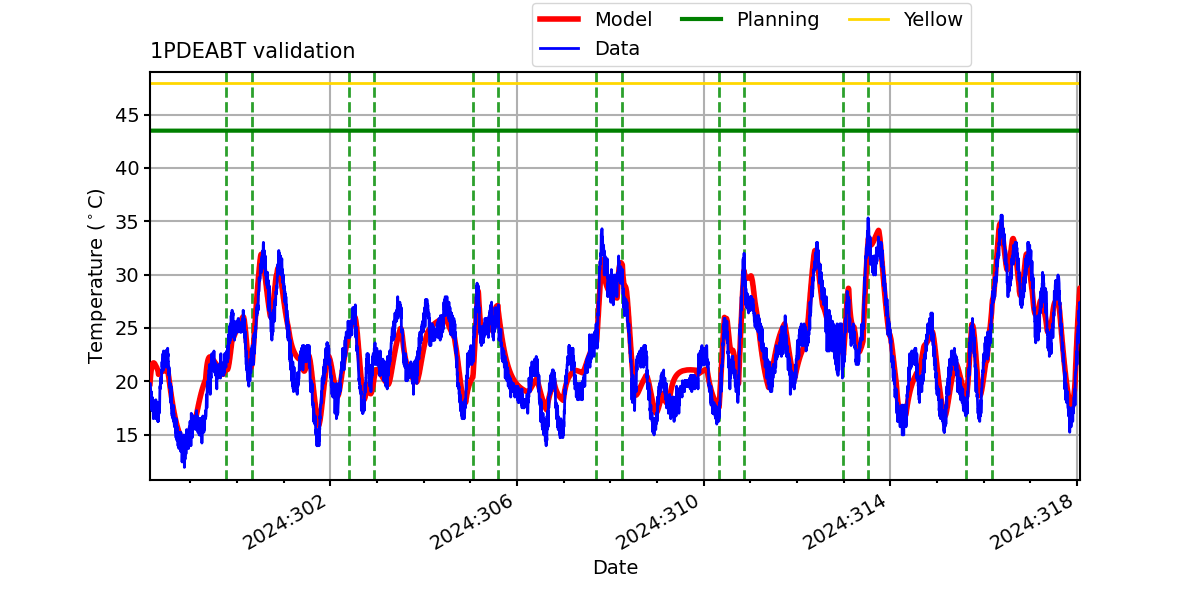

1PDEABT

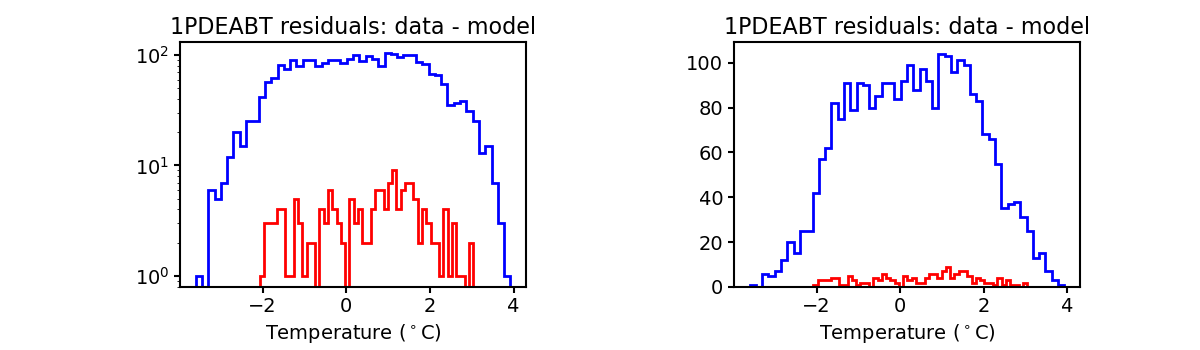

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

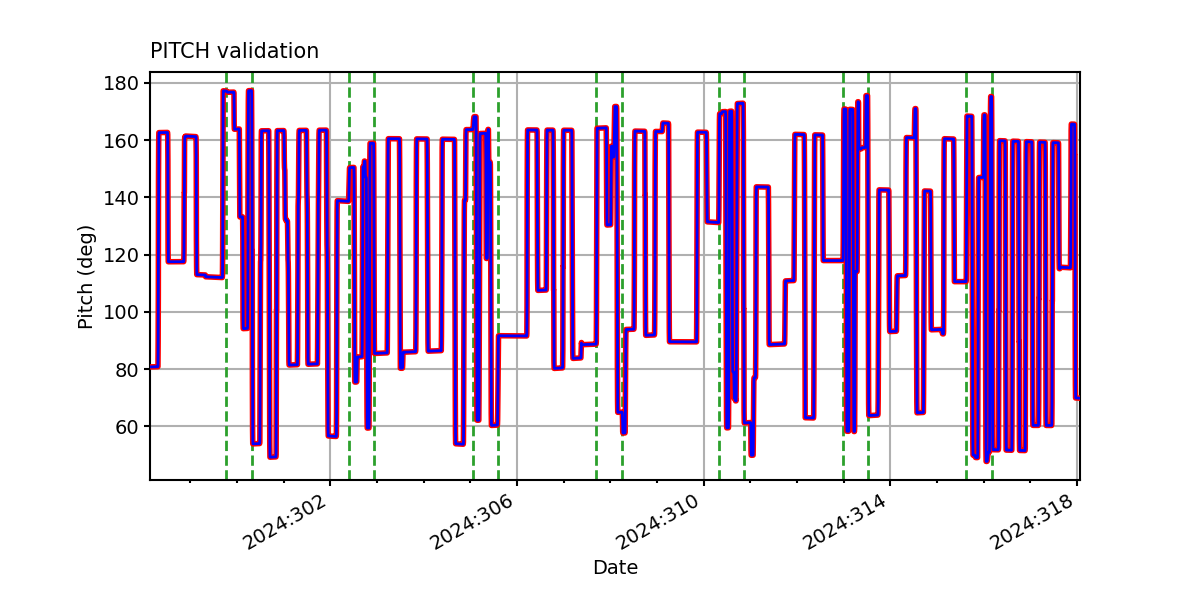

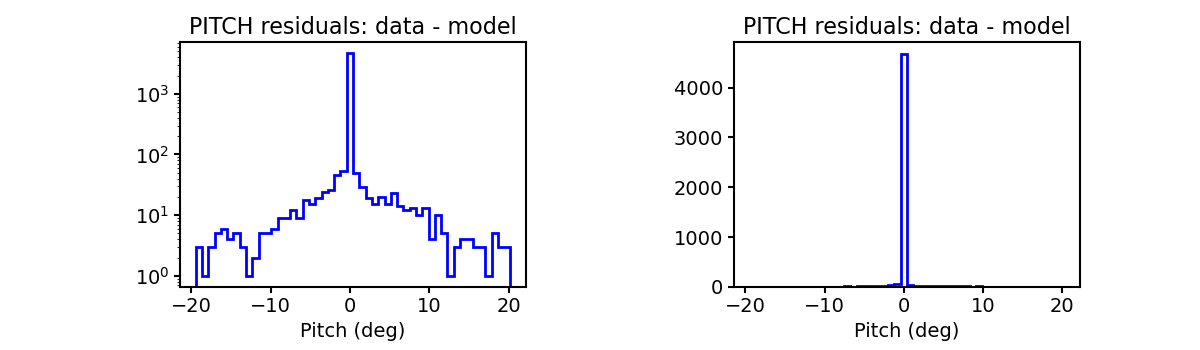

PITCH

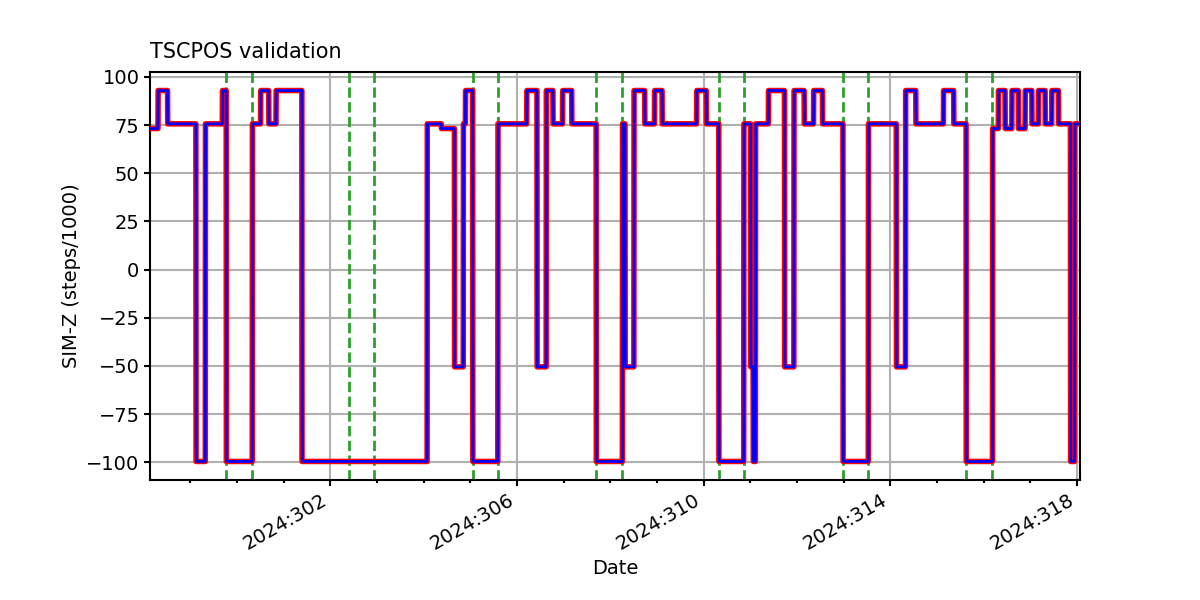

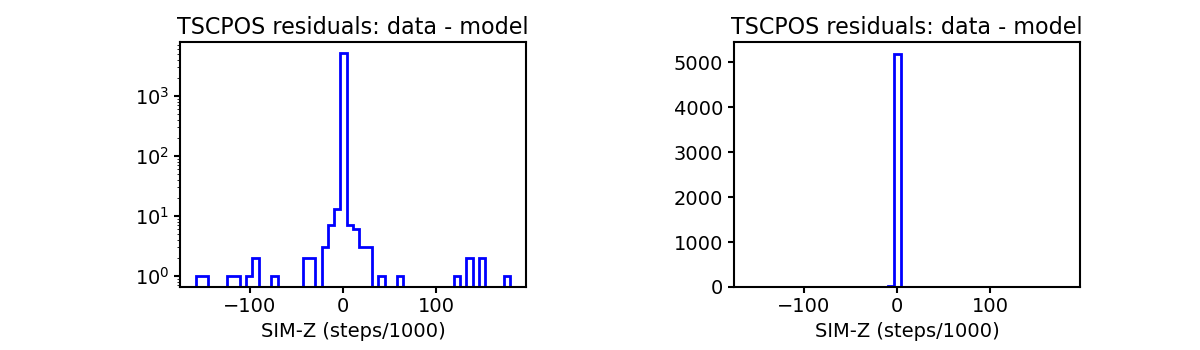

TSCPOS

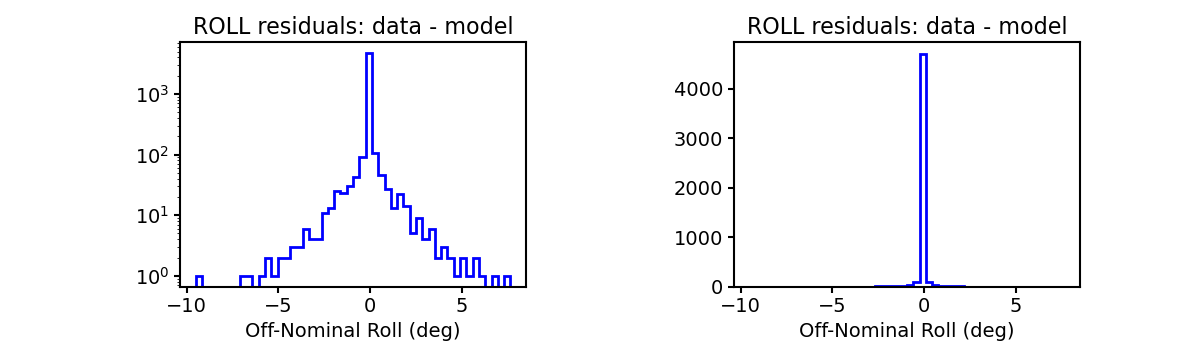

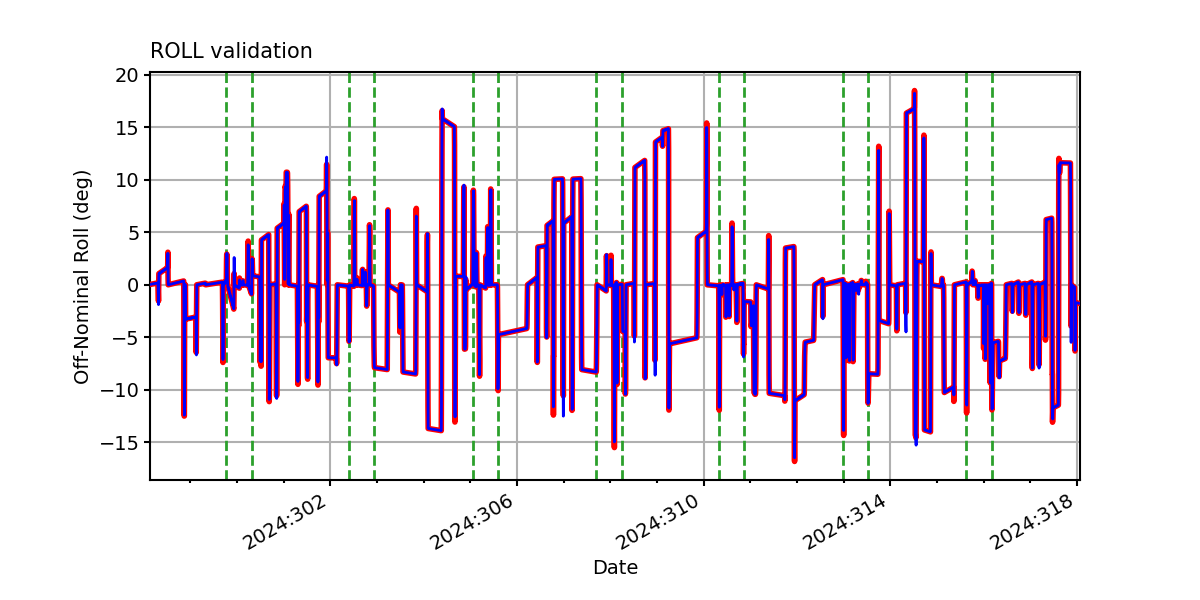

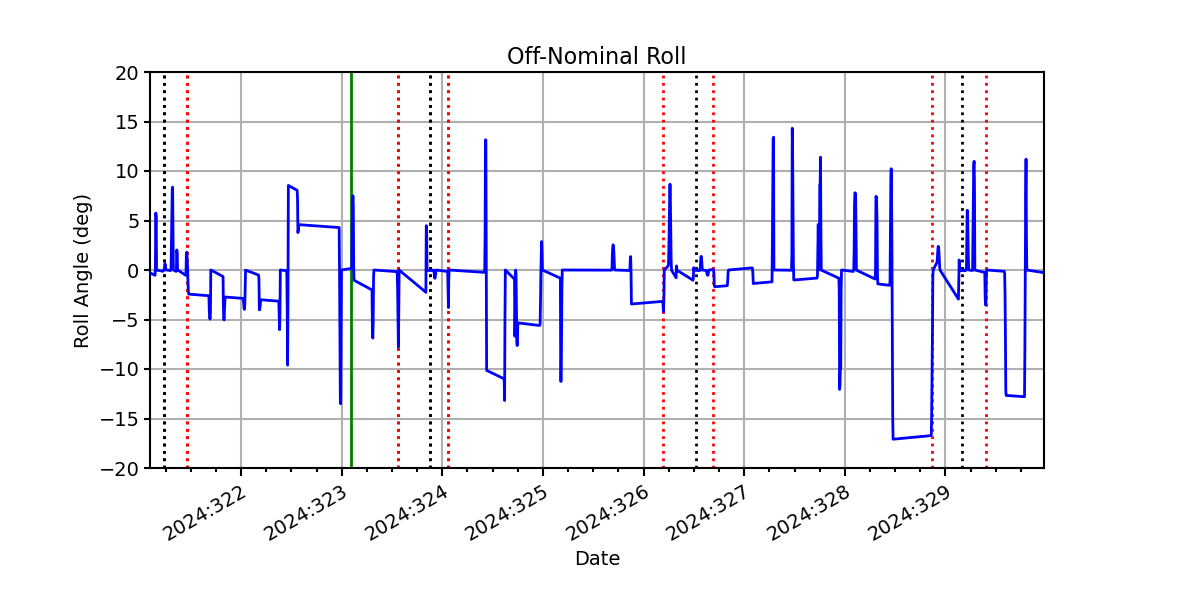

ROLL

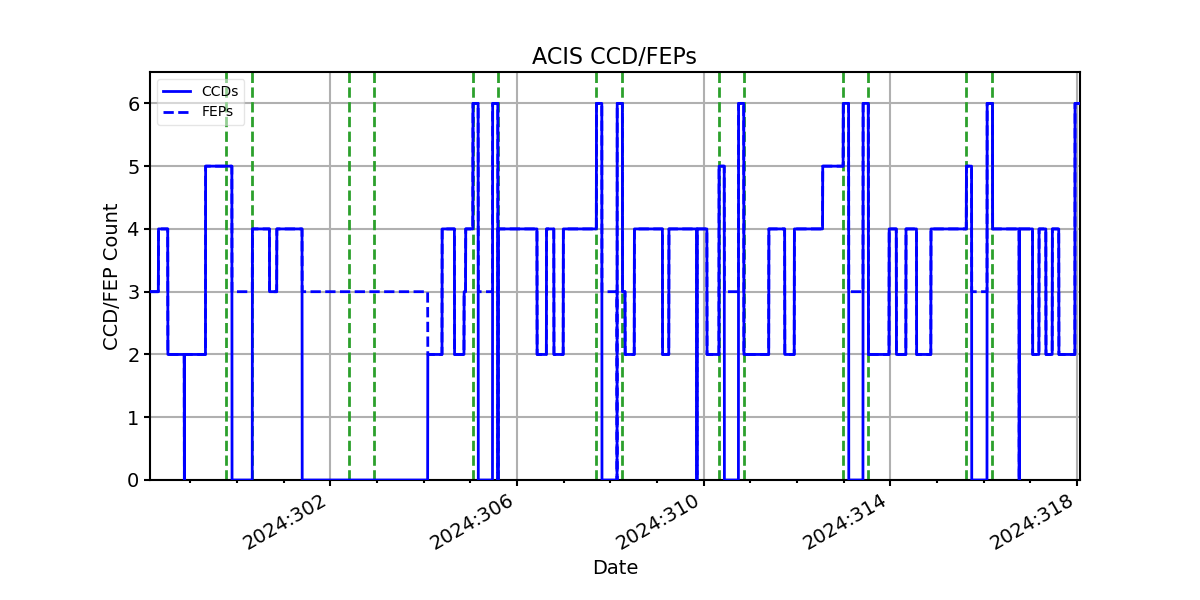

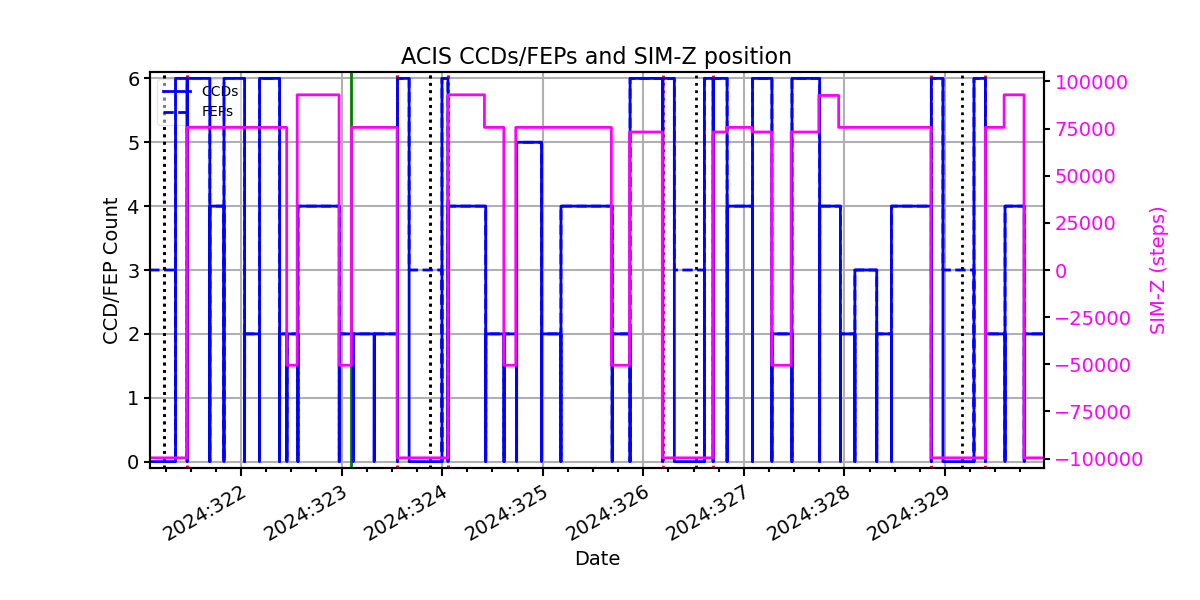

ACIS CCD/FEP Count
