PSMCBT Temperatures Check
Summary
| Date start | 2023:323:19:38:00.016 |
| Date stop | 2023:331:00:41:16.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/NOV2023/oflsb |
| Run time | Thu Oct 8 16:12:58 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

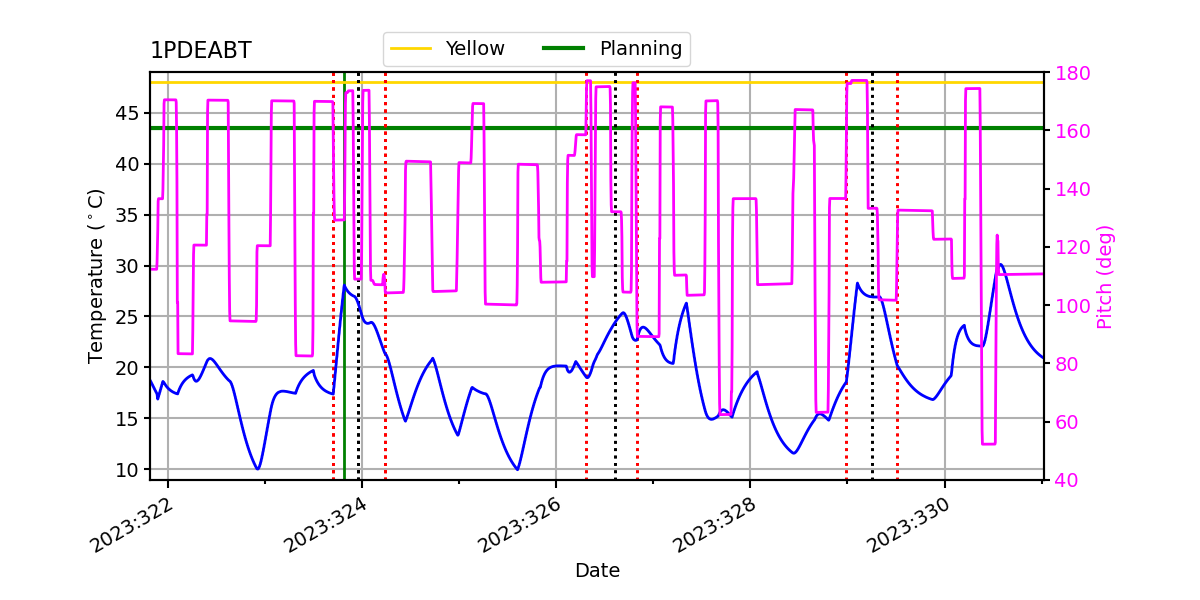

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.08 | -2.32 | -1.49 | 0.31 | 1.32 | 1.84 | 2.29 |
| pitch | -9.244 | -1.125 | -0.004 | 0.000 | 0.004 | 0.661 | 11.042 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.943 | -0.198 | -0.009 | -0.000 | 0.009 | 0.189 | 1.935 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.08 | 2.50 |
| PITCH | 1 | -9.244 | 3.00 |
| PITCH | 99 | 11.042 | 3.00 |

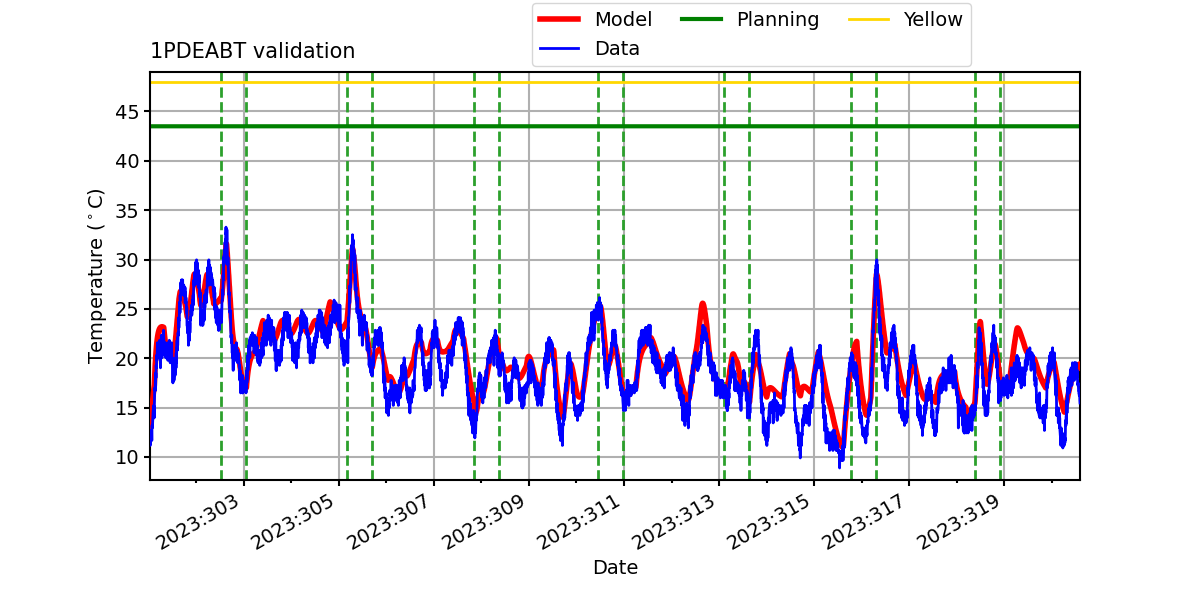

1PDEABT

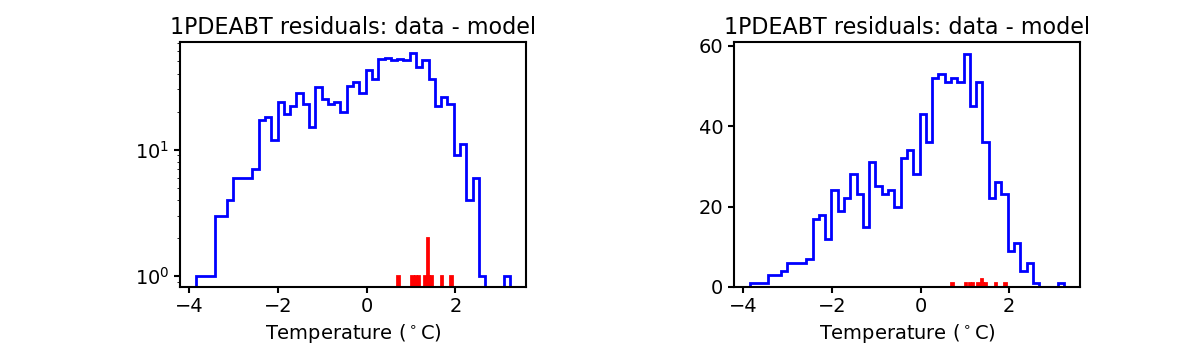

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

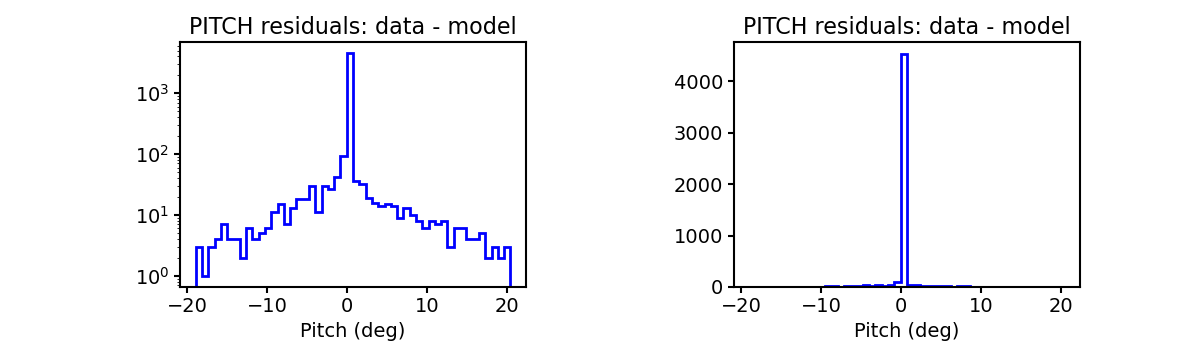

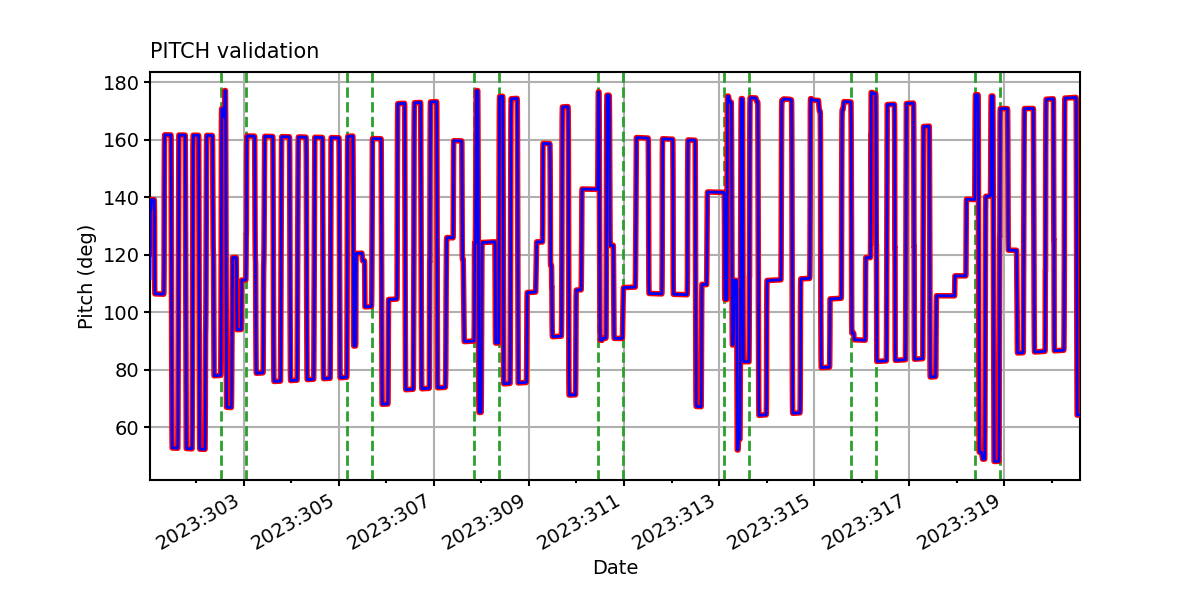

PITCH

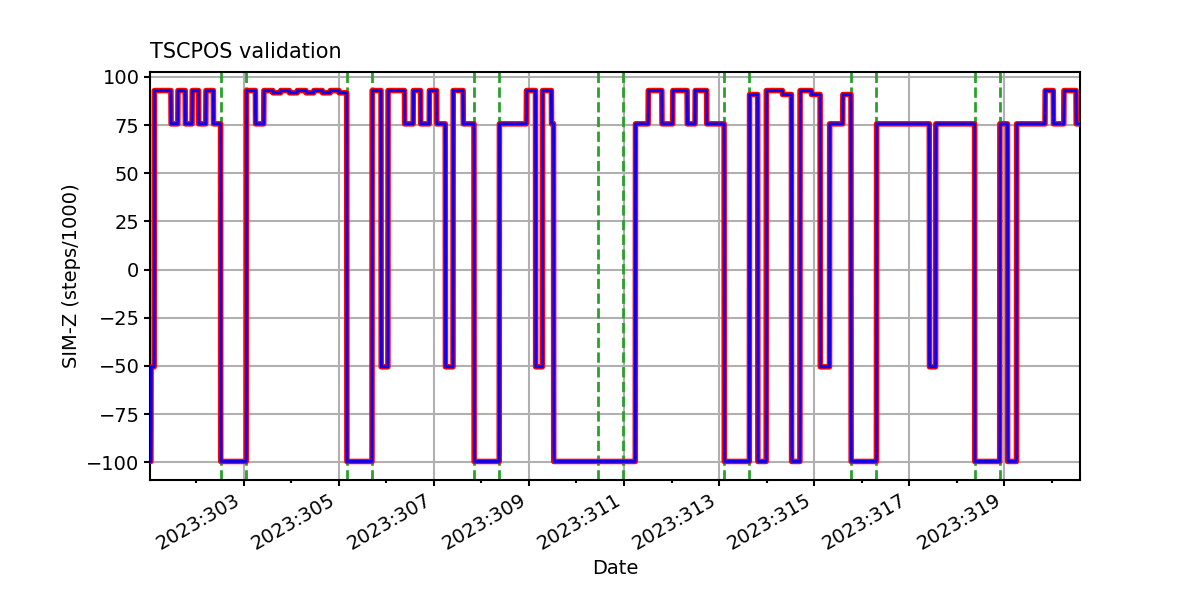

TSCPOS

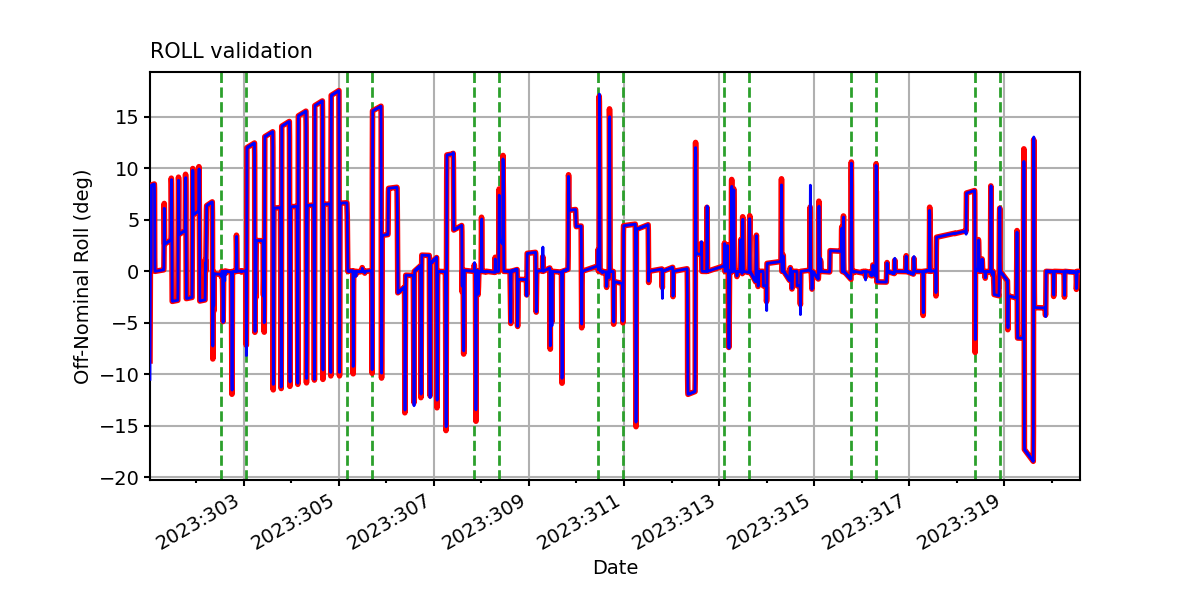

ROLL

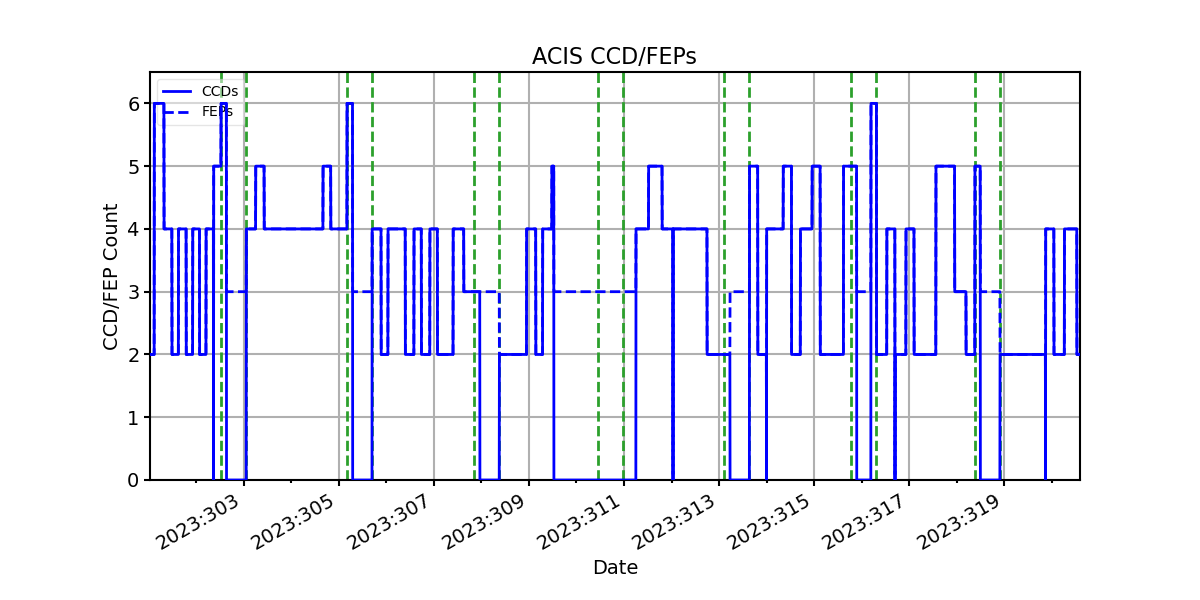

ACIS CCD/FEP Count
