PSMCBT Temperatures Check
Summary
| Date start | 2024:328:03:19:59.016 |
| Date stop | 2024:336:21:58:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/NOV2324/oflsb |
| Run time | Thu Oct 8 16:12:58 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.87 | -2.22 | -1.50 | -0.02 | 1.48 | 2.19 | 3.00 |
| pitch | -8.941 | -0.564 | -0.004 | -0.000 | 0.004 | 0.510 | 10.920 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.808 | -0.188 | -0.009 | -0.000 | 0.007 | 0.067 | 1.682 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.87 | 2.50 |
| PITCH | 1 | -8.941 | 3.00 |
| PITCH | 99 | 10.92 | 3.00 |

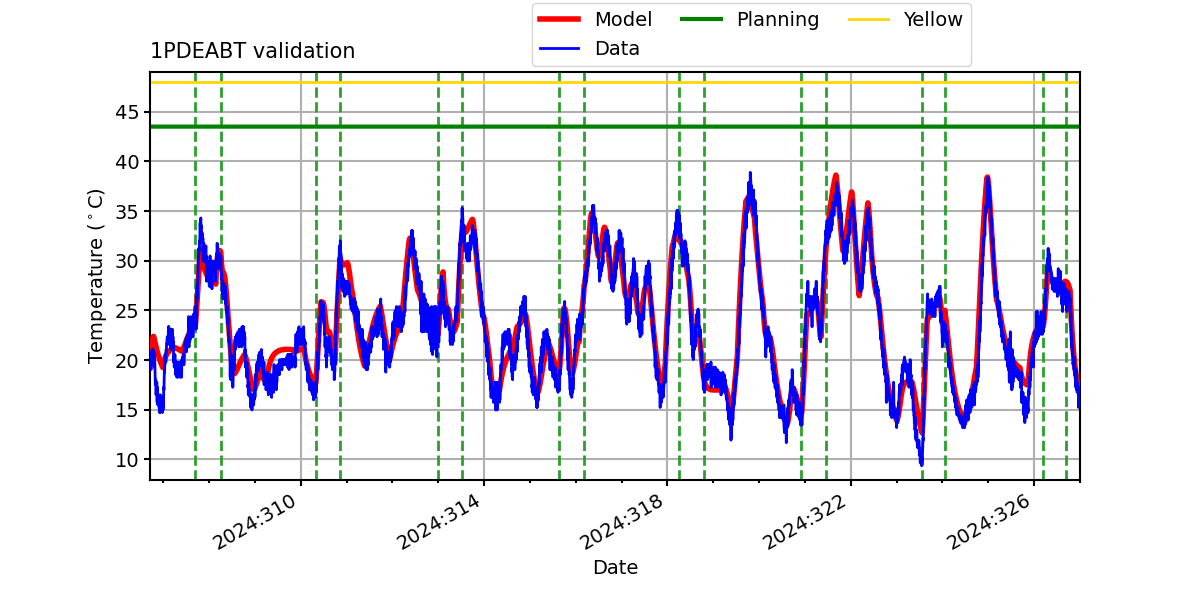

1PDEABT

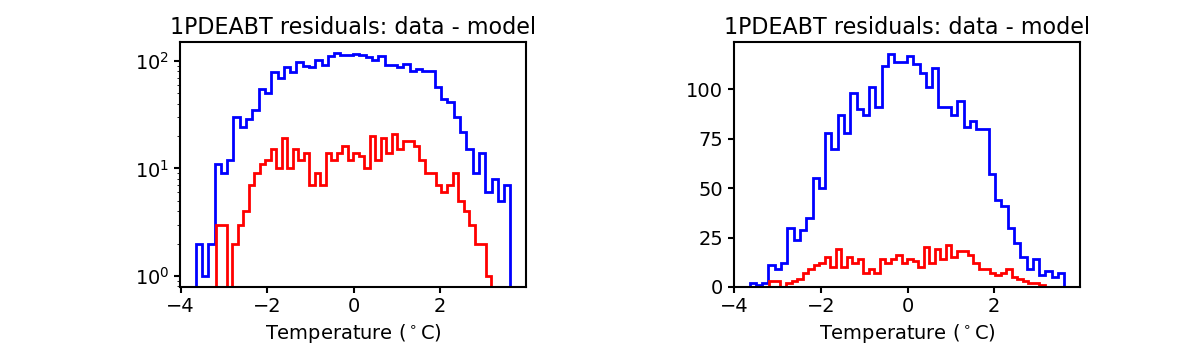

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

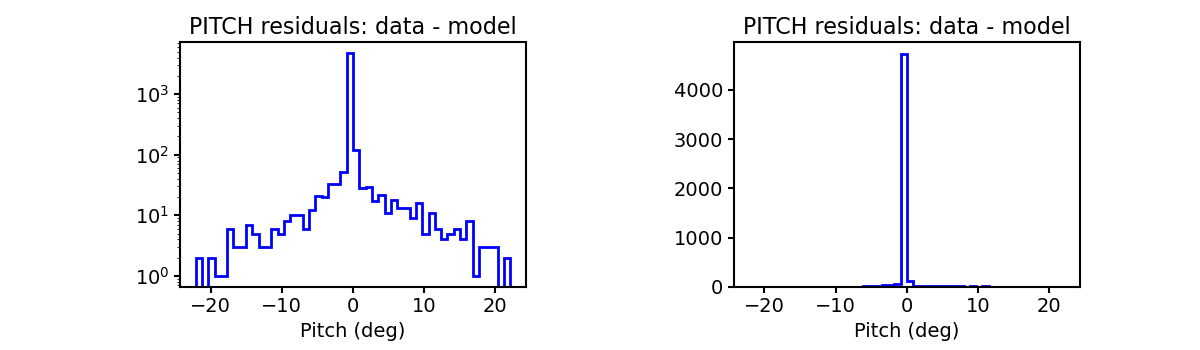

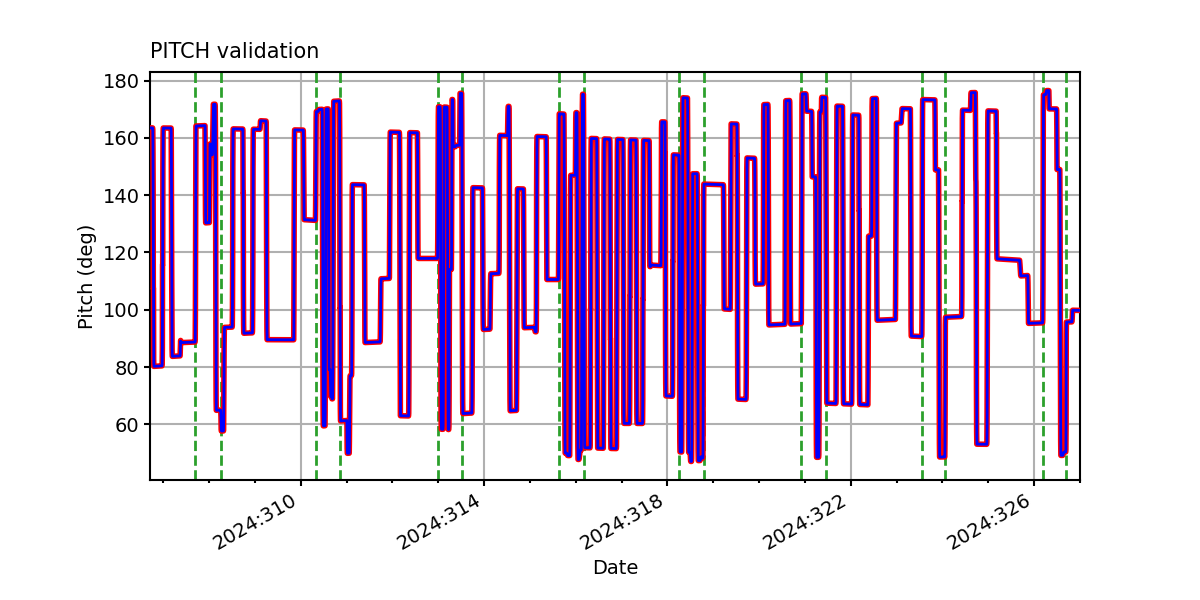

PITCH

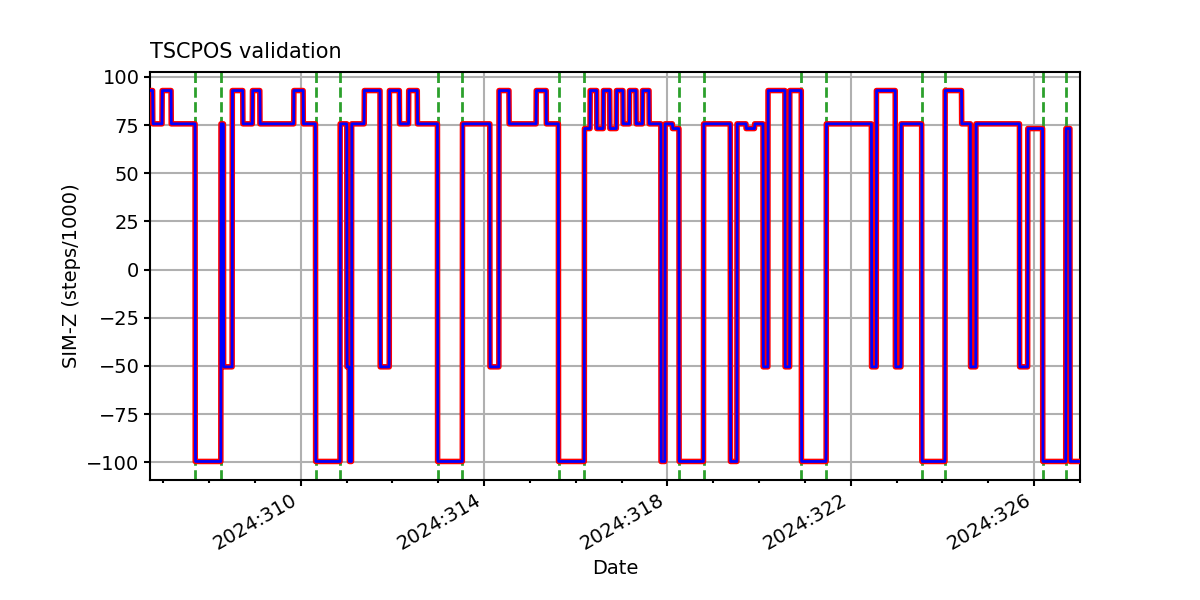

TSCPOS

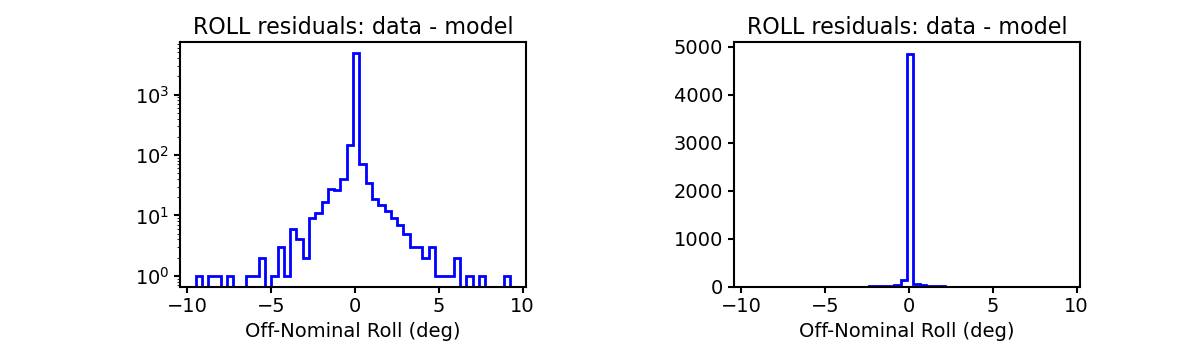

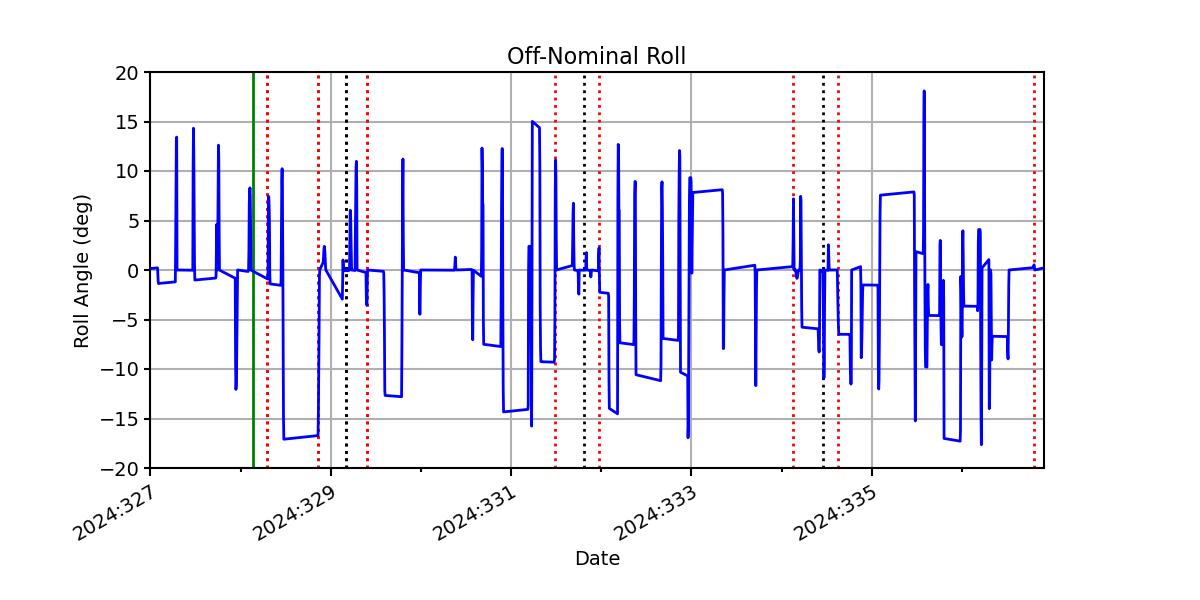

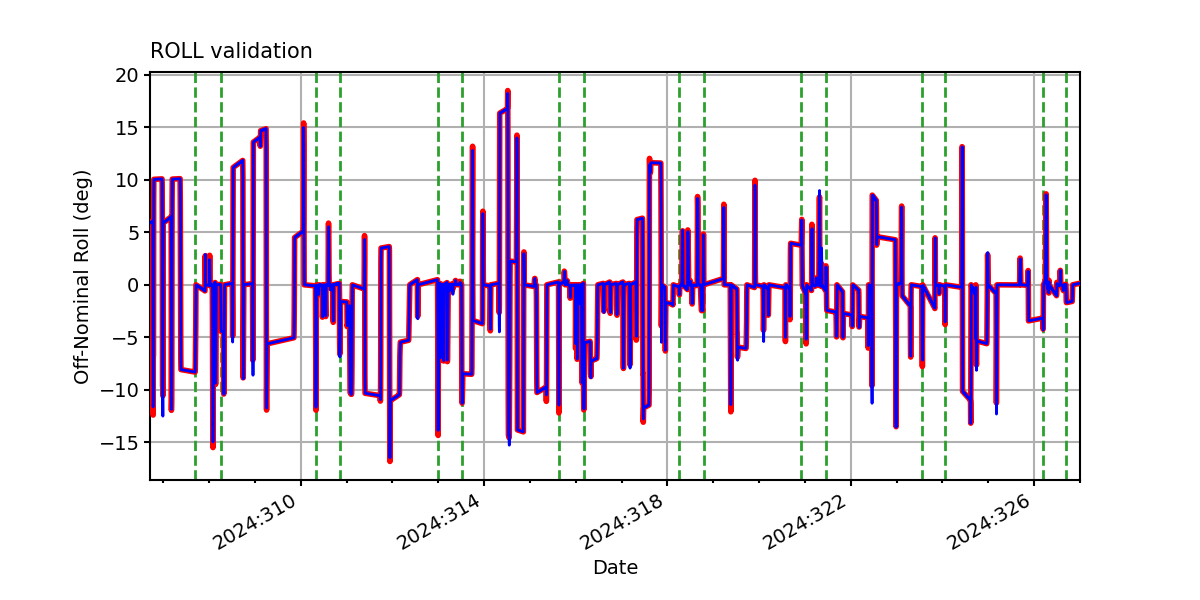

ROLL
ACIS CCD/FEP Count
