PSMCBT Temperatures Check
Summary
| Date start | 2023:331:00:38:16.016 |
| Date stop | 2023:337:22:33:16.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/NOV2723/oflsa |
| Run time | Thu Oct 8 16:12:59 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

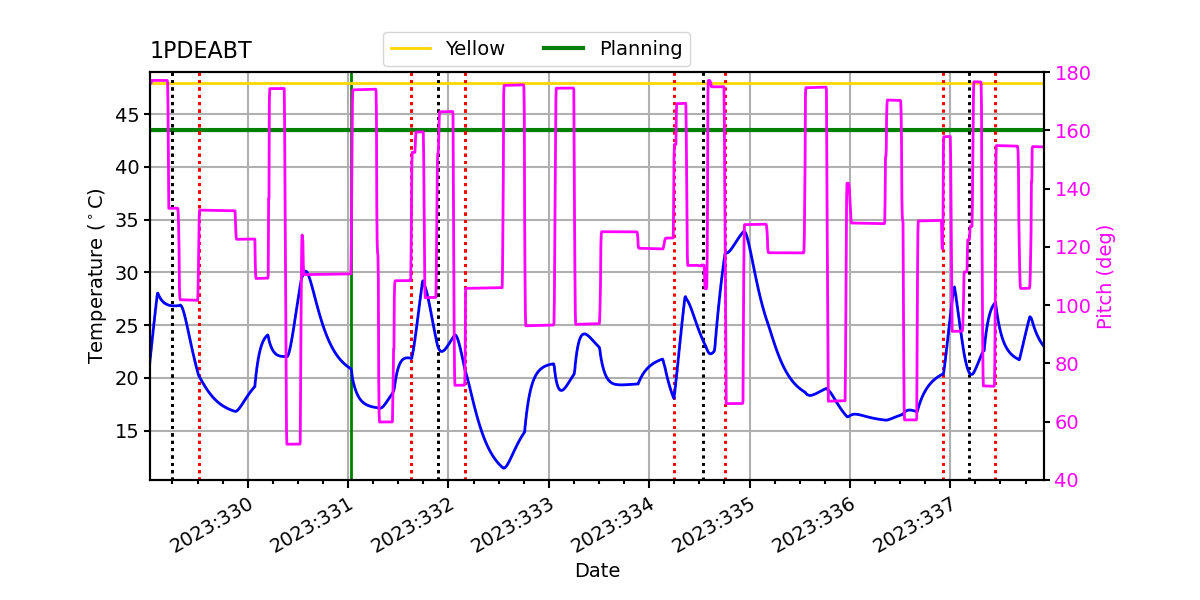

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.17 | -2.74 | -2.05 | -0.07 | 1.14 | 1.81 | 2.46 |
| pitch | -9.244 | -0.790 | -0.004 | 0.000 | 0.004 | 0.299 | 10.970 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.794 | -0.155 | -0.008 | -0.000 | 0.008 | 0.137 | 1.863 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.17 | 2.50 |
| PITCH | 1 | -9.244 | 3.00 |
| PITCH | 99 | 10.97 | 3.00 |

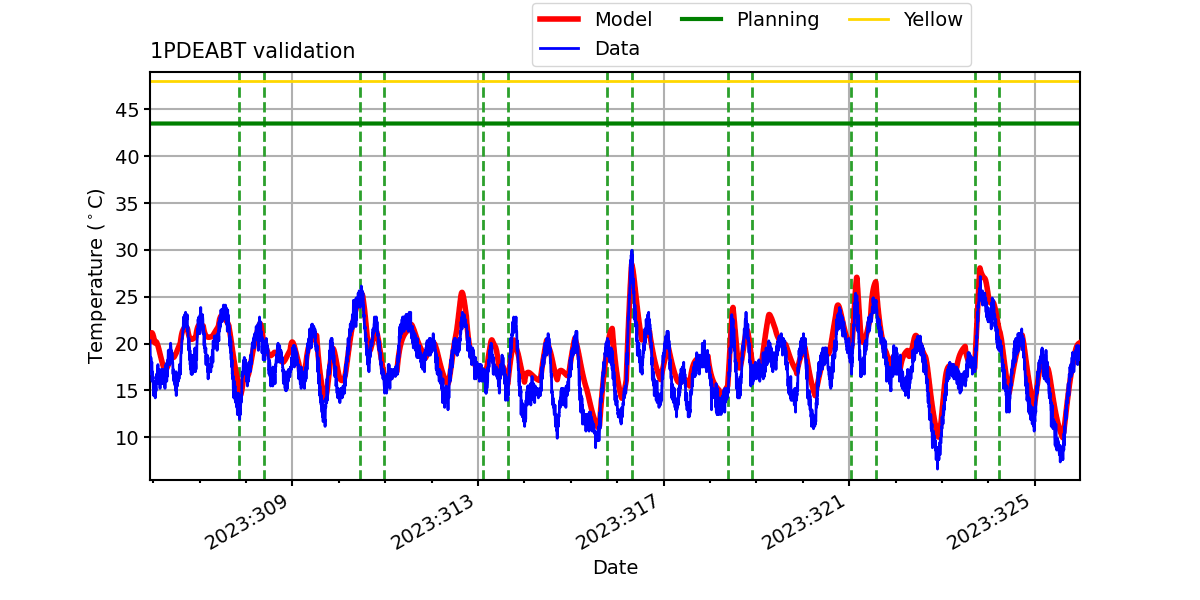

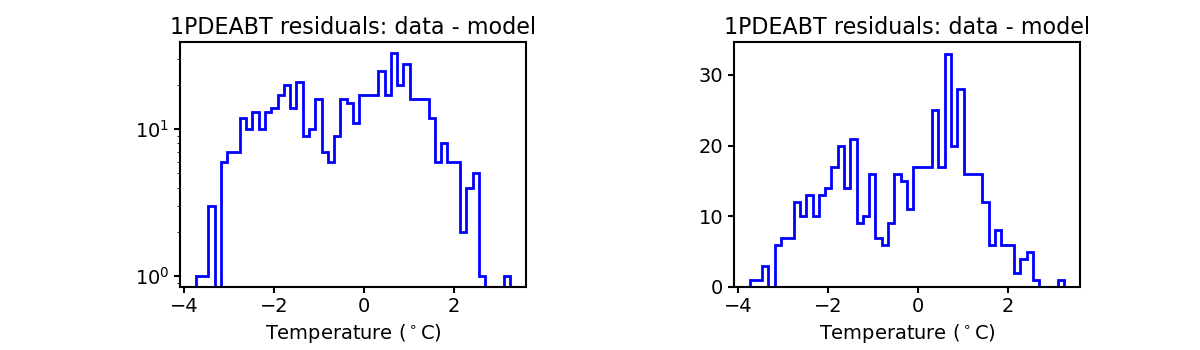

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

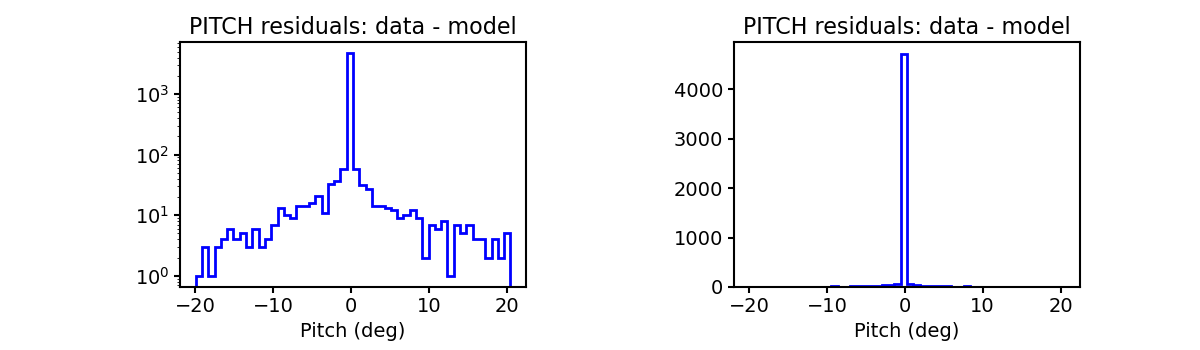

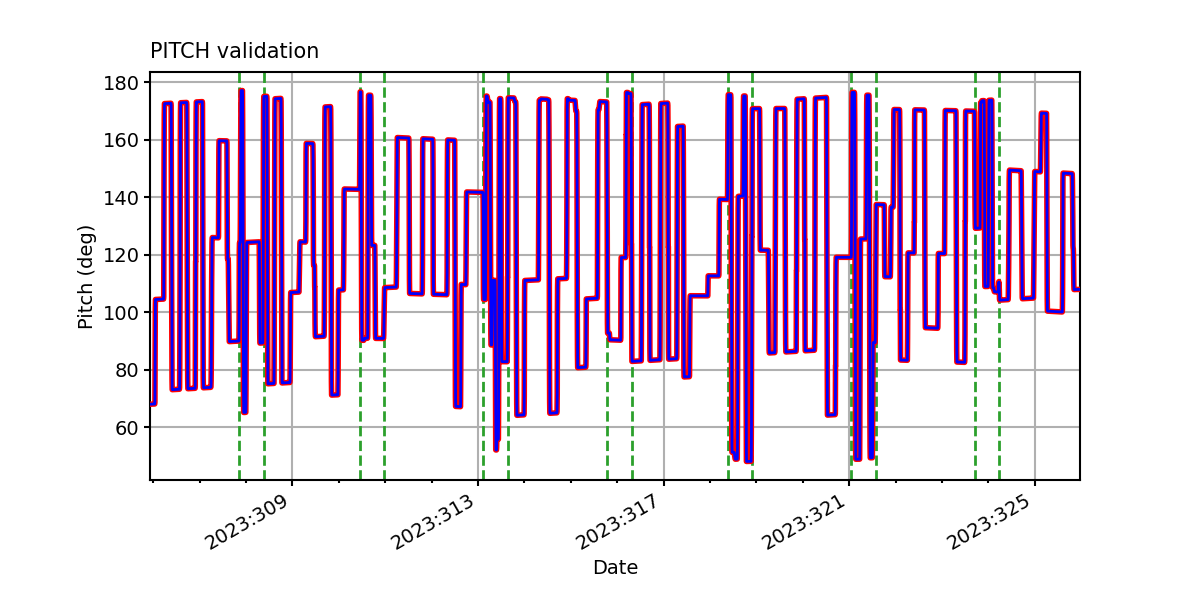

PITCH

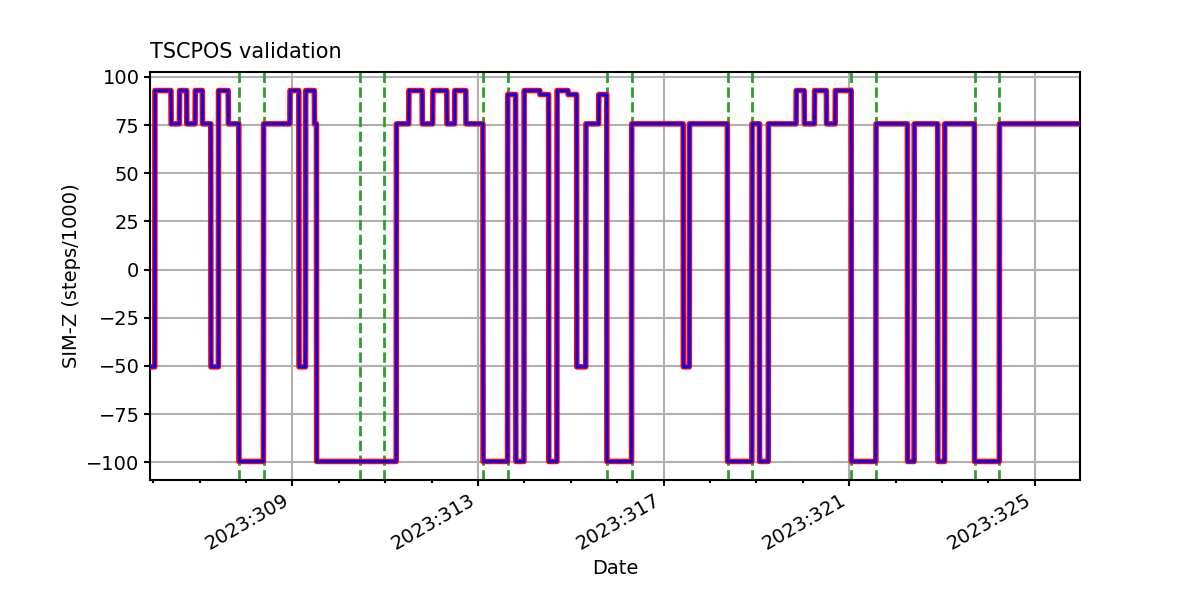

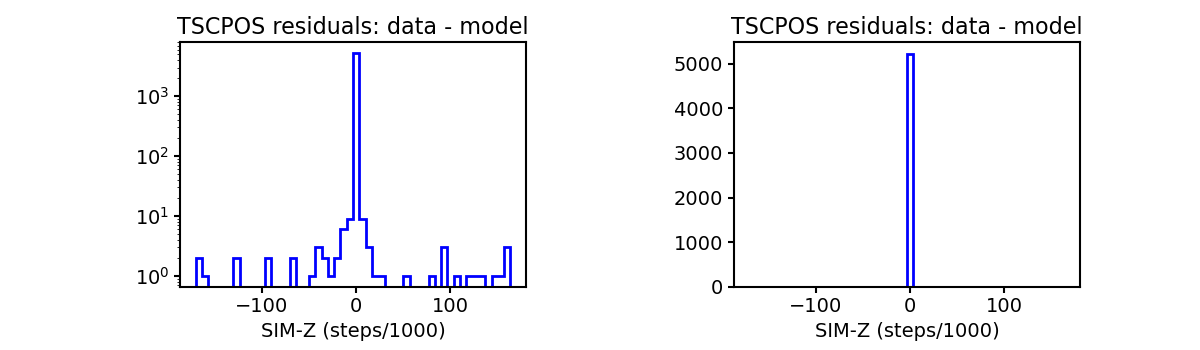

TSCPOS

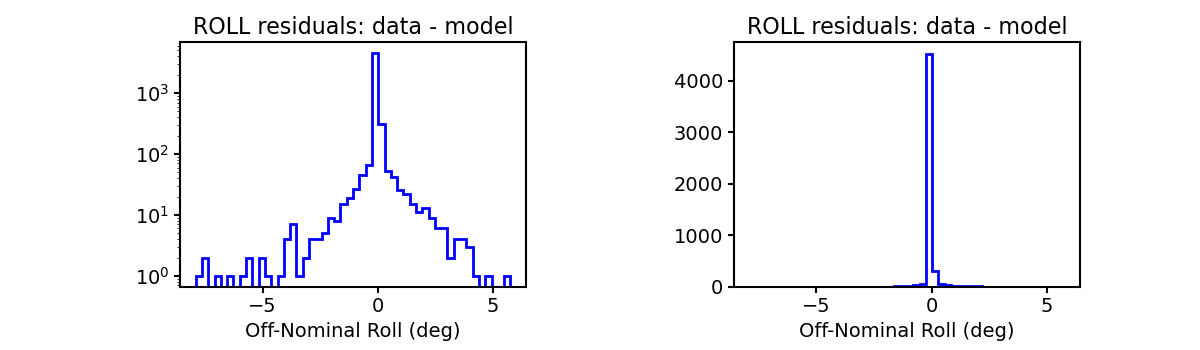

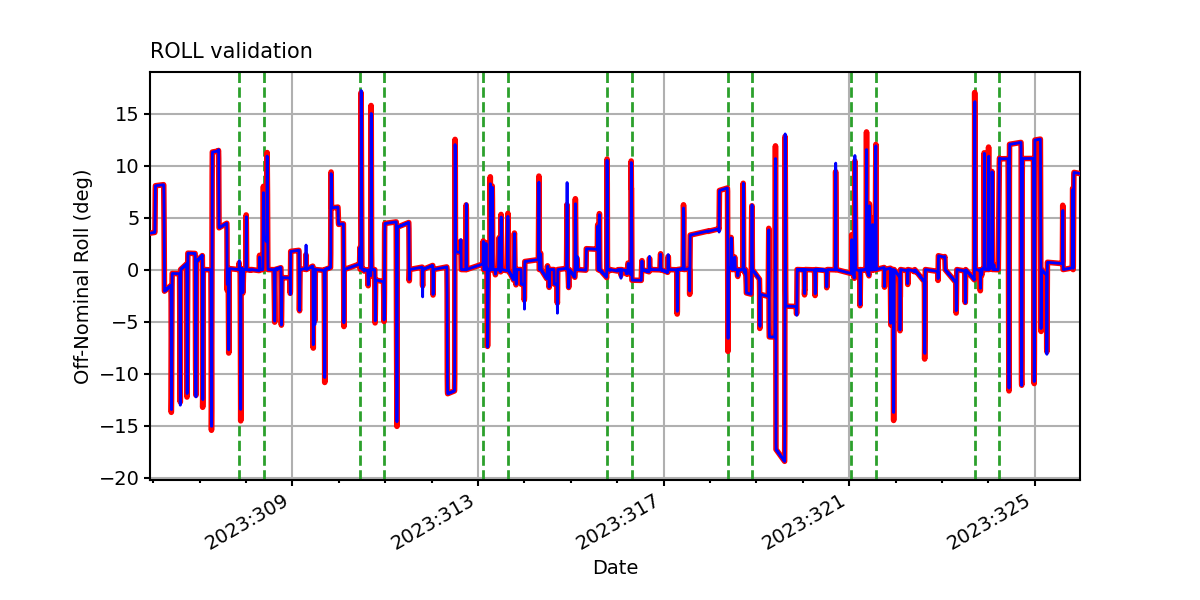

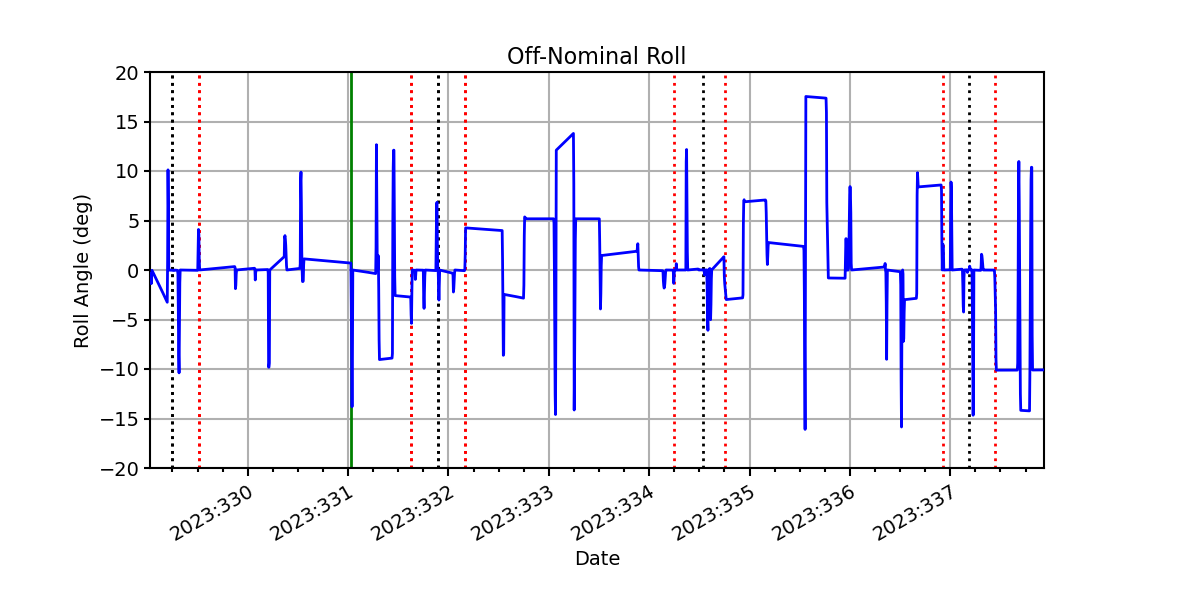

ROLL

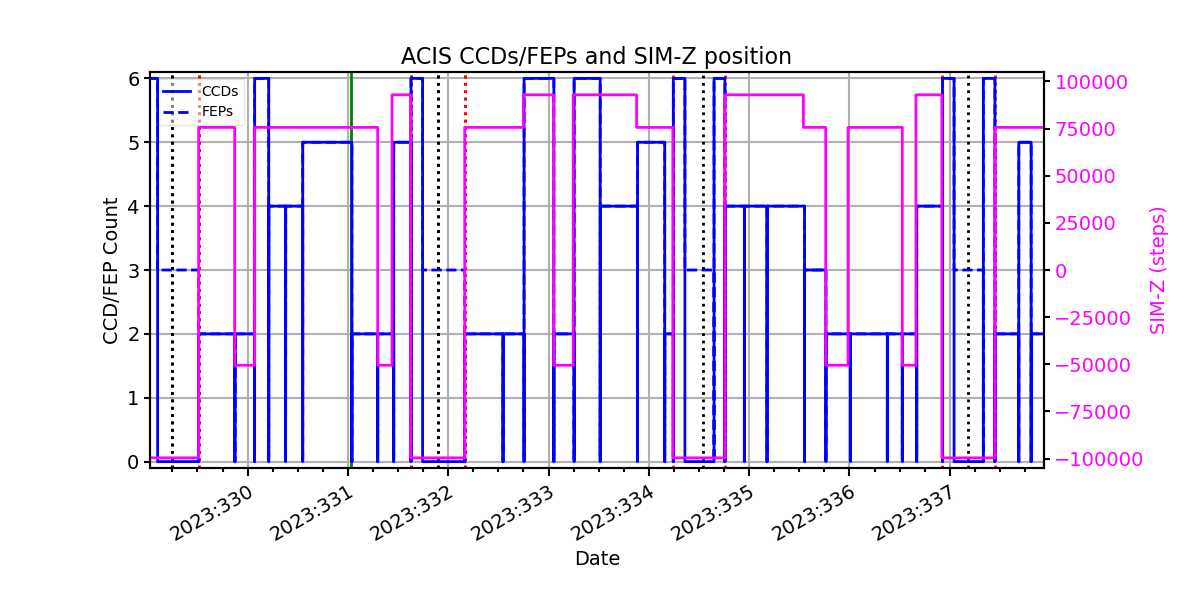

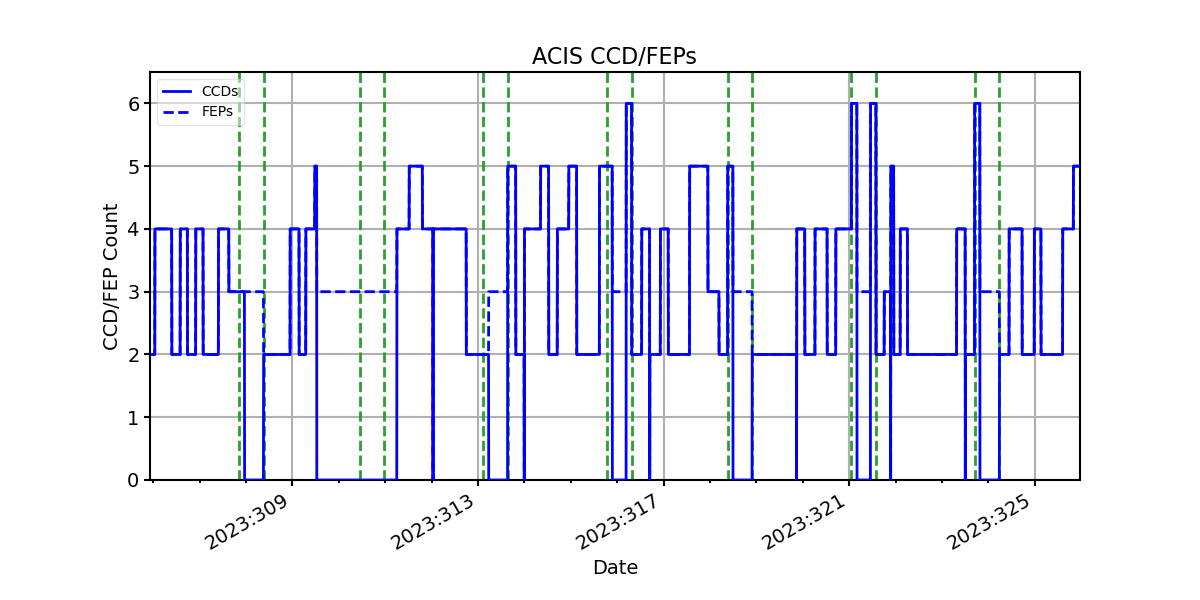

ACIS CCD/FEP Count
