PSMCBT Temperatures Check
Summary
| Date start | 2023:274:02:44:56.216 |
| Date stop | 2023:281:11:38:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/OCT0123/oflsa |
| Run time | Thu Oct 8 16:13:01 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.39 | -2.90 | -2.12 | -0.79 | 0.87 | 1.66 | 2.20 |
| pitch | -5.595 | -0.042 | -0.003 | 0.000 | 0.003 | 0.029 | 8.074 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.673 | -0.050 | -0.003 | 0.000 | 0.003 | 0.053 | 1.414 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.39 | 2.50 |
| PITCH | 1 | -5.595 | 3.00 |
| PITCH | 99 | 8.074 | 3.00 |

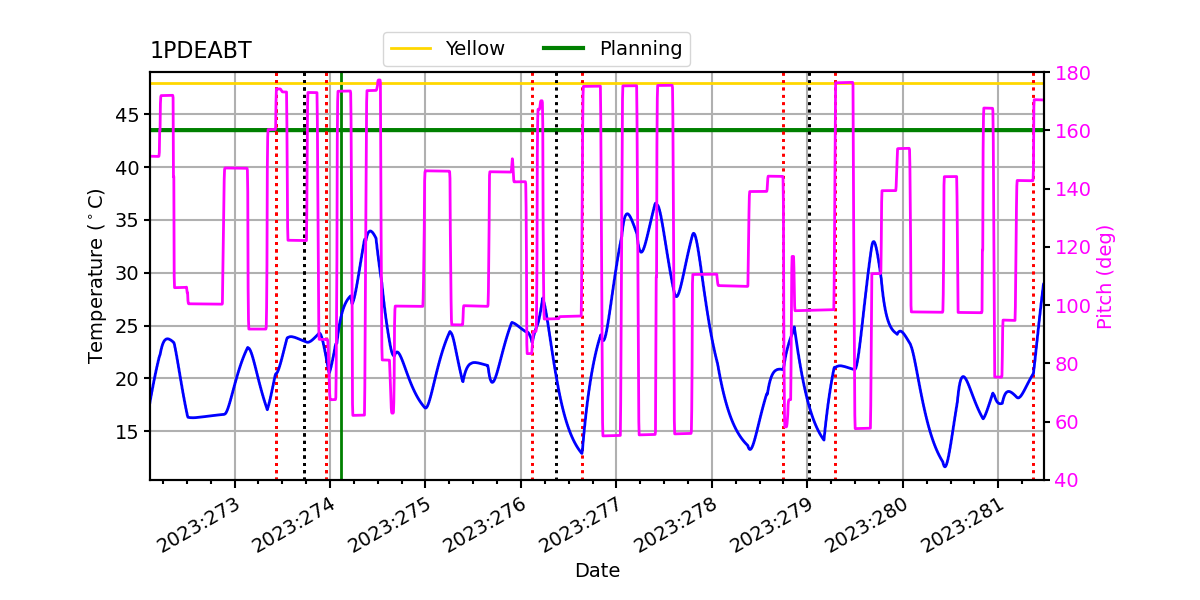

1PDEABT

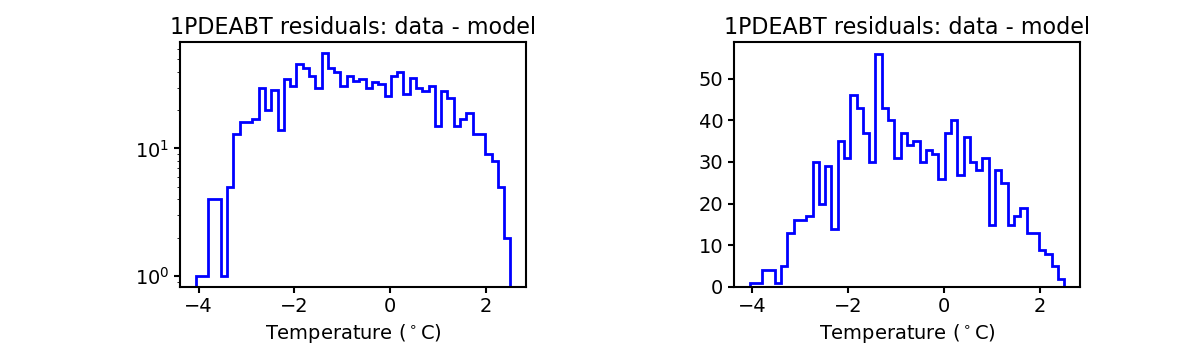

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

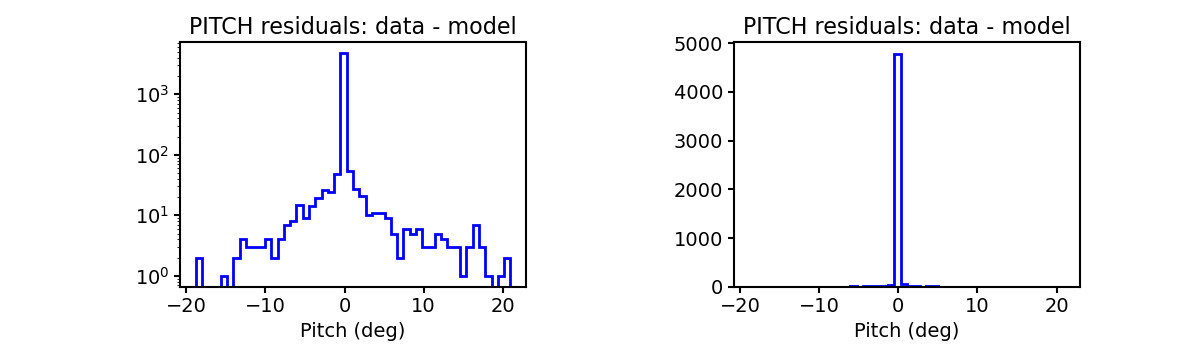

PITCH

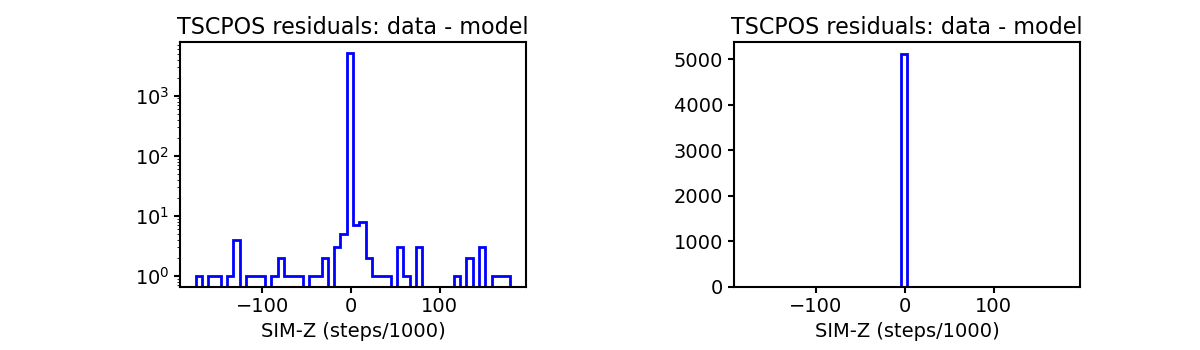

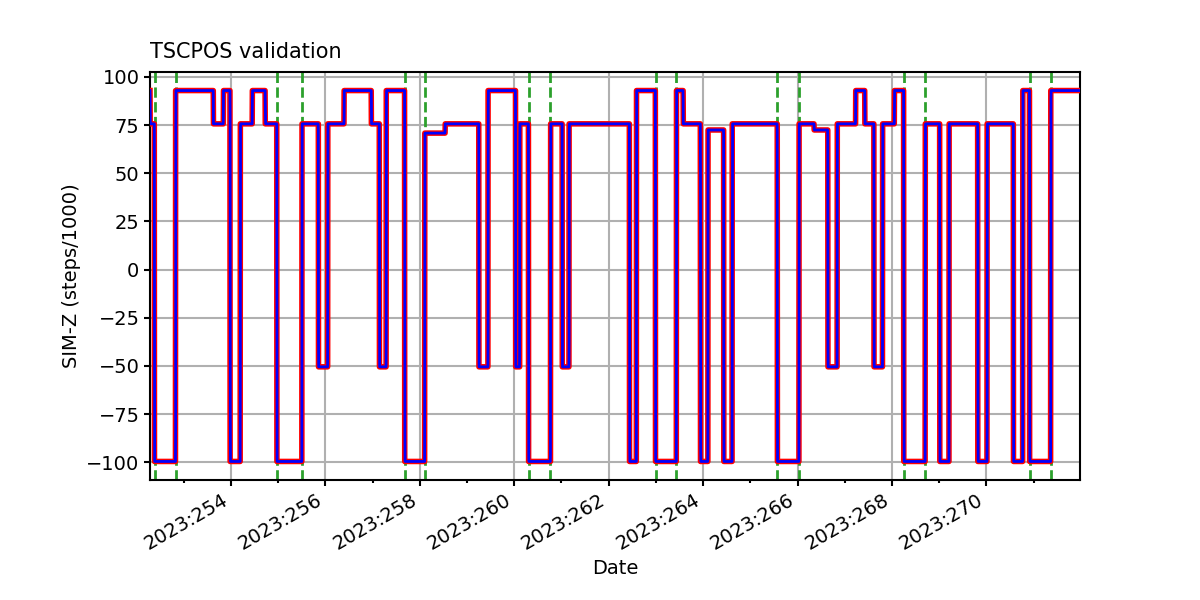

TSCPOS

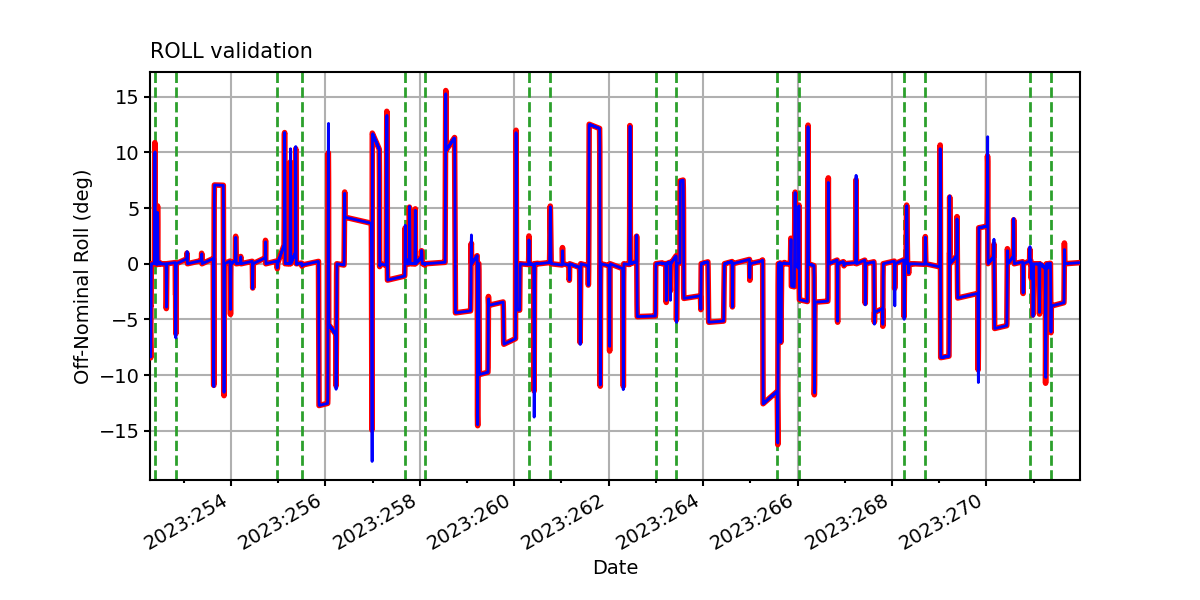

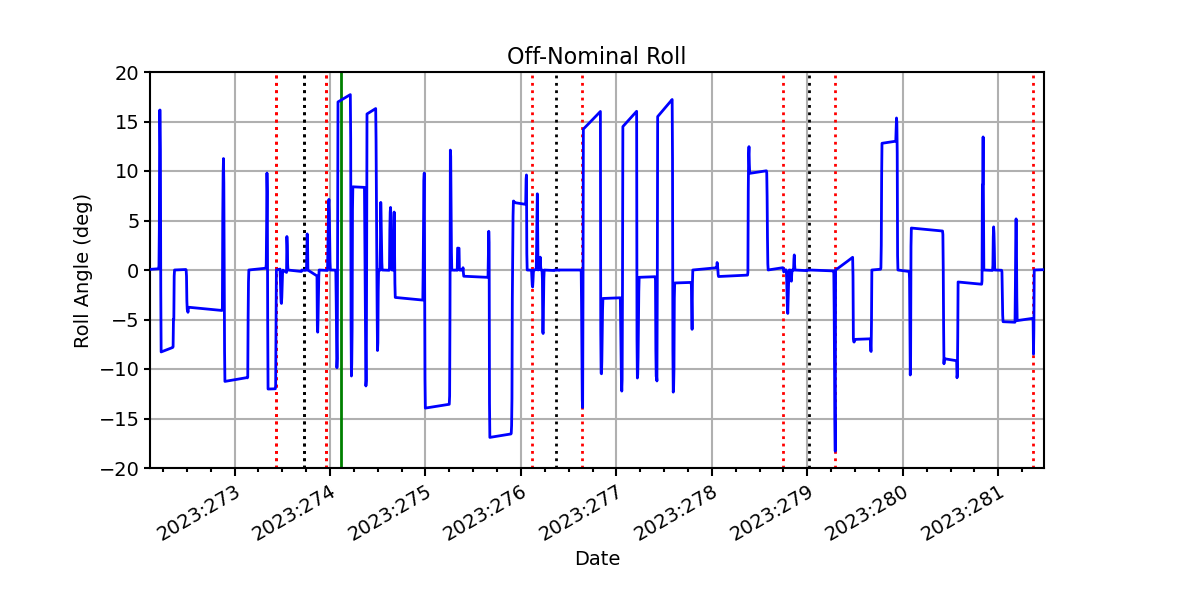

ROLL

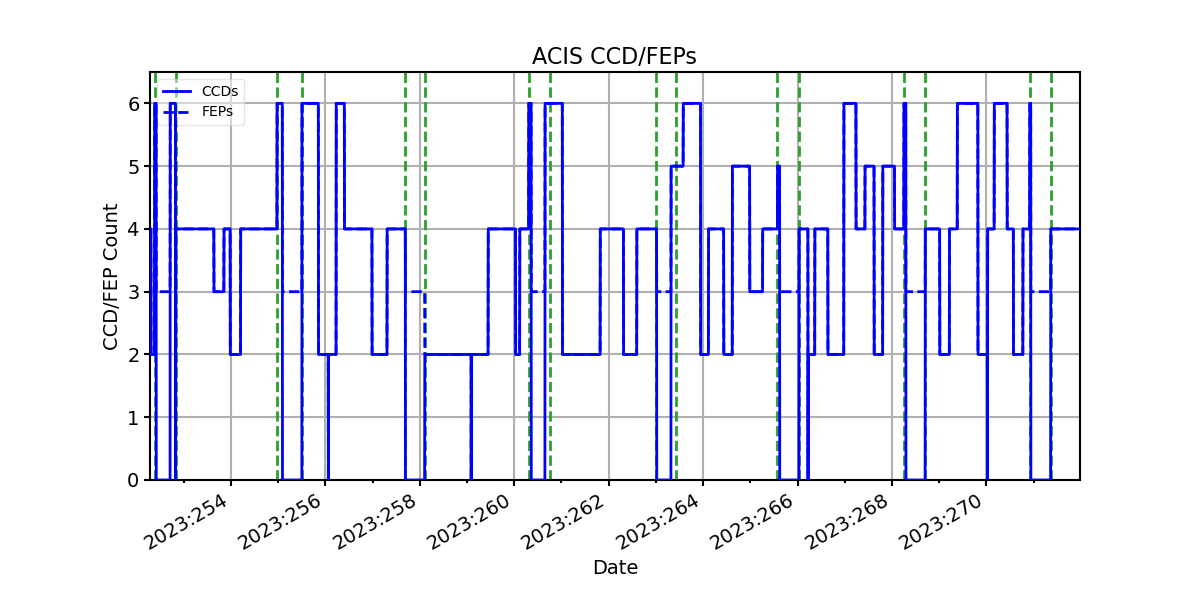

ACIS CCD/FEP Count
