PSMCBT Temperatures Check
Summary
| Date start | 2026:277:13:10:00.016 |
| Date stop | 2026:284:19:12:22.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/OCT0526/oflsa |
| Run time | Thu Oct 8 16:13:31 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.53 | -1.75 | -0.93 | 0.60 | 2.05 | 2.75 | 3.46 |
| pitch | -12.048 | -1.672 | -0.004 | -0.000 | 0.004 | 1.769 | 12.896 |
| tscpos | -303 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.106 | -0.273 | -0.010 | 0.000 | 0.010 | 0.250 | 1.801 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.53 | 2.50 |
| PITCH | 1 | -12.048 | 3.00 |
| PITCH | 99 | 12.896 | 3.00 |
| TSCPOS | 1 | -303.0 | 2.50 |

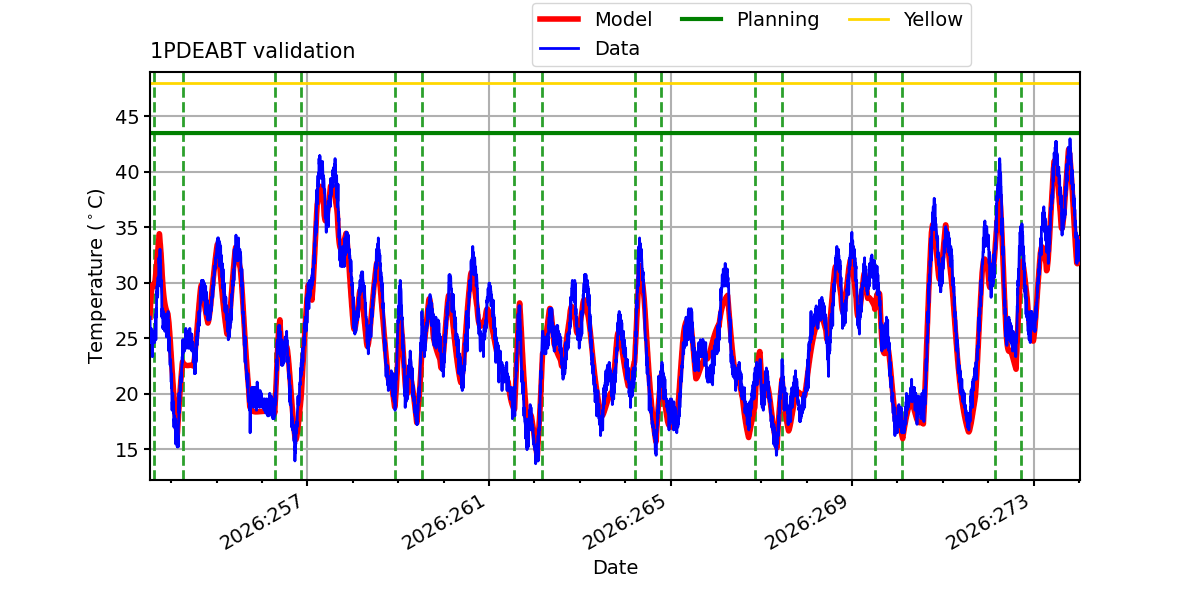

1PDEABT

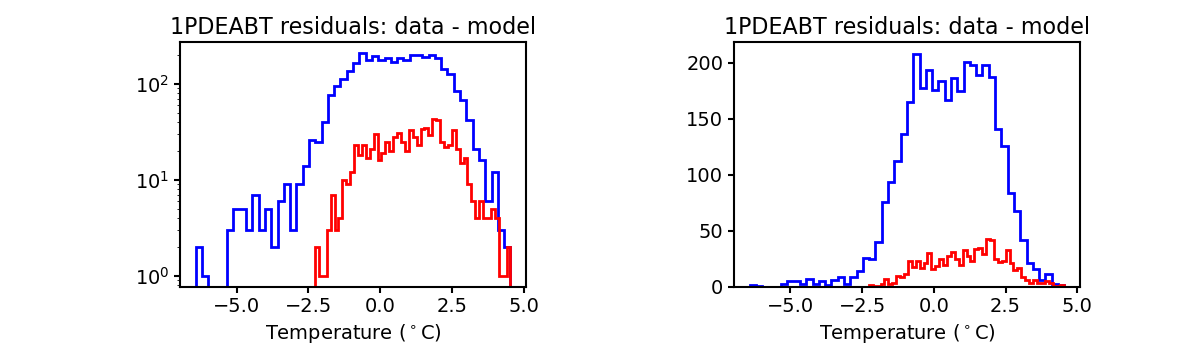

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

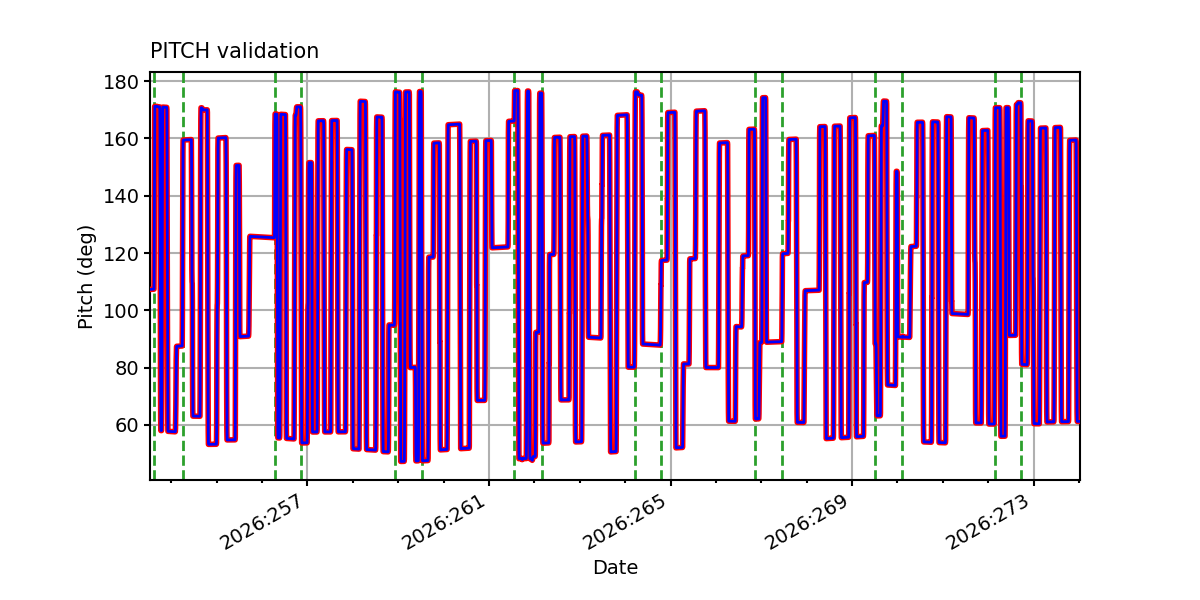

PITCH

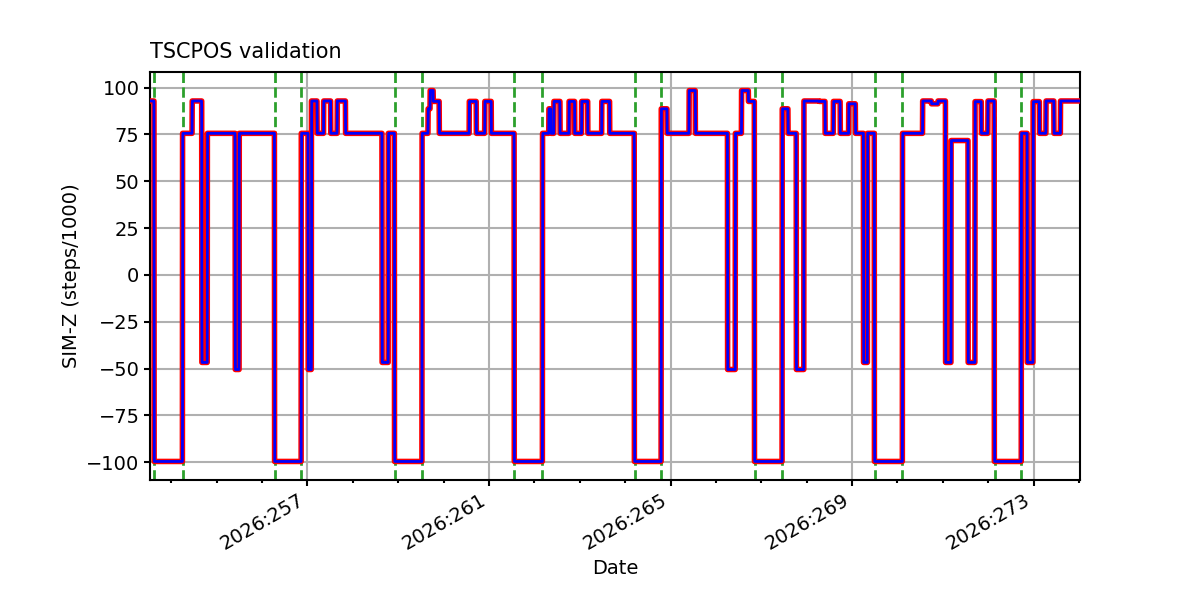

TSCPOS

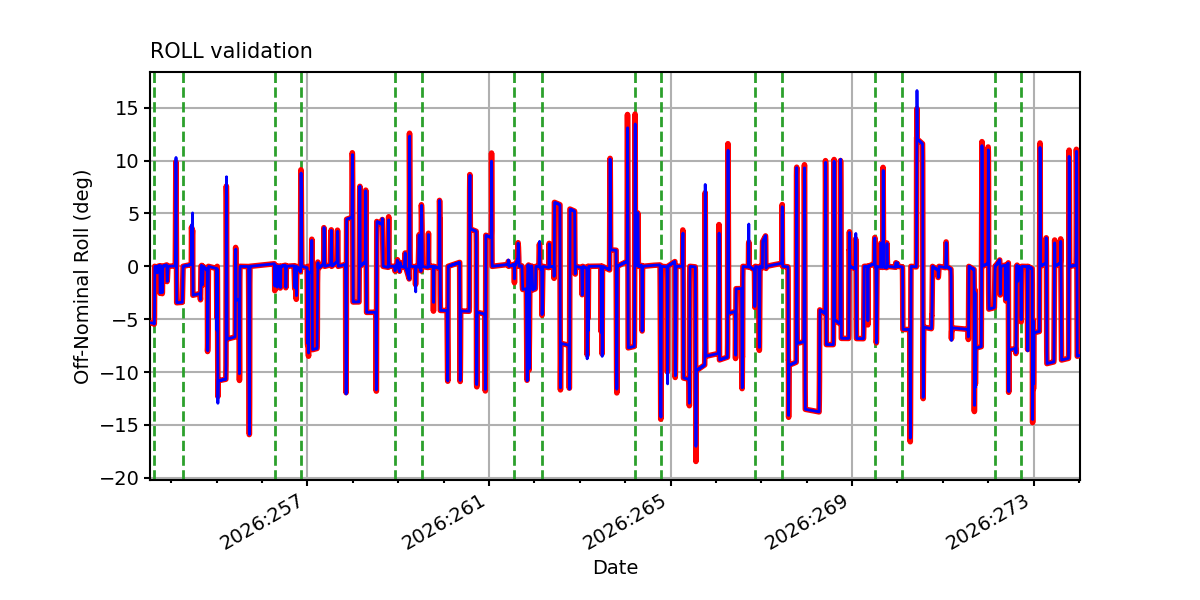

ROLL

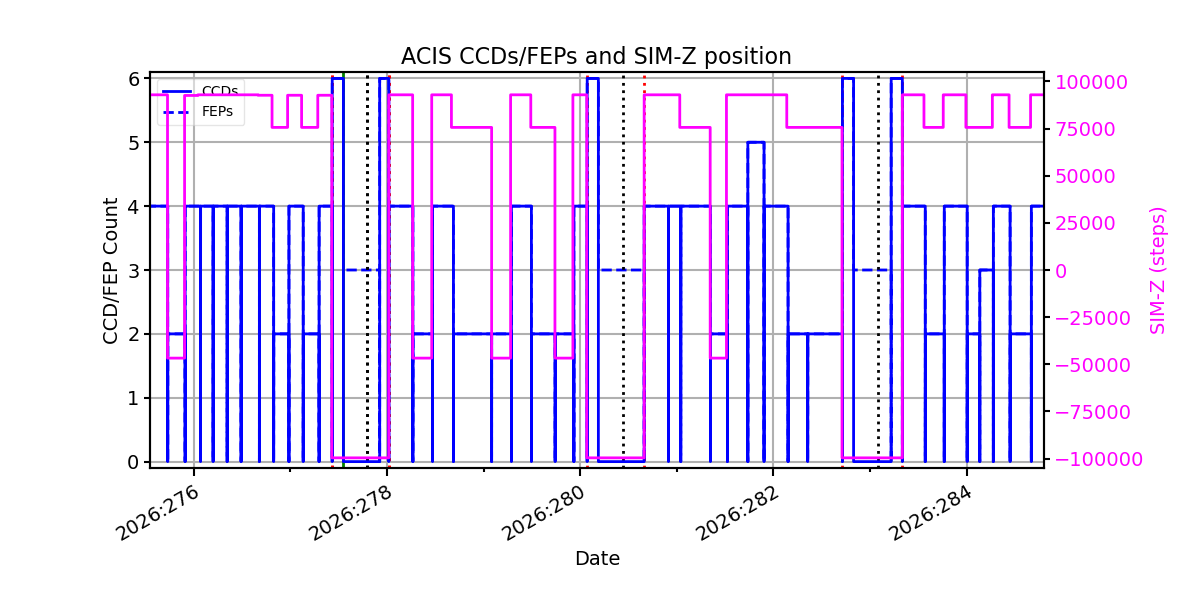

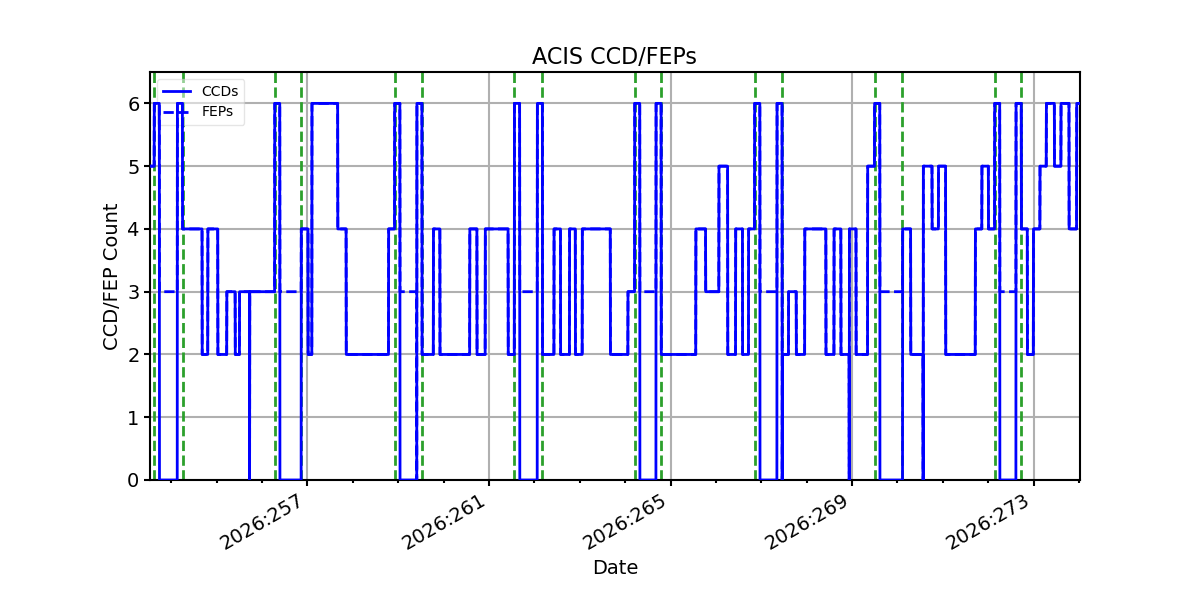

ACIS CCD/FEP Count
