PSMCBT Temperatures Check
Summary
| Date start | 2023:281:11:35:00.016 |
| Date stop | 2023:288:18:49:54.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/OCT0923/oflsa |
| Run time | Thu Oct 8 16:13:31 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

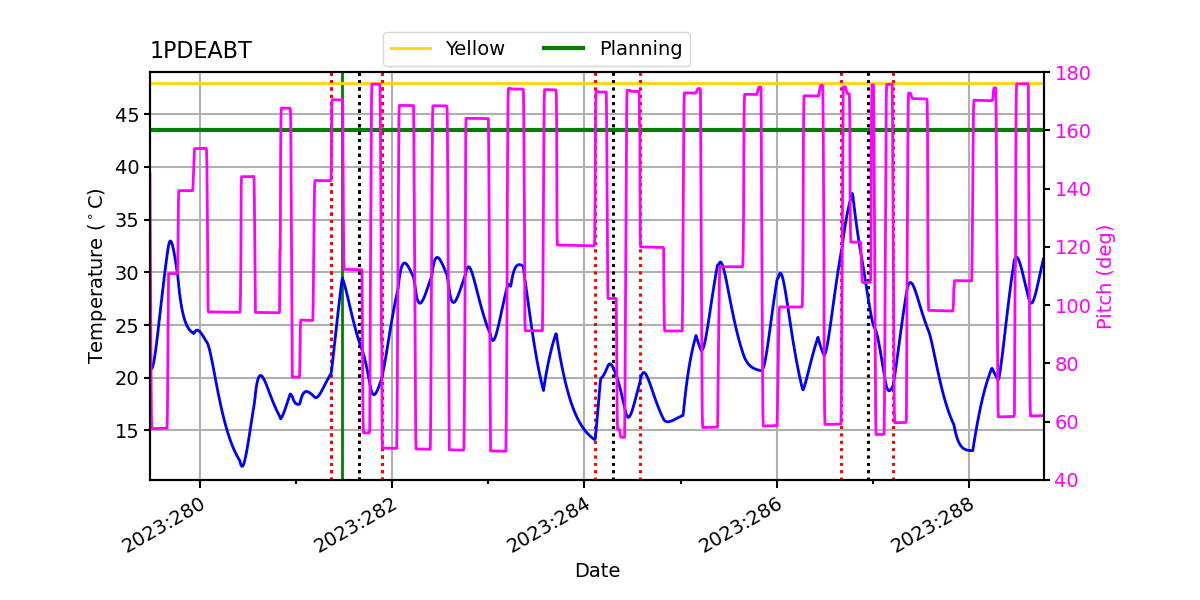

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.19 | -2.81 | -2.11 | -0.65 | 0.95 | 1.89 | 2.80 |
| pitch | -5.855 | -0.118 | -0.004 | -0.000 | 0.003 | 0.053 | 8.799 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.804 | -0.068 | -0.004 | 0.000 | 0.004 | 0.072 | 1.637 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.19 | 2.50 |
| PITCH | 1 | -5.855 | 3.00 |
| PITCH | 99 | 8.799 | 3.00 |

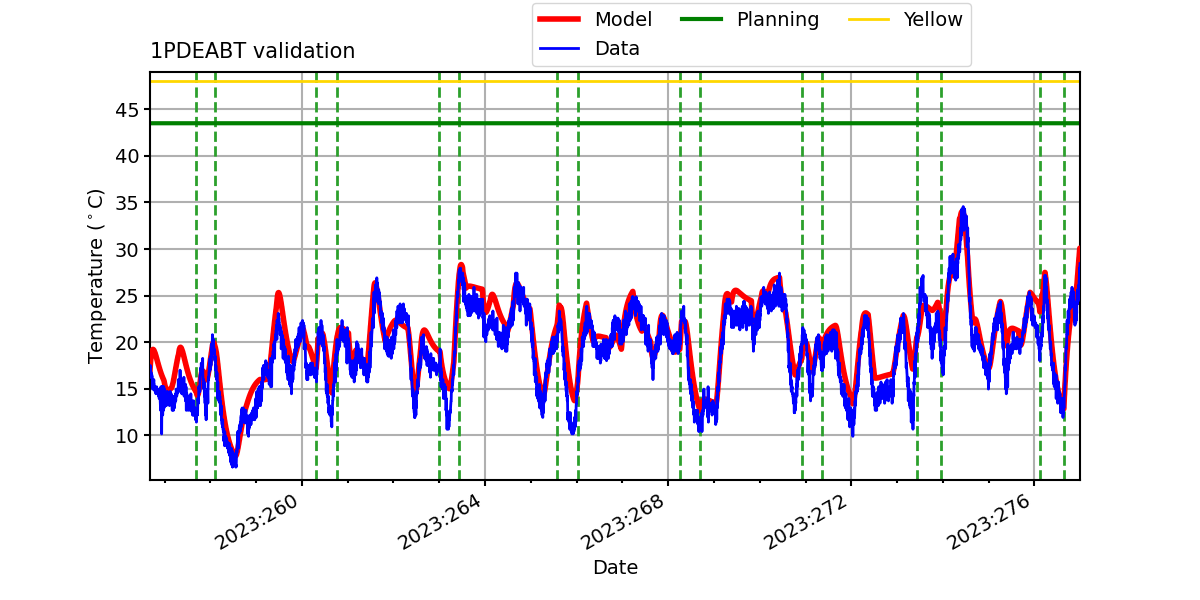

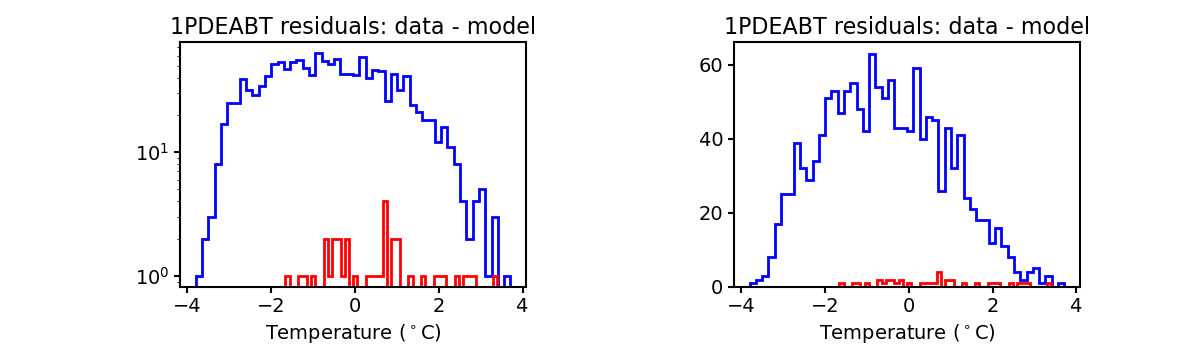

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

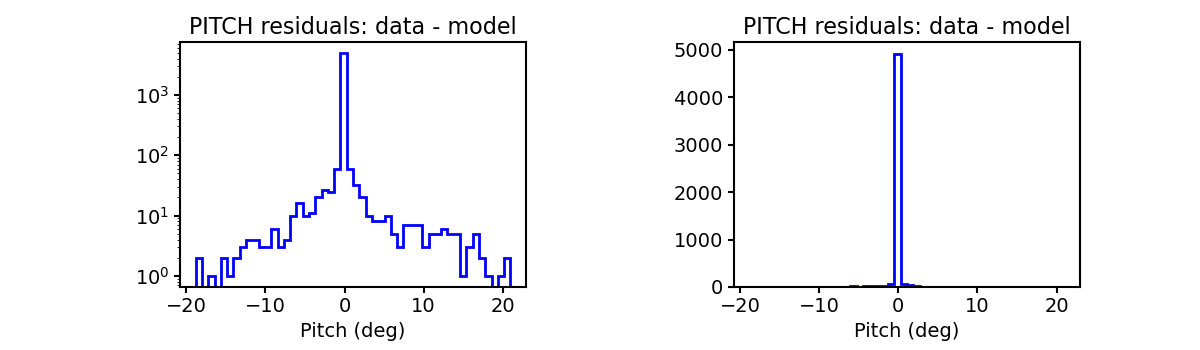

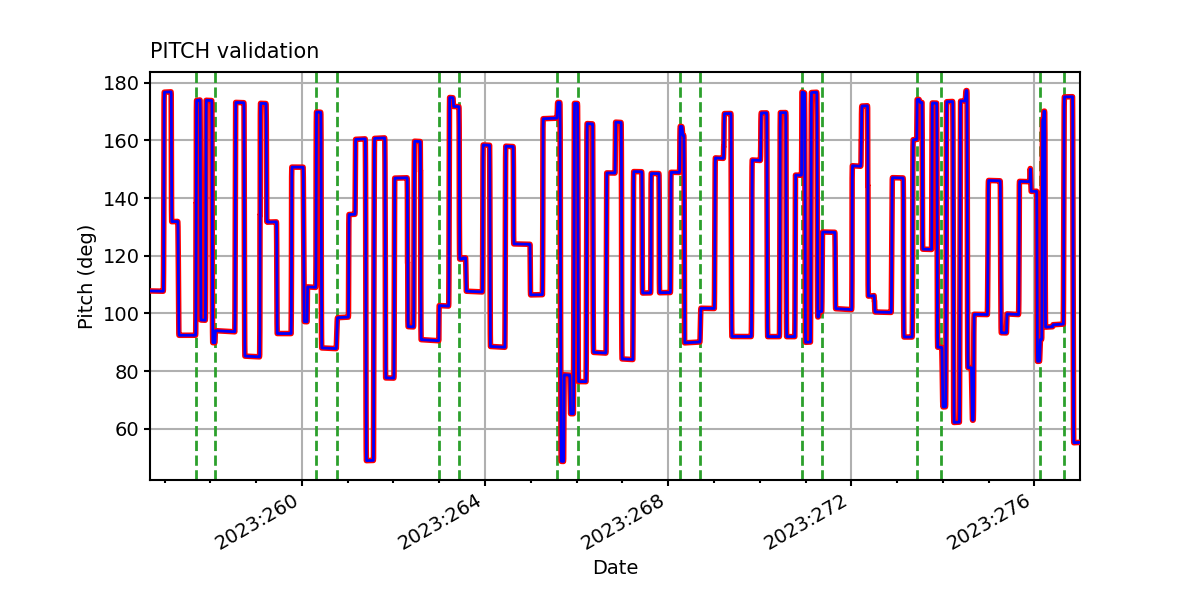

PITCH

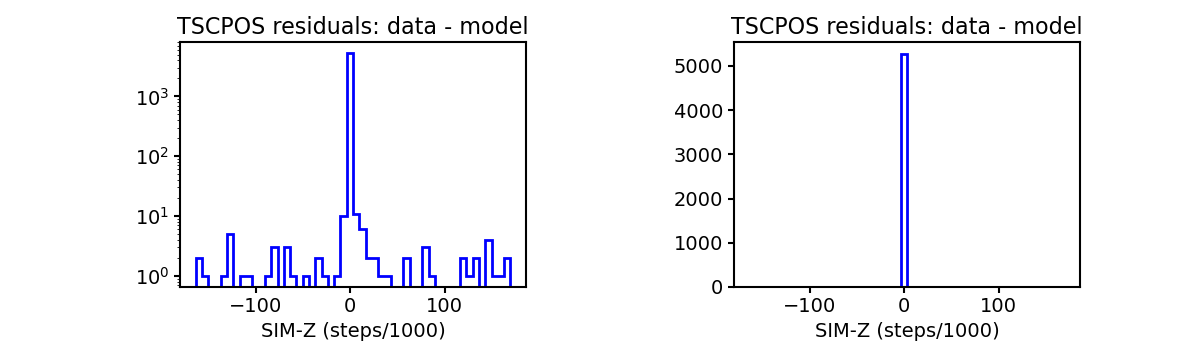

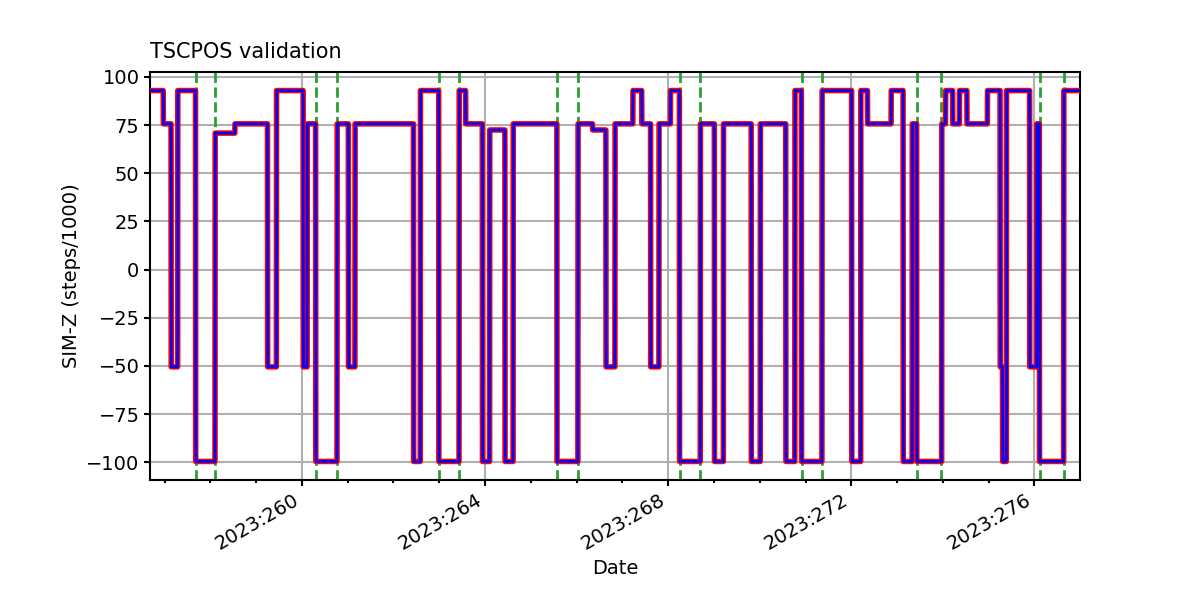

TSCPOS

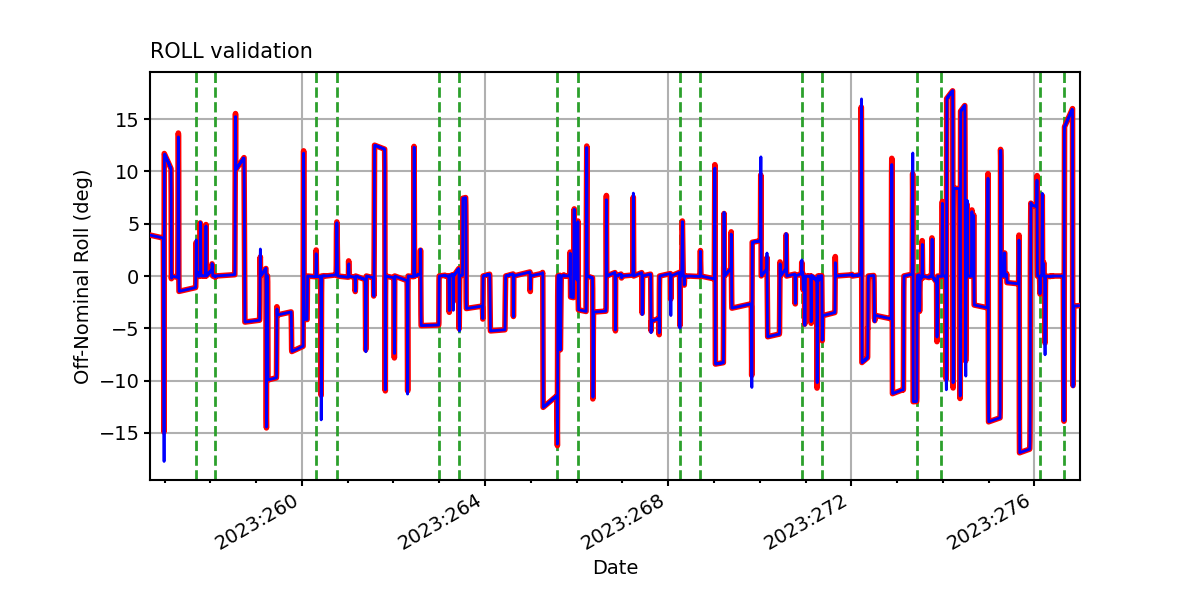

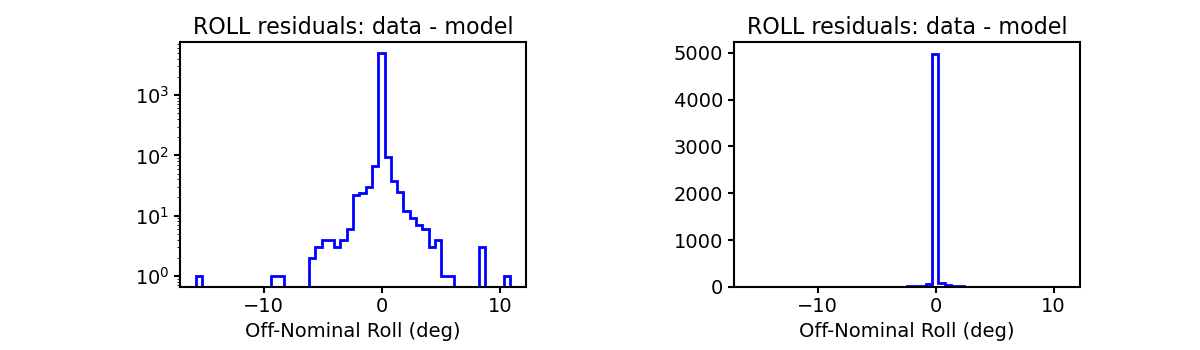

ROLL

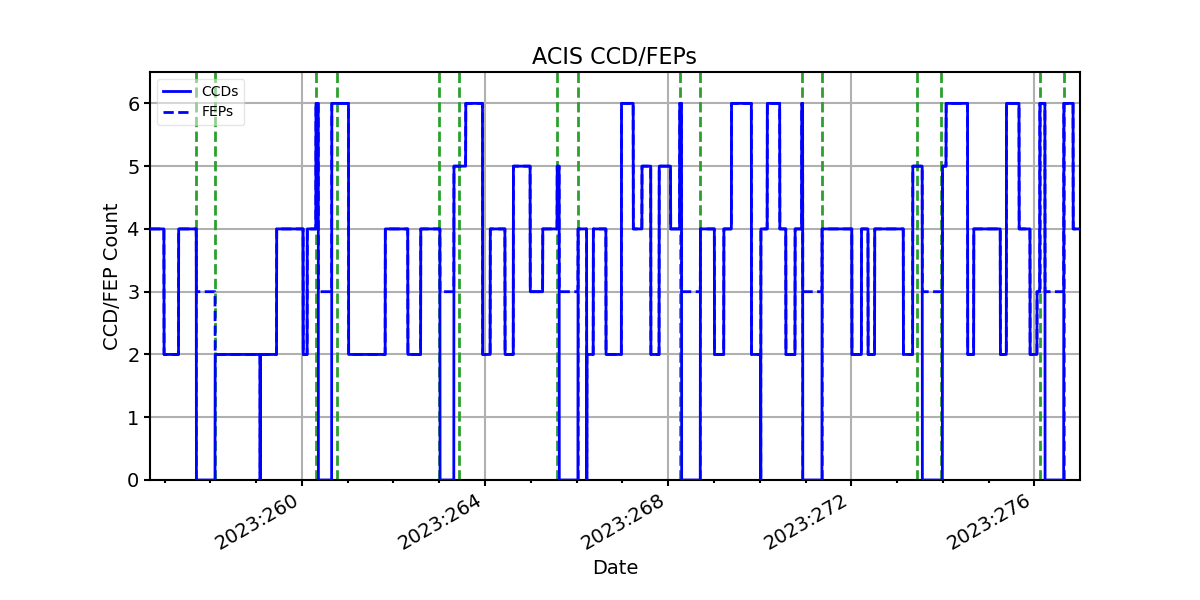

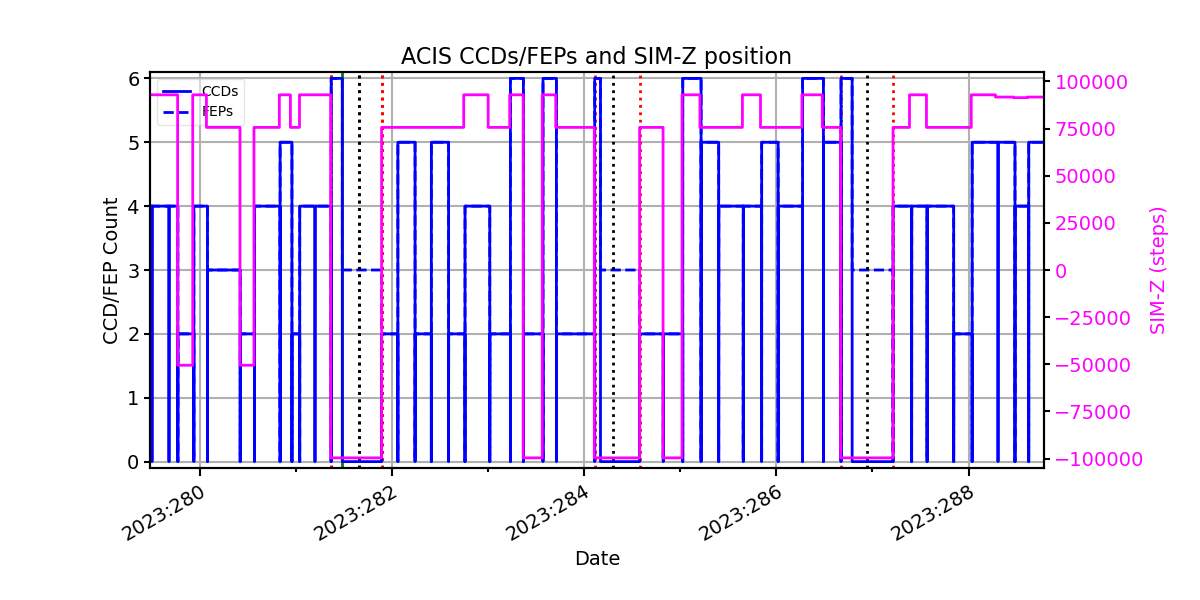

ACIS CCD/FEP Count
