PSMCBT Temperatures Check
Summary
| Date start | 2025:285:13:20:00.016 |
| Date stop | 2025:292:21:47:50.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/OCT1325/oflsa |
| Run time | Thu Oct 8 16:13:31 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.84 | -2.12 | -1.34 | 0.08 | 1.89 | 2.68 | 3.30 |
| pitch | -10.319 | -1.230 | -0.004 | -0.000 | 0.004 | 1.054 | 10.563 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.187 | -0.291 | -0.008 | -0.000 | 0.008 | 0.309 | 2.424 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.84 | 2.50 |
| PITCH | 1 | -10.319 | 3.00 |
| PITCH | 99 | 10.563 | 3.00 |

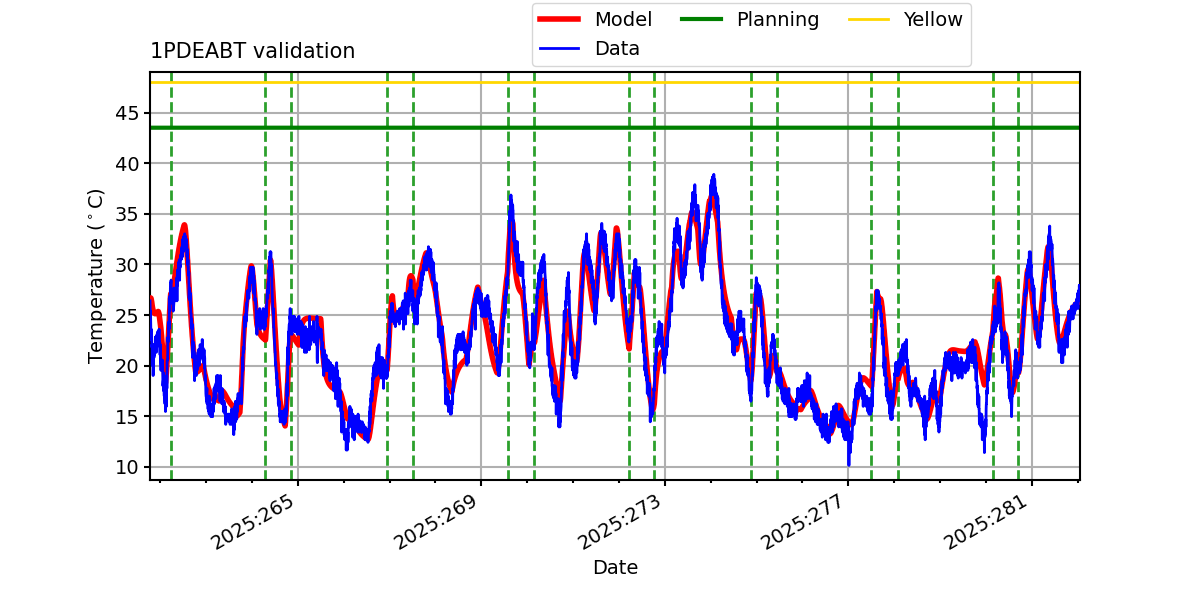

1PDEABT

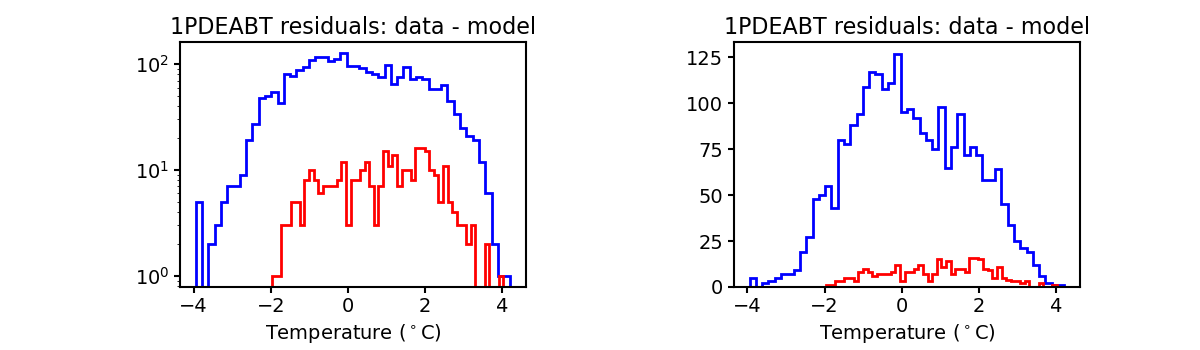

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

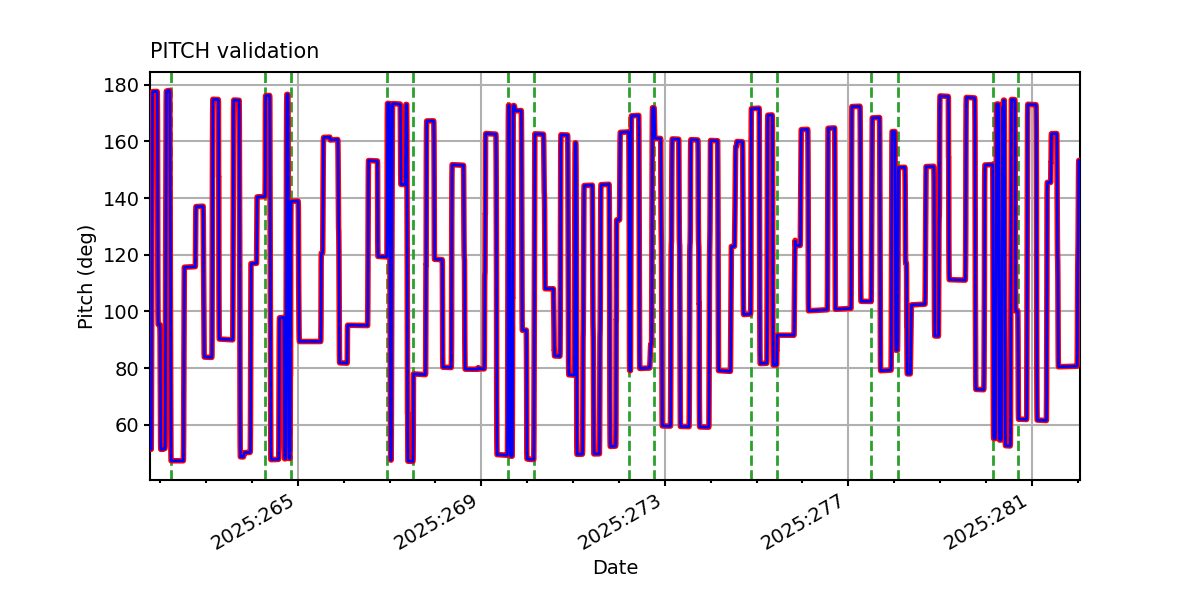

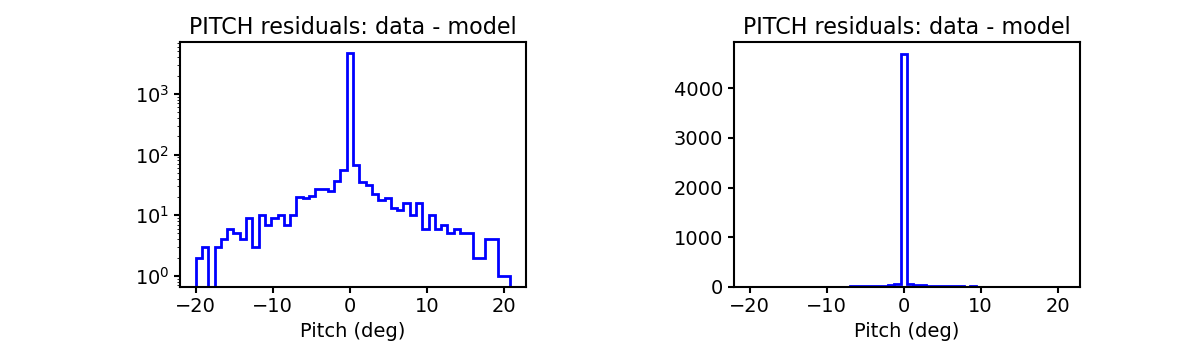

PITCH

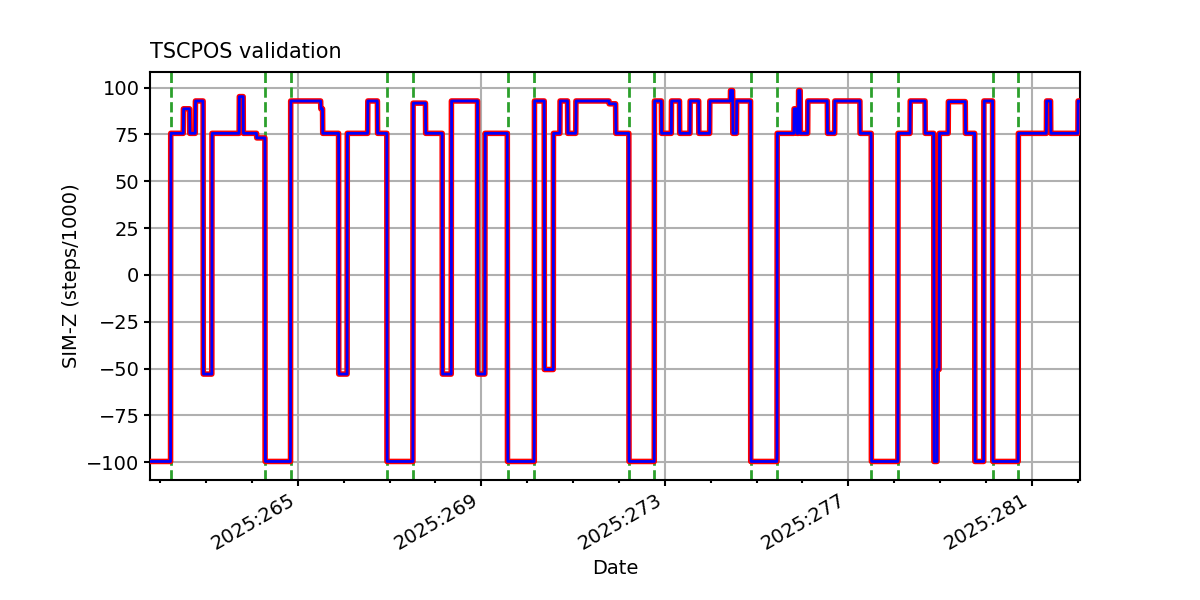

TSCPOS

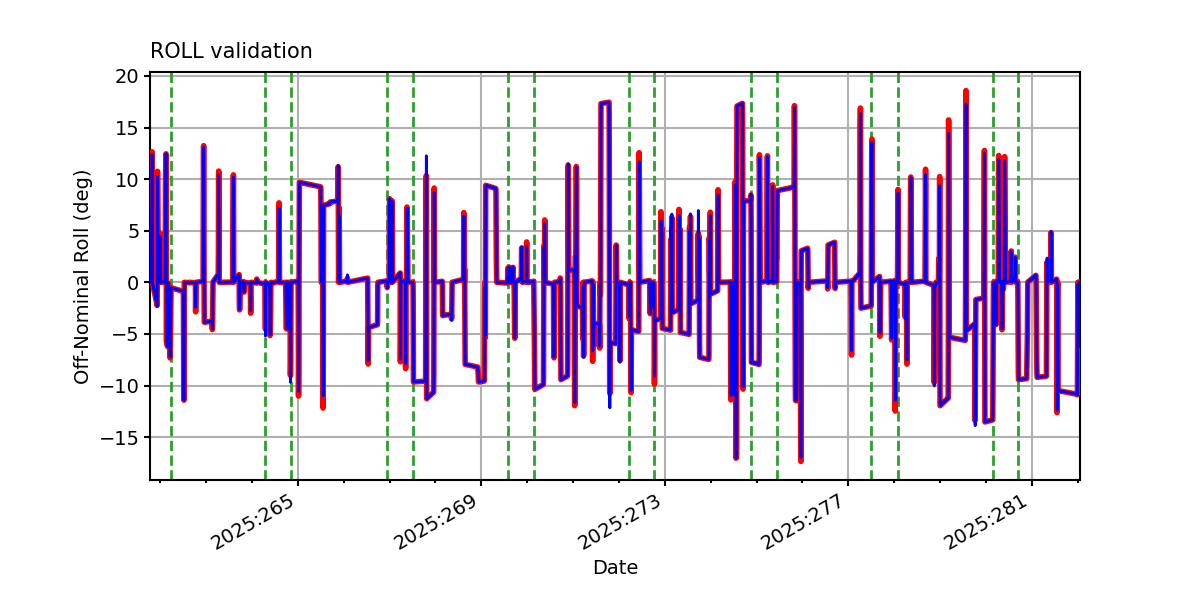

ROLL

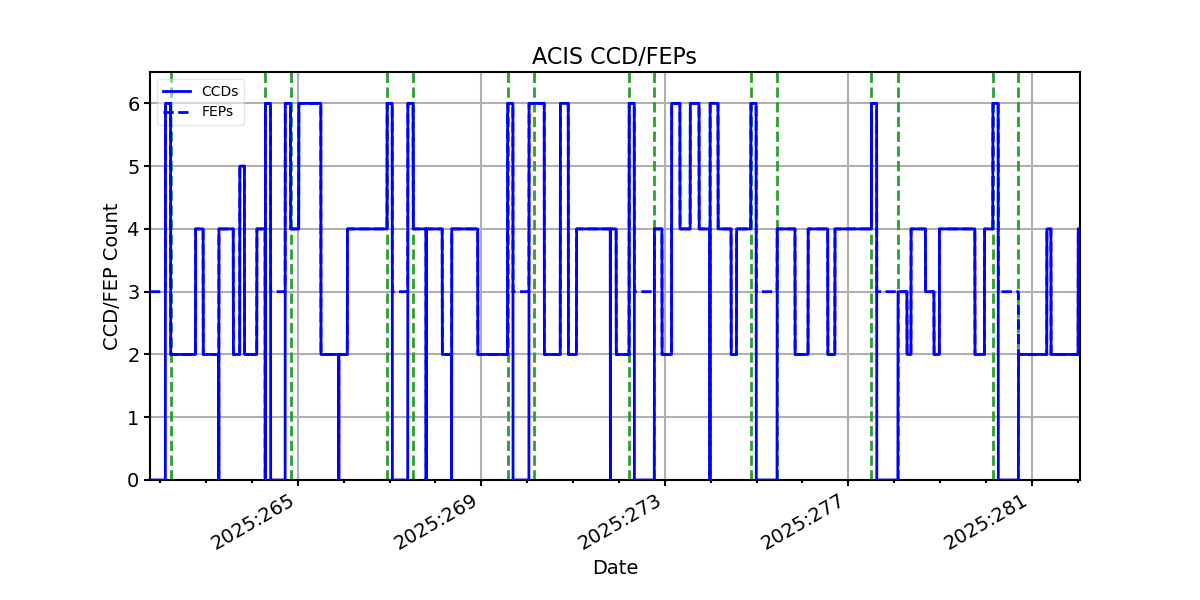

ACIS CCD/FEP Count
