PSMCBT Temperatures Check
Summary
| Date start | 2023:288:18:46:54.216 |
| Date stop | 2023:295:18:33:47.116 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/OCT1623/oflsa |
| Run time | Thu Oct 8 16:13:31 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

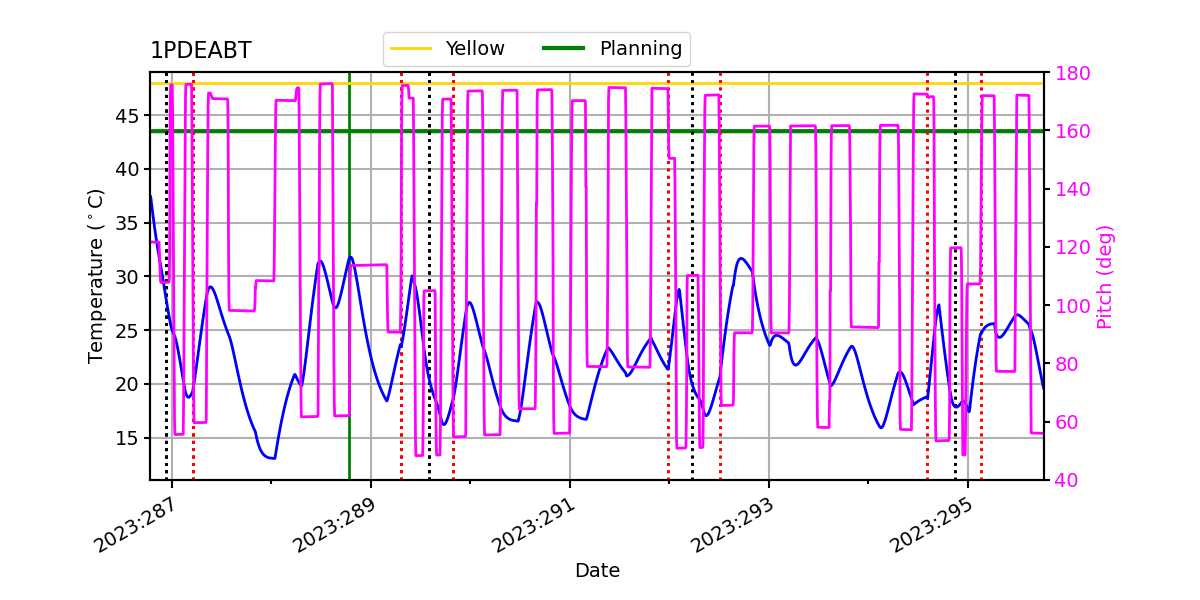

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -4.13 | -3.13 | -2.46 | -0.85 | 0.91 | 1.73 | 2.52 |
| pitch | -8.031 | -0.355 | -0.004 | -0.000 | 0.004 | 0.155 | 9.042 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.917 | -0.110 | -0.006 | 0.000 | 0.006 | 0.103 | 2.099 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -4.13 | 2.50 |
| PITCH | 1 | -8.031 | 3.00 |
| PITCH | 99 | 9.042 | 3.00 |

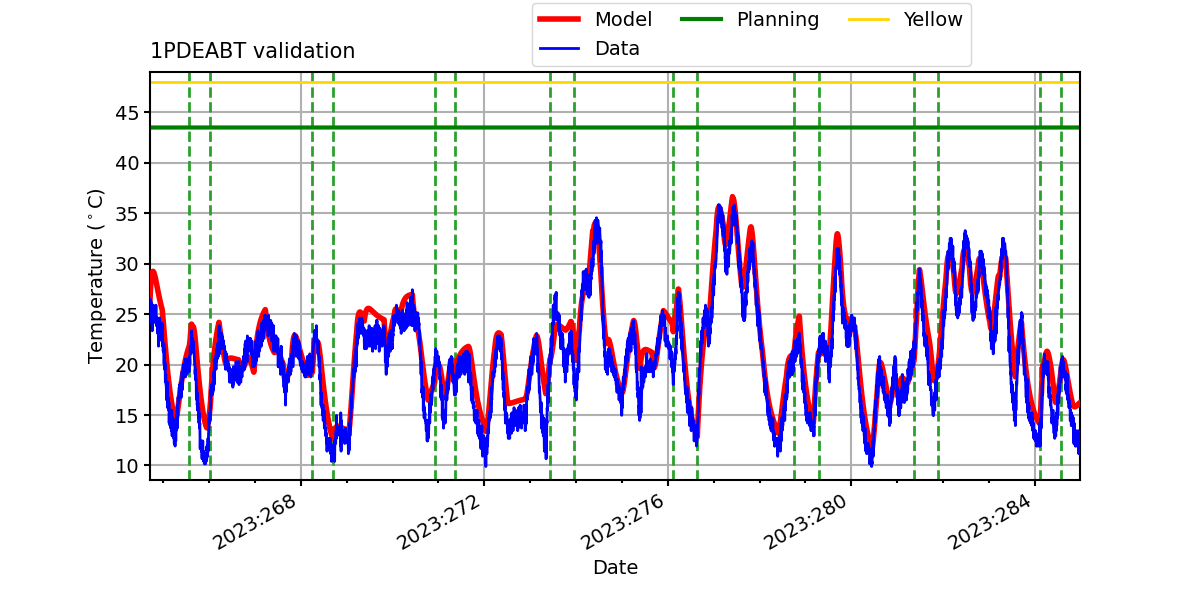

1PDEABT

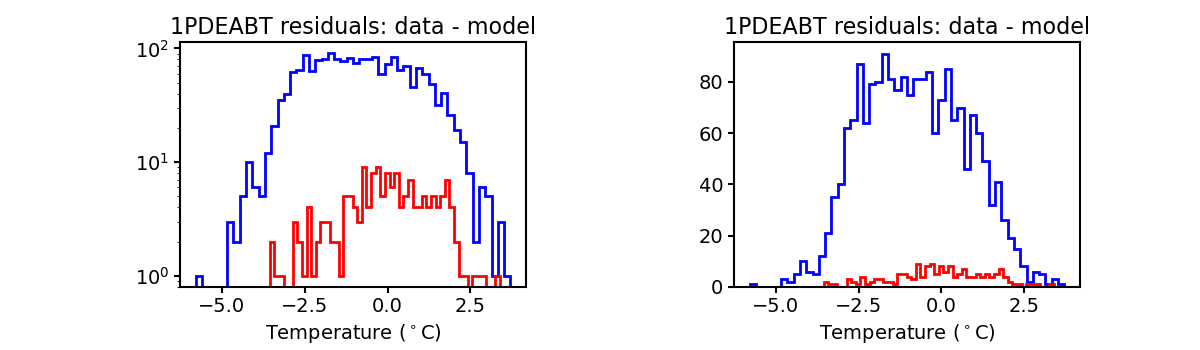

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

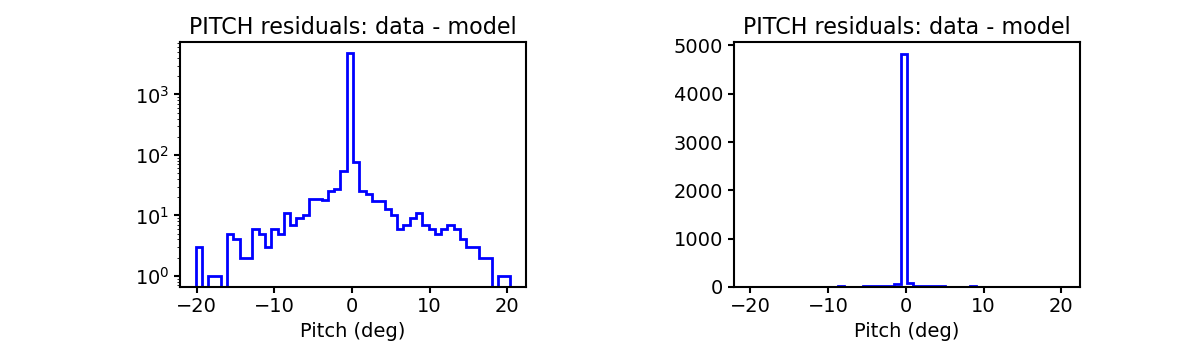

PITCH

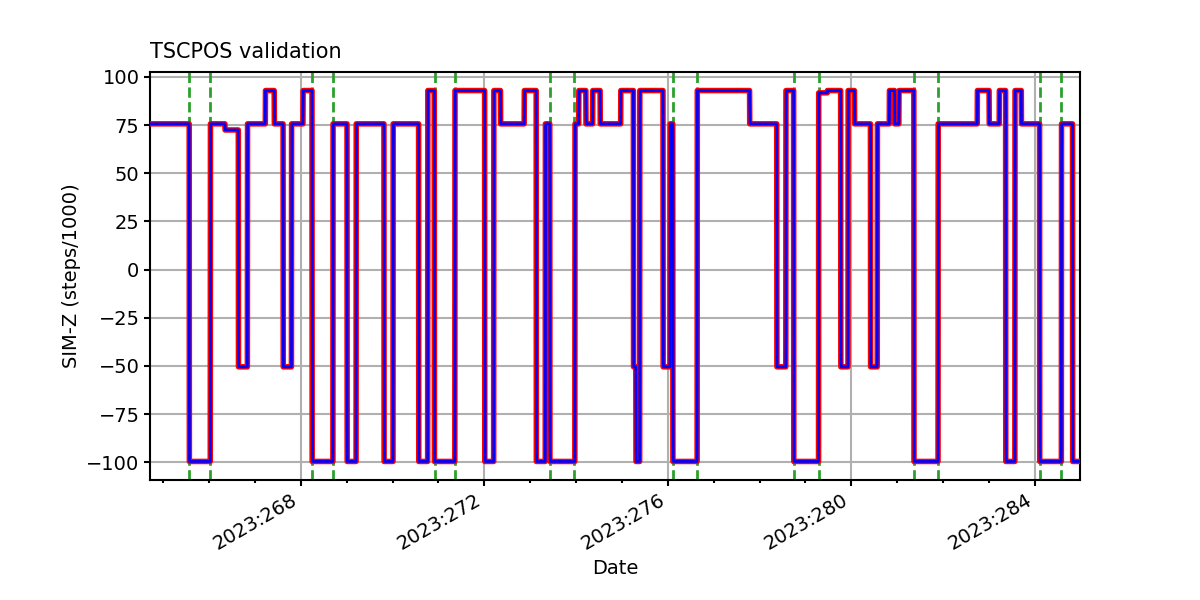

TSCPOS

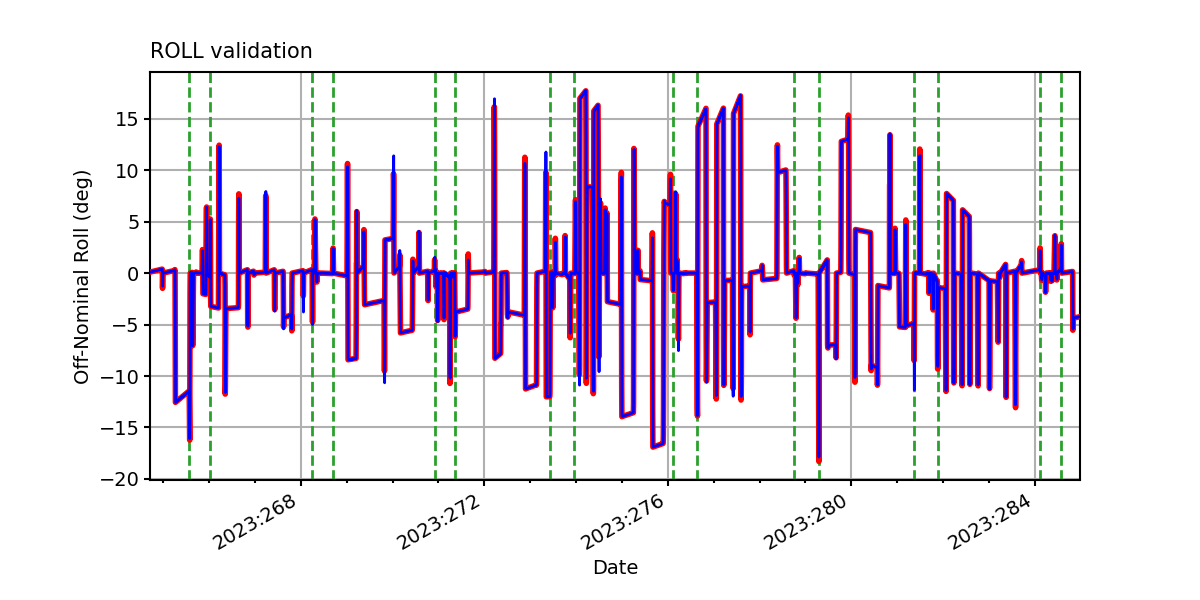

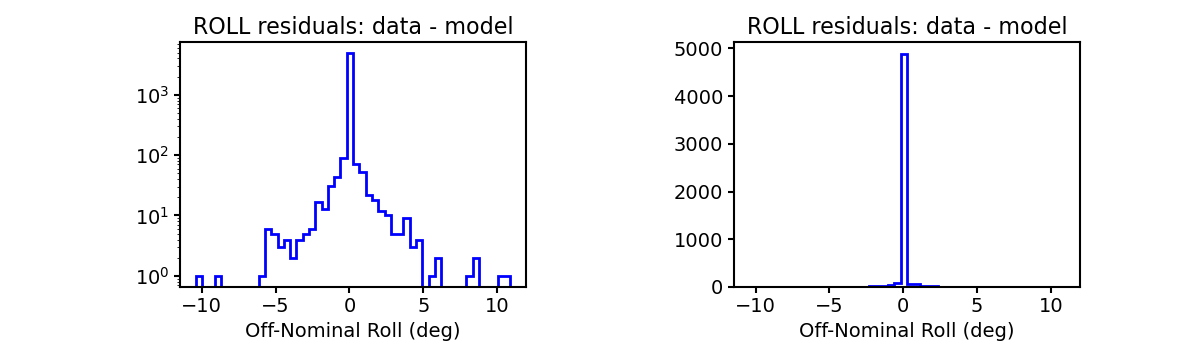

ROLL

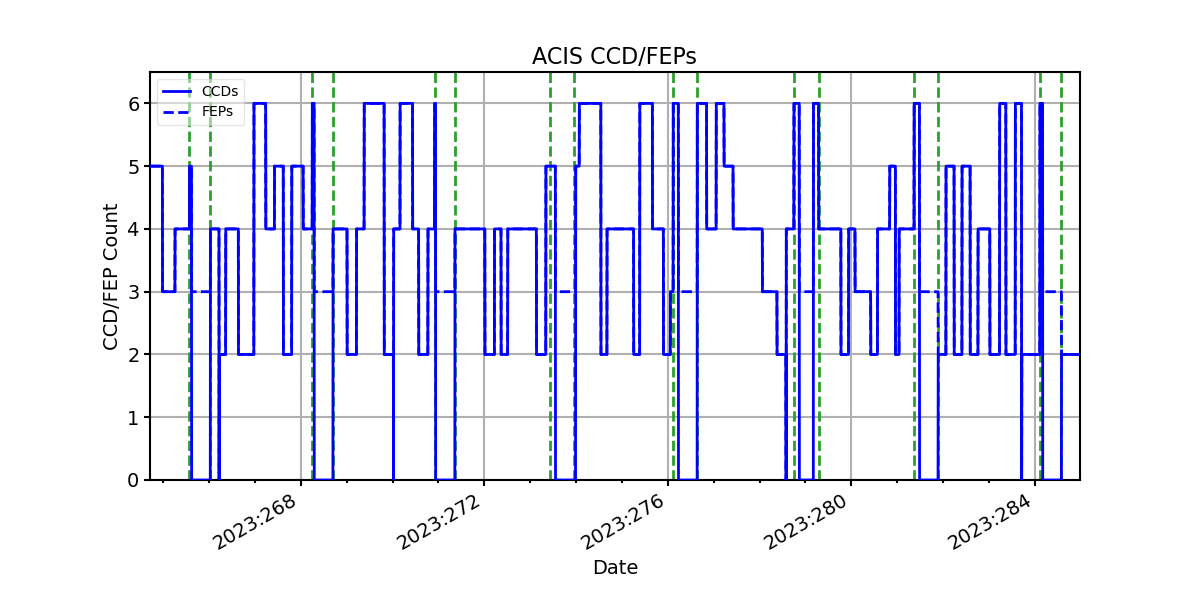

ACIS CCD/FEP Count
