PSMCBT Temperatures Check
Summary
| Date start | 2025:295:21:30:00.016 |
| Date stop | 2025:299:22:52:08.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2225/oflsa |
| Run time | Thu Oct 8 16:14:02 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

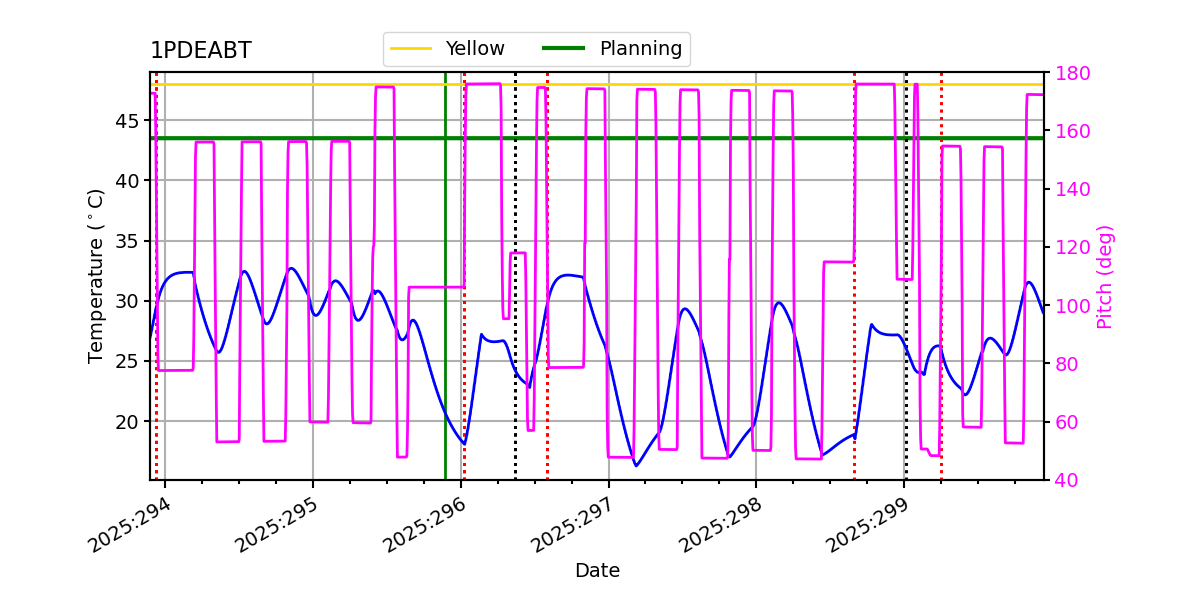

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.80 | -2.12 | -1.28 | 0.26 | 1.68 | 2.38 | 3.03 |
| pitch | -10.614 | -1.241 | -0.004 | -0.000 | 0.004 | 0.821 | 12.240 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.049 | -0.104 | -0.007 | 0.000 | 0.009 | 0.284 | 2.326 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.8 | 2.50 |
| PITCH | 1 | -10.614 | 3.00 |
| PITCH | 99 | 12.24 | 3.00 |
1PDEABT

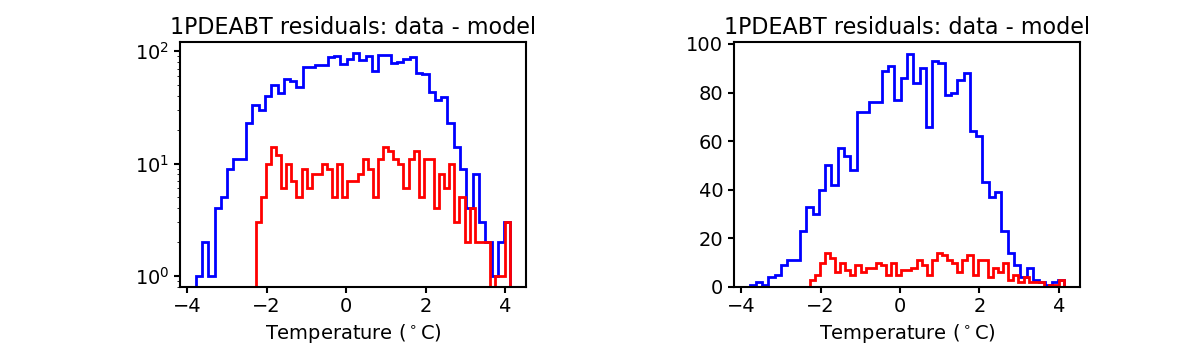

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

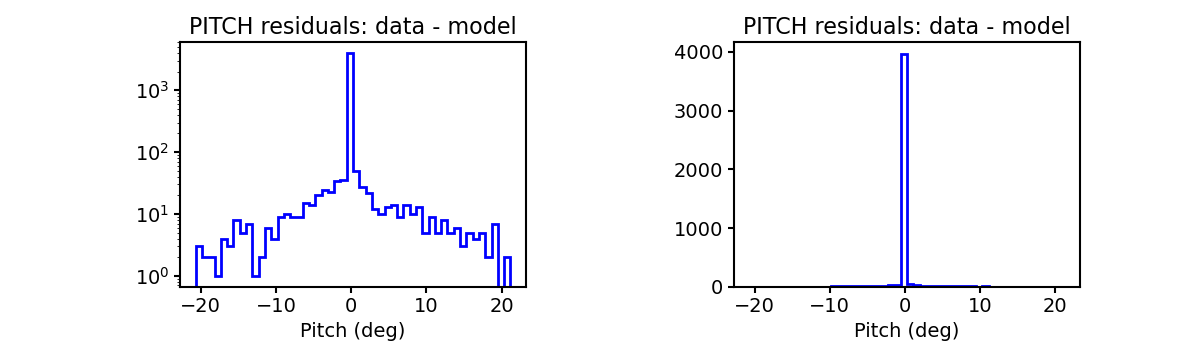

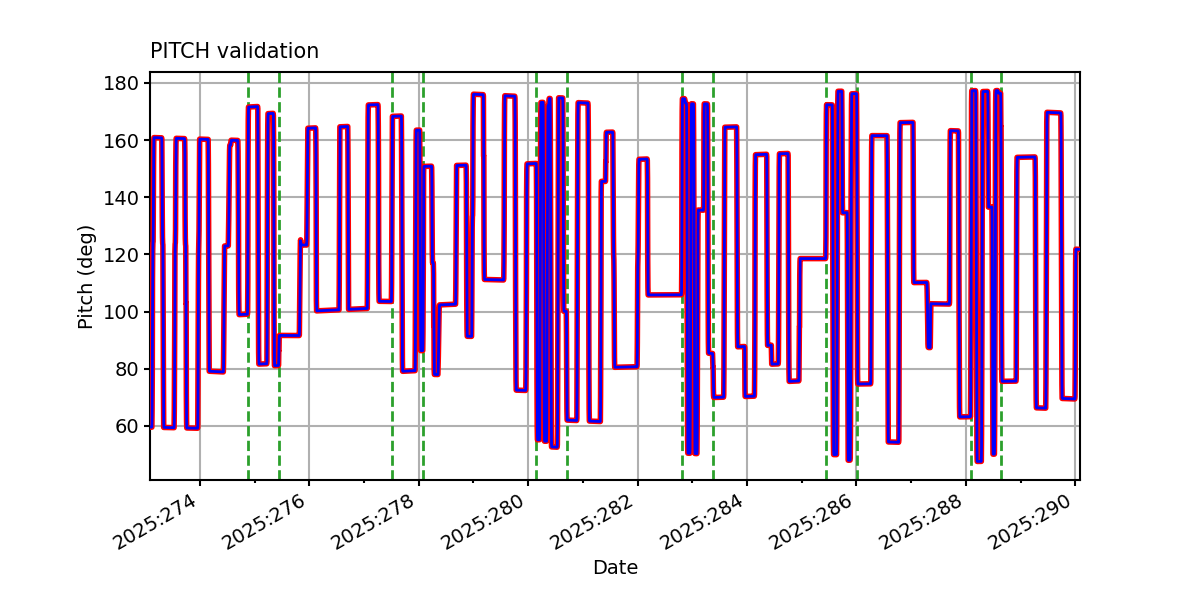

PITCH

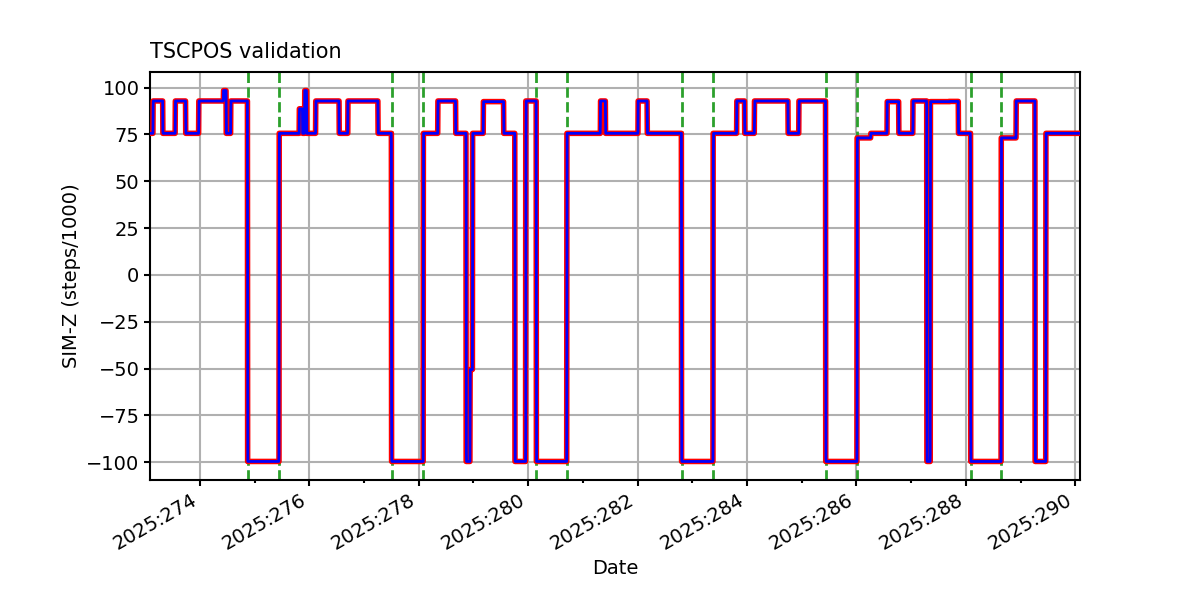

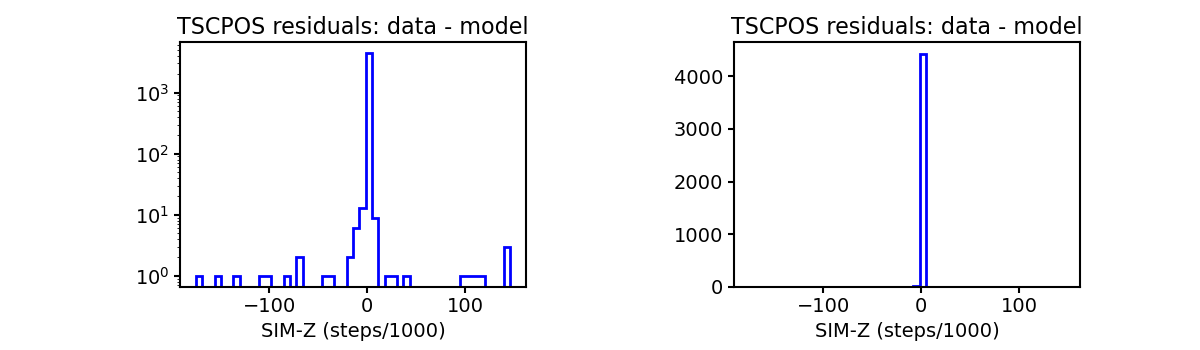

TSCPOS

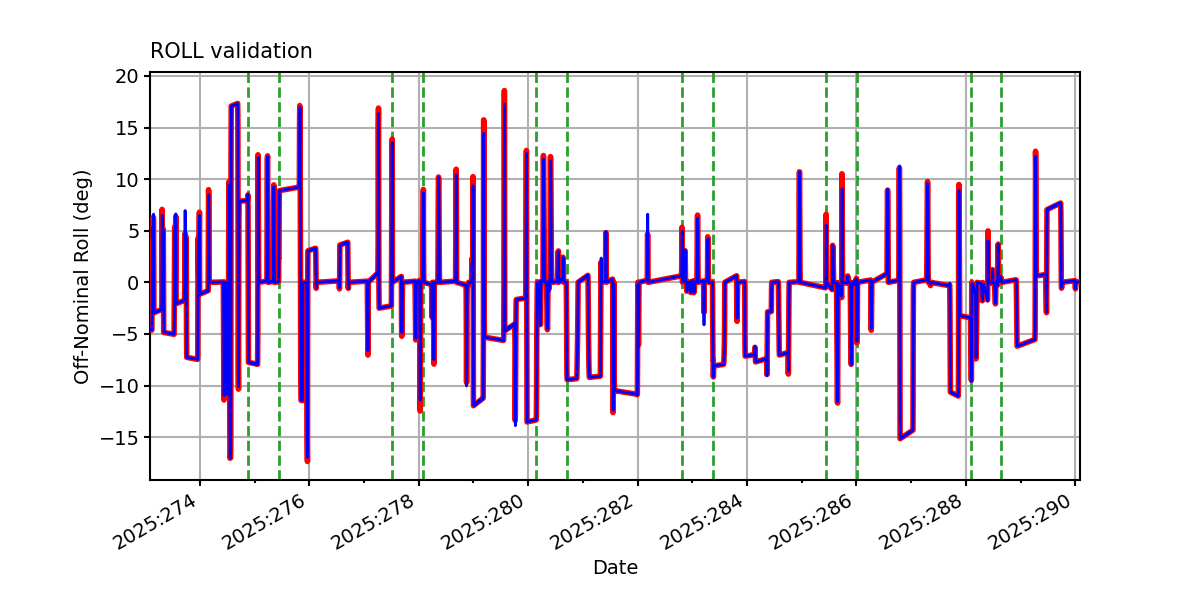

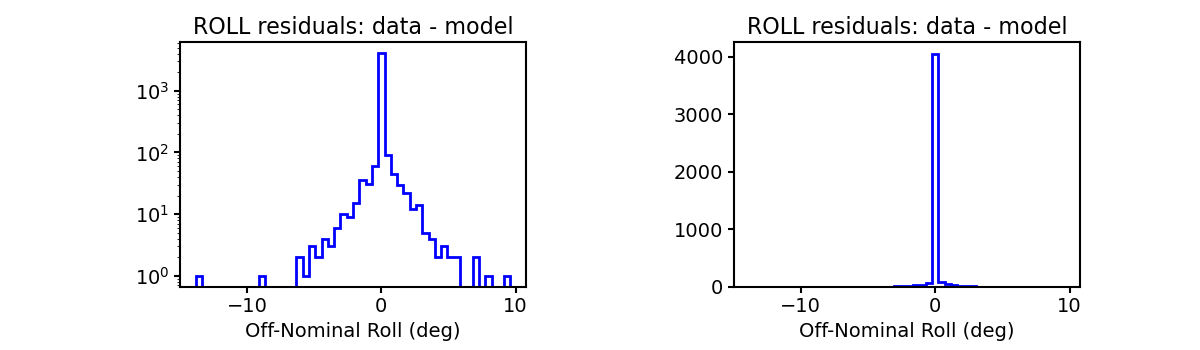

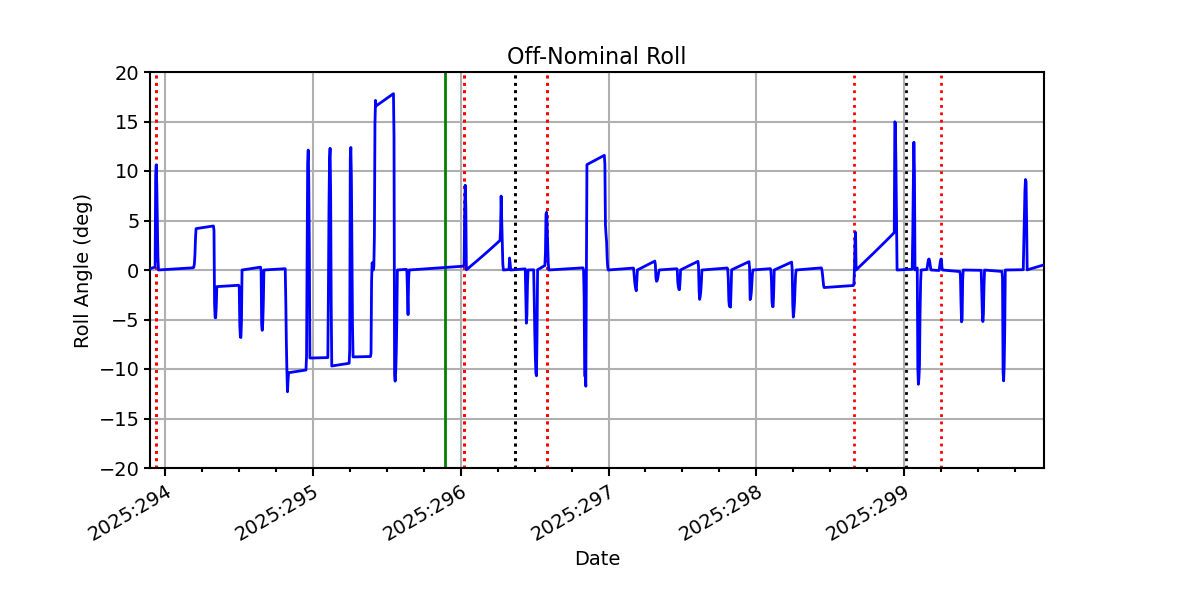

ROLL

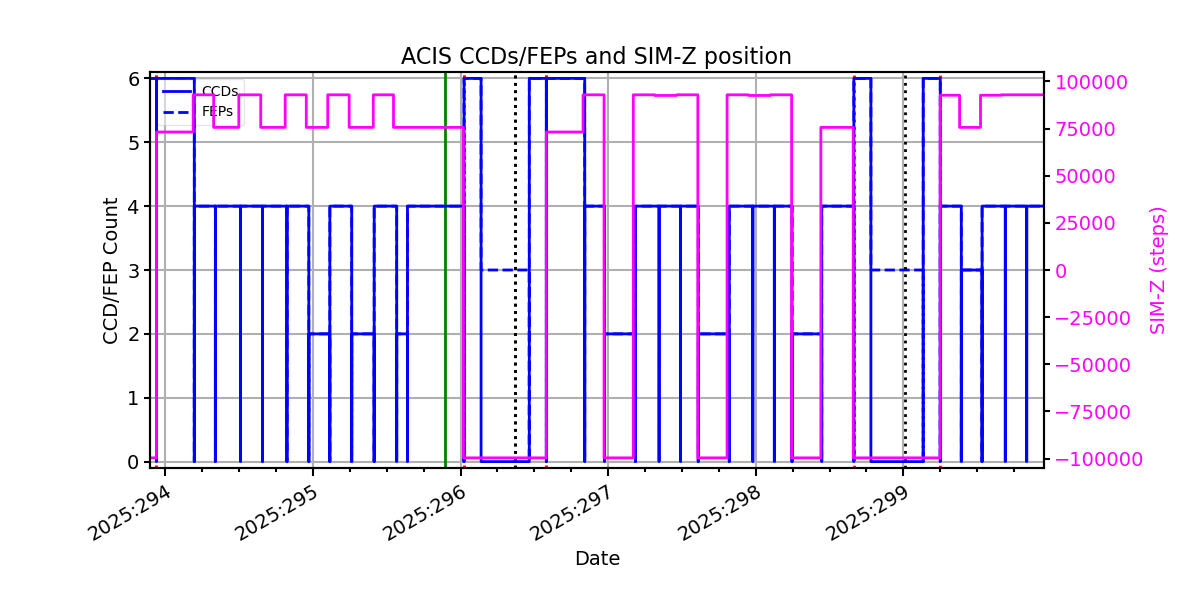

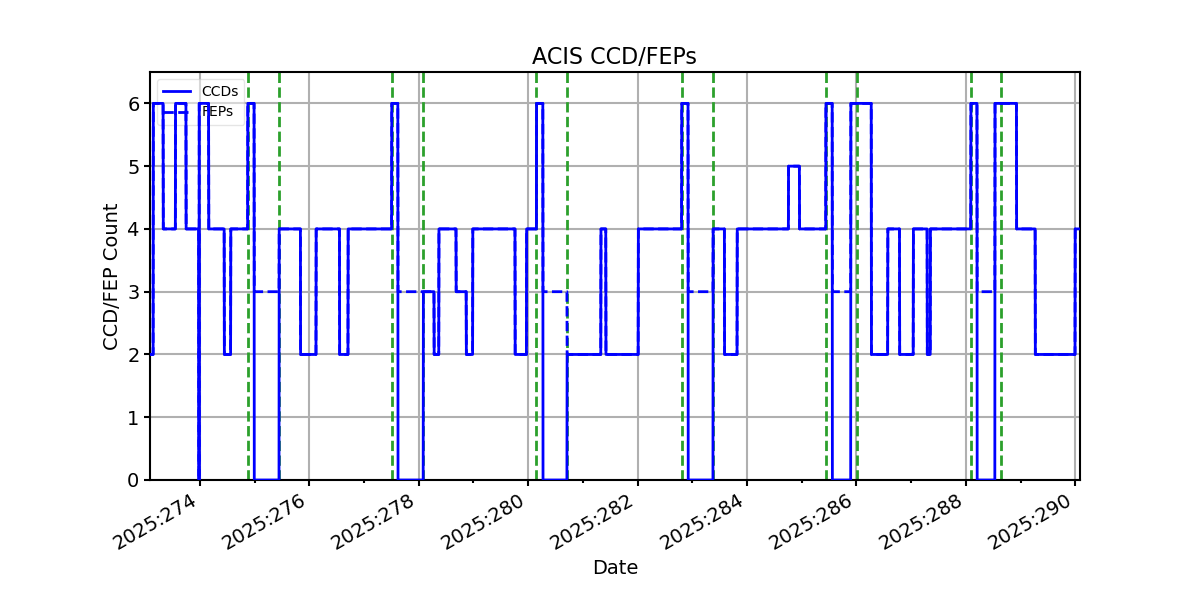

ACIS CCD/FEP Count
