PSMCBT Temperatures Check
Summary
| Date start | 2025:299:22:49:08.316 |
| Date stop | 2025:306:17:02:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2725/oflsa |
| Run time | Thu Oct 8 16:14:02 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

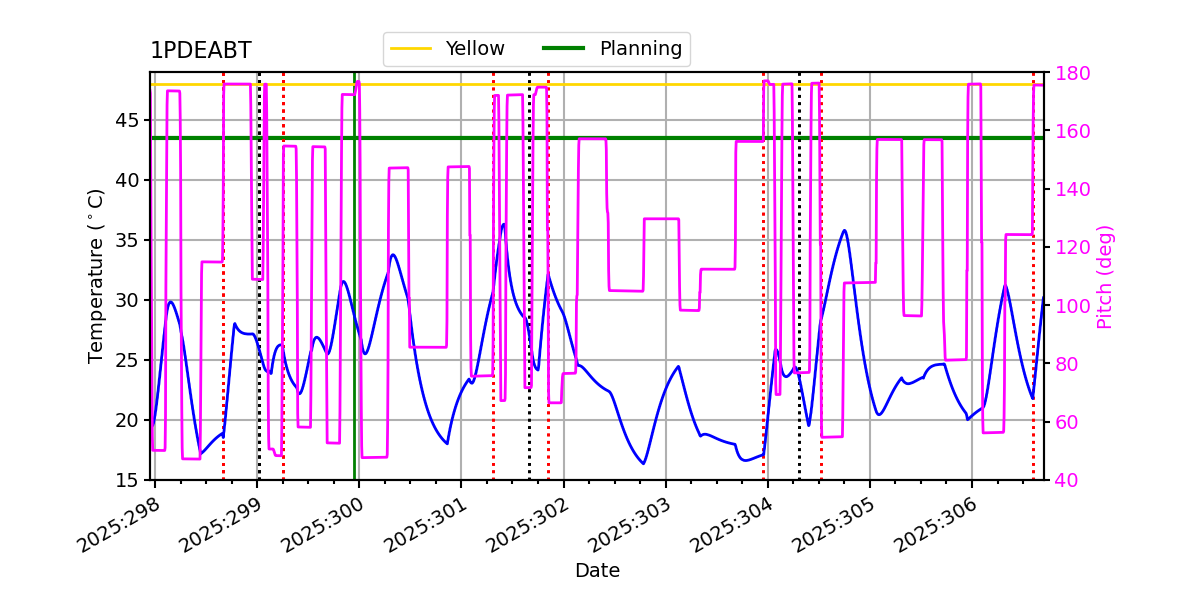

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.01 | -2.21 | -1.37 | 0.21 | 1.60 | 2.19 | 2.76 |
| pitch | -11.079 | -1.018 | -0.004 | -0.000 | 0.004 | 0.776 | 12.615 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.701 | -0.086 | -0.007 | 0.000 | 0.008 | 0.206 | 2.081 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.01 | 2.50 |
| PITCH | 1 | -11.079 | 3.00 |
| PITCH | 99 | 12.615 | 3.00 |

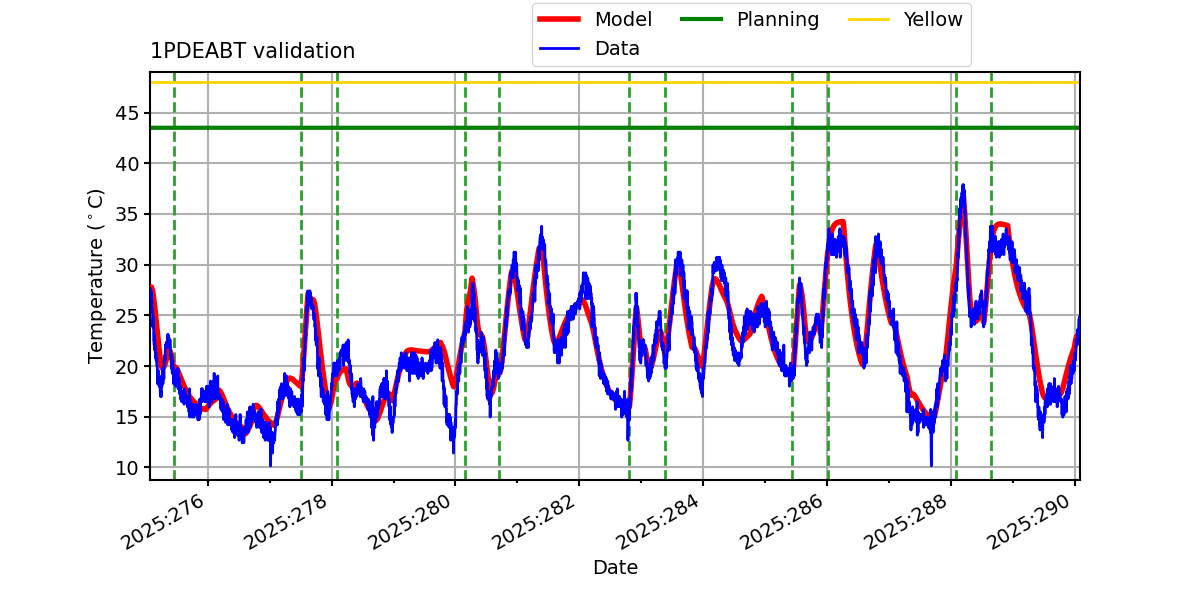

1PDEABT

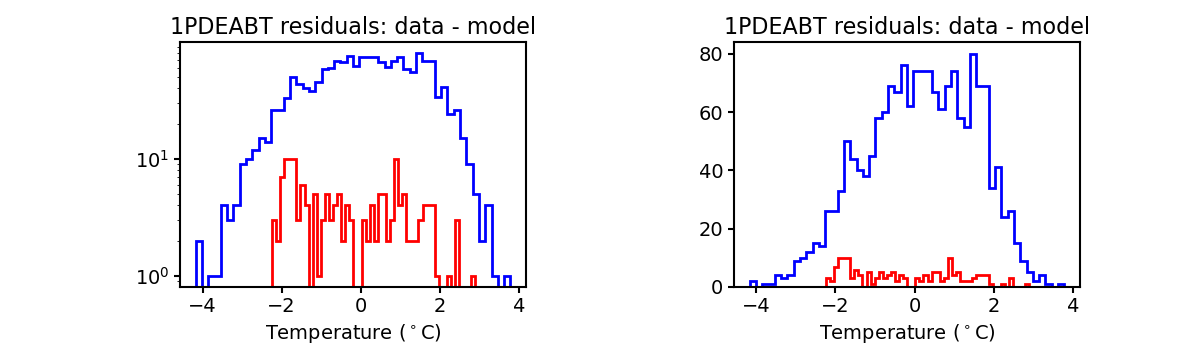

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

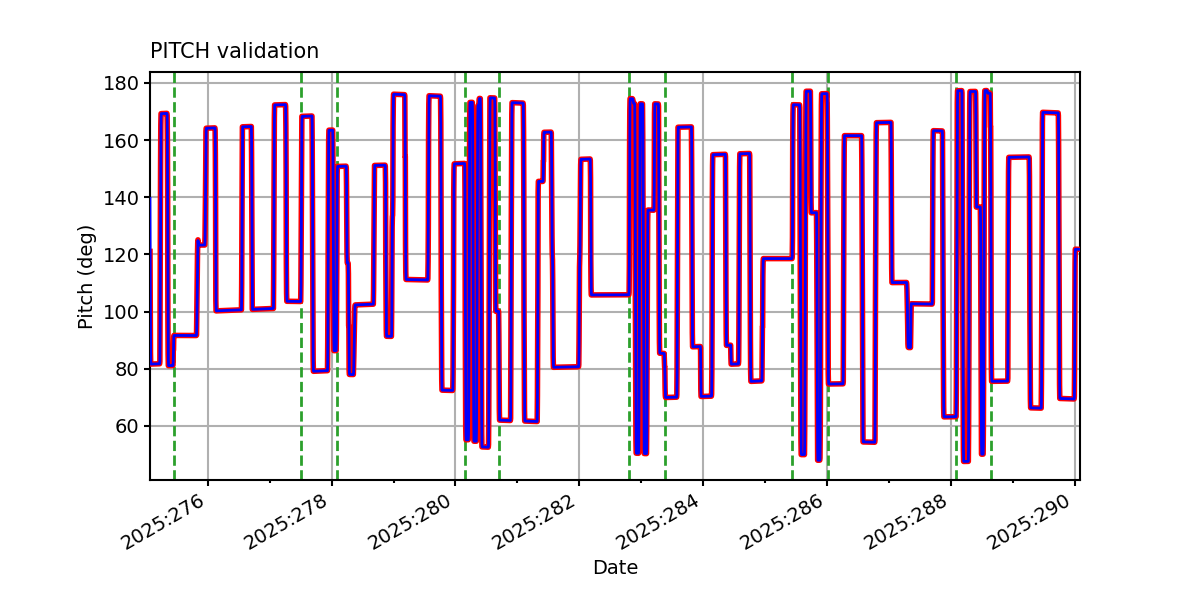

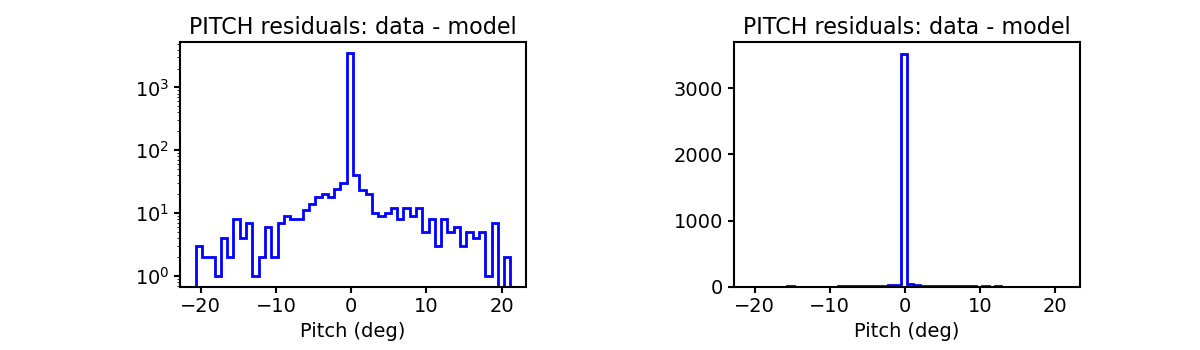

PITCH

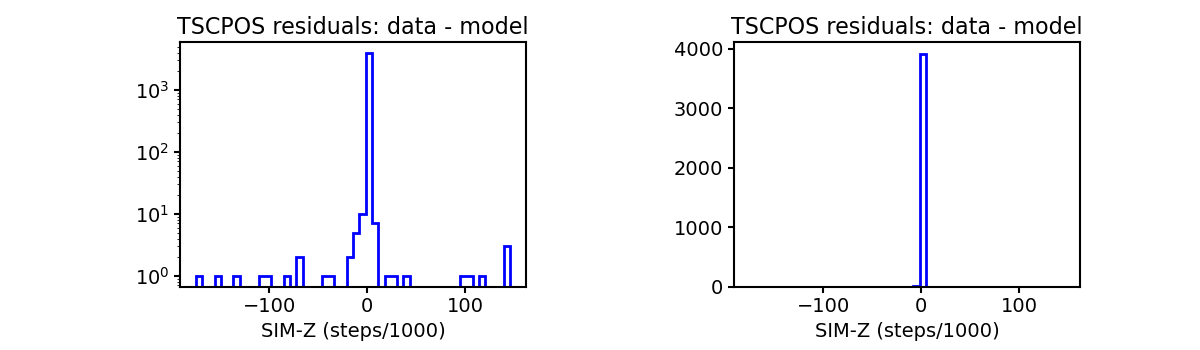

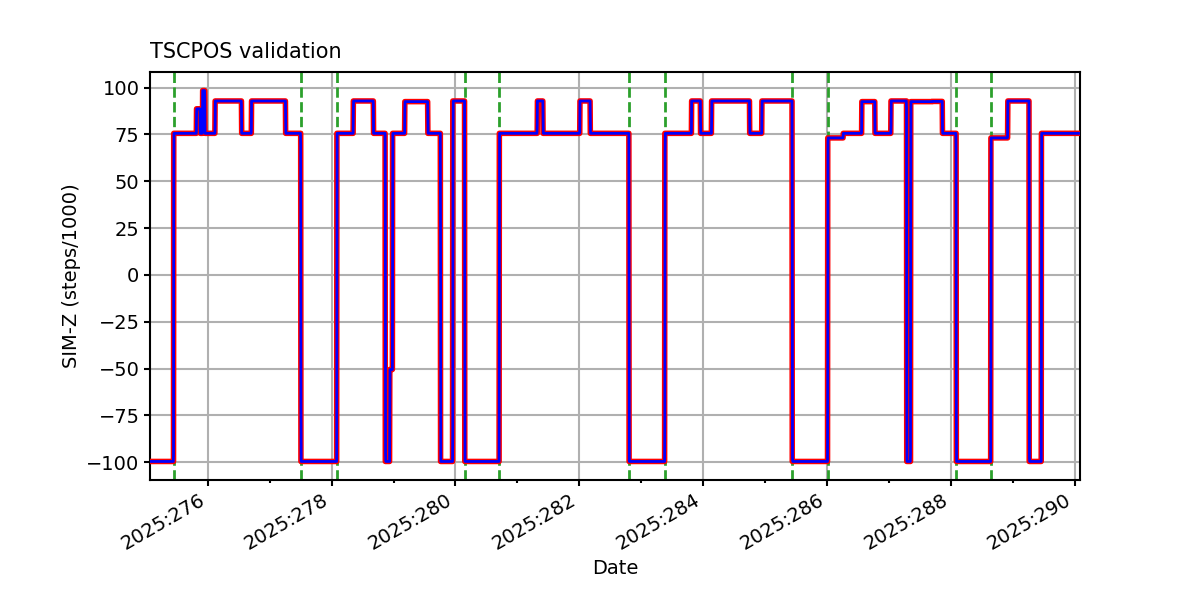

TSCPOS

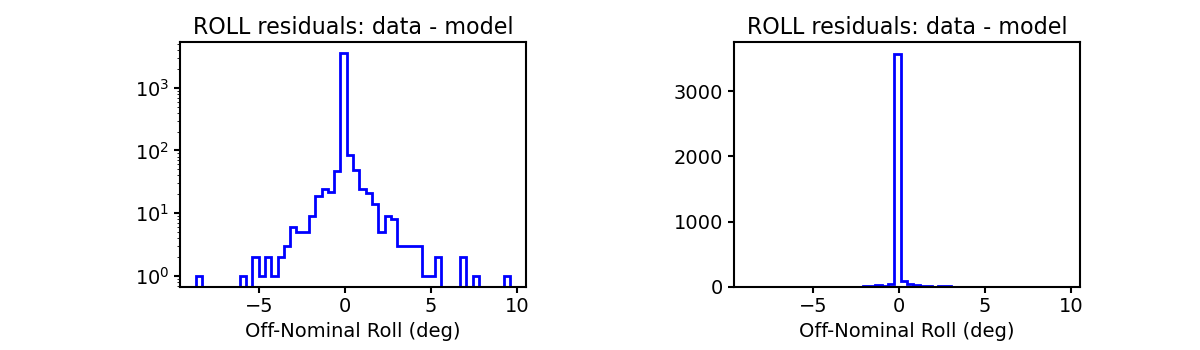

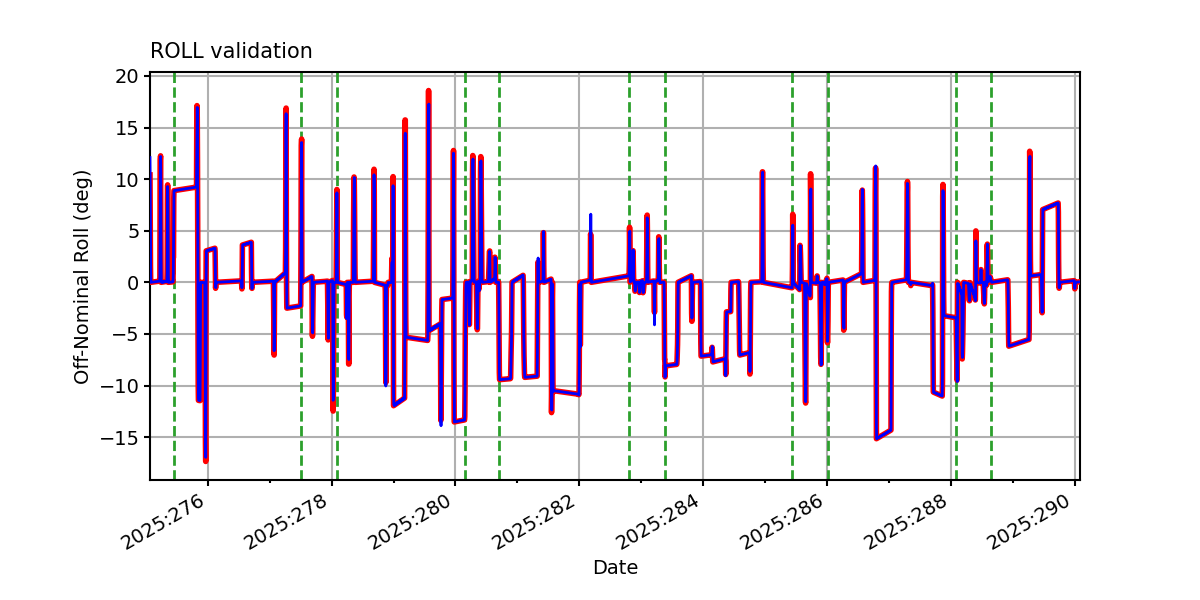

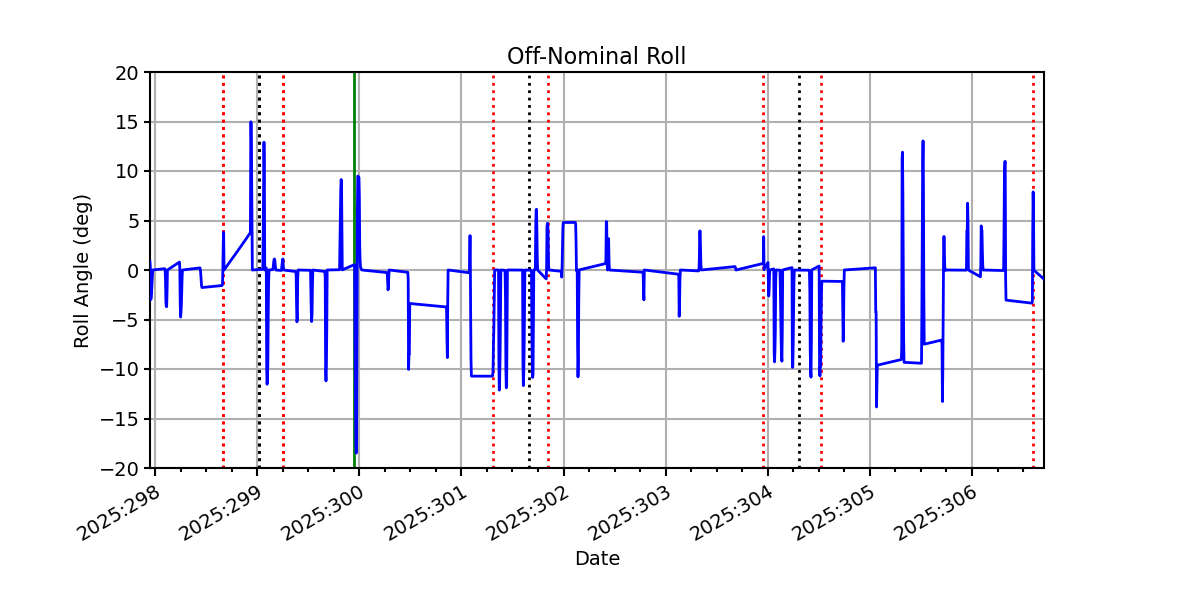

ROLL

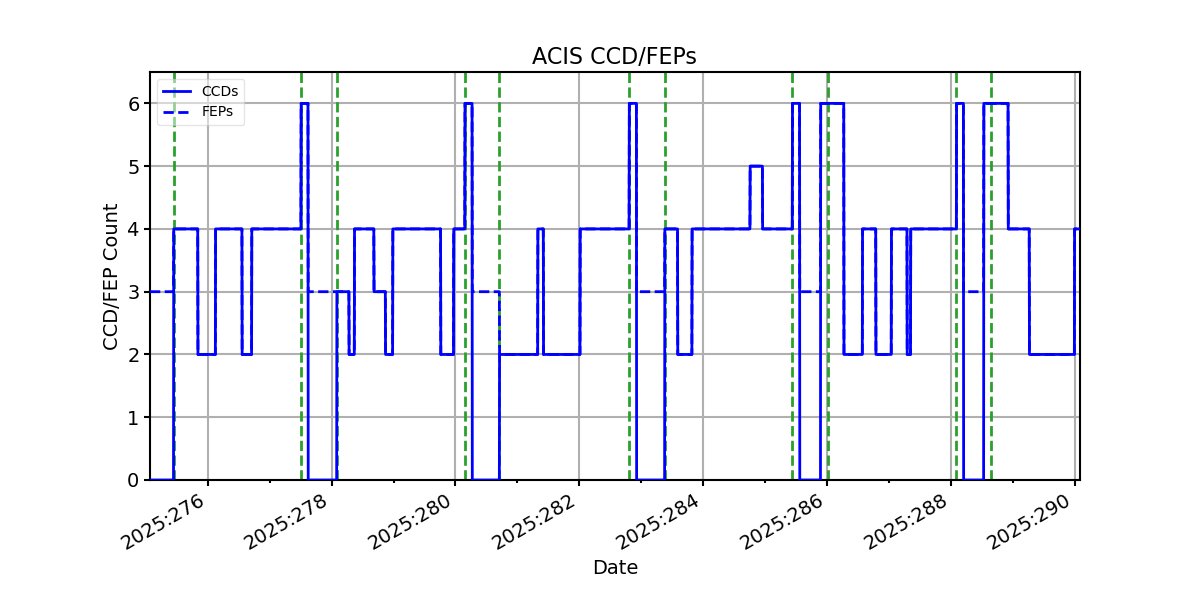

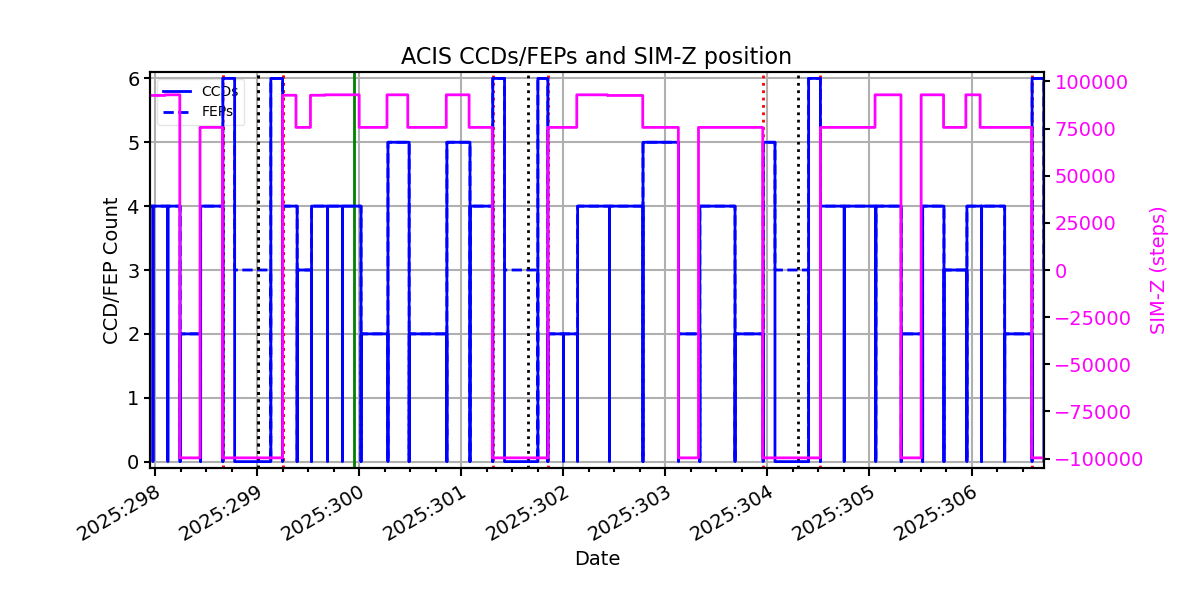

ACIS CCD/FEP Count
