PSMCBT Temperatures Check
Summary
| Date start | 2023:301:15:56:34.416 |
| Date stop | 2023:309:23:33:43.116 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/OCT2823/oflsa |
| Run time | Thu Oct 8 16:14:02 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.39 | -2.84 | -2.22 | -0.84 | 0.52 | 1.30 | 1.97 |
| pitch | -11.323 | -1.248 | -0.004 | -0.000 | 0.004 | 0.814 | 11.124 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 119 |
| roll | -2.369 | -0.218 | -0.011 | 0.000 | 0.011 | 0.246 | 2.309 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.39 | 2.50 |
| PITCH | 1 | -11.323 | 3.00 |
| PITCH | 99 | 11.124 | 3.00 |
| TSCPOS | 99 | 119.0 | 2.50 |

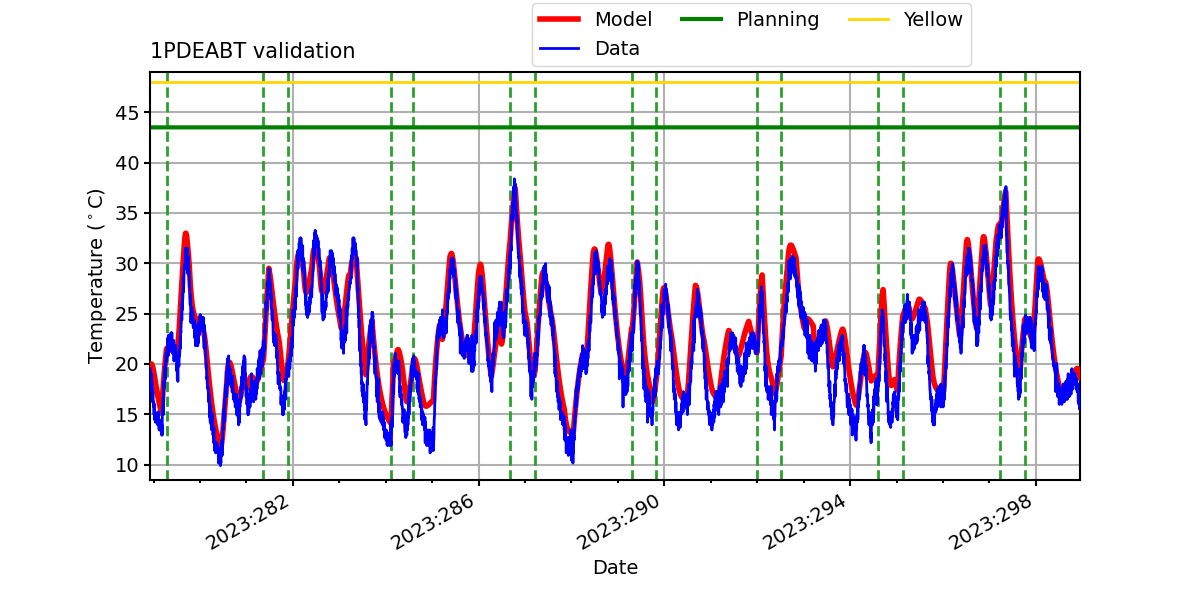

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

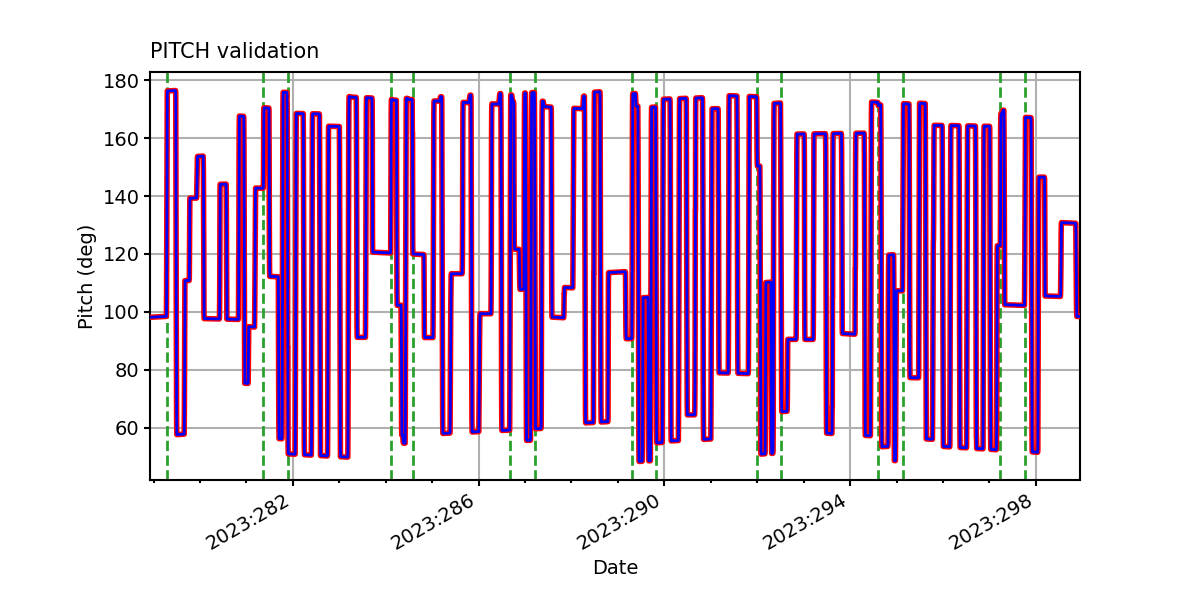

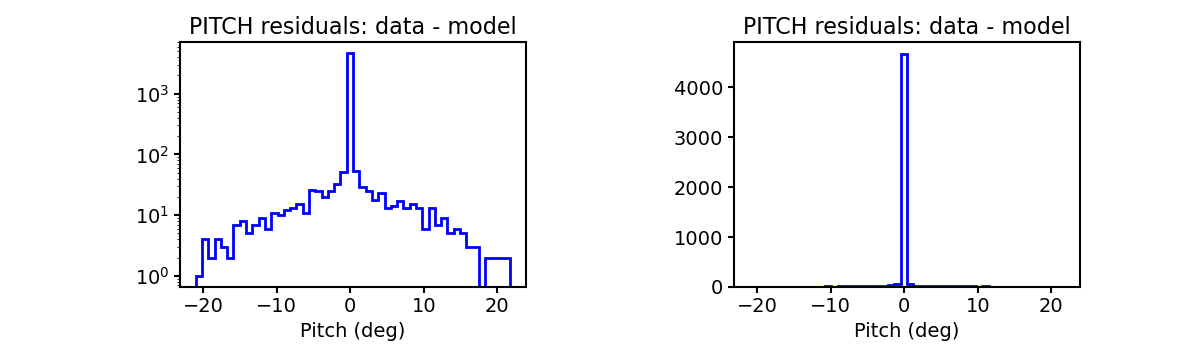

PITCH

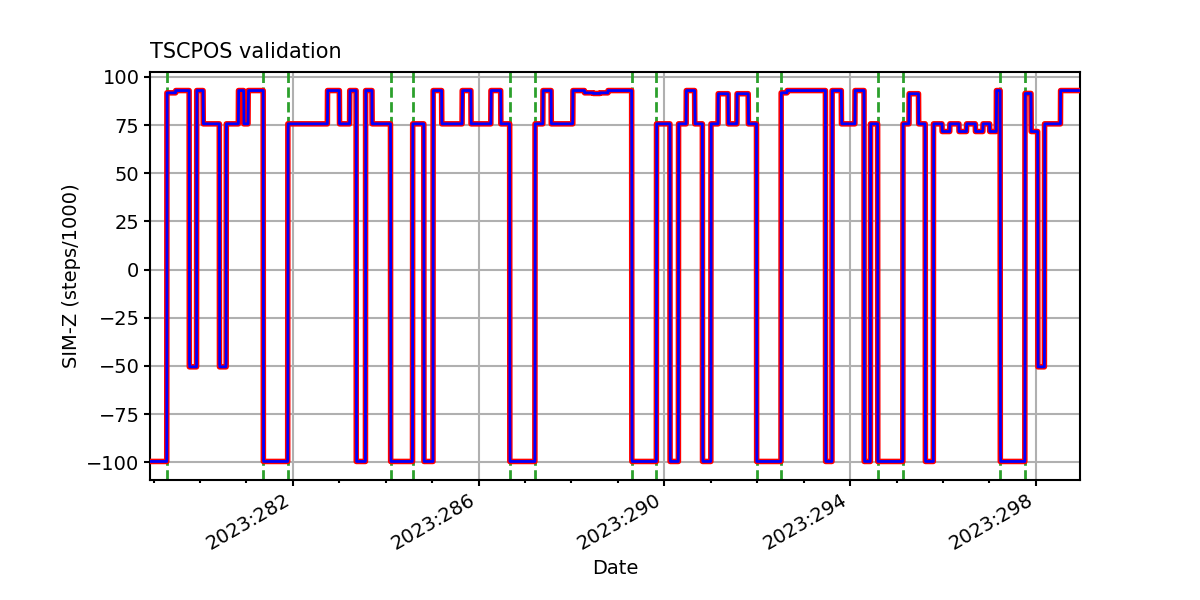

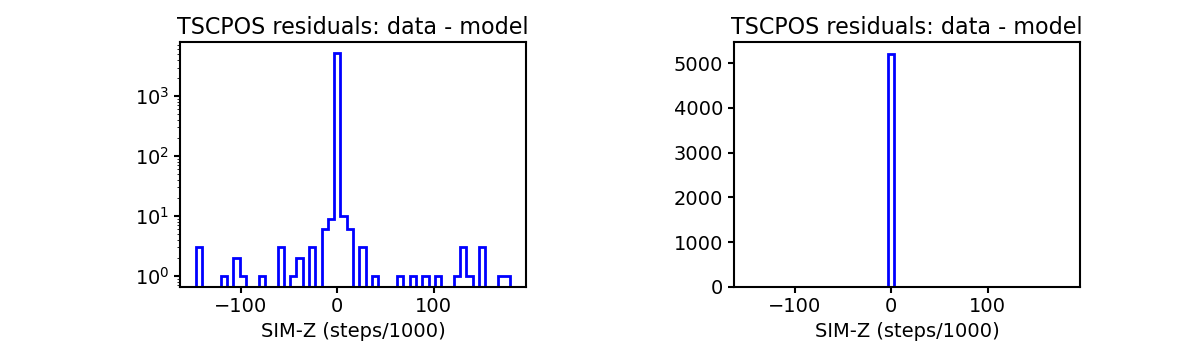

TSCPOS

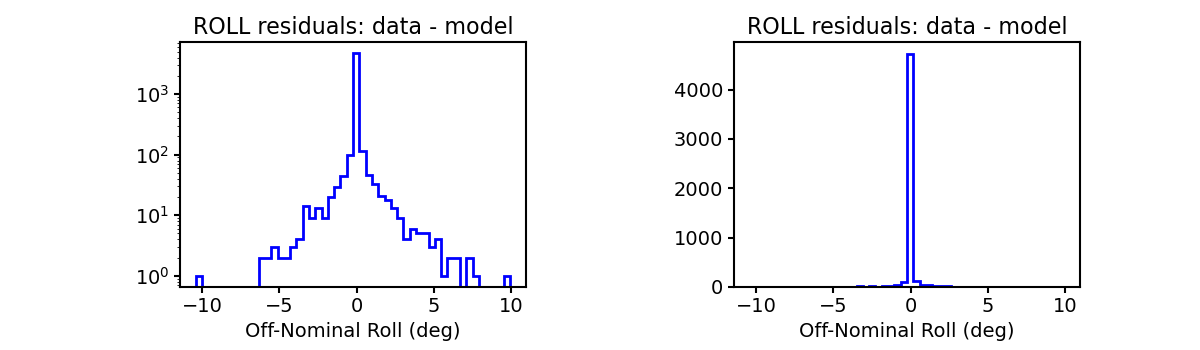

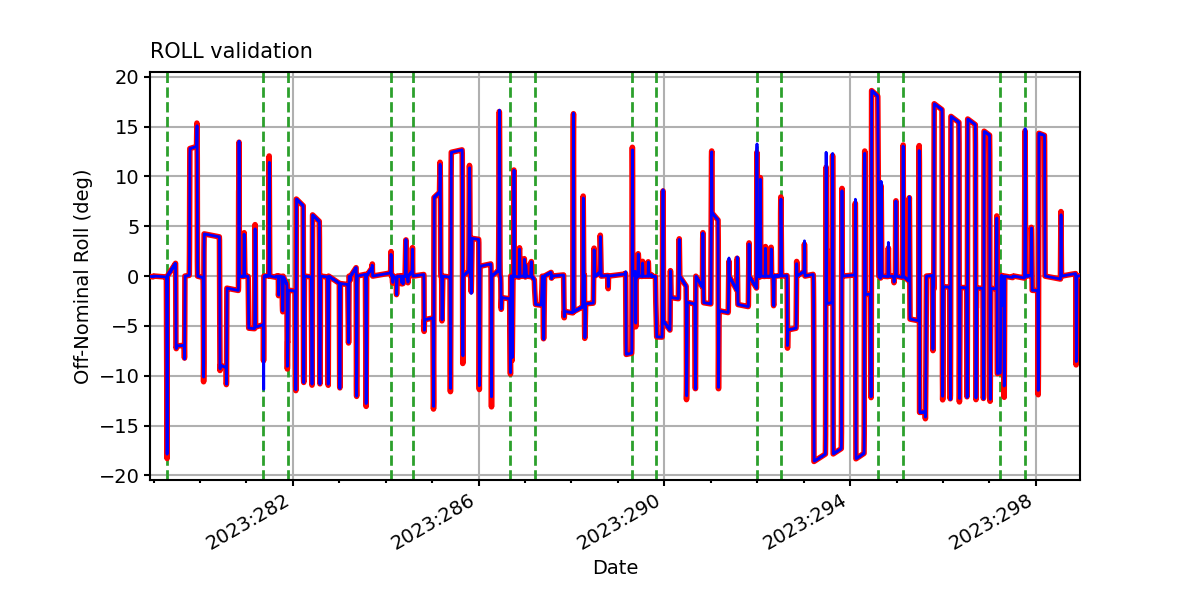

ROLL

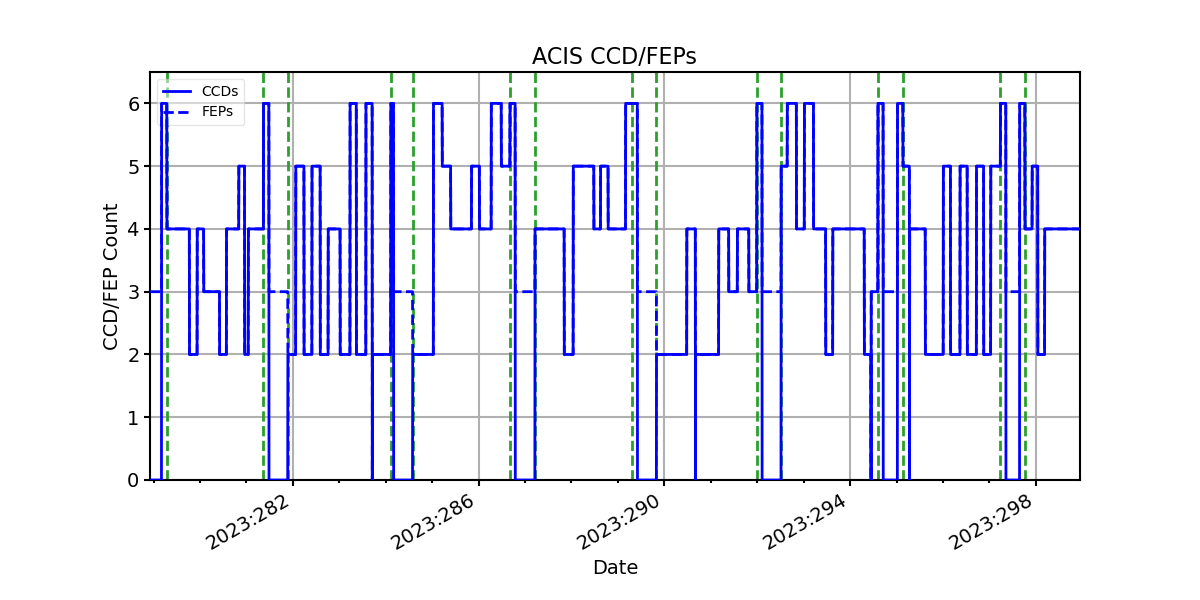

ACIS CCD/FEP Count
