PSMCBT Temperatures Check
Summary
| Date start | 2025:244:00:20:40.116 |
| Date stop | 2025:250:21:18:18.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP0125/oflsa |
| Run time | Thu Oct 8 16:14:29 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

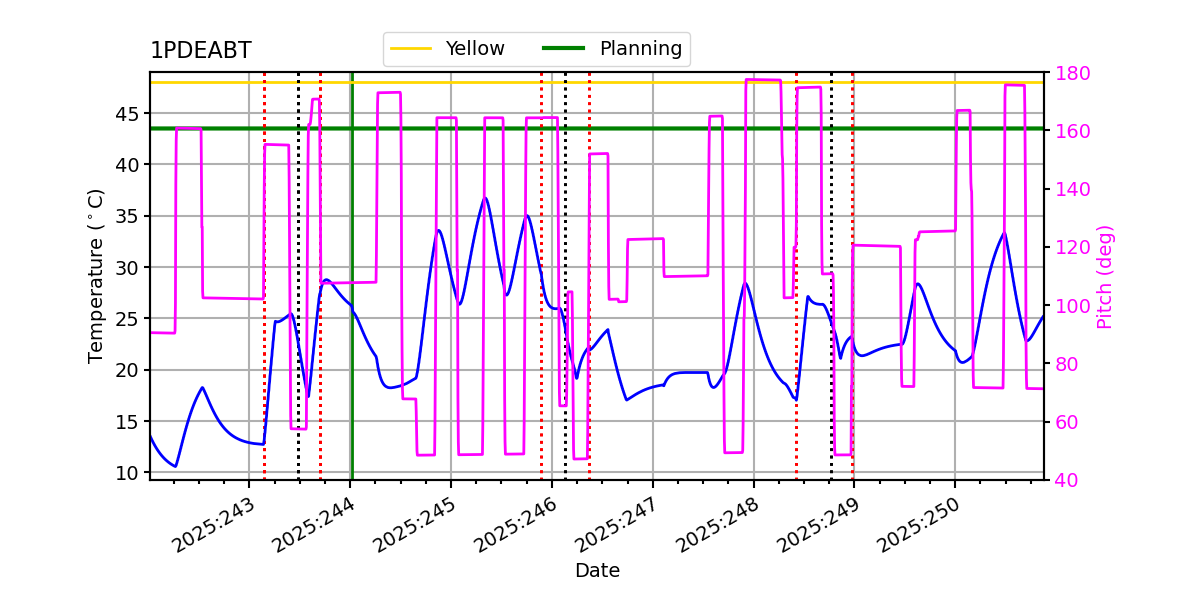

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.98 | -2.30 | -1.53 | 0.21 | 1.77 | 2.35 | 2.89 |
| pitch | -8.642 | -0.195 | -0.004 | -0.000 | 0.004 | 0.035 | 9.308 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.290 | -0.058 | -0.005 | 0.000 | 0.005 | 0.066 | 1.640 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.98 | 2.50 |
| PITCH | 1 | -8.642 | 3.00 |
| PITCH | 99 | 9.308 | 3.00 |

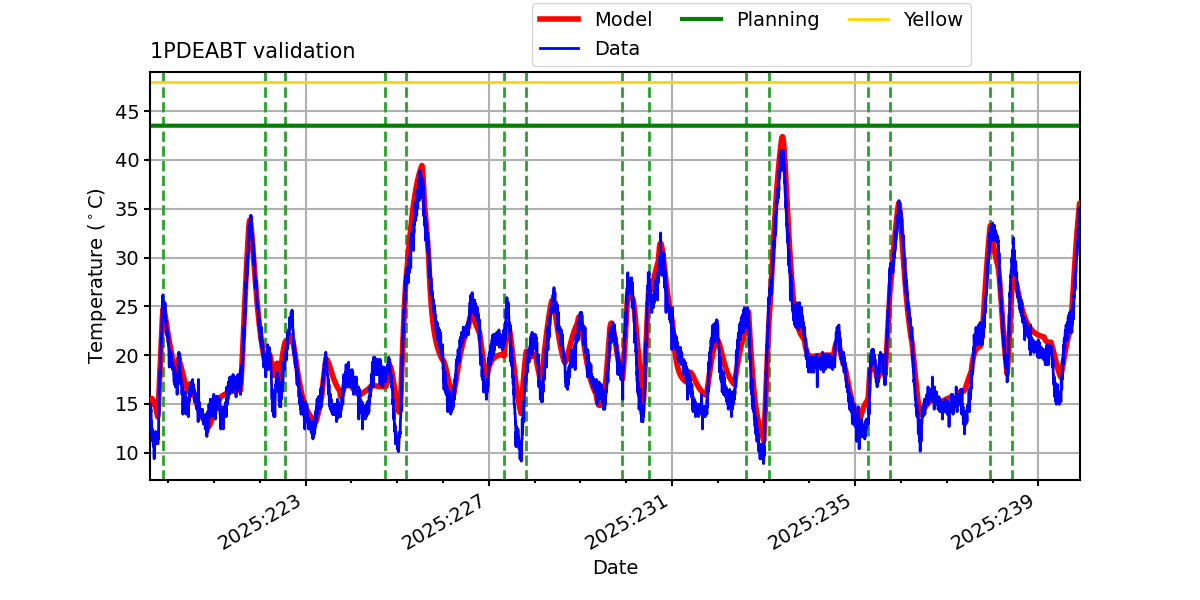

1PDEABT

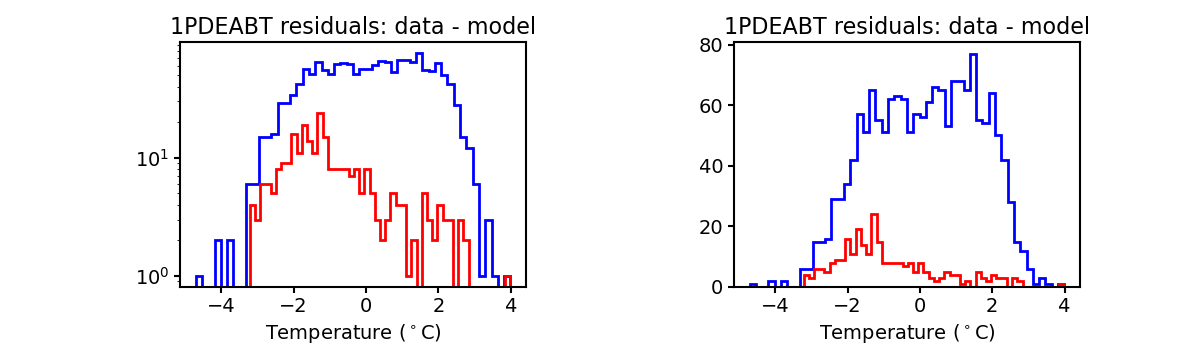

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

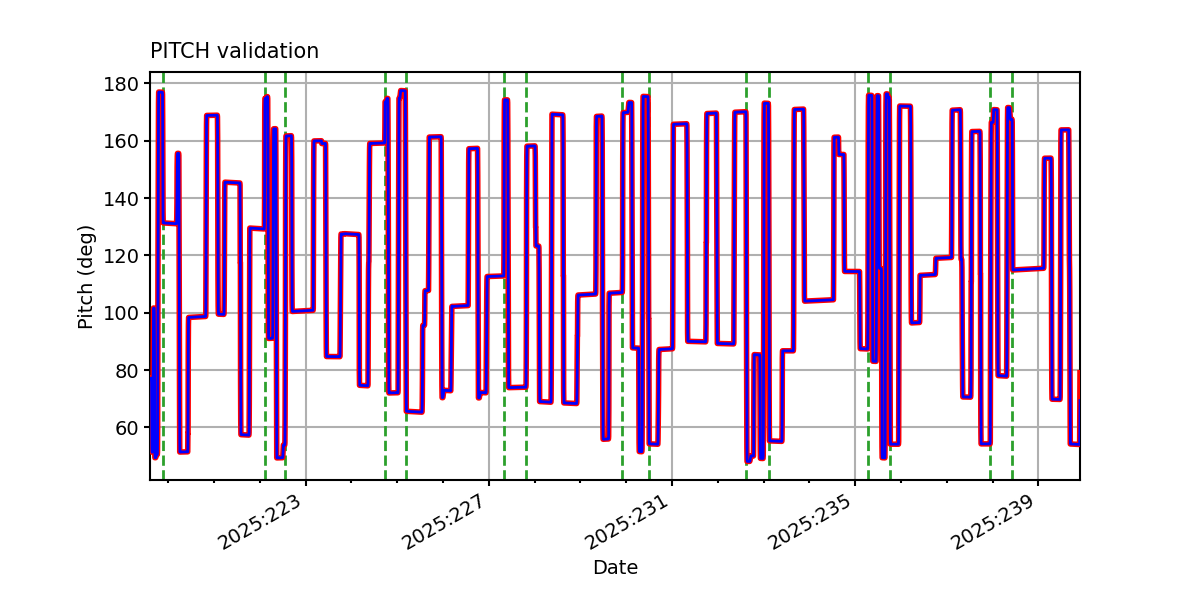

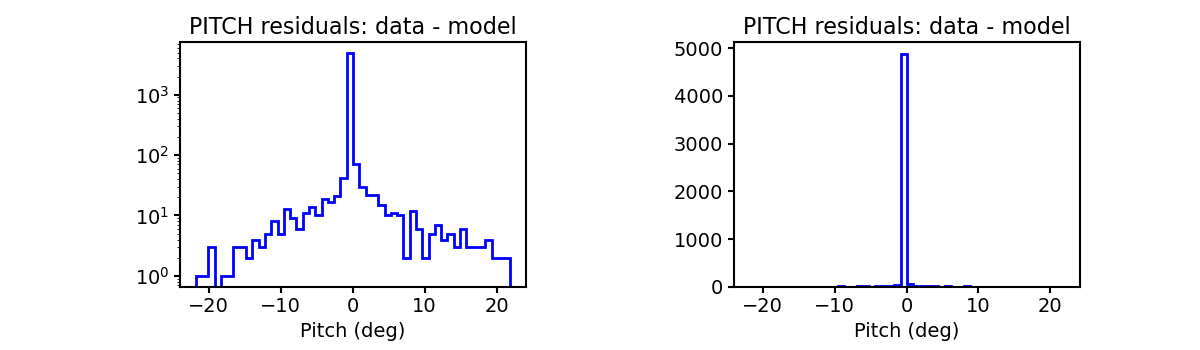

PITCH

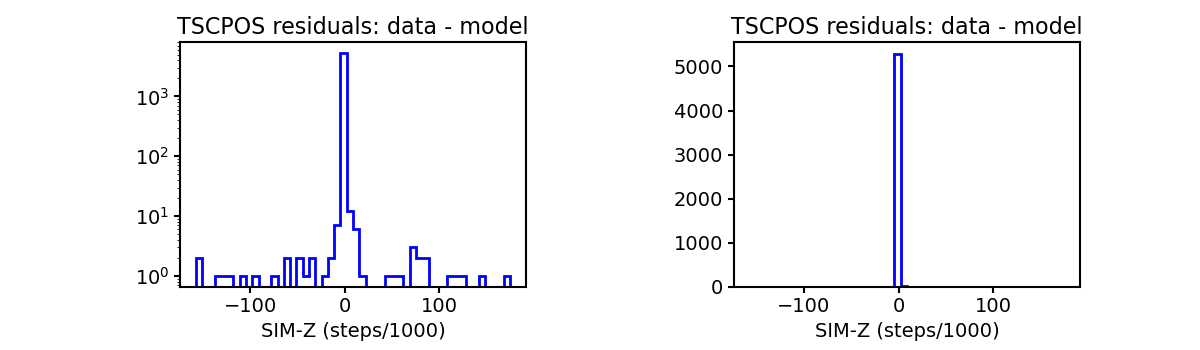

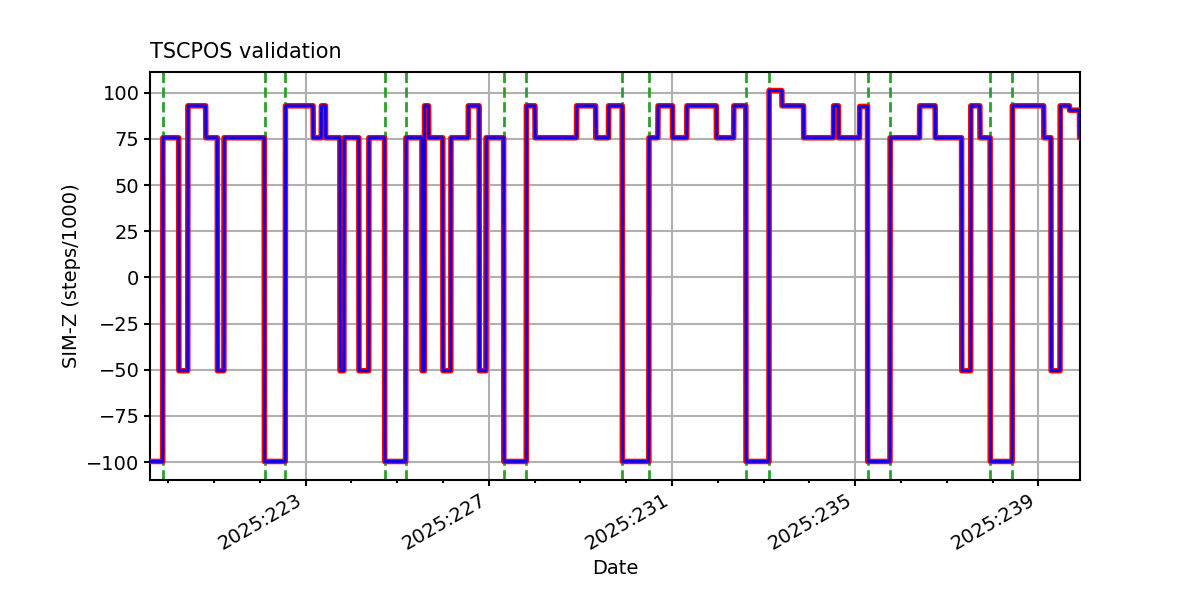

TSCPOS

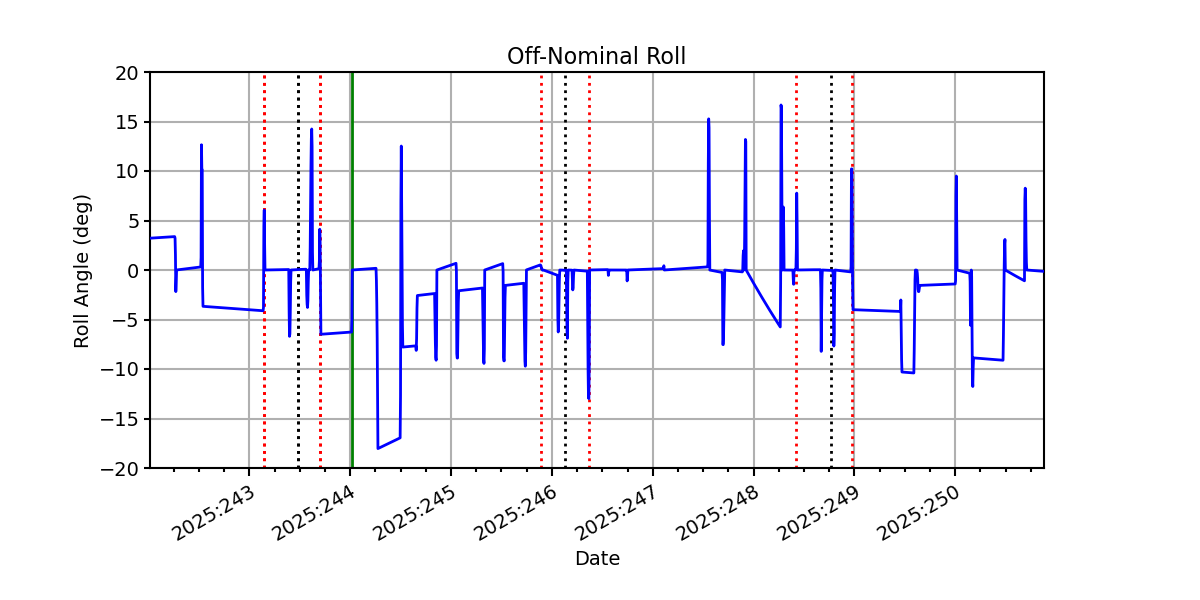

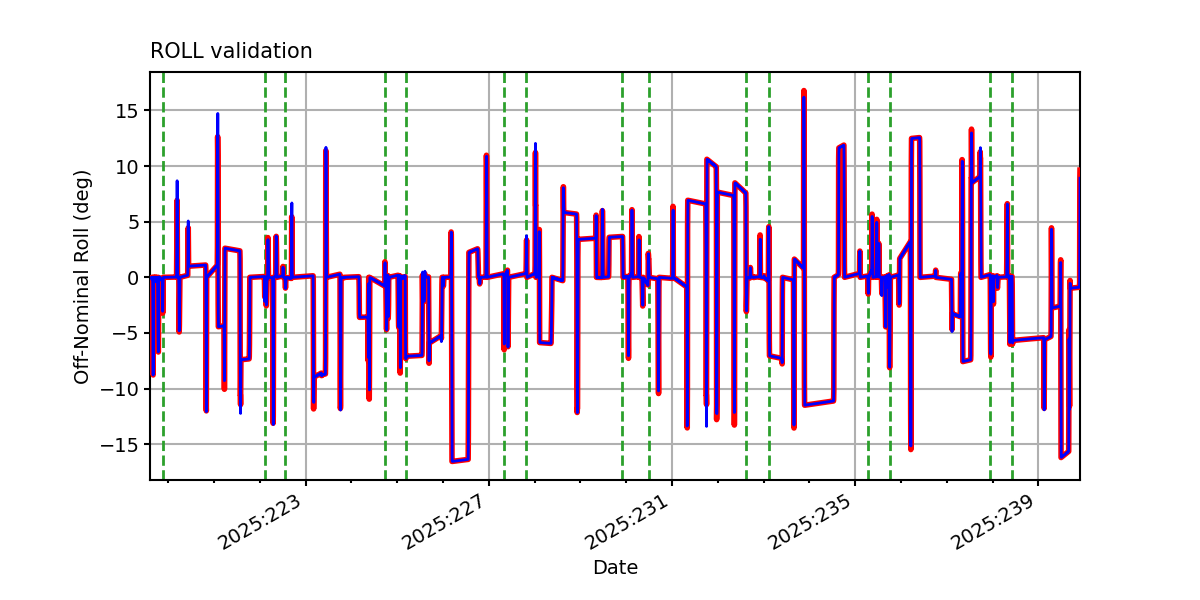

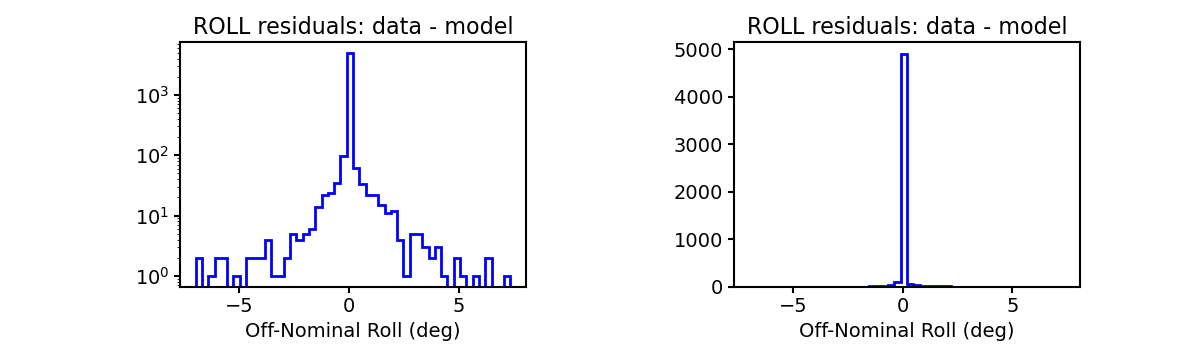

ROLL

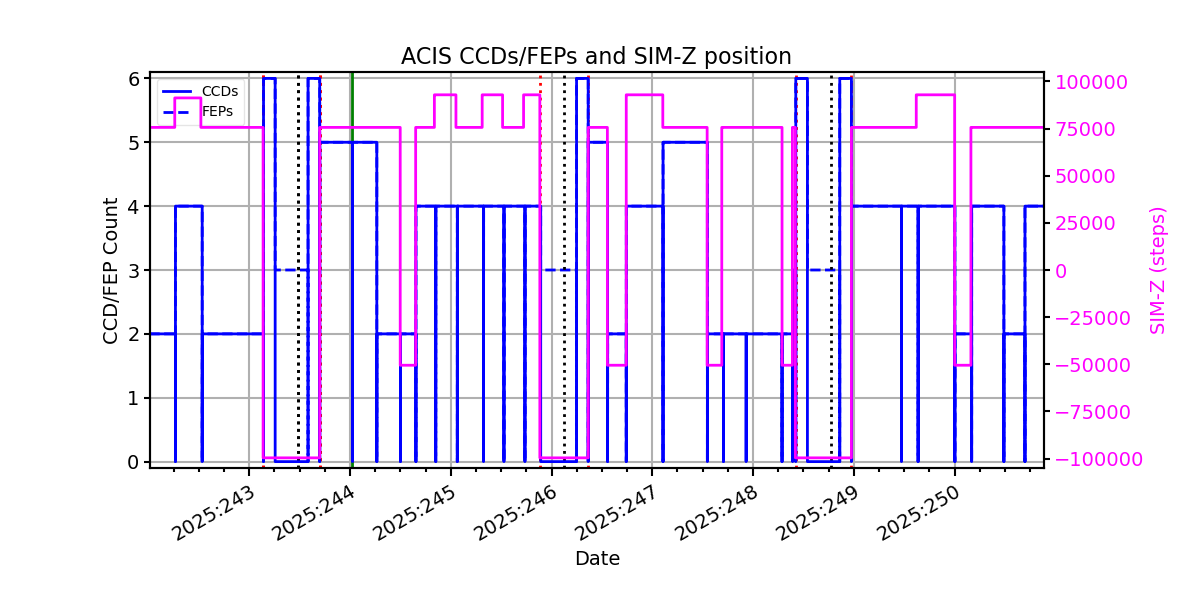

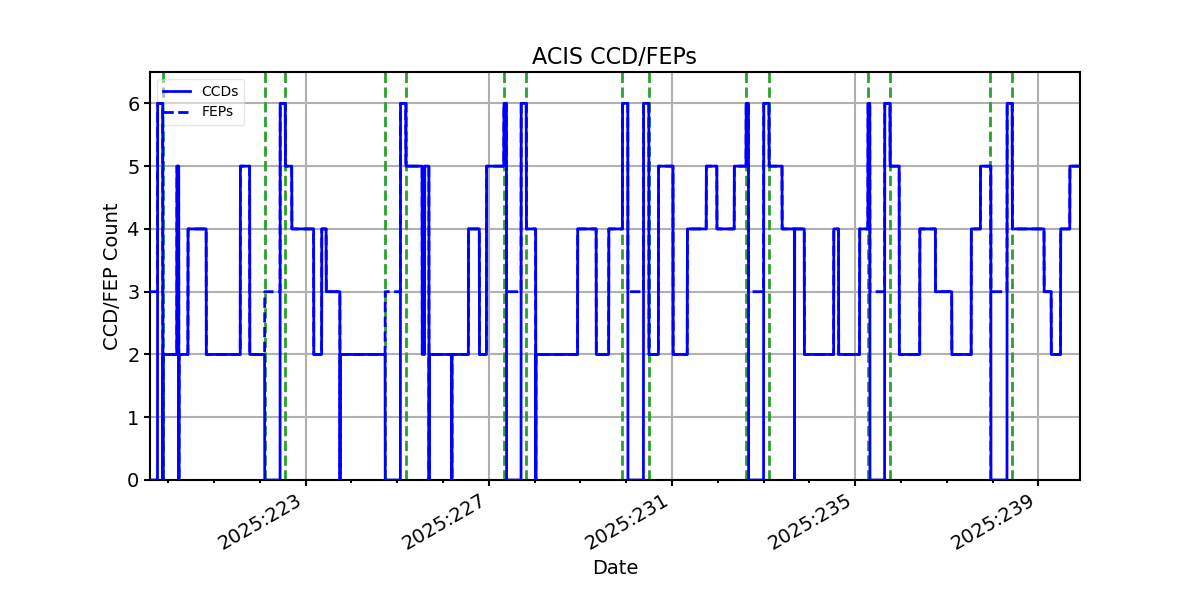

ACIS CCD/FEP Count
