PSMCBT Temperatures Check
Summary
| Date start | 2024:245:23:09:37.516 |
| Date stop | 2024:252:23:35:29.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/SEP0224/oflsa |
| Run time | Thu Oct 8 16:14:37 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

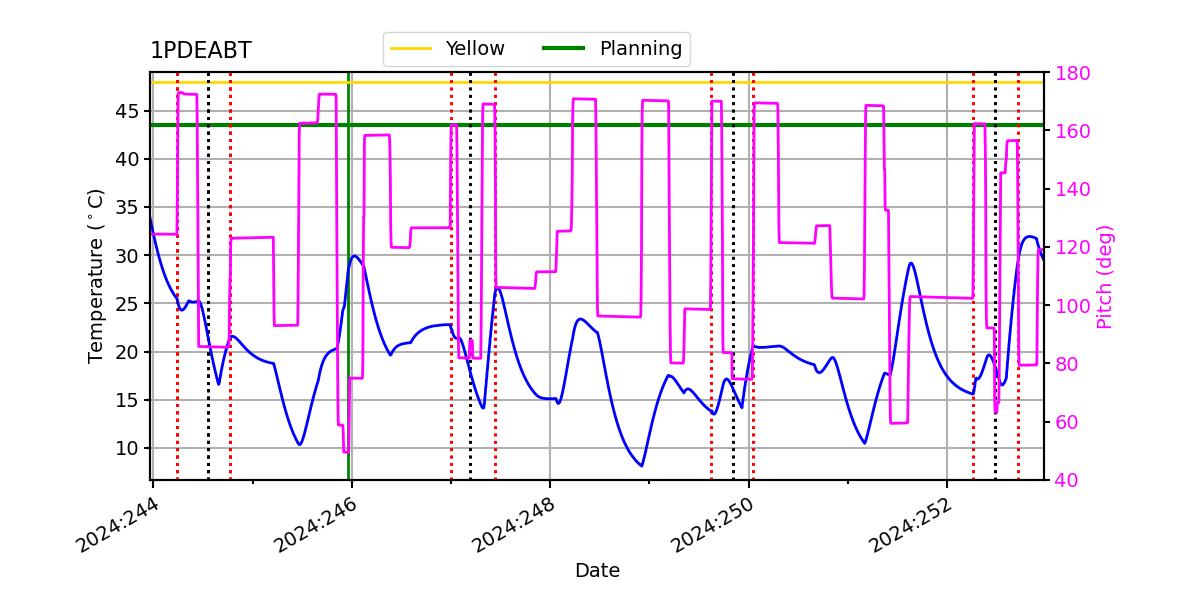

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.77 | -3.19 | -2.43 | -1.09 | 0.25 | 0.90 | 1.61 |
| pitch | -5.862 | -0.007 | -0.004 | 0.000 | 0.004 | 0.012 | 7.233 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.359 | -0.028 | -0.004 | 0.000 | 0.004 | 0.029 | 1.342 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.77 | 2.50 |
| 1PDEABT | 50 | -1.09 | 1.00 |
| PITCH | 1 | -5.862 | 3.00 |
| PITCH | 99 | 7.233 | 3.00 |

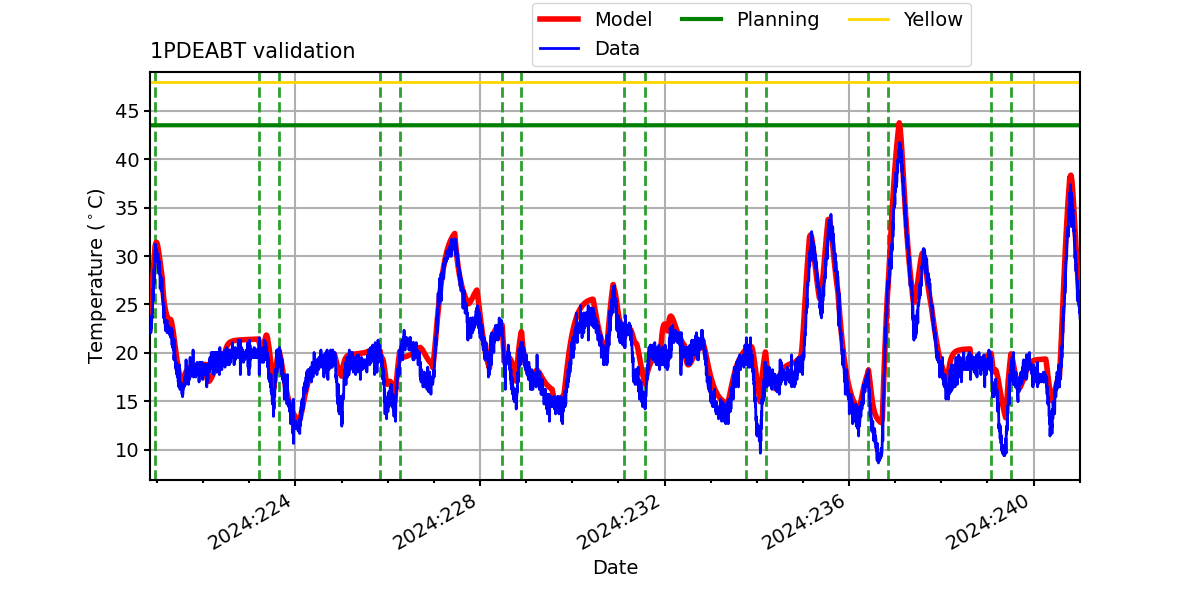

1PDEABT

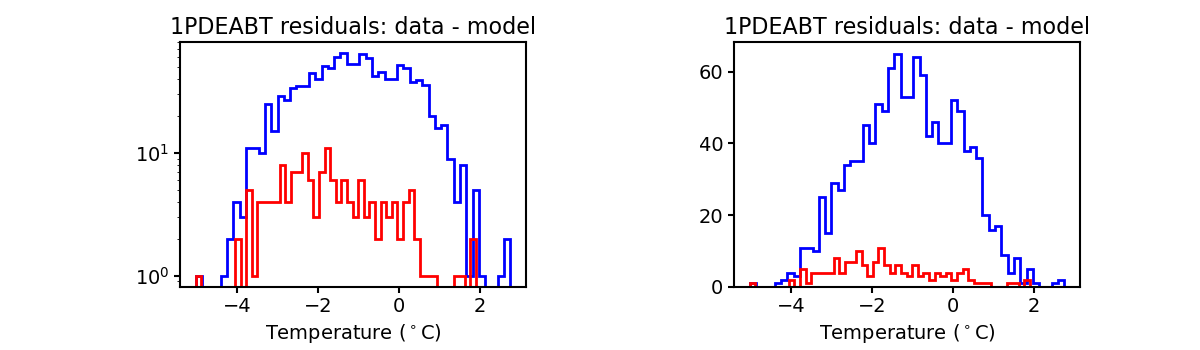

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

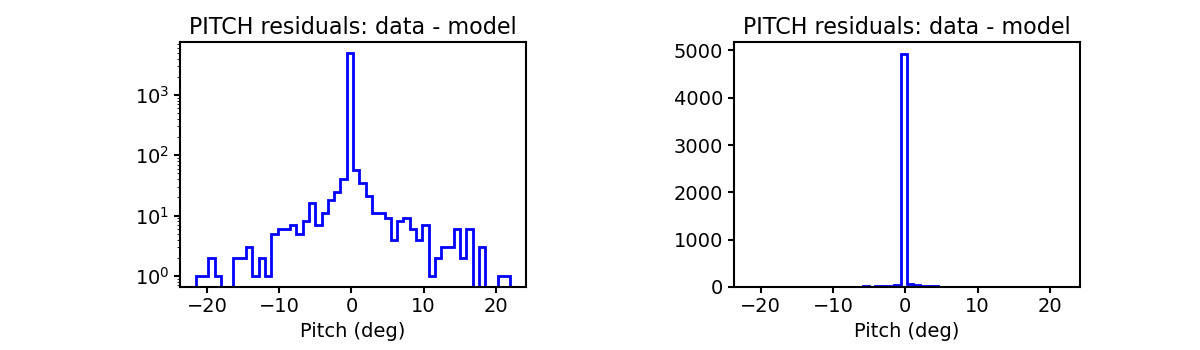

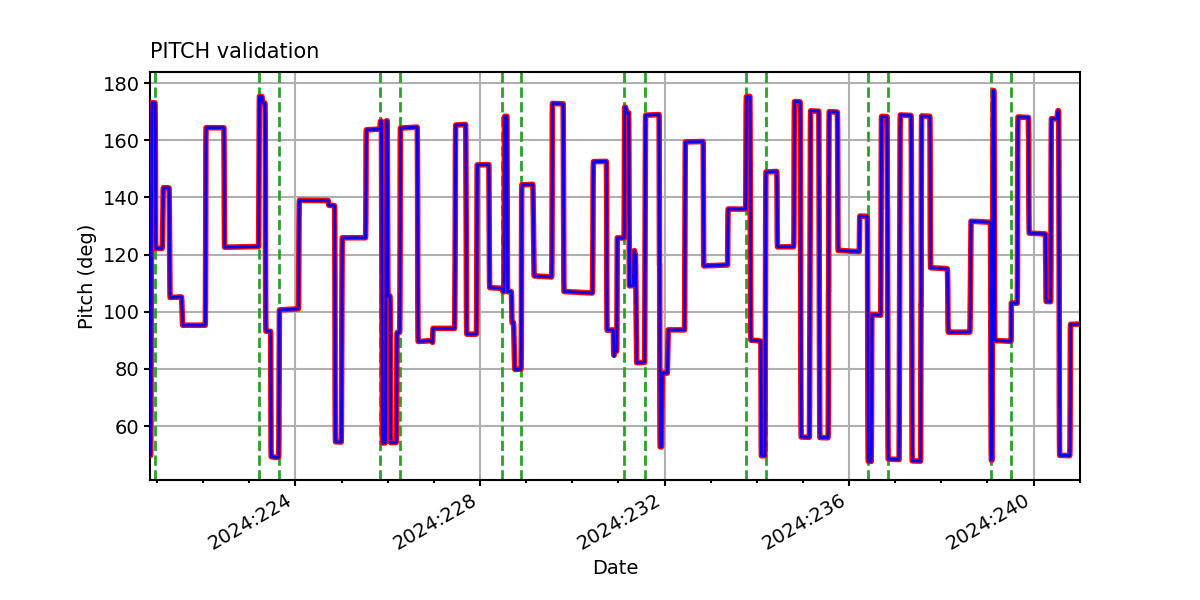

PITCH

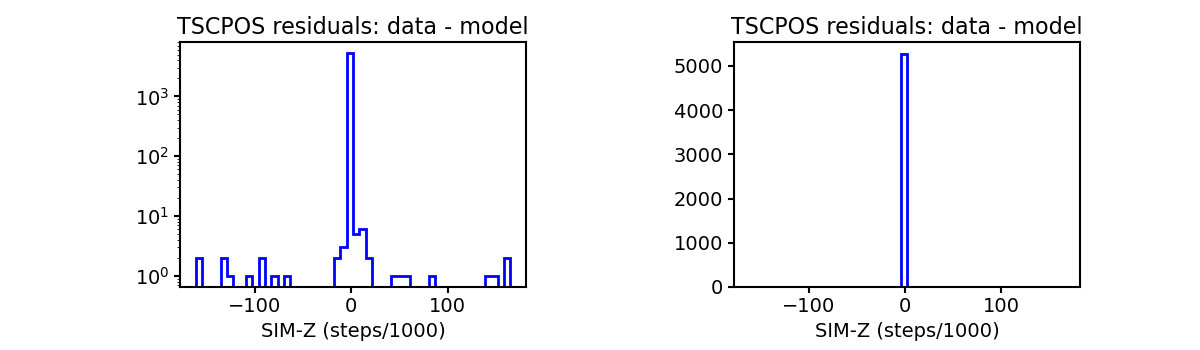

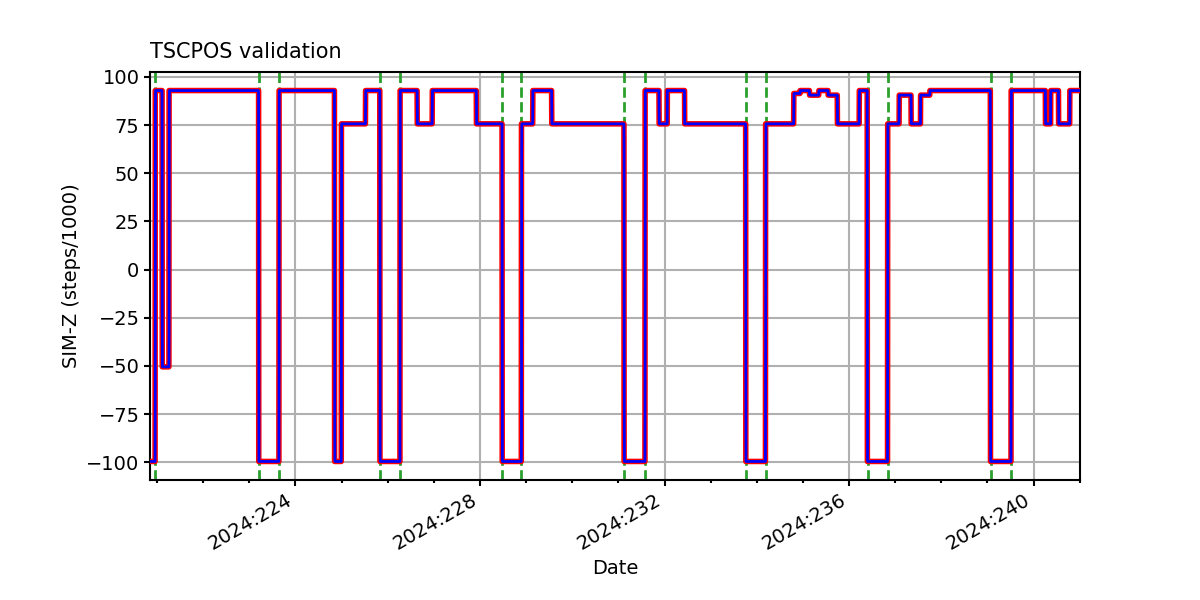

TSCPOS

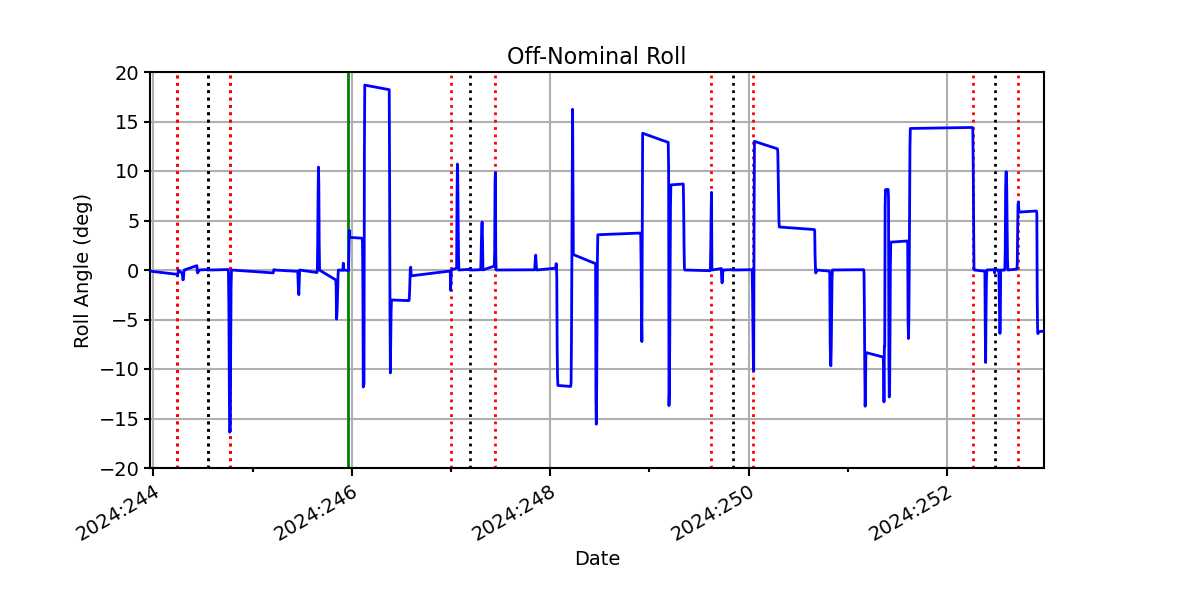

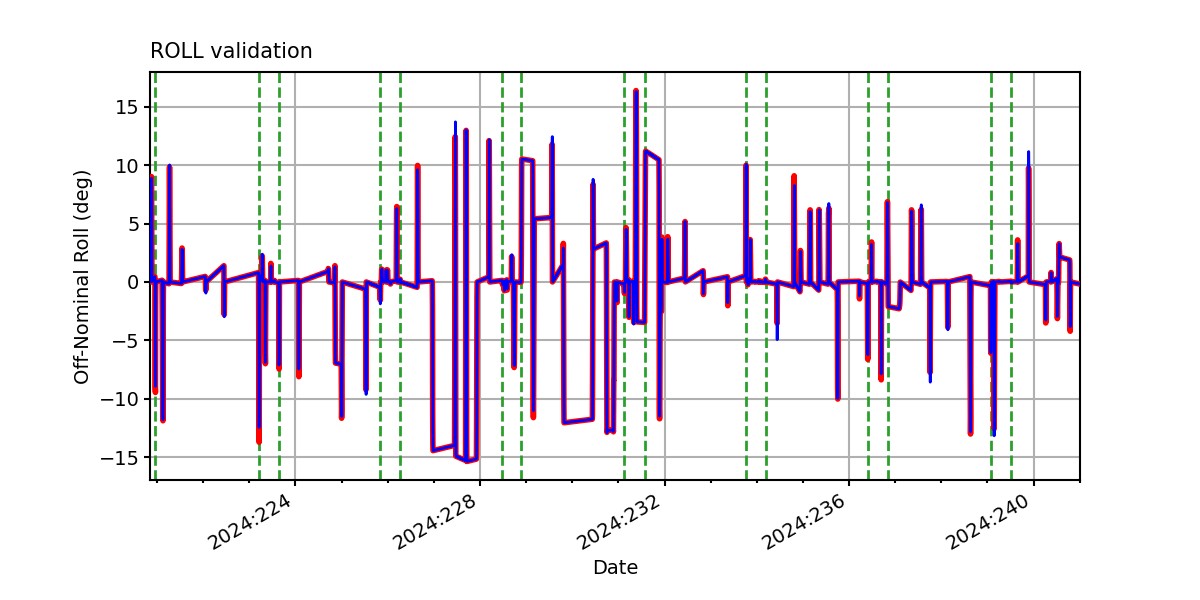

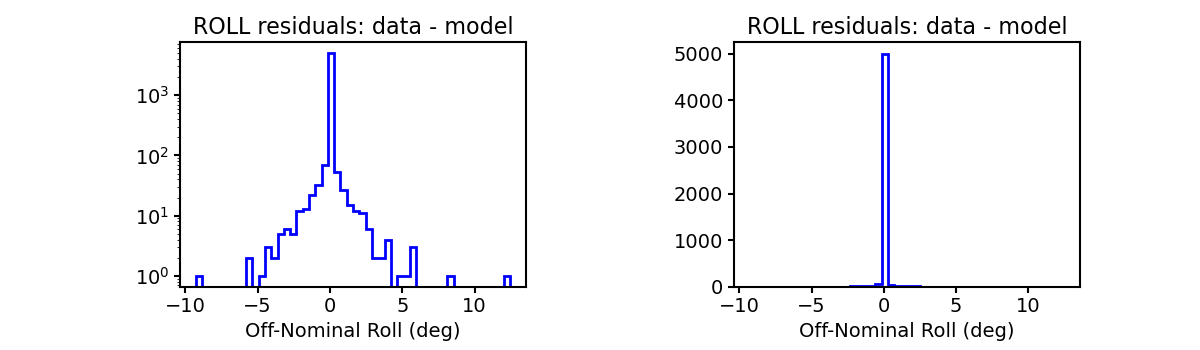

ROLL

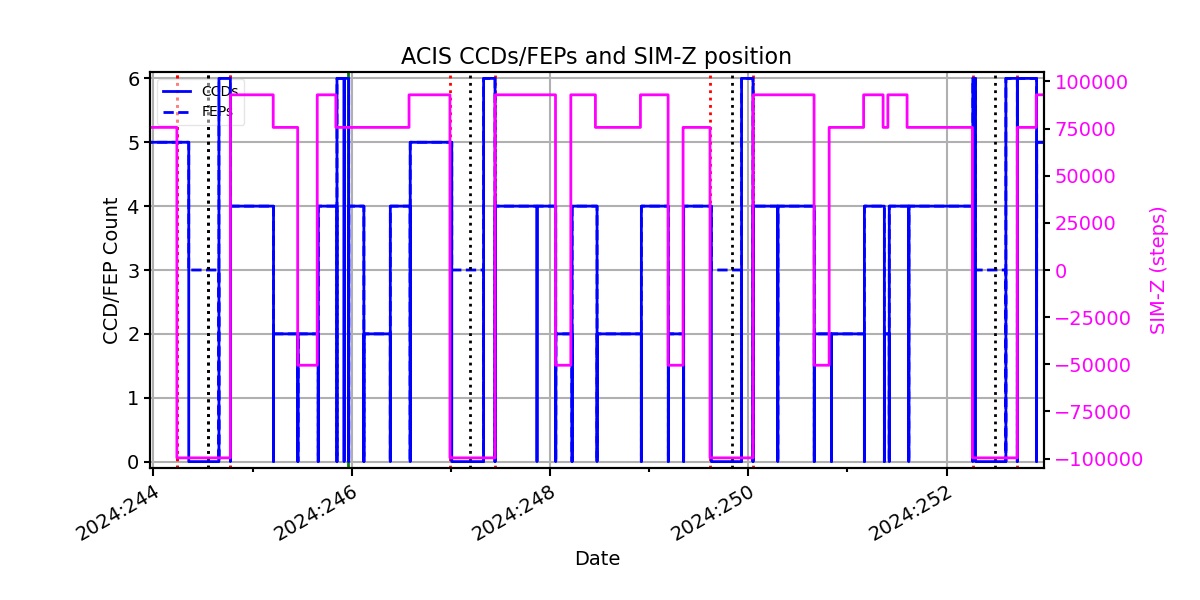

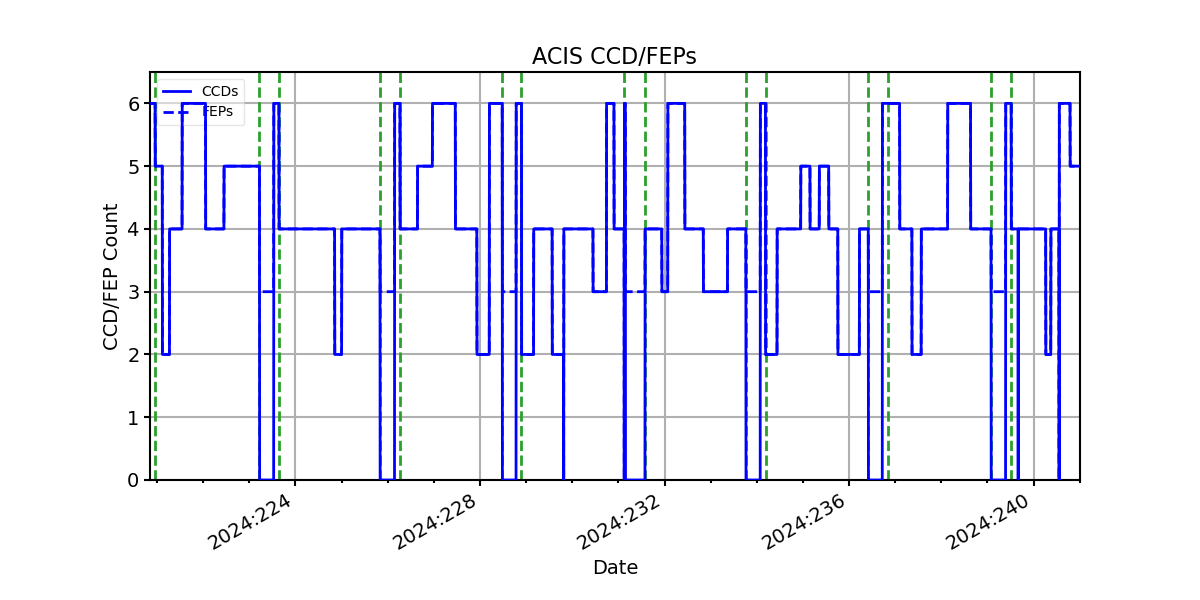

ACIS CCD/FEP Count
