PSMCBT Temperatures Check
Summary
| Date start | 2025:257:22:57:15.016 |
| Date stop | 2025:265:00:07:59.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP1525/oflsa |
| Run time | Thu Oct 8 16:15:12 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

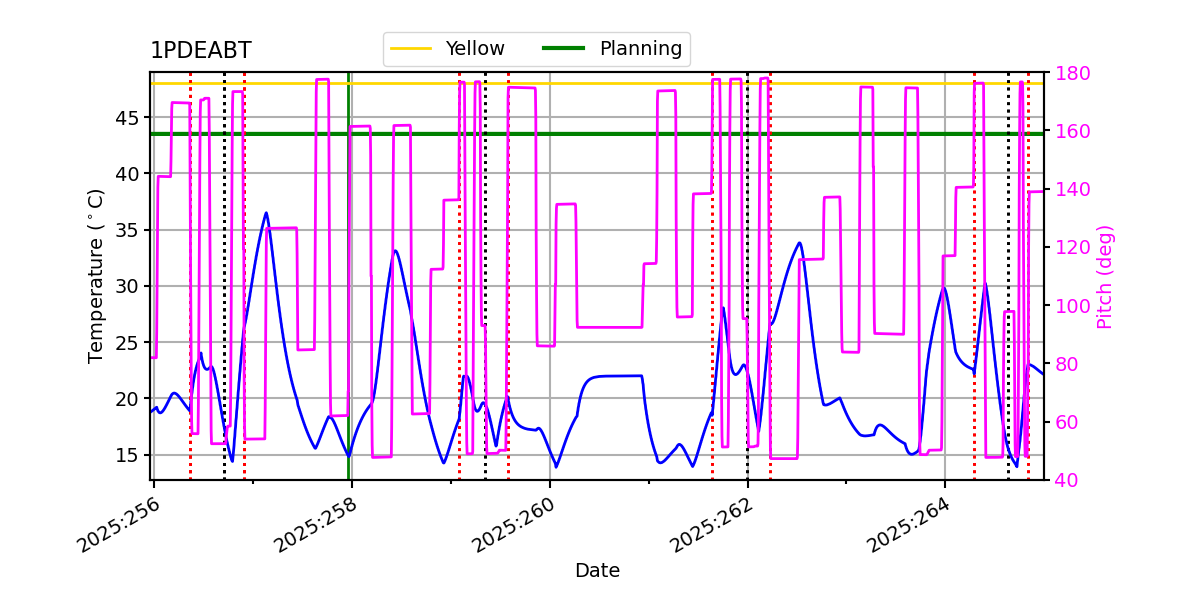

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.98 | -2.21 | -1.32 | 0.03 | 1.41 | 2.30 | 3.06 |
| pitch | -8.255 | -0.056 | -0.004 | 0.000 | 0.004 | 0.170 | 9.071 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.475 | -0.074 | -0.006 | -0.000 | 0.007 | 0.082 | 1.516 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.98 | 2.50 |
| PITCH | 1 | -8.255 | 3.00 |
| PITCH | 99 | 9.071 | 3.00 |

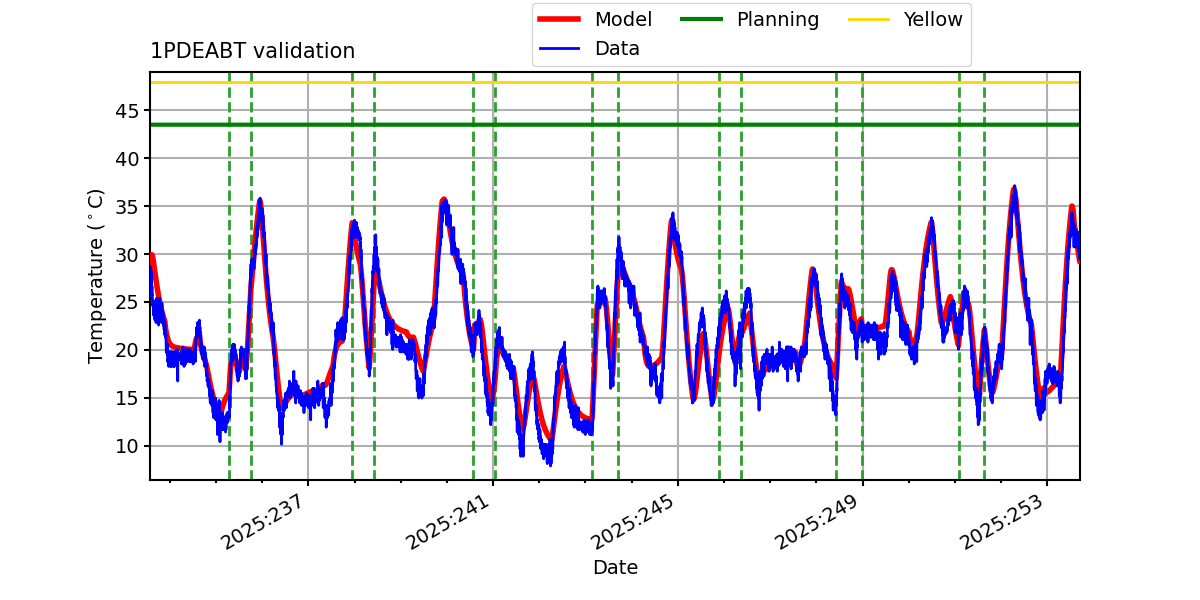

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

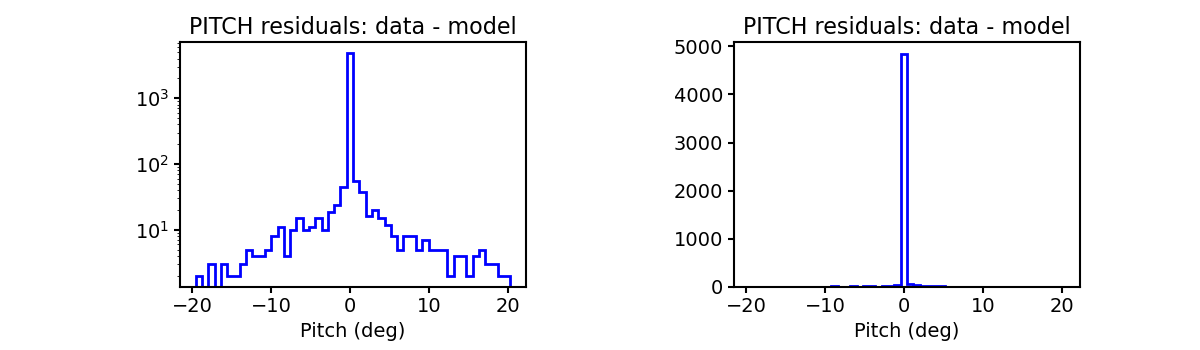

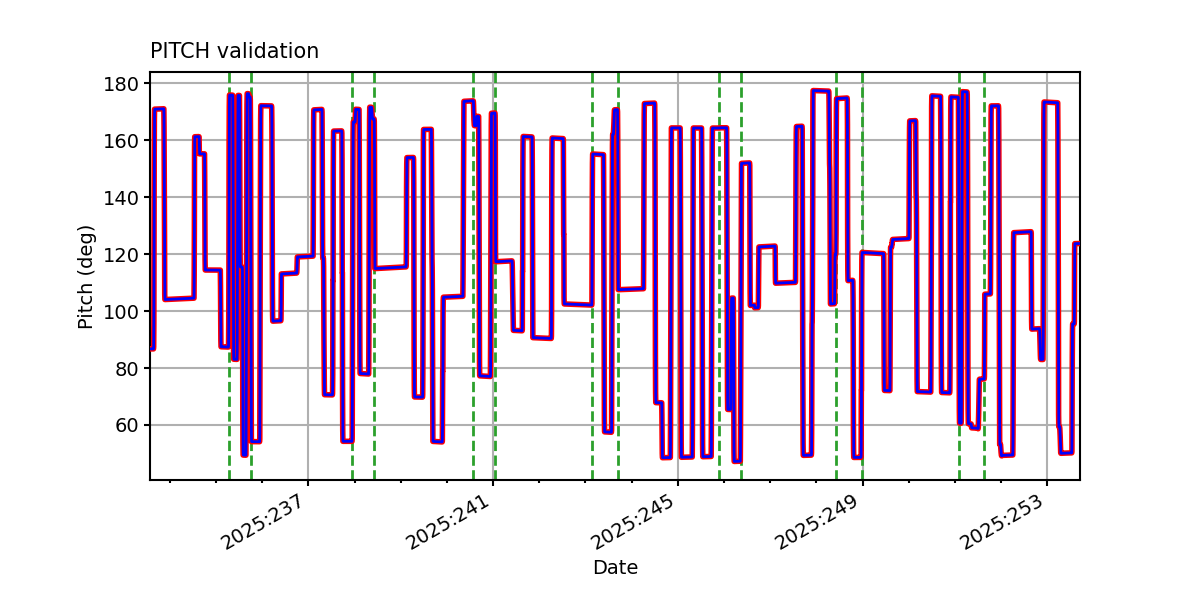

PITCH
TSCPOS

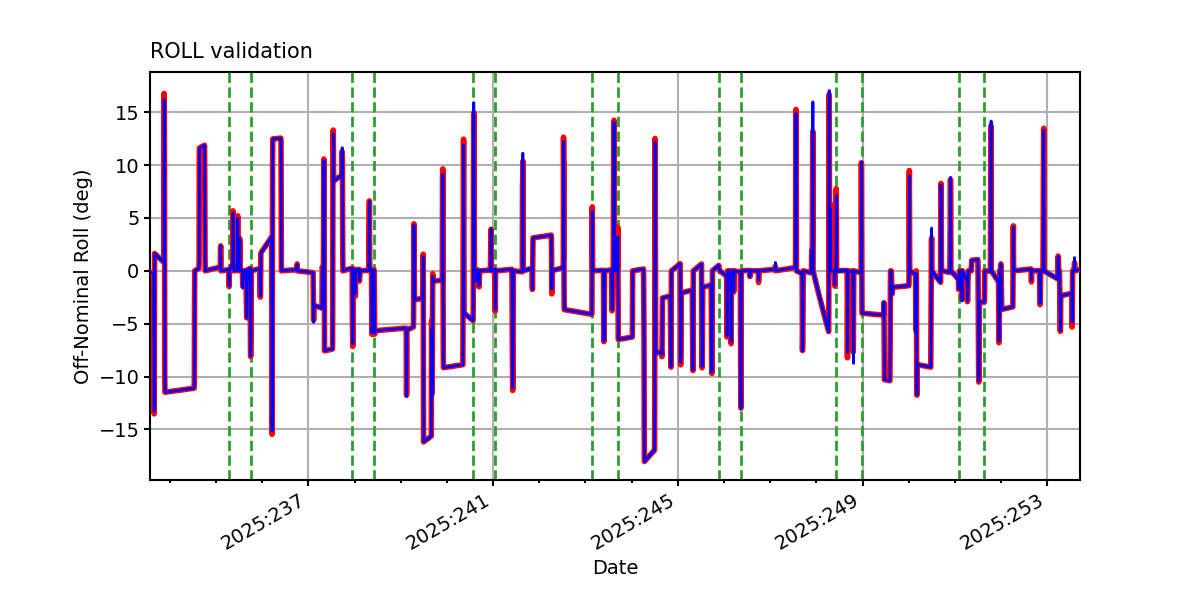

ROLL

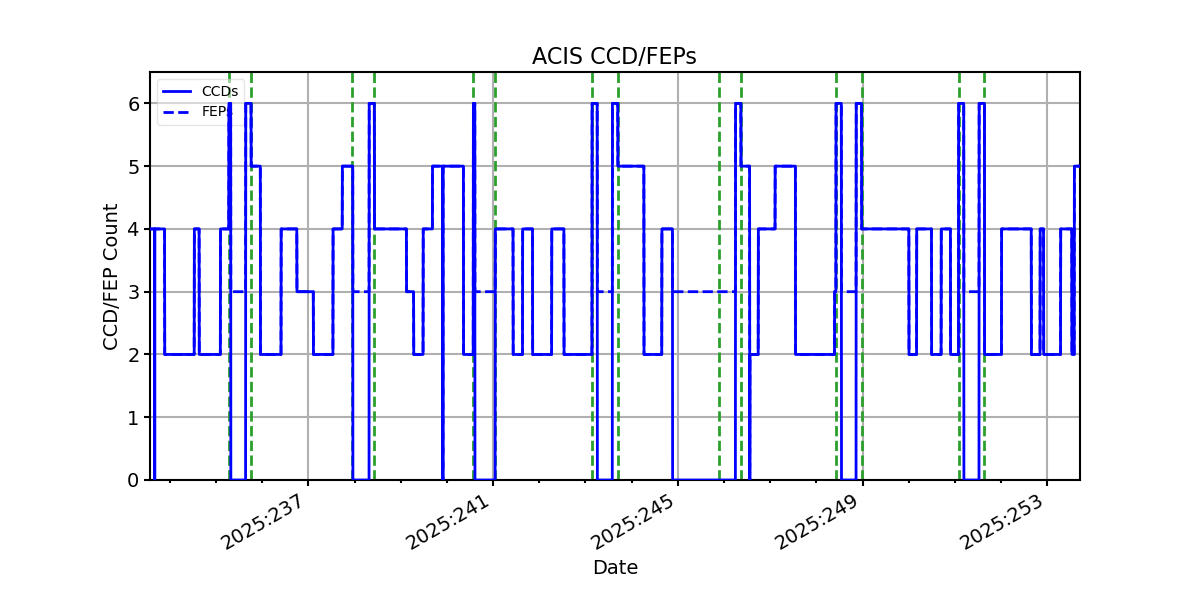

ACIS CCD/FEP Count
