PSMCBT Temperatures Check
Summary
| Date start | 2023:261:03:48:57.016 |
| Date stop | 2023:268:07:04:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/SEP1823/oflsa |
| Run time | Thu Oct 8 16:15:11 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -4.03 | -2.87 | -1.91 | -0.40 | 1.17 | 1.81 | 2.35 |
| pitch | -6.896 | -0.150 | -0.003 | 0.000 | 0.003 | 0.060 | 9.033 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.677 | -0.050 | -0.003 | -0.000 | 0.003 | 0.080 | 1.816 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -4.03 | 2.50 |
| PITCH | 1 | -6.896 | 3.00 |
| PITCH | 99 | 9.033 | 3.00 |

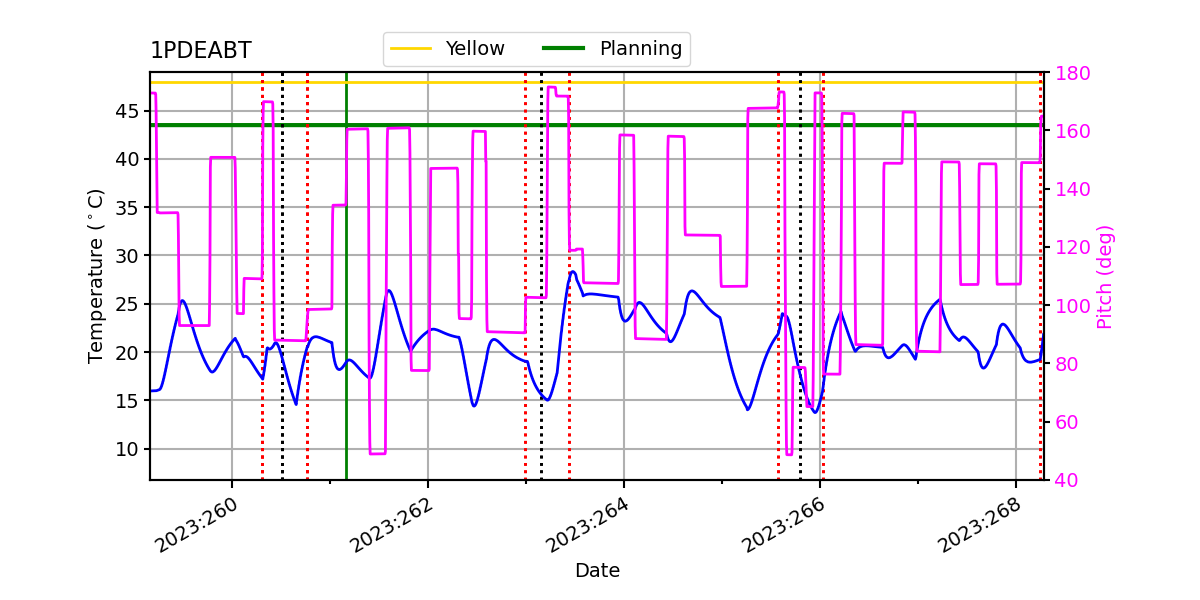

1PDEABT

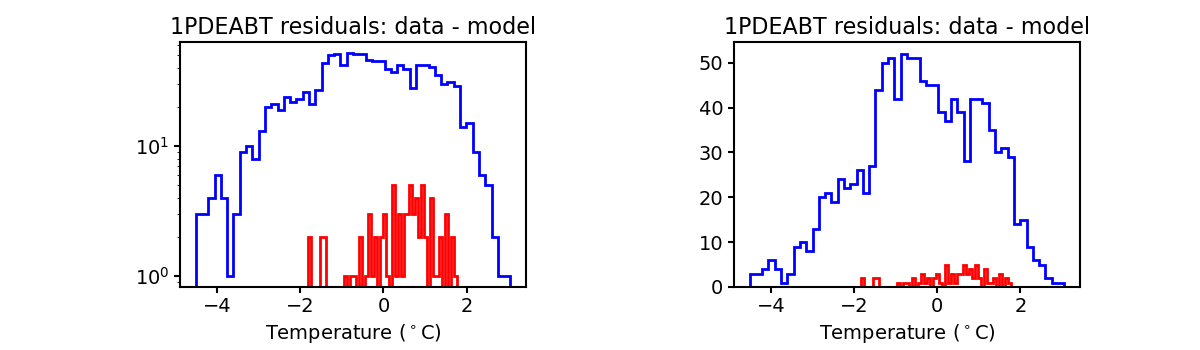

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

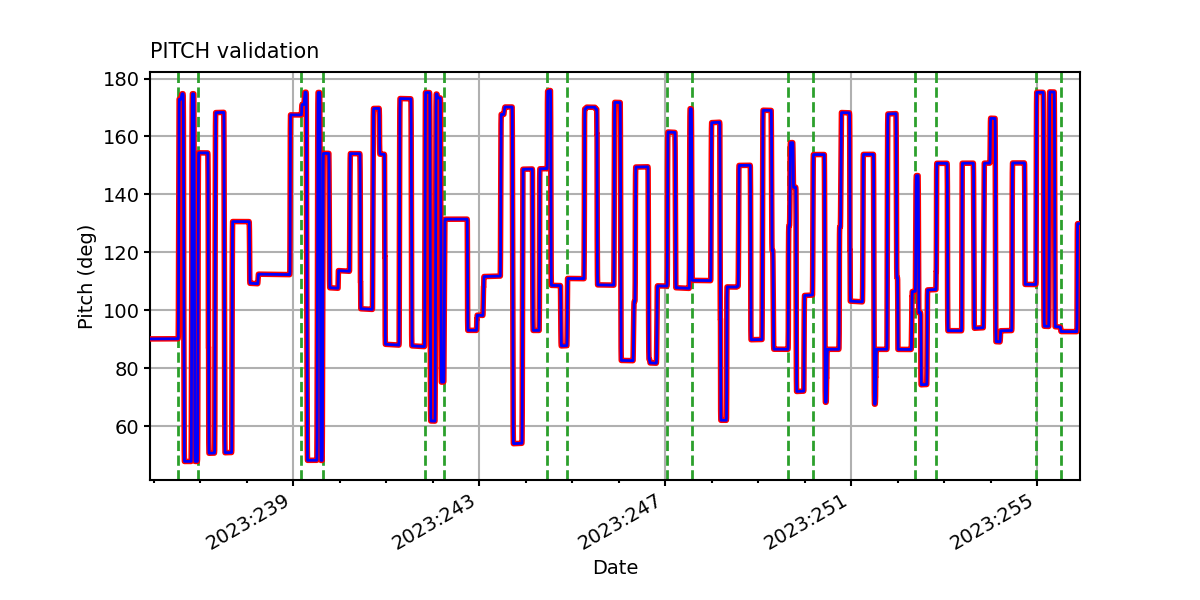

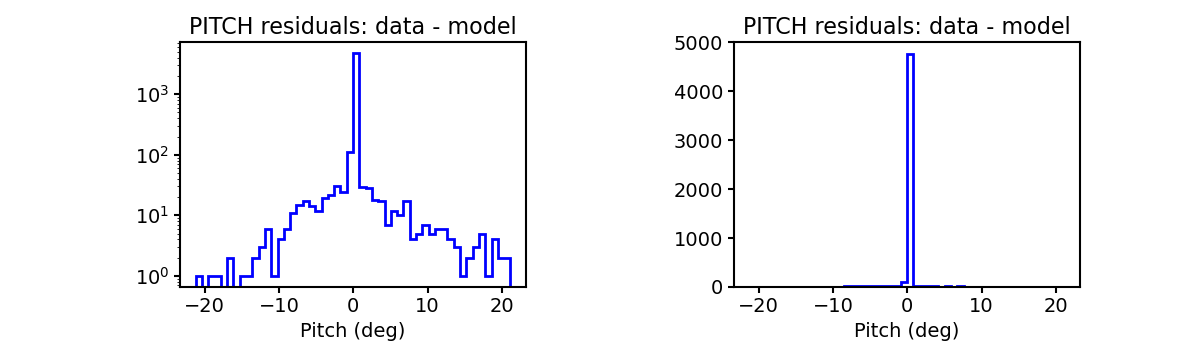

PITCH
TSCPOS

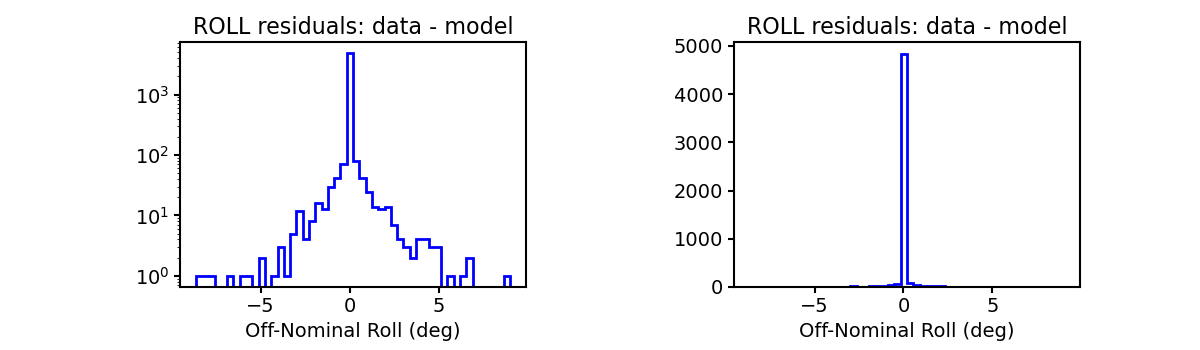

ROLL

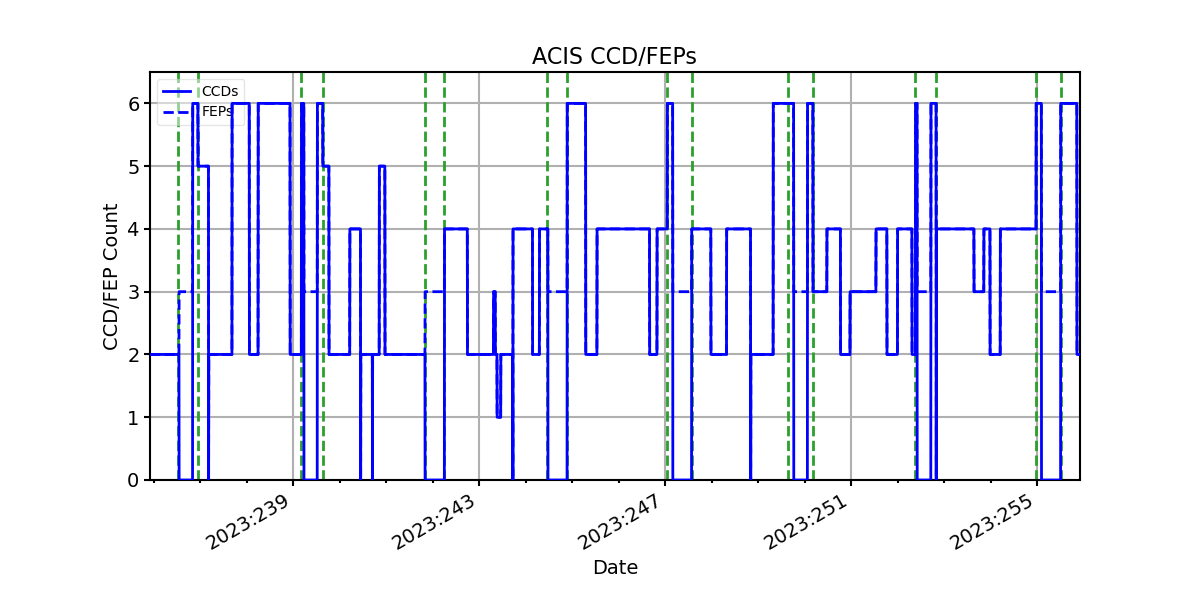

ACIS CCD/FEP Count
