PSMCBT Temperatures Check
Summary
| Date start | 2025:265:00:04:59.816 |
| Date stop | 2025:272:00:17:23.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP2225/oflsa |
| Run time | Thu Oct 8 16:15:12 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

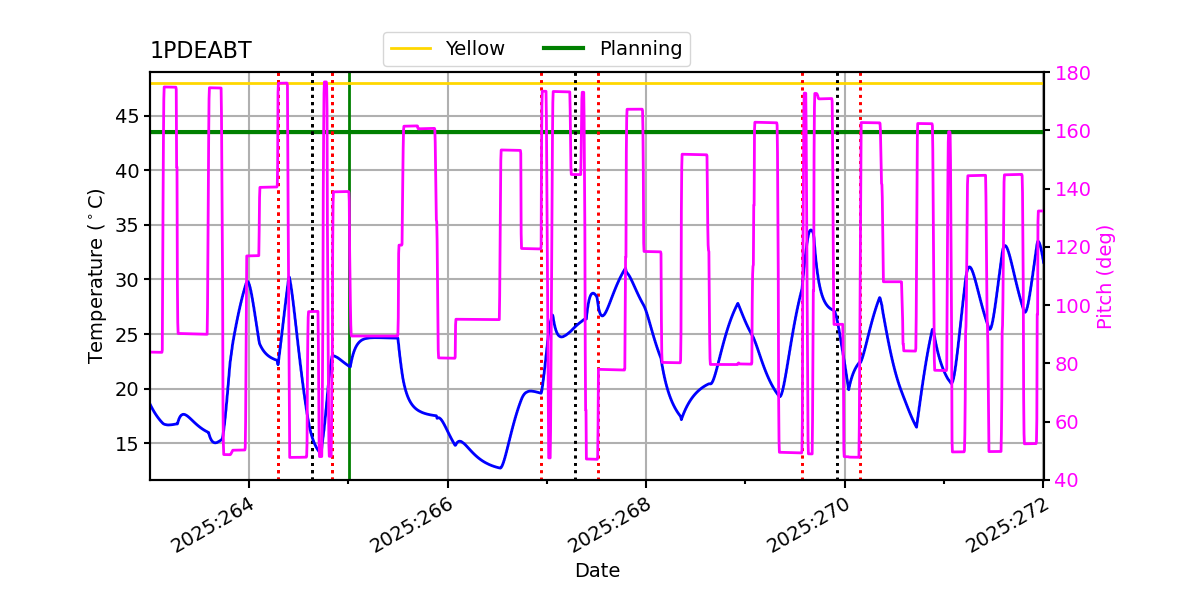

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.57 | -1.95 | -1.17 | 0.16 | 1.50 | 2.30 | 3.04 |
| pitch | -8.013 | -0.141 | -0.004 | 0.000 | 0.004 | 0.221 | 11.491 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.554 | -0.080 | -0.006 | -0.000 | 0.007 | 0.086 | 1.399 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.57 | 2.50 |
| PITCH | 1 | -8.013 | 3.00 |
| PITCH | 99 | 11.491 | 3.00 |

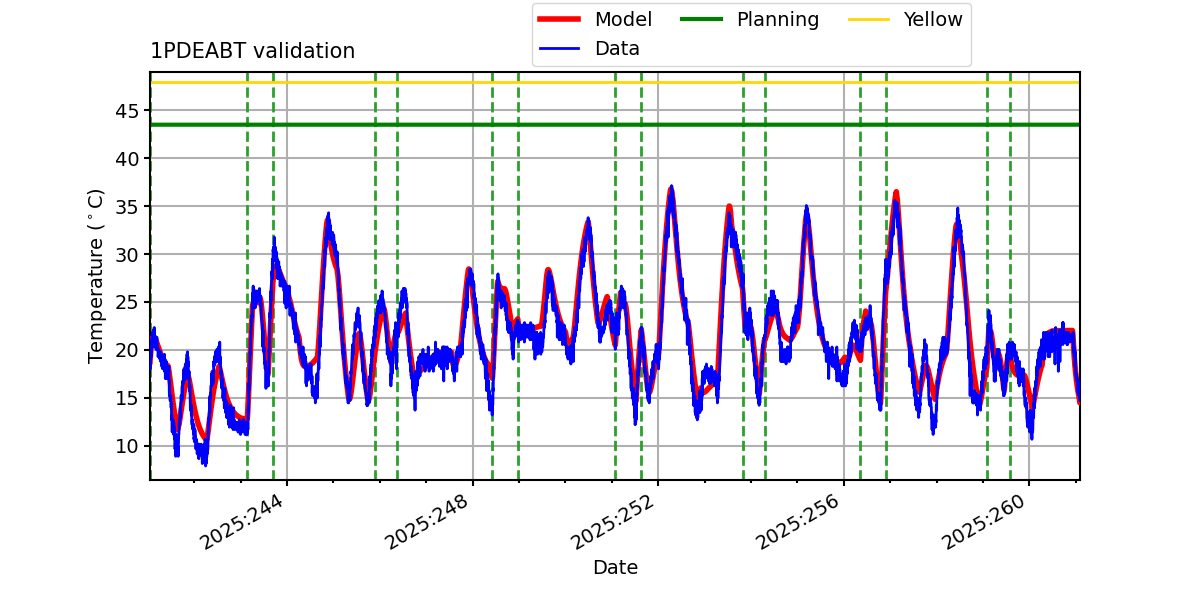

1PDEABT

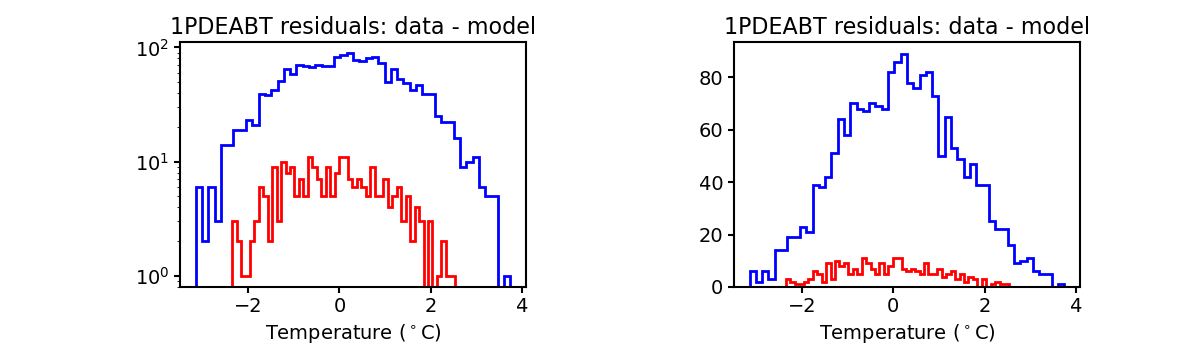

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.
PITCH

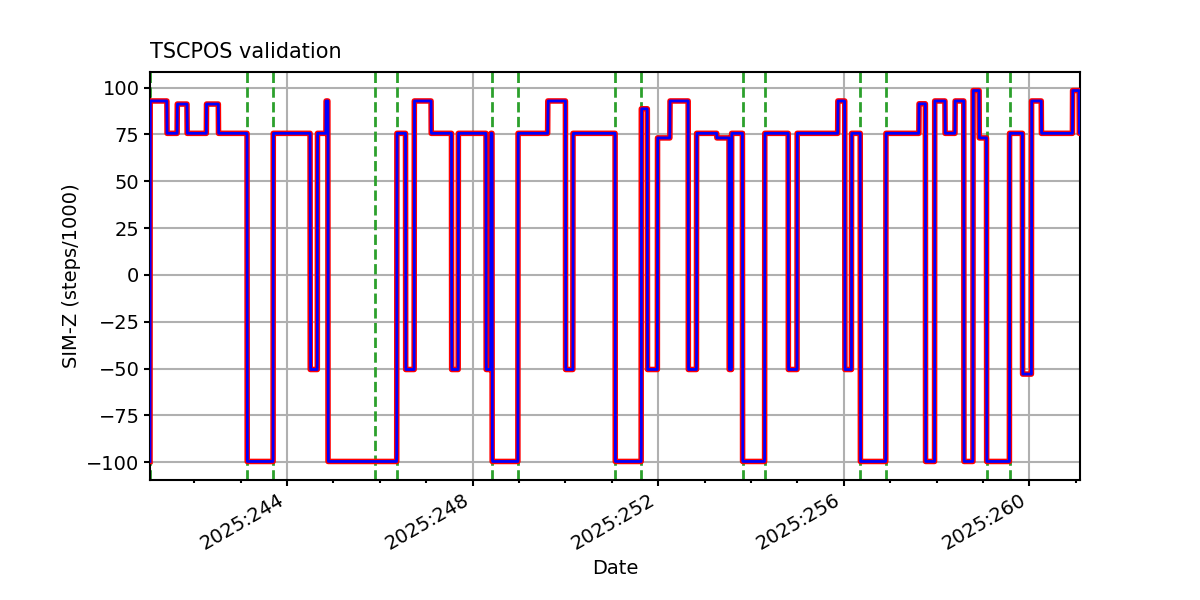

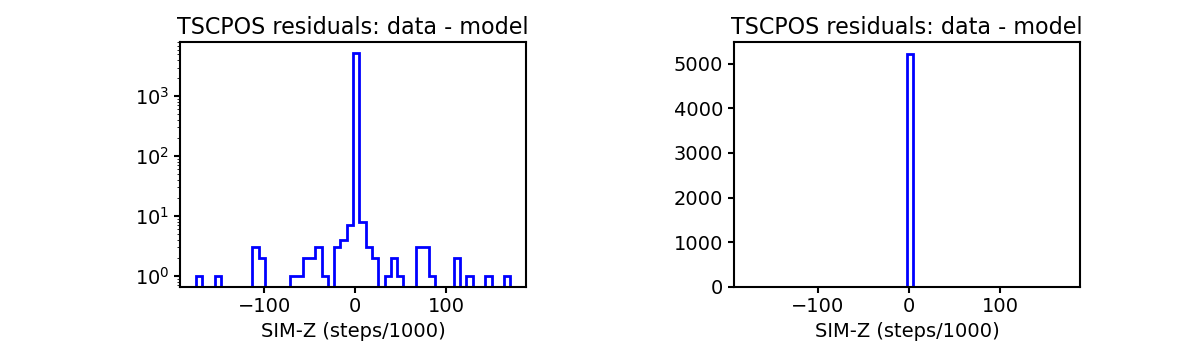

TSCPOS

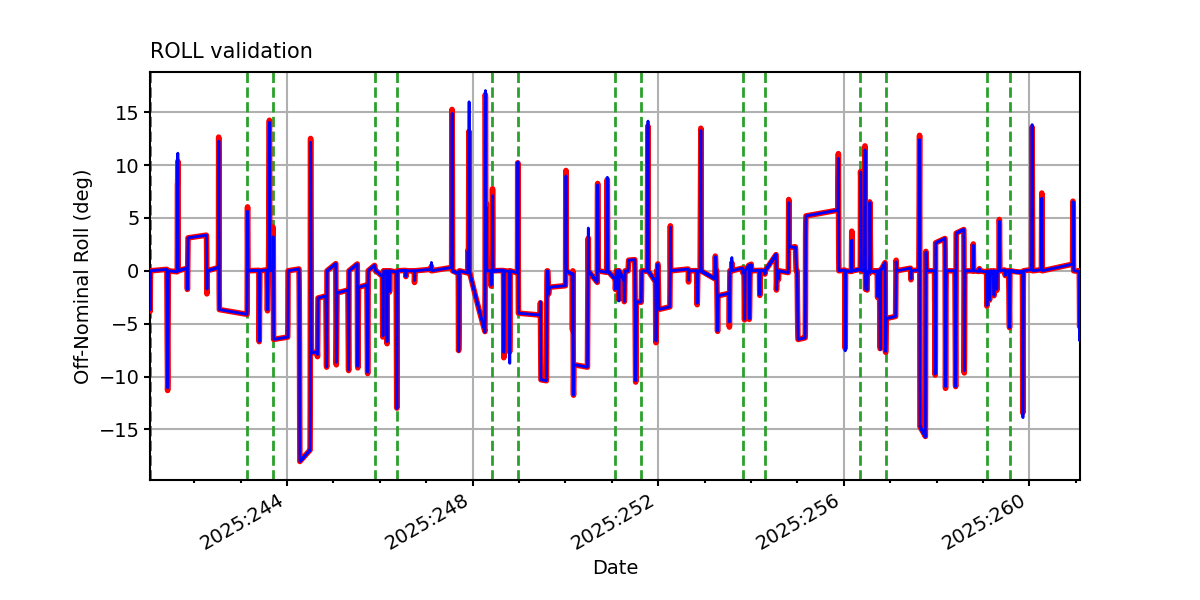

ROLL

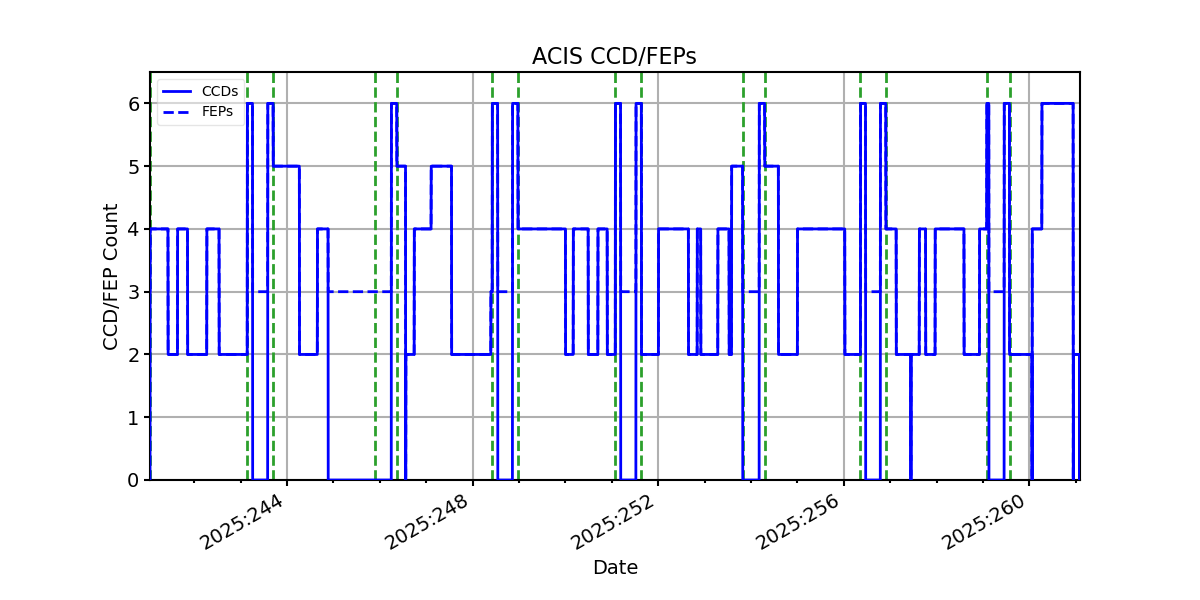

ACIS CCD/FEP Count
