PSMCBT Temperatures Check
Summary
| Date start | 2024:267:02:28:27.316 |
| Date stop | 2024:274:01:46:51.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/SEP2324/oflsa |
| Run time | Thu Oct 8 16:15:35 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

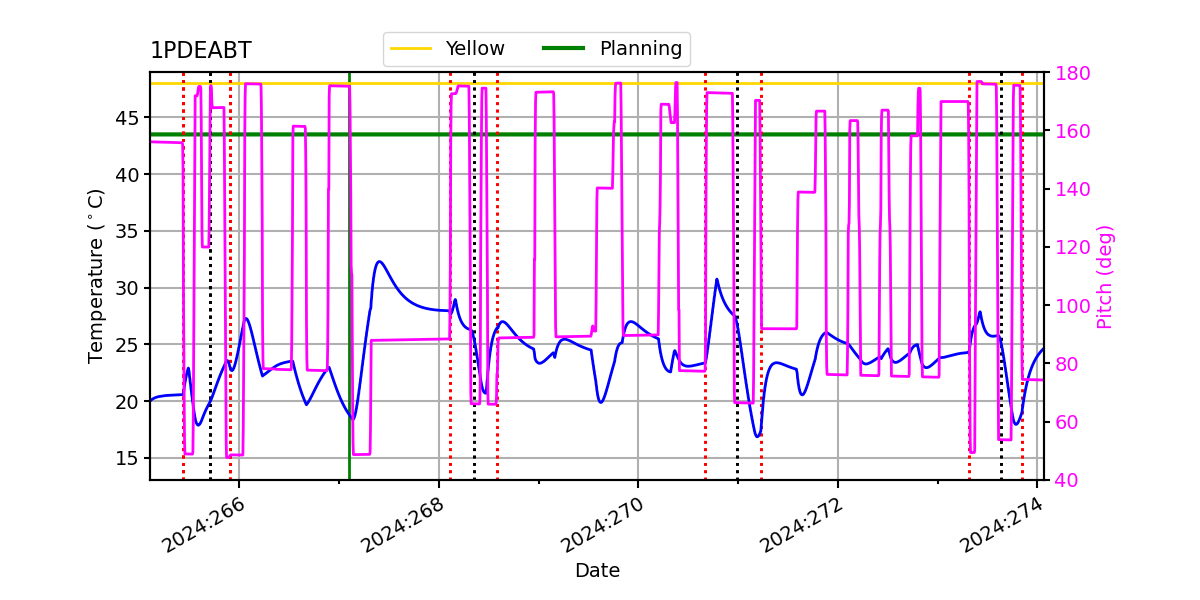

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -4.16 | -3.02 | -1.89 | -0.29 | 1.12 | 1.85 | 2.52 |
| pitch | -7.090 | -0.139 | -0.004 | -0.000 | 0.004 | 0.139 | 7.678 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.691 | -0.070 | -0.005 | -0.000 | 0.004 | 0.053 | 1.710 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -4.16 | 2.50 |
| PITCH | 1 | -7.09 | 3.00 |
| PITCH | 99 | 7.678 | 3.00 |

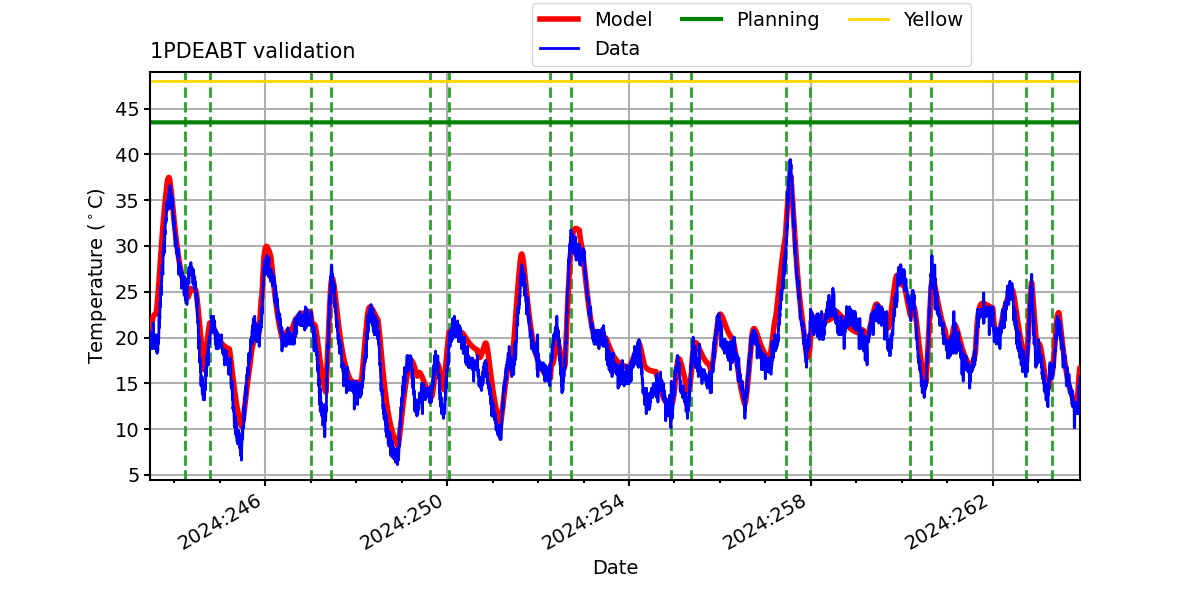

1PDEABT

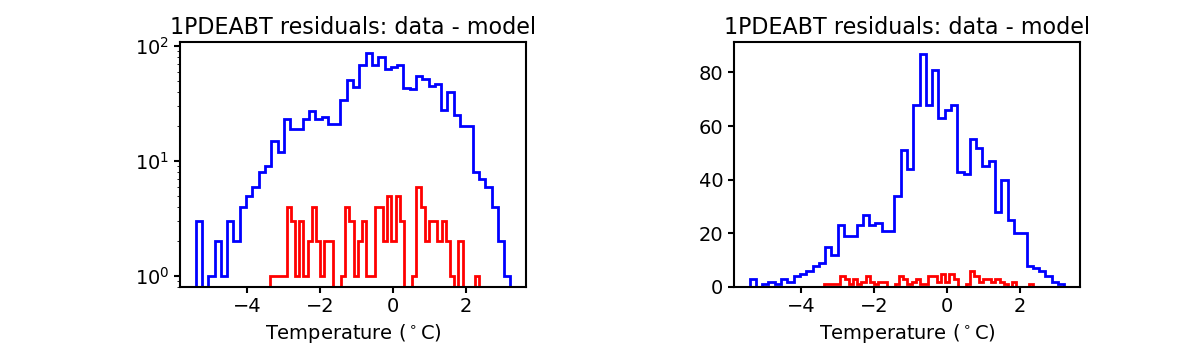

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

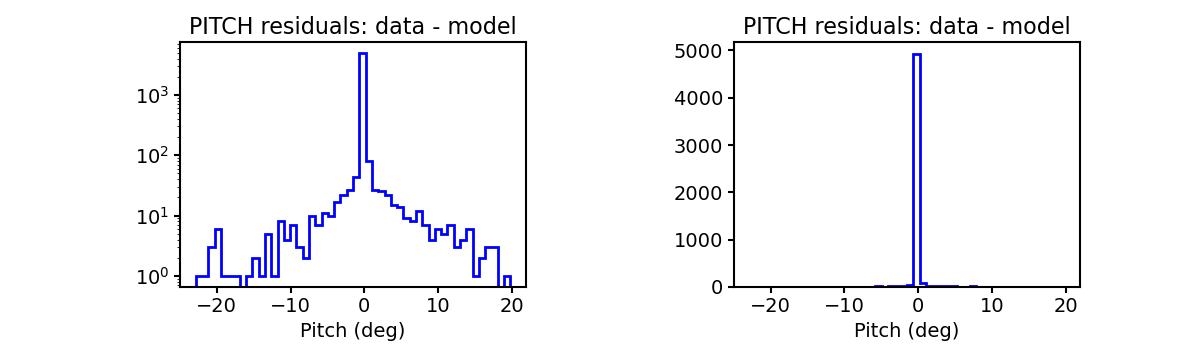

PITCH

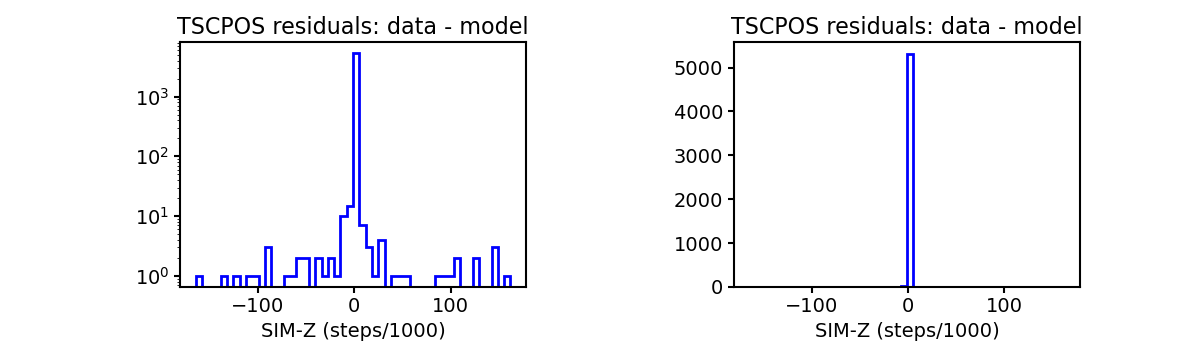

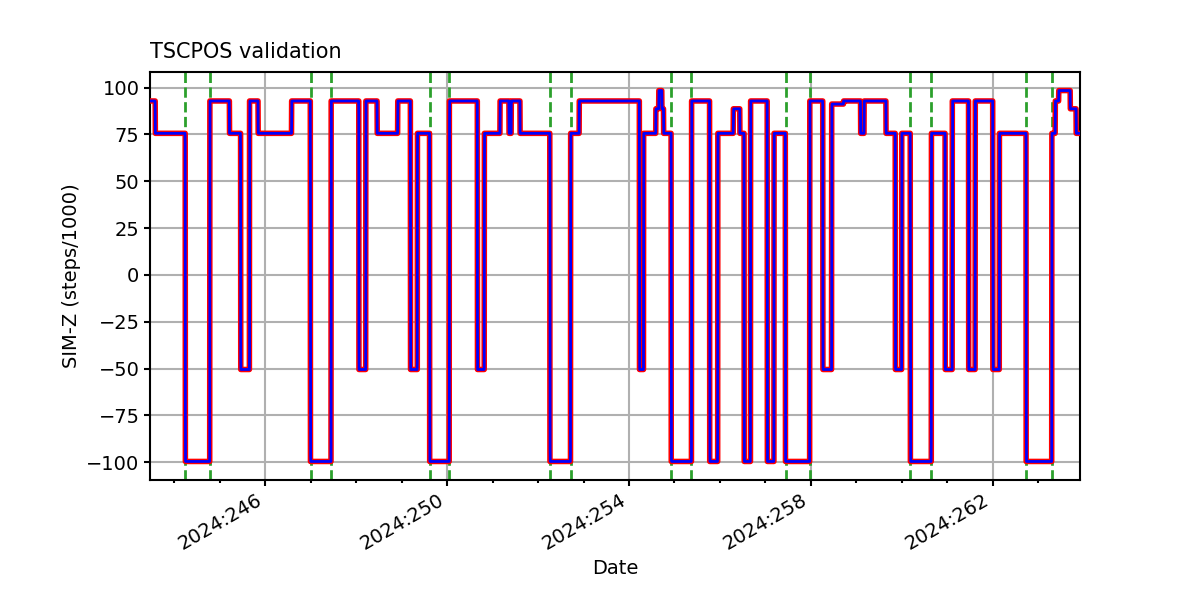

TSCPOS

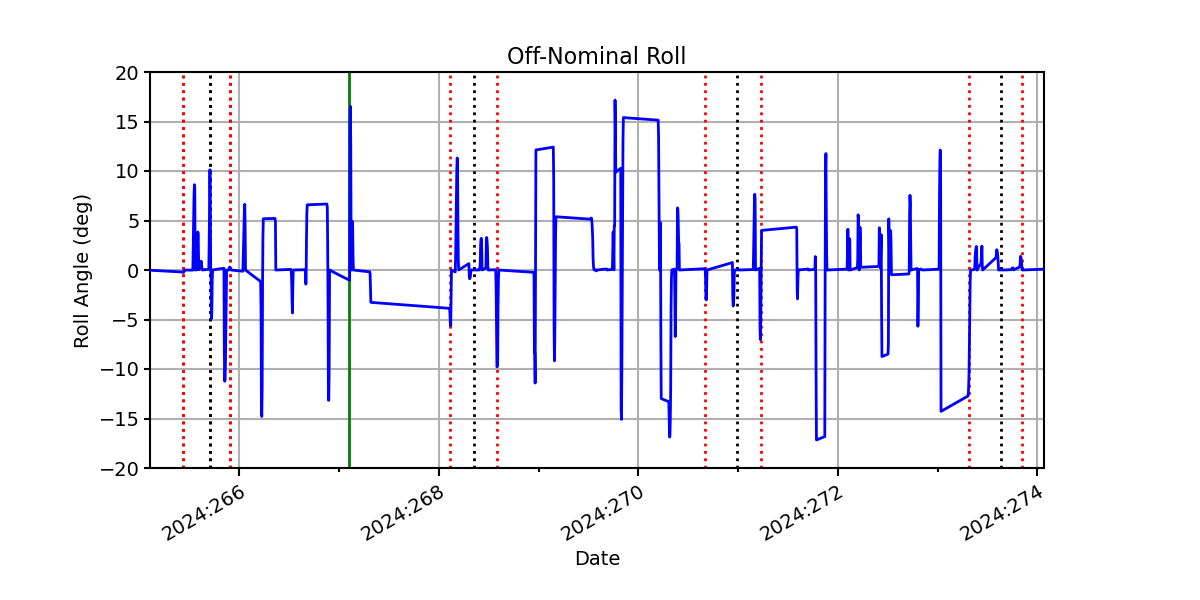

ROLL

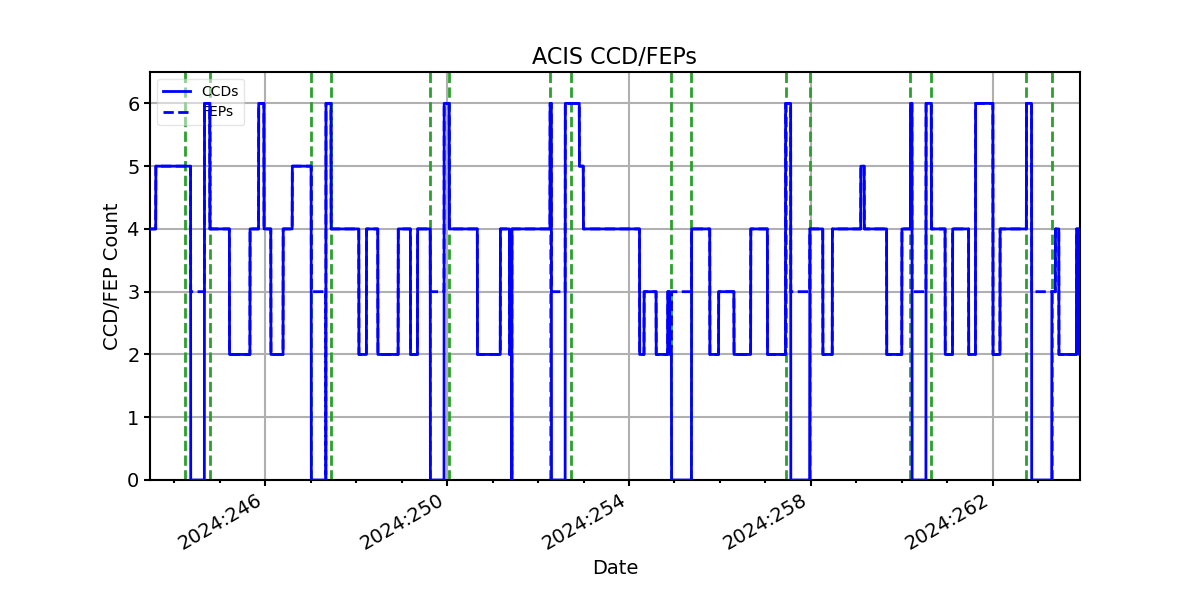

ACIS CCD/FEP Count
