PSMCBT Temperatures Check
Summary
| Date start | 2026:271:01:21:07.416 |
| Date stop | 2026:277:13:13:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/SEP2826/oflsa |
| Run time | Thu Oct 8 16:15:46 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

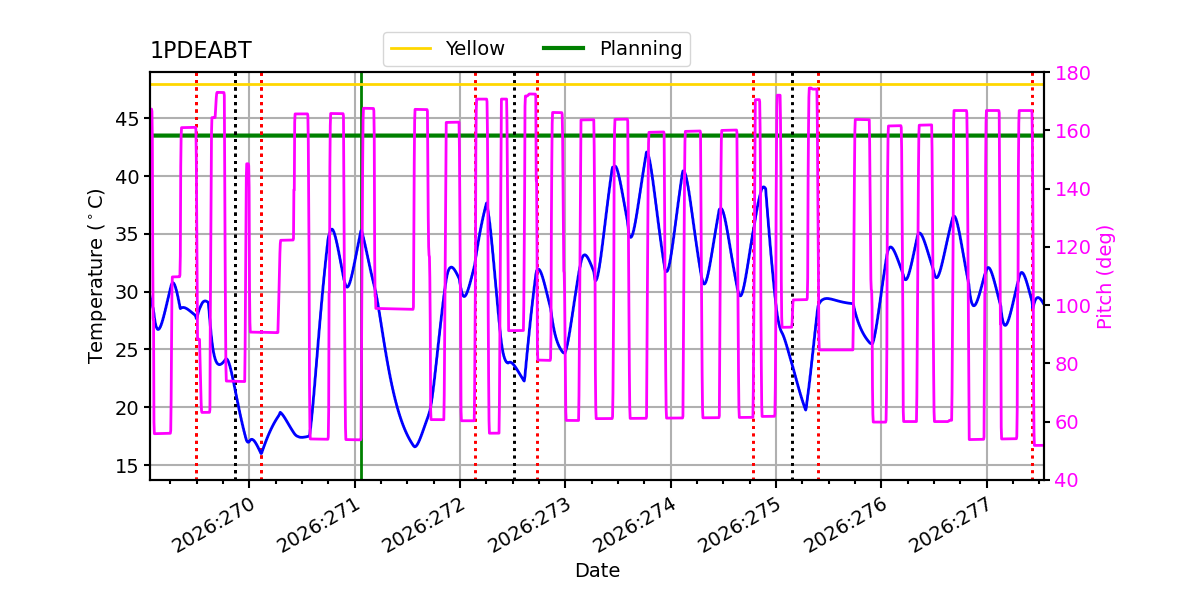

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.21 | -1.53 | -0.86 | 0.60 | 2.05 | 2.74 | 3.35 |
| pitch | -12.074 | -1.526 | -0.004 | -0.000 | 0.004 | 1.416 | 12.083 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.937 | -0.190 | -0.009 | 0.000 | 0.010 | 0.222 | 1.702 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -12.074 | 3.00 |
| PITCH | 99 | 12.083 | 3.00 |

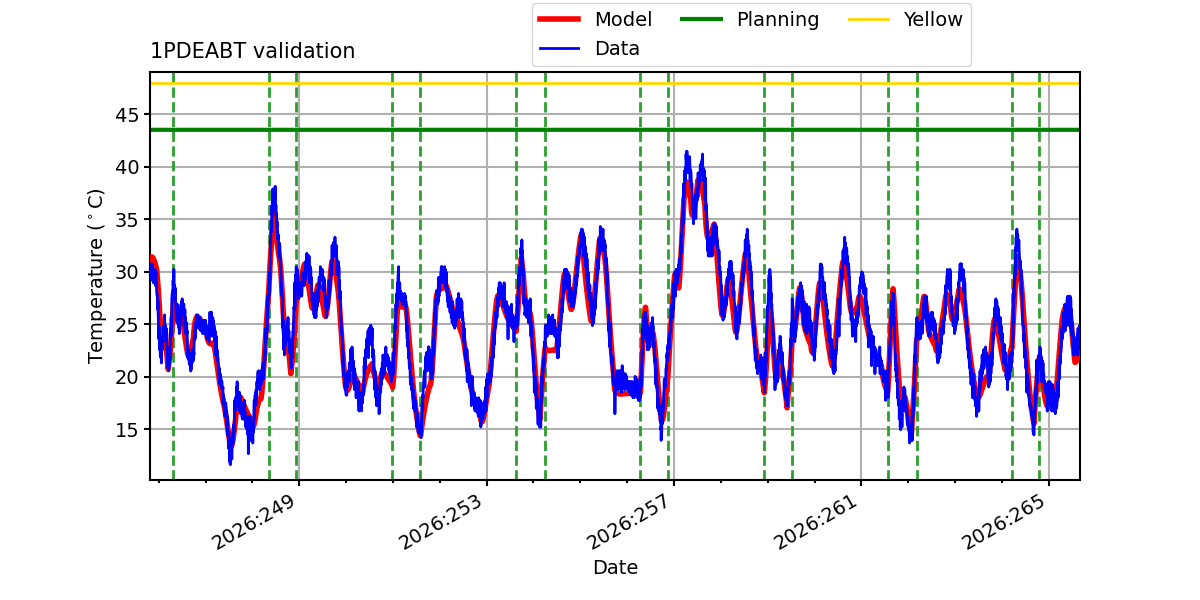

1PDEABT

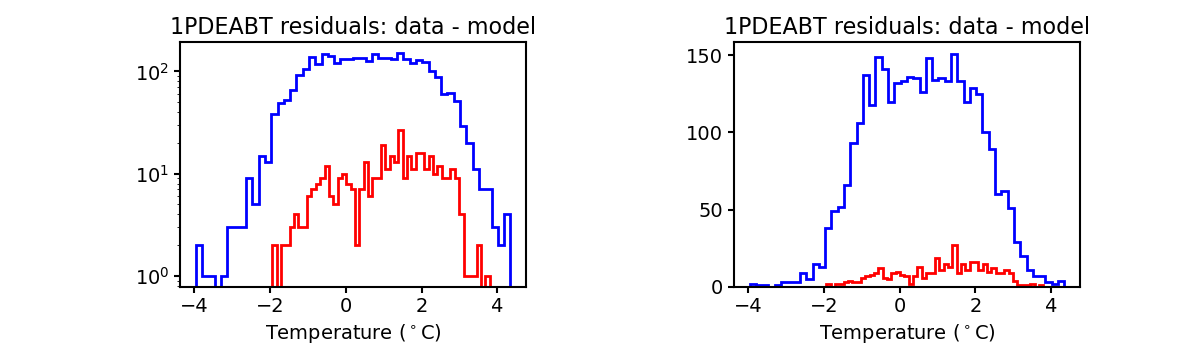

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

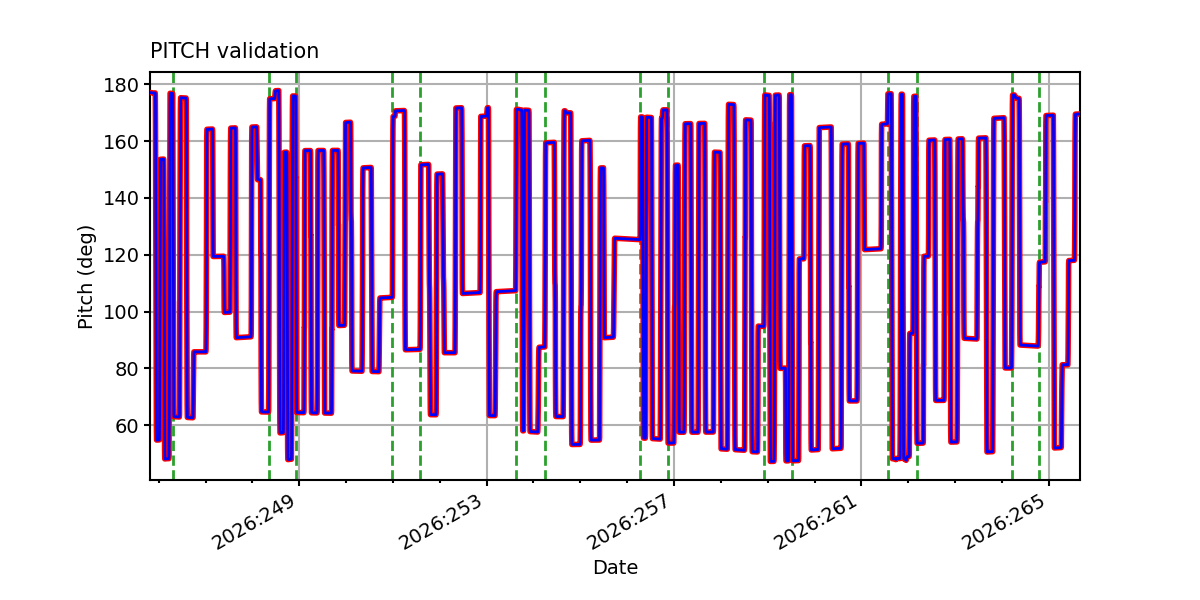

PITCH

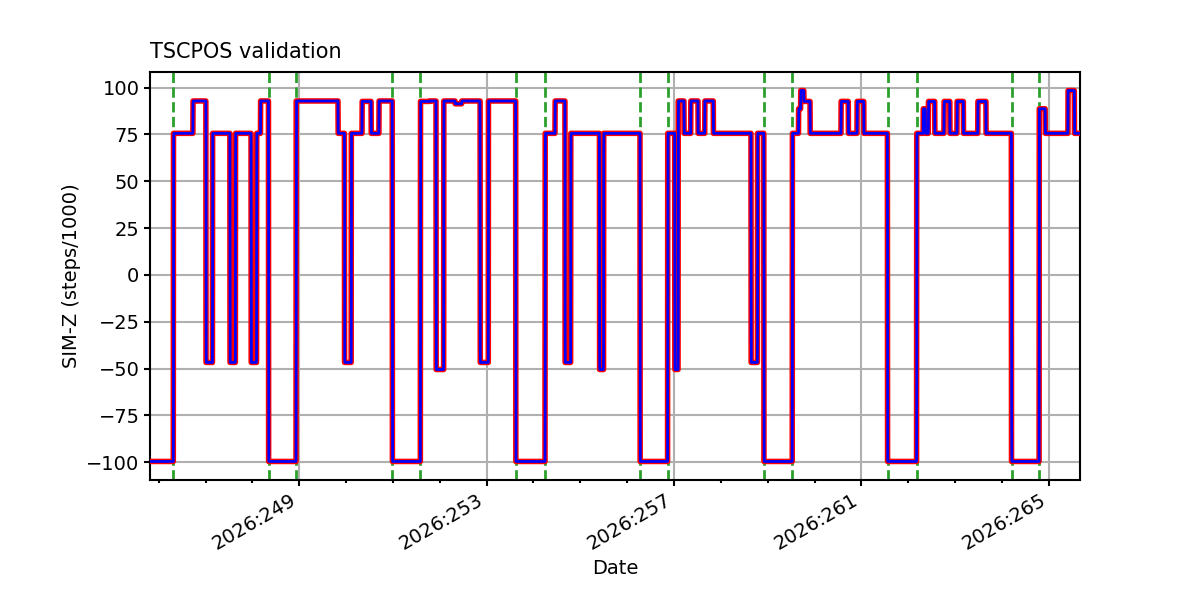

TSCPOS

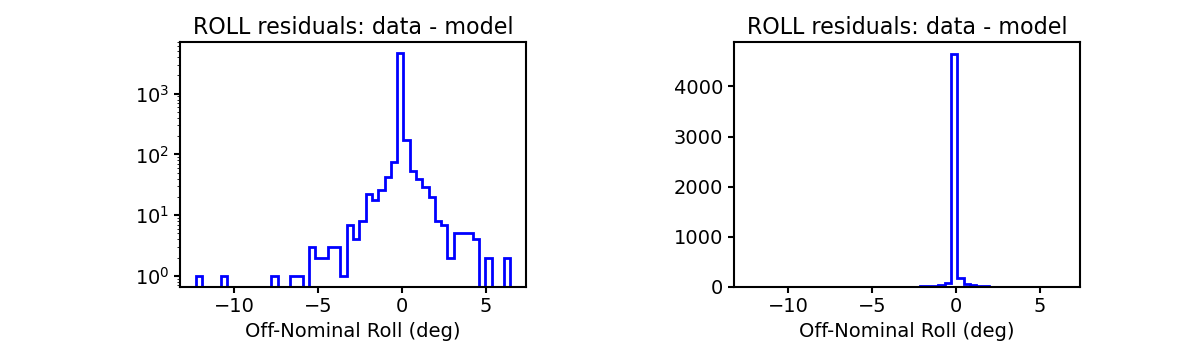

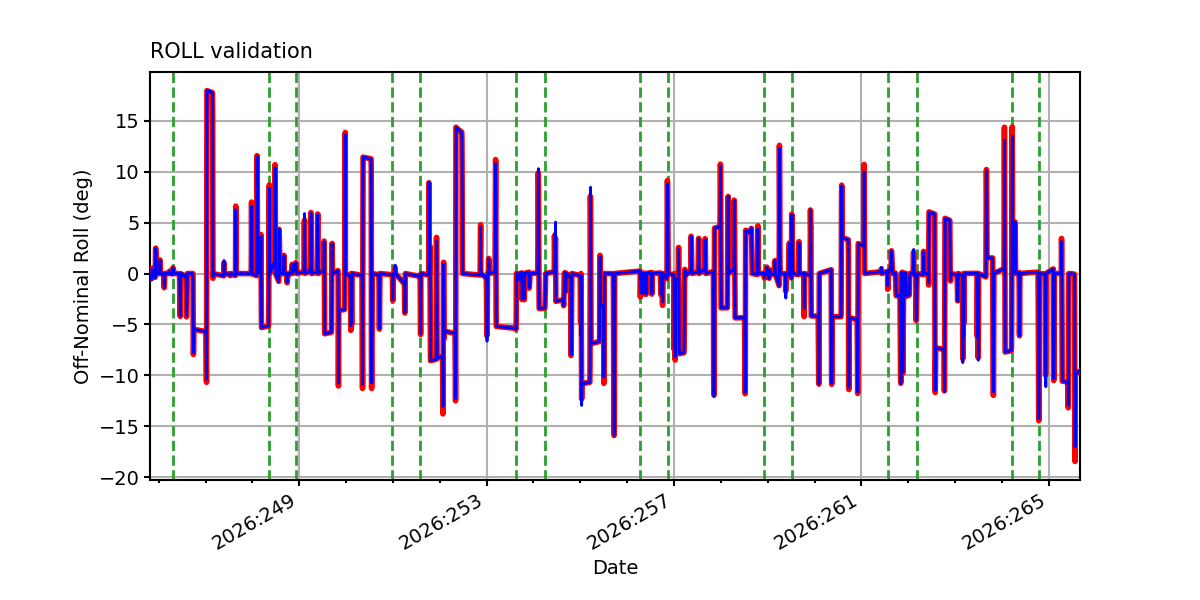

ROLL

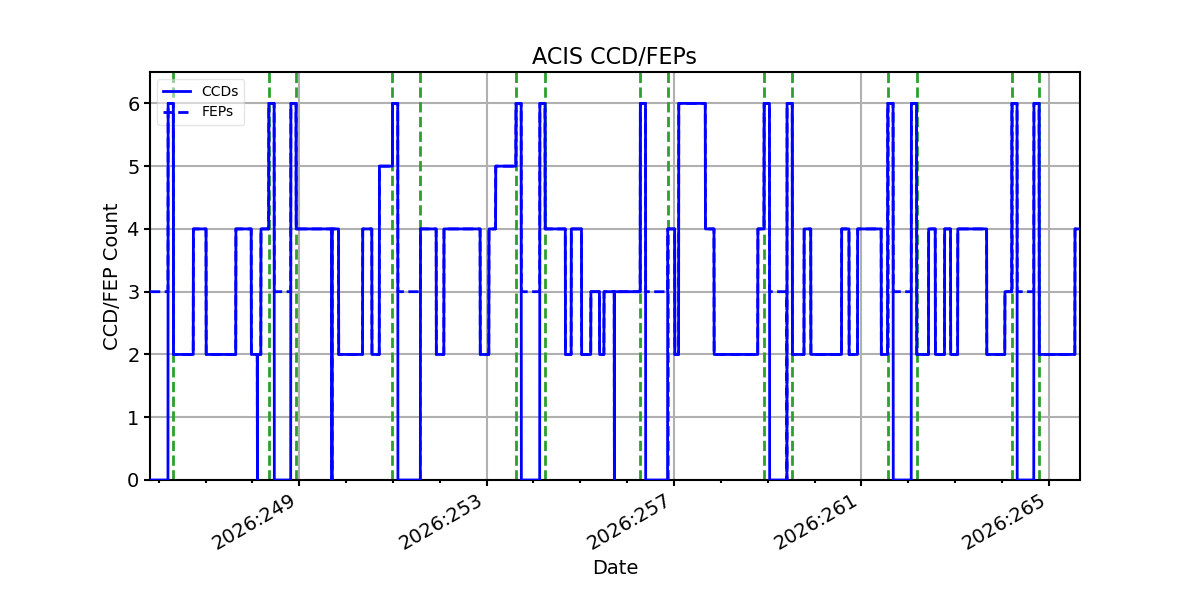

ACIS CCD/FEP Count
