PSMCBT Temperatures Check
Summary
| Date start | 2025:272:00:14:23.616 |
| Date stop | 2025:278:23:13:04.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP2925/oflsa |
| Run time | Thu Oct 8 16:15:46 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

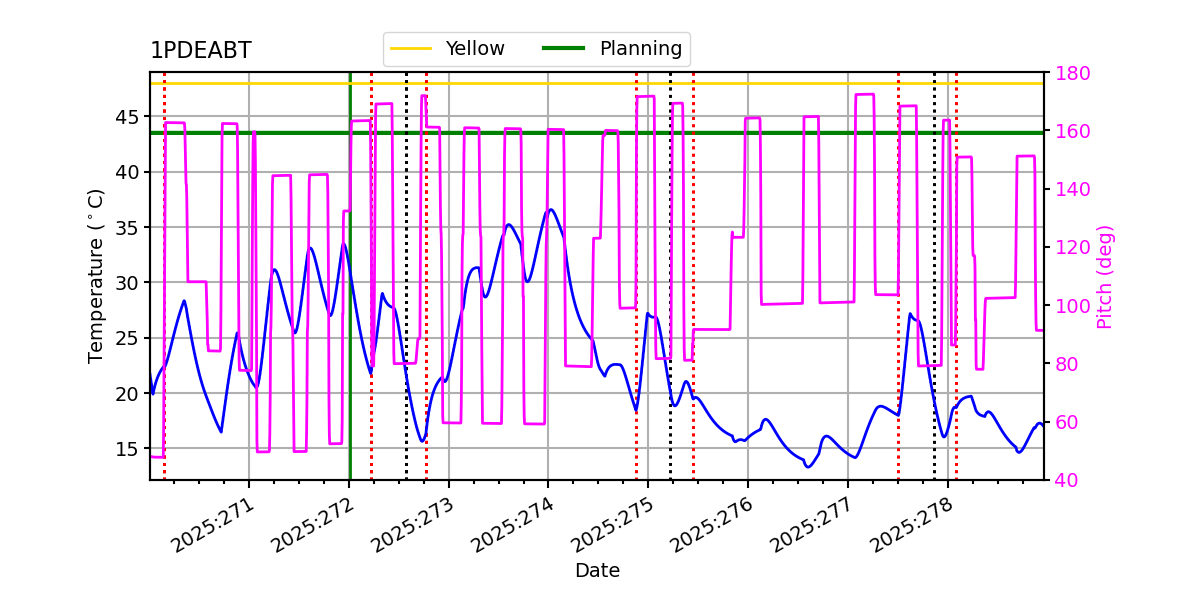

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.77 | -2.13 | -1.47 | -0.09 | 1.24 | 1.94 | 2.55 |
| pitch | -9.068 | -0.402 | -0.004 | 0.000 | 0.004 | 0.477 | 12.748 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.596 | -0.151 | -0.008 | -0.000 | 0.007 | 0.109 | 1.567 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.77 | 2.50 |
| PITCH | 1 | -9.068 | 3.00 |
| PITCH | 99 | 12.748 | 3.00 |

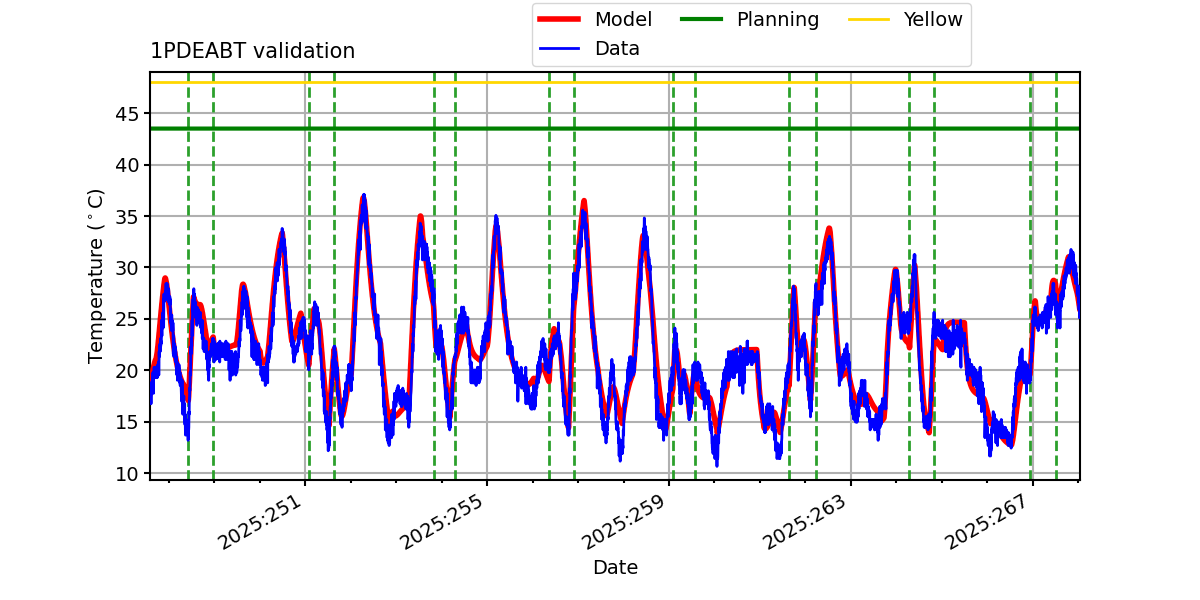

1PDEABT

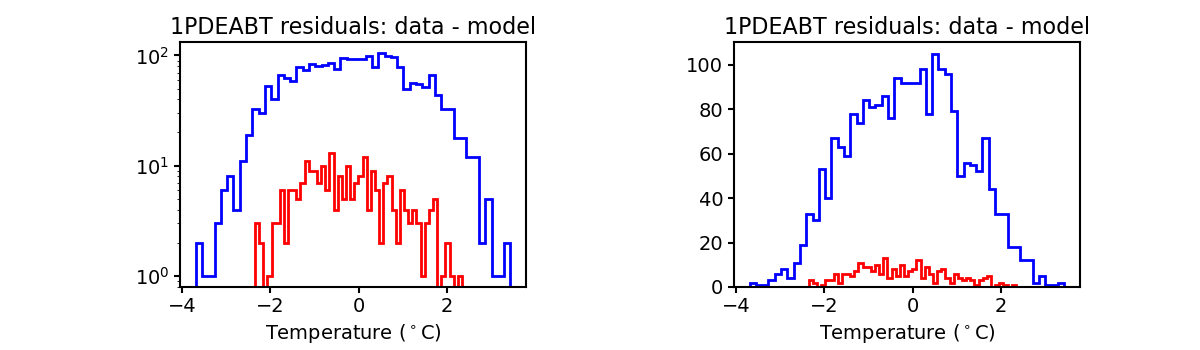

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

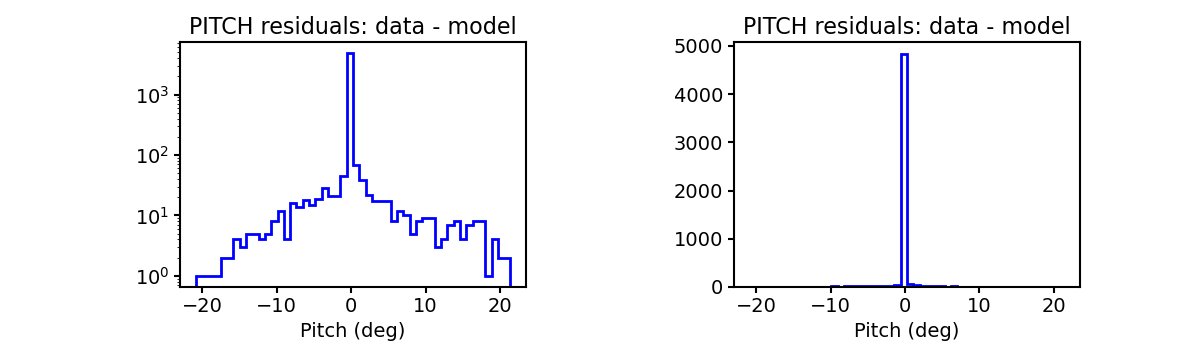

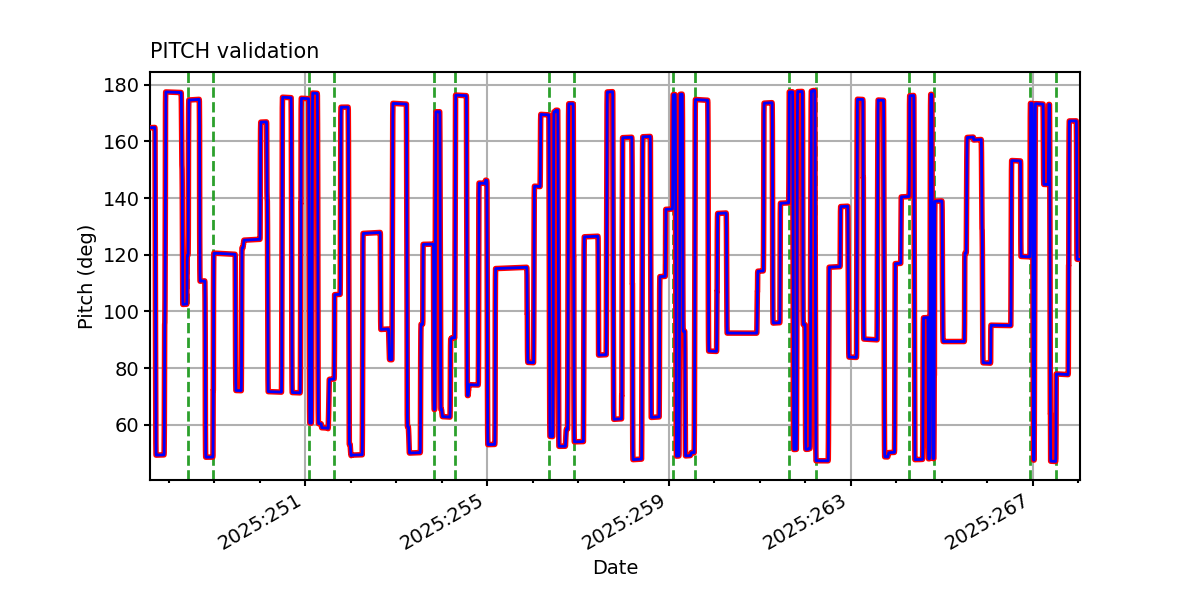

PITCH

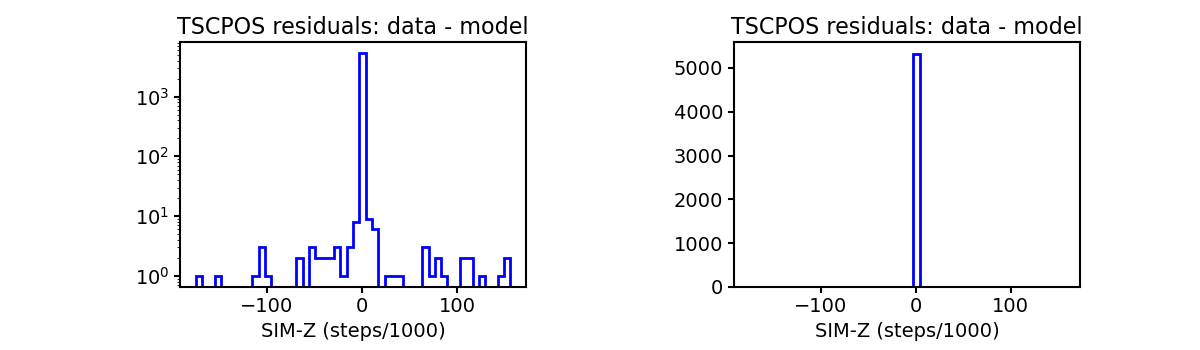

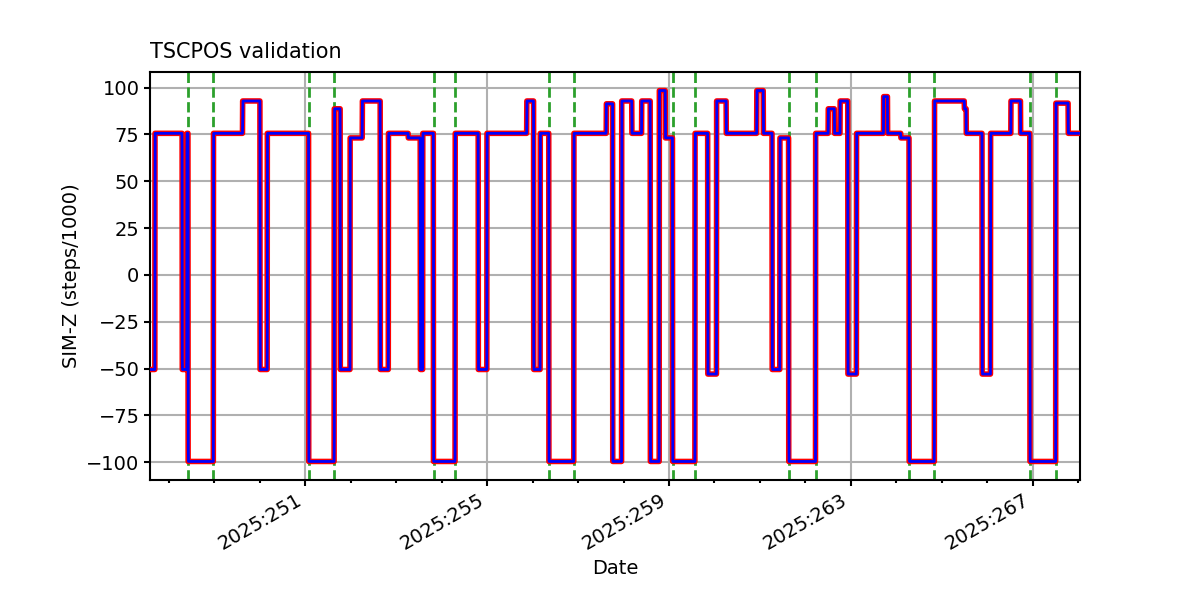

TSCPOS

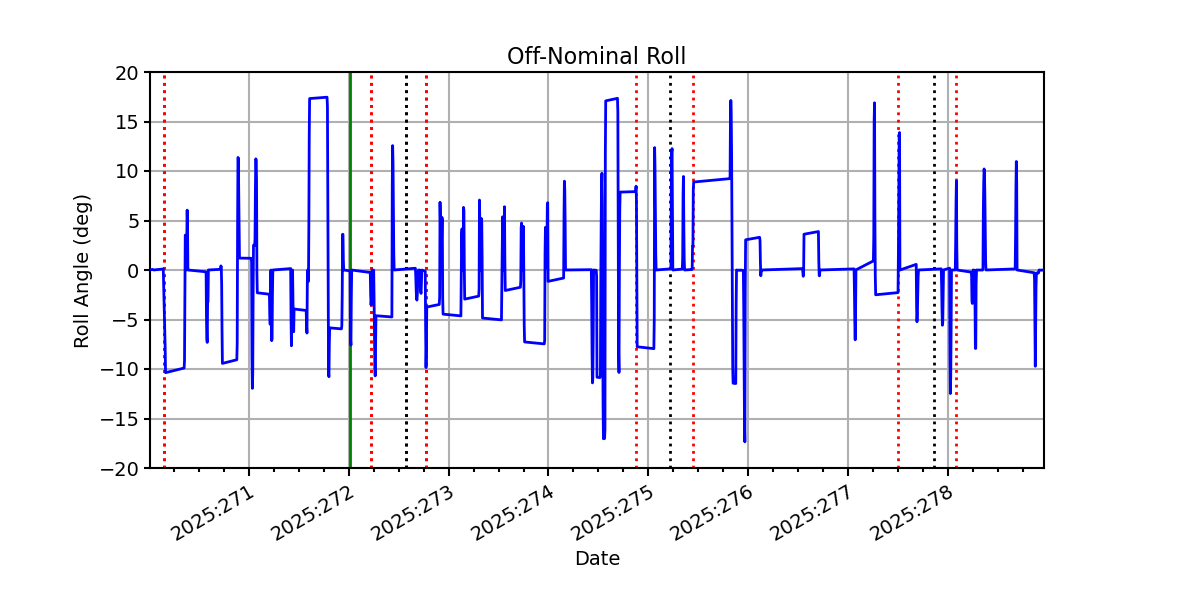

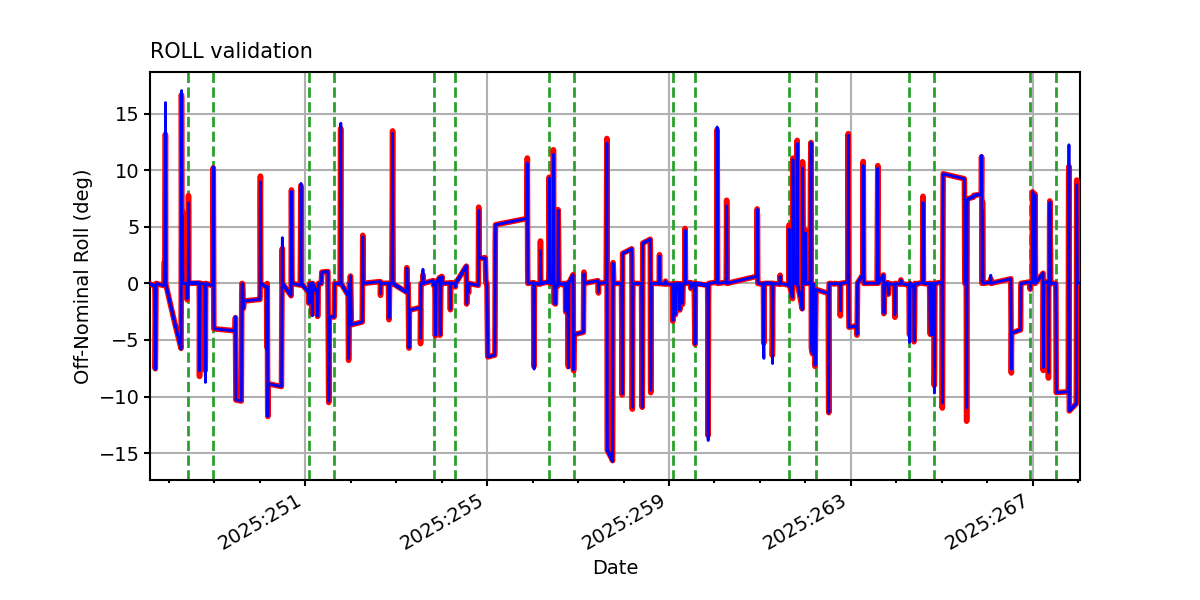

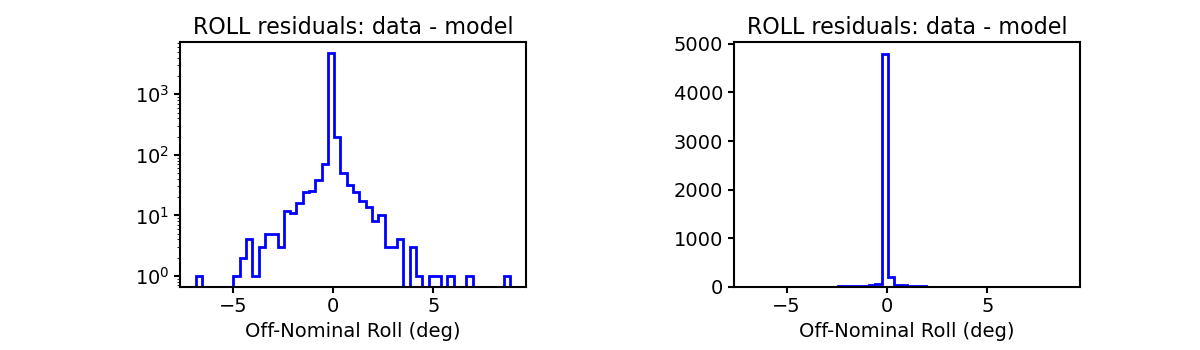

ROLL

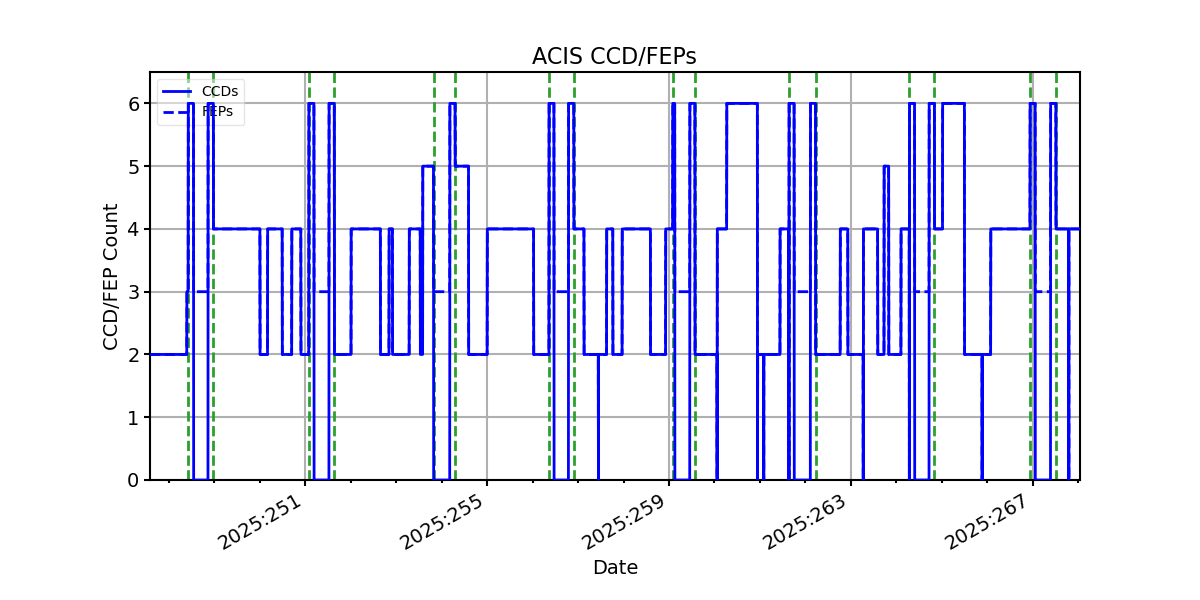

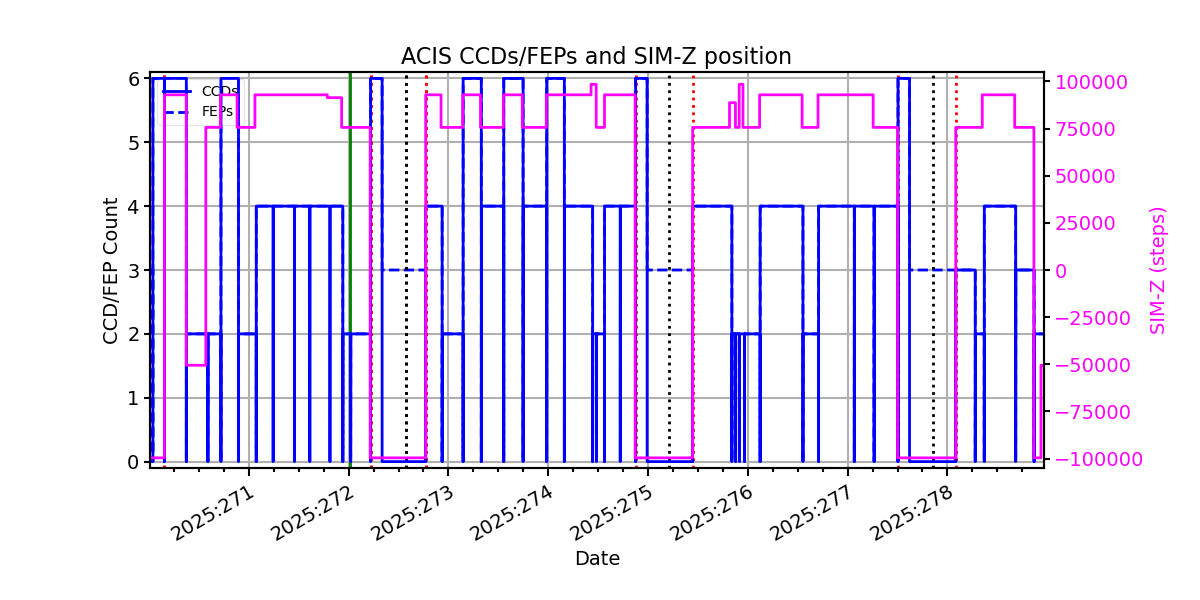

ACIS CCD/FEP Count
