PSMCBT Temperatures Check
Summary
| Date start | 2024:274:01:43:51.416 |
| Date stop | 2024:280:22:42:12.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/SEP3024/oflsa |
| Run time | Thu Oct 8 16:15:46 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

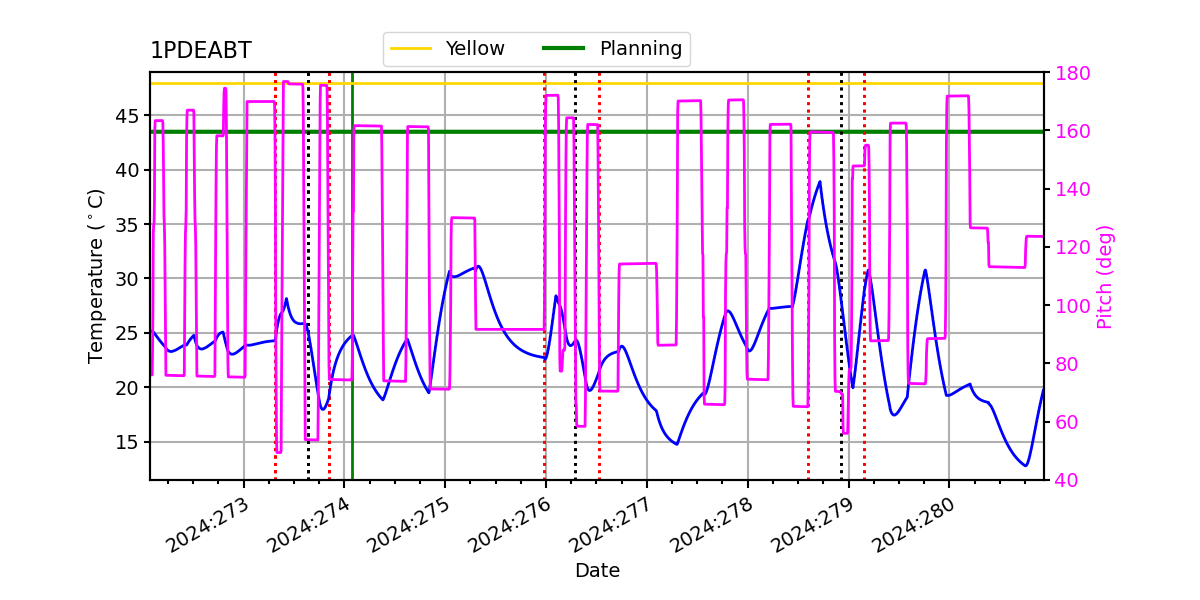

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.44 | -2.71 | -1.76 | -0.44 | 1.08 | 1.75 | 2.23 |
| pitch | -8.582 | -0.279 | -0.004 | -0.000 | 0.004 | 0.352 | 8.350 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.865 | -0.109 | -0.006 | -0.000 | 0.005 | 0.081 | 1.833 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.44 | 2.50 |
| PITCH | 1 | -8.582 | 3.00 |
| PITCH | 99 | 8.35 | 3.00 |

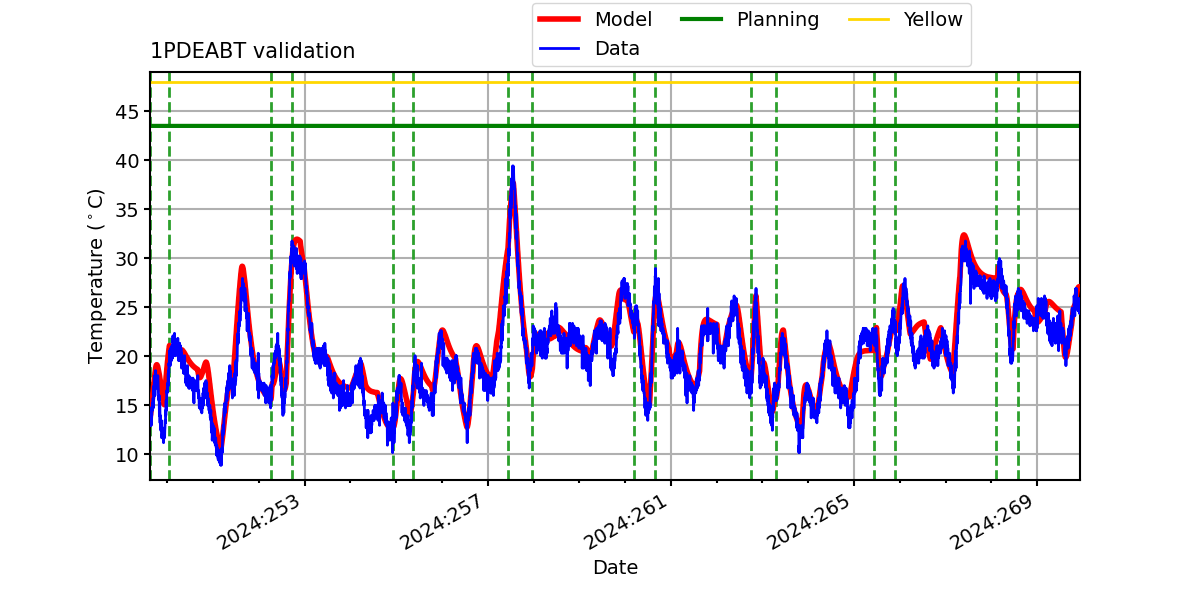

1PDEABT

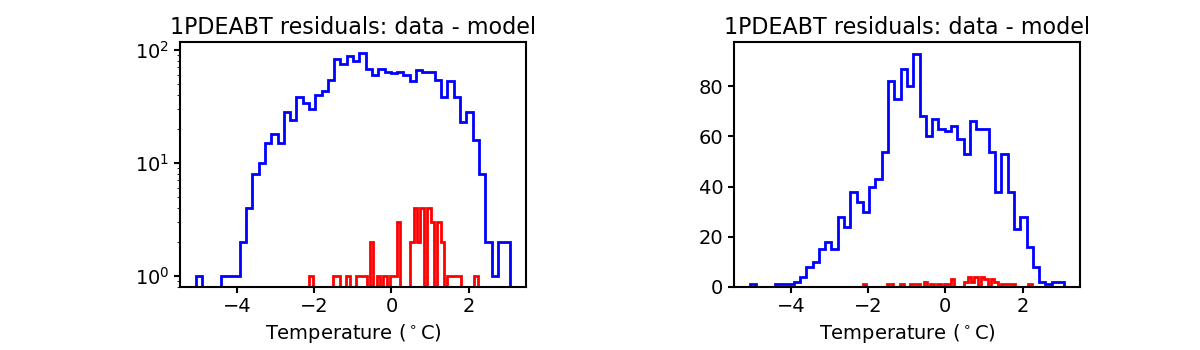

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

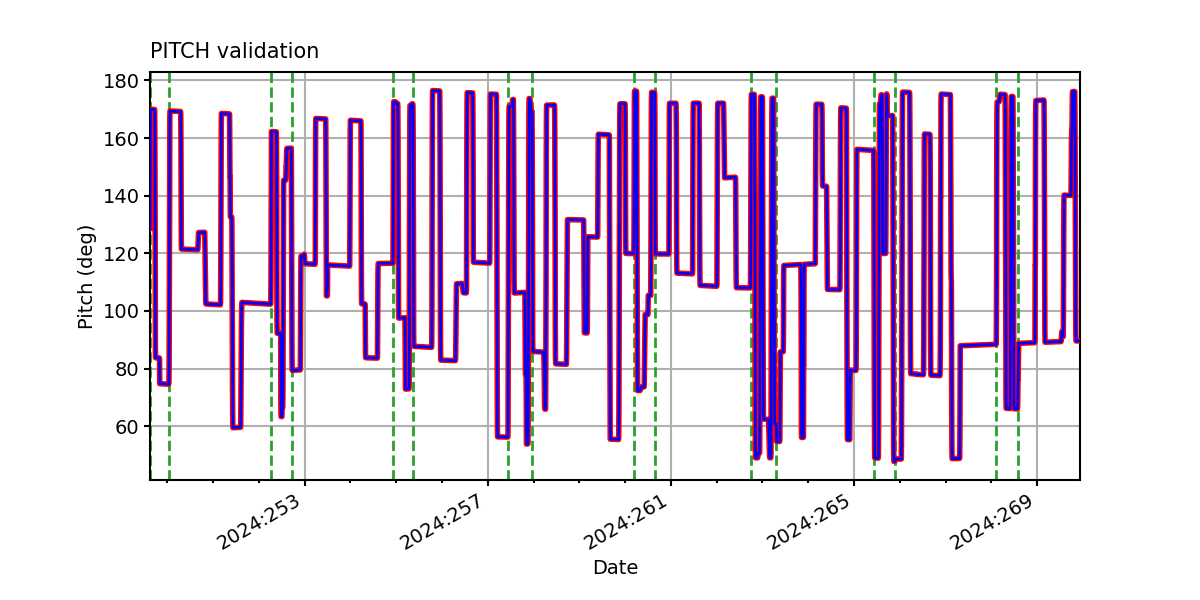

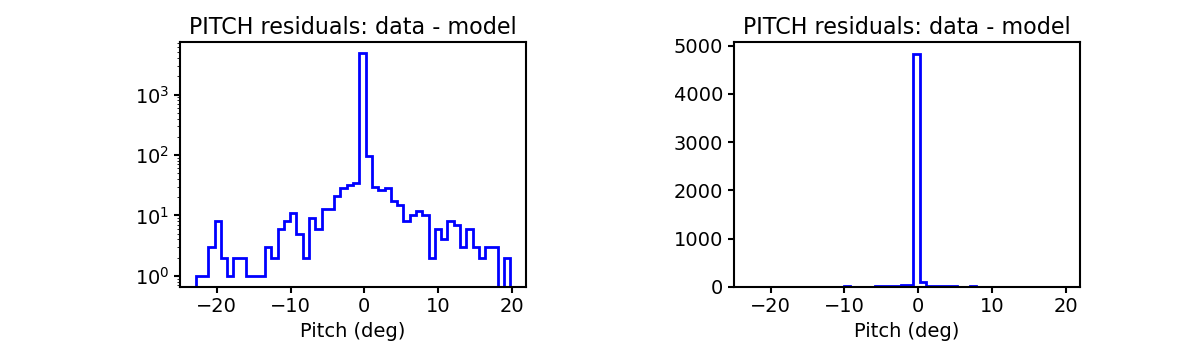

PITCH

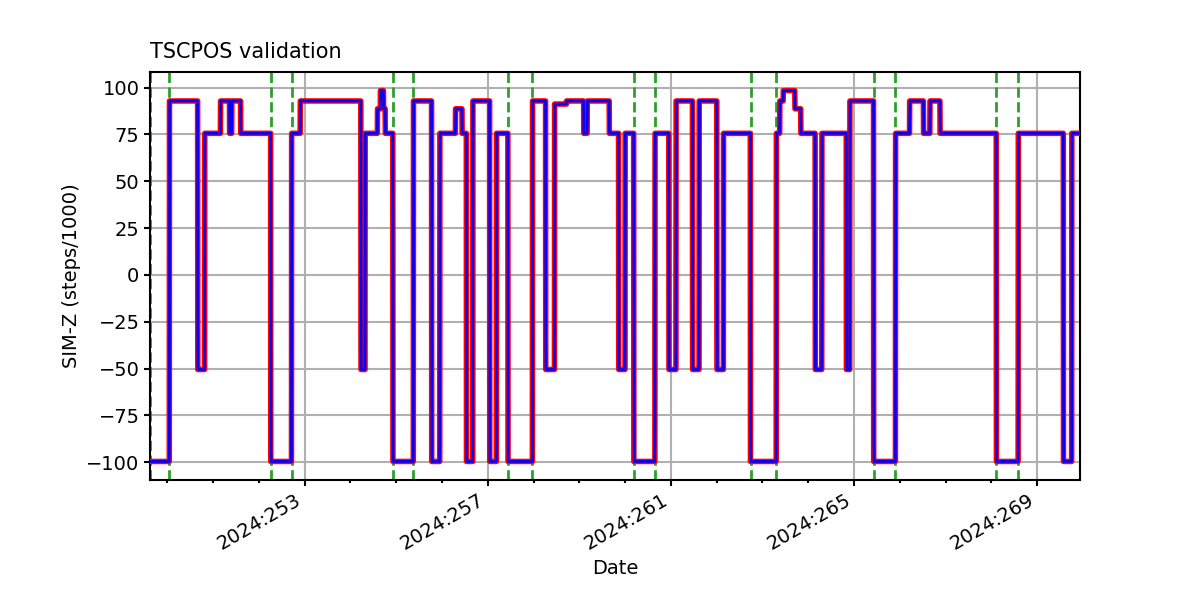

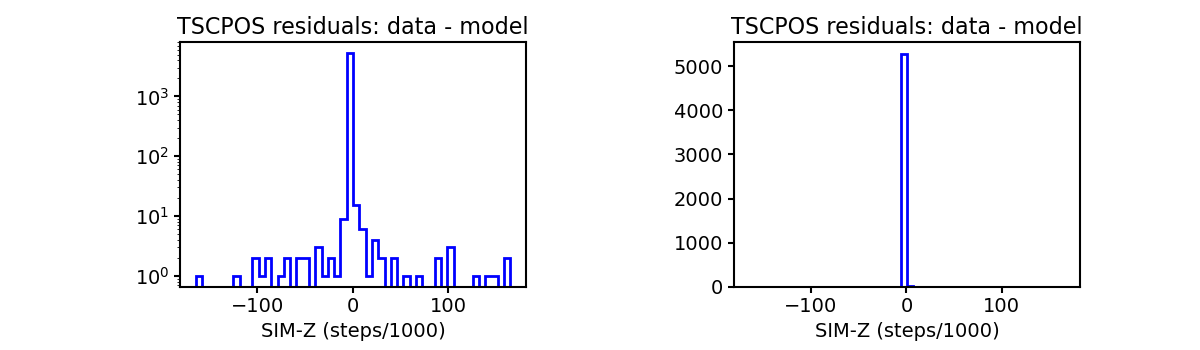

TSCPOS

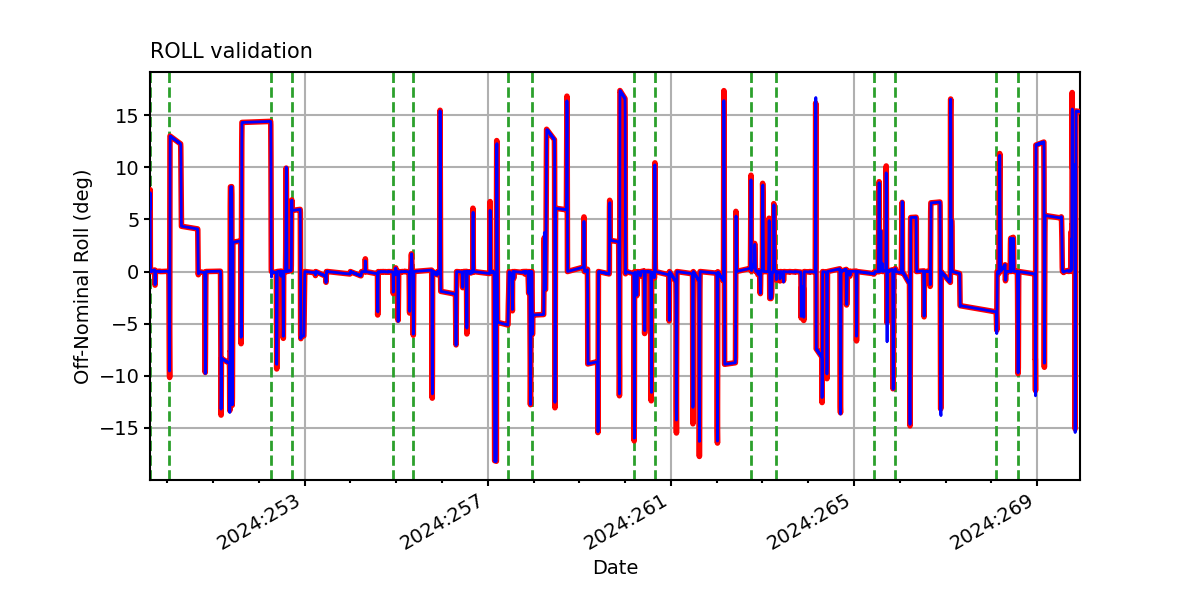

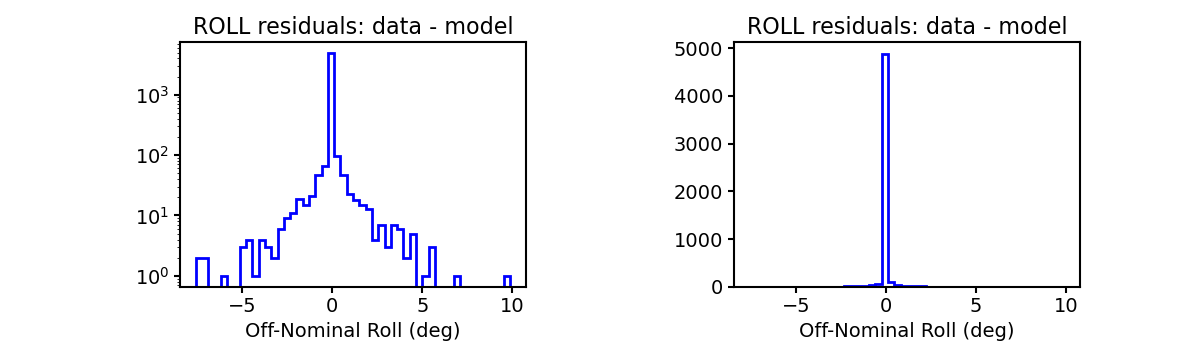

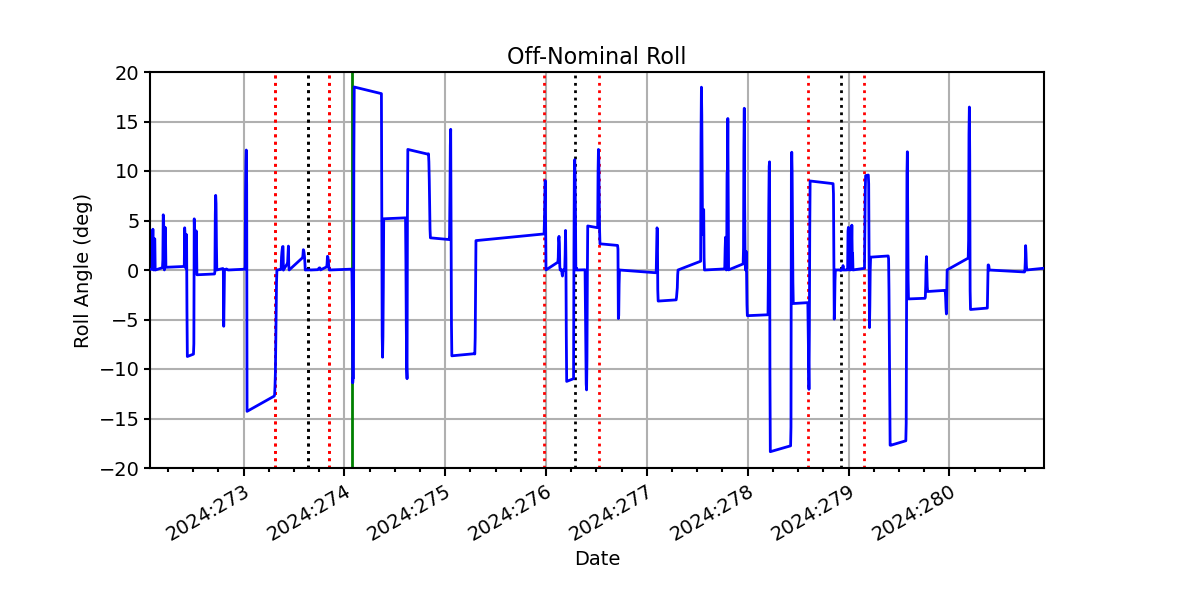

ROLL

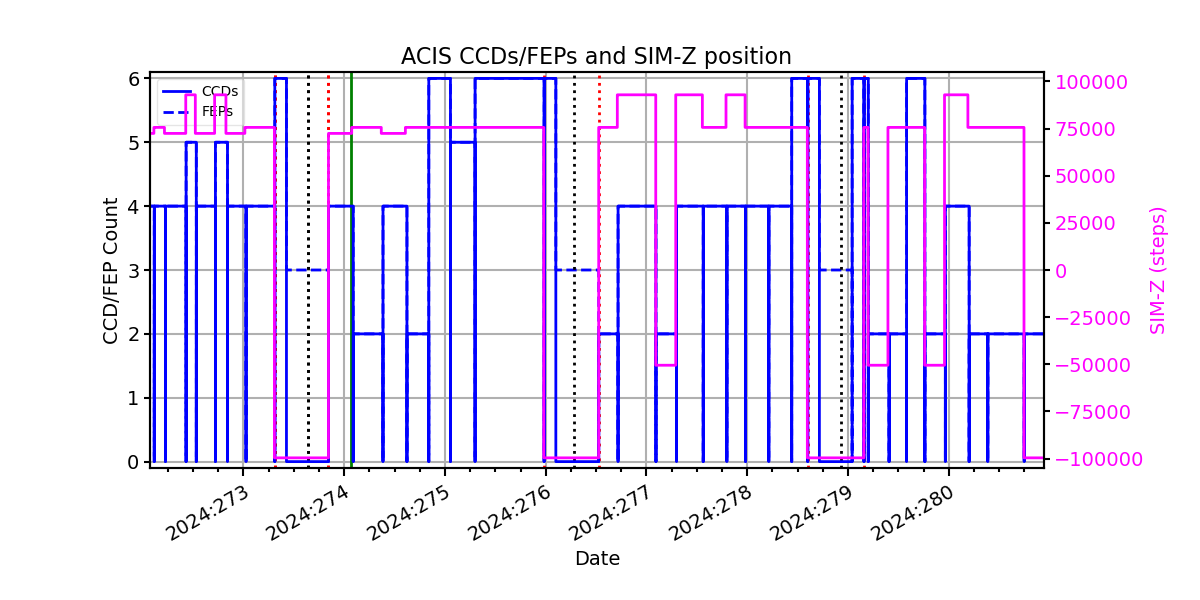

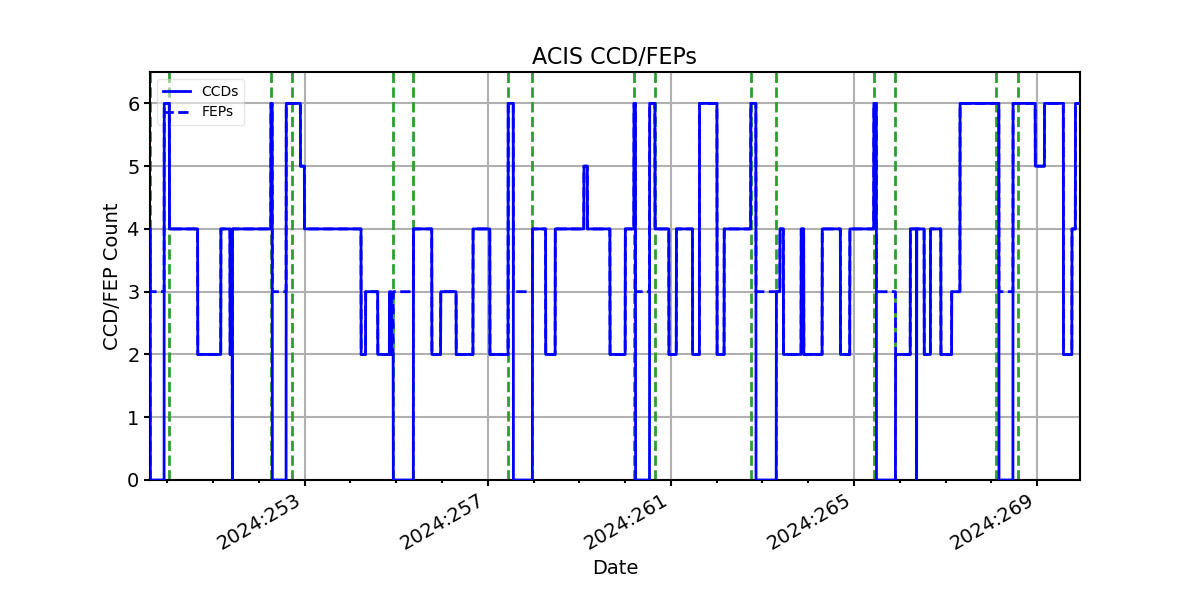

ACIS CCD/FEP Count
